pellenc OLIVION + Manuel utilisateur
PELLENC POWER TOOL BATTERY
OLIVION +
Operating instructions 56_131087-H
03/2020
ENG
Translation of the
original user guide
READ THE OPERATING INSTRUCTIONS
MANUAL CAREFULLY BEFORE USE
.
PELLENC POWER TOOL BATTERY OLIVION +
56_131087-H
TABLE OF CONTENTS
1. INTRODUCTION ..................................................................................................................... 4
2. SAFETY ................................................................................................................................... 5
2.1. SAFETY MEASURES ASSOCIATED WITH THE USE OF THE TOOL ......................................... 5
2.2. SAFETY MEASURES ASSOCIATED WITH BATTERY USE ......................................................... 5
2.3. SAFETY MEASURES WHEN USING THE "PELLENC" CHARGER ............................................. 6
2.4. STICKERS ........................................................................................................................................ 7
3. DESCRIPTION AND TECHNICAL CHARACTERISTICS ...................................................... 8
3.1. TECHNICAL CHARACTERISTICS - BATTERY ............................................................................. 8
3.2. TECHNICAL CHARACTERISTICS - CHARGER ............................................................................ 8
3.3. DESCRIPTION .................................................................................................................................. 9
4. COMMISSIONING ................................................................................................................. 10
4.1. FITTING THE BATTERY ON THE HARNESS .............................................................................. 11
4.2. FITTING THE HARNESS ............................................................................................................... 12
4.3. CHARGING THE BATTERY ......................................................................................................... 15
5. UPKEEP ................................................................................................................................ 17
5.1. GAUGE DISPLAY .......................................................................................................................... 17
5.2. BATTERY REPLACEMENT .......................................................................................................... 17
6. INCIDENTS AND TROUBLESHOOTING ............................................................................. 18
6.1. SUMMARY OF GAUGE DISPLAY AND BEEP MESSAGES ....................................................... 18
7. STORAGE AND TRANSPORT ............................................................................................ 19
7.1. BATTERY STORAGE CONDITIONS ............................................................................................ 19
8. WARRANTIES ...................................................................................................................... 20
8.1. GENERAL WARRANTIES ............................................................................................................. 20
8.1.1. STATUTORY WARRANTY ............................................................................................................... 20
8.1.2. COMMERCIAL WARRANTYPELLENC .............................................................................................. 20
8.1.3. PAID AFTER-SALES SERVICE ........................................................................................................ 21
9. COMPLIANCE STATEMENTS ............................................................................................. 23
9.1. "EC" DECLARATION OF CONFORMITY: OLIVION + ................................................................ 23
3
PELLENC POWER TOOL BATTERY OLIVION +
56_131087-H
1. INTRODUCTION
Dear Customer,
Thank you for purchasing your PELLENC Power Tool battery OLIVION +. Correctly used and maintained, this tool
will give a satisfactory performance for many years.
Warning
Your device contains numerous recoverable or recyclable materials. Return it to your
dealer or, failing this, to an approved servicing centre to be treated.
Comply with the regulations in force in your country as concerns environmental protection associated with your
activity.
Warning
It is imperative that you read through the ENTIRE user’s manual before using or servicing the
tool. Always comply with the instructions and illustrations in the manual.
All through this user guide you will find advisory notes and information entitled: NOTE, IMPORTANT, ATTENTION
and WARNING.
The points marked “NOTE” indicate additional information.
The points marked “IMPORTANT” warn the user of a potential risk to the equipment.
The points marked “ATTENTION” warn the user of a potentially hazardous situation which if not avoided leads to
minor injuries.
The points marked “WARNING” warn the user of a potentially hazardous situation which if not avoided leads to
serious injury or death.
The warning indicates that damage resulting from failure to comply with the procedures and instructions is not
covered by the warranty and the owner will be liable for any repair costs.
Safety indications are also given on the tool; they remind you of the safety precautions to be taken. Identify and
read these indications before using the tool. Immediately replace any indications that may become partially illegible
or deteriorated.
Refer to Section 2.4, “Stickers” for the location diagram of the safety stickers affixed to the tool.
No part of this manual may be reproduced without the written permission of the company PELLENC. The illustrations
given in this manual are for information purposes and are in no way contractual. The PELLENC company reserves
the right to make any modification or improvement to its products as deemed necessary without informing customers
already in possession of a similar model. This manual forms an integral part of the tool and must accompany the
tool if it changes hands.
4
PELLENC POWER TOOL BATTERY OLIVION +
56_131087-H
2. SAFETY
Warning
Never carry out maintenance work on damaged battery packs. Service of battery packs should
only be performed by the manufacturer or authorized service providers.
2.1. SAFETY MEASURES ASSOCIATED WITH THE USE OF THE TOOL
Note
Please refer to the instructions of the tool concerned.
Warning
Read all the safety measures and all the instructions. Retain all the safety measures and instruc-
tions for later reference.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental ca-
pabilities, or lack of experience and knowledge, unless they have been given supervision or preliminary instructions
by a person responsible for their safety.
2.2. SAFETY MEASURES ASSOCIATED WITH BATTERY USE
1. If not using the battery unit, store it away from other metal objects such as paper clips, coins, keys, nails, screws
or other such small metal items that might form a connection between the two terminals. Creating a short-circuit
between the battery terminals can lead to burns or cause a fire.
2. Keep the battery out of the reach of children and place it on a non-combustible support.
3. Do not interfere with its cooling cycle.
4. Do not use or leave the battery near a heat source (> 60°C).
5. Do not leave the battery in direct, strong sunlight.
6. Do not expose the battery to microwaves or high pressure.
7. Do not immerse the battery in water.
8. The batteries must be charged in a dry, ventilated room at a temperature between 10°C and 25°C maximum,
away from any moisture.
9. If the battery is not used for 10 days, the battery will automatically discharge until it reaches its storage charge
rate, and then goes to sleep. It will heat up during this phase.
10. Over time, the capacity of your battery reduces. When it reaches half of its original battery-life operating time,
it should be replaced.
11. The battery may lose 1 to 4 % of its capacity when exposed to a temperature higher than or equal to 55 °C
for one week.
12. The charging location must be equipped with a class D fire extinguisher (for metal fire) in good working order.
13. The standards in effect must be complied with when either shipping a complete tool or a battery.
• A complete tool with a battery is a product that is classified as class 9, UN3481.
• Battery alone: product that is classified as class 9, UN3480.
14. Use of a battery other than that provided by Pellenc SA is dangerous (risk of serious injury). If a different battery
is used, Pellenc SA cannot be held responsible for any consequences.
15. The battery must be protected from any impact and must be positioned and secured appropriately during trans-
portation.
16. In the case of suspicious smoke, place the battery outside the charging area or transportation vehicle as far
away as possible from any inflammable material.
17. Never store a battery when its capacity is below 50 %. Recharge the battery before storage if the value is
below 50%.
5
PELLENC POWER TOOL BATTERY OLIVION +
56_131087-H
18. In inappropriate conditions, a liquid can flow batteries; avoid contact with it. In the event of accidental contact,
rinse with water. In the event of contact with eyes, seek professional medical help. The liquid leaking from the
batteries can cause irritations or burns.
19. Pellenc power tools must only be used with the battery units designed for the purpose. Use of other battery
units can present a risk of injury and fire.
20. Only recharge using the charger indicated by the manufacturer. A charger adapted to one type of battery unit
may present a fire risk if used with a different battery unit.
21. Do not use the battery for any purpose other than that initially envisaged (exclusively for use with Pellenc tools).
22. At the end of its life, the battery must be returned to the authorized distributor from whom it was purchased to
be recycled in accordance with waste regulations.
23. Fragile case, contains an electronic board and lithium.
2.3. SAFETY MEASURES WHEN USING THE "PELLENC" CHARGER
1. When in operation, the charger’s temperature can reach 60°C. No flammable material must be within 1.5 metres
of the charger and battery.
2. Place the charger out of children’s reach and onto a non-combustible support.
3. Do not interfere with its cooling cycle.
4. The charger supplied with the battery is designed to recharge the battery. Do not charge non-rechargeable
batteries.
5. The charging location must be equipped with a class D fire extinguisher (for metal fire) in good working order.
6. If the output cord is cut or damaged, bring the entire charger back to the authorised distributor where the tool
was purchased.
7. Only recharge using the "PELLENC" charger indicated by the manufacturer. A charger adapted to one type of
battery unit may present a fire risk if used with a different battery unit.
8. This charger is designed to charge the batteries of Pellenc's lithium tools.
9. Do not use it for any other purposes.
10. Children must be supervised to ensure they do not play with the charger.
11. Verify that the cable cannot be folded and does not touch hot surfaces or sharp edges.
12. Ensure good ventilation during the charge.
13. Never cover the charger. This charger must not be used outdoors.
14. Make sure the power connector is not exposed to water.
15. Never charge a damaged battery.
16. The grid connection must comply with national electrical regulations.
17. Check the cable of the charger before using it. Never use the charger if the cable is damaged
18. When the battery is charging, place the charger on a non-flammable support, more than 1.5 m away from any
flammable object.
6
PELLENC POWER TOOL BATTERY OLIVION +
56_131087-H
2.4. STICKERS
OLIVION + battery
Do not expose to rain.
Read the user guide.
This equipment must be used at a temperature of between -5° and +35°C.
Lithium-ion battery.
At the end of its life, the battery must be returned to the authorized distributor from whom it was
purchased to be recycled in accordance with waste regulations.
Tool compliant with Moroccan standards.
Tool compliant with EC standards.
Marking symbol for identifying the chemical characteristic of the battery during recycling.
7
PELLENC POWER TOOL BATTERY OLIVION +
56_131087-H

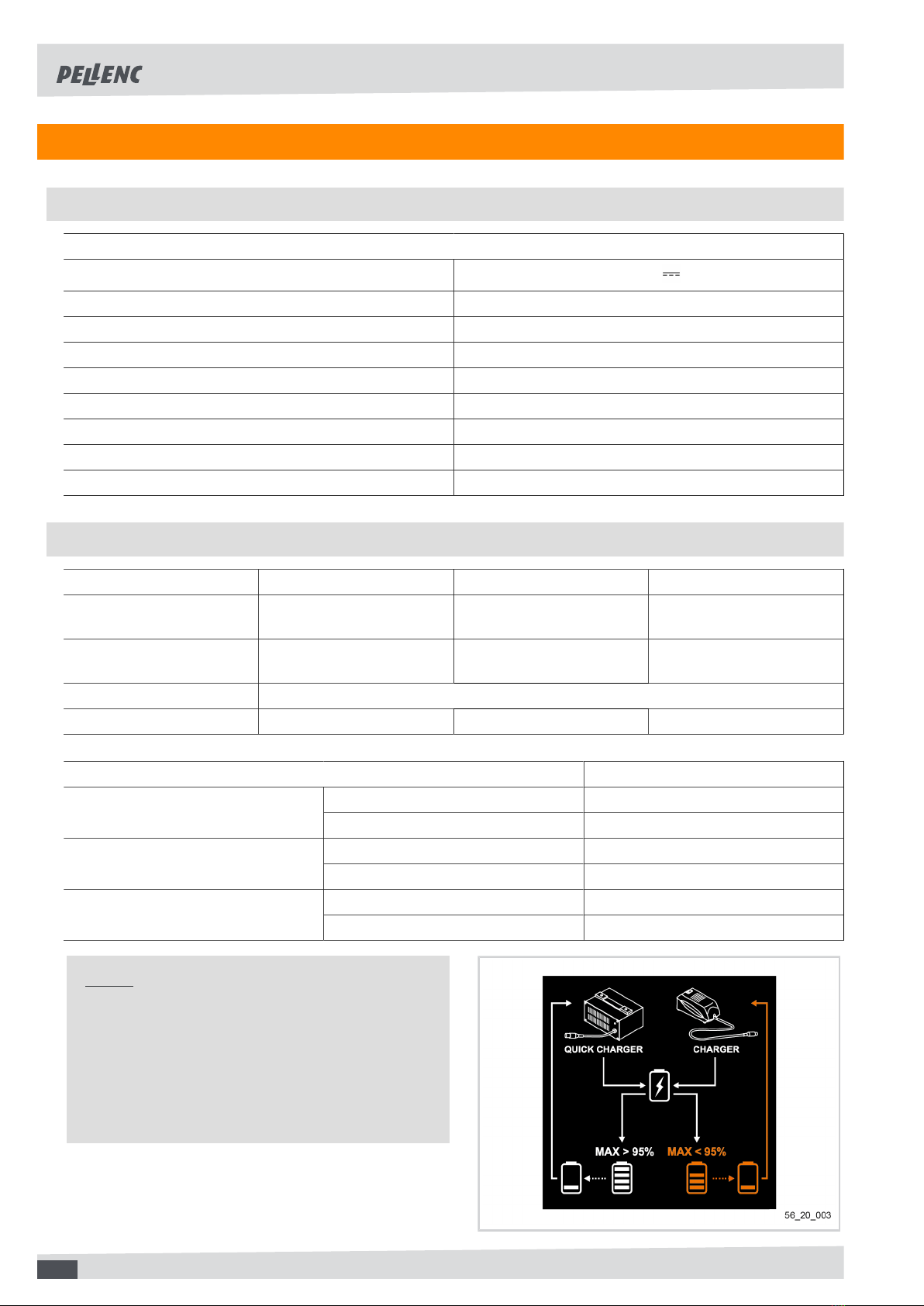

3. DESCRIPTION AND TECHNICAL CHARACTERISTICS
3.1. TECHNICAL CHARACTERISTICS - BATTERY
Characteristics of OLIVION + battery
Nominal\battery voltage 43.2 V
Type of battery 12 times 6 elements included in 1 pack
Battery capacity 17.4 Ah
Battery power 752 Wh
Battery life Depending on the tool
Weight of the battery 4.9 kg
Weight of the carrying vest (comfort harness) 1.5 kg
Weight of the carrying vest (light harness) 0.83 kg
Operating frequency bands 13.56 MHz, receiver
3.2. TECHNICAL CHARACTERISTICS - CHARGER
CB5022 Charger Quick charger CB5075 CB5022HV charger
Commercial reference of
the charger
57230 57011 57256
Voltage 100-240V ~ 50/60Hz
140W class II
100-240V ~ 50/60Hz
485W class I
100-240V ~ 50/60W 130W
class II
Charging voltage 50.2 V dc
Charging current 2.2A DC max. 7.6A dc max. 2.2A DC max.
Battery OLIVION +
70% 5 hrs. 30 min.
CB5022 Charger (2.2A) 100% 9 hrs
70% 01:30
Quick Charger CB5075 (7.6 A) 100% 03:15
70% 5 hrs. 30 min.
CB5022HV charger (2.2 A) 100% 9 hrs
Note
If after charging with the CB5075 charger the bat-
tery display indicates less than 95%, the next time
the battery is charged it must be done with the orig-
inal charger.
The sticker shown below is affixed to the CB5075
charger as a visual reminder of this warning.
8
PELLENC POWER TOOL BATTERY OLIVION +
56_131087-H

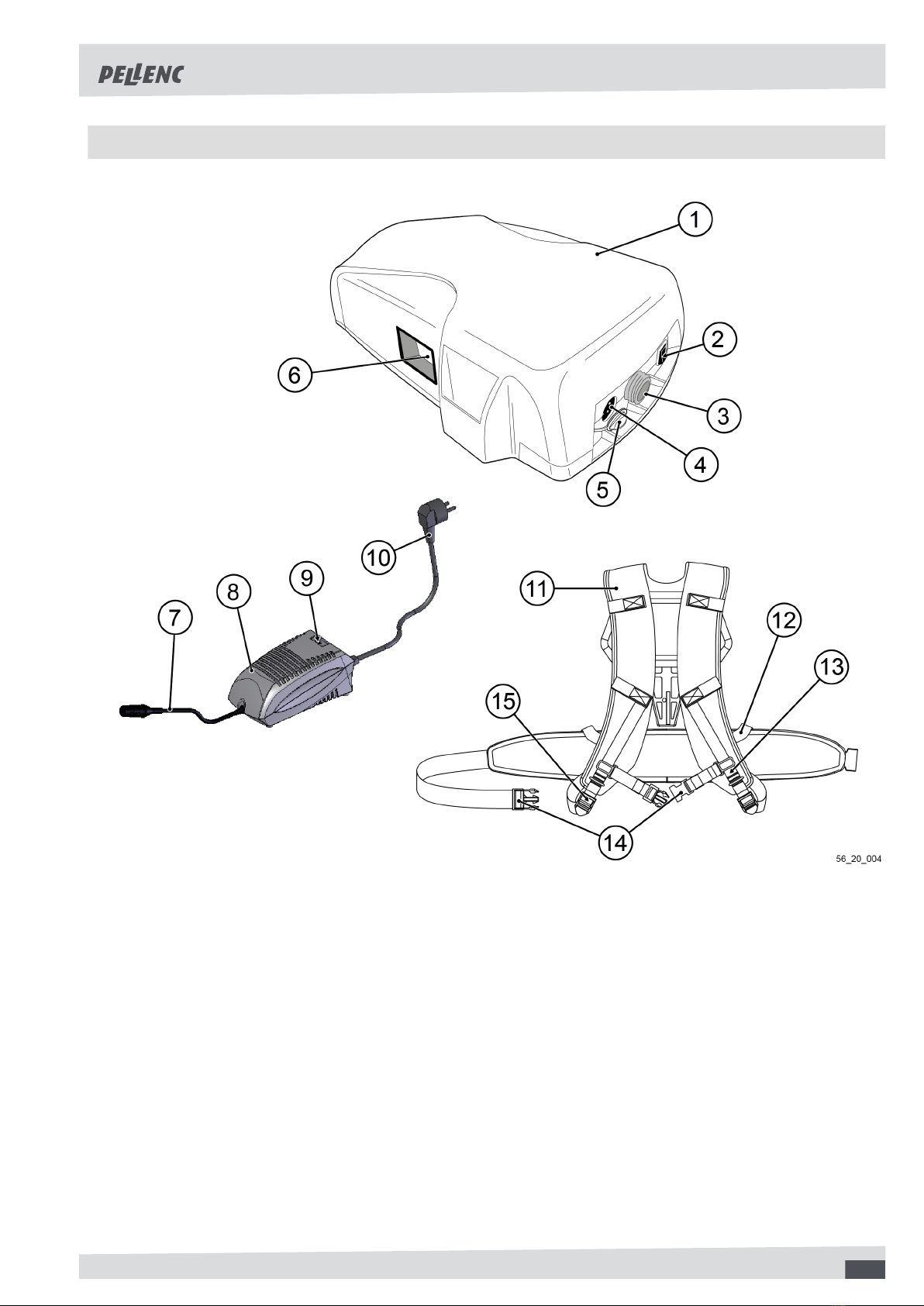

3.3. DESCRIPTION
1. Battery
2. ON/OFF switch
3. Tool power cable connector
4. Charging connector (battery)
5. Charge connector cap
6. Gauge display
7. Charging cord (charger)
8. Charger
9. Charger indicator light
10. Charger power connector
11. Equipment carrier vest
12. Retaining strips
13. Straps
14. Tightening buckles
15. Chest adjustment loops
9
PELLENC POWER TOOL BATTERY OLIVION +
56_131087-H
4. COMMISSIONING
Important
The battery must be fully charged (100 %) before being using for the first time in the new season.
