PEERLESS ACC 908 Mode d’emploi

1 of 5 ISSUED: 04-28-03 SHEET #: 095-9161-3 08-16-04

Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

Model: ACC 908

Installation and Assembly - Metal Stud Accessory Kit for

LCL, LCS, and LCA Models

Maximum Load Capacity:

25 lb (11.4 kg)

Read instruction sheet before you start installation and assembly.

Before you start check the parts list to insure all of the parts shown are included.

Parts List

Description Qty. Part Number

Ametal stud wall plate 1 095-4173

Bzip-it drywall anchor 4 590-2107

C1/4-20 x 2.5" round head phillips screw 2 520-9522

D1/4-20 toggler 2 590-1093

E1/4-20 x 1/2" flat head phillips screw 2 520-2178

F1/4-20 x 1/2" pan head phillips screw 2 520-9511

G#8 x 1" pan head phillips sheet metal screw 4 520-2179

Note: Some parts may appear slightly different than illustrated.

2 of 5 ISSUED: 04-28-03 SHEET #: 095-9161-3 08-16-04

Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

Use stud finder to locate center of metal stud. Place and level

metal stud wall plate (A) on wall and mark the centers of the

six circled holes on the wall as shown right.

Drill two 11/16" (17 mm) dia. holes through center of metal

stud. Screw four zip-it drywall anchors (B) in the four marked

corner holes as shown below.

METAL

STUD

DRYWALL

11/16" dia. hole

(2 plcs.)

3 of 5 ISSUED: 04-28-03 SHEET #: 095-9161-3 08-16-04

Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

Attach metal stud wall plate (A) to center of metal

stud using two 1/4-20 x 2.5" phillips screws (C) and

two 1/4-20 togglers (D) as shown below and in

Illustration A,but do not tighten until after the metal

stud wall plate (A) is securely fastened in step 3.

Pull screw (C) back until toggler (D) is flush with

metal stud and hold. Thread screw through with

fingers and loosely tighten.

Place screw (C) through metal stud wall plate (A).

Partially fasten toggler (D) to back of screw. Pivot

toggler ends 90° and push through hole in drywall.

DRYWALL

DRYWALL METALSTUD

ILLUSTRATION A

Fasten metal stud wall plate (A) using four #8 x 1"

phillips sheet metal screws (G) as shown. Securely

tighten two 1/4-20 x 2.5" phillips screws (C).

• Product must be mounted through drywall that has a

minimum thickness of 1/2" and into metal studs, 26

gauge or heavier.

WARNING

4 of 5 ISSUED: 04-28-03 SHEET #: 095-9161-3 08-16-04

Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

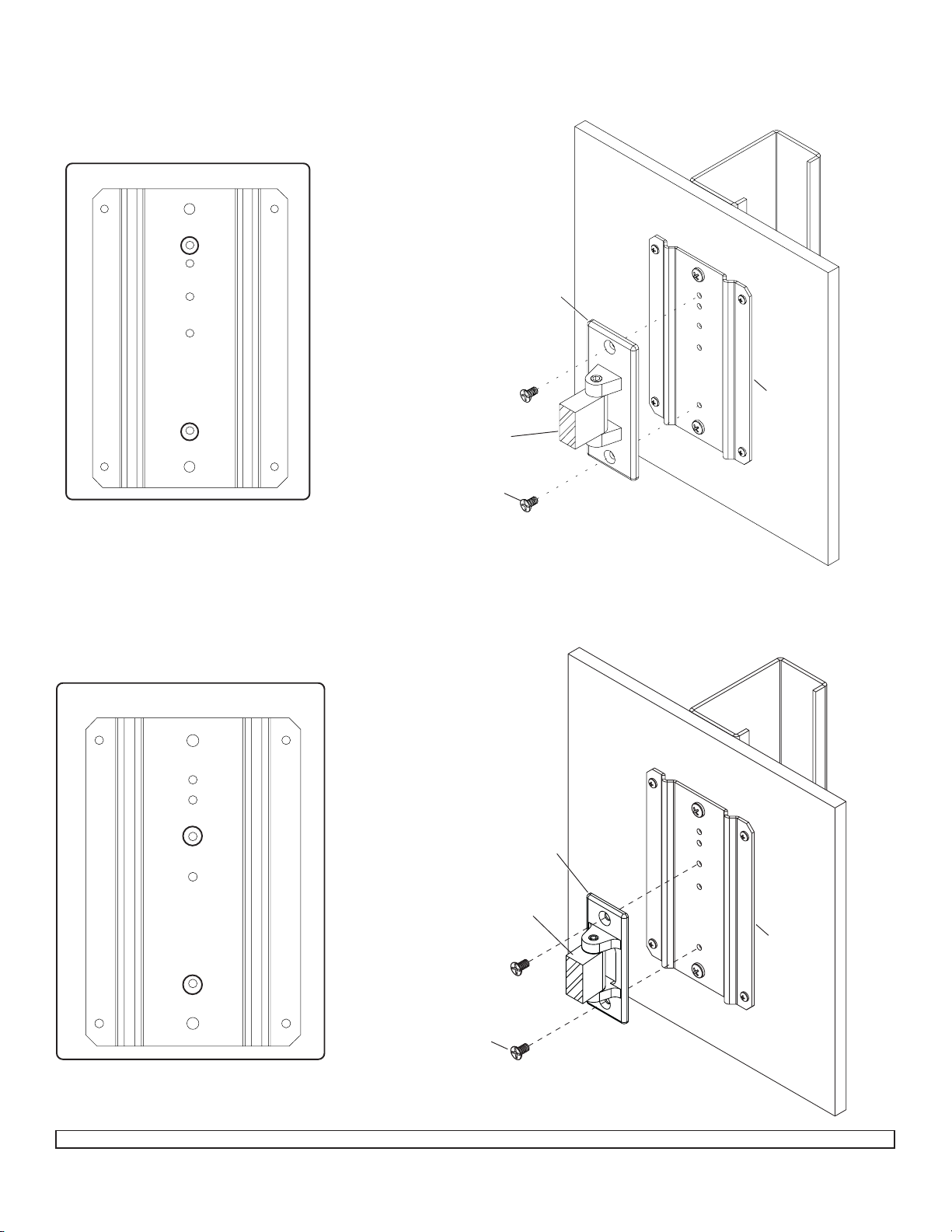

Attach wall plate to metal stud wall plate (A) using two 1/4-20 x 1/2” flat

head phillips screws (E) where indicated right and marked in detail 2.

Instructions for mounting a Peerless®LCD screen mount model

LCS or LCL (articulating wall arm) with a 4 1/4" wall plate

TOP OF WALL PLATE

DETAIL 2

(FRONT VIEW)

ACUTAWAY

OF LCL/LCS

MODEL

WALL

PLATE

Attach wall plate to metal stud wall plate (A) using two 1/4-20 x 1/2" flat

head phillips screws (E) where indicated right and marked in detail 1.

Instructions for mounting a Peerless®LCD screen mount model

LCS or LCL (articulating wall arm) with a 5 1/2" wall plate

CUTAWAY

OF LCL/LCS

MODEL

WALL

PLATE

DETAIL 1

(FRONT VIEW)

TOP OF WALL PLATE

5 of 5 ISSUED: 04-28-03 SHEET #: 095-9161-3 08-16-04

Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

TOP OF WALL PLATE

DETAIL 4

(FRONT VIEW)

DETAIL 3

(FRONT VIEW)

TOP OF WALL PLATE

CUTAWAY OF LCA

LARGE MODEL

WALL

PLATE

Instructions for mounting a Peerless LCD

screen mount model LCA Large (swing arm)

Attach wall plate to metal stud wall plate (A) using two 1/4-20 x 1/2" pan head

phillips screws (F) where indicated right and marked in detail 3.

CUTAWAY OF LCA

SMALL MODEL

Instructions for mounting a Peerless LCD screen

mount model LCA Small or Medium (swing arm)

Attach wall plate to metal stud wall plate (A) using two 1/4-20 x 1/2" pan head

phillips screws (F) where indicated right and marked in detail 4.

WALL

PLATE

Peerless is a registered trademarks of Peerless Industries, Inc.

All other brand and product names are trademarks or registered trademarks of their respective owners.
