Peerless-AV LCT620AD Mode d’emploi

ISSUED: 07-25-11 SHEET #: 090-9205-5 11-30-12

2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com

Max Load Capacity per arm: 15 lbs (6.8 kg)

Installation and Assembly:

Dual Arm Desktop Mount with Desk Clamp and Grommet for

19" - 30" LCD Screens

Models: LCT620AD

GROMMET INSTALLATION DESK CLAMP INSTALLATION

2 of 9 ISSUED: 07-25-11 SHEET #: 090-9205-5 11-30-12

NOTE: Read entire instruction sheet before you start installation and assembly.

Tools Needed for Assembly

• phillips screwdriver

• drill

• 3/8" (10mm) drill bit

Table of Contents

Parts List.................................................................................................................................................................................3

Installation to Mounting Surface.............................................................................................................................................4

Attaching Arm Assembly to Screen ........................................................................................................................................5

Cable Management................................................................................................................................................................6

WARNING

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

call Peerless customer care at 1-800-865-2112.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

• Never exceed the Maximum Load Capacity. See page 1.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws ﬁrmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal

injury.

3 of 9 ISSUED: 07-25-11 SHEET #: 090-9205-5 11-30-12

LCT620AD

Description Qt

Acolumn assembly 1

Bdouble link arm assembly 2

Cgrommet assembly 1

Dround rubber pads 2

Esquare rubber pads 2

FM4 x 12 mm phillips screw 8

GM4 x 25 mm phillips screw 8

Hspacer 8

I4 mm allen wrench 1

J2.5 mm allen wrench 1

Kcable clip 1

Lcable tie 5

MM6 x 12 mm phillips screw 2

NM6 plastic washer 2

Ocover 2

Pdual arm support 1

Parts List

Parts may appear slightly different than illustrated.

Before you begin, make sure all parts shown are included

with your product.

MN O

FGH

4 of 9 ISSUED: 07-25-11 SHEET #: 090-9205-5 11-30-12

Apply four rubber pads (D, E) to bottom of column

assembly (A) as shown below. Attach column

assembly (A) to mounting surface with a maximum

thickness of 3".

Skip to step four.

Clamp Installation Method Remove clamp assembly from column assembly

(A) as shown in ﬁgure 1.1. Remove mounting plate

from grommet assembly (C) and attach to column

assembly (A) with four M6 x 8mm screws using

4mm allen wrench (I) as shown in ﬁgure 1.2.

Apply four rubber pads (D, E) to bottom of column

assembly (A) as shown below.

2 3

Grommet Installation Method

ﬁg. 1.1

ﬁg. 1.2

M6 X 8MM

SCREWS

M6 X 8MM

SCREWS

CLAMP

ASSEMBLY

MOUNTING

PLATE

Drill a 3/8" (10mm) dia. hole through mounting

surface with a maximum thickness of 3". Place

column assembly (A) on mounting surface and

secure using grommet assembly (C).

5 of 9 ISSUED: 07-25-11 SHEET #: 090-9205-5 11-30-12

Attaching Adapter Plate to Screen

OPTIONAL: To disassemble adapter plate from arm assembly (B), remove knob attached to bottom of adapter

plate as shown in ﬁgure 4.1.

To prevent scratching the screen, set a cloth on a ﬂat, level surface that will support the weight of the screen.

Place screen face side down. If screen has knobs on the back, remove them to allow the adapter plate to be

attached. Place adapter plate on back of screen.

Choose hole pattern as shown in detail 1.

FOR DISPLAYS WITH FLAT BACKS: Attach adapter plate to display using four knobs or remove four knobs and

secure with 12mm screws (F) as shown in ﬁgure 4.2.

FOR DISPLAYS WITH RECESSED BACKS: Remove knobs from adapter plate and attach to display using four

25mm screws (G) and four spacers (H) as shown in ﬁgure 4.3.

• Tighten screws so adapter plate is ﬁrmly attached. Do not tighten with excessive force. Overtightening can cause

stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become

detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.

• If screws don't get three complete turns into the screen inserts or if screws bottom out and arm is still not tightly

secured, damage may occur to screen or product may fail.

WARNING

VESA 100mm

VESA 75mm

VESA 75mm VESA 100mm

DETAIL 1

ﬁg. 4.2

ﬁg. 4.1

ﬁg. 4.3

or KNOBS

ADAPTER PLATE

KNOB

4-1

6 of 9 ISSUED: 07-25-11 SHEET #: 090-9205-5 11-30-12

Insert dual arm support (P) onto column assembly (A) ﬂush against lock collar as shown in ﬁgure 5.1. Loosen and

position lock collar to desired height and retighten.

Insert arm assembly (B)onto dual arm support (P) as shown in ﬁgure 5.2.

Tighten set screws on dual arm support (P) and arm assembly (B) using 2.5mm allen wrench (J) as shown in ﬁgure

5.3.

Secure arm assembly (B) to dual arm support with

one cover (O), one M6 x 12mm phillips screw (M),

and one M6 plastic washer (N).

Repeat steps ﬁve and six for second arm

assembly (B).

PBB

ﬁg. 5.1 ﬁg. 5.2 ﬁg. 5.3

LOCK

COLLAR SET SCREW

SET SCREWS

ADAPTER PLATE

Hook adapter plate onto arm assembly (B).

7 of 9 ISSUED: 07-25-11 SHEET #: 090-9205-5 11-30-12

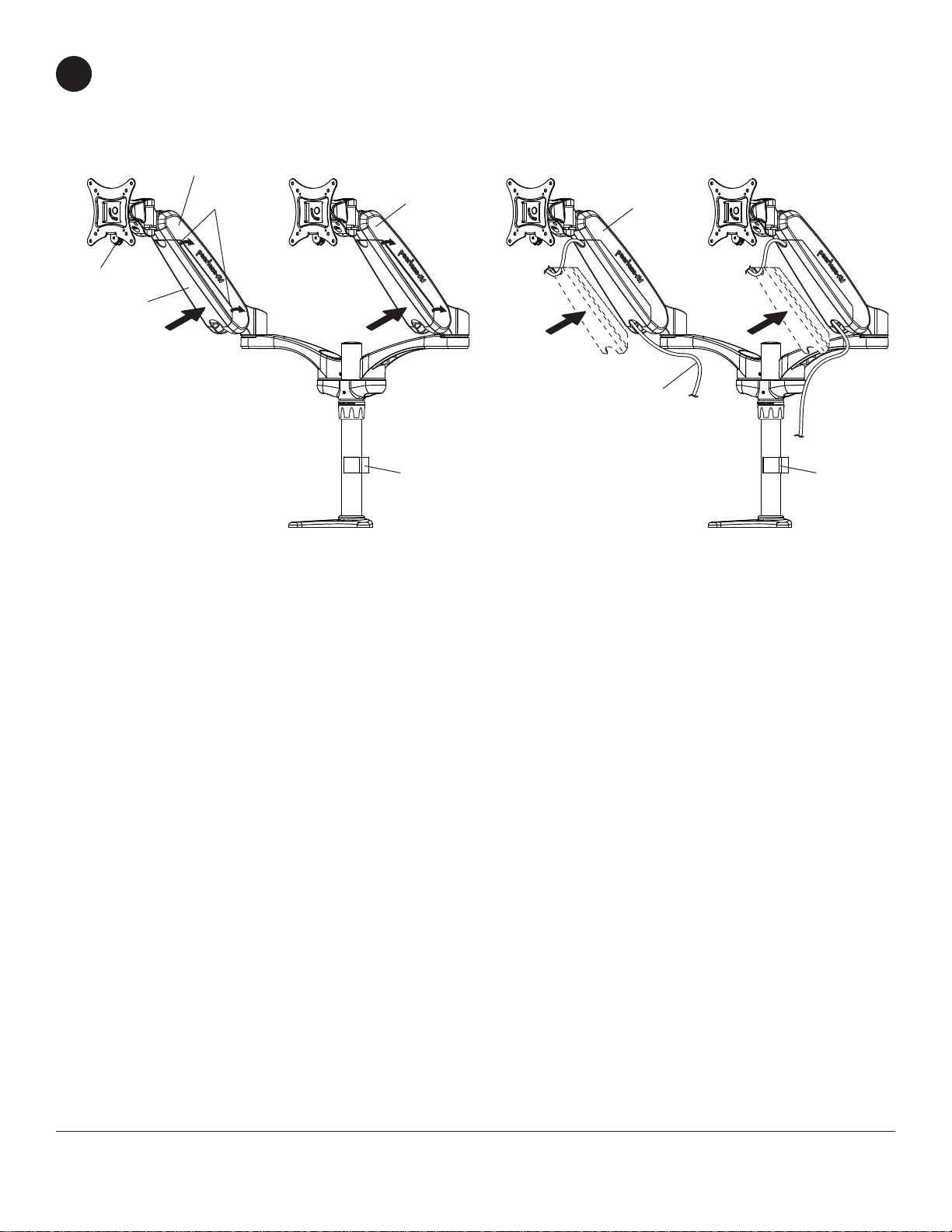

Reinstall knobs through back of arm assemblies (B) and secure into back of adapter plates. Cables may be routed

using cavity in arm assembly (B) and cable clip (K). Remove the cable cover on arm assembly (B) by pressing

ﬁrmly in the middle of the cable cover and then pulling the ﬂanges of the cable cover. Route the cables in arm

assembly (B) and then reinstall the cable cover.

KNOB

CABLE

COVER

FLANGES B

CABLES

8 of 9 ISSUED: 07-25-11 SHEET #: 090-9205-5 11-30-12

All other brand and product names are trademarks or registered trademarks of their respective owners.

To lock down rotation, tighten set screw shown in detail 2.

To lock down tilt, tighten screw shown in detail 3.

To lock down swivel, tighten screw shown in detail 4.

To lock down height adjustment, tighten set screw shown in detail 5.

+80/-20°

+/- 6.25"

180°

SET SCREW

DETAIL 2

DETAIL 3

DETAIL 5

DETAIL 4

TILT SCREW

SWIVEL

SCREW

SET SCREW

360°

9 of 9 ISSUED: 07-25-11 SHEET #: 090-9205-5 11-30-12

Peerless Industries, Inc. (“Peerless”) warrants to original end-users of Peerless® products will be free from defects in material and workmanship, under normal

use, for a period of ﬁve years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product’s manufacture).

At its option, Peerless will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or ﬁtness for a particular purpose be longer than the period of the applicable

express warranty set forth above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless,

(b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless’ instructions or warnings when installing,

using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third party actions and force majeure.

In no event shall Peerless be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured

by a security device which may be included with the Peerless® product. Some states do not allow the exclusion or limitation of incidental or consequential

damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, expressed or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other

person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless in connection with the sale of any Peerless® product.

This warranty gives speciﬁc legal rights, and you may also have other rights which vary from state to state.

LIMITED FIVE-YEAR WARRANTY

www.peerless-av.com
