PECO WavePRO™ WIRELESS SYSTEM

PECO

WavePRO

™

WIRELES

SYSTEM

S SYSTEMS

Conventional & heat pump applications

BLUE backlight LCD display

Program override

Temporary or permanent holds

Heat / Cool / Off / Auto changeover

system settings

Manual setback for vacations

Service indicator

Supports remote temperature sensor

Programmable (intermittent) fan

Supports multiple auxiliary heat types

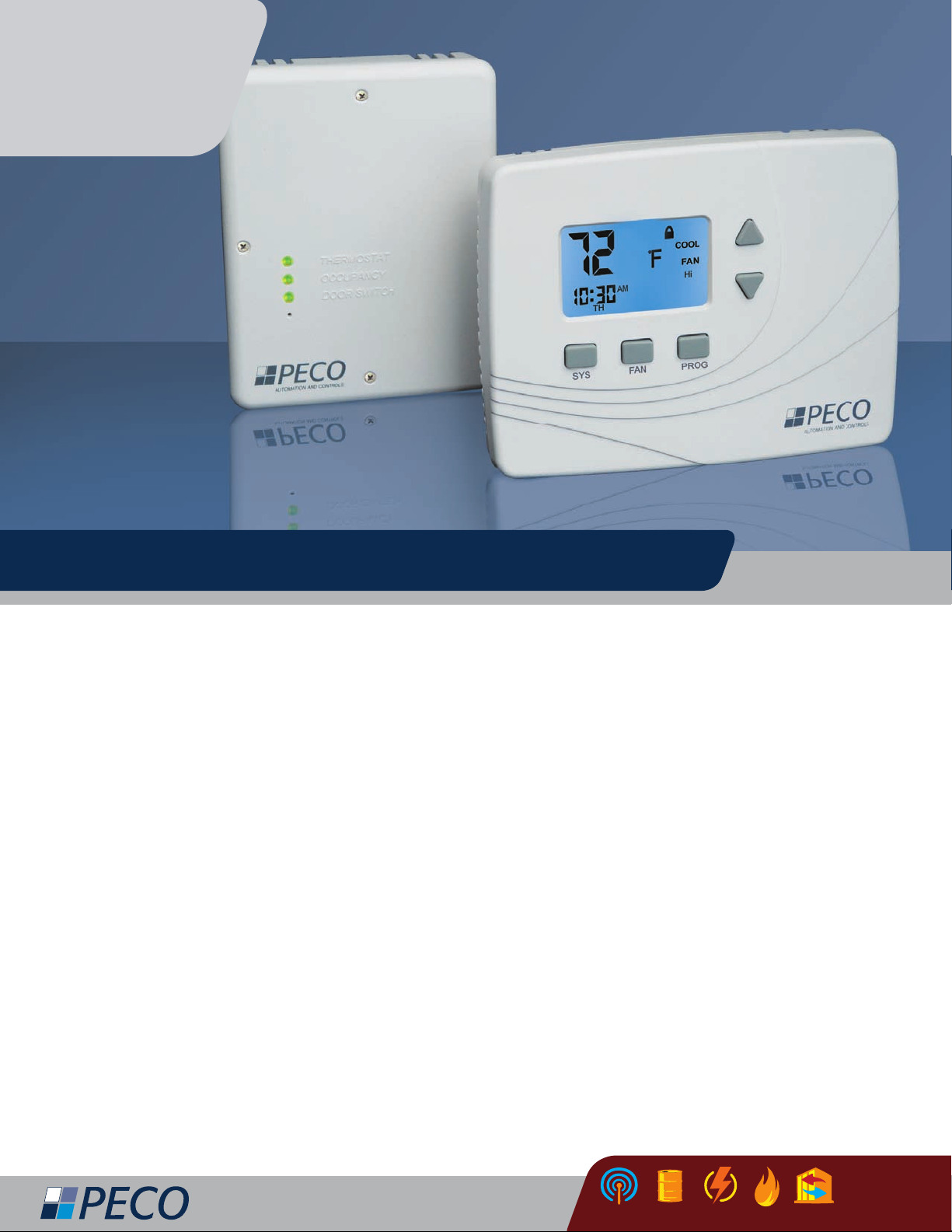

A wireless thermostat transmitter & receiver system designed for use

with conventional (gas, oil, electric) or heat-pump systems.

- Receiver

K2500

System

Optimum performance

PECO WavePRO™ WIRELESS SYSTEM

Innova on & experience you can count on

2 Heat / 2 Cool stages conventional,

3 Heat / 2 Cool stages heat pump,

supporting auxiliary heat stages & the latest

compressor technology.

7-Day individual, 5-1-1, 5-2,

7-day identical programming modes,

for ultimate programming & operating ﬂ exibility.

24 VAC, battery or both,

giving standalone use when power is lost

or not present.

Frequency Hopping Spread Spectrum,

allowing optimal performance by avoiding

interference from other wireless devices.

ISM frequency range operation (902-928 MHz),

a frequency reserved for control applications,

which is above radio/TV & below WiFi.

Pre-occupancy purge,

allowing fresh air circulation before occupancy.

T2500-001

Thermostat

2 Heat / 2 Cool Stages

Conventional

3 Heat / 2 Cool Stages

Heat Pump

R2500-001

Receiver

Gas

Electric

Oil Heat Pump

Wireless

Temperature Range 50° to 90°F (10° to 32°C )

Differential 1°F (0.5°C)

Input Power T2500 Thermostat: Two AA alkaline

batteries or 24 VAC

R2500 Receiver: 24 VAC

Output Power 24 VA - Pilot Duty

Wireless Type 902 to 928 MHz Band, FHSS

(Frequency Hopping Spread Spectrum)

Wireless Range 100 ft. minimum in open air

Operating Temperature 0° to 120°F (-17° to 48°C )

Shipping Temperature -20° to 130°F (-28° to 54°C )

Operating Humidity 5% to 95% RH, non-condensing

Physical Dimensions T2500: 4.5”H x 5.7” W x 1.2” D

R2500: 4.8"H x 3.8” W x 1.3” D

Voltage 24 VAC

Model Part Number Description

K2500 70188 PECO WavePRO System Kit

T2500 69998* PECO WavePRO programmable thermostat

wireless transmitter

R2500 70145* PECO WavePRO wireless receiver

5.7”

(14.5 cm)

1.2”

(3 cm)

4.5”

(11.4 cm)

SYS FAN PROG

T2500 Wireless Thermostat

K2500

System

Automation & Controls

Division of PECO, Inc.

Portland, OR 97282

800-874-8547 or 503-233-6401

[email protected]

www.pecomanufacturing.com

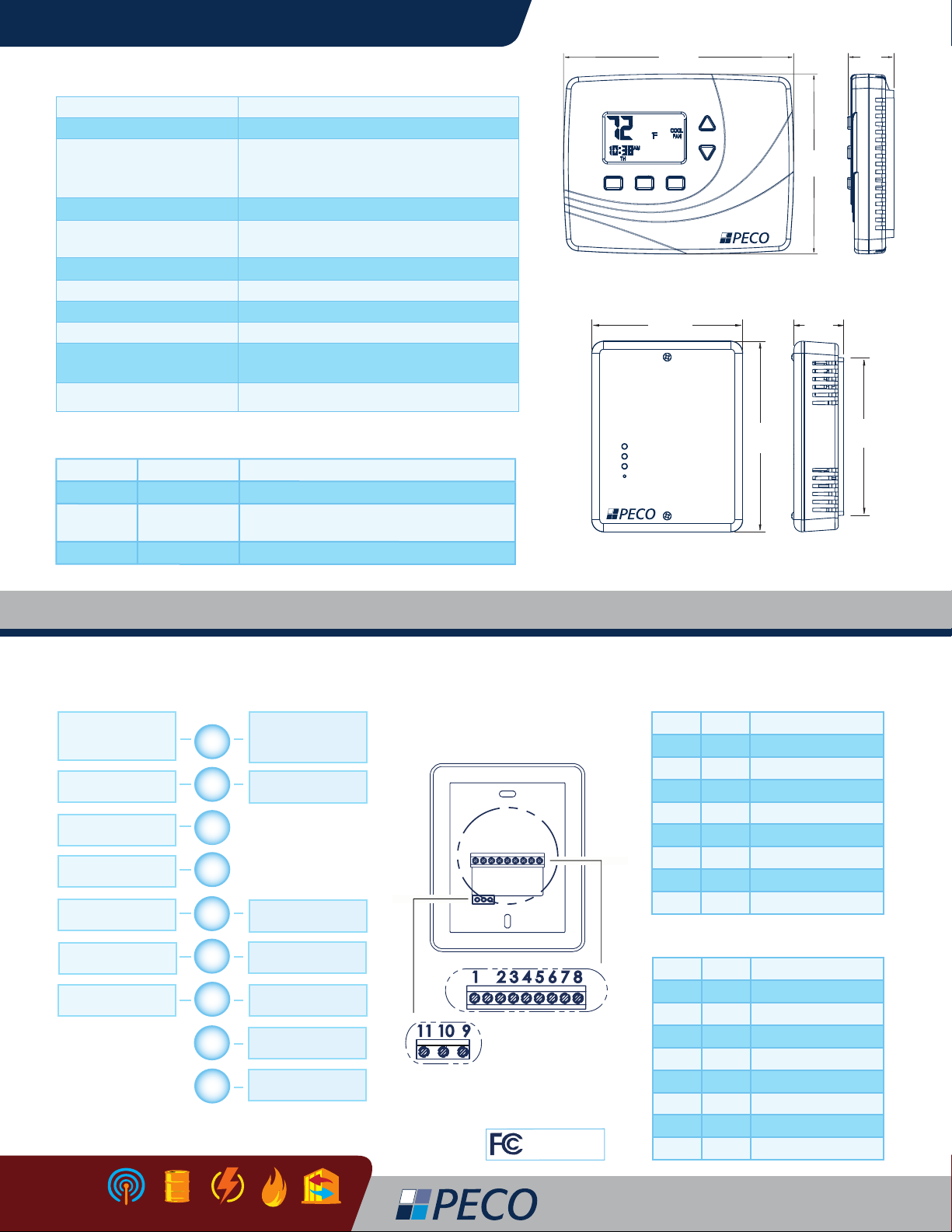

PECO WavePRO™ WIRELESS SYSTEM

Technical Data

Term. Name Function

1 C 24VAC 2

2 R 24VAC 1

3 Y1 Cooling stage 1

4 Y2 Cooling stage 2

5 W1 Heating stage 1

6 W2 Heating stage 2

7 A Economizer

8GFan

Term. Name Function

1 C 24VAC 2

2 R 24VAC 1

3 Y1 Compressor 1

4 Y2 Compressor 2

5 O/B Reversing valve

6 AU Aux Heat/Emerg.

7 A Economizer

8 G Fan

Model Selection Guide

Specifications

Terminal Descriptions

2 Heat / 2 Cool Conventional

3 Heat / 2 Cool Heat Pump

1 2 3 4 5 6 7 8

11 10 9

R2500 Terminal Block

PECO Wireless Thermostats

Conventional Heat Pump

Aux

Common from

secondary side

system transformer

Power to

system transformer

First stage of heat

relay / contactor

Second stage of heat

relay / contactor

First stage of cool

relay / contactor

Second stage of cool

relay / contactor

Fan Relay

Common from

secondary side of

system transformer

Power to

system transformer

Auxiliary heat

relay / contactor

Fan Relay

Second stage of

compressor contactor

Emergency heat

relay / contactor

First stage of

compressor contactor

3.8”

(9.7 cm)

4.8”

(12.2 cm)

1.3”

(3.3 cm)

4”

(10.2 cm)

THERMOSTAT

OCCUPANCY

DOOR SWITCH

R2500 Wireless Receiver

* Parts NOT sold separately

DS-K2500-R1 5/10

Gas

Electric

Oil Heat Pump

Wireless
