PCE Instruments PCE-CT 29 Manuel utilisateur

PCE-CT 29 Coating Thickness Gauge

User Manual

User manuals in various languages (français,

italiano, español, português, nederlands, türk, polski,

русский, 中文) can be found by using our

product search on: www.pce-instruments.com

Last change: 6 February 2024

v1.0

English


 © PCE Instruments


Contents
1Safety notes........................................................................................... 1
2Specifications........................................................................................2
3Scope of delivery .................................................................................. 3
4Device description ................................................................................ 4
4.1 Display description........................................................................................................... 5
5Inserting or replacing batteries ........................................................... 6
6Switching the meter on and off ...........................................................6
6.1 Menu................................................................................................................................ 6
7Software................................................................................................. 9
8Contact.................................................................................................10
9Disposal ...............................................................................................10




1 Safety notes

Please read this manual carefully and completely before you use the device for the first time. The

device may only be used by qualified personnel and repaired by PCE Instruments personnel.

Damage or injuries caused by non-observance of the manual are excluded from our liability and

not covered by our warranty.

•The device must only be used as described inthis instructionmanual.If usedotherwise,

this can cause dangerous situations for the user and damage to the meter.

•The instrument may only be used if the environmental conditions (temperature, relative

humidity, …) are within the ranges stated in the technical specifications. Do not expose

the device to extreme temperatures, direct sunlight, extreme humidity or moisture.

•Do not expose the device to shocks or strong vibrations.

•The case should only be opened by qualified PCE Instruments personnel.

•Never use the instrument when your hands are wet.

•You must not make any technical changes to the device.

•The appliance should only be cleaned with a damp cloth. Use only pH-neutral cleaner,

no abrasives or solvents.

•The device must only be used with accessories from PCE Instruments or equivalent.

•Before each use, inspect the case for visible damage. If any damage is visible, do not

use the device.

•Do not use the instrument in explosive atmospheres.

•The measurement range as stated in the specifications must not be exceeded under

any circumstances.

•Non-observance of the safety notes can cause damage to the device and injuries to

the user.

We do not assume liability for printing errors or any other mistakes in this manual.

We expressly point to our general guarantee terms which can be found in our general terms of

business.

2 Specifications

Measurement on ferrous metal (Fe)

Measurement range

0 ... 2000 µm

Resolution

0.1 µm at 0.0 ... 99.9 µm

1 µm at 100 ... 2000 µm

Accuracy

±2 % ±2 µm of Rd

Repeatability

±1 % ±1 µm of Rd

Smallest radius of curvature

1.5 mm

Smallest measuring surface

Ø7 mm

Smallest layer thickness

0.5 mm

Measurement on non-ferrous metal (NFe)

Measurement range

0 ... 2000 µm

Resolution

0.1 µm at 0.0 ... 99.9 µm

1 µm at 100 ... 2000 µm

Accuracy

±2 % ±2 µm of Rd

Repeatability

±1 % ±1 µm of Rd

Smallest radius of curvature

3 mm

Smallest measuring surface

Ø5 mm

Smallest layer thickness

0.3 mm

Temperature

Measurement range

0 ... 50 °C / 32 ... 122 °F

Resolution

0.1 °C / °F

Accuracy

±1.2 °C / ±2.2°F

Moisture

Measurement range

0 ... 100 % RH

Resolution

0.1 % RH

Accuracy

±3.2 % RH at 20.0 ... 70.0 % RH

±4.0 % RH at 0.0 ... 19.9 % RH

±4.0 % RH at 70.1 ... 100.0 % RH

Further specifications

Display

2.4" LC display

Automatic display orientation

(measuring window only)

0, 90, 180 and 270 °, can be switched off

Statistical functions

average, highest, lowest and SDev measured value

Measuring modes

direct, groups, SSPC

Units

µm, mm, mils, inch

Power supply

2 x AA batteries

Interface

micro USB

Alarm

signal tone and / or LED signal lightwhen the adjustable

upper or lower alarm limit is exceeded

Automatic power-off

off, 30 seconds, 1 minute, 5 minutes

Menu languages

English, German, French, Spanish, Italian, Portuguese,

Chinese, Japanese

Operating conditions

0 ... +50 °C

20 ... 90 % RH, non-condensing

Storage conditions

-10 ... +60 °C

20 ... 90 % RH, non-condensing

Dimensions

35 x 64 x 137 mm

Weight

175 g

3 Scope of delivery

1 x PCE-CT 29 coating thickness gauge

1 x set of standard foils

1 x calibration plates (Fe and NFe)

1 x USB pen drive

2 x 1.5 V AA battery

1 x carrying case

1 x user manual

4 Device description

No.

Description of the

LED with three different signals

LCD

Micro-USB interface

Menu key

Back key

On and off switch

Arrow up key

Zero calibration key

Enter key

Arrow down key

Coating thickness sensor

Temperature and humidity sensor

Battery compartment cover

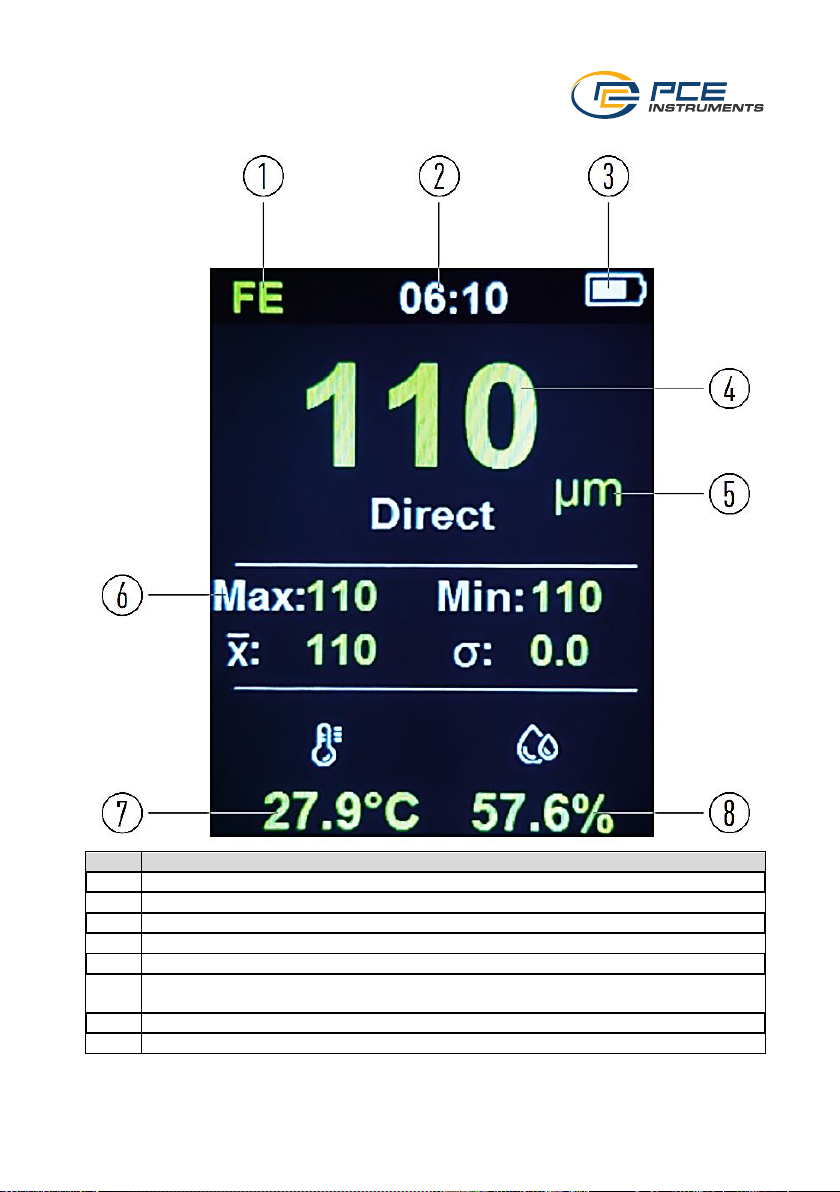

4.1 Display description

No.

Description of the

Display of the method used for measurement

Set time

Current battery charge

Measured value

Unit

Statistics

Largest, smallest measured value, average and standard deviation

Ambient temperature

Ambient humidity

5 Inserting or replacing batteries

If the battery is discharged, it is possible that the meter can no longer be switched on or that the

measured values are no longer within the specified accuracies.

To insert or replace the batteries, first switch off the meter. Open the battery compartment on the

back, remove the batteries if necessary and replace them with 2 new 1.5 V batteries. Ensure that

the polarity is correct when inserting the batteries.

6 Switching the meter on and off

To switch on the meter, press and hold the on and off switch for two seconds. After switching on,

the measurement can be carried out immediately. To switch the meter off again, press and hold

the switch again for two seconds.

6.1 Menu

To make settings, press the menu key. The arrow keys can now be used to select between the

individual setting options and to change parameters. Press the enter key to accept the respective

setting or open the setting option. Use the back key to go back one level if settings are not to be

accepted or the measurement is to be resumed.

The menu is organised as follows:

Function

Meaning

Work mode

Settings for the individual operating modes

Fe/NFe

Setting the measurement method

Units

Setting the unit of coating thickness

measurement

Environment

Setting the temperature, humidity and dew

point

Calibration

Calibration of the meter

Limits

Set limit values

User settings

Other settings for the meter

6.1.1 Set work mode

To set the work mode, go to the settings and select "Work mode". Here, you can switch between

the individual work modes.

6.1.1.1 Switch work mode

To switch to a different work mode, select the desired work mode under "Mode select". You can

choose between "Group" and "SSPC (Society of Protective Coatings)"

6.1.1.2 Set group mode

To choose between the individual groups, go to "Group select" where you can choose between

50 different groups where the measured values are saved. The number of measured values

already saved is displayed for each group. 50 measured values can be saved for each group.

No measured values are saved with "Direct".

6.1.1.3 Set SSPC mode

To set the SSPC mode, go to "SSPC mode". The number of measuring points can be set there.

Function

Meaning

Times/Spots

Number of measurements per surface

Smallest value: 3

Spots/Area

Number of surface that are measured

Smallest value: 5

Note: The limit values are taken from the limitvaluefunction. Seealso 6.1.6 Set alarm limit values.

6.1.1.4 Clear memory

To clear the memory, go to "Clear Memory". If you really want to clear the memory, confirm the

entry by selecting "Yes".

6.1.2 Ferrous and non-ferrous measuring substance

To switch between the measurement of ferrous (Fe) and non-ferrous (NFe) metals, go to "Fe/NFe"

in the settings. Here, you can select which method should be used for measurement. The

measurement method is automatically selected if you choose "Both".

Note: It is recommended to select "Both".

6.1.3 Set units

To set the coating thickness unit, go to "Units" in the menu. The coating thickness unit can be set

there. The following options are available: µm, mm, mils, inch.

6.1.4 Change temperature, humidity and dew point

To set the temperature, humidity and dew point, go to the menu and select "Environment". From

there, you can set which measured values are to be displayed. The following options are

available:

Selection

Meaning

Temp only

Temperature display

Temp/Humidity

Display of temperature and humidity

Temp/Dew Point

Display of temperature and dew point

Enviro off

No display

6.1.4.1 Set temperature unit

To set the temperature unit, go to "Units". From there, you can change the temperature unit. You

can choose either °C or °F.

6.1.5 Calibration

To calibrate the meter, go to "Calibration" in the settings.

There are four different options for calibration:

Selection

Meaning

Zero Only

Calibration of the zero point

Single Point

Zero point calibration with calibration of a

reference

SSPC Mode 1

Calibration of a reference

SSPC Mode 2

Calibration with two references

Reset

Reset all calibration points

Select the desired function and follow the instructions on the display. Depending on the selection,

a calibration must first be carried out on the zero standard or with a reference foil. If calibration is

carried out with reference foils, the measured value can be adjusted using the arrow keys after

the measurement with a reference.

6.1.6 Set alarm limit values

To set the alarm limits for the measurement, go to the "Limits" item in the menu.

6.1.6.1 Switching the limit value alarm on and off

To switch the limit alarm function on and off, switch "Limit" on or off.

6.1.6.2 Setting the limit value alarm indicator

To set the limit value alarm indicator, go to "Warning Indication".

The following settings can be made from there.

Setting option

Meaning

Beeper

An acoustic signal is emitted as soon as the set limit value is

exceeded.

Note: The sound must be active in the settings for the signal

tone to be active.

LED Flash

The LED indicator signals whether the measured value is within

the set limit value.

Both

Both the acoustic signal and the LED indicator show whether

the measured value is within the set limit values.

Note: The sound must be active in the settings for the signal

tone to be active.

Off

No signal when limit values are exceeded

6.1.6.3 Set alarm limit values

Go to "Set High Limit" to set the upper alarm limit value. To set the lower limit value, go to "Set

Low Limit".

Table des matières

Autres manuels PCE Instruments Instrument de mesure

PCE Instruments

PCE Instruments PCE-JR 911 Manuel utilisateur

PCE Instruments

PCE Instruments PCE-PH 25 Manuel utilisateur

PCE Instruments

PCE Instruments PCE-FM 200 Manuel utilisateur

PCE Instruments

PCE Instruments PCE-228LIQ Manuel utilisateur

PCE Instruments

PCE Instruments PCE-VT 3900 Manuel utilisateur

PCE Instruments

PCE Instruments PCE-HT 70 Manuel utilisateur

PCE Instruments

PCE Instruments PCE-EM 890 Manuel utilisateur

PCE Instruments

PCE Instruments PCE-RS 27 Manuel utilisateur

PCE Instruments

PCE Instruments PCE-PA 8000 Manuel utilisateur

PCE Instruments

PCE Instruments PCE-VT 1000 Manuel utilisateur

PCE Instruments

PCE Instruments Gossen ML 5052C USB Manuel utilisateur

PCE Instruments

PCE Instruments PCE-CP Series Manuel utilisateur

PCE Instruments

PCE Instruments PCE-P05 Manuel utilisateur

PCE Instruments

PCE Instruments PCE-CT 21BT Manuel utilisateur

PCE Instruments

PCE Instruments Dillon Quick-Check Manuel utilisateur

PCE Instruments

PCE Instruments PCE-AM 45 Manuel utilisateur

PCE Instruments

PCE Instruments PCE-CSM 8 Manuel utilisateur

PCE Instruments

PCE Instruments PCE-VE 1030N Manuel utilisateur

PCE Instruments

PCE Instruments PCE-RCM 16 Manuel utilisateur

PCE Instruments

PCE Instruments PCE-VT 38 0 Series Manuel utilisateur

PCE Instruments

PCE Instruments PCE-830 Manuel utilisateur

PCE Instruments

PCE Instruments PCE-155 Manuel utilisateur

PCE Instruments

PCE Instruments TUM 20 Manuel utilisateur

PCE Instruments

PCE Instruments PCE-310 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
