PCB Piezotronics 480E09 Manuel utilisateur

Model 480E09

1-Channel, battery-powered, ICP® sensor signal conditioner, gain x1, x10,

Installation and Operating Manual

For assistance with the operation of this product,

contact PCB Piezotronics, Inc.

Toll-free: 800-828-8840

24-hour SensorLine: 716-684-0001

Fax: 716-684-0987

E-mail: [email protected]

Web: www.pcb.com

The information contained in this document supersedes all similar information that

may be found elsewhere in this manual.

Total Customer Satisfaction –PCB

Piezotronics guarantees Total Customer

Satisfaction. If, at any time, for any

reason, you are not completely satisfied

with any PCB product, PCB will repair,

replace, or exchange it at no charge.

You may also choose to have your

purchase price refunded in lieu of the

repair, replacement, or exchange of the

product.

Service –Due to the sophisticated

nature of the sensors and associated

instrumentation provided by PCB

Piezotronics, user servicing or repair is

not recommended and, if attempted,

may void the factory warranty. Routine

maintenance, such as the cleaning of

electrical connectors, housings, and

mounting surfaces with solutions and

techniques that will not harm the

physical material of construction, is

acceptable. Caution should be observed

to insure that liquids are not permitted to

migrate into devices that are not

hermetically sealed. Such devices

should only be wiped with a dampened

cloth and never submerged or have

liquids poured upon them.

Repair –In the event that equipment

becomes damaged or ceases to

operate, arrangements should be made

to return the equipment to PCB

Piezotronics for repair. User servicing or

repair is not recommended and, if

attempted, may void the factory

warranty.

Calibration –Routine calibration of

sensors and associated instrumentation

is recommended as this helps build

confidence in measurement accuracy

and acquired data. Equipment

calibration cycles are typically

established by the users own quality

regimen. When in doubt about a

calibration cycle, a good “rule of thumb”

is to recalibrate on an annual basis. It is

also good practice to recalibrate after

exposure to any severe temperature

extreme, shock, load, or other

environmental influence, or prior to any

critical test.

PCB Piezotronics maintains an ISO-

9001 certified metrology laboratory and

offers calibration services, which are

accredited by A2LA to ISO/IEC 17025,

with full traceability to SI through

N.I.S.T. In addition to the normally

supplied calibration, special testing is

also available, such as: sensitivity at

elevated or cryogenic temperatures,

phase response, extended high or low

frequency response, extended range,

leak testing, hydrostatic pressure

testing, and others. For information on

standard recalibration services or

special testing, contact your local PCB

Piezotronics distributor, sales

representative, or factory customer

service representative.

Returning Equipment –Following

these procedures will insure that your

returned materials are handled in the

most expedient manner. Before

Warranty, Service, Repair, and

Return Policies and Instructions

returning any equipment to PCB

Piezotronics, contact your local

distributor, sales representative, or

factory customer service representative

to obtain a Return Warranty, Service,

Repair, and Return Policies and

Instructions Materials Authorization

(RMA) Number. This RMA number

should be clearly marked on the outside

of all package(s) and on the packing

list(s) accompanying the shipment. A

detailed account of the nature of the

problem(s) being experienced with the

equipment should also be included

inside the package(s) containing any

returned materials.

A Purchase Order, included with the

returned materials, will expedite the

turn-around of serviced equipment. It is

recommended to include authorization

on the Purchase Order for PCB to

proceed with any repairs, as long as

they do not exceed 50% of the

replacement cost of the returned

item(s). PCB will provide a price

quotation or replacement

recommendation for any item whose

repair costs would exceed 50% of

replacement cost, or any item that is not

economically feasible to repair. For

routine calibration services, the

Purchase Order should include

authorization to proceed and return at

current pricing, which can be obtained

from a factory customer service

representative.

Warranty –All equipment and repair

services provided by PCB Piezotronics,

Inc. are covered by a limited warranty

against defective material and

workmanship for a period of one year

from date of original purchase. Contact

PCB for a complete statement of our

warranty. Expendable items, such as

batteries and mounting hardware, are

not covered by warranty. Mechanical

damage to equipment due to improper

use is not covered by warranty.

Electronic circuitry failure caused by the

introduction of unregulated or improper

excitation power or electrostatic

discharge is not covered by warranty.

Contact Information –International

customers should direct all inquiries to

their local distributor or sales office. A

complete list of distributors and offices

can be found at www.pcb.com.

Customers within the United States may

contact their local sales representative

or a factory customer service

representative. A complete list of sales

representatives can be found at

www.pcb.com. Toll-free telephone

numbers for a factory customer service

representative, in the division

responsible for this product, can be

found on the title page at the front of this

manual. Our ship to address and

general contact numbers are:

PCB Piezotronics, Inc.

3425 Walden Ave.

Depew, NY14043 USA

Toll-free: (800) 828-8840

24-hour SensorLineSM: (716) 684-0001

Website: www.pcb.com

E-mail: [email protected]

PCB工业监视和测量设备 - 中国RoHS2公布表

PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table

部件名称

有害物质

铅(Pb)

汞

(Hg)

镉

(Cd)

六价铬(Cr(VI))

多溴联苯 (PBB)

多溴二苯醚(PBDE)

住房

PCB板

电气连接器

压电晶体

环氧

铁氟龙

电子

厚膜基板

电线

电缆

塑料

焊接

铜合金/黄铜

本表格依据 SJ/T 11364 的规定编制。

O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。

X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。

铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。

CHINA RoHS COMPLIANCE

DOCUMENT NUMBER: 21354

DOCUMENT REVISION: C

ECN: 45605

Component Name

Hazardous Substances

Lead

(Pb)

Mercury

(Hg)

Cadmium

(Cd)

Chromium VI

Compounds

(Cr(VI))

Polybrominated

Biphenyls

(PBB)

Polybrominated

Diphenyl

Ethers (PBDE)

Housing

PCB Board

Electrical

Connectors

Piezoelectric

Crystals

Epoxy

Teflon

Electronics

Thick Film

Substrate

Wires

Cables

Plastic

Solder

Copper Alloy/Brass

This table is prepared in accordance with the provisions of SJ/T 11364.

O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit

requirement of GB/T 26572.

X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above

the limit requirement of GB/T 26572.

Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

Model Number

480E09 BATTERY-POWERED SIGNAL CONDITIONER Revision: V

ECN #: 45339

Performance ENGLISH SI

Channels 1 1

Frequency Range(-5 %)(x1, x10 Gain) 0.15 to 100,000 Hz 0.15 to 100,000 Hz [6]

Frequency Range(-10 %)(x100 Gain) 0.15 to 50,000 Hz 0.15 to 50,000 Hz [7]

Voltage Gain(± 2 %) 1:1 1:1

Voltage Gain(± 2 %) 1:10 1:10

Voltage Gain(± 2 %) 1:100 1:100

Fault/Bias Monitor/Meter(± 1 V)(midscale) 13 VDC 13 VDC

Environmental

Temperature Range 32 to 120 °F 0 to 50 °C

Electrical

Excitation Voltage(To Sensor) 25 to 29 VDC 25 to 29 VDC [1]

Constant Current Excitation(To Sensor) 2.0 to 3.2 mA 2.0 to 3.2 mA [2]

Discharge Time Constant >7 sec >7 sec [3][4]

DC Offset(Maximum) <30 mV <30 mV [3]

Spectral Noise(1 Hz)(Gain 1) .25 µV/√Hz -132 dB

Spectral Noise(10 Hz)(Gain 1) .07 µV/√Hz -143 dB

Spectral Noise(100 Hz)(Gain 1) .05 µV/√Hz -146 dB

Spectral Noise(1 kHz)(Gain 1) .04 µV/√Hz -148 dB

Spectral Noise(10 kHz)(Gain 1) .03 µV/√Hz -150 dB

Broadband Electrical Noise(1 to 10,000 Hz)(Gain x1) 3.25 µV rms -110 dB/rms

Spectral Noise(1 Hz)(Gain 10) 2.2 µV/√Hz -113 dB

Spectral Noise(10 Hz)(Gain 10) 2.0 µV/√Hz -114 dB

Spectral Noise(100 Hz)(Gain 10) 1.1 µV/√Hz -119 dB

Spectral Noise(1 kHz)(Gain 10) .55 µV/√Hz -125 dB

Spectral Noise(10 kHz)(Gain 10) .3 µV/√Hz -130 dB

Broadband Electrical Noise(1 to 10,000 Hz)(Gain x10) 49 µV/rms -86 dB/rms

Spectral Noise(1 Hz)(Gain 100) 20 µV/√Hz -94 dB

Spectral Noise(10 Hz)(Gain 100) 19 µV/√Hz -94 dB

Spectral Noise(100 Hz)(Gain 100) 12 µV/√Hz -98 dB

Spectral Noise(1 kHz)(Gain 100) 5.5 µV/√Hz -105 dB

Spectral Noise(10 kHz)(Gain 100) 2 µV/√Hz -114 dB

Broadband Electrical Noise(1 to 10,000 Hz)(Gain x100) 569 µV/rms -65 dB/rms

Power Required(Standard) Internal Battery Internal Battery

Internal Battery(Type) 9V 9V

Battery Life(Standard Alkaline) 50 hours 50 hours

Power Required(Alternate) DC power DC power

DC Power 15 mA 15 mA [5]

Internal Battery(Quantity) 3 3

DC Power 18 to 30 VDC 18 to 30 VDC [5][1]

Physical

Electrical Connector(Input, sensor) BNC Jack BNC Jack

Electrical Connector(Output, scope) BNC Jack BNC Jack

Electrical Connector(External Power, DC) 3.5 mm Diameter Miniature

Jack

3.5 mm Diameter Miniature

Jack

Electrical Connector(Battery Charger) #722 Switchcraft Jack #722 Switchcraft Jack

Size (Depth x Height x Width) 2.4 in x 4.0 in x 2.9 in 6.1 cm x 10 cm x 7.4 cm

Weight(Including Batteries) 0.7 lb 0.3 kg

All specifications are at room temperature unless otherwise specified.

In the interest of constant product improvement, we reserve the right to change specifications without notice.

ICP®is a registered trademark of PCB Group, Inc.

NOTES:

[1]Excitation voltage to sensor limited by optional DC power voltage.

[2]Through internal current limiting regulator.

[3]With 1M ohm load.

[4]Un-buffered output, read out device input impedance affects discharge time constant and low

frequency response of unit.

[5]Provided by optional external DC power supply.

[6]Low frequency response specified into 1M ohm load.

[7]After Serial Number 24699, previously HFR was 100kHz.

[8]See PCB Declaration of Conformance PS024 for details.

3425 Walden Avenue, Depew, NY 14043

Phone: 716-684-0001

Fax: 716-684-0987

E-Mail: [email protected]

[8]

OPTIONAL VERSIONS

Optional versions have identical specifications and accessories as listed for the standard

model except where noted below. More than one option may be used.

Entered: LK Engineer: CPH Sales: ML Approved: JWH Spec Number:

Date: 5/23/2016 Date: 5/23/2016 Date: 5/23/2016 Date: 5/23/2016 480-5090-80

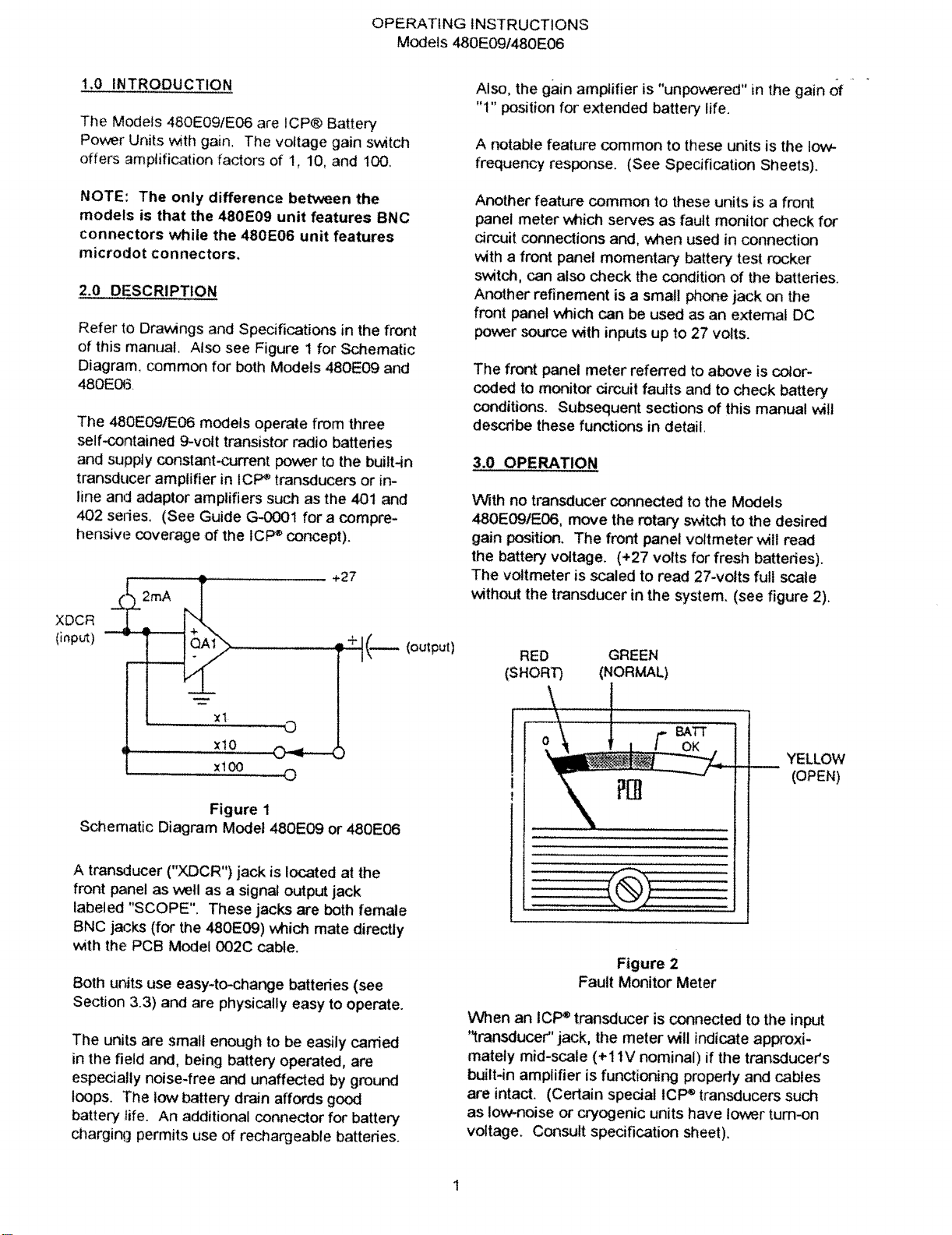

Autres manuels pour 480E09

Table des matières

Autres manuels PCB Piezotronics Équipement de test

PCB Piezotronics

PCB Piezotronics ICP 086C03 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 8159-1112A Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 482C27 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 482C15/NP Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 483C30 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics UP118B11 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 8159-0111A Manuel utilisateur

PCB Piezotronics

PCB Piezotronics ATS-3A Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 8159-0152A Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 118B06 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 8159-0012A Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 498A-0016 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 482B11 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 498A-0093 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics ICP 410C01 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 498A-0010 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 482C Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 498A-0063 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 482C05 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 8159-0051A Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 8159 Series Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 301A03 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 482A23/NP Manuel utilisateur

PCB Piezotronics

PCB Piezotronics PCB-137B29B Manuel utilisateur

Manuels Équipement de test populaires d'autres marques

SMART

SMART KANAAD SBT XTREME 3G Series Manuel utilisateur

Agilent Technologies

Agilent Technologies BERT Serial Manuel utilisateur

Agilent Technologies

Agilent Technologies N3280A Manuel utilisateur

Vernier

Vernier Go Direct Voltage Manuel utilisateur

Lifeloc

Lifeloc R.A.D.A.R. Manuel utilisateur

Fluke

Fluke T5-600 Instructions d'utilisation et d'installation

Mercury

Mercury TSL01 Manuel utilisateur

MAHA

MAHA MBT Series Manuel utilisateur

Fuji Electric

Fuji Electric P-61 Manuel utilisateur

ETC

ETC SealerAtor Manuel utilisateur

Skyfine

Skyfine ETHYWAY V2 Manuel utilisateur

Appion

Appion G5 Twin Manuel utilisateur

BW Technologies

BW Technologies MicroDock II Manuel utilisateur

Sun Nuclear

Sun Nuclear 1027 Manuel utilisateur

Biomark

Biomark HPR LITE READER Manuel utilisateur

Hioki

Hioki 3169-20 Manuel utilisateur

Ashcroft

Ashcroft ATE-100 Manuel utilisateur

Rohde & Schwarz

Rohde & Schwarz RTA4000 Manuel utilisateur
