SmartNode 4520 and 4110 Series

VoIP Gateway Routers

Quick Start Guide

Approval

—Models that are equipped with FXO interfaces have been

approved for connection to the public telecommunication network.

Zulassung

—Modelle, die mit FXO Schnittstellen ausgerüstet sind, sind

für Anschaltung an das öffentliche Telekommunikationsnetz genehmigt.

Approvazione

—I modelli che sono dotato con le interfacce di FXO

sono stato approvato per collegamento alla rete di

telecomunicazion pubblica.

Aprobación

—Los modelos que se equipan los interfaces de FXO se han

aprobado para la conexión a la red de telecomunicación pública.

Approbation

—Des modéles qui sont équipés des interfaces de FXO ont

été approuvés pour le raccordement au réseau de télécommunication public.

Document Number: 13202U7-001 Rev. C

Part Number: 07MSN4000-QS

Revised: March 27, 2006

Sales Ofﬁce: +1 (301) 975-1000

Technical Support: +1 (301) 975-1007

E-mail: [email protected]

WWW: www.patton.com

www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 600030

2 SmartNode 4520 and 4110 Quick Start Guide

1.0 Power up the SmartNode

1. Connect the SmartNode to a power source using the included power supply

and cable.

2. When the

Power

LED stops blinking and remains lit, the SmartNode is ready

to conﬁgure.

•

The SmartNode contains no user serviceable

parts. The equipment shall be returned to Patton

Electronics for repairs, or repaired by qualiﬁed

service personnel.

•

Mains Voltage: Do not open the case when the

power cord is connected. For systems without a

power switch, line voltages are present within

the power supply when the power cord is con-

nected. The mains outlet that is utilized to power

the SmartNode router shall be within 10 feet (3

meters) of the device, shall be easily accessible,

and protected by a circuit breaker

•

The smartNode is not shipped with power

cables. For AC powered units, ensure that the

power cable used meets all applicable standards

for the country in which it is to be installed, and

that it is connected to a wall outlet which has

earth ground.

•

Hazardous network voltages are present in WAN

ports regardless of whether power to the Smart-

Node is ON or OFF. To avoid electric shock, use

caution when near WAN ports. when detaching

the cables, detach the end away from the Smart-

Node ﬁrst.

•

Do not work on the system or connect or discon-

nect cables during periods of lightning activity.

The terminal block header to which the wires are secured pro-

vides the disconnect for the SmartNode. Take proper measures

to ensure that it is not permanently fastened to the receptacle

mounted on the chassis.

WARNING

CAUTION

www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 600030

SmartNode 4520 and 4110 Quick Start Guide 3

2.0 Connect the SmartNode to your PC

Note For factory default IP address information, see Appendix A.0 on page 8.

Option 1:

Connect to a network that has a DHCP server

(SN4520 &

SN4110).

Using the included black Ethernet cable, connect the SmartNode RJ-45

Ethernet WAN port, labeled

ETH0/0

(see ﬁgure 1), to an Ethernet hub or switch

on the same network as your PC. WAN interface

ETH0/0

is conﬁgured as

DHCP client.

Figure 1. Connecting the SmartNode to your PC through a hub or switch

Figure 2. Connecting the SmartNode directly to your PC

Option 2: Connect directly to a PC

(SN4520 only).

LAN interface

ETH0/1

is conﬁgured as DHCP server (see ﬁgure 2).

1. Conﬁgure your PC as a DHCP client.

Note The procedures below are for Microsoft Windows. For another operating

system, refer to the operating instruction that came with your PC.

DHCP

Server

Ethernet Hub

or Switch

SmartNode

ETHO/O

0/3 0/2 0/1 0/0

Voice Ports

FXS

ETH 0/0

0/3 0/2 0/1 0/0

Voice Ports

FXS

SmartNode

4520

PC ETHO/1

ETH 0/1

ETH 0/0

www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 600030

4 SmartNode 4520 and 4110 Quick Start Guide

2. Right-click on

My Network Places

and select

Properties

in the context menu

(see ﬁgure 3).

Figure 3. Displaying the Network Connections window

Figure 4. Displaying the Internet Properties (TCP/IP) Properties window

3. Double-click on

Local Area Connection

and click on

Properties

to open

the

Internet Protocol (TCP/IP) Properties

window (see ﬁgure 4).

4. Select

Obtain an IP address automatically

and

Obtain DNS server address

automatically

options.

5. Click

to save changes and close the properties windows.

6. Using the included black Ethernet cable, connect the SmartNode RJ-45

Ethernet LAN port labeled

ETH0/1

directly to the Ethernet port on your PC

(see ﬁgure 2 on page 3).

www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 600030

SmartNode 4520 and 4110 Quick Start Guide 5

Option 3: Connect the SmartNode console port to your PC

(SN4520 & SN4110).

If your PC has an RS-232 serial COM port, you may use

it to connect the SmartNode Console port. Refer to the

SmartNode 4110/4520

Getting Started Guide

located on the CD-ROM shipped with your SmartNode for

the procedure.

3.0 Start the SmartNode Discovery Tool

1. Insert the CD included with your SmartNode into the CD drive on your PC.

2. Copy the ﬁle named

SNDiscovery.exe

from the CD to your PC.

3. At your PC, double-click the

SNDiscovery.exe

ﬁle name to activate the tool.

The SmartNode Discovery Tool window will display the IP Address, MAC

Address, Device Type (model number) and Build (software release) of your

SmartNode.

If your SmartNode does not appear:

• Make sure the SmartNode and your PC are on the same routed subnet

• Make sure any ﬁrewall programs on your PC are disabled

www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 600030

6 SmartNode 4520 and 4110 Quick Start Guide

4.0 Access the Command Line Interface

1. In the Discovery Tool window, select the IP address of your SmartNode.

2. Right-click the selected line, and select

Telnet

3. In the telnet window, enter the username

administrator

. At the password

prompt simply press the

enter

key. The SmartNode will respond by display-

ing its IP address as the command line prompt.

4. After you log in your SmartNode will be running in operator execution

mode (indicated by > character in the command line prompt). To enter con-

ﬁguration mode, use the commands enable and conﬁgure.

10.10.22.50>

enable

10.10.22.50#

configure

10.10.22.50(cfg)#

You may now start to conﬁgure the SmartNode from scratch using the CLI com-

mands, but we recommend that you start your conﬁguration from a template. See

section 5.0 “Download a conﬁguration example, adapt it to your network, and

load it onto the SmartNode” on page 7 for further details.

For a detailed description of the CLI refer to the

SmartWare Software Conﬁgura-

tion Guide

(SCG) available on the CD-ROM and online at

www.patton.com/voip.

www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 600030

SmartNode 4520 and 4110 Quick Start Guide 7

5.0 Download a conﬁguration example, adapt it to your network,

and load it onto the SmartNode

Patton provides a collection of conﬁguration templates on the CD-ROM shipped

with your SmartNode device—and also on the support page at

www.patton.com/voip/appnotes.shtml

.In most cases, one of these tem-

plates should be similar to your application so that you can use it to speed up con-

ﬁguring the SmartNode. Simply download to your PC the conﬁguration note that

most closely matches your application. Adapt the conﬁguration as described in

the conﬁguration note to your network (remember to modify the IP address) and

copy the modiﬁed conﬁguration to a TFTP server. The SmartNode can now load its

conﬁguration from this server.

Note Patton regularly adds new conﬁguration templates to the collection at

www.patton.com/voip/appnotes.shtml

, so if you do not see your

application on the CD-ROM, it may have been added to the website. In addi-

tion,

www.patton.com/voip/conﬁgnotes.shtml

provides a library

of conﬁguration templates for popular SmartNode services and features.

Note If your application is unique and not covered by any of Patton’s conﬁgura-

tion templates, you can manually conﬁgure the SmartNode instead of load-

ing a conﬁguration ﬁle template. In that case, refer to the

SmartNode

Series SmartWare Software Conﬁguration Guide

for information on con-

ﬁguring the SmartNode device.

In this example we assume an TFTP server resides on the host with the IP address

10.10.1.11 and the conﬁguration ﬁle named

SN.cfg

resides in the root directory

of the TFTP server.

10.10.22.50(if-ip)[eth0]#

copy tftp://10.10.1.11/SN.cfg startup-

config

Download...100%

10.10.22.50(if-ip)[eth0]#

After you reboot the SmartNode the new startup conﬁguration will become active.

10.10.22.50(if-ip)[eth0]#

reload

Running configuration has been changed.

Do you want to copy the 'running-config' to the 'startup-config'?

Press 'yes' to store, 'no' to drop changes :

Press 'yes' to restart, 'no' to cancel :

yes

The system is going down

When you issue the reload command, the SmartNode will ask

if you want to copy the running conﬁguration to the startup

conﬁguration. Since you just downloaded a conﬁguration ﬁle

to the startup conﬁguration you must answer this question with

. Otherwise, the downloaded conﬁguration will be over-

written and lost!

IMPORTANT

www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 600030

8 SmartNode 4520 and 4110 Quick Start Guide

6.0 Additional Information

Refer to the

SmartNode Series SmartWare Software Conﬁguration Guide

and

the

SmartNode Getting Started Guide

located on the CD-ROM shipped with

your SmartNode device and available online at www.patton.com/manuals. For

detailed information about:

•

Installing, conﬁguring, operating, and troubleshooting.

•

Warranty, trademark & compliance

The CD-ROM also includes many freeware and shareware tools, including TFTP

servers, and Telnet clients.

A.0 Factory default IP address information

B.0 Customer and Technical Support

Toll-Free VoIP support: call sip:suppor[email protected] with a VoIP SIP client

Online support: www.patton.com

E-mail support: [email protected]—answered within 1 business day

Telephone support:

•

Standard: +1 (301) 975-1007 (USA), Monday–Friday: 8:00 am to 5:00 pm

EST (1300 to

2200 UTC/GMT)

•

Alternate: +41 (0)31 985 25 55 (Switzerland), Monday–Friday: 8:00 am to

5:00 pm CET (0900 to 1800 UTC/GMT)

Fax: +1 (253) 663-5693 (USA) or +41 (0)31 985 25 26 (Switzerland)

Item IP Addresss(es) Network Mask

WAN interface Ethernet 0 (ETH 0/0) DHCP client DHCP client

LAN interface Ethernet 1 (ETH 0/1)

* The SmartNode 4520 factory-default conﬁguration includes a DHCP server run-

ning on the ETH 0/1. All Ethernet ports are pre-conﬁgured and active.

192.168.1.1 255.255.255.0

*DHCP server address range 192.168.1.10–192.168.1.19 255.255.255.0

www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 600030

SmartNode 4520 and 4110 Quick Start Guide 9

C.0 Compliance Information

C.1 Compliance

EMC Compliance:

•

FCC Part 15, Class A

•

EN55022, Class A

•

EN55024

Safety Compliance:

•

UL60950-1/CSA C22.2 No. 60950-1

•

IEC 60950-1

•

EN60950-1

•

AS/NZS 60950-1

PSTN Regulatory Compliance:

•

FCC Part 68

•

CS-03

•

TBR-21

•

AS/ACIF S002

•

AS/ACIF S003

C.2 Radio and TV interference

The SmartNode router generates and uses radio frequency energy, and if not

installed and used properly—that is, in strict accordance with the manufacturer’s

instructions—may cause interference to radio and television reception. The Smart-

Node router have been tested and found to comply with the limits for a Class B

computing device in accordance with speciﬁcations in Subpart B of Part 15 of

FCC rules, which are designed to provide reasonable protection from such inter-

ference in a commercial installation. However, there is no guarantee that interfer-

ence will not occur in a particular installation. If the SmartNode router does cause

interference to radio or television reception, which can be determined by discon-

necting the unit, the user is encouraged to try to correct the interference by one or

more of the following measures: moving the computing equipment away from the

receiver, re-orienting the receiving antenna and/or plugging the receiving equip-

ment into a different AC outlet (such that the computing equipment and receiver

are on different branches).

www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 600030

10 SmartNode 4520 and 4110 Quick Start Guide

C.3 FCC Part 68 (ACTA) statement (FXO ports)

This equipment complies with Part 68 of the FCC rules and the requirements

adopted by ACTA. On the bottom side of this equipment is a label that contains—

among other information—a product identiﬁer in the format

US:AAEQ##TXXXX

. If requested, this number must be provided to the tele-

phone company.

The method used to connect this equipment to the premises wiring and telephone

network must comply with the applicable FCC Part 68 rules and requirements

adopted by the ACTA.

If this equipment causes harm to the telephone network, the telephone company

will notify you in advance that temporary discontinuance of service may be

required. But if advance notice isn’t practical, the telephone company will notify

the customer as soon as possible. Also, you will be advised of your right to ﬁle a

complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations

or procedures that could affect the operation of the equipment. If this happens the

telephone company will provide advance notice in order for you to make neces-

sary modiﬁcations to maintain uninterrupted service.

If trouble is experienced with this equipment, for repair or warranty information,

please contact our company. If the equipment is causing harm to the telephone

network, the telephone company may request that you disconnect the equipment

until the problem is resolved.

Connection to party line service is subject to state tariffs. Contact the state public

utility commission, public service commission or corporation commission

for information

C.4 Industry Canada Notice (FXO ports)

This equipment meets the applicable Industry Canada Terminal Equipment Techni-

cal Speciﬁcations. This is conﬁrmed by the registration number. The abbreviation

before the registration number signiﬁes that registration was performed based

on a Declaration of Conformity indicating that Industry Canada technical speciﬁ-

cations were met. It does not imply that Industry Canada approved the equipment.

This Declaration of Conformity means that the equipment meets certain telecom-

munications network protective, operational and safety requirements. The Depart-

ment does not guarantee the equipment will operate to the user’s satisfaction.

Before installing the equipment, users should ensure that it is permissible to be

connected to the facilities of the local telecommunications company. The equip-

ment must also be installed using an acceptable method of connection. In some

cases, the company’s inside wiring associated with a single line individual service

may be extended by means of a certiﬁed connector assembly (telephone exten-

sion cord). The customer should be aware that compliance with the above condi-

tion may not prevent degradation of service in some situations. Repairs to some

certiﬁed equipment should be made by an authorized maintenance facility desig-

nated by the supplier. Any repairs or alterations made by the user to this equip-

www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 600030

Autres manuels pour SmartNode 4520 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Patton Porte

Patton

Patton SmartNode 4554 Manuel utilisateur

Patton

Patton SmartNode 4520 Series Manuel utilisateur

Patton

Patton SmartNode 4300 Manuel utilisateur

Patton

Patton SmartNode 4940 Series Manuel utilisateur

Patton

Patton SmartNode 4120 Manuel utilisateur

Patton

Patton SmartNode SN4170 Manuel utilisateur

Patton

Patton SmartNode 10100 Series Manuel utilisateur

Patton

Patton Smart Node 4120 Manuel utilisateur

Patton

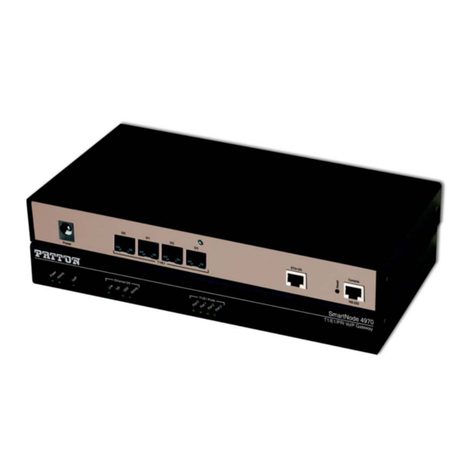

Patton SmartNode 4970A Series Manuel utilisateur

Patton

Patton SmartNode 4740 Series Manuel utilisateur

Patton

Patton SmartNode 10200 Series Manuel utilisateur

Patton

Patton SmartNode 4131 Manuel utilisateur

Patton

Patton SmartNode SN5550 Manuel utilisateur

Patton

Patton SmartNode 4740 Series Manuel utilisateur

Patton

Patton SmartNode 4970 Series Manuel utilisateur

Patton

Patton SmartNode SN10200A Series Instructions d'utilisation et d'entretien

Patton

Patton SmartNode SN10100A Series Manuel utilisateur

Patton

Patton FiberPlex FPX6000 Series Manuel utilisateur

Patton

Patton 07MSNOGA-DS5 Manuel utilisateur

Patton

Patton SmartNode 10100 Series Manuel utilisateur

Patton

Patton SmartNode 4110 Series Manuel utilisateur

Patton

Patton SmartNode 5541 Series Manuel utilisateur

Patton

Patton SmartNode 4970 Series Manuel utilisateur

Patton

Patton SN4112 Manuel utilisateur

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

Huawei

Huawei EchoLife HG620 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur
