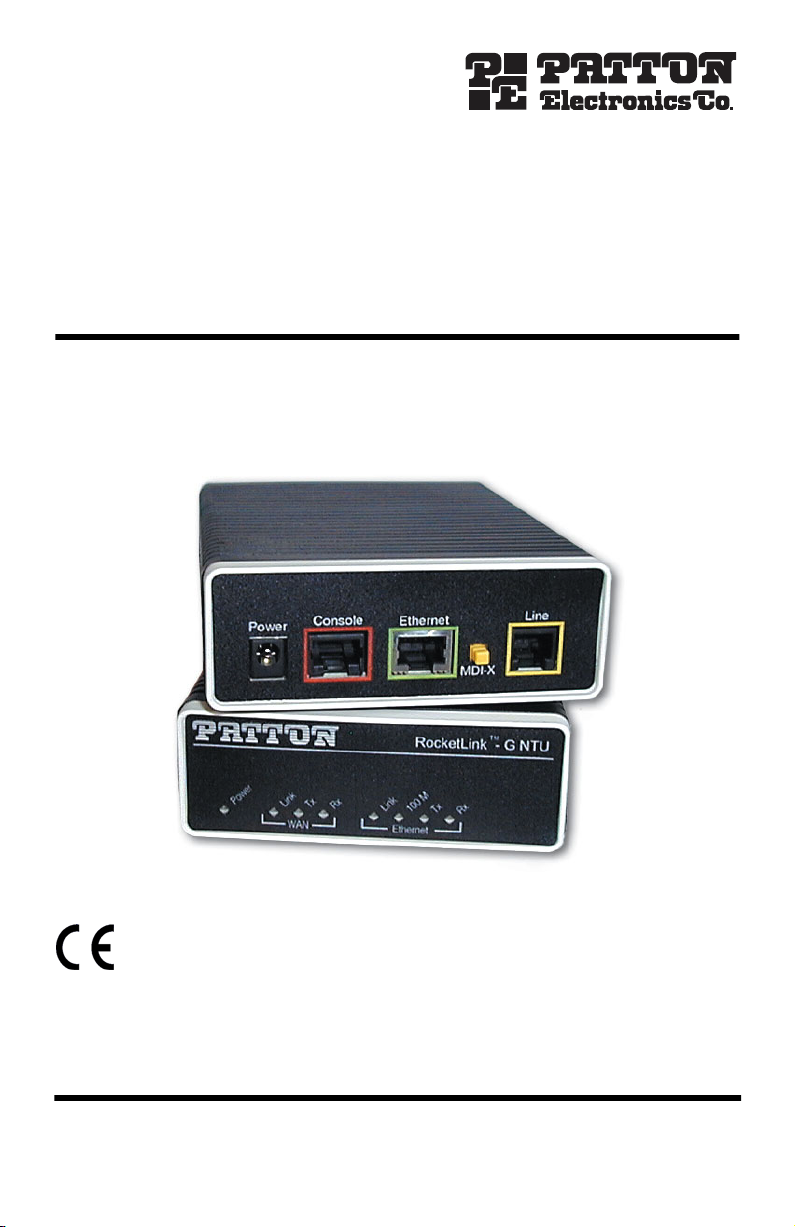

RocketLink™-G Model 3088/I

G.SHDSL NTU

Quick Start Guide

Important

—This is a Class A device and is intended for use in a light industrial environment. It is not

intended nor approved for use in an industrial or residential environment.

Document Number: 03332U7-001 Rev. C

Part Number: 07M3088I-QS

Revised: October 15, 2008

Sales Ofﬁce: +1 (301) 975-1000

Technical Support: +1 (301) 975-1007

E-mail: [email protected]

WWW: www.patton.com

Model 3088/I Quick Start Guide

1.0 Power up the NTU

Your NTU comes with an external AC adaptor with detachable power cord.

1.1 AC power-up

Connect female plug of the AC power cord to the AC adaptor provided.

Connect the barrel-type connector of the AC adaptor to the barrel-type power jack on the

RocketLink-G NTU.

Insert the male plug of the AC power cord into an AC power outlet (100–240 VAC)

1.2 DC power-up

The 36-60 VDC DC to DC adapter is supplied with the DC version of the Model 3088/I. The black and red leads

plug into a DC source (nominal 48VDC) and the barrel power connector plugs into the barrel power supply jack

on the 3088/I. (See

ﬁgure 1

•

This device contains no user serviceable parts. The equipment

shall be returned to Patton Electronics for repairs, or repaired

by qualiﬁed service personnel.

•

The external power adapter shall be a listed Limited Power

Source. The mains outlet that is utilized to power the devise

shall be within 10 feet (3 meters) of the device, shall be easily

accessible, and protected by a circuit breaker.

•

If an AC power adapter is used, ensure that the power cable

used meets all applicable standards for the country in which it

is to be installed, and that it is connected to a wall outlet which

has earth ground.

•

Hazardous network voltages are present in WAN ports regard-

less of whether power to the unit is ON or OFF. To avoid electric

shock, use caution when near WAN ports. When detaching the

cables, detach the end away from the device ﬁrst.

•

Do not work on the system or connect or disconnect cables

during periods of lightning activity.

The interconnecting cables shall be acceptable for external use and shall be rated for

the proper application with respect to voltage, current, anticipated temperature, ﬂam-

mability, and mechanical serviceability.

WARNING

CAUTION

Model 3088/I Quick Start Guide

Figure 1.

DC Power Supply

1.3 Power-up indication

The

Power

and

100M Ethernet

LEDs are lit while the RocketLink-G is powering up.

2.0 Conﬁgure the IP address

The RocketLink-G NTU is shipped with a factory-conﬁgured IP address assigned to the

Ethernet

LAN port (green

outline). The address is

192.168.200.10/24

. In most cases, you must change the address to be on the same sub-

net as your PC, as described in the procedures below. If you are not sure which IP address to use for your instal-

lation, contact your network administrator.

2.1 Connect a PC and log in

Using the included combination RS232/Ethernet cable and DB9-RJ45 adapter, connect a PC’s serial port

to the RocketLink-G’s

Console

port (red outline) (see

ﬁgure 2

Figure 2.

Connecting RocketLink

-G NTU to the PC’s serial port

To Power

Supply Jack To -48VDC

Source

-Vin

+Vin

SWITCHING POWER SUPPLY

MODEL : SYD1106-0505

INPUT : 36-60V 0.2A MAX

OUTPUT : +5V 1.0A

OUTPUT POWER : 5W MAX

S/N: G01234567890

MADE IN CHINA BY SUNNY

Black lead (-V)

Red lead (+V)

Barrel power connector

MDI-X

Line

Ethernet

Power Console

Connect to Console port

Serial port

PC with

terminal emulator

Model 3088/I Quick Start Guide

Start a HyperTerminal session on the PC using the settings:

9600 bps, 8 data bits, no parity, 1 stop bit, no ﬂow control

superuser

) and password (

superuser

Password: *********

2.2 Modify the IP address

Display current IP interface settings for the RocketLink-G

Ethernet

LAN port.

→→

ip list interfaces <enter>

IP Interfaces:

ID | Name | IP Address | DHCP | Transport

---|------|----------------|----------|--------------

1 | ip1 | 192.168.200.10 | disabled | <BRIDGE>

----------------------------------------------

------

Modify the IP address for the LAN port according to your network requirements.

→→

ip set interface ip1 ipaddress 10.10.4.10 255.255.255.0

Note

The above IP address (

10.10.4.10/24)

is only an example. You must choose an IP address on the same

subnet as your PC

Verify the new address is correct and save it in system boot memory.

→→

ip list interfaces <enter>

→→

system config save <enter>

→→

Model 3088/I Quick Start Guide

3.0 Connect to the local IP network

Now you can connect the RocketLink-G NTU to your local IP network and complete the remaining conﬁguration

from your PC using a standard web browser.

Connect the RocketLink-G NTU’s

Ethernet

port (green) to the same Ethernet segment as your PC (see

ﬁgure 3

The front-panel

Ethernet Link

LED should turn on. If it does not, press the rear-panel MDI-X switch so that the

Ethernet Link

LED illuminates.

You can check the connection with the ping command. For example shown in

ﬁgure 3

, you would ping

10.10.4.10 from a PC on the IP network.

Figure 3.

Connecting the RocketLink-G to the local IP network (Model 3088/I shown)

MDI-X

Line

Ethernet

PowerConsole

Connect to Ethernet port Ethernet port

MDI-X switch

Model 3088/I Quick Start Guide

4.0 Log onto the web management interface

You will now access the web management graphical user interface (GUI) to conﬁgure the RocketLink-G using a

standard web browser (such as Netscape browser or Internet Explorer).

At your PC, open a web browser and enter the IP address you assigned to the RocketLink-G’s Ethernet

LAN port in step 2 of section

2.2 “Modify the IP address”

on page 4. (In this example,

10.10.4.10.)

superuser

and the password

superuser

Figure 4.

RocketLink

-G web management home page

Model 3088/I Quick Start Guide

5.0 Connect the G.SHDSL Port

Obtain single-twisted-pair cable with an RJ-11 plug connector at each end.

Plug one end of the cable into the (yellow) RJ-11 socket (labelled

Line)

on the RocketLink-G NTU.

Plug the other end of the cable into the RJ-11 wall socket that provides your G.SHDSL service.

Go to

G.SHDSL > Conﬁguration

to conﬁgure the DSL port parameters.

Note

If two RocketLink-G NTUs are connected back-to-back, one must be conﬁgured as

Remote

, the other

Central

The

WAN Link

LED will ﬂash while in the process of establishing a link. The LED will be on constantly once

a valid DSL connection is established.

6.0 Additional Information

Refer to the

RocketLink-G 3088

User Manual

located on the CD-ROM shipped with your 3088 NTU and available

online at www.patton.com/manuals for detailed information about:

•

Installing, conﬁguring, operating, and troubleshooting,

•

Warranty, trademark, & compliance

A.0 Customer and Technical Support

Toll-Free VoIP support:

call

sip:[email protected]

with a VoIP SIP phone

Online support:

www.patton.com

E-mail support:

[email protected]

—answered within 1 business day

Telephone support:

•

Standard: +1 (301) 975-1007 (USA), Monday–Friday: 8:00 am to 5:00 pm EST (1300 to 2200 UTC/GMT)

•

Alternate: +41 (0)31 985 25 55 (Switzerland), Monday–Friday: 8:00 am to 5:00 pm CET (0900 to 1800

UTC/GMT)

Fax:

+1 (253) 663-5693

(USA)

or +41 (0)31 985 25 26 (

Switzerland)

Model 3088/I Quick Start Guide

B.0 Compliance Information

B.1 Compliance

EMC:

•

FCC Part 15, Class A

•

EN55022, Class A

•

EN55024

Safety:

•

UL 60950-1/CSA C22.2 N0. 60950-1

•

IEC/EN60950-1

•

AS/NZS 60950-1

PSTN Regulatory:

•

FCC Part 68

•

CS-03

•

AS/ACIF S043:2003

B.2 FCC Part 68 (ACTA) Statement

This equipment complies with Part 68 of FCC rules and the requirements adopted by ACTA. On the bottom side of

this equipment is a label that contains—among other information—a product identiﬁer in the format

US:

AAAEQ##TXXXX

. If requested, this number must be provided to the telephone company.

The method used to connect this equipment to the premises wiring and telephone network must comply with the

applicable FCC Part 68 rules and requirements adopted by the ACTA.

If this equipment causes harm to the telephone network, the telephone company will notify you in advance that

temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone com-

pany will notify the customer as soon as possible. Also, you will be advised of your right to ﬁle a complaint with

the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could

affect the operation of the equipment. If this happens the telephone company will provide advance notice in

order for you to make necessary modiﬁcations to maintain uninterrupted service.

If trouble is experienced with this equipment, for repair or warranty information, please contact our company. If

the equipment is causing harm to the telephone network, the telephone company may request that you discon-

nect the equipment until the problem is resolved.

Connection to party line service is subject to state tariffs. Contact the state public utility commission, public ser-

vice commission or corporation commission for information.

Model 3088/I Quick Start Guide

2.3 Industry Canada Notice

This equipment meets the applicable Industry Canada Terminal Equipment Technical Speciﬁcations. This is con-

ﬁrmed by the registration number. The abbreviation, IC, before the registration number signiﬁes that registra-

tion was performed based on a Declaration of Conformity indicating that Industry Canada technical speciﬁcations

were met. It does not imply that Industry Canada approved the equipment.

This Declaration of Conformity means that the equipment meets certain telecommunications network protective,

operational and safety requirements. The Department does not guarantee the equipment will operate to the

user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to

the facilities of the local telecommunications company. The equipment must also be installed using an acceptable

method of connection. In some cases, the company’s inside wiring associated with a single line individual service

may be extended by means of a certiﬁed connector assembly (telephone extension cord). The customer should

be aware that compliance with the above condition may not prevent degradation of service in some situations.

Repairs to some certiﬁed equipment should be made by an authorized maintenance facility designated by the

supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give

the telecommunications company cause to request the user to disconnect the equipment. Users should ensure for

their own protection that the ground connections of the power utility, telephone lines and internal metallic water

pipe system, are connected together. This protection may be particularly important in rural areas.

B.4 Radio and TV Interference (FCC Part 15)

This equipment generates and uses radio frequency energy, and if not installed and used properly—that is, in

strict accordance with the manufacturer's instructions—may cause interference to radio and television recep-

tion. This equipment has been tested and found to comply with the limits for a Class A computing device in accor-

dance with the speciﬁcations in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable

protection from such interference in a commercial installation. However, there is no guarantee that interference

will not occur in a particular installation. If the equipment causes interference to radio or television reception,

which can be determined by disconnecting the cables, try to correct the interference by one or more of the fol-

lowing measures: moving the computing equipment away from the receiver, re-orienting the receiving antenna,

and/or plugging the receiving equipment into a different AC outlet (such that the computing equipment and

receiver are on different branches).

B.5 EC Declaration of Conformity

Product Description:

RocketLink-G NTU 3088

We certify that the apparatus identiﬁed above conforms to the requirements of Council Directive 1999/5/EC on

the approximation of the laws of the member states relating to Radio and Telecommunication Terminal Equip-

ment and the mutual recognition of their conformity.

The signed Declaration of Conformity can be downloaded from

www.patton.com/certiﬁcations/

The safety advises in the documentation accompanying the products shall be obeyed. The

conformity to the above directive is indicated by the CE sign on the device.

Model 3088/I Quick Start Guide

B.6 Authorized European Representative

D R M Green

European Compliance Services Limited.

Avalon House, Marcham Road

Abingdon,

Oxon OX14 1UD, UK

Table des matières

Autres manuels Patton electronics Matériel réseau

Patton electronics

Patton electronics 2025 Manuel utilisateur

Patton electronics

Patton electronics 2500 Series Manuel utilisateur

Patton electronics

Patton electronics ForeFront 6081RC EdgeRoute Guide de l'utilisateur

Patton electronics

Patton electronics 3060/X.21 Manuel utilisateur

Patton electronics

Patton electronics 3004 ECB Series Manuel utilisateur

Patton electronics

Patton electronics 3092 Manuel utilisateur

Patton electronics

Patton electronics ForeFront 2616RC Manuel utilisateur

Patton electronics

Patton electronics 3196RC Manuel utilisateur

Patton electronics

Patton electronics SmartNode 4400 Manuel utilisateur

Patton electronics

Patton electronics ACC-S02 Manuel utilisateur

Patton electronics

Patton electronics 2710RC Series Manuel utilisateur

Patton electronics

Patton electronics 3096RC Manuel utilisateur

Patton electronics

Patton electronics 3095 Manuel utilisateur

Patton electronics

Patton electronics ForeFront 2616RC Manuel utilisateur

Patton electronics

Patton electronics RocketLink-G 3088/I Manuel utilisateur

Patton electronics

Patton electronics 3096RC Manuel utilisateur

Patton electronics

Patton electronics SmartNode 4830 Series Manuel utilisateur

Patton electronics

Patton electronics Model 2711 Manuel utilisateur

Patton electronics

Patton electronics SMARTNODE 4900 Manuel utilisateur

Patton electronics

Patton electronics 593/45 Manuel utilisateur

Patton electronics

Patton electronics Model 2604 Manuel utilisateur

Patton electronics

Patton electronics 3092 Manuel utilisateur

Patton electronics

Patton electronics 450RC24 Manuel utilisateur

Patton electronics

Patton electronics SmartNode 4400 Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
