Independent T1/E1 Port Mapping

Ports can be configured independently, sup-

porting T1 & E1 ports on the same card

Fault-Tolerant Processing

Each module independently sustains switching

with its own built-in processor for non-stop

operation

Port Fallback

A fallback port can be configured for any port

to ensure non-stop switching of data

The Patton Model 2616RC is a software-programmable, non-blocking digital cross connect with 16 channelized

T1/E1 ports and flexible any-to-any DS0 mapping.

16-Port T1/E1 T-DAC

Digital Cross Connect

ForeFront™AIS

Model 2616RC

atton’s Model 2616RC TDM-Digital Access

Concentrator (T-DAC) card provides afford-

able, high density access concentration

and cross connection of DS0 time slots for most

network applications. Patton combines 16 soft-

ware-programmable T1/E1 ports that have inte-

grated CSU/DSUs with a fully non-blocking, any-to-

any DS0 switching fabric for implementing power-

ful multi-module systems in Patton’s ForeFront

Access Platforms.

Each T1/E1 port of the Model 2616RC supports

user-selectable data rates from 64 to 2048 kbps.

With a built-in cross connect, each data channel or

channel group can be multiplexed onto any other

T1/E1 port—even ports on other T-DACS (such as

the Patton Model 3196 or 3096) in the same chas-

sis.

Support for HDB3 and AMI line coding on E1

(G.703/G.704) ports and AMI and B8ZS line coding

on T1 ports, makes the 2616RC one of the most

flexible cross connects available.

Every 2616RC T-DAC has its own processing capa-

bility, ensuring continuous operation and manage-

ability even in the presence of multiple network

outages. Support for primary and secondary sys-

tem clock sources guarantee continuous synchro-

nization with the other modules as well as the TDM

network. To add to fault tolerance and reliability,

fallback ports are configurable for any port to

ensure that if the attached circuit fails, channels

being carried on the failed circuit can be re-routed

to another port. An integrated SNMP/HTTP-based

management system allows for easy configuration

via any SNMP-enabled NMS or via a web browser.

Visit www.patton.com for more information.

Clock Synchronization

Any port can serve as master or secondary

clock source for the entire ForeFront chassis

Nx64 Speeds from 64 to 2048 kbps

Each port is independently selectable for any

required bandwidth including clear channel (32

time slots)

SNMP/HTTP Management

SNMP/HTTP manageable from anywhere in the

world including attached CPE units

Special Rates Available

Call for Details

Model 2616RC T-DAC

Provides 16 T1/E1 links at rates

from 64 to 2048 kbps.

Rear access card provides

any-to-any DS0 connectivity

Interoperable with other

ForeFront front resource cards 10/100 Ethernet and craft ports

easily accessible from front panel

RISC processor ensures non-stop

operation and manageability even

during multiple network outages

Complete Alarm Facilities

Configurable alarm reporting with SNMP Traps,

front panel LEDs, 3-contact relay, and syslog

07MD2616RC-DS3

Streamline, optimize, and save!

Patton is a registered trademark and IPLink is a trademark of Patton Electronics Company in the

United States and other countries.

Specifications

• Any-to-any DS0 cross-connection & concentration

• Non-blocking ingress & egress aggregation

• Redundant failover

nxT1/E1 connections

from multiple sources

DS0s groomed over

user-defined egress

T1/E1

Model 6676

Using the flexible 2616RC’s DS0 switching

matrix, Service Providers can easily consoli-

date, manage, and provision up to 96 T1/E1

links from a single 6476 (4U) chassis. Uplink

access costs are significantly reduced by

grooming and aggregating DS0 traffic from

many partially used T1/E1 lines into selected

outgoing T1/E1 or STM-1 links.

Here is how it works:

Each 2616RC comes with 16 T1/E1 ports;

you select which timeslots connect to

downstream or upstream lines.

Based on customer requirements, assign

nx64 kbps timeslots to downstream

T1/E1 links, i.e 256 kbps (4 DS0s), 512

kbps (8 DS0s), 1024 kbps (16 DS0s), etc.

Use the 2616RC GUI to map DS0s from

downstream to upstream lines.

For example:

•4 DS0s from port 1

•8 DS0s from port 2

•16 DS0s from port 3

•3 DS0s from port 4

•All mapped to upstream E1

port 5 (31 DS0s).

16 configurable WAN ports: T1 (AMI/B8ZS line coding) or

E1 (HDB3/AMI line coding), G.703, G.704, G.723

10/100BaseT (RJ-45 connector); auto-negotiating; half or

full duplex operation for management

Internal or Network (from T1/E1 WAN port)

Indicators LEDs for power, CPU, system, Ethernet, External

clock, Test mode, and WAN ports frame and error status

HTTP, SNMP, Telnet Ethernet, RS-232 Console Port, SYS-

LOG Client, Software upgrade via FTP

Configurable alarms; Remote SNMP Traps; Front Panel LEDs

Master and slave clocking sources are user-selectable and

can be derived from other system cards in the chassis

Redundant, high speed, packet switched bus (PSB) and

TDM bus supporting 4096 DS0s

Safety: UL/CSA per UL1950 Canadian per CS-03. RTTE

Directive 99/5/EC, Environment FCC Part 15,CE Mark,

CTR12, CTR13, FCC Part 68

Operating temperature: 0–40°C (32–104 °F)

Humidity: 5–90% non-condensing

Front blade:0.75 H x 10.5 W x 6.3 D in.

(1.9 H x 26.7 W x 16.0 D cm)

Rear blade: 0.75 H x 10.5 W x 3.15 D in.

(1.9 H x 26.7 W x 8.0 D cm)

WAN Ports

Ethernet Ports

WAN Clocking

Front Panel Indicators

Management Services

Alarm Reporting

System Clocking

High Speed Midplane

Compliance

Environment

Dimensions

Patton-Inalp Networks AG

Meriedweg 7

CH-3172 Niederwangen

Switzerland

Phone ++4411((3311))99885522552255

Fax ++4411((3311))99885522552266

E-mail ssaalleess@@iinnaallpp..ccoomm

Web wwwwww..iinnaallpp..ccoomm

Patton Electronics Co.

7622 Rickenbacker Drive

Gaithersburg, Maryland 20879

USA

Phone ++1133001199775511000000

Fax ++1

133001188669999229933

E-mail ssaalleess@@ppaattttoonn..ccoomm

Web wwwwww..ppaattttoonn..ccoomm

PE-Inalp Networks Private Ltd

Old No. 14 and New No.6,

Brahadambal Road,

Nungambakkam High Road

Chennai: 600 034, India

Phone ++991144444455449900339955//66//77

Fax ++9911444444554499..00339944

Email ssaalleess@@p

paattttoonn..ccoo..iinn

Web wwwwww..ppaattttoonn..ccoo..iinn

An Associate of

Electronics Co., USA

Autres manuels pour ForeFront 2616RC

Table des matières

Autres manuels Patton electronics Matériel réseau

Patton electronics

Patton electronics SL402X Manuel utilisateur

Patton electronics

Patton electronics NetLink 2707C Manuel utilisateur

Patton electronics

Patton electronics SMARTNODE 4900 Manuel utilisateur

Patton electronics

Patton electronics 2715 Manuel utilisateur

Patton electronics

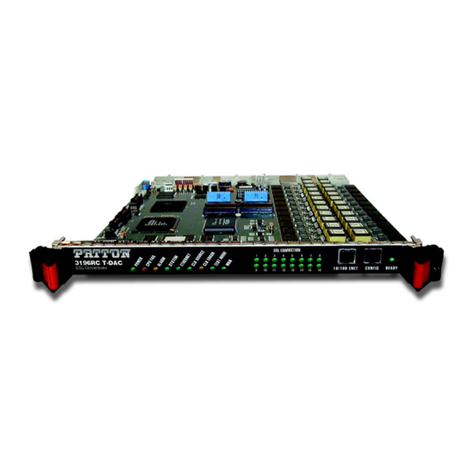

Patton electronics 3196RC Manuel utilisateur
