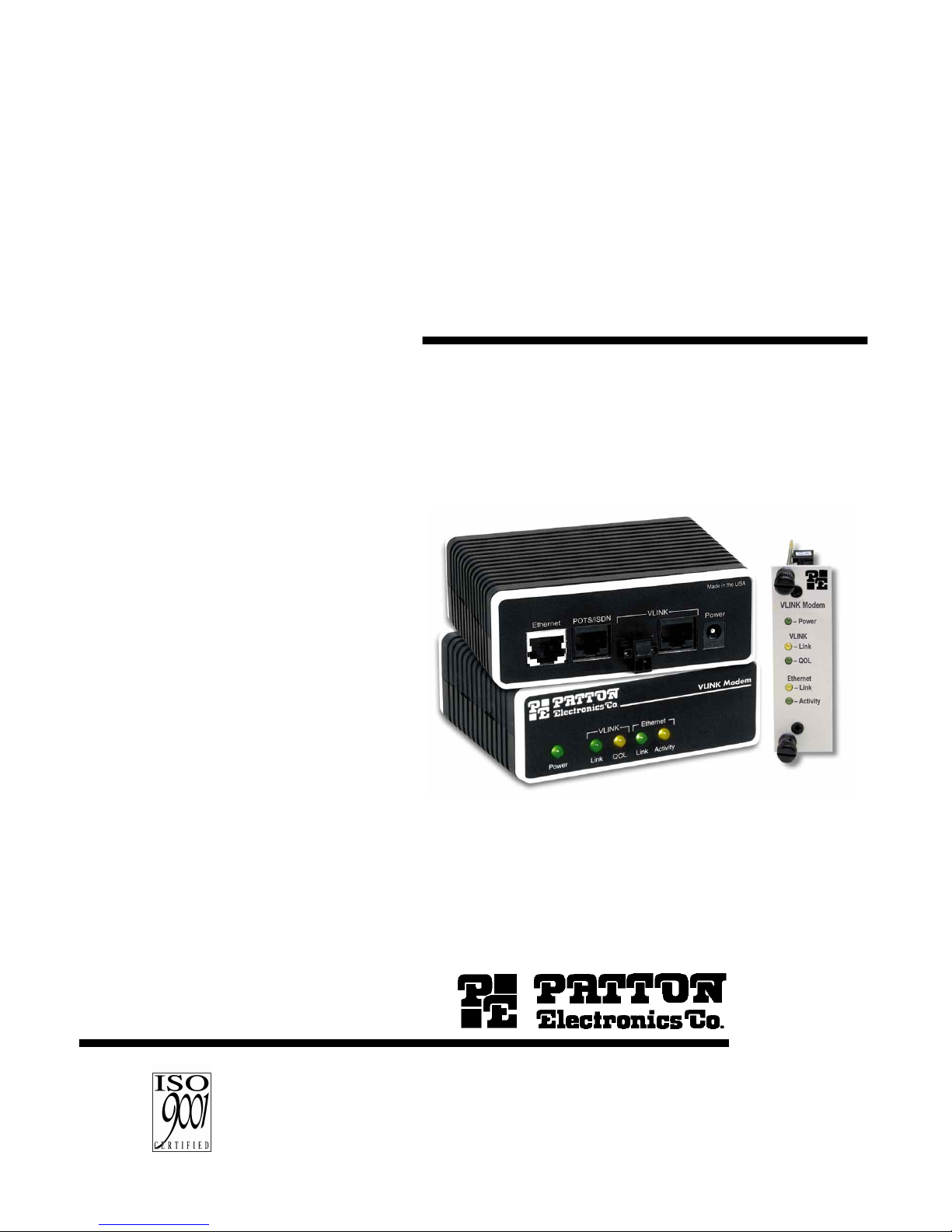

Patton electronics 12168 Manuel utilisateur

USER

MANUAL

MODEL 1068

Variable Rate

VLINK Modem

SALES OFFICE

(301) 975-1000

TECHNICAL SUPPORT

(301) 975-1007

Part# 07M1068-A

Doc# 058111UA

Revised 6/10/02

An ISO-9001Certiﬁed

Company

CONTENTS

1.0 Warranty Information ................................................................. 4

1.1 Radio and TV Interference............................................................ 4

1.2 CE Notice...................................................................................... 4

1.3 FCC Part 68 (1068DV Only)......................................................... 5

1.4 Industry Canada Notice................................................................ 6

1.5 Service.......................................................................................... 6

2.0 General Information.................................................................... 7

2.1 Features........................................................................................ 7

2.2 Description.................................................................................... 7

3.0 Installation................................................................................... 9

3.1 Standalone unit installation........................................................... 9

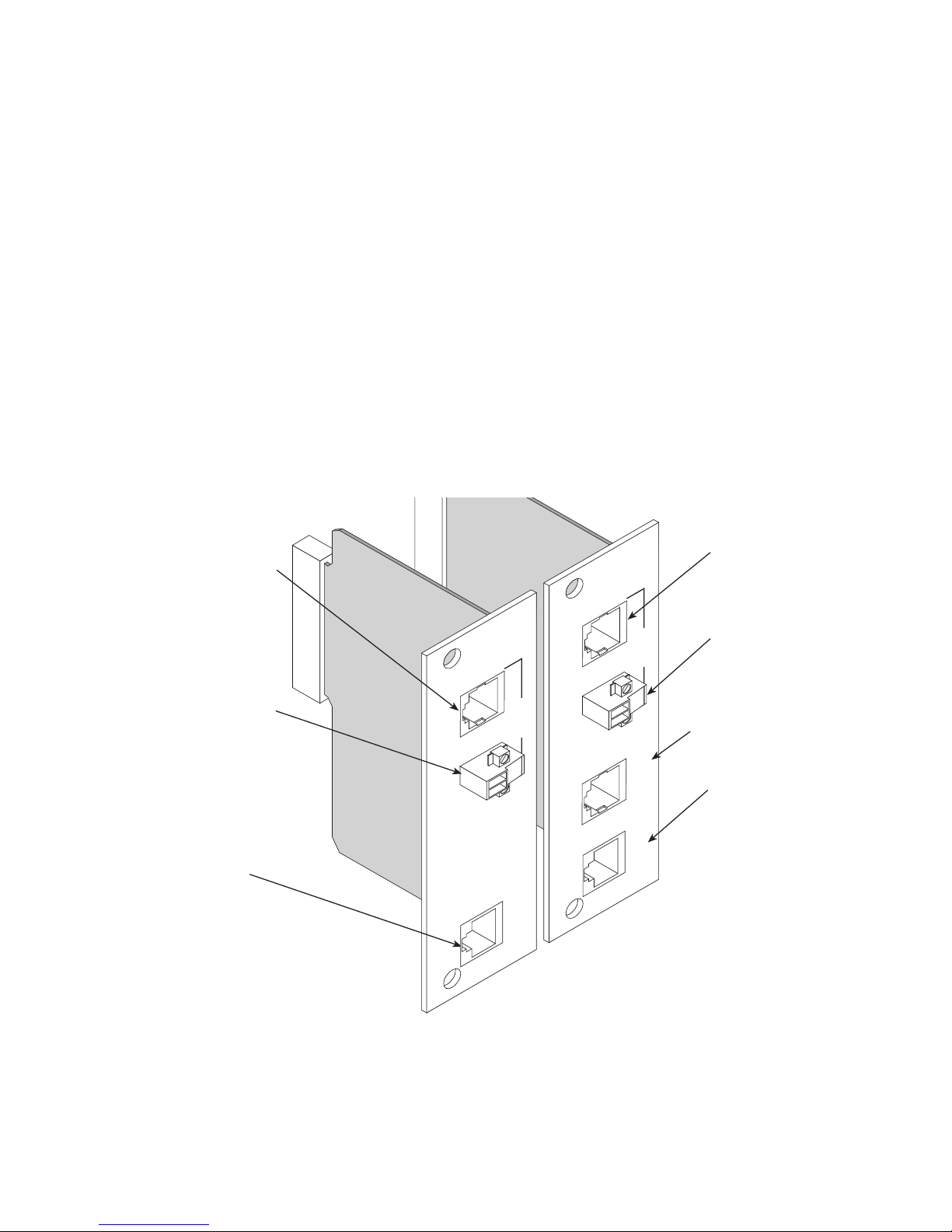

3.2 Rack card installation.................................................................. 10

3.3 Connecting the Twisted-Pair Line Interface................................ 11

3.4 Connecting the 10/100Base-T Ethernet Interface ...................... 12

Connecting the 10/100Base-T Ethernet Port to a Hub............... 13

Connecting the 10/100Base-T Ethernet Port to a PC (DTE)...... 13

3.5 Connecting the POTS/ISDN line................................................. 13

3.6 Connecting Power ...................................................................... 14

4.0 Configuration ............................................................................ 15

4.1 Configuring the hardware DIP switches...................................... 15

4.2 Configuring DIP Switch S1 ......................................................... 17

Switch S1-1: Ethernet Auto Sense............................................. 17

Switches S1-2 and S1-4: Data Rate........................................... 17

5.0 Operation................................................................................... 19

5.1 Power Up.................................................................................... 19

5.2 Front Panel LED Status Monitors............................................... 19

ASpecifications ........................................................................... 21

A.1 LAN Connection .......................................................................... 21

A.2 Transmission Line ....................................................................... 21

A.3 VDSL Line Rate ........................................................................... 21

A.4 VDSL Distance ............................................................................ 21

A.5 VDSL Surge Suppressor ............................................................. 21

A.6 LED Status Indicators ................................................................. 21

A.7 Power Supply .............................................................................. 21

A.8 Temperature Range .................................................................... 21

A.9 Humidity ...................................................................................... 21

A.10 Dimensions ................................................................................. 21

B Model 1068 Series Factory

Replacement Parts and Accessories...................................... 22

C Model 1068 Series Interface Pin Assignment ........................ 23

C.1 10/100Base-T Interface .............................................................. 23

RJ-45.......................................................................................... 23

C.2 VDSL Interface ............................................................................ 23

RJ-45.......................................................................................... 23

Terminal Block............................................................................ 23

C.3 POTS/ISDN Interface .................................................................. 23

RJ-45.......................................................................................... 23

D DISTANCE CHART, BASED ON 24 AWG (0.5 MM)................. 24

1.0 WARRANTY INFORMATION

Patton Electronics

warrants all Model 1068 components to be free from

defects, and will—at our option—repair or replace the product should it

fail within one year from the ﬁrst date of the shipment.

This warranty is limited to defects in workmanship or materials, and does

not cover customer damage, abuse or unauthorized modiﬁcation.If this

product fails or does not performs as warranted, your sole recourse shall

be repair or replacement as described above.Under no condition shall

Patton Electronics

be liable for any damages incurred by the use of this

product.These damages include, but are not limited to, the following:lost

proﬁts, lost savings and incidental or consequential damages arising

from the use of or inability to use this product.

Patton Electronics

spe-

ciﬁcally disclaims all other warranties, expressed or implied, and the

installation or use of this product shall be deemed an acceptance of

these terms by the user.

Note

Conformity documents of all Patton products can be viewed

online at www.patton.com under the appropriate product page.

1.1 RADIO AND TV INTERFERENCE

The Model 1068 generates and uses radio frequency energy, and if not

installed and used properly-that is, in strict accordance with the manufac-

turer’s instructions-may cause interference to radio and television recep-

tion.The Model 1068 has been tested and found to comply with the limits

for a Class A computing device in accordance with speciﬁcations in Sub-

part B of Part 15 of FCC rules, which are designed to provide reasonable

protection from such interference in a commercial installation. However,

there is no guarantee that interference will not occur in a particular instal-

lation. If the Model 1068 does cause interference to radio or television

reception, which can be determined by disconnecting the unit, the user is

encouraged to try to correct the interference by one or more of the follow-

ing measures: moving the computing equipment away from the receiver,

re-orienting the receiving antenna and/or plugging the receiving equip-

ment into a different AC outlet (such that the computing equipment and

receiver are on different branches).

1.2 CE NOTICE

The CE symbol on your Patton Electronics equipment indicates that it is

in compliance with the Electromagnetic Compatibility (EMC) directive

and the Low Voltage Directive (LVD) of the European Union (EU). A Cer-

tiﬁcate of Compliance is available by contacting Technical Support.

1.3 FCC PART 68 (1068DV ONLY)

This equipment complies with Part 68 of the FCC Rules.Please note the

following:

1. You are required to request service from the telephone company

before you connect the Model 1068DV to a network.When you

request service, you must provide the telephone company with the

following data.

— The required Universal Service Order code (USOC)

jack: RJ-11C

— The make, model number, Ringer Equivalence Number (REN),

and FCC Registration number of the Model 1068DV.

The REN helps you determine the number of devices you can con-

nect to your telephone line and still have all of those devices ring

when your number is called. In most, but not all, areas, the sum of

the RENs of all devices should not exceed ﬁve (5.0).To be certain of

the number of devices you can connect to your line, you should call

your local telephone company to determine the maximum REN.

— The Facility Interface Code:

02LS2

— The Service Order Code(s) (SOC):

9.0F

— REN No.:

0.2

2. Your telephone company may make changes to its facilities, equip-

ment, operations, or procedures that could affect the proper func-

tioning of your equipment.The telephone company will notify in

advance of such changes to give you an opportunity to maintain

uninterrupted telephone service.

Caution

The Model 1068D is not intended to be connected to the

public telephone network.

Caution

The VLINK port is not intended to be connected to the

public telephone network. The 1068DV contains a

POTS/ISDN connection that can be connected to the

public telephone network.

3. If your Model 1068DV causes harm to the telephone network, the

telephone company may temporarily discontinue your service. If

possible, they will notify you in advance, but if advance notice is not

practical, you will be notiﬁed as soon as possible and will be

informed of your right to ﬁle a complaint with the FCC.

4. If you experience trouble with the Model 1068DV, please contact

Patton Electronics Company for service or repairs.Repairs should

be performed only by Patton Electronics Co.

5. You are required to notify the telephone company when you discon-

nect the Model 1068DV from the network.

1.4 INDUSTRY CANADA NOTICE

NOTICE:This equipment meets the applicable Industry CanadaTerminal

Equipment Technical Speciﬁcations.This is conﬁrmed by the registration

number.The abbreviation, IC, before the registration number signiﬁes

that registration was performed based on a Declaration of conformity

indicating that Industry Canada technical speciﬁcations were met.It does

not imply that Industry Canada approved the equipment.

1.5 SERVICE

All warranty and non-warranty repairs must be returned freight prepaid

and insured to Patton Electronics. All returns must have a Return Materi-

als Authorization number on the outside of the shipping container.This

number may be obtained from Patton Electronics Technical Services at:

• Tel:

(301) 975-1007

• Email:

[email protected]

• URL:

http://www.patton.com

Note

Packages received without an RMA number will not be

accepted.

2.0 GENERAL INFORMATION

Thank you for your purchase of this Patton Electronics product.This

product has been thoroughly inspected and tested and is warranted for

one year for parts and labor. If any questions or problems arise during

installation or use of this product, contact Patton Electronics Technical

Support at +1 (301) 975-1007.

2.1 FEATURES

• Easy to install standalone VLINK modems—

no conﬁguration required

• Auto-sensing full or half-duplex Ethernet

• Auto-sensing 10/100Base-T

• Extends network connections up to 6,652 ft (2.03 km) over 2-wire 24-

AWG unconditioned lines

• Switch selectable line rates up to 16.67 Mbps

• 7 symmetric or asymmetric settings via DIP switch

• POTS/ISDN splitter on board

• Transparent operation

• LED indicators for Power, Ethernet Link & Activity,VLINK & Quality of Line

(QOL)

• Surge suppression up to 20 kA (8/20

• Available in rack-mount or standalone conﬁgurations

• Made in the USA

2.2 DESCRIPTION

The Patton Electronics Model 1068/CO* and 1068/CP VDSL* modems

provide high-speed LAN connections between peered Ethernet LANs,

remote PC’s, or any other network enabled 10/100Base-T device.

Operating in pairs, a Model 1068/CO (central ofﬁce) located at one end of

the LAN extension and a Model 1068/CP (customer premise) at the other

end, these units can automatically forward LAN broadcasts, multicasts,

and frames across a 2-wire voice-grade twisted-pair link.The data is

* Only Models 1068DV/CO and 1068DV/CP have POTS/ISDN split-

ters on board.

passed transparently (unmodiﬁed) through the 1068s.The 1068s automat-

ically add and delete MAC addresses, only passing packets across the

VDSL link that are meant for the remote peered LAN.

Figure 1.

Typical application

The 1068DV/CO and 1068DV/CP work together to create a transparent

extension between two peered Ethernet LANs.POTS/ISDN calls can be

made over a VDSL link without interfering with the data.Figure 1 shows a

typical point-to-point application.

3.0 INSTALLATION

Because the Model 1068 requires no conﬁguration, it can be installed

quickly.If you are installing a standalone unit, refer to section 3.1 “Standal-

one unit installation”.Otherwise, refer to section 3.2 “Rack card installation”.

Note

If asymmetric transmission or line rates other than 12.5 Mbps

are required, refer to section 4.0, “Conﬁguration” on page 15.

3.1 STANDALONE UNIT INSTALLATION

Do the following:

1. Connect the line interface between the units (refer to section 3.3,

“Connecting the Twisted-Pair Line Interface” on page 11)

Note

See Figure 2 for the standalone unit’s rear panel arrangements.

2. Connect the Ethernet interface (refer to section 3.4, “Connecting the

10/100Base-T Ethernet Interface” on page 12).

3. Connect the power plug (refer to section 3.6, “Connecting Power”on

page 14).

Figure 2.

Model 1068 standalone rear panel

Ethernet VLINK Power

Made in the USA

POTS/ISDN

twisted-pair

terminal block

interface

Power

jack

Ethernet VLINK Power

Made in the USA

Ethernet

port

VDSL twisted-pair

terminal block

interface

VDSL twisted-pair

RJ-45 interface

POTS/ISDN

1068DV

1068D

3.2 RACK CARD INSTALLATION

The Model 1068 rack card version comprises a front card and a rear

card.Do the following to install the cards into the rack chassis:

1. Slide the rear card into the back of the chassis along the metal rails.

2. Secure the rear card using the supplied metal screws.

3. Slide the front card into the chassis until you feel resistance as the

front card engages the rear card.When that happens,

gently

push

the front card forward until it is fully seated in the card-edge recepta-

cle of the rear card (it should

click

into place).

4. Secure the front card using the captive fasteners.

Note

The Model 1001R14 chassis supports “hot swapping” of cards,

so it is not necessary to power down the rack when you install or

remove a Model 1068 rack card.

Figure 3.

Model 1068 rack cards

5. Connect the line interface between the units (refer to section 3.3,

“Connecting the Twisted-Pair Line Interface” on page 11)

Note

See Figure 3 for the rack card’s panel arrangements.

POTS/ISDN

1068DRC

1068DVRC

POTS/ISDN

Port

VLINK

RJ-45 interface

VLINK

terminal block

VLINK

RJ-45 interface

VLINK

terminal block

VLINK

Ethernet

Port

Ethernet

Port

Ethernet

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Patton electronics Modem

Patton electronics

Patton electronics 1082/F Manuel utilisateur

Patton electronics

Patton electronics 1090 Manuel utilisateur

Patton electronics

Patton electronics Model 1065 Manuel utilisateur

Patton electronics

Patton electronics RocketLink-G 3088 Series Manuel utilisateur

Patton electronics

Patton electronics 1180/35 Manuel utilisateur

Patton electronics

Patton electronics RS-232 Manuel utilisateur

Patton electronics

Patton electronics RocketLink 3202 Manuel utilisateur

Patton electronics

Patton electronics 1000R Manuel utilisateur

Patton electronics

Patton electronics 1140RC Manuel utilisateur

Patton electronics

Patton electronics 2192 Manuel utilisateur

Patton electronics

Patton electronics 2190 Manuel utilisateur

Patton electronics

Patton electronics 1068 Manuel utilisateur

Patton electronics

Patton electronics OnSite 1052 Series Manuel utilisateur

Patton electronics

Patton electronics 1205P Manuel utilisateur

Patton electronics

Patton electronics 1093 Manuel utilisateur

Patton electronics

Patton electronics 1092 Manuel utilisateur

Patton electronics

Patton electronics 1010B Manuel utilisateur

Patton electronics

Patton electronics 1015 Manuel utilisateur

Patton electronics

Patton electronics 1194 Manuel utilisateur

Patton electronics

Patton electronics 1025 Manuel utilisateur

Patton electronics

Patton electronics 2703-X21 Manuel utilisateur

Patton electronics

Patton electronics 1040 Manuel utilisateur

Patton electronics

Patton electronics IM2RC/F-128K Manuel utilisateur

Patton electronics

Patton electronics 1089/I Manuel utilisateur

Manuels Modem populaires d'autres marques

Davicom

Davicom DM562AP Manuel utilisateur

EpiValley

EpiValley TATA indicom SXC-1080 Manuel utilisateur

Zte

Zte WiMAX Manuel utilisateur

Intelimax

Intelimax MA-2060 Manuel utilisateur

SMC Networks

SMC Networks D3CM1604V Manuel d'utilisation et d'entretien

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuel utilisateur

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuel utilisateur

Samsung

Samsung AceLink SAM-335A Manuel utilisateur

Enfora

Enfora Enabler-G Guide de configuration rapide

iRZ

iRZ ATM2-232 Manuel utilisateur

Zhone

Zhone 6310 Manuel utilisateur

Paradyne

Paradyne Hotwire 7976 Manuel utilisateur

US Robotics

US Robotics 3453C Manuel utilisateur

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuel utilisateur

Zte

Zte MF823 Manuel utilisateur

Four-Faith

Four-Faith F1403 Manuel utilisateur

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuel utilisateur

Gemtek

Gemtek WiMAX WIXFBR-103 Manuel utilisateur
