Paslode RINGfast A515 Manuel utilisateur
Product Manual
WARNING
Before operating this tool, all operators should study this manual
to understand the hazards and operation of this tool.
Please keep these instructions with the tools for future reference.
Paslode RINGfast
A515 Pneumatic
Ring Fastening Tool
Exclusively distributed by Whites Group Pty Ltd
www.whitesgroup.com.au
ABN 25 001 845 478
1
Table of contents
page
Tool specifications............................................................2
Safety instructions ..........................................................3
Lubrication and maintenance ........................................4
Loading the tool ..............................................................5
Operating the tool ...........................................................6
Cleaning the tool .............................................................7
Clearing a jam from the tool ...........................................8
Trouble shooting .............................................................9
Clinchers replacement ....................................................17
Driver replacement ..........................................................18
Piston’s O-ring replacement ..........................................20
Valve’s O-ring replacement ............................................22
Pusher’s spring replacement .........................................26
2
Tool specifications
Dimensions: 336mm x 220mm x 89mm
Length x Height x Width
Weight (without C-Rings):
1.35Kg
Air inlet…………………………………1/4” NPT
Compressed air:
Maximum permissible operating pressure…8KG/CM2(110PSI)
Recommended operating pressure ……5-7 KG/CM2(70-100PSI)
Air consumption………………………………0.112M3(3.96 ft3 )
Air pressure 7KG/CM2with 100 rings per minute
Staple’s size ……………………………………………15G100
Staple’s capacity ………………………………………100 PCS
Part Number: A10870
Tool Description: Paslode RINGfast A515 Tool
3
Safety instruction
DANGER
1.Read this manual and understand all safety instructions before operating the
tool.
2.Never use flammable gases as a power source for the tool.
Use filtered, lubricated, regulated compressed air only.
3.Never use gasoline or other flammable liquids to clean the tool.
4.Do not exceed maximum permissible operating pressure of the tool
(8kg/cM2)
55.Disconnect the tool from air supply before cleaning jams, servicing, adjusting,
and during non-operation.
WARNING
6.Do not pull the trigger when carrying or holding the tool. Never carry the
tool by the hose or pull the hose to move the tool.
7.At the workplace, always wear the protective equipment such as safety
glasses, hearing protection and head protection.
8.Do not use a check valve or any other fitting which allows air to remain in the
tool.
9.Do not place your hand or any part of your body in the staple clinching area
or adjustment window of the tool when connecting or disconnecting air
supply.
10.Never point any operational driving tool at yourself or at any other person.
4
LUBRICATION AND MAINTENANCE
NOTE
Your tool requires lubrication before you use it for the first time.
Disconnect the air supply from the tool before lubricating.
Before each use turn the tool so the inlet is facing up and put one drop of
Paslode pneumatic oil into air inlet. Never use detergent oil additives.
Operate the tool briefly after adding oil.
Wipe off excessive oil at the exhaust, excessive oil will damage o-rings of tool.
AIR SUPPLY AND CONNECTIONS
NOTE
The following illustration shows the correct mode of connection to the air supply
system which will increase the efficiency and useful life of the tool.
Many air tool users find it convenient to use a lubricator to help provide oil circulation
through tool and increase the efficiency and useful life of the tool. Check oil level in
the lubricator daily.
Many air tool users find it convenient to use a filter to remove liquid impurities which can
rust or wear internal parts of the tool. A filter also increases the efficiency and useful life
of the tool. The filter must be checked on a daily basis and if necessary drained.
5
Loading the tool
Disconnect the air supply.
Insert a stick of appropriate C-rings into
the magazine (035) from back. Let the
stick slide forward to the front of the
magazine.
Pull pusher (034) back and up to
against the end of stick.
6

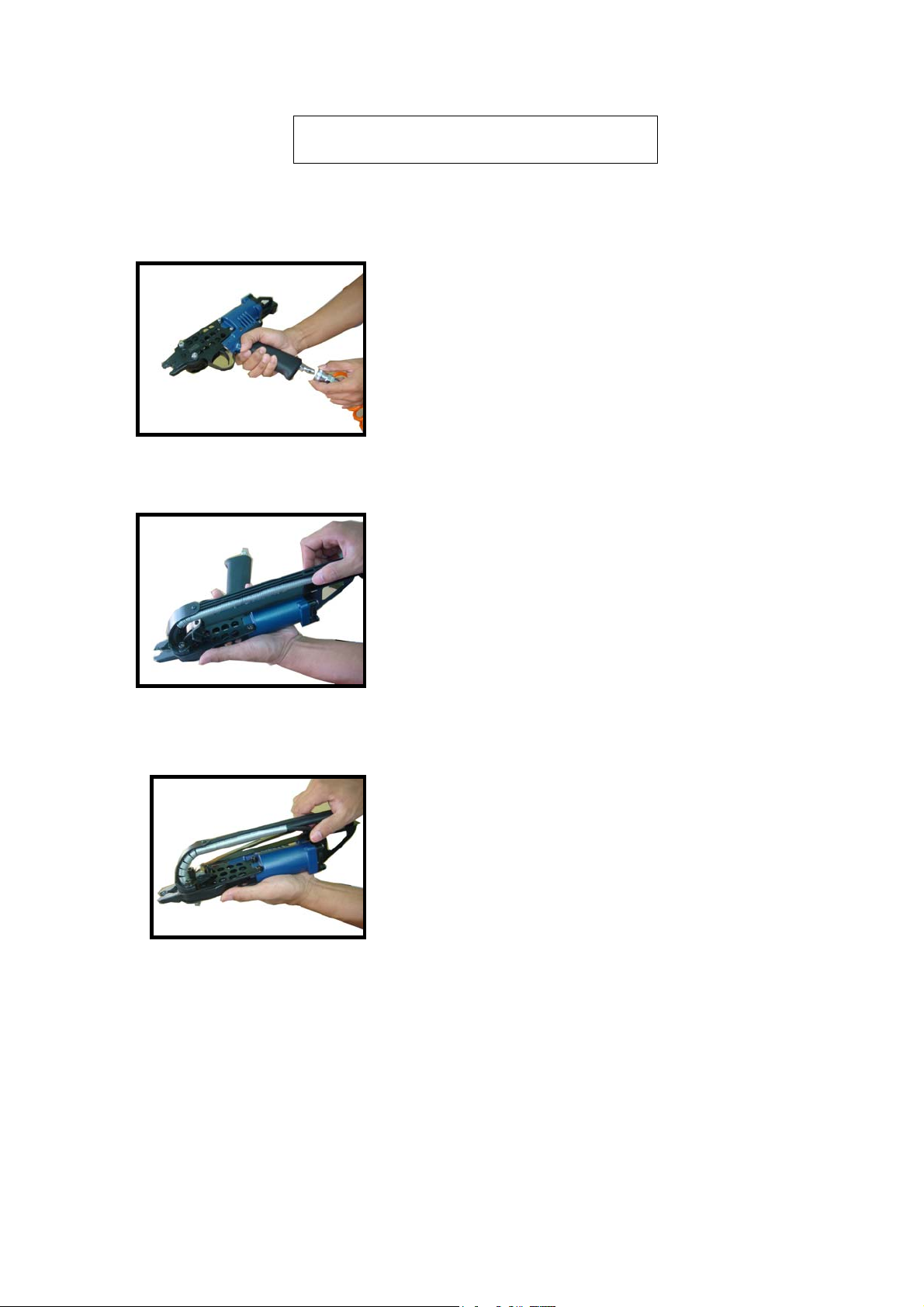

Operating the tool
Protect your eyes and ears. Wear safety
glasses with side shields. Wear hearing
protection. Employers and users are
responsible for ensuring the user or anyone
near the tool wear this safety protection.
To prevent accidental injuries: Never, place a
hand or any other part of body in staple
clinching area or adjustment window. Never
point tool toward anyone else. Never
engage in horseplay. Always handle the tool
with care. Never pull trigger unless tool is in
position required.
Insert staples into your tool following the
instructions of loading the tool.
Connect the air supply.
Free actuation first. (The first actualtion will
push the C-ring to the front position of
clinchers.) Put the target into clinchers then
actuate
Check if target is closed by C-ring
appropriately.
Note
WARNING
WARNING
7
Cleaning the tool
Never use gasoline or other flammable
liquids to clean the tool. Vapors in the
tool will ignite by a spark and cause the
tool to explode and result in death or
serious personal injury.
1. Disconnect the air supply from the
tool.
2. Remove tar buildup with kerosene #2
fuel oil or diesel fuel. Do not allow
solvent to get into the cylinder or
damage may occur. Dry off the tool
completely before use.
DANGER
8
Clearing a jam from the tool
Disconnect the air supply.
Move out remnant c-rings from magazine
(035).
Clearing jam using pliers.
9

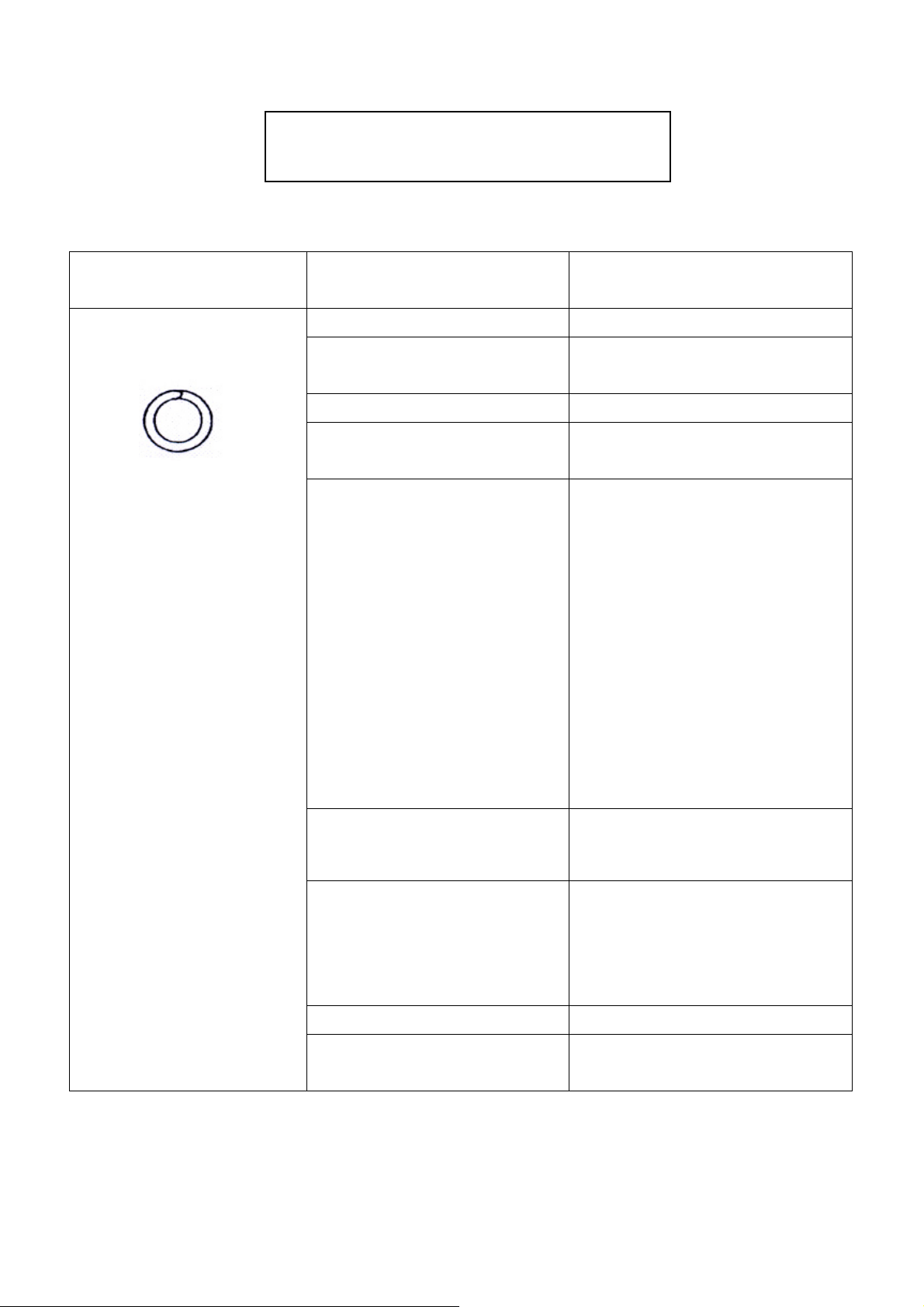

Trouble shooting
Problem Cause Solution
Latch (014) worn Replace latch (014)
Wrong latch used (014)
(too short)
Verify and replace latch
(014)
Latch spring broken (016) Replace latch spring (016)
Wrong piston rod (026)
(too short)
Verify and replace piston rod
(026)
Low power:
1. Air pressure set too low
2. Air leaks in supply hose
3. Air leak in tool
4. Throttle valve A(020)
not adjusted properly
Verify pressure:
1.Check air pressure setting
(Operator Manual)
2.Replace air supply hose
3.See page 15 and 16
4.Adjust throttle valve A
(020) properly
Wrong clinchers used
(021、022)
Verify and replace clinchers
(021、022)
Worn clinchers (021、022)
(helix, cam surface, bolt
holes, clincher bushings
(013))
Replace clinchers (021、022)
or clinchers bushing (013)
Worn rollers (025) Replace rollers (025)
Inside diameter of ring
too large after clinching
Wrong rollers (025) (too
small)
Verify and replace rollers
(025)
