Paslode PPNXi Manuel utilisateur

NEVER STOP BUILDING

PPNXi

SPECIALIST NAILER

www.paslode.co.uk

4303 MANUEL PPNXi _FINAL.indd 14303 MANUEL PPNXi _FINAL.indd 1 20/01/2021 11:3220/01/2021 11:32

PPNXi

SPECIALIST NAILER

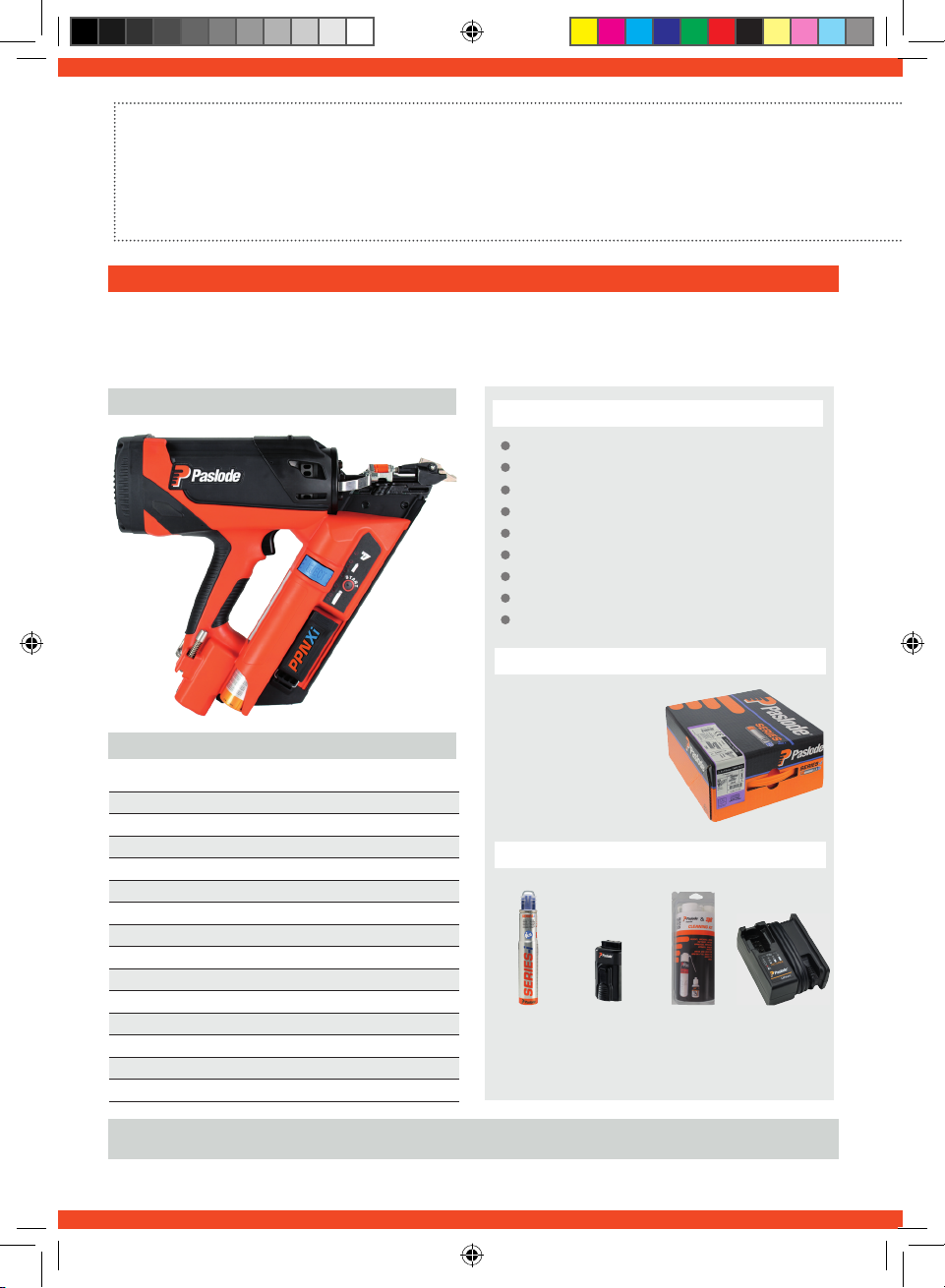

Thank you for choosing a Paslode tool. The PPNXI specialist nailer provides an efficient safe way of installing hangers,

brackets and straps. The tool accurately delivers a hardened twist nail in the precise required location.

CONGRATULATIONS

THE TOOL

PPNXi Specialist Nailer

Lithium Battery

Lithium Battery Charger

Safety eye protection to EN166-F standard.

Allen Key

Instruction Manual

Tool Schematics

Safety Instructions

CE & UKCA Declaration of Conformity

Product weight 3.7 kg

Size / depth 381mm / 121mm

Power 77 J

Fastener length range 35 mm

Maximum Cycle rate per hour (xings) 1000 xings

Maximum Cycle rate per sec (xings) 2-3 xings

Magazine capacity 29 xings

Fuel cell capacity 1250 (-5°C) shots

Fixings per battery charge 13000 shots

Battery charge time 90 Min.

Battery type Lithium

Operating temperature range -15°C...+49°C

Peak Sound Pressure (EN 12549) LpCpeak 135 dB(C)

Workplace Relevant Emission, LpA 95 dB(A)

Vibration (EN ISO 8662-11) ahv 4,7 m/s²

TECHNICAL DATA

IN YOUR KIT

CONSUMABLES YOU NEED

Hardened Twist Nails

Ø = 3.4 mm

L = 35mm

IF YOU NEED EXTRA ACCESSORIES

Refer to www.paslode.co.uk for further information on your tool and FAQ.

Series-i

Fuel Cell

300348

Li-ion

Battery

018880

Impulse

Cleaning Kit

013690

Battery

Charger

018882

4303 MANUEL PPNXi _FINAL.indd 24303 MANUEL PPNXi _FINAL.indd 2 20/01/2021 11:3220/01/2021 11:32

PPNXi

SPECIALIST NAILER

PLEASE ADHERE TO SAFETY RECOMMENDATIONS & WARNINGS AT ALL TIMES

OFF

PPNXi

Ø = 3.4 mm

L = 35mm

Hardened Twist Nails

INDEX:

• Getting Started Pg 4-5 • Tool Lights Pg 5 • Tool Adjustment Pg 6-7 • Tool Maintenance Pg 8-9

• Trouble Shooting Pg 10 • Paslode Range Pg 11

4303 MANUEL PPNXi _FINAL.indd 34303 MANUEL PPNXi _FINAL.indd 3 20/01/2021 11:3320/01/2021 11:33

1 2

= 1250 (-5°C°)

CLICK !

PPNXi

Ø = 3.4 mm

L = 35mm

Hardened Twist Nails

GETTING STARTED

FUEL CELL CONSUMABLES

Check fuel is in date

(see base of fuel)

4303 MANUEL PPNXi _FINAL.indd 44303 MANUEL PPNXi _FINAL.indd 4 20/01/2021 11:3320/01/2021 11:33

= 13000 max

OFF

15 min. 2 500 max.

60 min. 10 000 max.

90 min. 13 000 max.

25% 50% 75% 100% 0 300

GETTING STARTED

BATTERY

LED LIGHTS

RESTING POSITION

If you need to rest or place the tool down, please place in the following position:

4303 MANUEL PPNXi _FINAL.indd 54303 MANUEL PPNXi _FINAL.indd 5 20/01/2021 11:3320/01/2021 11:33

-15°C

≤ T ≤

+49°C

1 000 /hour

3 300 /day

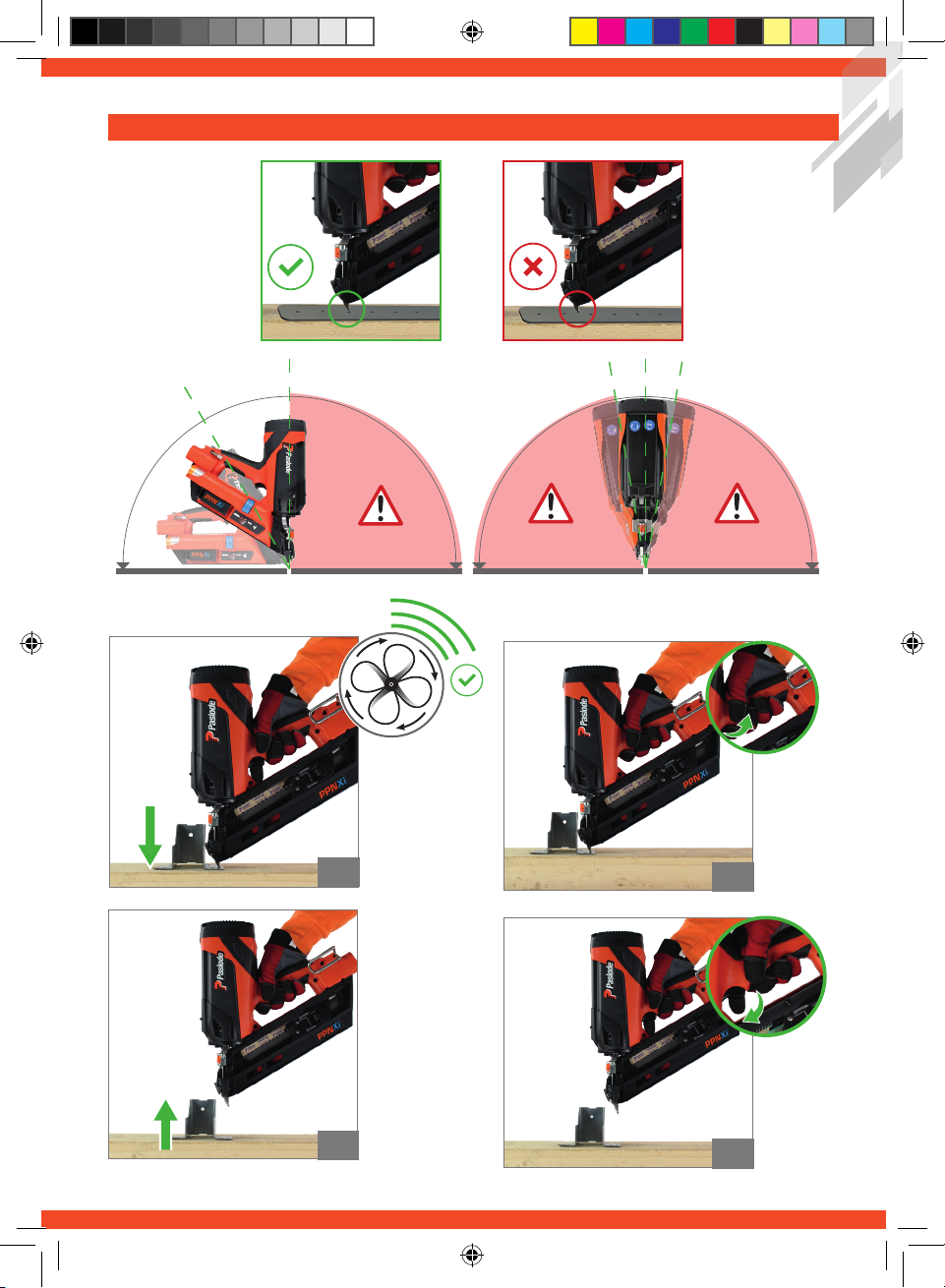

TOOL ADJUSTMENTS

ROTATING BELT HOOK

DEPTH OF DRIVE

4303 MANUEL PPNXi _FINAL.indd 64303 MANUEL PPNXi _FINAL.indd 6 20/01/2021 11:3320/01/2021 11:33

BANG!

MAX 30°

MAX 0°

MAX 10° MAX 10°

ACTUATING THE TOOL

4303 MANUEL PPNXi _FINAL.indd 74303 MANUEL PPNXi _FINAL.indd 7 20/01/2021 11:3320/01/2021 11:33

7 8

109 11

013231

5 6

1 2 3 4

TOOL MAINTENANCE: FILTER

CLEANING KIT

013690

TOOL MAINTENANCE: FAN

PLEASE USE:

• CLEANING KIT 013690 AND THE O RING 013231

4303 MANUEL PPNXi _FINAL.indd 84303 MANUEL PPNXi _FINAL.indd 8 20/01/2021 11:3320/01/2021 11:33

14 16

TOOL MAINTENANCE: FAN continued.....

MAINTENANCE LIGHT RESET

RESET

The tool will flash green/red once the tool has red 50 000 shots. This maintenance light can be reset by holding the

start button for 10 seconds. Only reset once maintenance has been carried out on the tool.

>10s

4303 MANUEL PPNXi _FINAL.indd 94303 MANUEL PPNXi _FINAL.indd 9 20/01/2021 11:3420/01/2021 11:34

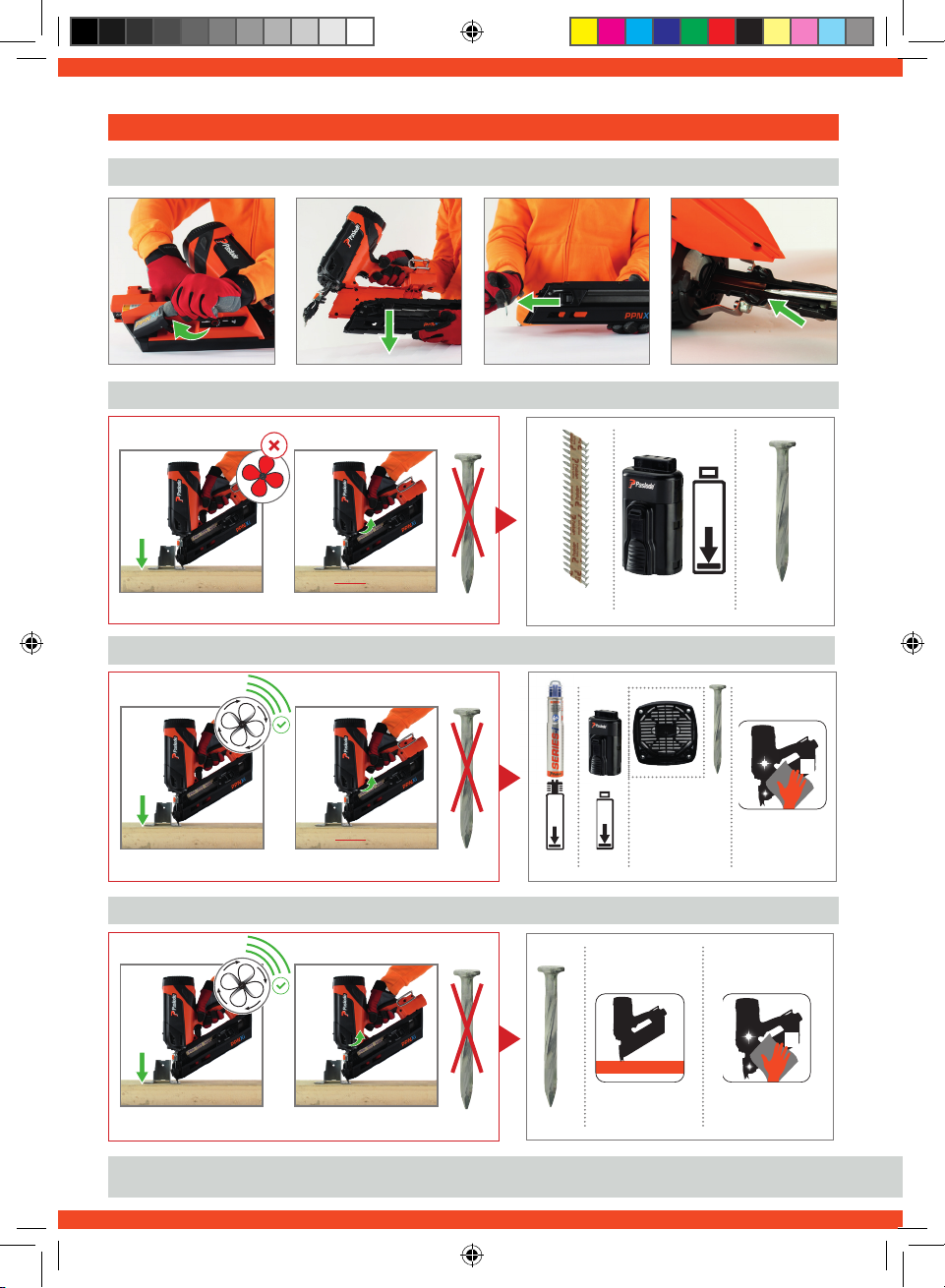

ISSUE: HOW TO CLEAR A NAIL JAM

BANG!

pg 4 pg 5 pg 10.

Refer above

BANG!

pg 6 pg 8-9

pg 8-9

10 Refer to www.paslode.co.uk for further information on your tool and FAQ.

pg 4 pg 5

Nail

pg 10

Fan

pg 8

pg 10

TROUBLE SHOOTING

ISSUE: TRIGGER WORKS HOWEVER FAN NOT WORKING AND NO NAIL COMES OUT

ISSUE: TRIGGER & FAN WORKING HOWEVER NO NAIL COMES OUT

ISSUE: FAN WORKS AND EXPLOSION HAPPENS HOWEVER NO NAIL

4303 MANUEL PPNXi _FINAL.indd 104303 MANUEL PPNXi _FINAL.indd 10 20/01/2021 11:3420/01/2021 11:34
