OUTBOARD MOTOR

OWNER’S MANUAL

F4BM (F5BM)

SUZHOU PARSUN POWER MACHINE CO., LTD

Thank you for owning a PARSUN outboard motor.

Thank you for your trust in our company and products.

z“PARSUN” outboard motors are powerful, economic and safe, manufactured with

advanced technology.

Please read this manual carefully before operating your outboard motor. A through

understanding of the manual will help you to know this product for proper operation,

maintenance and care. This will ensure that your outboard motor operates well under

all conditions.

z“PARSUN” seeks continuous improvement in product quality. Therefore, while this

manual contains the most current product information available at the time of printing,

there may be minor discrepancies between your machine and this manual. If there is

any question concerning the manual, please consult your local PARSUN dealer.

zData, illustrations or explanations in this Owner’s Manual do not constitute base for

any legal claim against our company.

SUZHOU PARSUN POWER MACHINE CO., LTD

Engine Identification Numbers

Outboard motor serial number

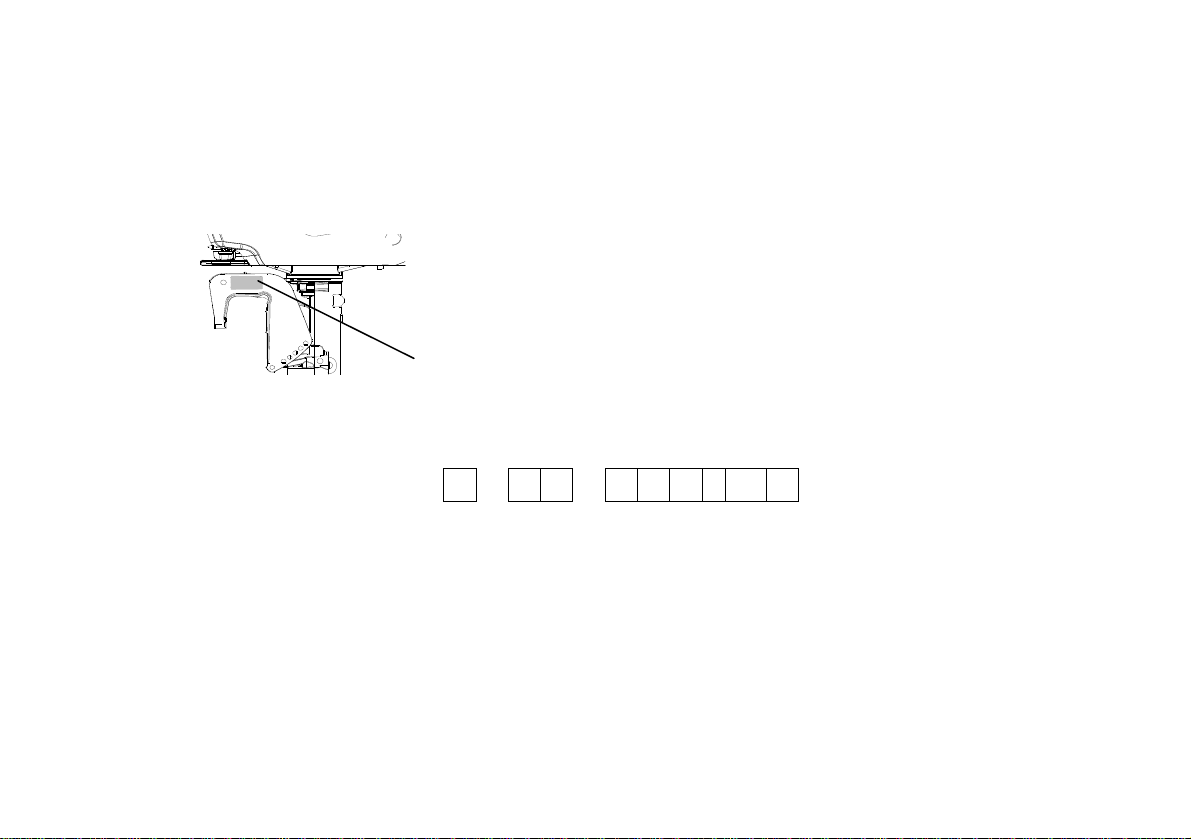

The outboard motor serial number is marked on the label. The label can be found on the bracket left

assembly or on the upper part of the bracket swivel.

Record your outboard motor serial number in the spaces provided to assist you in ordering spare parts

from your PARSUN dealer or for reference in case your outboard motor is stolen.

1. Outboard motor serial number location

Serial number as follows: SN

Engine serial number

The engine serial number is carved on the aluminum casting of engine.

Engine serial number as follows:

Manufacturer’s Declaration

This outboard motor complies with the requirements of Directive 2003/44/EC in relation to the exhaust

and noise emissions. The following installation and maintenance instructions, if applied, guarantee that the

outboard motor will remain in compliance with:

1. Exhaust emissions limits throughout the normal life or the engine (350 hours or 10 years, whichever

occurs first) and under normal conditions of use.

2. Noise emissions limits under normal conditions of use.

Table of contents

1. Main components and General information……………………………………………………………1

1.1. Main components………………………………………………………………………………………1

1.2. General information……………………………………………………………………………………3

1.2.1. Specifications………………………………………………………………………………………3

1.2.2. Fueling instructions ………………………………………………………………………………4

1.2.3. Propeller selection…………………………………………………………………………………5

2. Operation…………………………………………………………………………………………………6

2.1. Installation………………………………………………………………………………………………6

2.1.1 Mounting height……………………………………………………………………………………7

2.1.2 Clamping the outboard motor……………………………………………………………………8

2.2 Breaking in engine ……………………………………………………………………………………9

2.3 Pre-operation checks…………………………………………………………………………………10

2.4 Filling fuel………………………………………………………………………………………………11

2.5 Starting engine ………………………………………………………………………………………13

2.6 Warming up engine …………………………………………………………………………………17

2.7 Shifting…………………………………………………………………………………………………18

2.7.1. Forward……………………………………………………………………………………………18

2.7.2. Reverse……………………………………………………………………………………………19

2.8. Tiller ……………………………………………………………………………………………………20

2.9. Stopping engine ………………………………………………………………………………………22

2.10 Trimming outboard motor …………………………………………………………………………24

2.11.1. Tilting up …………………………………………………………………………………………25

2.11.2. Tilting down ……………………………………………………………………………………27

2.12 Cruising in other conditions ………………………………………………………………………29

2.12.1. Cruising in shallow water ………………………………………………………………………29

2.12.2. Cruising in salt water……………………………………………………………………………29

3. Maintenance……………………………………………………………………………………………30

3.1. Greasing ……………………………………………………………………………………………30

3.2. Cleaning and adjusting spark plug ………………………………………………………………31

3.3. Checking fuel system………………………………………………………………………………31

3.4. Inspecting idling speed ……………………………………………………………………………32

3.5. Changing engine oil…………………………………………………………………………………33

3.6. Checking wiring and connectors …………………………………………………………………34

3.7. Checking for leakage………………………………………………………………………………34

3.8. Checking propeller…………………………………………………………………………………35

3.8.1. Removing the propeller …………………………………………………………………………36

3.8.2. Installing the propeller …………………………………………………………………………36

3.9. Changing gear oil …………………………………………………………………………………37

3.10. Cleaning fuel tank…………………………………………………………………………………38

3.11. Checking and replacing anode(s) ………………………………………………………………39

3.12. Checking top cowling ……………………………………………………………………………40

3.13. Maintenance table…………………………………………………………………………………40

4. Transporting and storing outboard motor……………………………………………………………43

4.1. Transporting …………………………………………………………………………………………43

4.2. Storing………………………………………………………………………………………………44

5. Action in emergency …………………………………………………………………………………52

5.1. Impact damage ……………………………………………………………………………………47

5.2. Starter will not operate ……………………………………………………………………………52

5.3. Treatment of submerged motor …………………………………………………………………55

6. Troubleshooting ………………………………………………………………………………………57

7. Circuit diagram ………………………………………………………………………………………57

1. Main components and General information

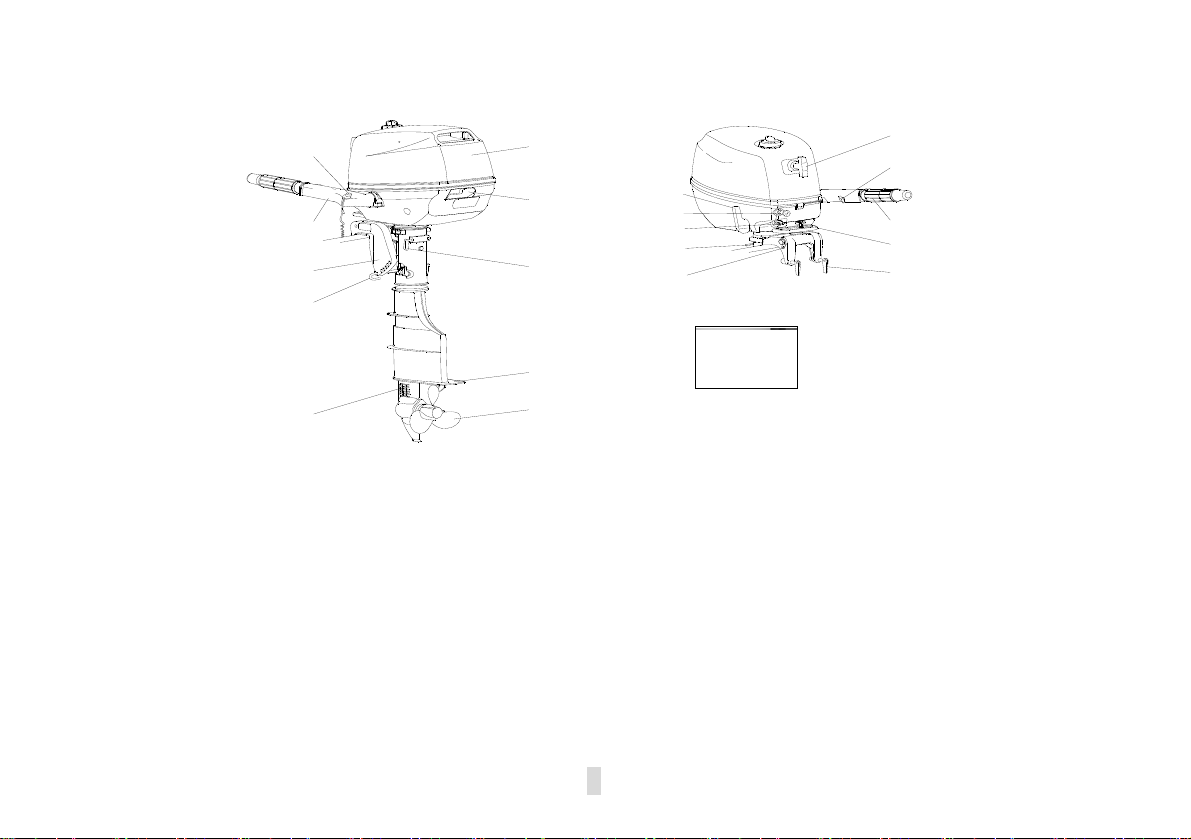

1.1 Main components

1. Top cowling 8. Clamp bracket 14. Carrying handle 21. Fuel tank*

2. Top cowling lock handle 9. Tiller handle 15. Clamp screw

3. Steering friction screw 10. Engine stop button/ 16. Rope attachment

4. Anti-cavitation plate Engine stop lanyard switch 17. Tilt support bar

5. Propeller 11. Starter handle 18. Fuel joint

6. Cooling water inlet 12. Throttle friction adjuste

19. Choke knob

7. Trim rod 13. Throttle grip 20. Gear shift lever

Note:

* The fuel tank is

equipped for

the proper

model.

If your model includes a portable fuel tank, its parts are as follows:

1. Fuel tank cap 3. Air vent screw

2. Fuel joint 4. Fuel gauge

If your model includes a built-in fuel tank, its parts are as follows:

1. Air vent screw 3. Built-in fuel tank

2. Fuel tank cap 4. Fuel cock (closeposition)

1 3

2 4

3 4

WARNING

zThe fuel tank supplied with this engine could only be used as supply of fuel for its running and

must not be as a fuel storage container.

zThe fuel cock must be at close position while using portable fuel tank.

zDisconnect the fuel joint while using the built-in fuel tank.

1.2 General information

1.2.1 Specifications

Parameter

Items Data Items Data

Type of engine 4-stroke S Weight (L) 25.5Kg

Displacement 112cm3Recommended fuel Unleaded regular gasoline

Bore X stroke 59mm×41mm Built-in fuel tank capacity 1.3L

Gear ratio 2.08（27/13）Recommended engine oil SAE10W30 orSAE10W40

Overall length 717mm Engine oil quantity 0.5L

Overall width 361mm Recommended gear oil Hypoid gear oil SAE﹟90

Overall height (S) 1029mm Gear oil quantity 100cm3

Overall height (L) 1156mm Spark plug BR6HS

Weight (S) 24.5Kg Spark plug gap 0.6～0.7mm
