Parsun F2.6HP Mode d’emploi
PARSUN F2.6HP
OUTBOARD MOTOR
INSTALLATION & OPERATION DEMO
Please check there is no damage
on the carton.
Record your outboard motor serial number to
assist you in ordering spare parts from your
dealer, or for reference in case your outboard
motor is stolen.
Outboard motor serial number Engine series number
F2.6 MAIN COMPONENTS
16
11
13
12
14
15
17
18
10
2
1
5
4
3
6
8
7
9
2.Carrying handle
3. Steering friction screw
4. Anti-cavitation plate
7.Trim rod
6.Cooling water inlet
14.Trottle friction adjuster
8.Clamp bracket
16.Rope attachment
9.Tiller handle
10.Engine stop button &
Engine stop lanyard switch 11.Starter handle
12.Top cowling locker
13. Throttle grip
18.Choke knob
17.Gear shift lever
15.Clamp screw
1.Top cowling
5. Propeller

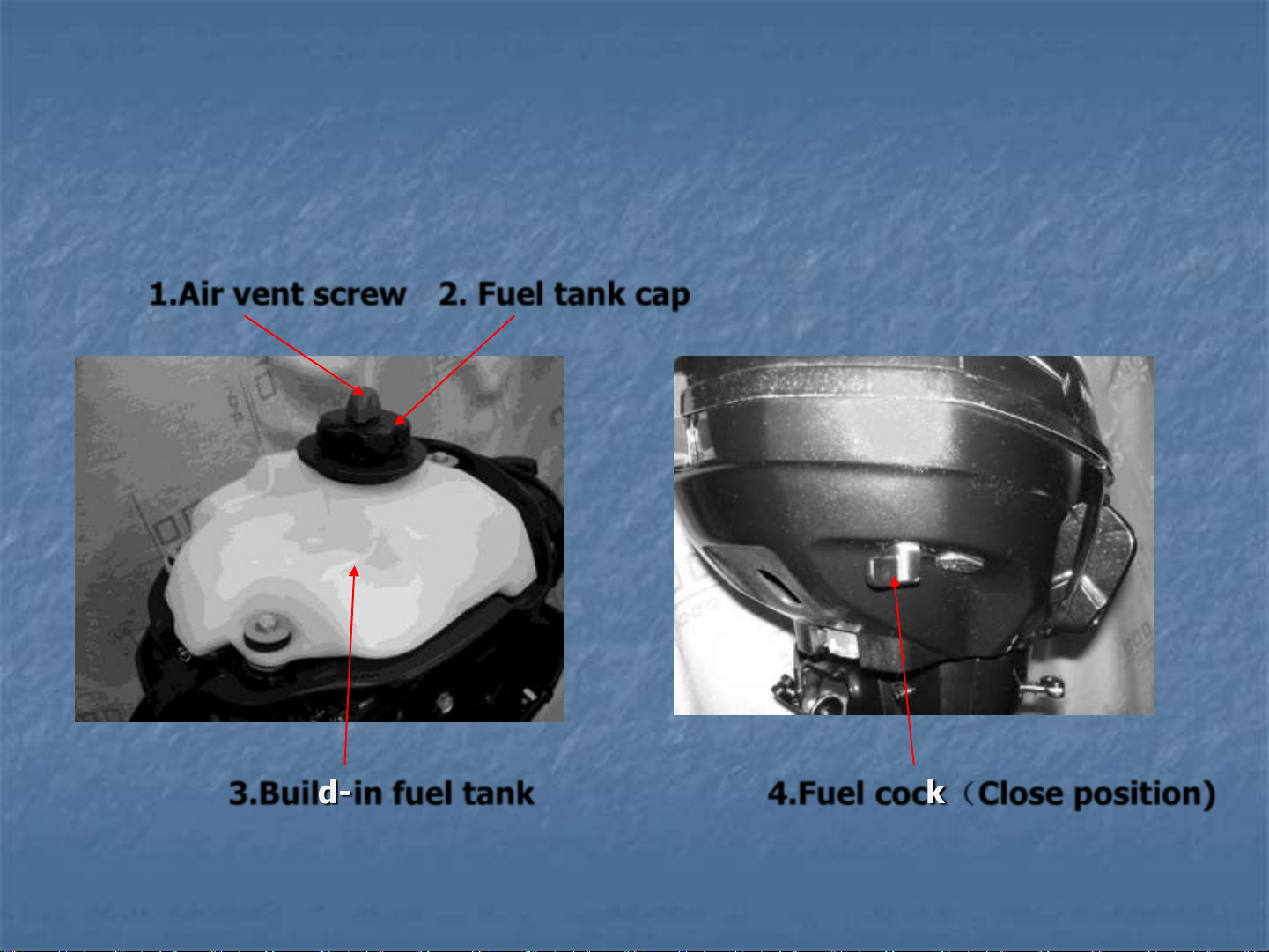

Your model includes a built-in fuel
tank, its parts are as follows:
1.Air vent screw 2. Fuel tank cap
3.Build-in fuel tank 4.Fuel cock（Close position)
Engine oil：
Recommended engine oil:SAE10W30 or SAE10W40 four stroke outboard motor
engine oil
CAUTION
There is no the oil in the engine for all
4-stroke outboard motors when delivery
Filling the engine with oil before starting
Don’t start the engine without the oil or oil is not full;
Otherwise, the engine will be damaged. Please check the oil
level before starting the engine
PROPELLER SELECTION
The performance of your outboard motor will be critically affected by
your choice of propeller, as an incorrect choice could adversely affect
performance. The outboard motor is fitted with propellers chosen to
perform well over a range of applications, but there maybe uses where
a propeller with a different pitch would be more appropriate.
For a greater boat load and a low engine speed, a smaller-pitch
propeller is more suitable. Conversely, a large-pitch propeller is more
suitable for a smaller operating load as it enables the correct engine
speed to be maintained.
Outboard motor installation
Mount the outboard motor on the center line (keel line) of the
boat. For boats without a keel or which are asymmetrical,
consult your dealer.
CAUTION
During water testing check the buoyancy of the boat, at rest,
with its maximum load. Check that the static water level on the
exhaust housing is low enough to prevent water entry into the
power head, when water rises due to waves when the outboard is
not running.
1
1.Center line（keel line）

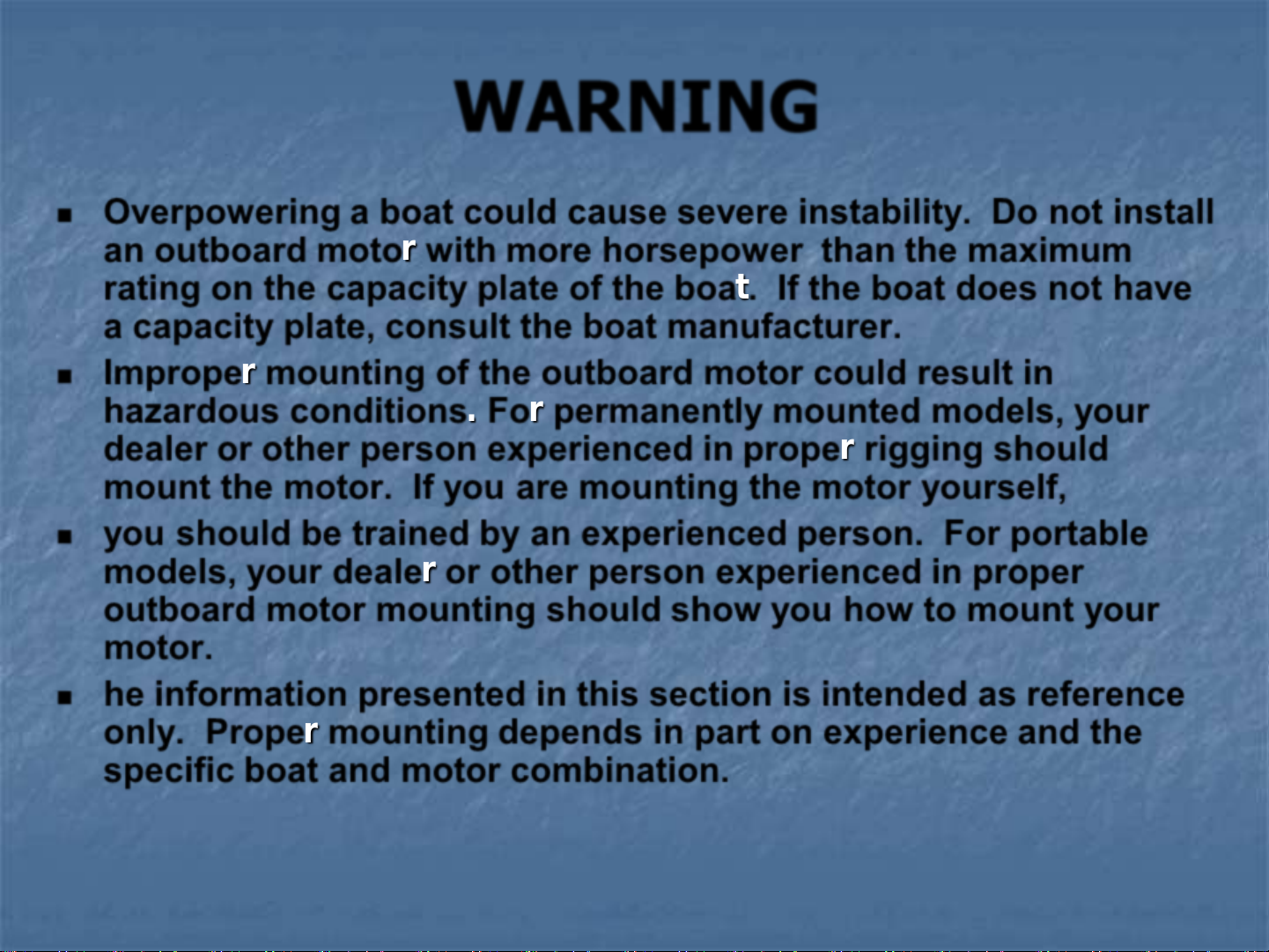

WARNING
Overpowering a boat could cause severe instability. Do not install
an outboard motor with more horsepower than the maximum
rating on the capacity plate of the boat. If the boat does not have
a capacity plate, consult the boat manufacturer.
Improper mounting of the outboard motor could result in
hazardous conditions. For permanently mounted models, your
dealer or other person experienced in proper rigging should
mount the motor. If you are mounting the motor yourself,
you should be trained by an experienced person. For portable
models, your dealer or other person experienced in proper
outboard motor mounting should show you how to mount your
motor.
he information presented in this section is intended as reference
only. Proper mounting depends in part on experience and the
specific boat and motor combination.

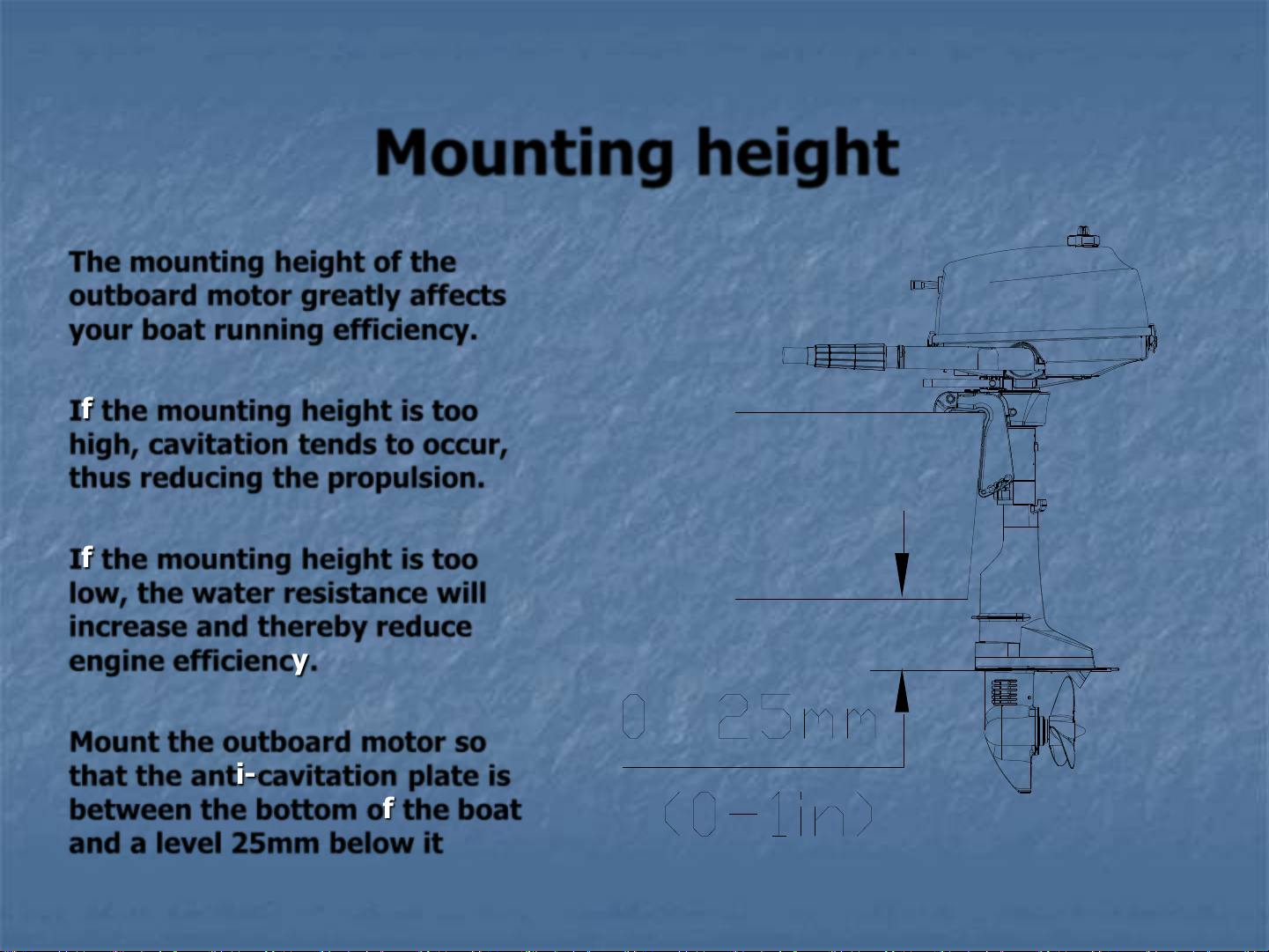

Mounting height
The mounting height of the
outboard motor greatly affects
your boat running efficiency.
If the mounting height is too
high, cavitation tends to occur,
thus reducing the propulsion.
If the mounting height is too
low, the water resistance will
increase and thereby reduce
engine efficiency.
Mount the outboard motor so
that the anti-cavitation plate is
between the bottom of the boat
and a level 25mm below it
～
