Paradyne Hotwire 5446 Manuel utilisateur

Hotwire5446 RTU Customer Premises

Installation Instructions

Document Number 5446-A2-GN10-70

August 2000

Contents

What Does the Hotwire 5446 RTU Do? 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installing the DSL Access Wiring 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installing the Hotwire 5446 RTU 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Status LEDs 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hotwire 5446 RTU Next Hop Router Support 12. . . . . . . . . . . . . . . . . . . . . . . . . .

Hotwire 5446 RTU IP Setup 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cables & Connectors 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Important Safety Instructions 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

What Does the Hotwire 5446 RTU Do?

The Hotwire5446 RTU (Remote Termination Unit) is a component in the Hotwire

RADSL Access System and interoperates with the Hotwire 8546 DSL Card in the

DSLAM (Digital Subscriber Line Access Multiplexer) system. This system provides

high-speed Internet or corporate LAN access over traditional twisted-pair copper

telephone wiring.

Copper pairs run from the central office (CO) to the customer premises (CP) to create

the local loop. The local loop terminates on the customer premises at the demarcation

point in a punchdown block or network interface device (NID).

Optional POTS Splitter

An optional POTS (plain old telephone service) splitter can be installed to block out the

DSL signal and allow the POTS frequencies to pass through. At the customer premises,

the RADSL RTU and a telephone can function simultaneously over the same pair of

copper wires when either:

A Hotwire 5030 or 5038 POTS Splitter is installed near the demarcation point for all

telephones on the same POTS line as DSL,

A Hotwire 5038 Distributed POTS Filter is installed on each telephone on the same

POTS line as DSL.

NOTES:

In this document:

— End-user system is used to represent any host with an Ethernet connection.

— Service provider is used to represent any Internet Service Provider (ISP) or

remote LAN access provider.

DSL Access without a POTS Splitter

When the Hotwire 5446 RTU is installed without a POTS splitter, the DSL line is used

for data only and does not provide telephone services.

00-16104-01

Punchdown

Block or NID

DSL

Jack RTU

Customer Premises (CP)

DSL

Ethernet

Crossover

Cable Ethernet

Cable

Central

Office

(CO)

Demarcation

Point

Local Loop

Hub or

Router

End-user

Systems

DSL – Digital Subscriber Line RTU – Remote Termination Unit

NID – Network Interface Device New Wiring Connections

Service

Provider

DSL Access with a Hotwire 5030 or 5038 POTS Splitter

When a Hotwire POTS Splitter is used at both ends of the local loop, wiring is

connected at the customer premises:

From the demarcation point to the CP POTS splitter, and

From the demarcation point to the DSL jack.

The Hotwire 5030 POTS Splitter is designed for outdoor or indoor installation. The

Hotwire 5038 POTS Splitter is designed for indoor use only.

00-16105-01

Punchdown

Block or NID

DSL

Jack RTU

Customer Premises (CP)

POTS/DSL

Ethernet

Crossover

Cable Ethernet

Cable

Central

Office

(CO)

Demarcation

Point

Local Loop

POTS

Splitter

DSL – Digital Subscriber Line POTS – Plain Old Telephone Service

NID – Network Interface Device RTU – Remote Termination Unit

POTS

End-user

Systems

Service

Provider

Hub or

Router

New Wiring Connections Existing Wiring (POTS)

DSL Access with a Hotwire 5038 Distributed POTS Splitter

When a Hotwire 5038 Distributed POTS Splitter is used, one 5038 Distributed POTS

Splitter is installed as a phone filter for each telephone on the same POTS line as DSL.

00-16724

RTU

Customer Premises (CP)

Central

Office

(CO)

Local Loop

POTS

Splitter To End-user

Systems

DSL – Digital Subscriber Line POTS – Plain Old Telephone Service

NID – Network Interface Device RTU – Remote Termination Unit

POTS

Splitter

POTS

Splitter

Service

Provider

Demarcation

Point

Punchdown

Block or NID

POTS/DSL

Optional

Product-Related Documents

To install a POTS splitter, refer to the appropriate POTS splitter document:

Document Number Document Title

5030-A2-GN10

Hotwire 5030 POTS Splitter Customer Premises

Installation Instructions

5038-A2-GN10

Hotwire 5038 Distributed POTS Splitter Customer

Premises Installation Instructions

Contact your sales or service representative to order additional product documentation.

Paradyne documents are available on the World Wide Web at www.paradyne.com.

Select

Library

→

Technical Manuals

→

Hotwire DSL and MVL Systems.

Package Checklist

Verify that your package contains the following:

Model 5446 Remote Termination Unit (RTU)

DSL interface cable with RJ11 modular plugs

Power cord with power transformer

Refer to

Cables & Connectors

on page 14 for standard pin numbers.

Wiring and Cables You Need

The following wiring and standard connectors are used with this product:

Standard RJ11 wall jack.

DSL cabling: New or existing unshielded twisted-pair wiring (CAT3 or better).

The CAT3 wiring must meet EIA/TIA-568 specifications with 24 AWG (.5 mm) or

26 AWG (.4 mm).

Ethernet cabling: Standard Ethernet 8-pin, non-keyed modular plug for a PC or

workstation. An Ethernet straight-through or crossover cable is used. Refer to

Installing the Hotwire 5446 RTU

on page 8 for Ethernet cable details.

After the RTU is installed and powered on, there are additional requirements in order to

utilize the DSL and Ethernet connections. Refer to

Hotwire 5446 RTU IP Setup

page 13.

Installing the DSL Access Wiring

The local loop terminates at the punchdown block or NID. Wiring must be connected

from the customer premises side of the punchdown block or the NID to an RJ11 jack.

Typically, the punchdown block is installed in commercial locations and the NID is

installed in residential locations.

Procedure

1. Access the punchdown block or NID.

2. Disconnect the DSL access pair from the local loop.

!WARNING:

Do not continue unless the DSL access line from the local loop has been

disconnected at the NID or punchdown block. Refer to

Important Safety

Instructions

on page 19.

A punchdown block is shown without POTS in the following example.

ABCD

DSL

Access

from Local

Loop

Wiring to

DSL Jack

Bridge Clip

Punchdown Block

97-15348

Demarcation Point

Customer Premises

3. Locate the DSL pair of T1/R1 connectors on the customer premises side of the NID

or punchdown block. Attach the wiring that will be connected to the DSL jack.

In the following example, a NID is used without a POTS splitter. It includes an

existing POTS line and a second pair installed for DSL access.

DSL/POTS

Access from

Local Loop

Wiring to

DSL Jack

Telephone Network Interface Device (NID)

Ground

Tip

(Green)

Ring

(Red)

97-15438-01

Existing POTS

Wiring to

Telephone

Demarcation Point

Customer Premises

DSL Pair

POTS Pair

97-15300a

RJ11 Wall Jack

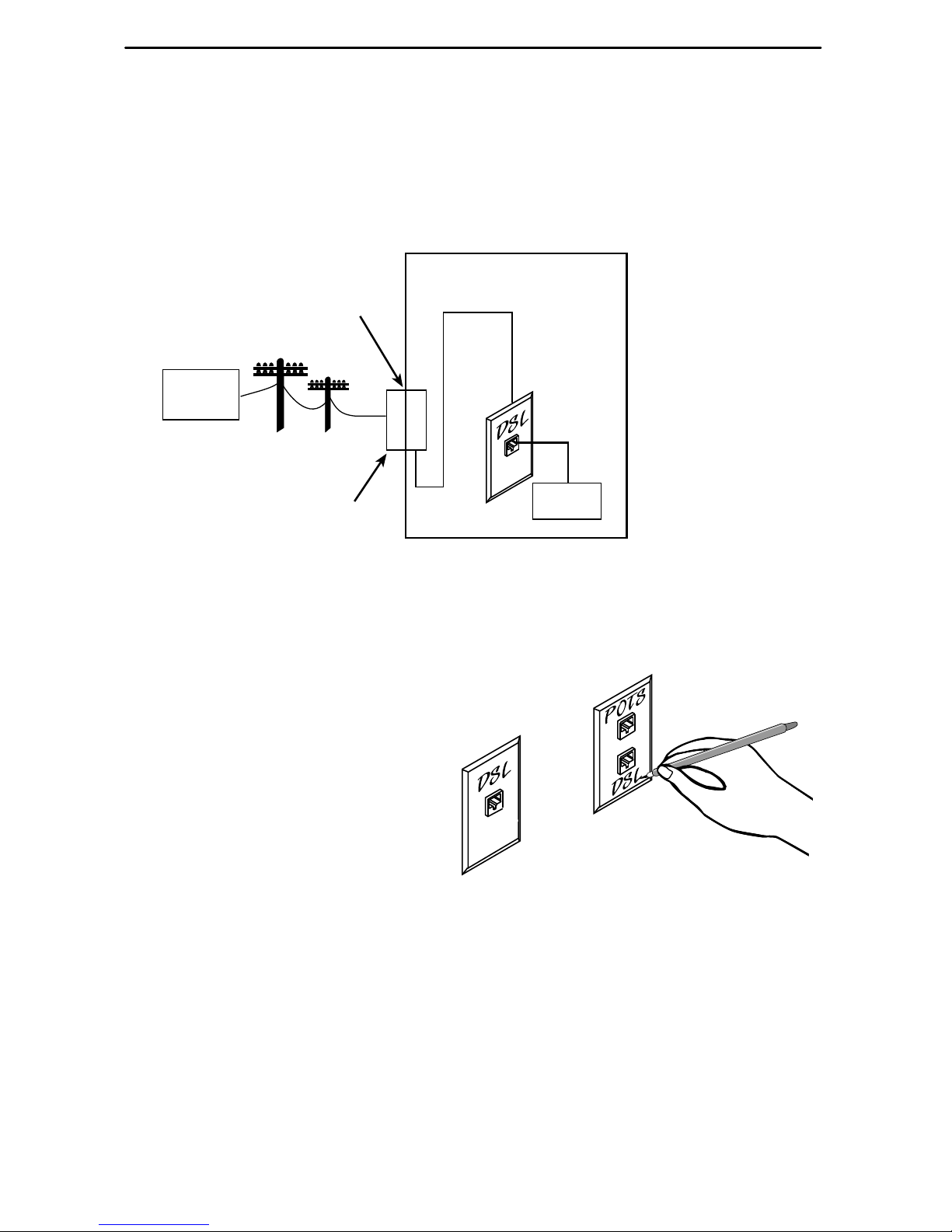

Connecting to the DSL Access Wiring

The 5446 RTU connects to the local loop via wiring from the demarcation point to an

RJ11 wall jack. The DSL twisted-pair wiring from the local loop terminates at a new or

existing wall jack. It may be necessary to install a standard single RJ11 jack or replace

a single jack with a double RJ11 jack.

97-15343-02

DSL

RJ11

Jack

Central

Office

Punchdown

Block or NID

Customer Premises

POTS/DSL

Local Loop

Demarcation Point DSL

Twisted-pair

Wiring

RTU

Procedure

1. Wiring can be run from the

punchdown block or NID to a

new or existing wall jack. Match

the pair colors on both ends.

2. Label the DSL jack.

3. Reconnect the DSL access pair

at the punchdown block or NID.

Refer to

Installing the DSL

Access Wiring

on page 5

Tighten

both terminal screws with a

flat-blade screwdriver.

The RJ11 6-pin jack uses the center two pins. For pin assignments, refer to

Cables &

Connectors

on page 14.

Installing the Hotwire 5446 RTU

Place the Hotwire 5446 RTU on a flat surface with clearance for the rear connectors.

Procedure

1. Use the supplied RJ11 interface 6-pin cable for the DSL connection. Insert one end

of the cable into the jack labeled DSL. Insert the other end into the wall jack labeled

DSL.

97-15300-01

DSL

Jack

POWER ETHERNET

DSL

Hotwire RTU

If the Hotwire 5446 RTU is installed on the same line as POTS, a Hotwire 5038

Distributed POTS Splitter can be used as a phone filter. One 5038 Distributed

POTS splitter is installed as a phone filter for each telephone on the POTS/DSL

line, as shown below. To install the Hotwire 5038 Distributed POTS splitter, refer to

Hotwire 5038 Distributed POTS Splitter Customer Premises Installation

Instructions.

98-15813

Distributed

POTS Splitter

Line from

RJ11 Wall Jack

PHONE

LINE DSL

PHONE

LINE DSL

PHONE

LINE DSL

Line from

RJ11 Wall Jack

Distributed

POTS Splitter

Distributed

POTS Splitter

Customer

Premises (CP)

Hotwire

RTU

2. Use an 8-pin Ethernet cable for the Ethernet connection. Insert one end of the

cable into the jack labeled ETHERNET.

Use a straight-through cable and connect the other end to an Ethernet hub.

Do not connect to the optional Uplink connection with a straight-through cable

(requires an Ethernet crossover cable).

00-15303-02

Ethernet

Line

POWER ETHERNET DSL

Hotwire RTU

Ethernet

Straight Through

Cable

Ethernet

Hub

87654321

- or -

Use an Ethernet crossover cable and connect the other end to the Ethernet

Network Interface Card (NIC) installed in the PC.

00-15303b-01

PC with Ethernet

Network Interface

Card

Ethernet

Line

POWER ETHERNET DSL

Hotwire RTU

Ethernet

Crossover

Cable

For RTU cable pin assignments, refer to

Cables & Connectors

on page 14.

3. Insert the supplied power cord’s round end into the jack labeled POWER. Plug the

transformer into an AC outlet.

98-15836

POWER ETHERNET DSL

Hotwire RTU

Power

Jack

Transformer

The RTU hardware installation is now complete. When the power cord is installed,

the RTU goes through a power-on self-test.

Power-On

When power is applied, the RTU performs self-diagnostics and the PWR LED is on.

The self-diagnostics includes a power-on self-test. During the power-on self-test,

all of the LEDs turn on for one second.

TST DSL ETHERNET

ALMPWR

97-15317

Power – green

Alarm – red

Test – yellow

Digital Subscriber Line – green

Ethernet Link – green

5446

Refer to

Troubleshooting

on page 11 for LED indications requiring action.

Autres manuels pour Hotwire 5446

Table des matières

Autres manuels Paradyne Matériel réseau

Paradyne

Paradyne ACCULIN 3364 Manuel

Paradyne

Paradyne ACCULINK 3161 CSU Manuel utilisateur

Paradyne

Paradyne 8540 Manuel utilisateur

Paradyne

Paradyne Hotwire 6210 Manuel utilisateur

Paradyne

Paradyne Fan Tray 8820-S2-900 Manuel utilisateur

Paradyne

Paradyne GranDSLAM 4200 Manuel utilisateur

Paradyne

Paradyne 4300 Manuel utilisateur

Paradyne

Paradyne COMSPHERE 6700 Series Manuel utilisateur

Paradyne

Paradyne COMSPHERE 3610 Guide de l'utilisateur

Paradyne

Paradyne 3163 Manuel utilisateur

Paradyne

Paradyne T1 Access Mux 916x Manuel d'utilisation et d'entretien

Paradyne

Paradyne Hotwire 8779 Manuel utilisateur

Paradyne

Paradyne GranDSLAM 4200 Manuel utilisateur

Paradyne

Paradyne 7915-A1 E1 SDSL Manuel utilisateur

Paradyne

Paradyne Hotwire 8775 MSDSL Manuel utilisateur

Paradyne

Paradyne 12000E Manuel utilisateur

Paradyne

Paradyne HotWire 7924 Manuel utilisateur

Paradyne

Paradyne COMSPHERE 3550 Series Manuel utilisateur

Paradyne

Paradyne HotWire 5246 Manuel utilisateur

Paradyne

Paradyne 4929 DSLAM Manuel utilisateur

Paradyne

Paradyne DC Power Entry Module 8820-S1-906 Manuel utilisateur

Paradyne

Paradyne COMSPHERE 3610 Manuel utilisateur

Paradyne

Paradyne Hotwire 5446 Manuel utilisateur

Paradyne

Paradyne COMSPHERE 6700 Series Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
