ParaBody 844 Manuel utilisateur
1
844 LAT OPTION
CLASSH
PART # 7304901
REV.A Revision: 06/19/02
USER’S GUIDE
WARNING:
Read and follow all directions
for each step to insure proper
assembly of this product.
Version: 844108
THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF
EQUIPMENT. TO MINIMIZE RISK FOLLOW THESE RULES!
1. Before using, read all the warnings and instructions
on the use of this machine. Use only for intended
exercise. DO NOT modify the machine.
2. Obtain a medical exam before beginning any
exercise program.
3. Keep body and clothing free of all moving objects.
4. Inspect the machine before use. DO NOT use it if it
appears damaged. DO NOT attempt to fix a broken or
j
ammed machine. Notify your authorized ParaBody
dealer before use and have repairs made by an
authorized service technician.
5. Be certain that weight pin is completely inserted.
Use only the pin provided by the manufacturer. If
unsure, call your authorized ParaBody dealer.
6. Never pin the weights or prop plate into an elevated
position. DO NOT use the machine if found in this
condition. DO NOT attempt to fix. Notify your
authorized ParaBody dealer.
7. Inspect cables and their connections before using
machine. Pay particular attention to the cable ends.
DO NOT attempt to fix. Notify your authorized
ParaBody dealer before use and have repairs made by
an authorized service technician.
8. Make sure all spring loaded pull pins are fully
engaged in the adjustment position and fully tighten
thumbscrew before use.
9. Children must not be allowed near this machine.
Supervise teenagers.
.
IMPORTANT SAFETY INFORMATION
TABLE OF CONTENTS
Safety Statement.............2
General Notes..................3
Tools Required................3
Parts list..........................4
NOTE: In a continual effort to improve our products, specifications are subject to change
2001 Life Fitness, a division of Brunswick Corporation. All rights reserved.
ParaBody is a trademark of Brunswick Corporation
www.parabody.com
2
Assembly Instructions.....4-14
General Maintenance.......15
Warranty Statement..........16
Product Services..............17
Insert-Registration Card
©
IMPORTANT NOTES
Please note:
Tools Required forAssembly
* Thank you for purchasing the ParaBody 844 Lat Option. Please read these
instructions thoroughly and keep them for future reference. This product must be assembled
on a flat, level surface to assure its proper function.
3

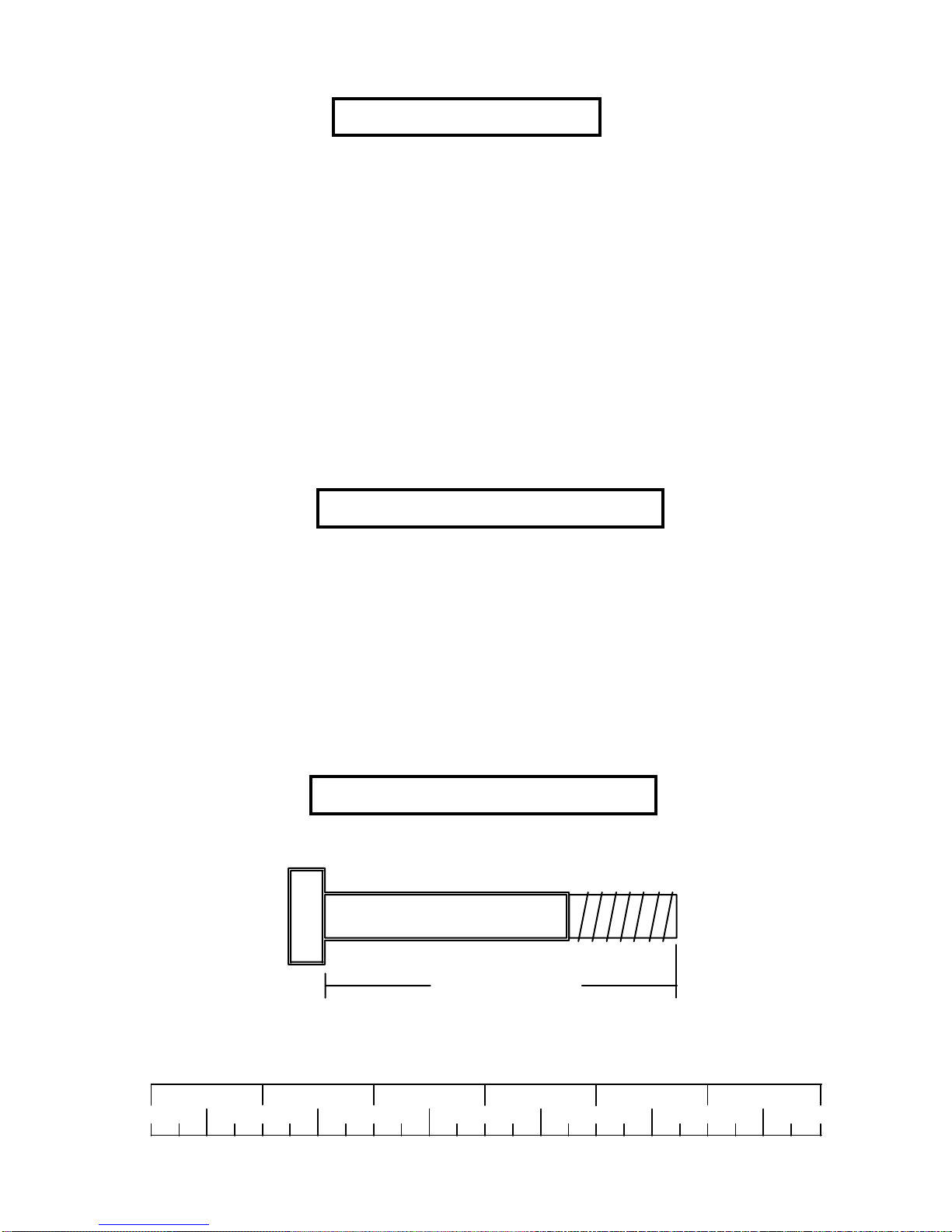

NOTE:BOLTLENGTHISMEASUREDFROMTHEUNDERSIDEOFTHEHEADOFTHEBOLT.
BOLT LENGTH RULER:
* This product must be assembled on a flat, level surface to assure its proper function. DO NOT
securely tighten any frame connections until the entire frame has been assembled, unless
otherwise stated.
Bolt Length Ruler
0123456
1/2 1/2 1/2 1/2 1/2 1/2
BOLT LENGTH
* 3/4” wrench
* 9/16” wrench
* Ratchet with 3/4” and 9/16” sockets
* Adjustable wrench
* Tape measure
4

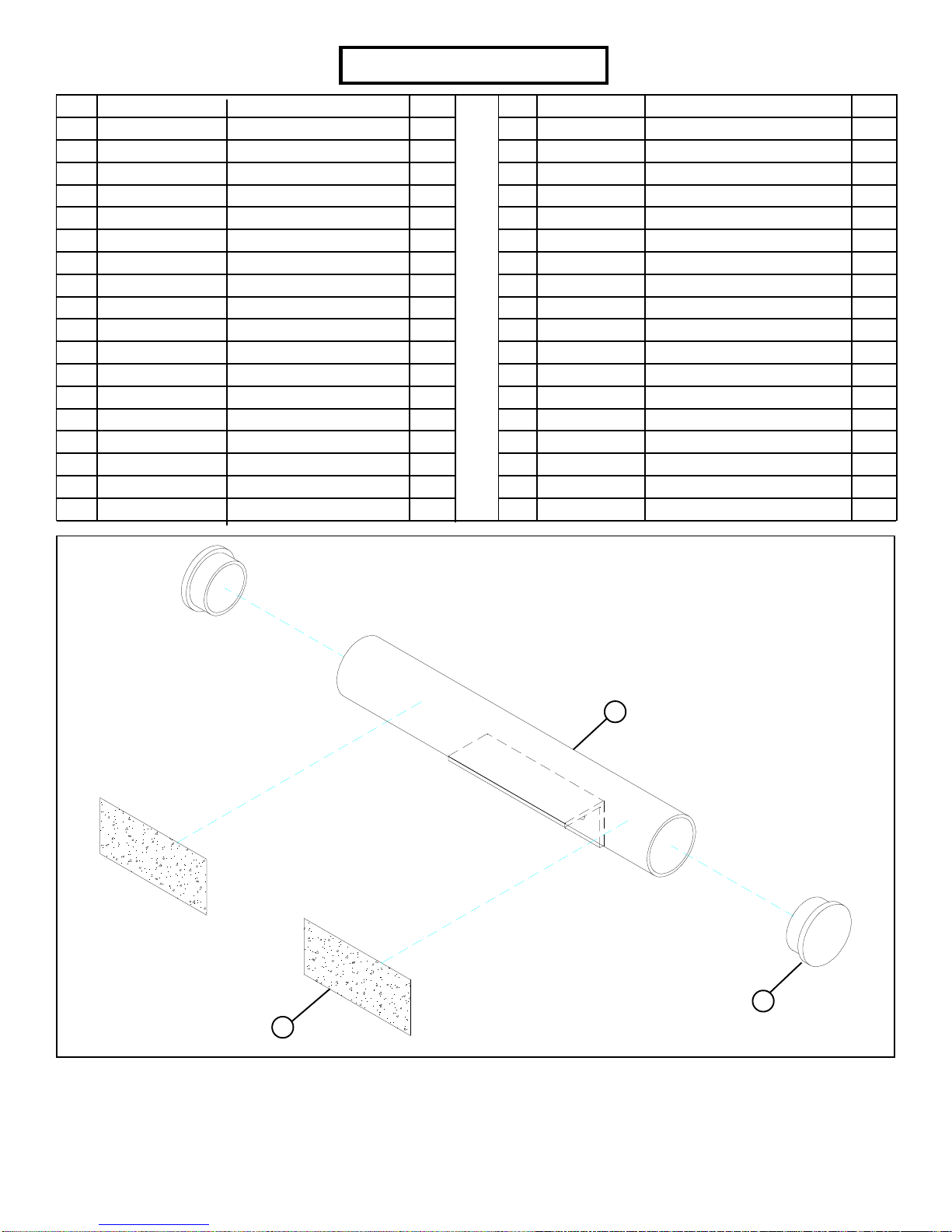

PARTS LIST
PART #
LEA6608709
LEA6608509
LEA6274410
LEA6275310
LEA6609010
LEA6610410
LEA6546310
LEA6609309
LEA3116101
LEA3116201
LEA6610501
LEA6576201
LEA6176201
LEA6542402
LEA3103102
LEA3235208
LEA3235211
LEA3235212
KEY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
QTY
1
1
1
1
1
1
1
1
1
5
1
1
2
2
4
2
5
2
PART #
LEA3235213
LEA3114403
LEA3114702
LEA6480301
LEA3235311
LEA3235312
LEA3114401
LEA3114701
LEA6692601
LEA3119301
LEA6236701
LEA3116001
LEA6140701
LEA6177001
LEA3103801
LEA3108102
LEA6075906
DESCRIPTION
3/8X3-1/4”BOLT
3/8”WASHER
3/8”LOCKNUT
3/8”FLANGESPACER
1/2X2-3/4”BOLT
1/2X 3”BOLT
1/2”WASHER
1/2”LOCKNUT
3X 2”END CAP
2-1/2”ROUNDENDCAP
1-3/4”SQ.ENDCAP
1-1/4”SQ.RUBBERBUMPER
1X1”GLIDE
NON-SKIDSTRIP
5/16”SNAPLINK
1/4”QUICK DISCONNECTLNK
12LINKCHAIN
QTY
2
10
11
8
1
3
4
2
1
2
1
1
8
2
3
1
1
DESCRIPTION
UPRIGHT
TOPBOOM
LOWROWBAR
LATBAR
LOWROWATTACHMENT
KNEESUPPORT
CARRIAGE
LOWPULLEYHOUSING
4-1/2”PULLEY
3-1/2”PULLEY
LATCABLE
LOWROWCABLE
ROLLERPAD
1-3/4”X 5-1/4”PLATE
1X8”GRIP
3/8X 2”BOLT
3/8X2-3/4”BOLT
3/8X 3”BOLT
KEY
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

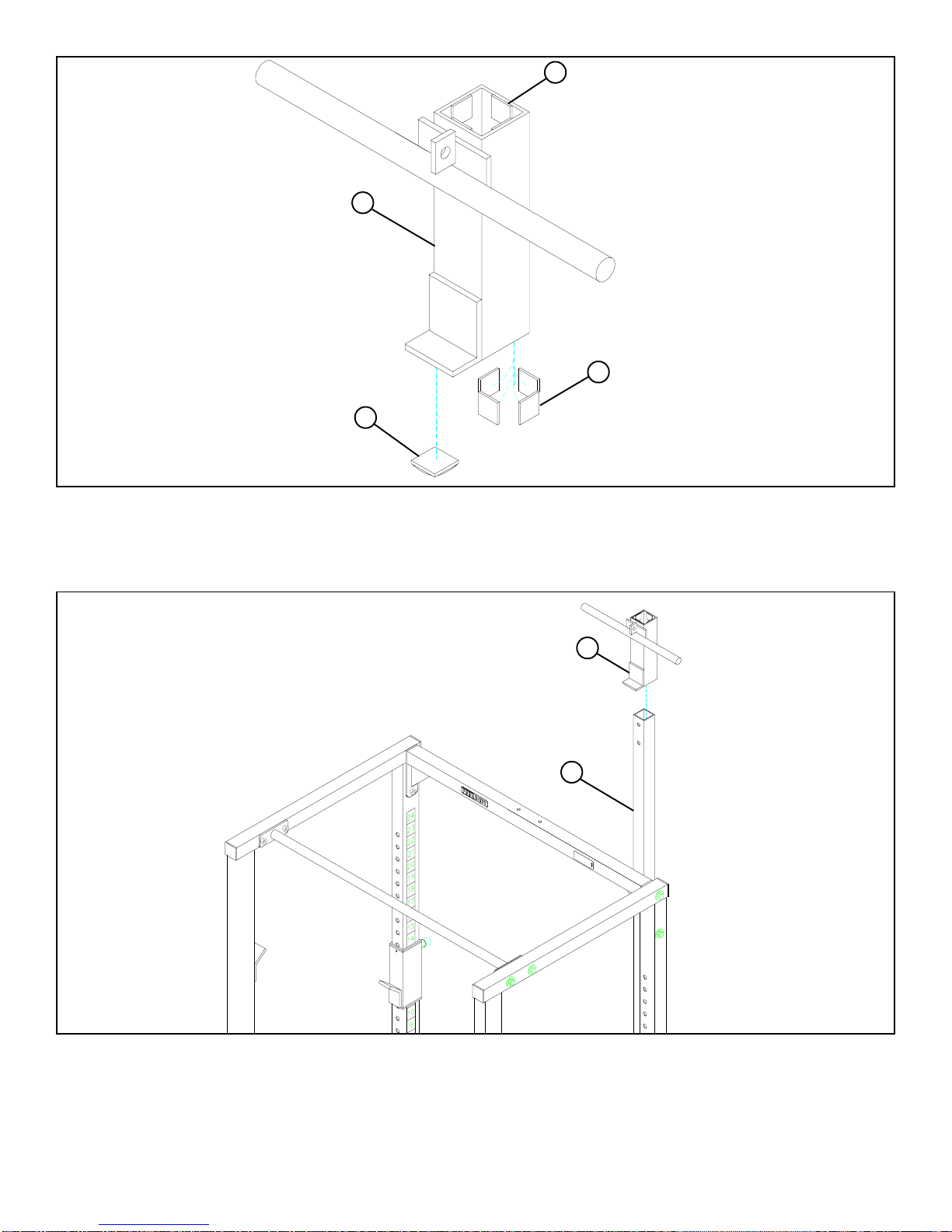

FIGURE 1
STEP 1:
• Inserttwo2-1/2”ROUNDENDCAPS(28) to the LOW ROWATTACHMENT(5)asshown in FIGURE 1.
• Attach two NON-SKID STRIPS (32) to the LOW ROWATTACHMENT(5) as shown in FIGURE 1.
5
32
28
5

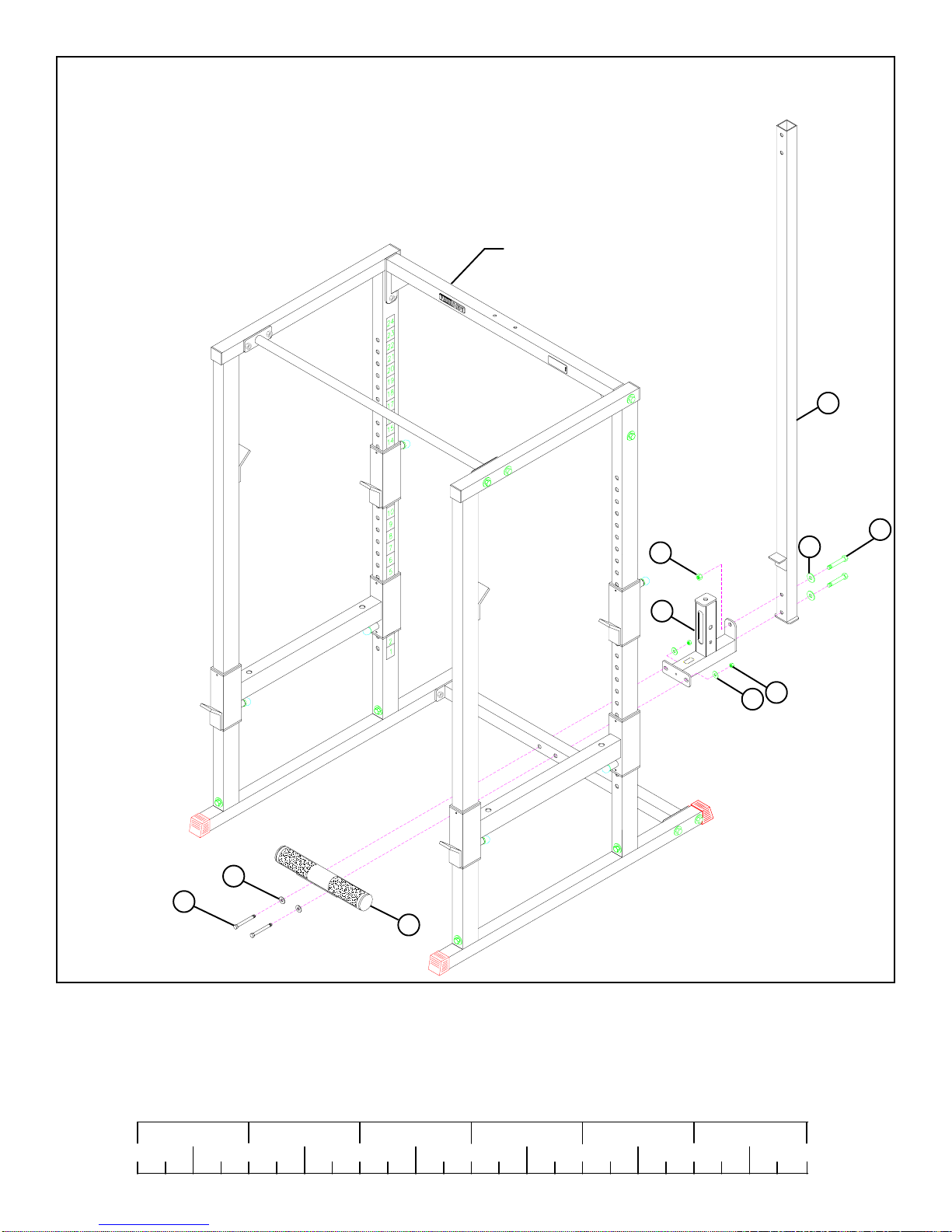

FIGURE 2
STEP 2:
• SECURELY assemble the UPRIGHT (1) to the LOW PULLEY HOUSING (8) using two 1/2 X 3” BOLTS (24), two 1/2” WASH-
ERS (25), and one 1/2” LOCK NUTS (26). See FIGURE 2.
0123456
1/2 1/2 1/2 1/2 1/2 1/2
1
5
20
21
POWER RACK
3/8 X 3-1/4” 19
20
26
1/2 X 3” 24
25
8
• Assemble the LOW ROWATTACHMENT (5) and the LOW PULLEY HOUSING (8) to the POWER RACK using two
3/8 X 3-1/4” BOLTS (19), four 3/8” WASHERS (20), and two 3/8” LOCK NUTS (21). See FIGURE 2.
6
STEP4:
FIGURE 4
• CAREFULLY slide the CARRIAGE (7) over the UPRIGHT (1) as shown in FIGURE 4.
7
1
FIGURE 3
STEP3:
• Apply eight 1” SQ. GLIDES (31) to the inside of the CARRIAGE (7) as shown in FIGURE 3.
• Attach one 1-1/4” SQ. RUBBER BUMPER (30) to the bottom of the CARRIAGE (7) as shown in FIGURE 3.
31
30
31
7

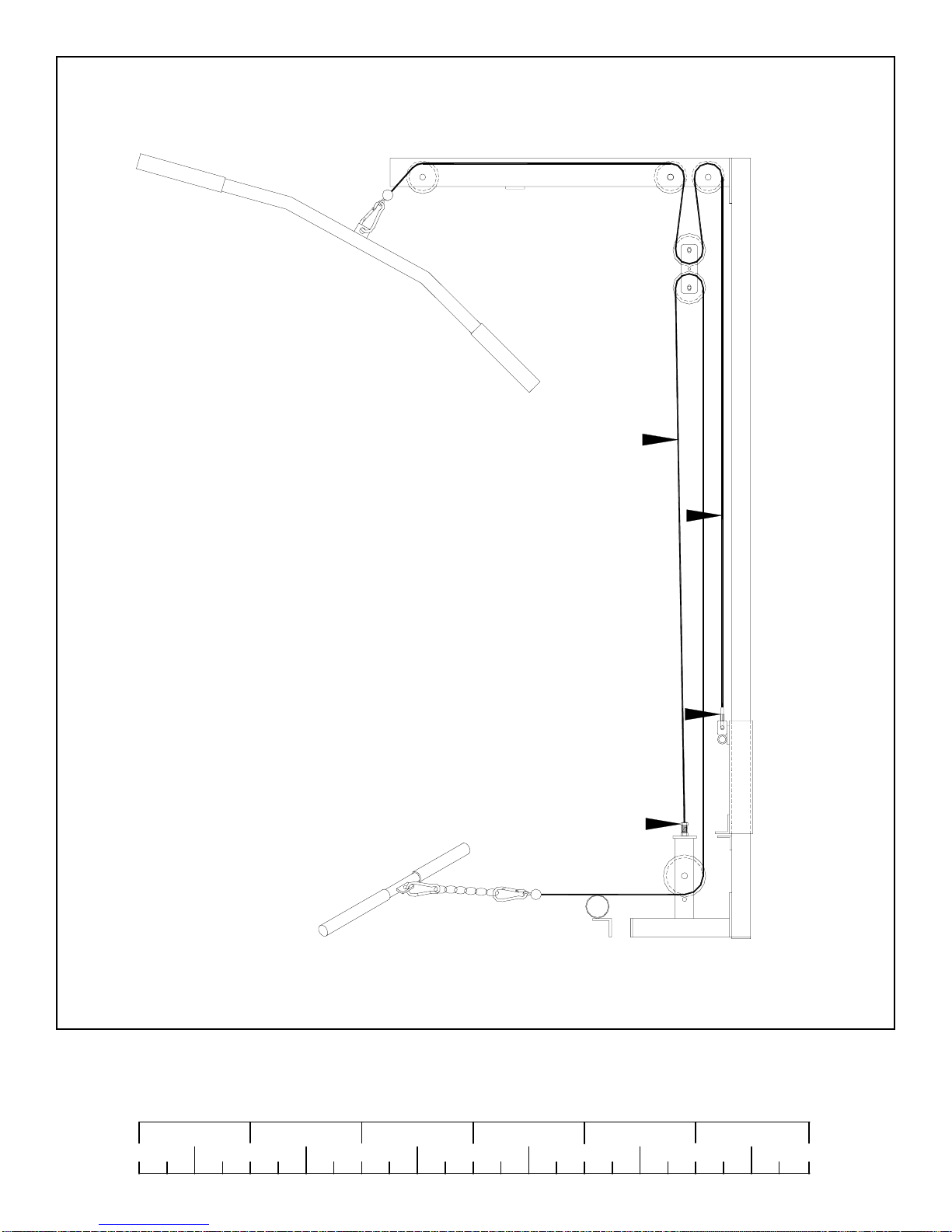

CABLE DIAGRAM
7
0123456
1/2 1/2 1/2 1/2 1/2 1/2
8

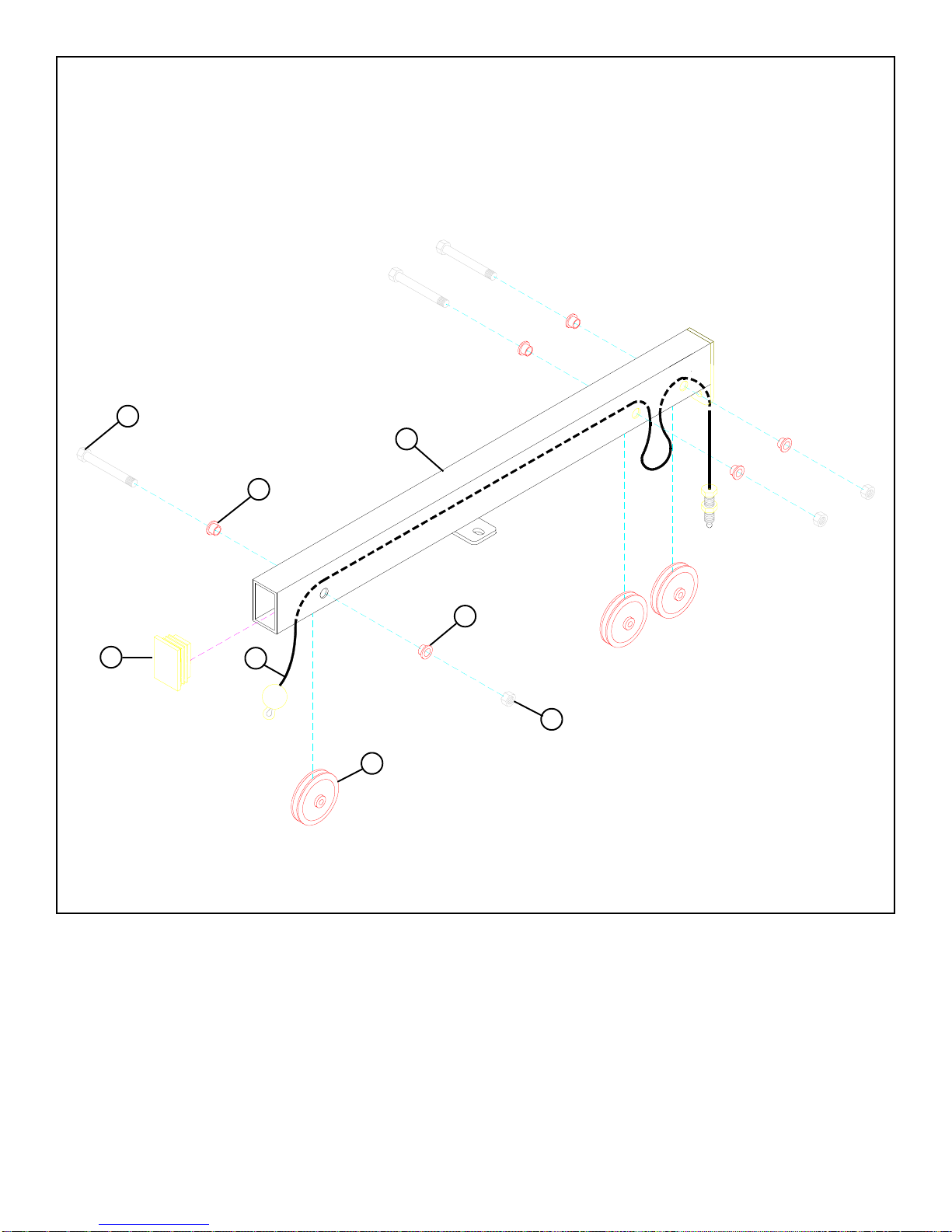

• SECURELY assemble three 3-1/2” PULLEYS (10) to the TOP BOOM (2) using three 3/8 X 2-3/4” BOLTS (17), six 3/8”
FLANGE SPACERS (22), and three 3/8” LOCK NUTS (21). See FIGURE 5. (NOTE: BEFORE TIGHTENING, MAKE SURE
CABLE (11) IS IN THE GROOVES OFTHE PULLEYS.)
STEP5:
• Insert one 2 X 3” END CAP (27) into the TOP BOOM (2) as shown in FIGURE 5.
• Route threaded end of the LAT CABLE (11) through the TOP BOOM (2) as shown in FIGURE 5.
FIGURE 5
22
17 3/8 X 2-3/4
11
21
10
22
27
2
9
0123456
1/2 1/2 1/2 1/2 1/2 1/2

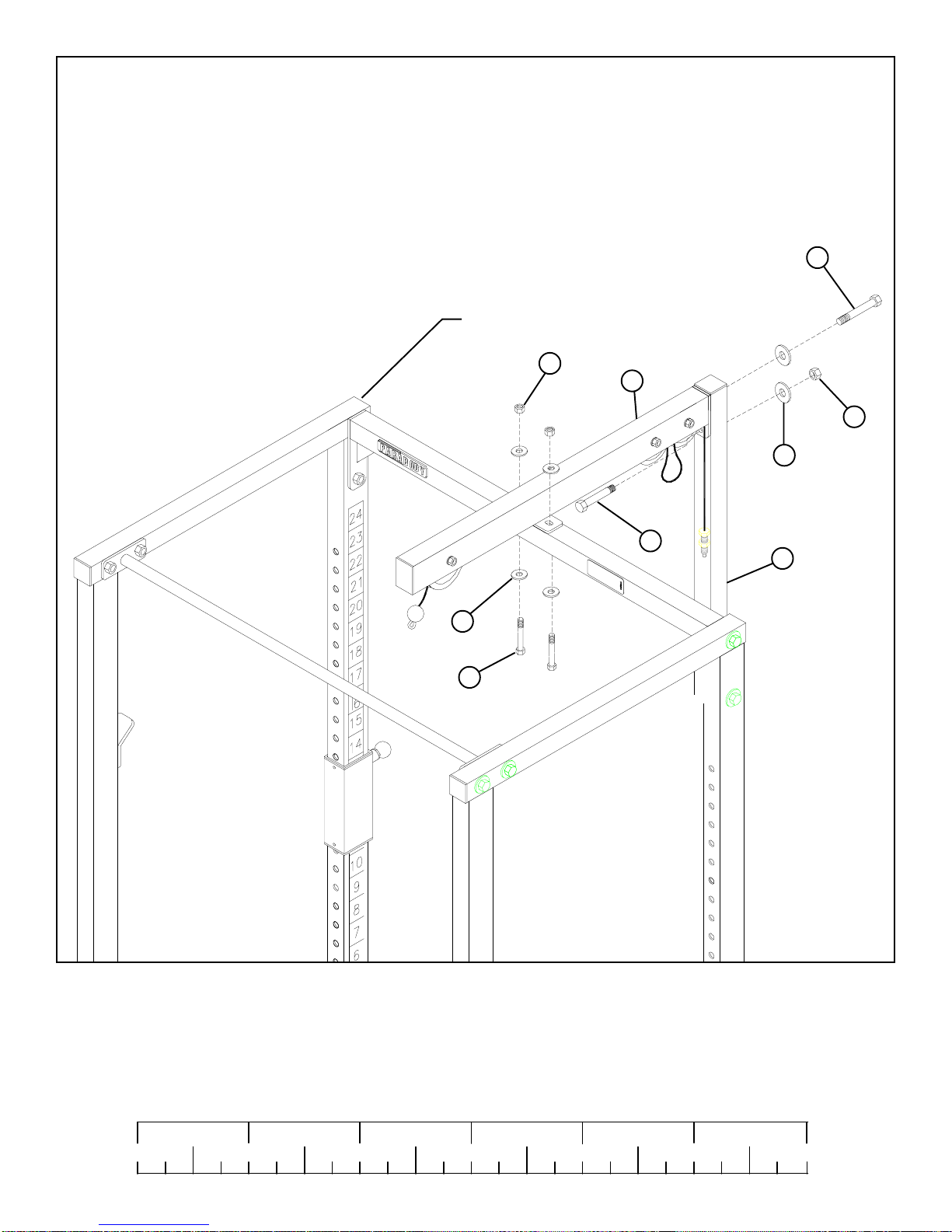

STEP6:
FIGURE 6
• SECURELY assemble the TOP BOOM (2) to the UPRIGHT (1) using one 1/2 X 2-3/4” BOLT (23), one 1/2 X 3” BOLT (24), two
1/2” WASHERS (25), and one 1/2” LOCK NUT (26). See FIGURE 6.
• SECURELY assemble the TOP BOOM (2) to the top of the POWER RACK using two 3/8 X 3” BOLTS (18), four 3/8” WASH-
ERS (20), and two 3/8” LOCK NUTS (21). See FIGURE 6.
POWER RACK
21 2
23
20
1
25
26
18
24
10

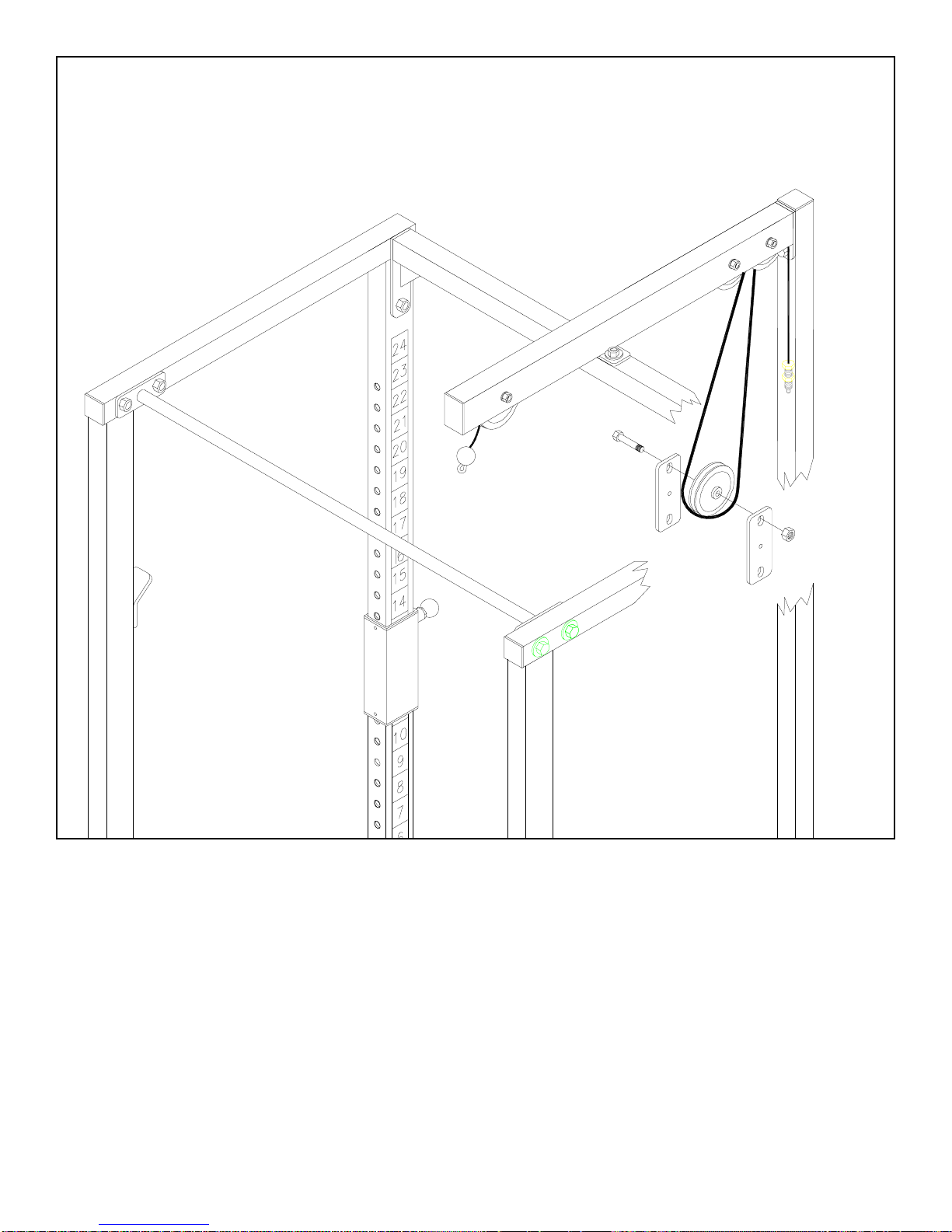

STEP7:
FIGURE 7
• Loop the LAT CABLE (11) around one 3-1/2” PULLEY (10) as shown in FIGURE 7.
• LOOSELY assemble the 3-1/2” PULLEY (11) to the1-3/4 X 5-1/4” PLATES (14) using one 3/8 X 2” BOLT (16) and one 3/8”
LOCK NUT (21). See FIGURE 7.
