Panasonic MC-E780 Manuel utilisateur

SPECIFICATIONS MC-E780 MC-E781 MC-E783

Power source AC230V AC230V AC230V

AC230-240V AC230-240V AC230-240V Depending on version

50Hz 50Hz 50Hz

Input power (max.) 1500W 1500W 1500W

Vacuum 30 kPa 30 kPa 30 kPa

Power cord length 5 m 5 m 5 m

Radio of operation 7.8 m 7.8 m 7.8 m

Net weight 6.1 kg 6.1 kg 6.1 kg

Dimensions (LxWxH) mm 410x282x255 410x282x255 410x282x255

Attachments:Floor nozzle •• •

Extension tube •• •

Dusting brush •• •

Crevice nozzle •• •

Specifications are subject to change without notice for further improvement.

MODELS MC-E780 / MC-E781 / MC-E783

Ref.: Z32T1000

Matsushita Electric España, S.A.

DIVISION DE ASPIRADORAS

Zona Industrial del Polígono de CELRÀ

17460 CELRÀ(Girona) SPAIN

Vacuum Cleaner

TABLE OF CONTENTS PAGE

SPECIFICATIONS ............................................................................... 1

SCHEMATIC DIAGRAM ....................................................................... 2

PICTORIALWIRING DIAGRAM ................................................................. 3

EXPLODED VIEW .............................................................................. 4

SPARE PARTS LIST ........................................................................... 8

REPLACEMENT OF MAIN PARTS ........................................................... 10

TROUBLE SHOOTING GUIDE ............................................................... 18

PACKING INSTRUCTIONS .................................................................... 19

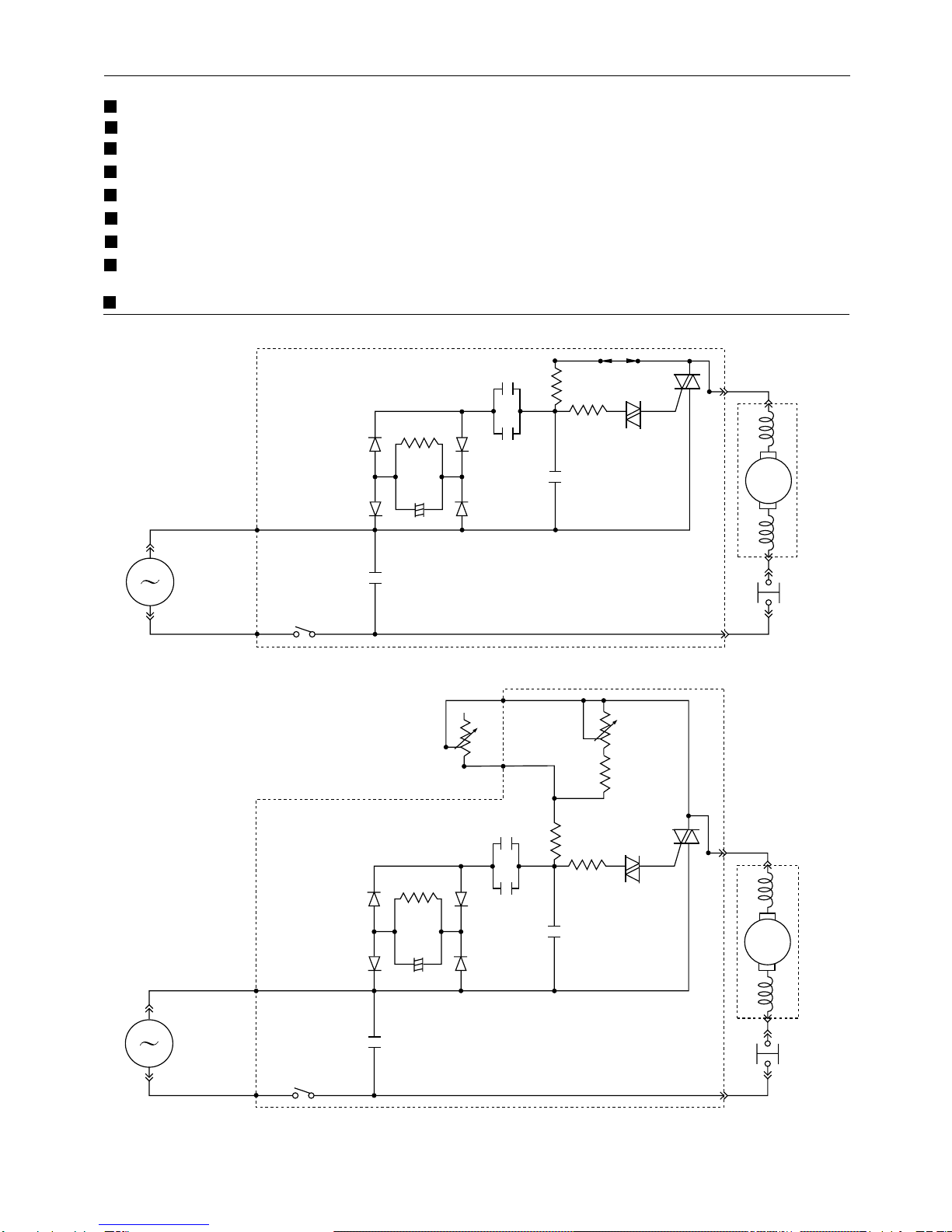

SCHEMATIC DIAGRAM

MC-E780

Black

White

Yellow

Black

POWER

SUPPLY

AC 230-240 V

50 Hz ON/OFF

SWITCH

AC1

C6 R1

CN2

CN1

DIAC

TRIACJ1

THERMAL

CUT-OUT MOTOR

Black

White

Yellow

Black

POWER

SUPPLY

AC 230-240 V

50 Hz ON/OFF

SWITCH

AC1

VR22

VR21

VR1

VR2

CN2

CN1

DIAC

TRIAC

THERMAL

CUT-OUT MOTOR

Grey

Blue

MC-E781 / MC-E783

PICTORIALWIRING DIAGRAM

MC-E780

MC-E781 / MC-E783

MOTOR

Yellow

Black

White

CORD REEL

THERMAL

CUT-OUT

ON/OFF

SWITCH

POWER

CONTROL

CIRCUIT

Carbon brush holder

"S" marked

Carbon brush holder

"P" marked

MOTOR

Yellow

Black

Carbon brush holder

"S" marked

Black

White

CORD REEL

THERMAL

CUT-OUT

POTENTIOMETER

ON/OFF

SWITCH

POWER

CONTROL

CIRCUIT

Carbon brush holder

"P" marked

Blue

Grey

EXPLODED VIEW

40 37 36

EXPLODED VIEW

27 55

59 57

EXPLODED VIEW

1717 18

11 74

InstruccionesdeManejo

Operatinginstructions

Manualdeinstruçoes

MC-E780,MC-E781,MC-E783

Matsushita Electric España,S.A.

DivisindeAspiradoras

ZonaIndustrialdel

PolgonodeCelr -17460CELR¸(Girona)Espaa

GENUINE

TYPE C-20

PAPERBAG

For Models:

MC-E7Series

MC-E87Series

MC-E88Series

SPARE PARTS LIST

REF. No. DESCRIPTION PART No. Pcs/Set REMARKS

1 HOSE UNIT AMC8A92T1034 1 ••• ✓

2 HOSE AMC8A01K0034 1 ••• ✓

3 HOSE CONNECTING TUBE AMC8A0281034 1 ••• ✓

4 CURVED TUBE UNIT AMC8A94P1034 1 ••• ✓

5 HOSE HOLDER AMC8A1125034 2 ••• ✓

6 ACCESSORY SUPPORT AMC8A73T1034 1 ••• ✓

7 CREVICE NOZZLE AMC8A13P1034 1 ••• ✓

8 DUSTING BRUSH AMC8A97P1034 1 ••• ✓

9 EXTENSION WAND (METALLIC) AMC8A12P1000 2 •• ✓

10 TELESCOPIC WAND AMC8A85P3100 1 •✓

11 FLOOR NOZZLE AMC8A99T1034 1 ••• ✓

12 FLOOR NOZZLE COVER AMC8A90T1034 1 ••• ✓

13 FLOOR NOZZLE BRUSH AMC8A89D1000 1 ••• ✓

14 FLOOR NOZZLE BASE PLATE AMC8A39D1000 1 ••• ✓

15 FLOOR NOZZLE SPRING AMC8A36D1000 2 ••• ✓

16 FLOOR NOZZLE LINEN RETAKE AMC8A41D1000 2 ••• ✓

17 FLOOR NOZZLE SCREW XTN35+25BFY 2 ••• ✓

18 FLOOR NOZZLE SCREW XTN35+14BFY 2 ••• ✓

19 DUST COVER (GREEN COLOUR) AMC8T01T00E1 1 •✓

DUST COVER (BLUE COLOUR) AMC8T01T00Z4 1 •✓

DUST COVER (YELLOW COLOUR) AMC8T01T1093 1 •✓

DUST COVER (GREEN COLOUR) AMC8T01T10E1 1 •✓

DUST COVER (BLUE COLOUR) AMC8T01T10Z4 1 •✓

DUST COVER (BLACK COLOUR) AMC8T01T3061 1 •✓

20 DUST INDICATOR AMC8I99T1000 1 ••• ✓

21 VALVE AMC8I07A1000 1 ••• ✓

22 VALVE SPRING AMC8I09T1000 1 ••• ✓

23 VALVE SUPPORT AMC8I22E1061 1 ••• ✓

24 INDICATOR COVER AMC8I17T1039 1 ••• ✓

25 TAPPING SCREW XTN4+18B 1 ••• ✓

26 UPPER BODY (GREEN COLOUR) AMC8C01T00E1 1 •✓

UPPER BODY (BLUE COLOUR) AMC8C01T00Z4 1 •✓

UPPER BODY (YELLOW COLOUR) AMC8C01T1093 1 •✓

UPPER BODY (GREEN COLOUR) AMC8C01T10E1 1 •✓

UPPER BODY (BLUE COLOUR) AMC8C01T10Z4 1 •✓

UPPER BODY (BLACK COLOUR) AMC8C01T1061 1 •✓

27 TAPPING SCREW XTN4+18B 5 ••• ✓

28 POTENTIOMETER BUTTON (ORANGE COLOUR) AMC8E17T10B0 1 •✓

POTENTIOMETER BUTTON (GREY COLOUR) AMC8E17T1039 1 •• ✓

29 BRAKE LEVER UNIT AMC8P96T1000 1 ••• ✓

30 BRAKE SPRING AMC8P2201000 1 ••• ✓

31 SWITCH PEDAL (ORANGE COLOUR) AMC8T14T10B0 1 •• ✓

SWITCH PEDAL (GREY COLOUR) AMC8T14T1039 1 •• ✓

32 CORD REEL PEDAL (ORANGE COLOUR) AMC8T13T10B0 1 •• ✓

CORD REEL PEDAL (GREY COLOUR) AMC8T13T1039 1 •• ✓

33 SPRING AMC8P2201000 2 ••• ✓

34 ELECTROSTATIC CLEAN AIR FILTER AMC8F28T1000 1 •• ✓

ELECTROSTATIC S-CLASS FILTER AMC8F28T3000 1 •✓

MC-E780

Applied for

all countries (✓)

MC-E781 MC-E783

SPARE PARTS LIST

REF. No. DESCRIPTION PART No. Pcs/Set REMARKS

35 EXHAUST COVER (GREEN COLOUR) AMC8T07T10E1 1 •• ✓

EXHAUST COVER (BLUE COLOUR) AMC8T07T10Z4 1 •• ✓

EXHAUST COVER (YELLOW COLOUR) AMC8T07T1093 1 •✓

EXHAUST COVER (BLAK COLOUR) AMC8T07T3061 1 •✓

36 LOWER BODY UNIT AMC8C99T0039 1 •✓

LOWER BODY UNIT AMC8C99T1039 1 •• ✓

37 CASTER AMC8R99D1034 1 ••• ✓

38 WHEEL AMC8R01T1039 2 ••• ✓

39 DUST COVER SEAL AMC8T04T1034 1 ••• ✓

40 SUCTION PACKING AMC8T12T1000 1 ••• ✓

41 FRONT COVER (GREEN COLOUR) AMC8T11T10E1 1 •• ✓

FRONT COVER (YELLOW COLOUR) AMC8T11T1093 1 •✓

FRONT COVER (BLUE COLOUR) AMC8T11T10Z4 1 •• ✓

FRONT COVER (BLACK COLOUR) AMC8T11T1061 1 •✓

42 TAPPING SCREW XTN4+18B 2 ••• ✓

43 CENTRAL FILTER AMC8F03D1100 1 ••• ✓

44 PAPER BAG CLAMP AMC8F02E1134 1 ••• ✓

45 PAPER BAG CLAMP SPRING AMC8F30E1000 1 ••• ✓

46 MOTOR SDS-1504P / AC230V AMC81SF04P00 1 ••• ✓

MOTOR SDS-1503P / AC230-240V AMC81SF03P00 1 ••• ✓Only

to UK, Australia, N. Zealand.

47 CARBON BRUSH AMC8201C9801 2 ••• ✓

48 NOISE SUPPRESSOR AMC8E11K1000 1 ••• ✓

49 FRONT MOTOR SUPPORT AMC8E08T1000 1 ••• ✓

50 REAR MOTOR SUPPORT AMC8E09T0000 1 ••• ✓

51 CENTRAL MOTOR SUPPORT AMC8E13L1000 1 •• ✓

52 MOTOR COVER A AMC8D55T1000 1 ••• ✓

53 MOTOR COVER B AMC8D56T1000 1 ••• ✓

54 TAPPING SCREW XTN4+18B 3 ••• ✓

55 THERMAL CUT-OUT AMC8E1401200 1 ••• ✓

56 POWER CONTROL CIRCUIT AMC8E91T0000 1 •✓

POWER CONTROL CIRCUIT AMC8E91T3000 1 •• ✓

57 SLIDING POTENTIOMETER AMC8E1693000 1 •• ✓

58 ON/OFF SWITCH AMC8E01P1000 1 ••• ✓

59 REAR FILTER AMC8F31T1000 1 ••• ✓

60 EXHAUST SUPPRESOR AMC8T10T1000 1 •• ✓

61 CORD REEL UNIT AMC8PZ3P6000 1 •••

Applied to Australia and N.Zealand.

62 CORD REEL UNIT AMC8PZ1P6000 1 •••

Applied to UK and Ireland.

63 CORD REEL UNIT AMC8P88P6000 1 •••

64 CORD REEL UNIT AMC8P97P6000 1 •••

65 CORD REEL AMC8P90P1000 1 ••• ✓

66 RAIL BASE UNIT AMC8P93L1000 1 ••• ✓

67 POWER SUPPLY CORD AMC8EZ3L0061 1 •••

Applied to Australia and N.Zealand.

68 POWER SUPPLY CORD AMC8EZ1L0061 1 •••

Applied to UK and Ireland.

69 POWER SUPPLY CORD AMC8E98L0061 1 •••

70 POWER SUPPLY CORD AMC8E97L0061 1 •••

MC-E780

Applied for

all countries (✓)

MC-E781 MC-E783

Applied to Italy,

Switzerland and Portugal.

Applied to East Europen

countries & West countries,

except above.

Applied to Italy,

Switzerland and Portugal.

Applied to East Europen

countries & West countries,

except above.

SPARE PARTS LIST

REF. No. DESCRIPTION PART No. Pcs/Set REMARKS

71 CORD REEL SUPPORT UNIT AMC8P91T1000 1 ••• ✓

72 TAPPING SCREW (CORD REEL) XTT4*16C 1 ••• ✓

73 DUST PAPER BAG (PACK OF 5/PC.) AMC8F96T1000 1 ••• ✓

Detachable type C-20E

74 CLOTH DUST BAG (RE-USABLE) AMC8F99T1000 - ••• ✓

Optional

75 SET COVER AMC8Z05P1000 1 ••• ✓

76 CARTON BOX AMC8Z01T0000 1 •✓

CARTON BOX AMC8Z01T1000 1 •✓

CARTON BOX AMC8Z01T3000 1 •✓

77 CUSHION A AMC8Z02T1000 1 ••• ✓

78 CUSHION B AMC8Z03T1000 1 ••• ✓

79 CUSHION SUPPLEMENT AMC8Z09J2000 1 ••• ✓

80 OPERATING INSTRUCTIONS AMC8Z07T1010 1 •••

OPERATING INSTRUCTIONS AMC8Z07T1070 1 •••

OPERATING INSTRUCTIONS AMC8Z07T1020 1 •••

MC-E780

Applied for

all countries (✓)

MC-E781 MC-E783

Needed a screwdriver type

TORK T20 H

Depend on

language Spanish, English, Portuguese,

Italian, Finish and Greek

Depend on

language

German, Dutch, French,

Swedish, Norwegian and

Danish.

Depend on

language Russian

REPLACEMENT OF MAIN PARTS

IMPORTANT: Before replacing any part always

DISCONNECT THE CLEANER FROM THE

ELECTRICITY SUPPLY.

•MOTOR / CARBON BRUSHES

(1) Motor

1. To remove the dust cover first pull it out from one side and

then rotate it up wards to take it out. (Fig.1)

2. Remove cord reel and switch pedal prying out as indicated

with a flat-head screwdriver. (Fig. 2)

NOTE: When prying out take care not to damage the body.

Fig. 2

Fig. 1

Dust cover

Cord reel Pedal

Switch

Pedal

Flat-head

screwdriver
