Panasonic MC-V9644-00 Manuel utilisateur

COMPANY, DIVISION OF MATSUSHITA

ELECTRIC CORPORATION OF AMERICA. All rights

reserved. Unauthorized copying and distribution is a

violation of law.

MC-V9644-00

Vacuum Cleaner

Specifications are subject to change without notice for further improvement.

Order Number MAC0402003C1

1 WIRING DIAGRAM 3

1.1. Wiring Schematic 3

2 EXPLODED VIEW AND PARTS LIST 4

2.1. Power Nozzle 4

2.2. Canister 6

2.3. Hose 8

2.4. Packing Materials 9

3 SERVICE PROCEDURES - POWER NOZZLE 10

3.1. HEADLIGHT BULB 10

3.2. BELT 10

3.3. POWER NOZZLE MOTOR 11

3.4. AGITATOR BRUSH 12

4 SERVICE PROCEDURES - CANISTER 13

4.1. HOOD 13

4.2. CANOPY COVER 13

4.3. CORD REEL 13

4.4. CANISTER MOTOR 14

4.5. CARBON BRUSH 14

CONTENTS

Page Page

MC-V9644-00

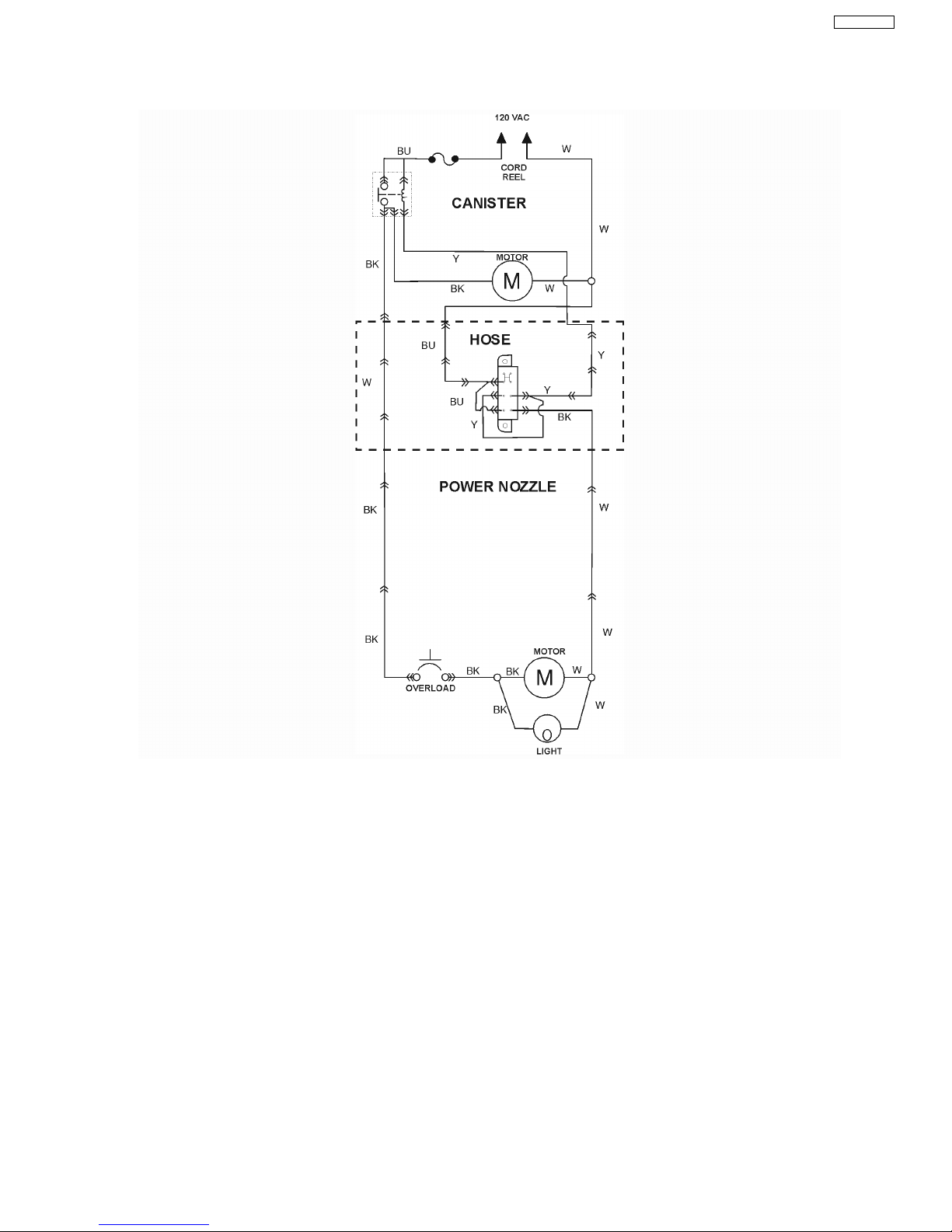

1 WIRING DIAGRAM

1.1. Wiring Schematic

MC-V9644-00

2 EXPLODED VIEW AND PARTS LIST

2.1. Power Nozzle

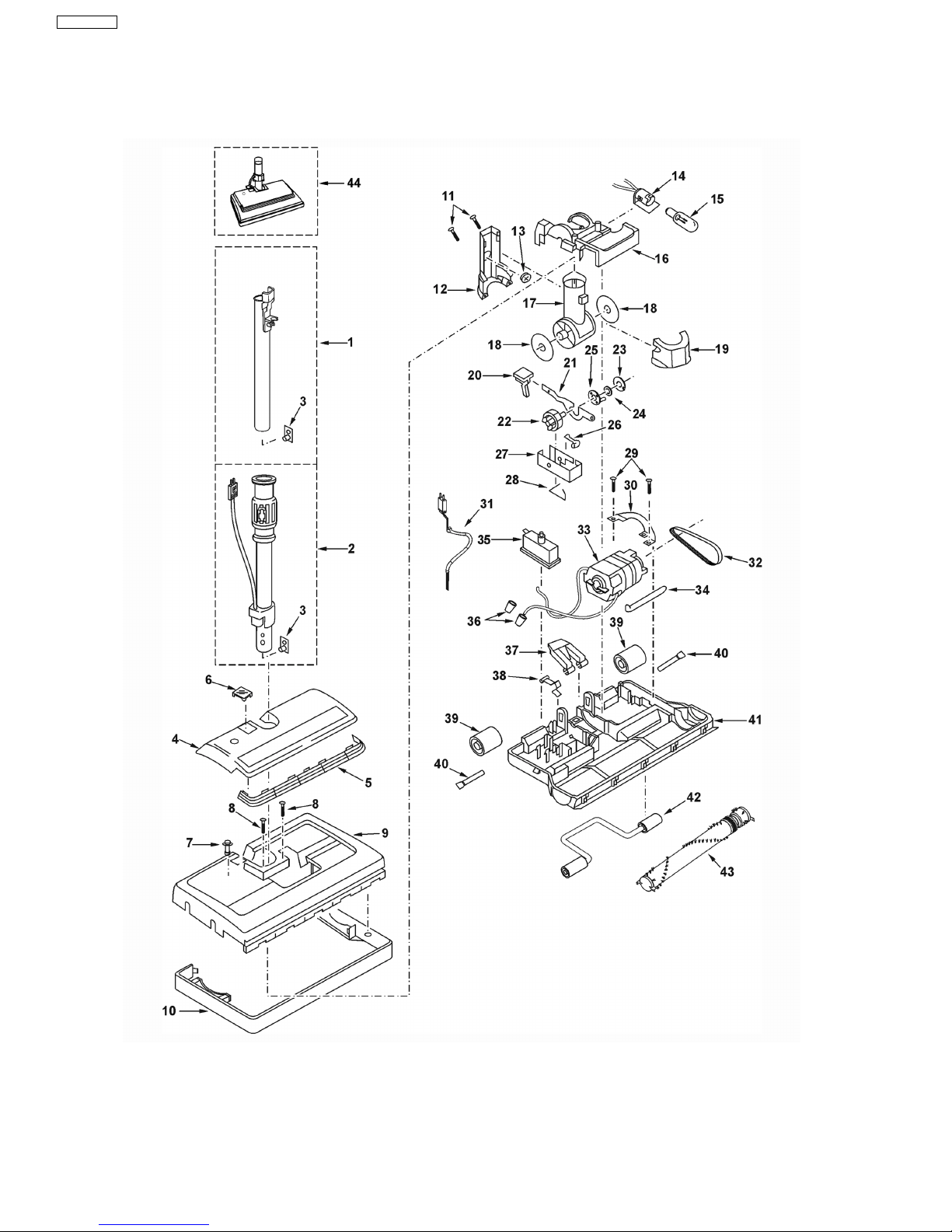

2.1.1. Exploded View

MC-V9644-00

2.1.2. Parts List (Power Nozzle)

Ref.

No. Part No. Part Name & Description Quantit

yRemarks

1AC97PAENZV06 Wand Assembly, Upper 1

2AC99PGJZV06 Wand Assembly, Lower 1

3AMC725-419 Lock, Spring Wand 2

4AC24HCHKZR0K Power Head Cover 1

5AMC744-119 Lens, Light Cover 1

6AMC744-237 Lens, Height Adjustment 1

7AC77FAXEZR01 Extension, Button 1

8AMC681-550 Screw, Nozzle Cover 2Shipped 10 per package

9AC02RSRZR0K Nozzle Cover 1

10 AC10ASRZV06 Furniture Guard 1

11 AXTN4+24BFY Screw, Wand Release Button Cover 2Shipped 10 per package

12 AC69QGJZV06 Rear Cover, Wand Release Button 1

13 AC13DABFZV06 Wand Release Button 1

14 AC93HBNXZ000 Bulb Socket 1

15 AC28GADFZ00 Bulb, Headlight 1

16 AC25QMGZVØ6 Swivel Cap 1

17 AC78PABFZV06 Swivel 1

18 AMC742-019 Swivel Seal 2

19 AC68QGJZV06 Front Cover 1

20 AC48AMGZV06 Pad, Foot Pedal 1

21 AMC747-287 Lever, Indicator 1

22 AMC725-725 Cam, Indicator 1

23 AMC722-909 Washer, Thrust 1

24 AMC725-635 Washer 1

25 AMC722-955 Catch, Indexing 1

26 AMC742-016 Ratchet, Catch 1

27 AMC742-015 Indicator Block 1

28 AMC725-775 Spring, Assist 1

29 AMC681-297 Screw, Motor Bridge 2Shipped 10 per package

30 AMC705-093 Bridge, Motor 1

31 AC67VBAKZV06 Lead Wire “A” Unit 1

32 AC28SAXAZ000 Belt (Type CB-6) 1

33 AC90FCAMZ000 Motor, Nozzle 1

34 AMC742-002 Spring, Motor Adjust 1

35 AMC-1CTCE23 Wire Connector 1

36 AMC742-013 Overload Protector 1Shipped 10 per package

37 AC47AGJZV06 Release, Handle 1

38 AC01CAKZZV06 Lifter 1

39 AMC742-006 Roller, Rear 2

40 AMC742-006 Axle, Rear 2May be ordered as complete assembly

41 AC03RAXAZU01 Base 1

42 AMC744-029 Axle Assembly, Front 1

43 AC84RCHJZ000 Agitator Assembly 1Includs items A-45 through A-48

44 AC50XCHKZR0K Power Nozzle Assembly 1May be ordered as complete assembly

MC-V9644-00

2.2. Canister

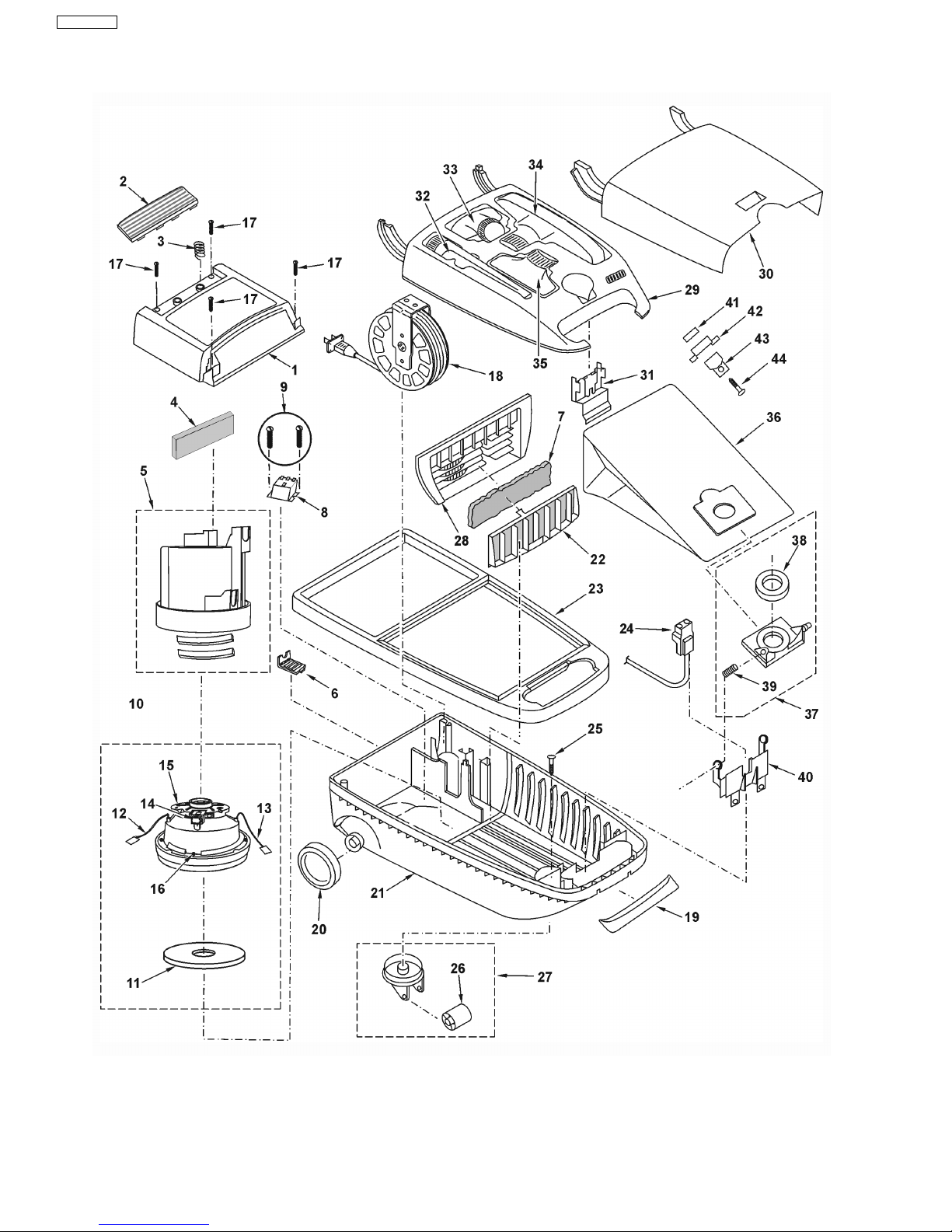

2.2.1. Exploded View

MC-V9644-00

2.2.2. Parts List (Canister)

Ref.

No. Part No. Part Name & Description Quantit

yRemarks

1AC48HCHKZRUK Canopy Cover 1

2AC46NNJZV06 Brake Pedal 1

3AMC744-258 Spring, Cord Button 1

4AC38KARDZ000 Final Filter 1

5AC93FBMVZ010 Motor Shield 1

6AC14NATYZV06 Cord Cover 1

7AC30KGJZ000 Electrostatic Filter 1

8AC30EAWPZ000 Relay 1

9AXTN4+10BFY Screw 2Shipped 10 per package

10 AC92FBJCZ010 Motor Assembly 1

11 AC22FACDZ000 Motor Seal Assembly 1

12 AC38GAKTZ010 Lead Wire 1

13 AC43GAUYZ010 Lead Wire 1

14 AC69RAKEZ00 Motor Brush 1

15 AC92FBJCZ000 Motor 1

16 AC68ABJCZ000 Screw 4Shipped 10 per package

17 AMC414-8999 Screw 4Shipped 10 per package

18 AC99NNUZV06 Cord Reel 1

19 AMC415-5620 Handle Grip 1

20 AC01CNHZV06 Wheel, Rear 2

21 AC03AUVZV06 Lower Body 1

22 AMC415-2969 Filter Frame 1

23 AMC415-5588 Bumper, Molded 1

24 AC37GATGZV06 Wiring Harness 1

25 AMC706-884 Pin, Caster Retainer 1

26 AC27CACCZV06 Wheel, Caster 1

27 AC93CACCZV06 Caster, Roller Unit 1

28 AC62HARDZV06 Bulkhead 1

29 AC85KCHKZRUK Dust Box Unit 1Includes Tool Storage Cover

30 Tool Storage Cover 1Included with Dust Box Unit

31 AC01DAXAZV06 Hood Latch 1

32 AC60RAKZZV06 Crevice Tool 1

33 AC88RAJRZV06 Dusting Brush 1

34 AC96RBMWZV06 Floor Brush 1

35 AC86RAKZZV06 Fabric Brush 1

36 AMC16KGFZ00 Dust Bag 1

37 AMC415-580 Bag Mount 1Includes items 38 & 39

38 AMC706-017 Gasket, Port 1

39 AMC706-024 Spring, Bag Mount 1

40 AC23KAKZZV06 Strike Insert 1

41 AC09MYUZ000 Indicator Packing 1

42 AC98MBHZV06 Performance Indicator Unit 1Includes items 41

43 AMC415-6363 Bracket 1

44 AXTN4+10BFY Screw 1Shipped 10 per package

MC-V9644-00

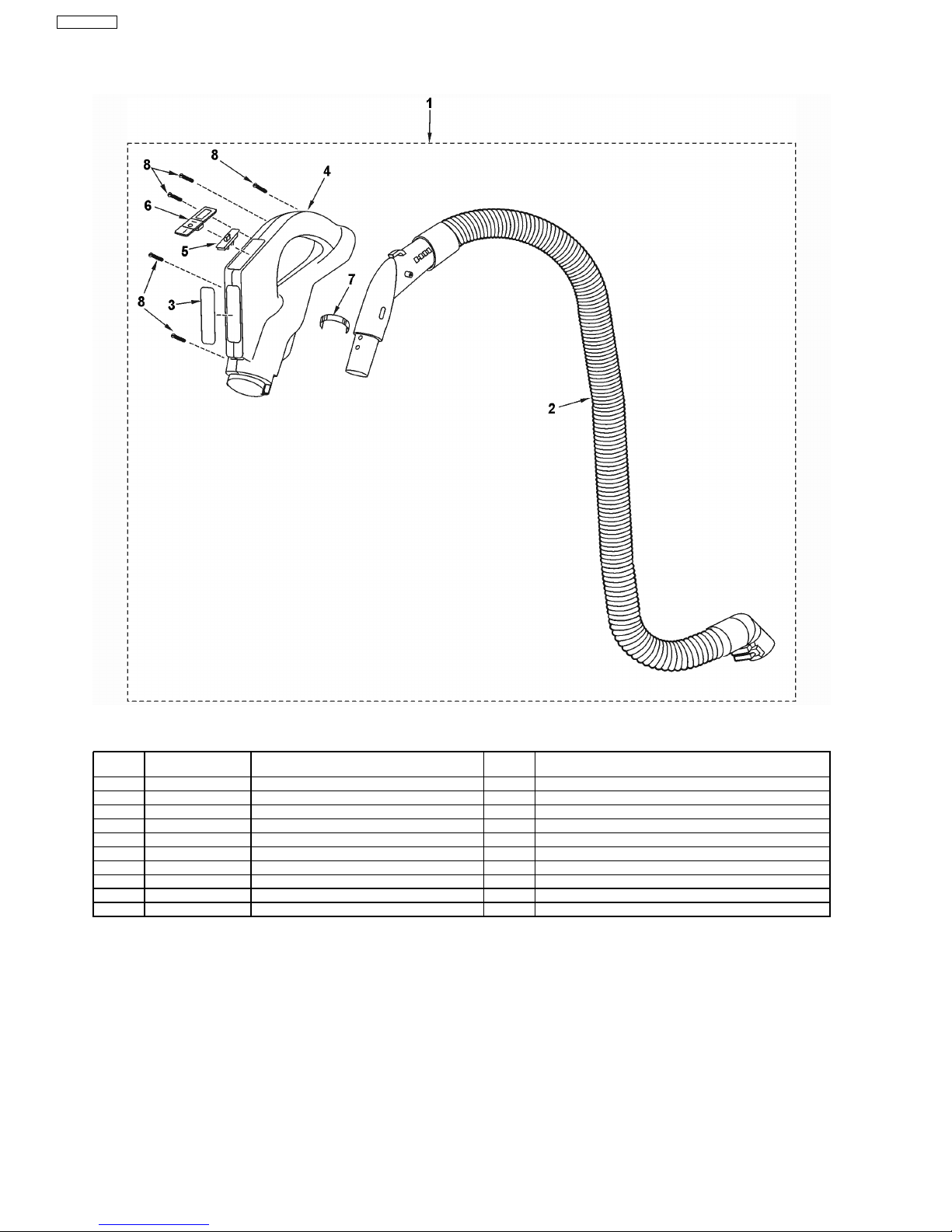

2.3. Hose

2.3.1. Exploded View

2.3.2. Parts List

Ref.

No. Part No. Part Name & Description Quantit

yRemarks

1AC94PCHKZV06 Hose Assembly Includes items 2-8

2AC89PCFTZV06 Hose Unit 1

3AC31TBMVZ0U0 Ornamental Plate 1

4AC93BSTZV06 Handle Unit 1

5AC90ESTZ000 Switch 1

6AC99EAVKZVU7 Switch Button 1

7AC54PAPAZV06 Suction Control 1

8AXTN4+12BFY Screw 5Shipped 10 per package

MC-V9644-00

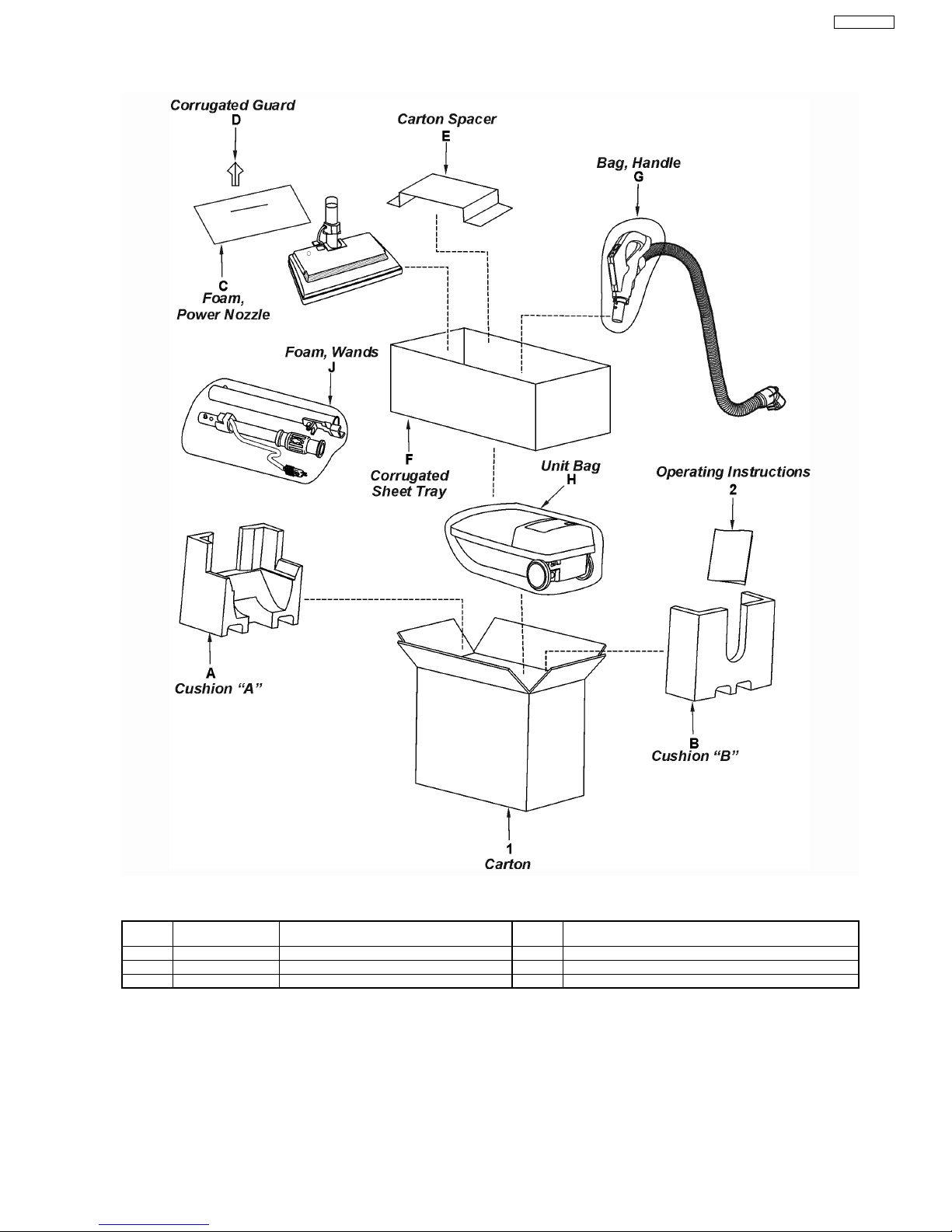

2.4. Packing Materials

2.4.1. Exploded View

2.4.2. Parts List

Ref.

No. Part No. Part Name & Description Quantit

yRemarks

1AC94ZCHKZOUO Individual Carton 1Includes 1 and items A-J

2AC01ZCHKZ000 Operating Instructions 1

MC-V9644-00

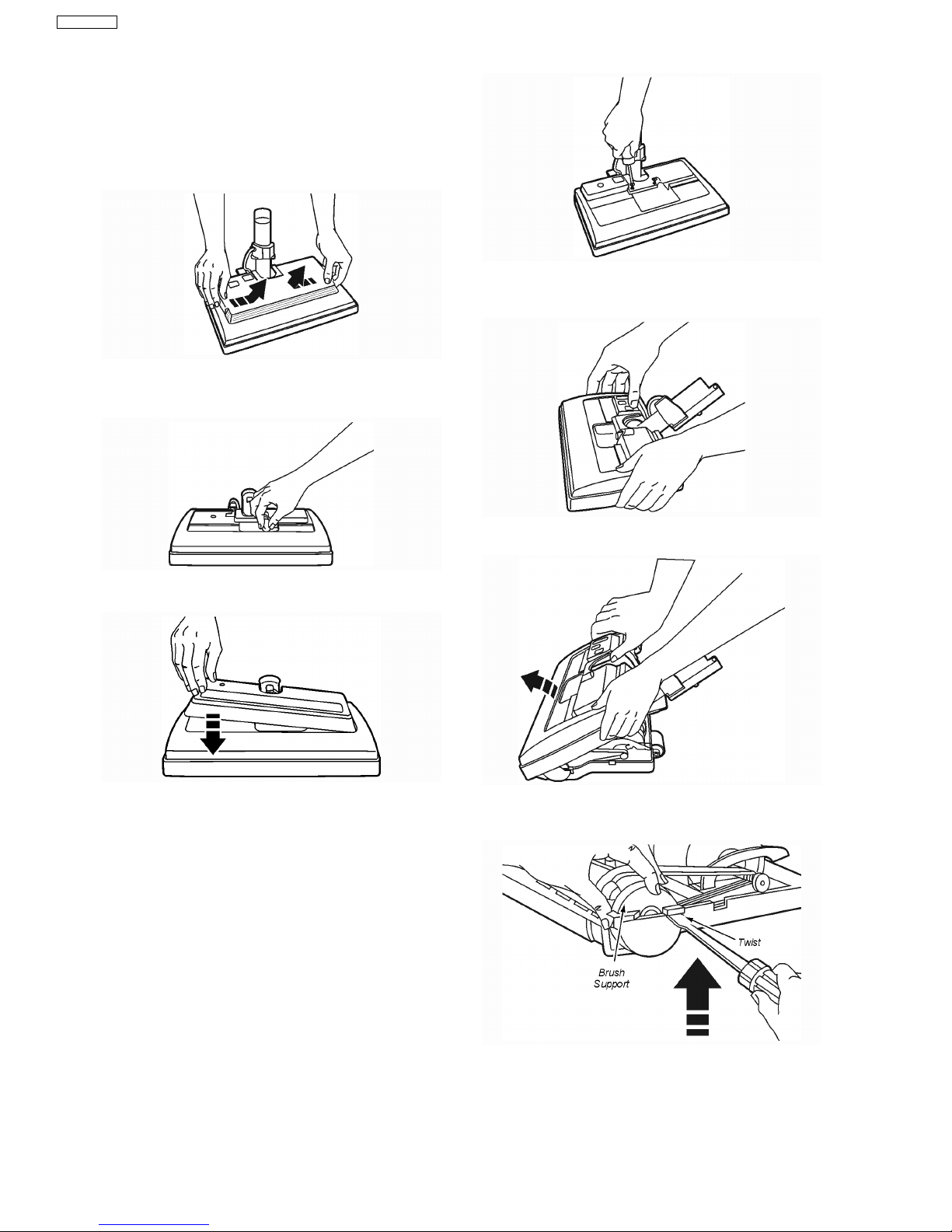

3.1. HEADLIGHT BULB

3.1.1. Bulb Removal & Replacement

1.Press in and lift at the same time on one side of the light

cover to release the locking tab, then remove cover and

light lens.

2.Push in and turn the light bulb to remove. Replace with 15-

watt bayonet-base type light bulb.

3.Replace the light cover and lens.

NOTE: Be sure red belt protector button extension is in

place and aligned in cover opening.

3.2. BELT

3.2.1. Belt Removal & Replacement

1.Remove headlight cover and headlight lens (see Bulb

Removal & Replacement).

2.Take out two (2) screws to remove nozzle cover.

3.Grasp both sides of the cover and flex outward to release

the side tabs.

4.Tilt the cover forward to free the front tabs.

5.Carefully insert and twist a screwdriver between each brush

support and the base, to free the brush assembly.

6.Lift the brush assembly to slide off the old belt.

3 SERVICE PROCEDURES - POWER NOZZLE

MC-V9644-00
