Panasonic MC-E4101 Manuel utilisateur
©2005 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and
distribution is a violation of law.
MC-E4101
MC-E4103
Destination : Europe
Vacuum Cleaner
Model MC-E4101 MC-E4103
Powe
r
source 230-240V 230-240V
50Hz 50Hz
Input powe
r
(IEC) 1400-1500W 1400-1500W
Mains lead length 6.7m 6.7m
Radius of opera
t
ion 7m 7m
Net weigh
t
6.5kg 6.5kg
Dimensions (L×W×H) 330×320×1100 330×320×1100
A
ttachments: Dusting brush * *
Crevice nozzle * *
Extension wand * *
Mini turbine nozzle - *
A
ttachment holde
r
- *
Speci
f
ications are subject to change Without notice for furthe
r
improvement
ORDER NO.ECD0503003C2
1 PICTORIAL DIAGRAM
MC-E4001/MC-E4003
2 SCHEMATIC DIAGRAM
MC-E4001/MC-E4003
2
3 REPLACEMENT OF MAIN
PARTS
IMPORTANT: Before replacing any part always
DISCONNECT THE CLEANER FROM THE ELECTRIClTY
SUPPLY.
3.1. MOTOR SHAFT BELT
1.Loosen 4 screws from the base plate and lift it off (Fig.1)
2.Remove the belt from the motor shaft and outer motor
pulley replacing with a new one.(Fig.2)
3.Re-install the new belt around the motor shaft and pulley.
4.Replace the base plate and refasten the screws.
3.2. BEATER BAR BELT
1.Remove the base plate and motor shaft belt as explained
previously in paragraph 3.1 Motor shaft belt, point 1-2.
2.Lift the beater bar assembly and remove the belt from the
beater bar pulley and motor pulley.(Fig.3)
3.Replace the belt with a new one and re-assemble in the
reverse order.
4.Insert the beater bar mounts into their housing and turn the
beater bar by hand to ensure the belts have been seated
correctly.(Fig.4)
5.Replace the base plate and refasten the screws.
3
3.3. BEATER BAR ASSEMBLY
1.Remove the base plate as explained previously in
paragraph 3.1 Motor shaft belt, point 1.
2.Lift the beater bar assembly and remove the belt from the
beater bar pulley. (Fig.5)
3.Replace the beater bar assembly with a new and place the
belt around the beater bar pulley.
4.Insert the beater bar mounts into their housings and turn the
beater bar by hand to ensure the belt has been seated
correctly.
5.Replace the base plate and refasten screws.
3.4. MOTOR PULLEY UNlT
1.Remove the base plate as explained previously in
paragraph 3.1 Motor shaft belt, point 1.
2.Release the two belts from the motor pulley.
3.Remove 1 screw from the pedal and take it out.(Fig.6)
4.Expand between floor nozzle cover and motor pully. Then
remove the pedal.
5.Remove 2 screws from the motor pulley unit and take it out.
(Fig.7)
6.Replace the motor pulley unit with a new one and re-install
it.
7.Re-assemble the pedal, belts and remaining parts in the
reverse order.
4
3.5. MOTOR
1.Remove base plate, pedal and motor pulley as explained
previously in paragraph 3.4 Motor pulley unit, points 1-4.
2.Insert a flat-head screwdriver between nozzle housing and
pry out the plastic shaft. (Fig.8).
3.And then remove the floor nozzle upper.
4.Remove nozzle cover, turn the vacuum cleaner over and
remove 4 screws from upper body and take it out. (Fig.9)
5.Take out the motor and remove two lead wires.
6.Remove front / rear motor supports rubber, noise absorber
and replace the motor with a new one.(Fig.11)
7.Re-assemble front / rear motor supports, noise absorber
and connect the lead wires to the motor.
8.Re-install the motor and reassemble upper body and
remaining parts in the reverse order.
NOTE: Make sure the lead wires are correctly positioned to
avoid pinching them between parts.
5
3.6. CARBON BRUSH
NOTE: Replace both carbon brushes at the same time.
1.Remove upper body and take out the motor as explained
previously in paragraph 3.5 Motor, points 1-4.
2.Remove 1 screw from the carbon brush holder and take it
out. (Fig.12)
3.Take out both of the carbon brush holder from the motor.
(Fig.13)
4.Replace the carbon brush holder with new one and insert
into the motor. (Fig.14)
5.Fasten a screw in the motor and fixed the carbon brush
holder.
6.Re-assemble front / rear motor supports, noise absorber
and connect the lead wires to the motor.
7.Re-install the motor and reassemble upper body and
remaining parts in the reverse order.
NOTE: Make sure the lead wires are correctly positioned to
avoid pinching them between parts.
3.7. THERMAL CUT-OUT
1.Remove upper body and take out the motor unit as
explained previously in paragraph 3.5 Motor, points 1-4.
2.Remove thermal cut-out connections from the motor.
(Fig.15)
6
3.Remove the thermal cut-out connection of P.C.B. (Power
P.C.B.) (Fig.16)
4.Replace the thermal cut-out with a new one and it connect
both P.C.B. and motor. (Fig.16)
3.8. MAIN FUSE
1.Remove hose end from rear body and remove three screws
of front body.
2.Remove protruded part of the end of front body. Then
remove front body. (Fig.17)
3.Take out main fuse unit and remove lead wires
connections. (Fig.19) (and 3 gaick connect terminals from
on-off switch and P.C.B unit.)
4.Replace the main fuse with a new one and connect the lead
wires refer to the schematic diagram.
5.Place the main fuse into the right place and reassemble the
front body and remaining parts in the reverse order.
NOTE: Make sure the lead wires are correctly positioned to
avoid pinching them between parts.
7

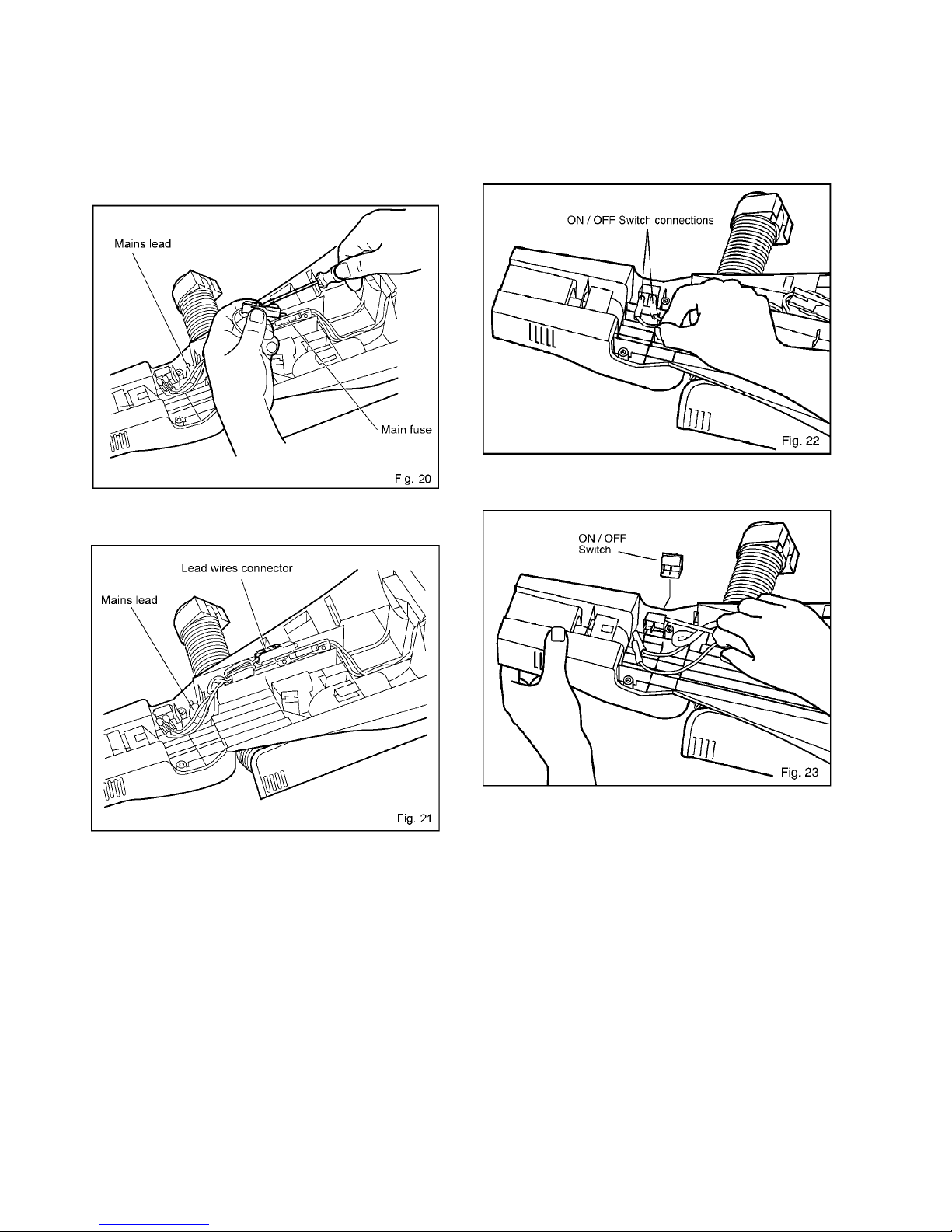

3.9. MAINS LEAD
1.Remove hose end and front body as explained previously in
paragraph 3.8 MAIN FUSE.
2.Remove mains lead connections and take it out. (Fig. 20)
NOTE: To release the terminal from the housing, use a
tool Ref.: VLJ-20 Supplied by JST.
3.Replace mains lead with a new one, and connect it refer to
the schematic diagram and re-install it. (Fig.21)
NOTE: Make sure the lead wires are correctly
positioned to avoid pinching them between parts.
4.Reassemble base suction inlet and remaining parts in the
reverse order.
3.10. ON/OFF SWlTCH
1.Remove hose end and front body as explained previously in
paragraph 3.8 MAIN FUSE.
2.Remove the lead wires (provided with quick-connect
terminal) from the switch tabs. (Fig.22)
3.Release switch claws with a flat-head screwdriver and take
it out. (Fig.23)
4.Replace ON/OFF Switch with a new one and re-install it.
5.Connect the lead wires refer to the schematic diagram and
reassemble base suction inlet and remaining parts in the
reverse order.
8
4 EXPLODED VIEW (BODY UNIT)
MC-E4101/E4103
9
5 PARTS LIST (BODY UNIT)
safety Ref. No. Part No. Part Name & Description Remarks
1 AMC95B-XD0AE Handle unit MC-E4101
1 AMC95B-XD0KE Handle unit MC-E4103
2 AMC32R-XD04E Attachment holder
3 AMC93E-XD0K8 Main lead(Power cord)
4 AMC61R-XD04E Crevice nozzle
5 AMC40P-XD04E Extention wand
6 AMC88R-XD04E Dusting brush unit
7 AMC84P-XC00E Hose unit MC-E4101
7 AMC84P-XD00E Hose unit MC-E4103
8 AMC82L-XD0AE Rear cover MC-E4101
8 AMC82L-XD0KE Rear cover MC-E4103
9 AMC42K-XJ0KE Filter case
10 AMC38K-XJ0WE Clean air filter MC-E4101
11 AMC95K-XL0WE HEPA filter MC-E4103
12 AMC67V-XD00E Lead wire A unit With Fuse
13 AMC84Q-XD00E Connecting hose unit
14 AMC73B-XD00E Handle screw
15 AMC33Z-XD00E Warning label
16 AMC01E-XD0KE ON/OFF Switch
17 AMC21A-XD0AE Rear body
17 AMC21A-XD0KE Rear body
18 XUB7FP Fixing washer
19 AMC01C-XD04E Wheel
20 AMC16C-XD00E Roller shaft
21 AMC30L-XD00E Outlet filter
22 AMC78A-XD00E Holder
23 AMC91F-XD00C PC BOARD W/Component
24 AMC98W-XD00E Thermal protector unit
25 AMC20A-XD0AE Front body MC-E4101
25 AMC20A-XD0KE Front body MC-E4103
26 AMC02F-XD00E Motor support rubber (front)
27 AMC92F-XD00C Fan motor unit 230-240V
28 AMC27F-XD00E Carbon brush
29 XTB3+8GFY Tapping screw
30 AMC10G-XD00E Noise absorber
31 AMC03F-XD00E Motor support rubber (rear)
32 AMC37K-XD00E Secondary filter
33 AMC32K-XD0KE Filter supporter
34 AMC97K-KD00E Protector unit
35 AMC09M-XD00E Indicator packing
36 AMC99F-XC02E Motor case U MC-E4101
36 AMC99F-XD0SE Motor case U MC-E4103
37 AMC31A-XD04E Furniture guard
38 AMC25S-XD00E Plastic holder
39 AMC98R-XD0AE Floor nozzle upper unit MC-E4101
39 AMC98R-XD0KE Floor nozzle upper unit MC-E4103
40 AMC47A-XD04E Pedal left/handle release
41 AMC51A-XD00E Pedal shaft
42 AMC58A-XD00E Pedal spring right
43 AMC39S-XD00E Belt B
44 AMC28S-XD00E Belt
45 AMC90S-XD00E Idler pulley
46 AMC54R-XD00E End plate
47 AMC06R-XD00E Pipe felt
48 AMC92S-XD00E Agitator assy
49 AMC84R-XD00E Agitator unit
50 AMC0BR-XD00E Floor nozzle brush C
51 AMC79R-XD00E Floor nozzle brush B
52 AMC79A-XD00E Body packing
53 AMC03R-XD04E Floor nozzle lower
54 AMC50R-XD00E Floor nozzle roller shaft
55 AMC90Q-XD00E Nozzle roller
56 XWG7+135FY Plain washer
57 XTN3+8BFY Tapping screw
58 AMC68A-XD00E Screw
59 XTN4+18BFY Tapping screw
60 XTN3+16FFJ Tapping screw
61 AMC95S-XD00E Belt unit kit 2belts
62 AMC99W-XD00E Fuse Unit
63 AMC99R-XD00E Mini turbine nozzle MC-E4103
10
