Panasonic MC-CG713A249-AE Manuel utilisateur

(6100-K). Unauthorized copying and distribution is a

violation of law.

Order No. PMMA161156SE

Vacuum Cleaner

Model No. MC-CG713A249-AE

MC-CG713K249-AE

MC-CG713R249-AE

MC-CG713W249-AE

Destination: Iran

Subject : Change Specifications for Iran

TABLE OF CONTENTS

PAGE PAGE

1 Specifications ----------------------------------------------------- 2

2 Schematic Diagram ---------------------------------------------- 2

3 Wiring Connection Diagram ---------------------------------- 3

4 Exploded View and Replacement Parts List ------------ 4

4.1. Exploded View --------------------------------------------- 4

4.2. Attachment Exploded View ----------------------------- 5

4.3. Packing Instruction ----------------------------------------6

4.4. Replacement Part List ------------------------------------7

4.4.1. Part List --------------------------------------------------7

Please file and use this supplement manual together with the service manual for Model No. MC-CG713,

Order No.PMMA110824CE.

1 Specifications

2 Schematic Diagram

Model MC-CG713

Power Source 220V~240V~50/60Hz

Input Power (Max) 2000W

Input Power (IEC) 1500-1800W

Power Control SLIDE

Dust Capacity 6.0L

Automatic Cord Rewind O

Vac Gauge O

Exhaust Filter HEPA

Extension Wands METAL TELESCOPIC WAND

Blower Operation O

Floor Nozzle 2-STEP

Dust Bag CLOTH

Dimension (H ×W ×L) 265mm ×320mm ×500mm

Net Weight 6.1 kg

Cord Length 5.0 m

Cleaning Tools CREVICE TOOL / DUSTING BRUSH

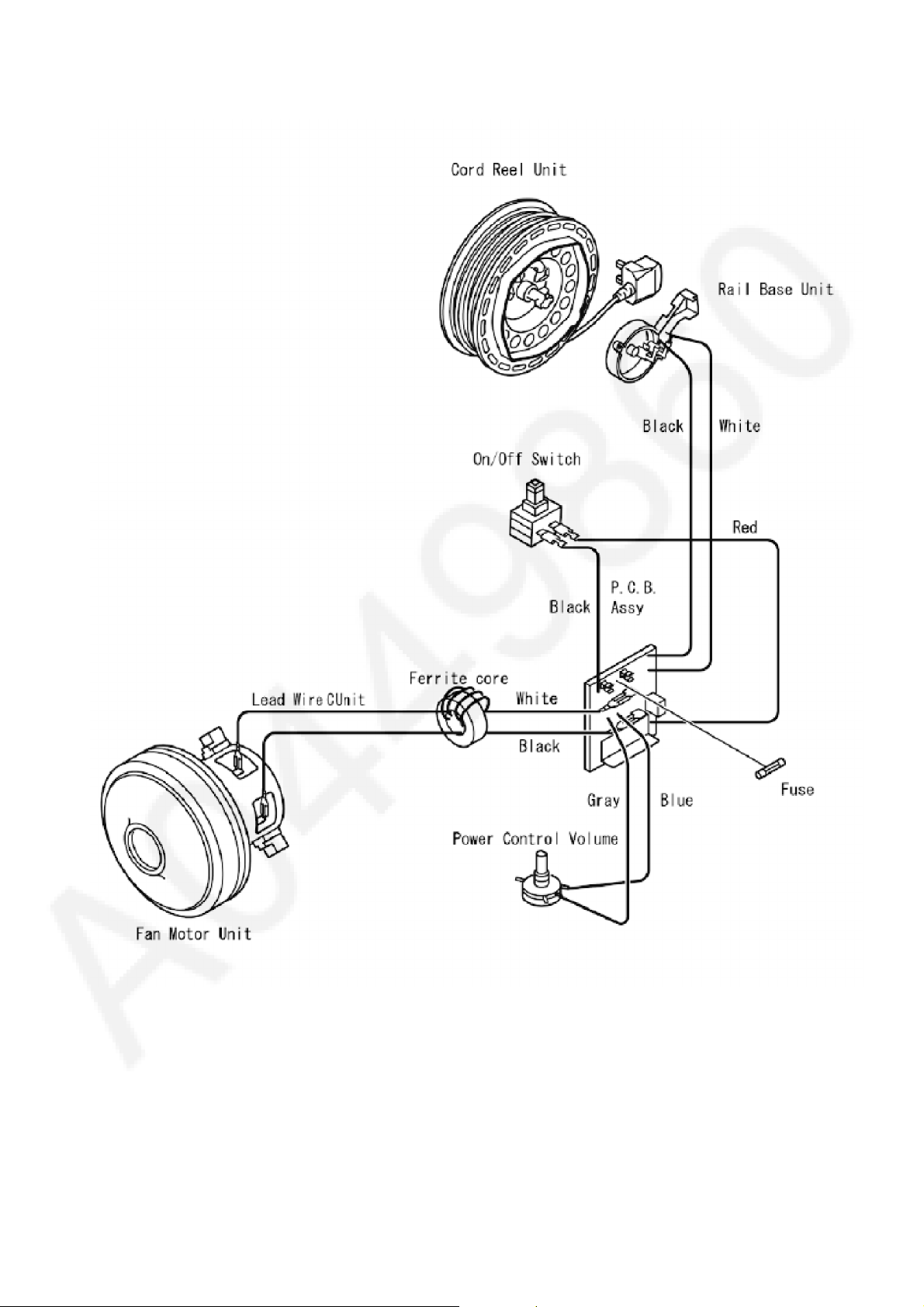

3 Wiring Connection Diagram

4 Exploded View and Replacement Parts List

4.1. Exploded View

B35

B36

B37

B32

B34

B42

B43

B29

B30

Plug E2Plug C3

B10

B13

B14

B15

B16

B17

B20

B21

B22

B28

B24

B25

B26

B27

B23

B18

B31

B11 B7

333

B33

B39 B40

B38

4.2. Attachment Exploded View

4.3. Packing Instruction

HOSE UNIT

INSTRUCTION BOOK

CURVED WAND

CREVICE NOZZLE

CONNECTION PIPE

BODY

DUSTING BRUSH

FLOOR NOOZLE ASS'Y

EXTENSION WAND UNIT

4.4. Replacement Part List

Important safety notice:

Components identified by mark have special characteristics important for safety.

When replacing any of these components, use only manufacturer’s specified parts.

4.4.1. Part List

Safety Ref.

No.

Part No. Part Name & Description Qty Remarks

1 XTN4+20BFJ PAN TAP SCREW 10

2 XTN4+10FFJ SCREW 2

3 XTN4+14BFJ TAPPING SCREW 4

4 XTN4+12BFJ PAN TAP SCREW 4

B1 YMV02ABW000 UPPER BODY 1

B2 YMV32KBW000 FILTER SUPPORTER 1

B3 YMV42KBW000 FILTER CASE 1

B4 YMV95KBW000 FILTER ASS’Y 1

B5 YMV96LBW000 BLOWER OUTLET UNIT 1

B6 YMV93KBY0AI DUST COVER ASS’Y 1 MC-CG713A249-AE

B6 YMV93KBY0KI DUST COVER ASS’Y 1 MC-CG713K249-AE

B6 YMV93KBY0RI DUST COVER ASS’Y 1 MC-CG713R249-AE

B6 YMV93KBY0WI DUST COVER ASS’Y 1 MC-CG713W249-AE

B7 YMV33LBW000 BLOWER COVER SPRING 1

B8 YMV59VBW000 PCB HOLDER 1

B10 YMV63FBW000 MOTOR SUPPORT COVER 1

B11 YMV09FBW100 MOTOR CASE 1

B13 YMV03FBW000 MOTOR SUPPORT RUBBER REAR 1

B14 YMV07FBY000 MOTOR SUPPORT FRONT 1

B15 YMV92FBY00I MOTOR FAN UNIT 1

B16 YMV02FBY100 MOTOR SUPPORT RUBBER FRONT 1

B17 YMV89VB6000 PCB A UNIT 1

B18 YMV69VBX000 LEAD WIRE C UNIT 1

B20 YMC99KXQ100 CLOTH BAG UNIT 1

B21 YMV37KBW000 SECONDARY FILTER 1

B22 YMV03ABW200 LOWER BODY 1

B23 YMC95C7K100 CASTER UNIT 1

B24 YMV01LBW000 REAR COVER 1

B25 YMV23KBW000 SUPPORTER 1

B26 YMV46HBW000 BAG CLAMPER SPRING 1

B27 YMV73KBW100 DUST BOX PACKING 1

B28 YMV01CBX000 WHEEL 1

B29 YMV99NBW00Q CORD REEL UNIT 1 E2 PLUG

B30 YMV98NBW000 RAIL BASE UNIT 1

B31 YMV25QBW000 SWIVEL CAP 1

B32 YMV05EBW000 SWITCH PEDAL 1

B33 YMV46NBW000 CORD REWIND BUTTON 1

B34 YMV02GBY000 BODY LINING UPPER 1

B35 YMV99MBW100 INDICATOR UNIT(2 GOLD DOT) 1

B36 YMV63HBW000 FRONT MARK 1

B37 YMV64HBW000 SUCTION INLET PACKING 1

B38 YMV25KBW000 DUST BOX PLATE 1

B39 YMV76NBW000 CORD HOOK SPRING 1

B40 YMV43NBW000 BRAKE LEVER 1

B42 YMV01E7B000 ON / OFF SWITCH 1

B43 YMV871NBW000 SPRING BRAKE BUTTON 2

A1 YMV99P62100 EXTENSION WAND 1

A2 YMV98PBW000 CURVE WAND UNIT 1

A3 YMV27HBW000 CONNECTION WAND 1

A4 YMV60R9L080 CREVICE NOZZLE 1

A5 YMC84PXP200-P HOSE UNIT 1

A6 YMV99RFP300 FLOOR NOZZLE ASS’Y 1

A7 YMC88RYX080 DUSTING BRUSH UNIT 1

P1 YMV61ZBY100 INDIVIDUAL CARTON 1

P2 YMV98ZBX000 CUSHION UNIT 1

YMV01ZBW100 INSTRUCTION MANUAL 1
