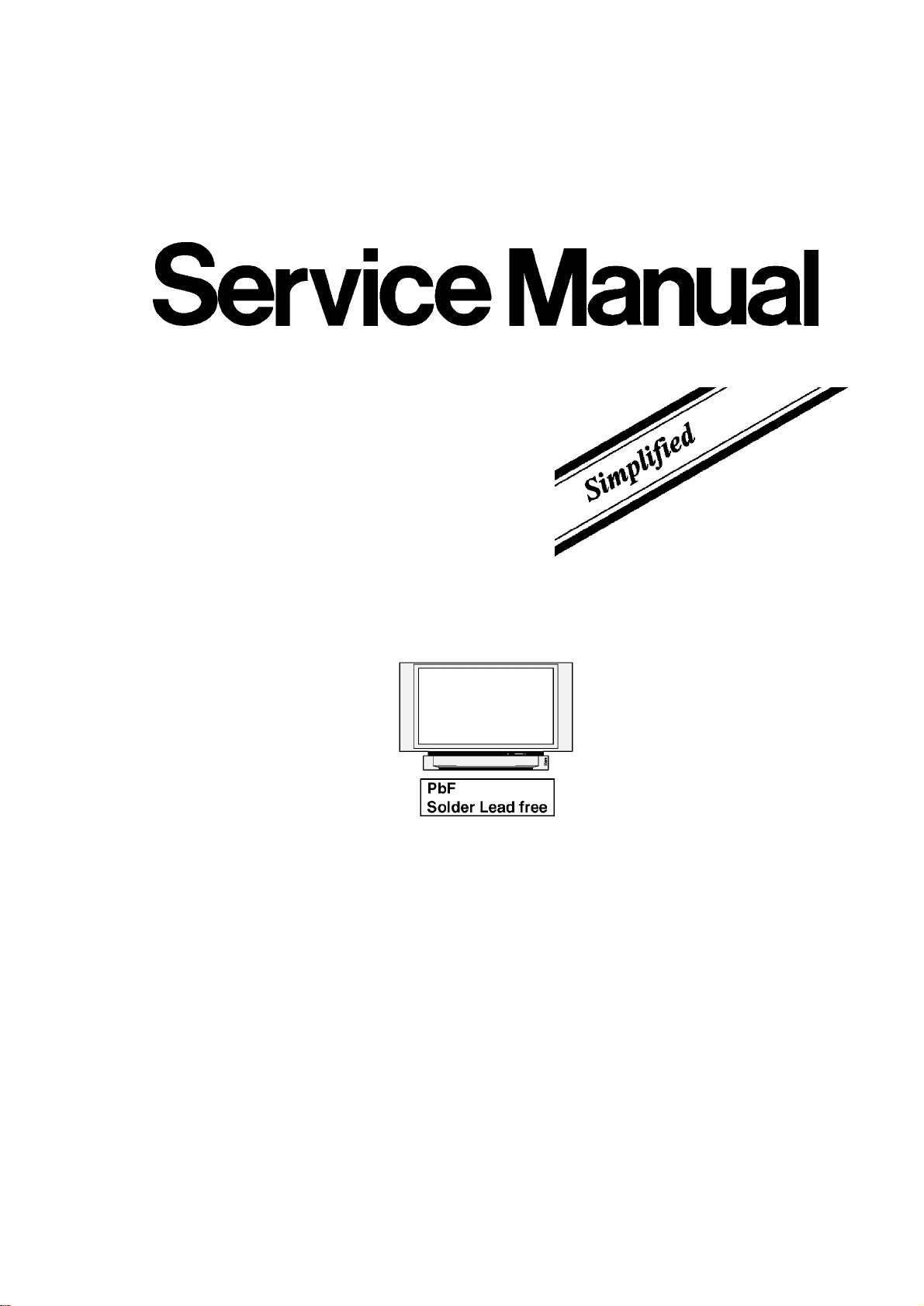

Panasonic PT60LC13 - LCD Manuel utilisateur

ORDERNO. MKE0310854A1

Multi MediaDisplay

PT-60LC13

Please fileand use thismanual togetherwiththeservice manual for

Model No. PT-50LC13, OrderNo. MKE0307850C1.

SPECIFICATIONS

2003 Matsushita Kotobuki Electronics Industries LTD. All rights

reserved. Unauthorizedcopying and distribution isaviolation of

law.

1. DIFFERENCES BETWEEN PT-60LC13 and PT-

50LC13

1.1. COMPARISONCHART

1.1.1. MECHANICALREPLACEMENTPARTS LIST

Definition ofPartssupplier:

1. Parts withmark"MKA"intheRemarks columnaresuppliedfrom

MKA.

2. Parts withoutmarkintheRemarks columnaresuppliedfromMKE.

2. EXPLODED VIEWS(CABINETSECTION)

2.1. MAINPARTSSECTION

2.2. DISPLAYSECTION

2.3. SCREENSECTION

3. DISASSEMBLY/ ASSEMBLYPROCEDURES

3.1. CABINETSECTION

-19-

REMOVAL OF THE BALLAST C.B.A. AND THE TV/TUNER UNIT FROM THE CABINET

1. Remove the Rear Cover by removing the 20 Screws (401, 464).

Fig. D1-1

401 464

Rear Cover

-20-

4. 1) Remove the Speaker-L and the Speaker-R by removing the 6 Screws (401, 450) and 6 Washers (453), and disconnect the

connectors P4553.

2) Remove the Screen Unit by removing the 22 Screws (401).

Fig. D4-4

450

401

453

P4553

450

453

Speaker L

401

Screen Unit

401

450

453

Speaker R

P4553

REMOVAL OF THE SCREEN UNIT AND THE SPEAKER FROM THE DISPLAY

-21-

5. Remove the 2 Screen Plate H and 2 Screen Plate V by removing 40 Screws (465), and remove the Fresnel Lens and the Lenticular

Screen.

Fig. D4-5

Reassembly Note:

Install them so that Serial No. Labels are on the each outside as shown above.

Replacement Note for Screen Unit:

The Screen Unit is supplied as a unit, or the individual parts (Fresnel Lens, Lenticular Screen) in the Screen Unit are also supplied.

When replacing the Fresnel Lens and the Lenticular Screen, take care that dust, etc., does not adhere between the Fresnel Lens

and the Lenticular Screen. Due to this risk, it is strongly recommended to replace the Screen Unit as a unit.

465

Escutcheon

Lenticular

Screen

Fresnel

Lens

Screen

Plate V

Screen

Plate V

Serial No.

Label

Screen

Plate H

Screen

Plate H

Serial No. Label

of Lenticular Screen

Front

Serial No. Label

of Fresnel Lens

-21-

REMOVAL OF THE MIRROR FROM THE BACK COVER

1. Remove the Screen Unit. Refer to Steps 1~4 in “REMOVAL OF THE SCREEN UNIT AND THE SPEAKER FROM THE DISPLAY.”

2. 1) Remove the 3 Mirror Holder H and the 2 Mirror Holder V Unit by removing the 15 Screws (401).

2) Remove the Mirror from the top by releasing the Back Cover slots.

Note: Be careful that the Mirror does not fall down when removing.

Fig. D4-6

Reassembly Notes for Mirror:

Install the Mirror as following procedures:

1) Place the 4 sheets on the top and bottom edges of the Mirror.

Fig. D4-7

2) Hold the sheet portions of the Mirror, and insert the Mirror from the top into the Back Cover slots carefully.

When handling the Mirror, do not touch the Mirror surface.

3) Install the 3 Mirror Holder H and the 2 Mirror Holder V on the Mirror and tighten the 15 Screws (401).

Mirror Holder

V Unit

Mirror Holder H

401

Back Cover slots

Mirror surface

Sheet

10 mm ~ 20 mm

10 mm ~ 15 mm

18 mm ~ 28 mm

15 mm ~ 20 mm

18 mm ~ 28 mm

10 mm ~ 20 mm

10 mm ~ 15 mm

SheetSheet Sheet

15 mm ~ 20 mm

Sheet

Top edge

of Mirror

Bottom edge

of Mirror

Sheet
