Panasonic CT-36HX41 Manuel utilisateur

Color Television

Operating Instructions

CT-32HX41

CT-32HX41U CT-36HX41

CT-36HX41U

TQB2AA0371 10306

PRINTED IN USA

Televisor a color

Instrucciones de Operación

CT-32HX41

CT-32HX41U CT-36HX41

CT-36HX41U

TQB2AA0371 10306

IMPRESO EN EE.UU.

For assistance, please call: 1-800-211-PANA (7262) or

send e-mail to: consumerproduct[email protected] (USA only)

Para asistencia llame al teléfono: 1-800-211-PANA (7262)

o envíe un correo electrónico a la dirección:

consumerproducts@panasonic.com (Solo en Estados Unidos)

0371 issue 0 Cover.fm Page 1 Wednesday, April 18, 2001 4:09 PM

WARNING:To reduce the risk of electric shock do not remove cover or back. No user-

serviceable parts inside. Refer servicing to qualified service personnel.

The exclamation point within a

triangle is intended to tell the user

that important operating and

servicing instructions are in the

papers with the appliance.

The lightning flash with arrow head

within a triangle is intended to tell

the user that parts inside the

product are a risk of electric shock

to persons.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING

WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK , DO

NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

Certain audio features of this product are manufactured under a license from Desper Products, Inc.

Spatializer® and the circle-in-square device are trademarks owned by Desper Products, Inc.

Spatializer U.S. Patents are: 4,308,423; 4,355,203 and 5,412,731.

ABLE

ONTENTS

Table of Contents

Feature Chart ............................................................3

Congratulations........................................................4

Customer Record.....................................................................4

Care and Cleaning ...................................................................4

Specifications...........................................................................4

Installation.................................................................5

Television Location...................................................................5

Optional Cable Connections.....................................................5

AC Power Supply Cord ............................................................5

Cable / Antenna Connection ....................................................6

Optional Equipment Connections.............................................6

Additional Equipment Connections ..........................................9

Amplifier Connection (TO AUDIO AMP)...................................9

Program Out Connection (PROG OUT).................................10

Digital TV - Set-Top Box (DTV-STB)

or DVD Connection................................................................10

Home Theater Connection ....................................11

Picture In Picture (PIP) Operation.........................12

Split Screen Operation...........................................13

Roller Guide Menu™ ..............................................14

Roller Guide Menu Navigation ...............................................14

Remote Control Guide............................................................14

Roller Guide Feature Chart....................................15

Special Features.....................................................18

Menu Languages....................................................................18

Prog Chan (Program Channels).............................................18

Closed Captioning..................................................................19

Geomagnetic Correction ........................................................20

Sleep Timer............................................................................21

Timer 1 and Timer 2...............................................................21

Picture Adjustments ...............................................................22

Dolby Center Mode & Fixed Audio Out..................................23

Favorite Channels and Captions............................................24

Lock........................................................................................25

Troubleshooting Chart...........................................26

Read these instructions completely before operating television.

Contents are subject to change without notice or obligation.

Unauthorized copying and distribution is a violation of law.

EATURE

HART

Feature Chart

MODELS

CT-32HX41

CT-32HX41Ur

CT-36HX41

CT-36HX41U

FEATURES

MENU LANGUAGE ENG/SPAN/FR

r r

2 TUNER SPLIT

CLOSED CAPTIONING

r r

V-CHIP CAPABILITY

r r

DIGITAL SCAN RATE

1080i,

480p 1080i,

480p

NTSC LINE - DOUBLER

480p 480p

VIDEO NORM

r r

AUDIO NORM

r r

STEREO

AI SOUND

r r

BASS/BALANCE/TREBLE

SPATIALIZER

r r

DOLBY CENTER CHANNEL IN

r r

A/V PROGRAM OUT

r r

A/V IN (REAR/FRONT) 4 (3/1) 4 (3/1)

AUDIO OUT

r r

S-VHS INPUT (REAR/FRONT)

2/1 2/1

HEADPHONE JACK

r r

COMPONENT INPUT

2 2

A/V JACKS AUDIO SPECIAL

FEATURES

ONGRATULATIONS

Congratulations

Your new Panasonic Tau television is designed to provide state-of-the-art picture quality and

features an innovative PureFlatTM picture tube. The new silver-gray cabinet with compact,

elegant styling is designed to give you many years of enjoyment. It was thoroughly tested and

tuned at the factory for best performance.

Customer Record

The model and serial number of this product are located on the back of the television. You

should note the model and serial number in the space provided and retain as a permanent

record of your purchase. This will aid in identification in the event of theft or loss. Product

registration for U.S. customers is available at www.prodreg.com/panasonic.

Model

Number

Serial

Number

Care and Cleaning

Screen (Turn TV Off)

• Use a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE

ABRASIVE CLEANERS.

• Avoid excessive moisture and wipe dry.

Note: Do not spray any type of cleaning fluid directly on the screen.

Cabinet and Remote Control

rFor cabinets and remote control, use a soft cloth dampened with water or a mild detergent

solution. Avoid excessive moisture and wipe dry.

rDo not use benzene, thinner or other petroleum based products.

Specifications

Specifications are subject to change without notice or obligation.

Power Source

CT-32HX41/U (3.7A)

CT-36HX41/U (3.7A) 120V AC, 60Hz

Channel Capability - 181 VHF-12; UHF-56; Cable-125

Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type

Audio Input Jacks 500mV RMS 47K Ohm

Video Output Jack 1Vp-p, 75 Ohm, Phono Jack Type

Audio Output Jacks 0-2.0V RMS 4.7K Ohm

Component Input 75 Ohm, Phono Jack Type

S-Video Input Jacks S-Video (Y-C) Connector

NSTALLATION

Installation

Television Location

This unit is intended to be used as part of an entertainment center. Consult your dealer for

available options.

rAvoid excessive sunlight or bright lights, including reflections.

rKeep away from excessive heat or moisture. Inadequate ventilation may cause internal

component failure.

rFluorescent lighting may reduce remote control transmitting range.

rKeep away from magnetic equipment, including motors, fans and external speakers.

CAUTION: Use this television receiver only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold with the apparatus. When a cart is

used, use caution when moving the cart/apparatus combination to avoid injury from

tip-over. In order to avoid injury to children, never place your television receiver on

a piece of furniture that is capable of being tilted by a child leaning on it, pulling on

it, standing on it, or climbing on it.

CT-32HX41/U:

CAUTION: This television receiver for use only with PANASONIC TY-32HX40P stand.

Use with other carts (or stands) is capable of resulting in instability causing possible

injury.

CT-36HX41/U:

CAUTION: This television receiver for use only with PANASONIC TY-36HX40P stand.

Use with other carts (or stands) is capable of resulting in instability causing possible

injury.

Optional Cable Connections

Shielded audio and video cables should be used between components. For best results:

rUse 75-ohm coaxial shielded cables.

rUse appropriate input and output connectors that match your component connectors.

rAvoid long cables to minimize interference.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF

PLUG TO WIDE SLOT OF AC OUTLET AND FULLY INSERT. DO NOT

USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE

BLADE CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT

OR PINCHED, PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE

POINT WHERE THEY EXIT FROM THE APPARATUS.

Polarized plug

NSTALLATION

Cable / Antenna Connection

For proper reception, either a cable or antenna connection is required.

Cable Connection

Connect the cable supplied by your local cable company to ANT or ANT1

connection on back of television. Select cable mode and ANT1 in SET UP

menu under Prog Chan (Program Channels).

Note: A cable converter box may be required for proper reception.

Check with your local cable company for compatibility

requirements.

Antenna Connection

• For proper reception of VHF/UHF channels, an external

antenna is required. For best reception, an outdoor

antenna is recommended.

• Connect home antenna to ANT1 connection on back of

television. Select TV mode and ANT1 in the SET UP menu

under Prog Chan.

Note: Cable Mode is preset at the factory. Antenna users must change

to TV mode and select ANT1 in the Set Up Menu under Prog Chan.

Optional Equipment Connections

Cable Box Connection

Follow this diagram when connecting your television to a cable box only.

Note: The remote control must be programmed with supplied codes to operate the cable

box. See Programming the Remote Control in the Remote Control Quick Reference

Guide.

Viewing a premium (scrambled) cable channel

Procedure

1. Select ANT2 in the SET UP menu under Prog Chan (Program Channels).

2. Tune the television to Channel 3.

3. Using the cable box, tune to the premium cable channel you want to view.

Note: To use special features such as Favorite Channels and Channel Captions (see Special

Features section for more information), ANT1 must be selected in the SET UP menu

under Prog Chan.

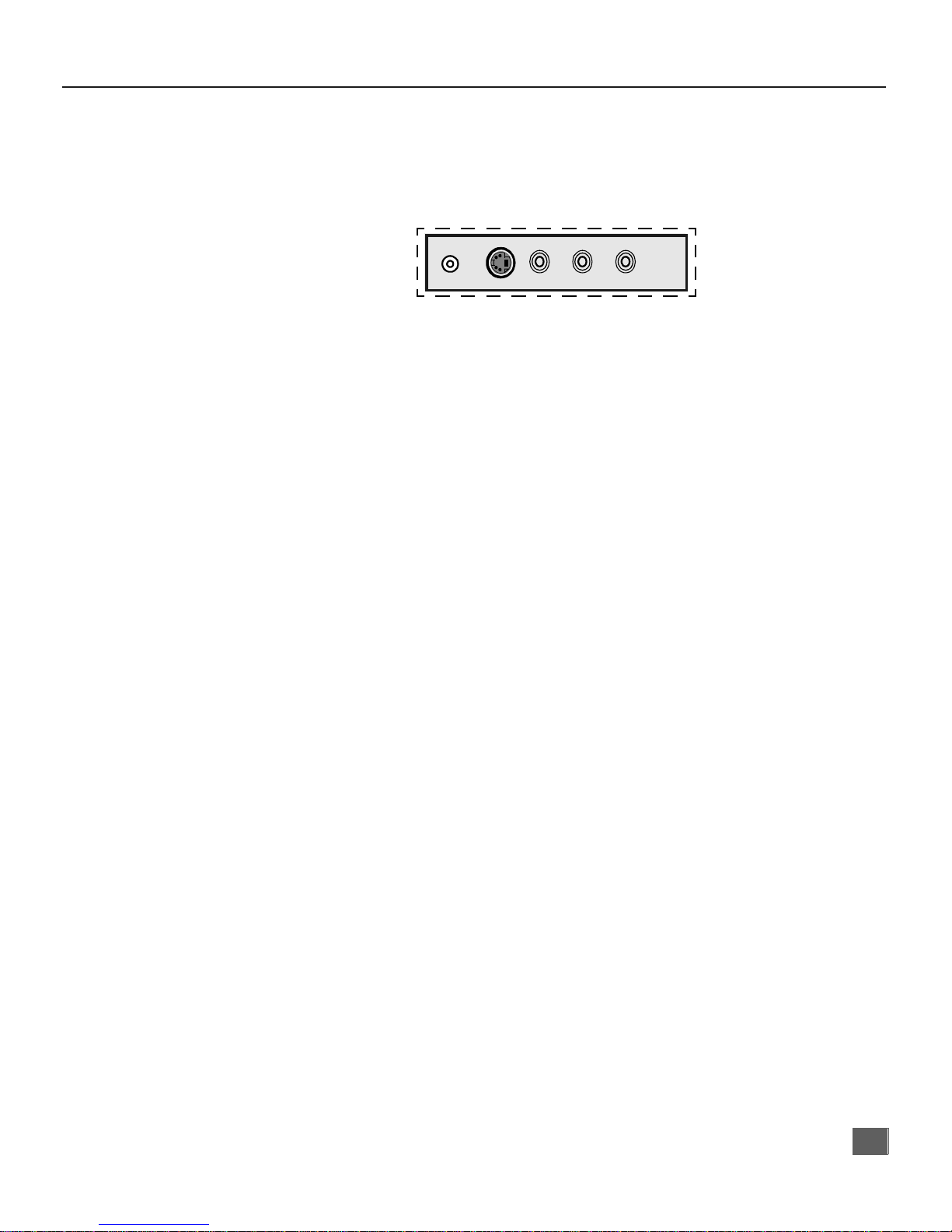

75 Ohm VHF/UHF

on back of TV

Incoming Cable from

Cable Company

ncom

rom

Home Antenna

ANT INPUT

ANT OUTPUT

CABLE BOX

CABLES NOT SUPPLIED

CONNECTIONS ON BACK OF TV

VIDEO

S-VIDEO

INPUT

CENTER CHANNEL

INPUT

PROG OUT

DIGITAL TV INPUT

TO AUDIO

AMP

INPUT

2 INPUT

AUDIO

VIDEO

AUDIO

ANT 1

SPLIT OUT

ANT 2

Incoming Cable

NSTALLATION

VCR Connection

Follow this diagram when connecting your television to a VCR only.

Note: The remote control must be programmed with supplied codes to operate the VCR. See

Programming the Remote Control in the Remote Control Quick Reference Guide.

Viewing a television program

Procedure

1. Select ANT1 in the SET UP menu under Prog Chan (Program Channels).

2. Tune the television to the television program you want to view.

Viewing a video

Procedure

rOption A

1. Select ANT1 in the SET UP menu under Prog Chan.

2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1,

VIDEO 2, etc.) connected to your VCR.

3. Begin the video.

rOption B

1. Select ANT2 in the SET UP menu under Prog Chan.

2. Tune the television to Channel 3 or 4, depending on your VCR.

3. Begin the video.

Recording a television program

Procedure

rOption A (Recording and viewing the same program)

1. Select ANT2 in the SET UP menu under Prog Chan.

2. Tune the television to Channel 3 or 4, depending on your VCR.

3. Using the VCR, tune to the television program you want to record.

4. Begin recording.

rOption B (Recording one program while viewing another program)

1. Select ANT1 in the SET UP menu under Prog Chan.

2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1,

VIDEO 2, etc.) connected to your VCR.

3. Using the VCR, tune to the television program you want to record.

4. Begin recording.

5. Press the TV/VIDEO button on the remote control to switch back to TV mode.

6. Tune the television to the television program you want to view.

CONNECTIONS ON BACK OF TV

CABLES NOT SUPPLIED

Incoming Cable

AUDIO OUT

VIDEO OUT

ANT INPUT

OUTPUT

VCR

VIDEO

S-VIDEO

INPUT

CENTER CHANNEL

INPUT

PROG OUT

DIGITAL TV INPUT

TO AUDIO

AMP

INPUT

2 INPUT

AUDIO

VIDEO

AUDIO

ANT 1

SPLIT OUT

ANT 2

Use either the

S-Video or Video

connection.

NSTALLATION

VCR and Cable Box Connection

Follow this diagram when connecting your television to both a VCR and a cable box.

Note: The remote control must be programmed with supplied codes to operate the VCR and cable box.

See Programming the Remote Control in the Remote Control Quick Reference Guide.

Viewing a premium (scrambled) cable channel

Procedure

1. Select ANT2 in the SET UP menu under Prog Chan (Program Channels).

2. Tune the television to Channel 3.

3. Using the cable box, tune to the premium cable channel you want to view.

Note: To use special features such as Favorite Channels and Channel Captions (see Special

Features section for more information), ANT1 must be selected in the SET UP menu

under Prog Chan.

Recording a premium (scrambled) cable channel

Procedure

1. Select ANT2 in the SET UP menu under Prog Chan.

2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1,

VIDEO 2, etc.) connected to your VCR.

3. Turn the VCR ON.

4. Tune the VCR to Channel 3 or 4, depending on the switch setting on the back of VCR.

5. Using your cable box, tune to the premium cable channel you want to record.

6. Begin recording.

Note: To view a different channel while recording:

• Select ANT1 in the SET UP menu under Prog Chan.

• Press the TV/VIDEO button on the remote control to TV mode.

• Tune the television to a television program (except another premium cable

channel).

CONNECTIONS ON BACK OF TV

Incoming Cable

VCR

CABLE BOX

CABLES NOT SUPPLIED

AUDIO OUT

VIDEO OUT

ANT INPUT

ANT OUTPUT

VIDEO

S-VIDEO

INPUT

CENTER CHANNEL

INPUT

PROG OUT

DIGITAL TV INPUT

TO AUDIO

AMP

INPUT

2 INPUT

AUDIO

VIDEO

AUDIO

ANT 1

SPLIT OUT

ANT 2

ANT INPUT

ANT OUTPUT

Use either the

S-Video or Video

connection.

NSTALLATION

Additional Equipment Connections

Push to open the front panel of the television to use the Audio/Video input jacks for optional

equipment. Press the TV/VIDEO button to select VIDEO 4 input mode.

A second VCR, a video disc player, video game equipment and DSS equipment can also be

connected to the video inputs. See the optional equipment manual for details.

Procedure

1. Connect equipment to rear or front Audio/Video input jacks.

2. Select the corresponding video input by pressing TV/VIDEO button.

3. Operate optional equipment as instructed in equipment manual.

Note: The S-VIDEO connection provides higher quality picture. It overrides other

VIDEO connections. Use INPUT 4, AUDIO L and R with S-VIDEO

connection.

IMPORTANT INFORMATION REGARDING USE OF VIDEO GAMES,

COMPUTERS, DSS OR OTHER FIXED IMAGE DISPLAYS.

The extended use of fixed image program material can cause a permanent “shadow image” on

the picture tube. This background image is viewable on normal programs in the form of a

stationary fixed image. This type of irreversible picture tube deterioration can be limited by

observing the following steps:

A. Reduce the brightness/contrast setting to a minimum viewing level.

B. Do not display the fixed image for extended periods of time.

C. Turn the power off when not in actual use.

Note: The marking or retained image on the picture tube resulting from fixed image use is not

an operating defect and as such is not covered by Warranty. This product is not

designed to display fixed image patterns for extended periods of time.

Amplifier Connection (TO AUDIO AMP)

To listen through a separate stereo system, connect an external audio amplifier TO AUDIO AMP

inputs on back of television.

Note: TO AUDIO AMP terminals cannot be connected directly to external speakers.

Audio Adjustments

1. Select SPEAKERS ON located in the onscreen AUDIO menu.

2. Set amplifier volume to minimum.

3. Adjust television volume to desired level.

4. Adjust amplifier volume to match the television.

5. Select SPEAKERS OFF & VARIABLE AUDIO OUT from AUDIO menu.

6. Volume, mute, bass, treble and balance are now controlled through the television.

Note: Select SPEAKERS OFF & FIXED AUDIO OUT to control audio functions

through the external amplifier.

CONNECTIONS ON FRONT OF TV

INPUT 4

L- AUDIO -R

VIDEO

S-VIDEO

HPJ

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Panasonic TV

Panasonic

Panasonic TX-21AT1P Manuel utilisateur

Panasonic

Panasonic TX-21JT2 Guide de l'administrateur

Panasonic

Panasonic QuintrixF TX-32PS10D Manuel utilisateur

Panasonic

Panasonic TX-32FS503B Instructions de montage

Panasonic

Panasonic TC15LT1 - 15"WIDE LCD TV Manuel utilisateur

Panasonic

Panasonic Viera TX-50AX800E Manuel utilisateur

Panasonic

Panasonic TX-25XDP3 Manuel utilisateur

Panasonic

Panasonic QuintrixF TX-29E40D Manuel utilisateur

Panasonic

Panasonic AG527DVDE - DVD/VCR/MONITOR Manuel utilisateur

Panasonic

Panasonic TX-25MD1L Manuel utilisateur

Panasonic

Panasonic TX-14JT1P Manuel utilisateur

Panasonic

Panasonic TX-25P20T Manuel utilisateur

Panasonic

Panasonic CT 25G7 Manuel utilisateur

Panasonic

Panasonic Viera TC-L50ET60 Manuel utilisateur

Panasonic

Panasonic CT-2016S Manuel utilisateur

Panasonic

Panasonic CT-27D31C Manuel utilisateur

Panasonic

Panasonic TX-68KS30Z Manuel utilisateur

Panasonic

Panasonic CT-32SX31E Manuel utilisateur

Panasonic

Panasonic Viera Link TH-50PZ80U Manuel utilisateur

Panasonic

Panasonic TX-28LD2P Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Panasonic

Panasonic QUINTRIX TX-86PW300A Manuel utilisateur

Panasonic

Panasonic TX-28MD4P Manuel utilisateur

Panasonic

Panasonic CT25G5B - 25" COLOR TV Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
