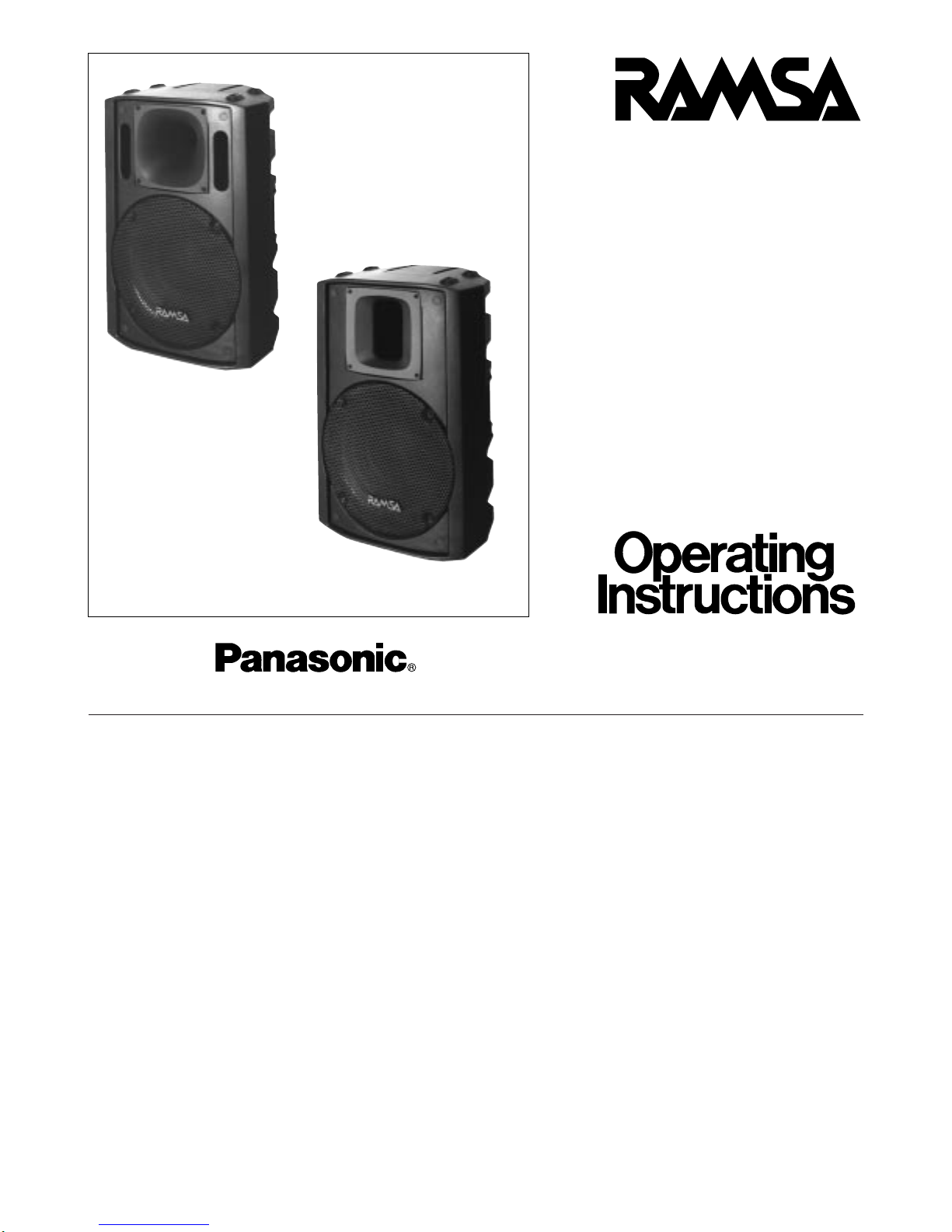

Panasonic RAMSA WS-AT300 Manuel utilisateur

Speaker System

WS-AT300

Subwoofer System

WS-AT350

Before attempting to connect or operate this product, please read these instructions completely

CONTENTS

REGULATORY STATEMENTS .............................................................................. 2

SAFETY INSTRUCTIONS ...................................................................................... 2

PREFACE .............................................................................................................. 3

PRECAUTIONS ..................................................................................................... 3

INSTALLING THE SPEAKER ................................................................................ 4

CONNECTING SPEAKER CABLES ..................................................................... 6

WIRING CONNECTOR AND CABLE .................................................................... 7

SETTING THE SUBWOOFER PROCESSOR ......................................................... 8

PROTECTION CIRCUITS FOR WS-AT300 ............................................................ 8

BLOCK DIAGRAM ................................................................................................ 9

SPECIFICATIONS ................................................................................................. 9

TYPICAL PERFORMANCE .................................................................................. 10

DIRECTIVITY ....................................................................................................... 10

APPEARANCE .................................................................................................... 11

WS-AT300

WS-AT350

-2-

Please observe the following instructions carefully for your own safety and that of equipment.

• If the speakers fall, it can cause serious damage to persons or properties.

• Read the instructions printed on the back of the speakers.

• Ask your nearest dealer or qualified installers for installation and wiring.

• Place the speakers on a stable surface.

• Secure the speakers with safety wires or equivalent.

• Detach the speaker and the speaker stand before adjusting their height.

• Separate the speaker and the speaker stand before moving the set to a different location.

• Do not install the speaker with the stand at a place where passers-by might stumble on them.

SAFETY INSTRUCTIONS

WARNING:

TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOIS

TURE.

The serial number of this product may be found on the back

of the unit.

You should note the serial number of this unit in the space

provided and retain this book as a permanent record of your

purchase to aid identification in the event of theft.

Model No.

Serial No.

REGULATORY STATEMENTS

-3-

WS-AT300

• This speaker system is a 2-way bass-reflex type

incorporating a 38-cm (15”) woofer and a Square

Contour Wave Guide (SCWG) horn tweeter.

• The speaker system accepts a continuous program

input of 400 W or 200 W(RMS). It delivers high

outputs from its compact body with a maximum

sound pressure level of 122 dB.

• The SCWG horn minimizes the disturbing reflection

sound generated near the open end and to provide

a constant directivity of 60˚ (horizontal) and 40˚

(vertical). You can easily attach again the horn to

the enclosure by turning it 90˚ as required for

horizontal or vertical speaker installation.

• The enclosure has essential features such as

toughness to transportation, a recessed type

handle for carrying, the convex and concave for

stacking, holes for mounting bracket, safety wires,

etc.

PREFACE

WS-AT350

• This Subwoofer is a bass-reflex type incorporating

a 38-cm (15”) cone speaker and to be used with

the RAMSA Subwoofer Processor WS-SP2A.

• The WS-AT350 accepts an input of 400 W (RMS). It

delivers high outputs, though it is small in size, with

a maximum sound pressure level of 118 dB.

• The enclosure has essential features such as

toughness to transportation, a recessed type

handle for carrying, the convex and concave for

stacking, holes for mounting bracket, safety wires,

etc.

• Power loss may increase as the total speaker

impedance gets lower with a number of speaker

hookups. Use the largest speaker cable in wire

gauge to reduce power loss.

• Switch off the power amplifiers before connecting

the speakers or other peripherals.

• Avoid the followings all the time to protect the

speakers from damage.

*Turning on and off mixing consoles and other

peripherals may cause shock noise when the

amplifiers and subwoofer processor are on.

*Shock noise resulting from the connection/

disconnection of inputs/outputs with any

powered-up equipment

*Pop noise from microphones without

appropriate use of breath-pop screen and/or

high-pass filter

*Click noise caused by switching on or off the

phantom power for microphones

*Continuous operation at very low frequency

from an oscillator, synthesizer or program

sources

PRECAUTIONS

*High frequency noise developed by fast-

forward or fast-rewind operation of a tapedeck

*Out of tune noise in FM broadcast

*Feed-back from microphones or electronics

musical instruments.

• Match the polarities of all the speakers by

observing the connectors and wire colors when

using two or more speakers.

• Read “PROTECTION CIRCUITS” on page 8. Turn

down the volume control of the amplifier

immediately if the sound suddenly decreases.

• You should use the WS-AT350 Subwoofer all the

time with Subwoofer Processor WS-SP2A. The WS-

SP2A processes the signal to protect the speakers

from damage due to an excessive input signal.

-4-

• Changing the tweeter direction

You can alter the directivity when placing the WS-

AT300 horizontally.

1. Unscrew four bolts to detach the tweeter.

2. Turn the tweeter by 90˚.

3. Tighten four bolts to attach the tweeter again.

4. Rotate the RAMSA badge by 90˚.

INSTALLING THE SPEAKER

• Stacking

Speakers can be stacked one upon another as

illustrated.

Place an additional speaker on top of another, making

sure to match their convex and concave portions.

Sound dispersion angles

-5-

• On wall or ceiling

You can install the speaker on a wall or ceiling with a

mounting bracket (not supplied).

qPlace the bracket on the enclosure.

wScrew the eye bolts into the screw holes of the

enclosure by hand.

eFix the speaker to a wall or ceiling.

rTake safety protections mentioned in “Secure the

speaker.”

Note: Installers should seek advice on the building

structure and load capacity, if unknown, from

an architect or a structural engineer.

• Secure the Speaker

Use safety wires (not supplied) when hanging the

speaker from a wall or ceiling. This is not a major

means of support but just a safety relief.

qTighten the eye bolts with washers and bolt nuts

(not supplied) into the screw holes of the enclosure

by hand.

wSet the direction of the eye bolts to be in the best

position for binding safety wires.

eFasten the bolt nuts with wrench.

rBind one end of safety wires to the eye bolts.

tSecure the other end of safety wires to the

supporting structure of the building.

• Mounting on a stand

1. You can mount the speaker on a speaker stand by

using the stand hole in the enclosure bottom.

2. The stand should have a supporting pipe of ø1.5

inches.

3. Take safety protections by placing it in a safety

location, for exemple.

INSTALLING THE SPEAKER

Eye Bolt

Washer

Set direction

Bolt nut

Tighten with wrench

Hand

tighten

Hand

tighten

Insert

Mounting

bracket

Stand hole

(Bottom side)

-6-

You can find the TS (tip-sleeve) phone jack and

SPEAKON connector on the back of the enclosure.

These two are usable as input or output terminals since

they are wired in parallel. See the block diagram on

page 9.

CONNECTING SPEAKER CABLES

Notes:

• Do not connect more than two speakers in parallel.

Excessively low impedance can cause distorted

output sound or damage to the amplifier.

• Match the sound phase of all speakers by

confirming the polarities of connection when using

two or more speakers.

1. Connect signal input from an amplifier to either TS

phone jack or SPEAKON connector.

2. Bridge the first speaker and the second when using

two speakers in parallel as illustrated.

From

amplifier

From

amplifier

From

amplifier

From

amplifier

SPEAKON connector

TS phone jack

-7-

WIRING CONNECTOR AND CABLE

Cap

Cable clamp

Loosen screws.

Push

Cable

Tighten the screw.

Solder here.

Push to the end.

Convex

Cocave

Cap

AMP OUT SPEAKON

+1+

1 –

(Not used)

2 +

(Not used)

2 –

–

Tarminal block



Connector sleeve

Push

Plug Cover

Speaker Cable

Sleeve

Tip

AMP OUT Plug

+ Tip

– Sleeve

TS (tip-sleeve) phone plug

1. Unscrew the plug cover.

2. Thread speaker cables through the plug cover.

3. Connect and solder the + (positive) polarity wire to

the tip of the plug.

4. Connect and solder the – (negative) polarity wire to

the sleeve of the plug.

5. Tighten cable with the clamp of the plug.

6. Fasten the plug cover.

SPEAKON connector

Use SPEAKON connector (4-pole, NL4FC series, by

NEUTRIK AG) as followings.

qUnscrew the connector cap by rotating it

counterclockwise.

wSlide the cable clamp out from the rear of the

connector.

ePush and separate the connector sleeve from the

terminal block.

rPass the connector cap and cable clamp over the

end of the cable.

tLoosen the clamping screws in the terminal block.

yPrepare and insert the wires into the terminals as

shown in the table.

uTighten the screws to secure the wires.

iFor added security in portable applications,

soldering of the wires together with the terminals is

recommended.

oAssemble the terminal block and the connector

sleeve after matching the positions of the concave

and the convex.

!0 Match the convex position of the cable clamp to the

concave of the connector sleeve, then push the

cable clamp.

!11 Screw the connector cap.

-8-

SETTING THE SUBWOOFER PROCESSOR

PROTECTION CIRCUITS FOR WS-AT300

SYSTEM DIAGRAM

Audio

Mixer WS-SP2A

Subwoofer

Processor

In A

In B

Amplifier

200W

400W

BTL

400W

BTL

WS-AT300

WS-AT350

-50 -

-40 -

-50 -

-40 -

• The WS-AT300 has separate overload protection

circuits for woofer and tweeter. When activated by an

excessive input signal, they mute the output sound.

Turn down the volume control for 2 to 20 seconds to

reset the circuits.

A B VLFI VLFI

123 123 123AK

WS-AT350

SUB WOOFER MAIN SPEAKER

RECOMMENDED FUNCTION SELECTOR SETTING

FUNCTION SELECTOR POSITION

WS-AT300

For further details please refer to the Operating Instructions of the RAMSA Subwoofer Processor WS-SP2A.

Note: Make sure to lower the volume control of the

amplifiers if the output sound suddenly decreases.

Keeping or even increasing the volume can cause

serious damage to the speaker.

This shows an example of system connections.

-9-

WS-AT300 WS-AT350

Type 2 Way, Bass-reflex type Bass–reflex type

Input impedance 8 ohms

Power capacity 400 W (continuous program input) 400W (RMS)

200 W (RMS) —

Sound Pressure Level 99 dB [1 W, 1m (3.3 ft)] 92 dB [1 W, 1m (3.3 ft)]

Max. Sound Pressure Level 122 dB [1m (3.3 ft)] 118 dB [1m (3.3 ft)]

Frequency response 70 Hz - 18 000 Hz 30 Hz - 1 400 Hz

Crossover frequency 2 200 Hz —

Speaker

Woofer 38 cm (15”) cone speaker 38 cm (15”) cone speaker

Tweeter SCWG horn speaker —

Dispersion 60°(horizontal), 40°(vertical) —

Dimensions 480 (W) x 694 (H) x38 (D) mm [18-7/8” (W) x 27-5/16” (H) x 15” (D) ]

Weight 26 kg (57 lbs.) 26.5 kg (58 lbs.)

Finish

Enclosure Resin molded, Blue black

Front panel Punched grille, Blue black

Standard accessories Eyebolt (M8 x 25) ........................................... 2

Operating Instructions .................................... 1

BLOCK DIAGRAM

SPECIFICATIONS

Phone jack

SPEAKON

Connector

Tweeter

Woofer

Tweeter

Protector

Woofer

Protector

HPF

LPF

Phone jack

SPEAKON

Connector Woofer

WS-AT300

WS-AT350

• Dimensions and weight indicated are approximate.

• Specifications are subject to change without notice.

• True effective power measured by the test method prescribed by American National Standard EIA (Electronic Industries

Association), RS-426-A (1980).

In this test, the noise signal with a higher frequency power component was used to match the latest program sources.

-10-

TYPICAL PERFORMANCE

100

110

20 50 100 200 500 1000 2000 5000

10000 20000

(dB)

(1w, 1m)

Frequency response

2nd harmonic

distortion

Impedance

3rd

harmonic

distortion

8Ω

16Ω

32Ω

10 20

10 30 40

330

300

270

240

210

120

180

150

10 30 40

330

300

270

240

210

120

150

180

10 2010 30 40

10 30 40

100

110

20 50 100 200 500 1000 2000 5000

10000 20000

(dB)

(1w,1m)

Frequency

response

2nd harmonic

distortion

Impedance

3rd

harmonic

distortion

8Ω

16Ω

32Ω

Frequency

(Hz)

Frequency (Hz)

Sound Pressure Level

■WS-AT300 ■WS-AT350

DIRECTIVITY

■WS-AT300

Horizontal Vertical

500Hz

1000Hz

2000Hz

4000Hz

Sound Pressure Level

Autres manuels pour RAMSA WS-AT300

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Système de haut-parleurs

Panasonic

Panasonic SH-FX80 Manuel utilisateur

Panasonic

Panasonic SB-HF750P Manuel utilisateur

Panasonic

Panasonic WS-A35 Manuel utilisateur

Panasonic

Panasonic WX-LZ110 Manuel utilisateur

Panasonic

Panasonic SB-PC40P Manuel utilisateur

Panasonic

Panasonic SB-AKX12LM-K Manuel utilisateur

Panasonic

Panasonic SC-BTT885 Manuel utilisateur

Panasonic

Panasonic RAMSA WS-AT300 Manuel utilisateur

Panasonic

Panasonic SBHS100A - SPEAKER SYSTEM - MULTI LANGUAGE Manuel utilisateur

Panasonic

Panasonic SBHS100A - SPEAKER SYSTEM - MULTI LANGUAGE Manuel utilisateur

Panasonic

Panasonic SB-TP100 Manuel utilisateur

Panasonic

Panasonic RP-SP08 Manuel utilisateur

Panasonic

Panasonic SB-T300 Manuel utilisateur

Panasonic

Panasonic SC-MC07 Manuel utilisateur

Panasonic

Panasonic SCBT730 - BLU RAY HOME THEATER SYSTEM Instructions d'utilisation

Panasonic

Panasonic SC-NE1 Manuel utilisateur

Panasonic

Panasonic SC-BTT490 Instructions d'utilisation

Panasonic

Panasonic RP-SP58 Manuel utilisateur

Panasonic

Panasonic SBLV500 Manuel utilisateur

Panasonic

Panasonic Technics SB-C600 Manuel utilisateur

Panasonic

Panasonic SB-PM54GN Manuel utilisateur

Panasonic

Panasonic SC-NE3 Manuel utilisateur

Panasonic

Panasonic RP-SPF01 Manuel utilisateur

Panasonic

Panasonic SA-PT465EE Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
