Panasonic SY-PA100 Manuel utilisateur

ORDERNO. EMID0107021C0

Personal MusicPASystem

SY-PA100

(P) U.S.A

(PC)Canada

(PL) Mexico

(EX) Norway, Sweden, Denmark, Finland, Spain, Portugal, South

Africa, Greece, Poland

(EF) France

(EQ)Germany

(EG)Switzerland, Italy, Austria, Holland, Belgium

(EB)the United Kingdom

(GN)Australia, New Zealand

(GM) Malaysia, Singapore

(GT) Taiwan

(GU)Thailand, Panama, Brazil, Indnesia

(GH)Saudi Arabia, Hong Kong

SPECIFICATIONS

RHYTHMS 70 RHYTHMS, 50 CHORD SEQUENCES (+

50 UER MEMORIES), VARIATION, TEMPO

CD PLAYER SAMPLING FREQUENCY: 44.1kHz

DECOING: 16 bit LINER / BEAM SOURCE:

SEMICONDUCOR LASER(WAVELENGTH

780 nm) / NO. OFCHANNELS: 2

CHANNEL, STEREO / WOWAND FLUTTER

: BELOWMEASURABLE LIMIT/ D/A

CONVERTER:16 bit DAC

MIXER INPUT4EQUALIZER, ECHO, OVER DRIVE

INPUT1,2,3EQUALIZER, INPUT1,2,3,4

VOLUME MIXER, MASTER VOLUME

GUITAR TUNER AUTO MODE (A=440 Hz), SOUND MODE (A

=430-450Hz)

TERMINALS MIDI IN, MIDI OUT, FOOTSW(VARIATION,

START/STOP)

INPUTTERMINALS INPUT4(GUITAR/MIC): MONAURAL(M6)

INPUT1(AUX IN): STEREO(RCAPIN PLUG)

INPUT2,3: STEREO/MONO (M6)

OUTPUTTERMINALS PHONES: STEREO (M6) / LINE OUT1:

STEREO/MONO (M6) / LINE OUT2:

STEREO(RCAPIN PLUG)

OUTPUTMAX WOOFER 30W(EIAJ), FULL RANGE 15W+

15W(EIAJ)

SPEAKERS WOOFER 14 cm ROUND 8x1,

FULL RANGE 12 cm ROUND 8x2

POWER SUPPLY AC 230-240V, 50/60Hz

AC 120V, 60 Hz (NORTH AMERICAAND

MEXICO)

POWER

CONSUMPTION 36 W

75 W(NORTH AMERICAAND MEXICO)

DIMENSIONS (W×H×

D) 57.4cm × 22.4cm × 30 cm

(22-19/32” × 8-13/16” x11-13/16”)

NETWEIGHT 12.5kg( 27.6lbs.)

ACCESSORIES POWER CORD

Unauthorized copying and distribution isaviolation of law.

1. WARNING

To prevent the risk of fire, smoke, orelectrical shock and toensure safe operation, please be

sure tofollowthe safetyguidelines below.

1. Atplaces where special caution isrequired, the necessarysafety

precautions are clearlylabeled or printed, for example, on the

cabinet, or on the part concerned. Please follow these safety

precautions, and also those listed inthe Owner'sManual.

2. Parts which have amark inthe circuitdiagram or inthe parts

list are essential for safety. When replacing these parts, be sure to

use onlythe specified parts.

3. Use the specified types for internal wiring (double-insulated

wiring, etc.).

4. When replacing parts on the AC primaryside (power transformer,

electricswitch, electrical cord, noise-prevention condenser, etc.),

wind the lead wire and secure itbysoldering.

5. Donot let the wiring come into contact with heat-emitting devices

(fuse resistor, radiator plate, etc.).

6. When replacing the wiring, make sure that itisnot incontact with

the unfinished or rough edge of apart.

7. When replacing the power cord (except for the plug-intype), tug it

from various directions to confirm that itdoes not slipout of

place.

8. Spacing

Ifsoldering was done on the AC primarycircuit, confirm that the

interval between the soldered terminalsor between the terminal

and surrounding metallicparts isat least the minimum required

(between the primarycircuitand the chassis: atleast 6.5mm;

between primarycircuitterminals: at least 4.0mm; between

primarycircuitterminalsand secondarycircuitterminals: at least

6.5mm.).

2. SAFETY PRECAUTION

2.1. Safetyprecaution

1. Before servicing, unplug the power cord to prevent an electric

shock.

2. When replacing parts, use onlythe manufacturer’srecommended

components for safety.

3. Check the condition of the power cord. Replace ifwear or damage

isevident.

4. After servicing, be sure to restore the lead dress, insulation

barriers, insulation papers, shields, etc.

5. Before returning the serviced equipment to the customer, be sure

to make the following insulation resistance test to prevent the

customer from being exposed to ashock hazard.

2.2. Insulation resistance test

1. Unplug the power cord and short the prongs of the plug with a

jumper wire.

2. Turn on the power switch.

3. Measure the resistance value with an ohmmeter between the

jumpered AC plug and each exposed metal cabinet part, such as

screw heads, connectors, control shafts, handlebrackets, etc.

Measurements shouldrange from 4MOhm to infinityfor

allexposed parts.

3. Handling Precautions For Traverse Deck

The laserdiode inthe traverse deck (optical pickup) maybreak downdue topotential difference

causedbystatic electricityof clothes orhumanbody.

So, be careful of electrostatic breakdownduring repairof the traverse deck (optical pickup).

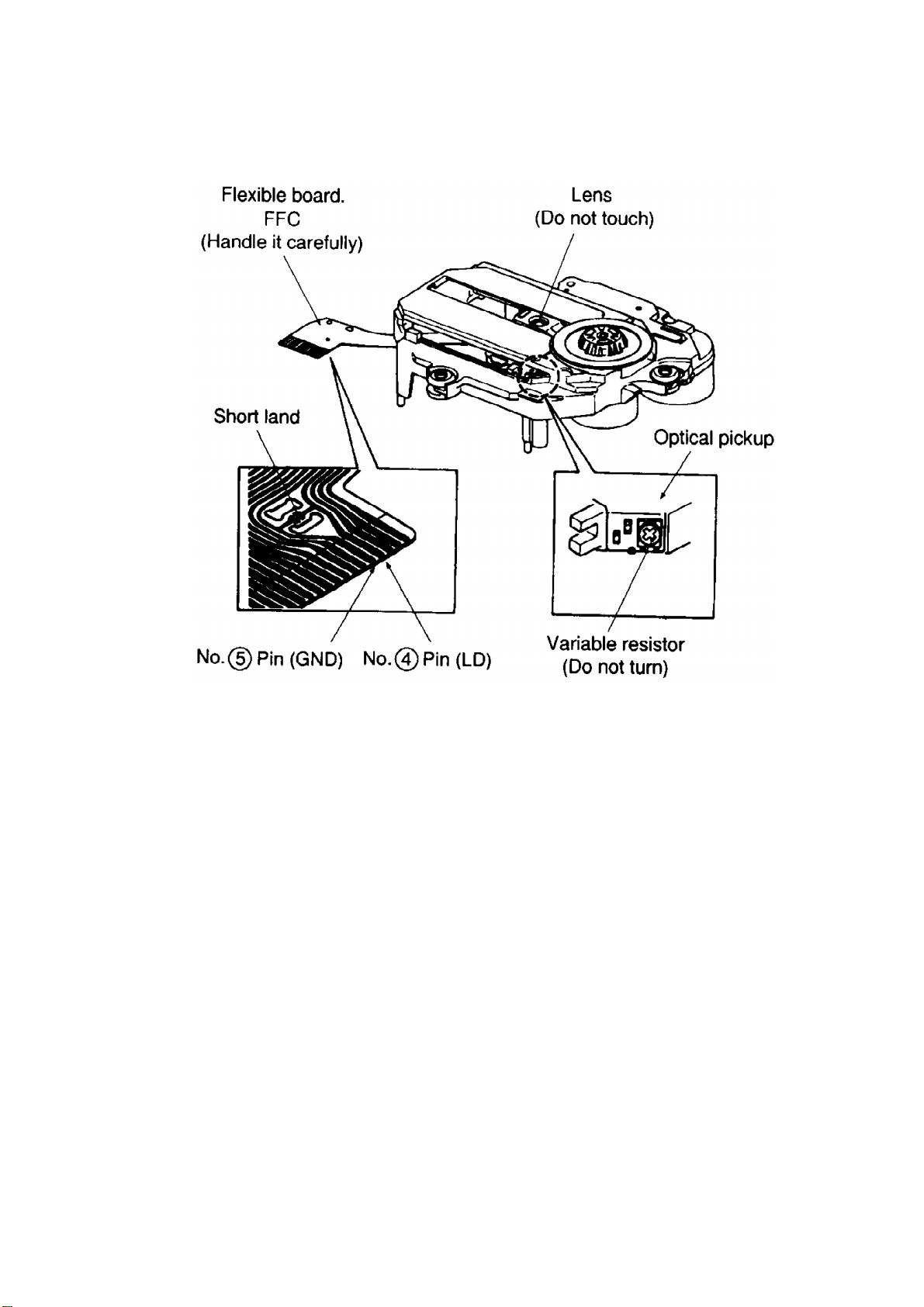

-Handling of traverse deck (optical pickup)

1. Donot subject the traverse deck (optical pickup) to static

electricityas itisextremelysensitive to electrical shock.

2. The short land between the No.4(LD)and No.5(GND)pins on the

flexibleboard (FFC)isshorted with asolder build-up to prevent

damage to the laser diode.To connect to the PCboard, be sure to

open byremoving the solder build-up, and finishthe work quickly.

3. Take care not to applyexcessive stress to the flexibleboard (FFC).

4. Donot turn the variableresistor (laser power adjustment). Ithas

alreadybeen adjusted.

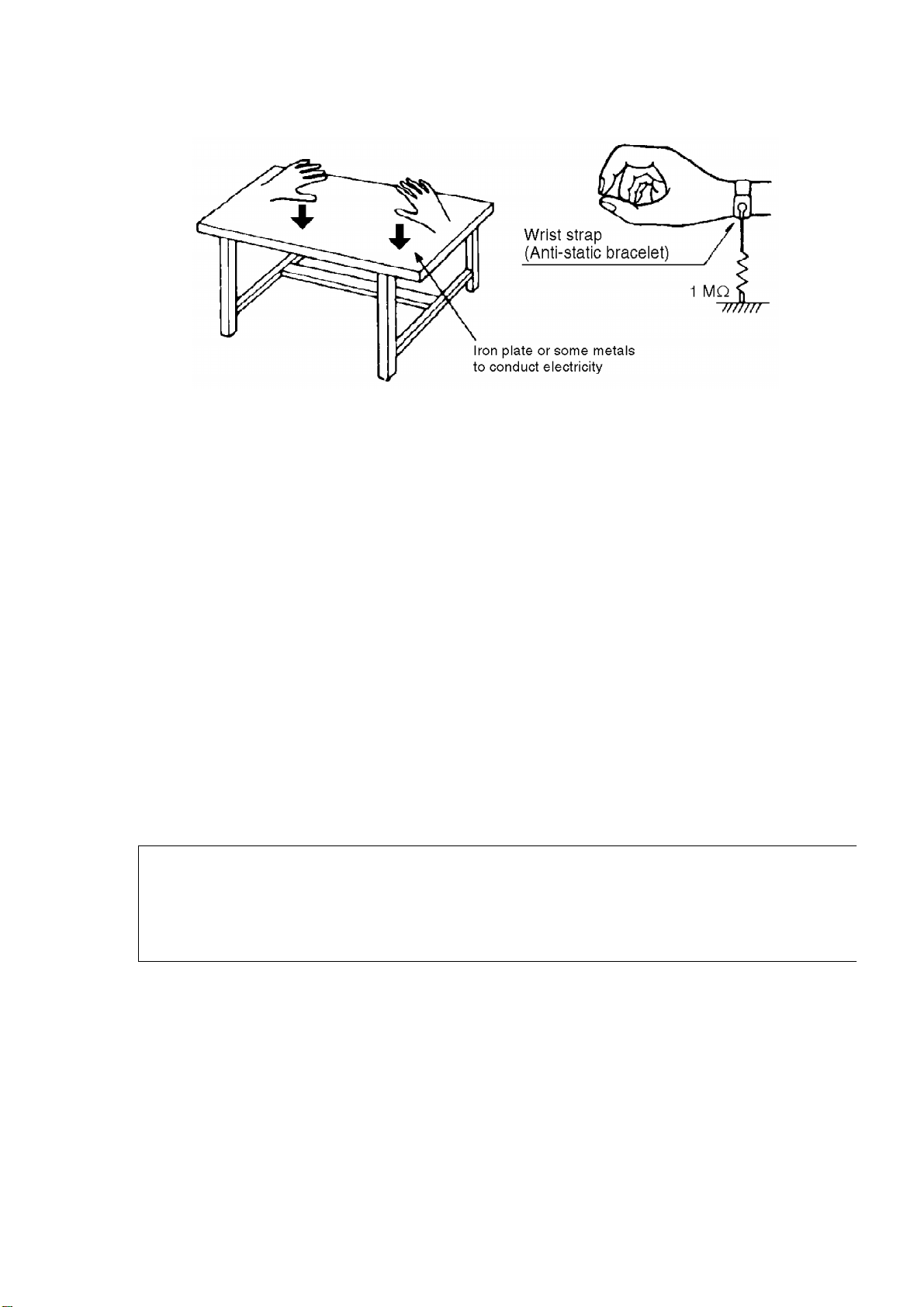

-Grounding for electrostaticbreakdownprevention

1. Human bodygrounding

Use the anti-staticwrist strap to discharge the staticelectricity

from your body.

2. Work tablegrounding

Put aconductive material (sheet) or steel sheet on the area where

the traverse deck (optical pickup) isplaced, and ground the sheet.

Caution :

The staticelectricityof your clothes will not be grounded through

the wrist strap. So, take care not to let your clothes touch the

traverse deck (optical pickup).

Caution whenReplacing the Traverse Deck :

The traverse deck has ashort point shorted with solder to protect

the laer diode against electroststics breakdown. Besure to

remove the solder from the short point before making connections.

4. Precaution of Laser Diode

CAUTION:

This unit utilizes a class 1 laser.

Invisible laserradiation is emittedfromthe optical pickup lens.

Whenthe unit is turnedon:

1. Donot look directlyinto the pick up lens.

2. Donot use optical instruments to look at the pick up lens.

3. Donot adjust the preset variableresistor on the pickup lens.

4. Donot disassemblethe optical pick up unit.

5. Ifthe optical pick up isreplaced, use the manufacturer’sspecified

replacement pick up only.

6. Use of control or adjustments or performance of procedures other

than those specified hereinmayresultinhazardous radiation

exposure.

CAUTION!

THIS PRODUCTUTILIZES A LASER.

USE OFCONTROLS OR ADJUSTMENTS OR PERFORMANCE OFPROCEDURES OTHER THAN

THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

5. OWNERS MANUAL

6. DISASSEMBLY INSTRUCTIONS

6.1. Removing the top cabinet

(Step1)

Remove the 8 screws A. (referto Figure-1 ).

(Step2)

Remove the top cabinet assy. (referto Figure-1 ).

(Step3)

Release the 3 connectors of binding cables on eachP.C.B. (referto Figure-1 ).

Figure-1

6.2. Removing the MAINP.C.B. and CPRP.C.B.

-Follow the item 6.1.

-Release the connectors of the P.C.B..

MAIN P.C.B.(Step1)

Remove the 4 screws A. (referto Figure-2 ).

(Step2)

Remove the MAIN P.C.B..

CPR P.C.B.(Step1)

Remove the 8 screws B. (referto Figure-3 ).

(Step2)

Remove the CPR P.C.B.

(Step3)

Release the connectorof the CN2.

Figure-2

Figure-3

6.3. Removing the CPL P.C.B. and SW P.C.B.

-Follow the item 6.1.

-Remove the MAINP.C.B. (Refer to Removing the MAIN P.C.B. and

CPR P.C.B. .)

CPLP.C.B.(Step1)

Remove the 17 screws A (referto Figure-4 ).

(Step2)

Release the 3 claws, thenremove the CPLP.C.B.

SW P.C.B.(Step1)

Remove the screwB (referto Figure-4 ).

(Step2)

Release the claw, thenremove the CPLP.C.B.

Figure-4

6.4. Changing the traverse deck assy.

-Follow the item 6.1.

(Step1)

Remove the 4 screws A (referto Figure-5 ).

(Step2)

Remove the FCC, and remove the traverse deck assy. (referto Figure-5 ).

Figure-5

(Step3)

Remove the 3 screws B (referto Figure-6 ).

(Step4)

Unsolderthe motorterminal ( 4 points)(referto Figure-6 ).

Figure-6

(Step5)

Remove the FFC fromthe connectorand CD servoP.C.B.(referto Figure-7 ).

Figure-7

NOTE

ClipFFCof optical pick up with short pin(refer to Figure-7 ).

(Step6)

Remove the 3 Pins(referto Figure-8 ).

Figure-8
