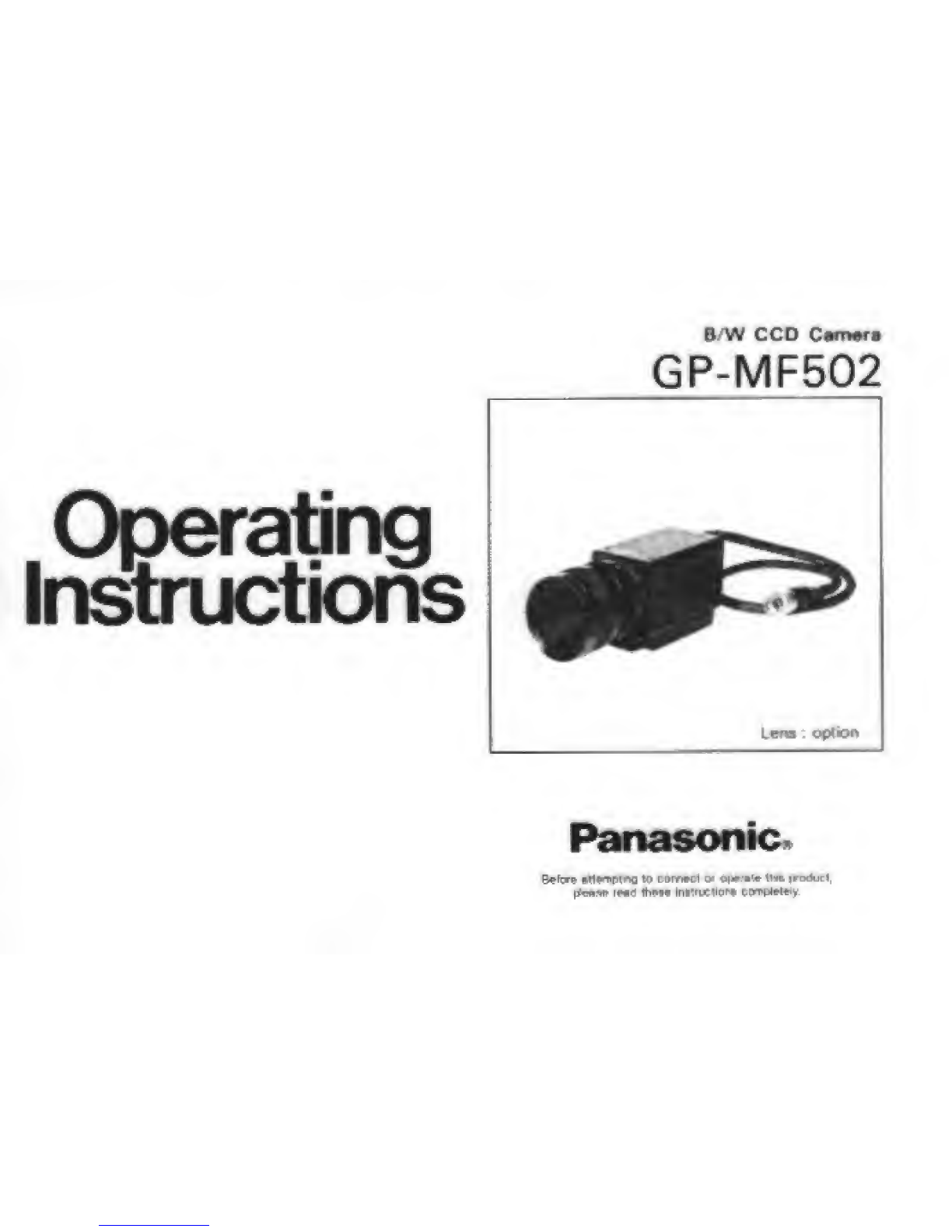

Operating

Instructions

ACAUTION

RISK OF ELECTRIC SHOCK

OO NOT OP£N

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER SER-

VICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

SA 1965

SA 1966

The lightning flash with arrowhead

symbol, within an equilateral triangle,

is intended to alert the user to the

presence of uninsulated "dangerous

voltage" within the product's

enclosure that may be of sufficient

magnitude to constitute arisk of elec-

tric shock to persons.

The exclamation point within an

equilateral triangle is intended to alert

the user to the presence of important

operating and maintenance (servicing)

instructions in the literature accompa-

nying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT

:For U.S.A •-;

:Warning: j

This equipment generates and uses radio frequency

energy and if not installed and used properly, i.e., in

strict accordance with the instruction manual, may •

|cause harmful interference to radio communications.

It has been tested and found to comply with the limits

for aClass Acomputing device pursuant to Subpart

Jof Part 15of FCC Rules, which are designed to pro-

vide reasonable protection against such interference

when operated in acommercial environment. \

For CANADA ...

:This digital apparatus does not exceed the Class A

limits for radio noise emissions from digital apparatus •

:set out in the Radio Interference Regulations of the

:Canadian Department of Communications. •

The serial number of this product may be found on

the bottom of the unit.

You should note the serial number of this unit in the

space provided and retain this book as apermanent

record of your purchase to aid identification in the

event of theft.

Mode. No. GP-MF502

Serial No.

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CONTENTS

PREFACE 1

FEATURES 2

PRECAUTIONS 2

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS 3

EXTERNAL SYNCHRONIZATION 6

INSTALLATION OF CAMERA 6

EXAMPLE OF CONNECTION 7

SPECIFICATIONS :8

PREFACE

The Panasonic Industrial-use Solid State Camera

GP-MF502 incorporates aITL (Inter Line Transfer) type

CCD image sensor.

The GP-MF502 further has an image sensor of 380,000

pixels and 570 lines of horizontal resolution, with smear

reduced to abare minimum.

-1-

FEATURES

1. Newly developed multi-function solid state image

sensor 2/3" ITL CCD image sensor with 768 (H) x

493 (V) pixels.

2. Selectable scanning system :

1-line interlace, 2-line interlace and 2-line

sequential are available for the highest quality

possible within video processing.

3. External synchronization :

External HD and VD input enable system set-up with

external video processors, etc.

4. Seven-step of Electronic Shutter function.

PRECAUTIONS

1. Do not attempt to disassemble the camera.

To prevent electric shock, do not remove screws or

cover. There are no user-serviceable parts inside.

Refer servicing to qualified service personnel.

2. Do not expose the camera to rain or moisture, and

avoid operation in wet areas.

Take immediate action if the camera should become

wet. Turn the power off and request servicing from

qualified service personnel. Moisture can damage

the camera and create danger of electric shock.

3. Do not drop anything inside the camera.

Dropping metal for example inside the camera

could permanently damage the unit. If anything

is dropped inside the camera, turn off the power

immediately and request service from qualified

service personnel.

Never aim the camera at bright objects.

Whether the camera is in use or not, never aim it

at the sun, or other extremely bright objects as this

could cause blooming.

Do not use the camera beyond its temperature,

humidity or power source ratings. This camera is

designed for indoor use.

(a) The ambient temperature must not range

beyond 14°F -122°F(- 10° C-+50°C).

(b) Avoid using the camera when the humidity is

above 90'/..

mA.

MAJOR OPERATING CONTROLS AND

THEIR FUNCTIONS

-3-

1. HD/VD Termination Switch (SW 1)

This switch terminates the HD/VD signals with 75

ohms when this switch is turned to the ON position.

2. Mode Selection Switches (SW 29pin)

These switches are used to select the camera

operation mode.

SW No. Description

tAGC ON/OFF

2Gain Up ON/OFF

3Gamma ON/OFF

4Accumulation Field/Frame

5No connection

6Latch ON/OFF

7Data-2

BData-1

9Data-0

Contents of the switches

1. AGC:

The AGC does not functions accurately under

the Gate Sensor Control modes.

2. Gain Up:

Switch ON -> 6dB up at AGC OFF

3. Gamma :

Switch ON -> 0.6

Switch OFF -» 1.0

4. Accumulation Field/Frame :

Switch ON —Field Accumulation

Switch OFF -Frame Accumulation

5. Latch:

Switch ON —»The frame reset signal is latched

by internal HD signal.

6. (Data-2), 8(Data- 1), 9(Data-0)

The Electronic Shutter Speed can be set as

follows.

Switch Shutter Speed

789(seconds)

OFF OFF OFF NORMAL

OFF OFF ON 1/125

OFF ON OFF 1/250

OFF ON ON 1/500

ON OFF OFF 1/1000.

UN UrhUN 1/idUUU

ON ON OFF 1/4000

ON ON ON 1/10000

The Shutter Speed does not functions

accurately under non-interlaced synchroniza-

tion.

3. Camera Cable Connector (12-pin)

This connector is used for connection of the optional

Camera Cable GP-CA34 or GP-CA33.

Pin No. Description

1Ground

2+12VIN*

3Ground for Video Out

4Video Out

5Ground for HD

6HD In/Out

7VD In/Out or frame reset in

eGround

9No connection

10 Ground for sensor gate control

11 Sensor gate control

12 Ground (or V0

Front View

CAUTION :

CONNECT THIS TO ADC 12V CLASS 2POWER

SUPPLY ONLY.

-5-

EXTERNAL SYNCHRONIZATION

1. 2:1 interlace

The GP-MF502 operates in the 2:1interlace mode

when the external 2:1interlaced HD and VD signals

are supplied to the pin-6 and pin-7 of the Camera

Cable Connector {12 pin).

2. Non-interlace

The GP-MF502 operates in the non-interface mode

when the external non-interlaced HD and VD signals

are supplied to the pin-6 and pin-7 of the Camera

Cable Connector (12 pin)

Note :

If the phase of the falling edges of the external

HD and VD are not matched, the picture will be

disturbed. In this case, set the Latch Switch of

the Mode Selection Switches (SW 2) to the ON

position.

-6

INSTALLATION OF CAMERA

1. Mounting at top

This camera is originally designed to be mounted

from the top, as shown. The hole is the standard

photographic pan-head screw size (1/4" -20).

2. Mounting at bottom

Remove the mount adaptor on the top of the camera

by removing 3fixing screws. Attach the mount

adaptor to the bottom as shown in the diagram,

then mount the camera on the mounting bracket.

Make sure that the 3original screws are used when

mounting the mount adaptor ;longer type screws

will break the inner component.

Mounting at bottom

EXAMPLE OF CONNECTION

1. Connect the optional Camera Cable GP-CA34

between the Camera Cable Connector (3) and the

DC 12V Class 2Power Supply (sold separately).

2. Connect the Video Connector of the GP-CA34 to

the Video Monitor.

Camera

GP-CA34 Coaxial Cable

-—CD-

DC 12V

Power Supply

Caution:

~° Use aDC 12V Class 2

Power Supply only

Video Monitor

-7-

SPECIFICATIONS

Pick-up Device

Image Size :

Scanning :

Synchronization

Horizontal Resolution

Minimum Illumination :

Signal-to-noise Ratio

Gamma

Gain Selection :

Electronic Shutter

Lens Mount

Vibration Resistance

Shock Resistance :

Power Source :

Ambient Temperature

Dimensions :

Weight

Inter Line Transfer type CCD with 768(H) x493 (V) pixels

2/3" (8.8(H) x6.6 (V) mm)

2:1interlace 1-line interlace (Frame accumulation)

2:1interlace 2-line interlace (Field accumulation)

2-line sequential (at non-interlaced external sync)

Internal or External (Selectable Automatically)

Internal :Built-in sync generator

External :4.0 Vp-p/75 ohms Horizontal drive and Vertical drive pulses for

2:1interlace or sequential scanning

570 lines at center

0.1 footcandles (1.0 lux), (F1.4, +6 dB, 2:1interlace)

59 dB typical, (0 dB, 2 :1interlace, without shutter)

1.0 or 0.6 selectable internally

0dB, +6 dB selectable internally

7-step (1/125 to 1/10,000) at normal

C-mount

8G(10 Hz -150 Hz) (2 hours each for three axes)

80 G(IEC 68) *IEC =Internationa! Electronical Technical Commission

DC +12V, 260 mA

14°F- 122°F(-10°C -+50°C)

1-5/8"(W) X1-5/8" (H) X3-1/8" (D), (41 (W) X41 (H) x80 (D) mm)

0.46 lbs, (210 g) (Camera Head Only)

Dimensions and weight indicated are approximate values.

Specifications are subject to change without notice.

-8-
