Panasonic WVBF102 - CCTV CAMERA Manuel utilisateur
Color CCTV Camera
WV-CF202
CCTV Camera
WV-BF102
Before attempting to connect or operate this product,
please read these instructions completely.
FRANÇAIS ENGLISH
WARNING:
TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated "dangerous
voltage" within the product's enclo-
sure that may be of sufficient magni-
tude to constitute a risk of electric
shock to persons.
The exclamation point within an equi-
lateral triangle is intended to alert the
user to the presence of important
operating and maintenance (servic-
ing) instructions in the literature
accompanying the appliance.
The serial number of this product may be found on the top
of the unit.
You should note the serial number of this unit in the space
provided and retain this book as a permanent record of your
purchase to aid identification in the event of theft.
Model No.
Serial No.
Warning:
This equipment generates and uses radio frequency energy
and if not installed and used properly, i.e., in strict accor-
dance with the instruction manual, may cause harmful
interference to radio communications. It has been tested
and found to comply with the limits for a Class A computing
device pursuant to Subpart J of Part 15 of FCC Rules,
which are designed to provide reasonable protection
against such interference when operated in a commercial
environment.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER SER-
VICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PER-
SONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
SA 1965
SA 1966
For U.S.A
-1-
CONTENTS
PREFACE ........................................................................................................................................................................ 2
FEATURES ...................................................................................................................................................................... 2
PRECAUTIONS ............................................................................................................................................................... 3
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ......................................................................................... 4
CONNECTION ................................................................................................................................................................ 6
INSTALLATION ............................................................................................................................................................... 8
ADJUSTMENT ............................................................................................................................................................... 14
PREVENTION OF BLOOMING AND SMEAR ............................................................................................................... 17
SPECIFICATIONS ......................................................................................................................................................... 18
STANDARD ACCESSORIES ......................................................................................................................................... 20
OPTIONAL ACCESSORIES .......................................................................................................................................... 20
ENGLISH
-2-
PREFACE
Panasonic’s WV-CF202/WV-BF102 CCTV camera is
designed for advanced video surveillance with a new
concept, mini-dome shape, and introduces a new level
of the high picture quality and high resolution through
the use of a 1/4-inch interline transfer CCD image sen-
WV-CF202
• Signal-to-noise ratio of 46 dB
• Maximum illumination of 10 lux (1 foot-candle)
• Horizontal resolution of 330 lines
WV-BF102
• Signal-to-noise ratio of 46 dB
• Maximum illumination of 0.5 lux (0.05 foot-candle)
• Horizontal resolution of 370 lines
FEATURES
sor having 512 horizontal pixels (picture elements) and
one chip signal processor. Additionally, optional lenses
with various angular of view are available to meet your
needs.
-3-
5. Never face the camera towards the sun.
Do not aim the camera at bright objects. Whether
the camera is in use or not, never aim it at the sun
or other extremely bright objects. Otherwise,
blooming or smear may be caused.
6. Do not use chemical e.g. thinner or benzene for
cleaning the lens.
When the lens becomes dirty, wipe it using a soft
cloth or a cloth soaked with alcohol. Using chemi-
cal e.g. thinner or benzene for cleaning the lens
may damage the surface of the lens.
7. Do not operate the camera beyond the specified
temperature, humidity or power source ratings.
Use the camera under conditions where tempera-
ture is between −10°C - +50°C (14°F - 122°F), and
humidity is below 90%. The input power source is
12V DC.
Caution:
To prevent fire or electric shock hazard, a UL
listed wire (VW-1, style 1007) should be used for
12V DC Input Terminals.
PRECAUTIONS
1. Do not attempt to disassemble the camera.
To prevent electric shock, do not remove screws
or covers.
There are no user serviceable parts inside. Ask a
qualified service person for servicing.
2. Handle the camera with care.
Do not abuse the camera. Avoid striking, shaking,
etc. The camera could be damaged by improper
handling or storage.
3. Do not expose the camera to rain or moisture,
or try to operate it in wet areas.
This model is produced for indoor use. If the cam-
era is exposed to rain or moisture, turn the power
off immediately and ask a qualified service person
for servicing. Moisture can damage the camera
and also create the danger of electric shock.
4. Do not use strong or abrasive detergents when
cleaning the camera body.
Use a dry cloth to clean the camera when dirty.
In case the dirt is hard to remove, use a mild
detergent and wipe gently.
-4-

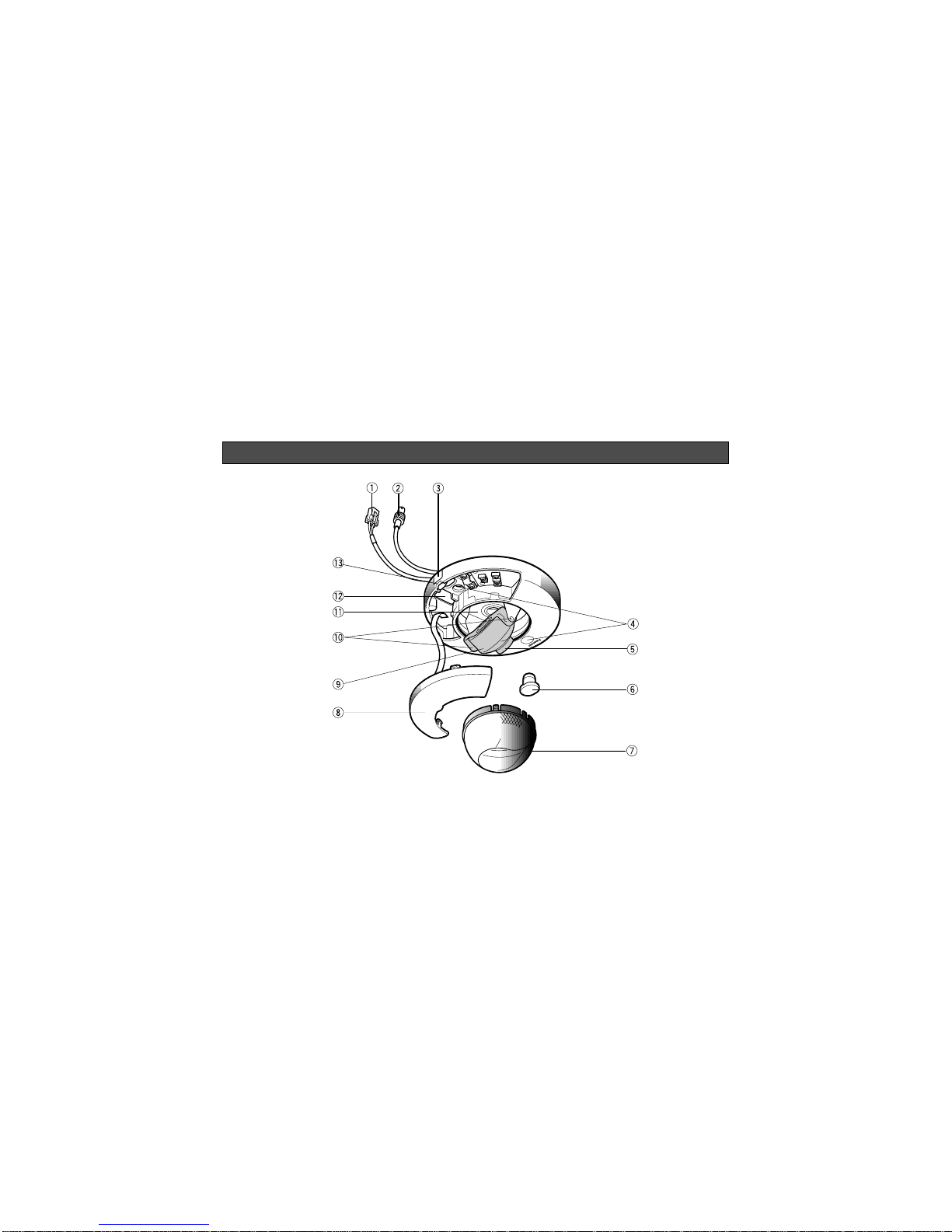

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS
-5-
qDC Power Input Connector
This connector is for connecting the 12V DC power
supply cable.
wVideo Output Connector
This connector is for connecting with the VIDEO IN
connector of the monitor.
eCable Exit
Pass the cables through this concave when
installing on the ceiling/wall.
rCamera Mounting Screw Holes
Mount the camera by fixing with screws through
these holes.
tLens
Rotate this lens to adjust the focus.
yRubber Cap (standard accessory)
Attach this cap on the camera mounting screw
hole.
uDome Cover
This protects the camera head.
iPanel Cover
Open this cover when installing the camera or con-
necting the cables.
oCamera Head
This adjusts the tilting angle of the camera.
!0 Lens Holder
These holders bring the picture in an upright posi-
tion on the monitor screen.
!1 Panning Table
This adjusts the panning angle of the camera.
!2 Cable Hole
Pass the cables through this hole when installing
on the ceiling/wall.
!3 Panel Cover Detaching Slit
Insert a tool, such as a screwdriver (−), into this slit
to open the panel cover.
Cautions:
• Connect to 12 V DC (10.5 V-16 V) class 2
power supply only. Make sure to connect the
grounding lead to the GND terminal when
the power is supplied from a 12 V DC power
source.
• To prevent fire or electric shock hazard, use
a UL listed wire VW-1, style 1007 cable for
the Input Terminal.
-6-
CONNECTION
Precaution:
The following connections should be made by qualified service personnel or system installers.
To Video IN
(CAMERA IN)
Video Output Cable
12V DC
BNC Plug
BNC
Plug
Coaxial Cable
Pin No.
Copper wire size
(AWG) #18
(0.83mm2)
-7-
How to assemble the cable with the accessory
connector
Strip back the cable jacket approx. 3 mm (1/8 inch)
and separate the individual conductors.
Recommended wire gauge sizes for 12 V DC line.
#24
(0.22mm2)
Length
of Cable
(Approx.)
(m)
(ft)
#22
(0.33mm2)#20
(0.52mm2)
20 30 45 75
65 100 160 260
Accessory Connector Information
Power Source Cable Color
1 :
2 :
Ground
DC 12V
Black
White
Prepare the individual conductors for clamping. Use
MOLEX band tool part number 57027-5000 (for UL-
Style Cable UL1015) or 57026-5000 (for UL-Style
UL1007) for clamping the contacts.
After clamping the contacts, push them into the proper
holes in the accessory connector of this camera until
they snap in place.
• Shrinking the cable-entry seal is a one-time pro-
cedure. Do not shrink the cable-entry seal until it
has been ascertained that the unit is functioning.
CONNECT THIS TO 12V DC CLASS 2 POWER
SUPPLY ONLY.
• To prevent fire or electric shock hazard, the UL
listed wire VW-1 style 1007 should be used for
the cable for 12V DC Input Terminals.
A
Up Wire
Contact
Up
Contact
Wire
Approx.
3 mm (1/8 inch)
Insert the wire until A position
and clamp the contacts.
2
1
• Power supply connection
Cautions
Insert
-8-
INSTALLATION
Important Notices:
• The following installation should be made by quali-
fied service personnel or system installers and
should confirm to all local codes.
• Be sure to use a ceiling board having enough
strength to support this camera.
Mounting the camera when you can make a hole for
the cables on the ceiling/wall.
When you can make a hole for the cables on the ceil-
ing/wall where the camera to be installed, proceed as
follows;
1. Make a hole on the ceiling/wall after checking the
place the camera to be installed with making refer-
ence to the diagram right.
83.5mm
10mm
9.5mm
19mm
15mm
Front/Upper
