Panasonic WV-SUD638 Manuel utilisateur

Aero PTZ camera

WV-SUD638

Panasonic i-PRO Sensing Solutions Co., Ltd.

Ver. 1.21

AeroPTZ 3

Can capture clear images with

extreme performance

Can install this camera in any

extreme conditions

•The Aero PTZ camera continues to function

even during hurricanes and typhoons of wind

speeds up to 216km/h (135 mph). And, the

camera is not damaged by winds up to 288km/h

(180 mph).

•The Aero PTZ camera is rated to ISO14993 and

is equipped with a body which can be captured in

heavy-salt damage place, a glass fiber reinforced

plastics body.

•The Aero PTZ camera support IP67-and IP66-

rated weather resistant.

•The Aero PTZ camera is equipped with defroster

and continues to function in extremely cold (-50°

Celsius) and extremely hot (+60° Celsius)

environments.

•In order to capture stable images, Hybrid

image stabilizer (Video SAS technology)

reduces vibrations when large vehicles pass and

swaying on top of bridges.

•The Wiper & Washer of the Aero PTZ camera

removes water and dirt that may blur image.

•The Aero PTZ camera is equipped with IR LED

(optional), and can capture more clear images

up to 150m (500feet) ahead.

Gray Brown

Silver

Can install this camera in any extreme conditions 4

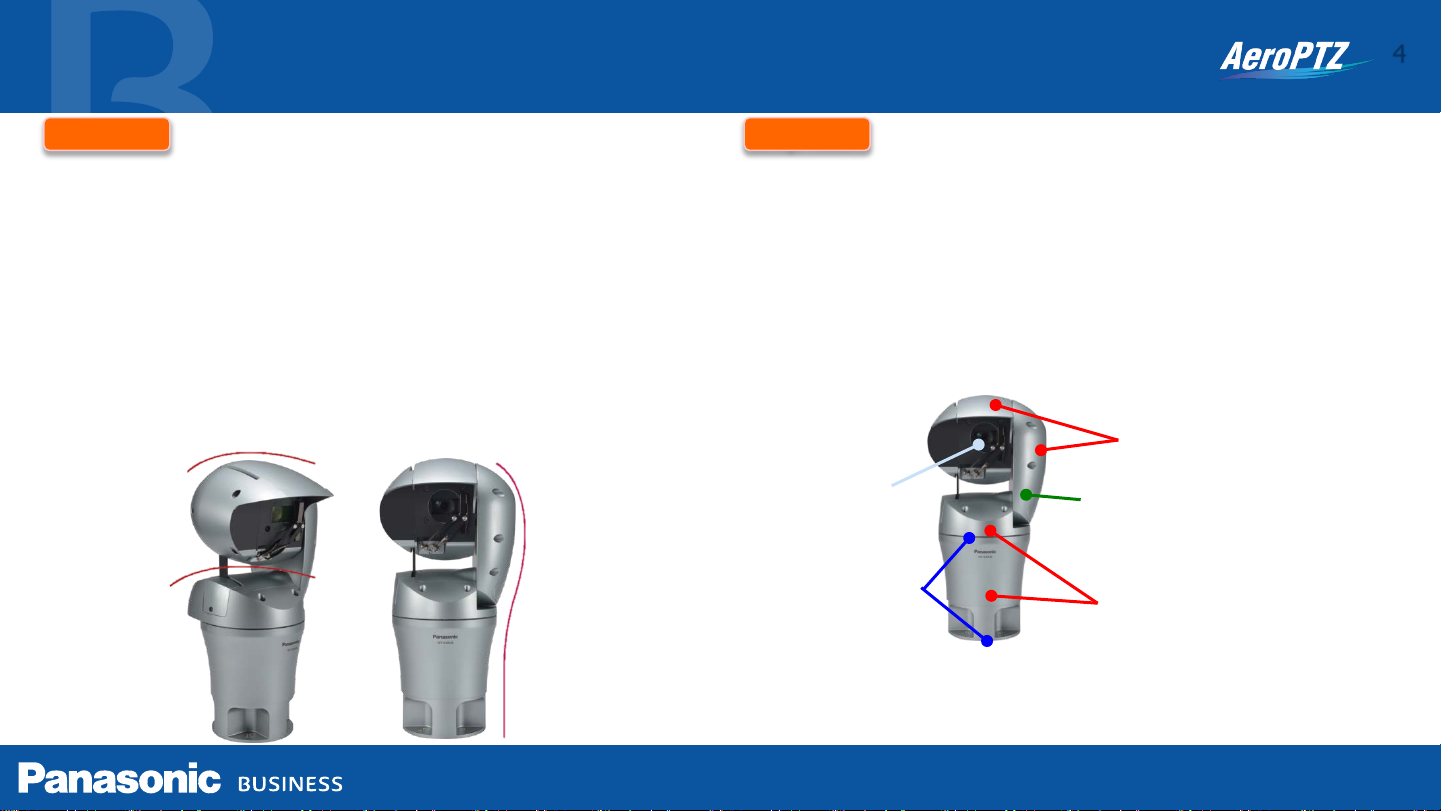

Can operate under strong wind

The Aero PTZ camera has 360-deg aerodynamic spherical

form, and continues to function even during hurricanes

and typhoons of violent wind like being fallen a tree (wind

speed : approx. 180km/h) and a steel tower might bend

(wind speed : approx. 216km/h, 135mph).

*Durability of bending style is 180km/h (111mph)

And, even if the wind blows stronger than typhoons, up to

288km/h (180mph), the camera is not damaged.

Can monitor images at the salt air place

The Aero PTZ camera is rated to ISO14993 and is equipped

with a body which can be captured in heavy-salt damage

place, a glass fiber reinforce plastics body.

In addition, the camera is equipped with the anti-salt

material such as the corrosion-resistant screws, the

borosilicate glass and the die-cast part painted.

Glass fiber reinforced

plastics body

Glass fiber reinforce

plastics body

Die-cast part is anti-

salt painted

Corrosion-resistant

screws

Borosilicate

glass

In addition, It is less likely to the fixing of the screw due to

corrosion for the camera use the corrosion-resistant screw

to screw which is exposed to the outside.

Heavy-salt

damage-resistant

Wind-resistant

Can install this camera in any extreme conditions 5

Note : What is the specification of heavy-salt damage-resistant?

Important：

-Please pay attention to the installing location of this camera, such as installed

in a location that seawater spray doesn’t splash directly.

-When installing this camera at a location which is a coastal region and

rainwater doesn’t splash directly, please wash out with water or clean it

regularly for removing the salt adhered to the camera.

salt air

Less than 300 m (984feet)

Heavy-salt damage-resistant

salt air

300 m to 1 km

(984 feet to 3,280 feet)

Salt damage-resistant

Can install under heavy rainfall and

flood

Can monitor images under severe

temperature conditions

Can install this camera in any extreme conditions 6

The Aero PTZ camera continues to function in

extremely cold (-50°Celsius) and extremely hot (+60°

Celsius) environments. Even when installing the camera

at extreme cold environment, the front glass of the

camera is not frozen by the defroster.

*When the color of camera is Gray / Brown : -50° - +55° Celsius

The Aero PTZ camera supports IP66-rated weather

resistant, so that the camera continue to function under

heavy rainfall without water entered.

In addition, the camera is equipped with IP67-rated

weather resistant. Even if the camera is flooded, the water

doesn’t enter in the camera.

Waterproof

Heat-and Cold-

resistant

*Panasonic tested the camera based on the IP67-standard.

Can capture clear images with extreme performance 7

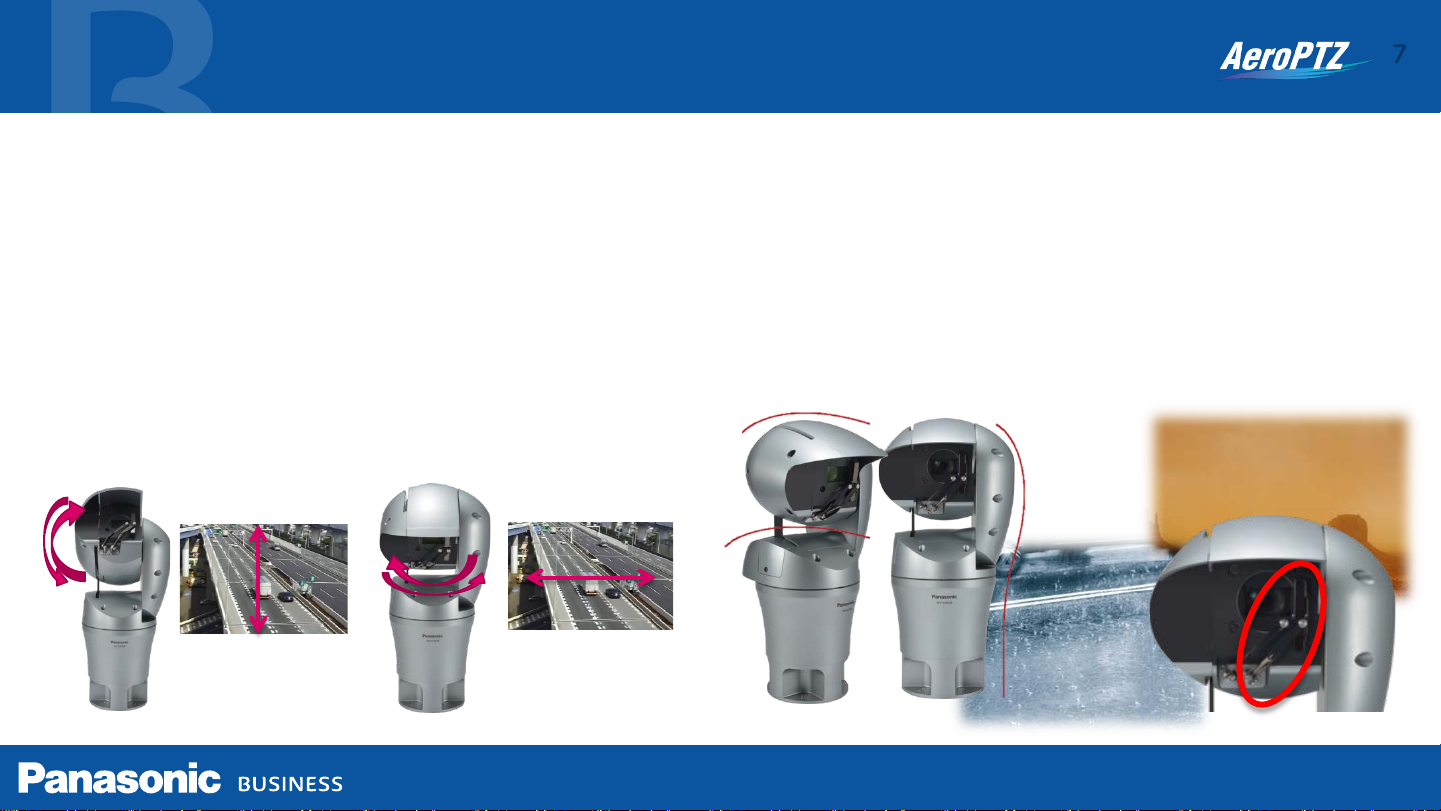

Efficient monitoring as reducing

vibration

The Aero PTZ camera is equipped with Hybrid image

stabilizer function, and reduces the various vibrations

and stream stable images even if the camera is installed

under strong wind and the place which has plenty of

vibration.

*Hybrid image stabilizer : Correcting a slow and large

vibration by the motor of Pan and Tilt, and correcting

shorter cycle vibration by electronic image stabilizer.

Up ⇔Down Right ⇔Left

Watch clear images under heavy rainfall

The Aero PTZ camera has Wiper & Washer, it removes

water and dirt that blur image since it moves parallel in

front of lens, and it can capture clear images. The 360-deg

aerodynamic spherical form of this camera decreases snow

and dust accumulation.

Can capture clear images with extreme performance 8

Equipped with F1.6 -4.7 diameter lens and high-

sensitive sensor, the camera produce a color image with

a minimum illumination of 0.06 lux.

And, when equipped with IR LED (optional), the camera

can capture more clear images up to 150m (500feet)

ahead.

Aero dynamic spherical form

Up to 150m

Clear images with low light or complete

darkness

Easy adjust the direction of the camera 9

Just

under

360-deg

45-deg

Just below

360-deg

up 30°

When using the 360-degree endless pan and tilt which

are provided by “Sphere P/T”, it selects no place to

install since the Aero PTZ camera can easily be adjusted

the direction of the lens. The camera can be installed on

the desktop and ceiling. When being installed on the

desktop, it is also possible to monitor directly below.

Just above

Angle of

45-deg

360-deg

Sphere view

IP-Network friendly 10

Appropriate-sized video stream

Monitors, recorders, smartphones and remote sites such as branches

have different requirements for image quality and network bandwidth.

The Aero PTZ camera saves the network bandwidth, sending out up

to four H.264 (High profile) streams and JPEG streams sized

appropriately for each device requirement.

Higher H.264 compression

With the latest LSI, the Aero PTZ camera saves the network

bandwidth and the recorder disk space, keeping high quality of

images.

Smart coding Technology

Group of Pictures (GOP) control removes unnecessary information

from the frame for realizing efficient encoding.

With the latest bitrate reducing technology, GOP control and 3D-MNR,

the Aero PTZ camera saves the network bandwidth and the recorder

disk space.

Cameras WV-SW598

(Smart Coding : OFF) WV-SUD638

Full HD at 30fps 4 Mbps 3 Mbps ( -25%)

Full HD at 10fps 4 Mbps 2 Mbps ( -50%)

Scene Without GOP With GOP

Heavy traffic of people 3 Mbps 3 Mbps

Minimal traffic of people 2 Mbps 1 Mbps(-50 to -60%) When people are walking, I-frame is

inserted at regular intervals as usual. When there is no person walking, I-frames are

thinned down to reduce the amount of data.

Predicted

Frame Predicted

Frame

Generated

code amount

Monitors recorder

mobile

Full HD

QVGA

H D Full HD
