1 TOPICS OF MAIN CHANGED CONTENTS 2

2 “SECTION 2 SPECIFICATIONS 4

3 “SECTION 4 INSTALLATION 5

3.1. “Section 4.6.1 Additional Memory Size each scanning

mode ( MB ) 5

3.2. “Section 4.8 System Conditions Requirements 5

4 “SECTION 7 MAINTENANCE 6

4.1. “Section 7.1 Maintenance Chart 6

4.2. “Section 7.3 Roller Cleaning / Conveyor Roller 1-5 7

4.3. “Section 7.4 Replacing Limited Life Parts 8

5 “SECTION 9 OPERATION 9

5.1. “Section 9.4.5 Service Setting Mode (Service Mode 1) 9

5.2. “Section 9.6.1.1 Mode-1 10

5.3. “Section 9.6.1.2 Mode-2 10

5.4. “Section 9.6.2.3 Mode-3 11

rights reserved. Unauthorized copying and

distribution is a violation of law.

KV-S6055W

KV-S6055WU

KV-S6050W

KV-S6050WU

5.5. “Section 9.6.2.7 Mode-7 12

5.6. “Section 9.7 Error Code 13

6 “SECTION 10 TROUBLESHOOTING 15

6.1. Troubleshooting (Modification, Deletion) 15

6.2. Troubleshooting (Addition) 17

6.3. “Requirement after parts replacement 20

7 “SECTION 14 SCHEMATIC DIAGRAM 21

7.1. “Section 14.1 MAIN CONTROL Board 22

7.2. “Section 14.2 SCSI Board 23

8 “SECTION 15 PARTS LOCATION AND MECHANICAL PARTS

LIST 25

8.1. “Section 15.4 Power Unit 25

9 “SECTION 16 REPLACEMENT PARTS LIST 26

9.1. “Section 16.1 MAIN CONTROL Board 26

9.2. “Section 16.2 SCSI Board 26

High Speed Scanner

Subject : Addition and Modification

Please file and use this supplement manual together with the service manual for Model No.KV-

S6055W/KV-S6055WU/KV-S6050W/KV-S6050WU (Order No.KM70104624C0).

CONTENTS

Page Page

Order Number KM70203745S0

G14

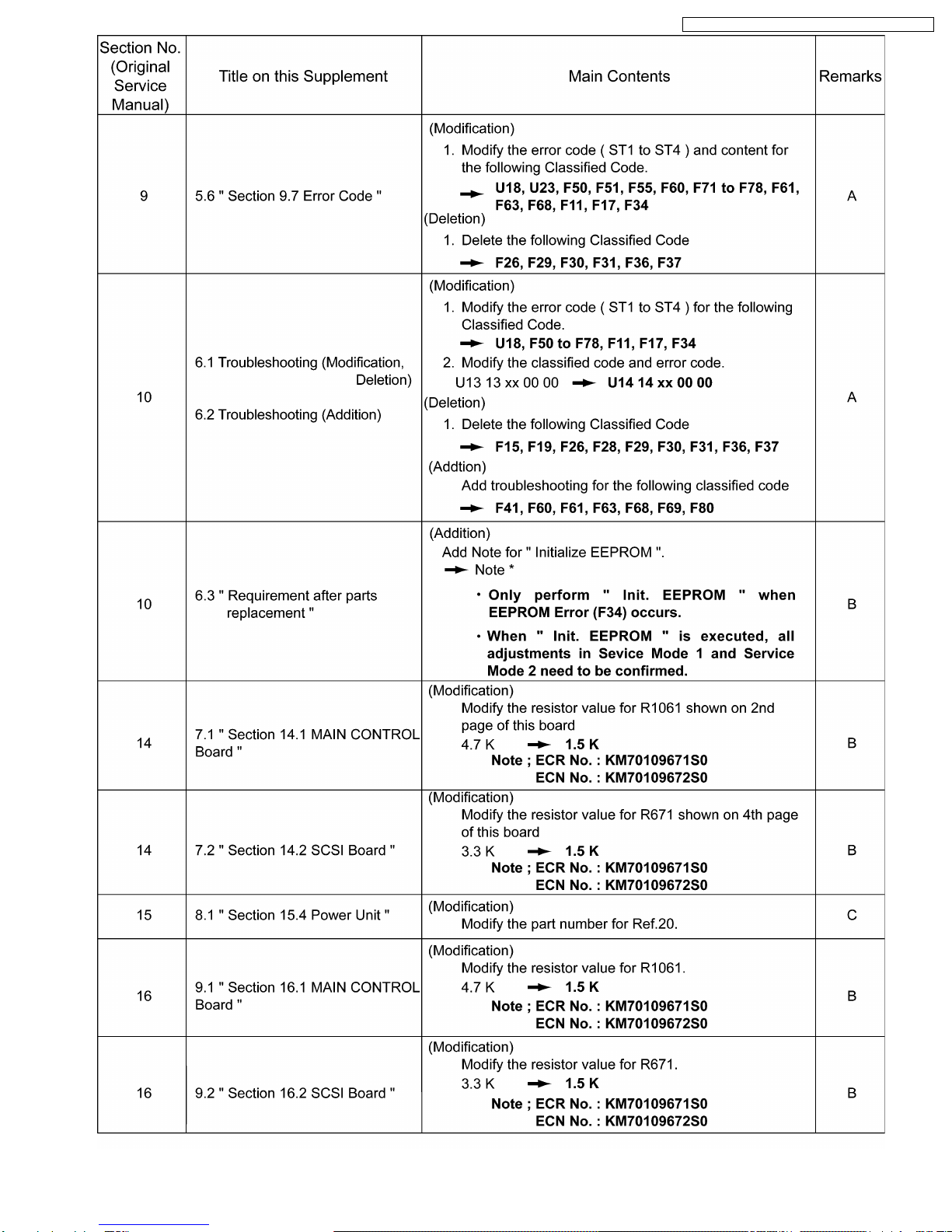

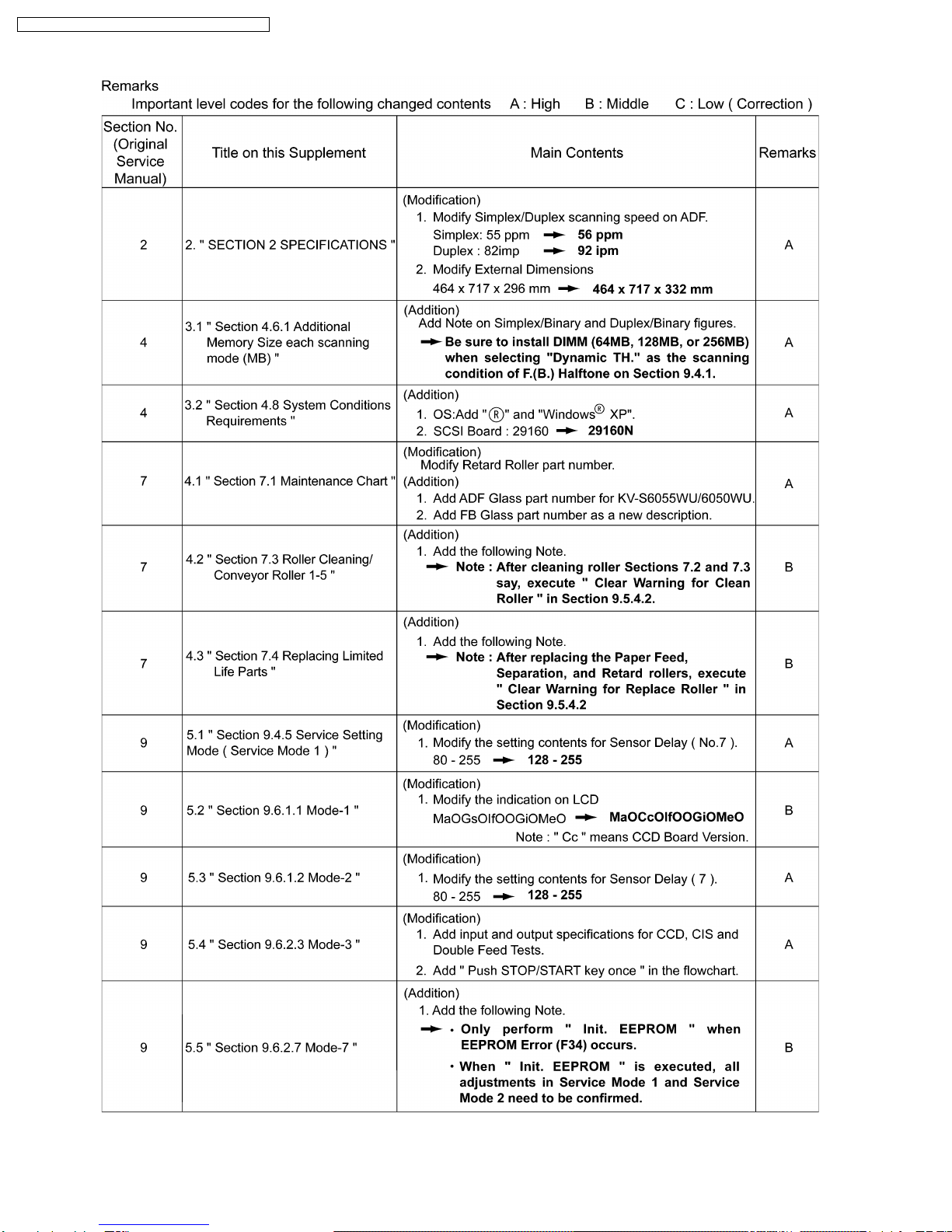

1 TOPICS OF MAIN CHANGED CONTENTS

KV-S6055W / KV-S6055WU / KV-S6050W / KV-S6050WU

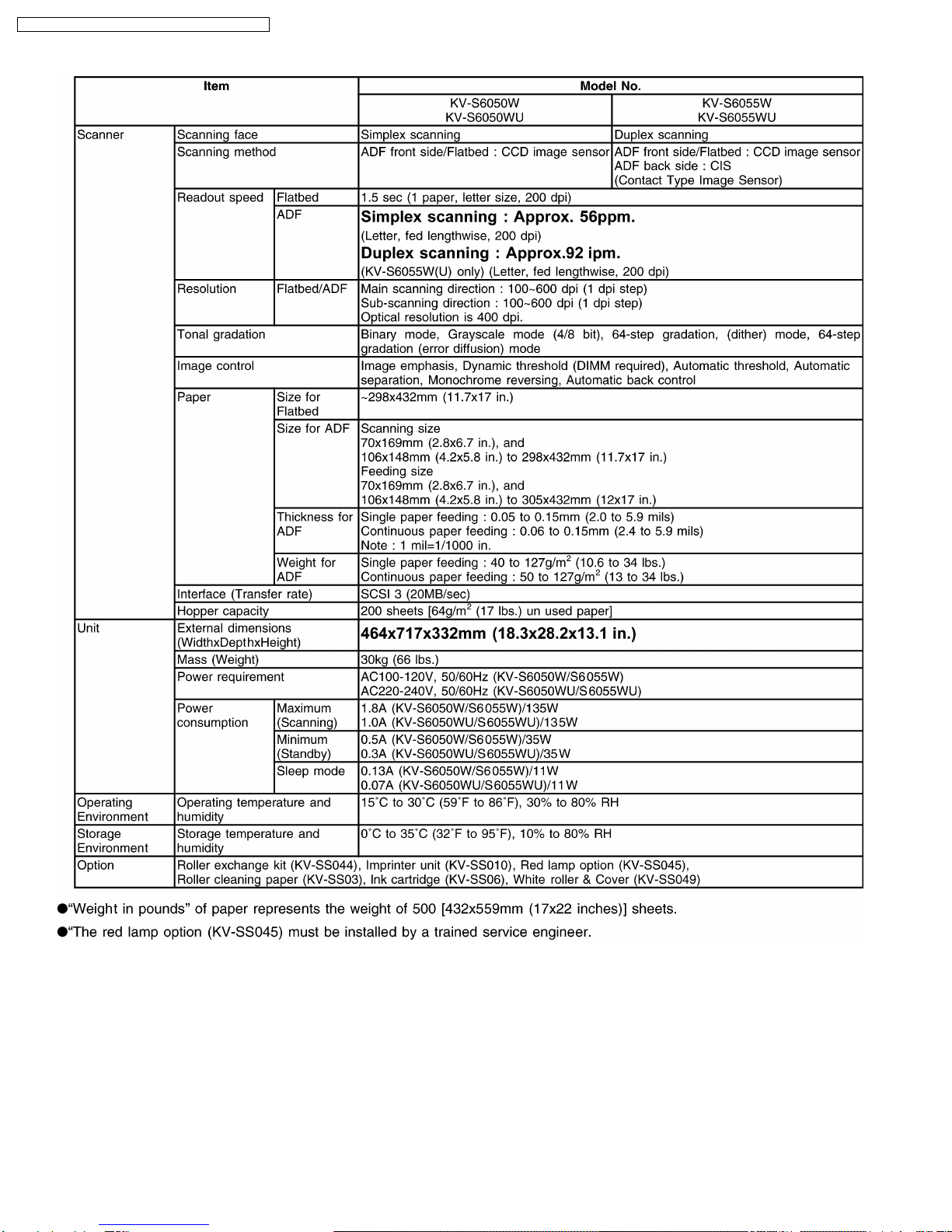

2 “SECTION 2 SPECIFICATIONS”

KV-S6055W / KV-S6055WU / KV-S6050W / KV-S6050WU

3 “SECTION 4 INSTALLATION”

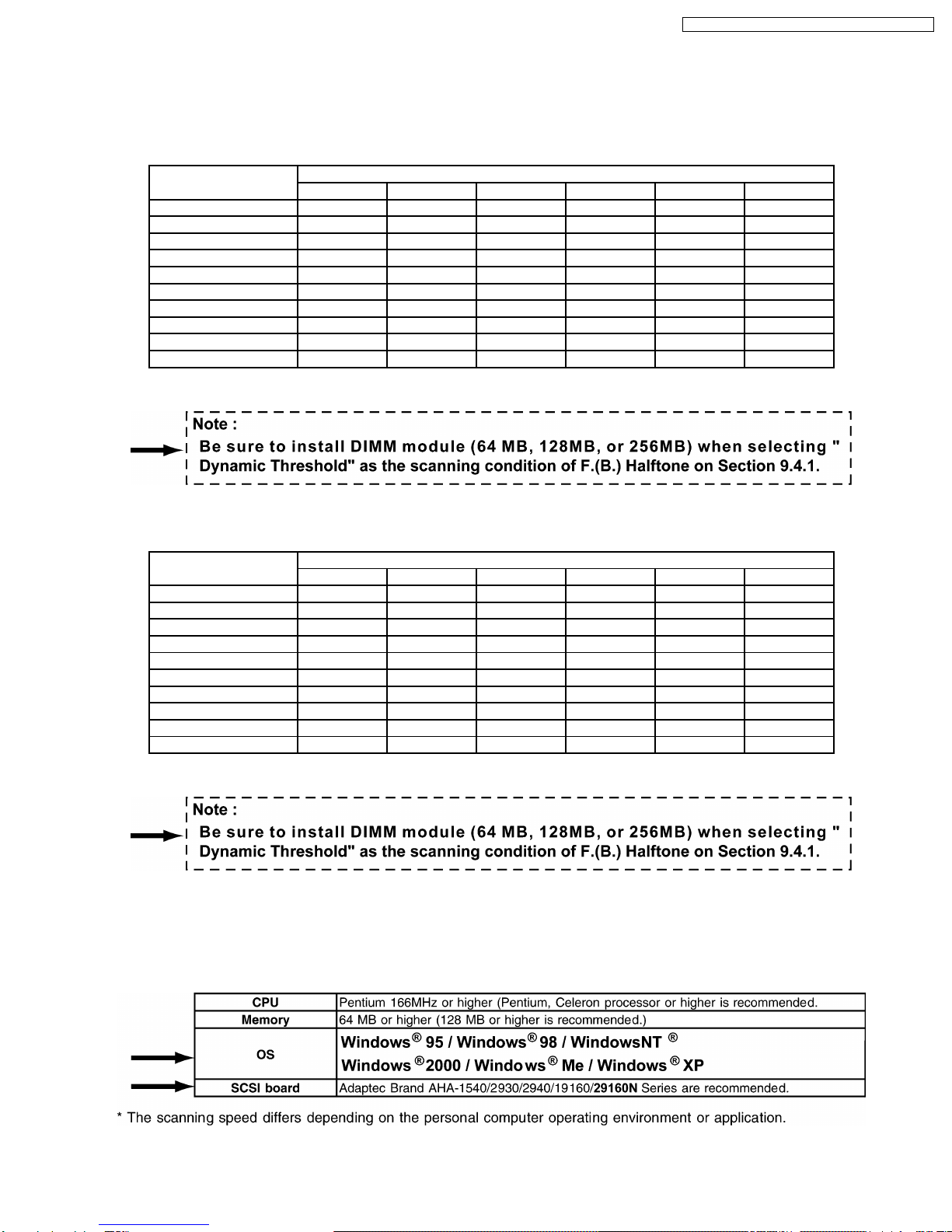

3.1. “Section 4.6.1 Additional Memory Size each scanning mode ( MB )”

Simplex/Binary

Size Resolution (dpi)

100 200 300 400 500 600

A3 000000

A4 000000

A5 000000

A6 000000

B4 (JIS) 000000

B5 (JIS) 000000

B6 (JIS) 000000

Double Letter 000000

Legal 000000

Letter 000000

Duplex/Binary

Size Resolution (dpi)

100 200 300 400 500 600

A3 0000064

A4 000000

A5 000000

A6 000000

B4 (JIS) 000000

B5 (JIS) 000000

B6 (JIS) 000000

Double Letter 0000064

Legal 000000

Letter 000000

3.2. “Section 4.8 System Conditions Requirements”

When using the scanner, the required personal computer conditions are as follows.

KV-S6055W / KV-S6055WU / KV-S6050W / KV-S6050WU

4 “SECTION 7 MAINTENANCE”

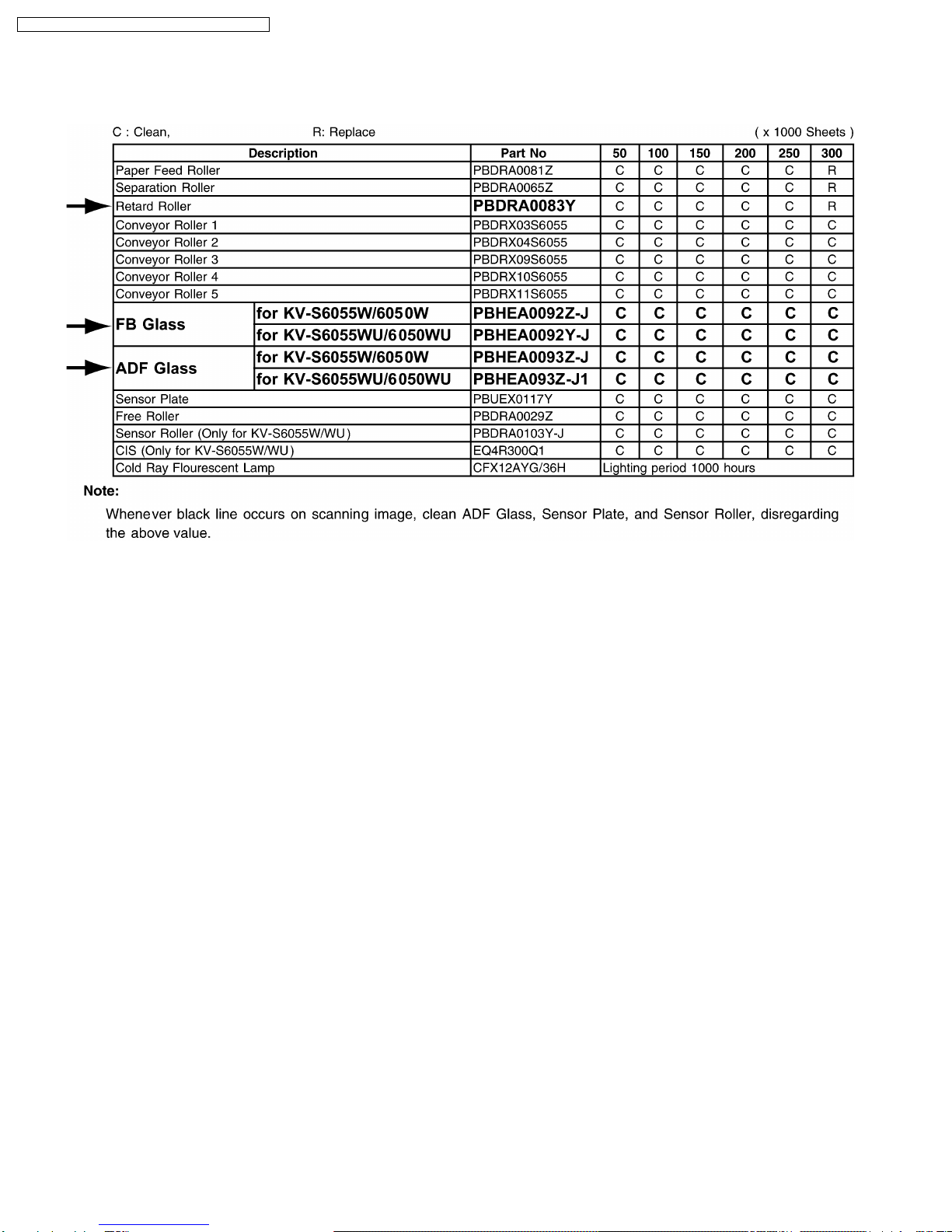

4.1. “Section 7.1 Maintenance Chart”

KV-S6055W / KV-S6055WU / KV-S6050W / KV-S6050WU

4.2. “Section 7.3 Roller Cleaning / Conveyor Roller 1-5”

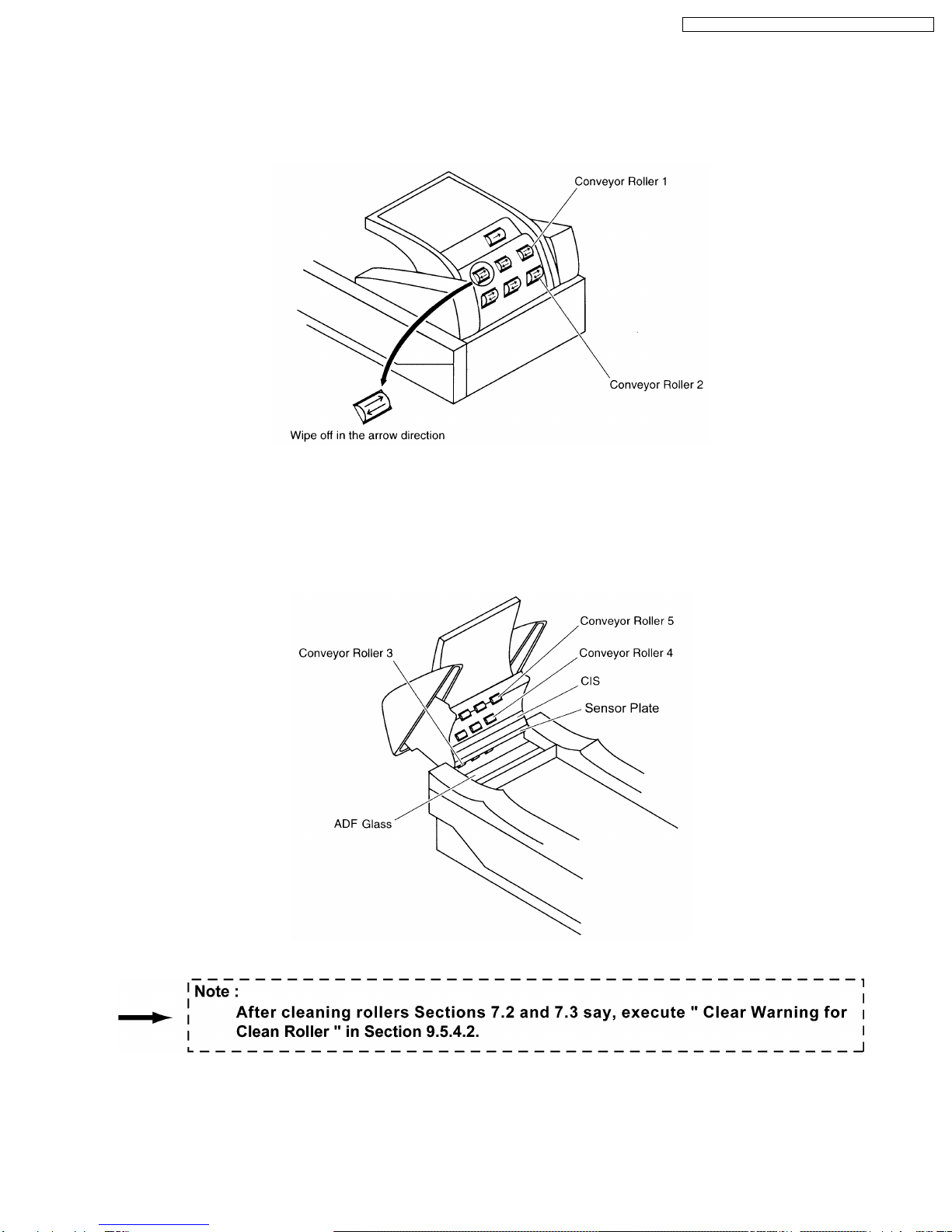

1.Conveyor Roller 1, 2

(1) Turn off the Power.

(2) Open the ADF Door.

(3) Clean these rollers using the cleaning paper (KV-SS03) to wipe the dirt on the surface of the rollers.

Fig. 7-3

2.Conveyor Roller 3, 4, 5

(1) Turn off the Power.

(2) Open the Front Door.

(3) Clean these rollers using the cleaning paper (KV-SS03) to wipe the dirt on the surface of these rollers.

(Same as cleaning the CIS, Sensor Plate, ADF Glass)

Fig. 7-4

KV-S6055W / KV-S6055WU / KV-S6050W / KV-S6050WU

4.3. “Section 7.4 Replacing Limited Life Parts”

KV-S6055W / KV-S6055WU / KV-S6050W / KV-S6050WU

5 “SECTION 9 OPERATION”

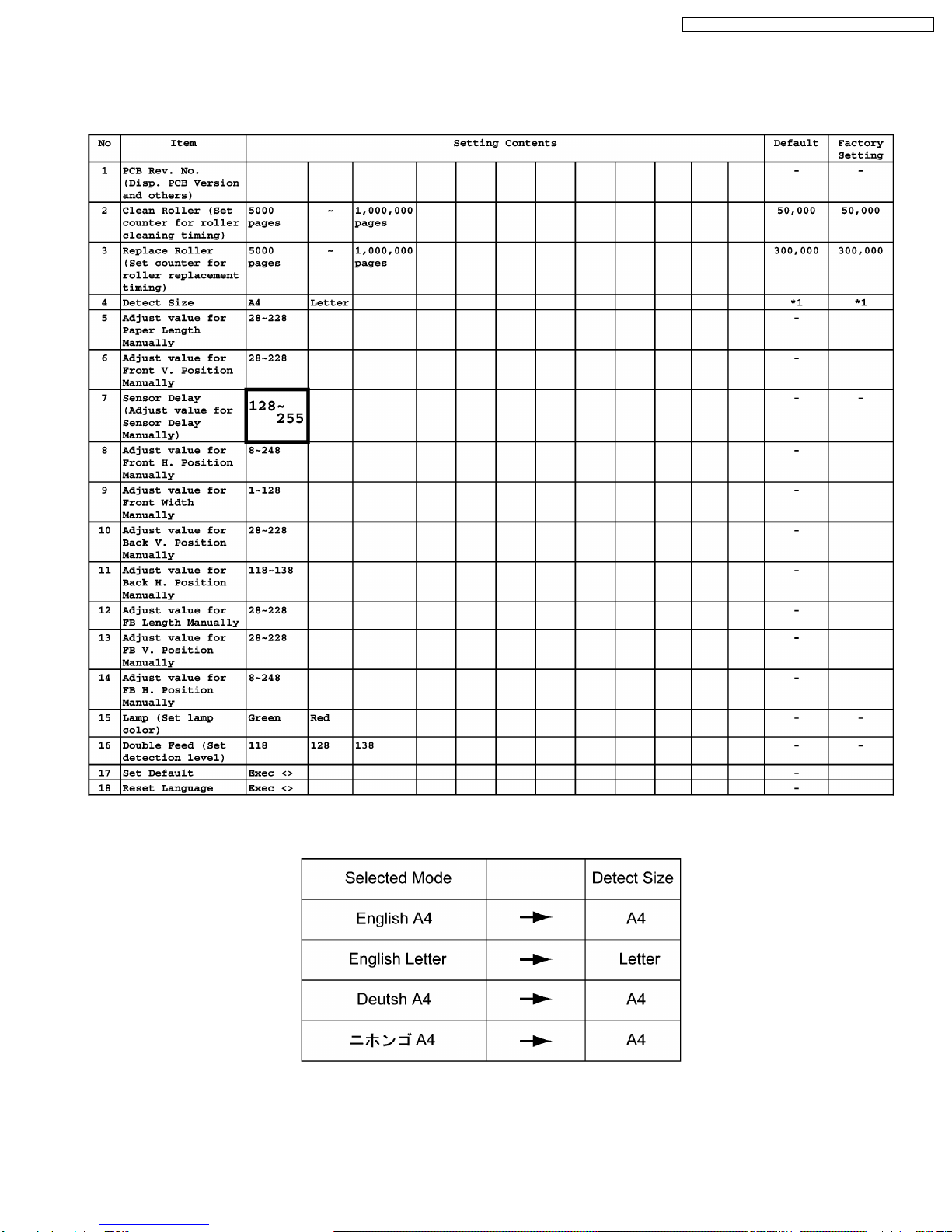

5.1. “Section 9.4.5 Service Setting Mode (Service Mode 1)”

Note

*1 : Setting content (A4 or Letter) on the item 4 depends on “Set language”.

KV-S6055W / KV-S6055WU / KV-S6050W / KV-S6050WU

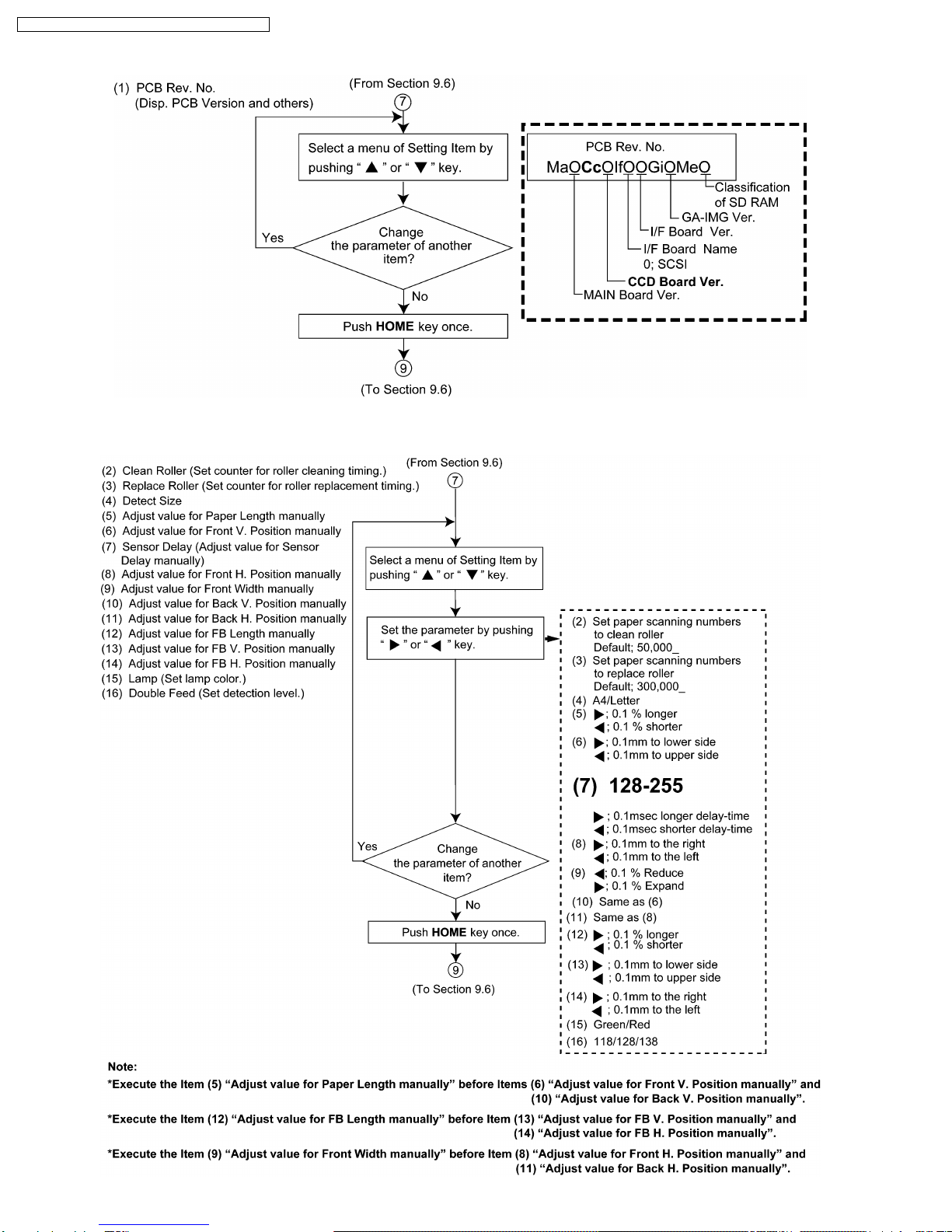

5.2. “Section 9.6.1.1 Mode-1”

5.3. “Section 9.6.1.2 Mode-2”

KV-S6055W / KV-S6055WU / KV-S6050W / KV-S6050WU
