Panasonic KV-S2065L Manuel utilisateur

ORDERNO. KM70104623C0

G14

High SpeedScanner

KV-S2065L / KV-S2065W

1. GENERALPRECAUTIONS

1.1. SafetyPrecautions

1. Beforeservicing, unplug thepowercordtopreventelectrical

shock hazard.

2. Whenreplacing parts, useronlymanufacture’srecommended

components forsafety.

3. Check thecondition ofpowercord. Replace ifwearordamageis

evident.

4. Afterservicing, besuretorestoretheleaddress, insulation

barriers, insulation papers, shields, etc.

5. Beforereturning theservicedequipmenttothecustomer, perform

thefollowing electrical tests topreventshock hazard.

1.2. Electrical Tests

1. Unplug thepowercordand check forcontinuitybetweentheearth

ground connection on theplug and theInterface BoardCover.

Thereshouldbezeroohmresistance

2. Withtheunitunplugged, shorttheAClive-neutral oftheplug with

ajumperwire.

3. TurnONthepowerswitch.

4. Measuretheresistance valuewithanohmmeterbetweenthe

jumperedACplug and anexposedmetal cabinet part, suchas

screwheads, etc. (RefertoFig.2)

Note:

Someexposedparts maybeisolatedfromthechassisbydesign.

Theyreadinfinity.

5. Ifthemeasurementisless than1M , apossibilityforelectric

shock mayexit.

Note:

Thishazardouscondition must becorrectedbeforetheunitis

returnedtotheend user.

1.3. ForService Technicians

ICsand LSIsarevulnerabletostaticelectricity. Whenrepairing, thefollowing precautionswill

helptopreventrecurring malfunctions.

1. Covertheplasticparts withaluminumfoil.

2. Ground thesoldering irons.

3. Use aconductivemat on theworktable.

4. DonotgraspICorLSI pinswithbarefingers.

2. SPECIFICATION

Item Model No.

KV-S2065L KV-

S2065W

Scanner Scanning face Duplex scanning

Scanning method Frontside:CIS (ContactTypeImageSensor)

Back side:CIS (ContactTypeImageSensor)

Scanning speed Simplex scanning:Approx. 60 ppm (Letter, fedlengthwise,

200

Duplex scanning:Approx. 110 ipm (Letter, fedlengthwise,

200

Resolution Mainscanning direction:100-600 dpi (1dpi step)

Sub-scanning direction:100-600 dpi (1dpi step)(Sameas

main

scanning direction)

Optical resolution is400 dpi.

Tonal gradation Binarymode, Grayscalemode(4/8bit), 64-stepgradation (

dither)

mode, 64-stepgradation (error diffusion)mode

Imagecontrol Imageemphasis, Dynamicthreshold(DIMM required),

Automatic

threshold, Automaticseparation, Monochromereversing,

Automatic

back control

Compression MH, MR, MMR

Paper Size Scanning size:48 x70mm (1.9x2.75

in.)to216 x431mm (8.5x17 in.)

Feeding size:48 x70mm (1.9x2.75

in.)to305 x838mm (12 x33 in.)

Scanning size:48 x

70mm

x2.75 in.)to298 x

431mm

x17 in.)

Feeding size:48 x

70mm

2.75 in.)to305 x

838mm

33 in.)

Thickness Singlepaperfeeding:0.025 to0.2mm (1.0to7.9mils)

Continuouspaperfeeding:0.06 to0.2mm (2.4to7.9mils)

Note:1mil=1/1000 in.

Weight Singlepaperfeeding:20 to157g/m2(5.3to42 lbs.)

Continuouspaperfeeding:50 to157g/m2(13 to42 lbs.)

Interface (Transferrate) SCSI3(20MB/sec), 50pin

Unit External dimensions

(WidthxDepthxHeight) 495 x575 x246mm (19.5x22.6x9.7in.)

Mass (Weight) 19kg(41.8lbs.)

Powerrequirement AC100-120V, 50/60Hz

AC220-240V, 50/60Hz

Power

consumptionMaximum

(Scanning)1.3A(AC100-120V)/98W

0.8A(AC220-240V)/98W

Minimum

(Standby) 0.5A(AC100-120V)/30W

0.3A(AC220-240V)/30W

Sleep

mode 0.13A(AC100-120V)/11W

0.07A(AC220-240V)/11W

Item Model No.

KV-S2065L KV-

S2065W

Operating

Environment Operating temperature

and humidity 15°Cto30°C(59°Fto86°F), 30%to80%RH

Storage

Environment Storagetemperature

and humidity 0°Cto35°C(32°Fto95°F), 10%to80%RH

Option Rollerexchangekit(KV-SS009), Imprinteroption (KV-SS010), Rollercleaning paper(

Inkcartridge(KV-SS06), Whiterollerkitfor KV-S2065W(KV-SS048), Whiterollerkit

for

S2065L(KV-SS071)

“Weightinpounds”representstheweightof500 [17x22 inches (432x559mm)] sheets.

3. COMPONENTIDENTIFICATION

4. INSTALLATION

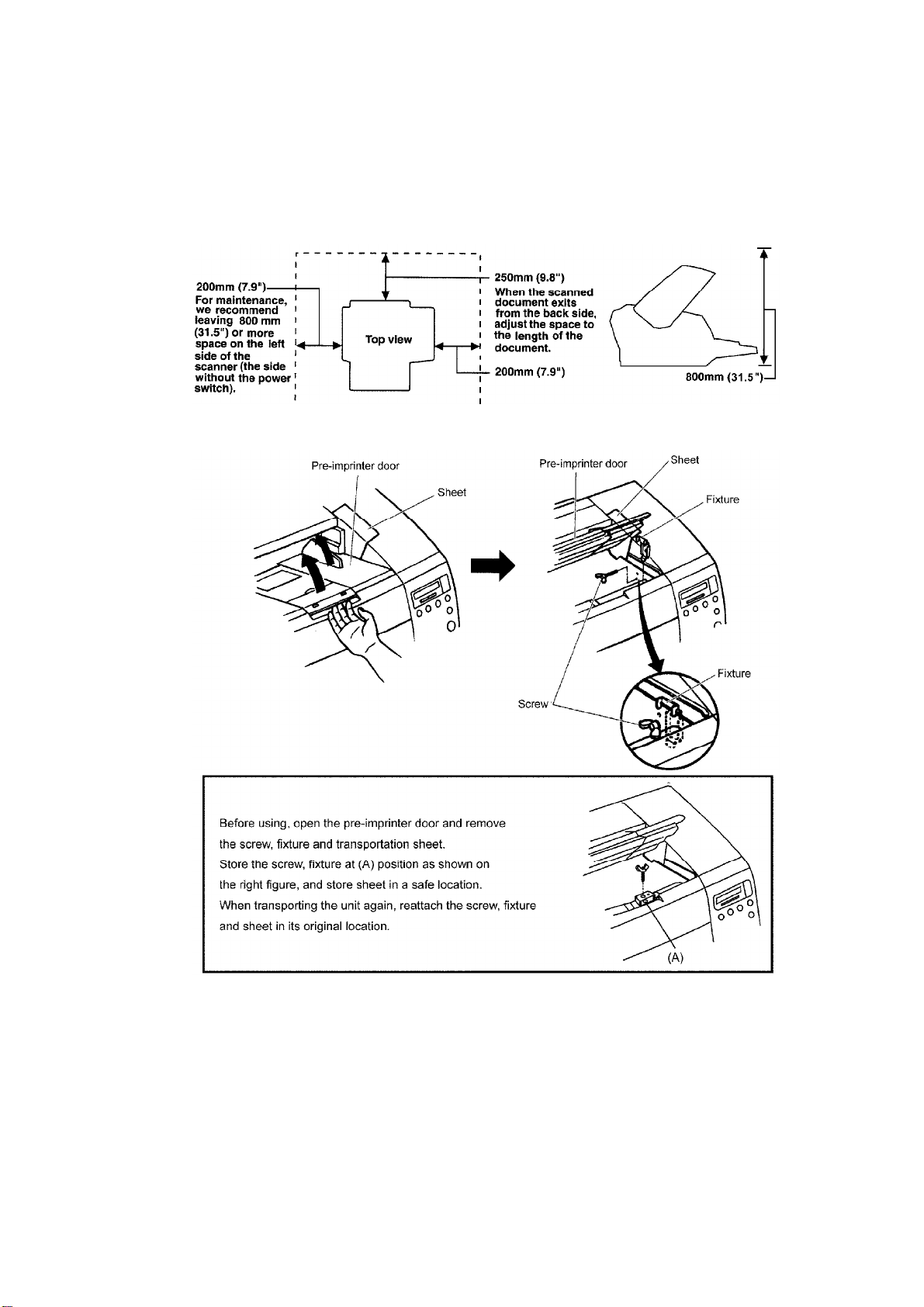

4.1. MinimumSpace Requirements

Besuretomaintaintherecommendedspace requirementsfor properventilation.

4.2. Removing and Keeping Screw and Fixture

4.3. DIMM ModuleExtension

Amaximum of256 MBextendedmemorymay berequireddepending on thecombination ofthe

papersize, resolution and gray scalemode.

Todeterminehowmuchextendedmemoryisrequired, refertothefollowing page“Additional

MemorySizeeachscanning mode(MB)”.

*RecommendedDIMM

-JEDEC-standard168pin, dual in-linememorymodule(DIMM)

-Non buffered

-Single+3.3V±0.3Vpowersupply

-Frequency/ CASLatency:100MHz/CL=2, 133MHz/CL=2, 133MHz/CL

-64MB, 128MBor256MBmaybeused.

(Reference)DIMM modulewhichhas beenevaluatedusing thisscanner

-Manufacturer:DELKINDEVICES

1. Model No.:DM168-064Y3Q488-10S2P(64MB)

2. Model No.:DM168-064Y3Q446-10S2P(64MB)

3. Model No.:DM168-128Y3Q488-10S4P(128MB)

Note:

Originally, SCSI boardhas 16MBmemoryexceptfortheabove

additional memory.

4.4. Removing SCSI Board

1)Make surethePowerisOFF.

2)Remove SCSIBoard. (See 8.3.15)

Additional MemorySizeeachscanning mode(MB)

Simplex/4bit, 8bit

Size Resolution (dpi)

100 200 300 400 500 600

A3 0 0 64 64 64 128

A4 0 0 0 0 64 64

A5 0 0 0 0 0 64

A6 0 0 0 0 0 0

B4(JIS) 0 0 0 64 64 64

B5(JIS) 0 0 0 0 64 64

B6(JIS) 0 0 0 0 0 0

DoubleLetter 0 0 64 64 64 128

Legal 0 0 0 64 64 64

Letter 0 0 0 0 64 64

Duplex/4bit, 8bit

Size Resolution (dpi)

100 200 300 400 500 600

A3 0 0 64 64 128 256

A4 0 0 64 64 64 128

A5 0 0 0 0 64 64

A6 0 0 0 0 0 64

B4(JIS) 0 0 64 64 128 128

B5(JIS) 0 0 0 64 64 64

B6(JIS) 0 0 0 0 64 64

DoubleLetter 0 0 64 64 128 256

Legal 0 0 64 64 64 128

Letter 0 0 64 64 64 128

Simplex/Binary

Size Resolution (dpi)

100 200 300 400 500 600

A3 0 0 0 0 0 0

A4 0 0 0 0 0 0

A5 0 0 0 0 0 0

A6 0 0 0 0 0 0

B4(JIS) 0 0 0 0 0 0

B5(JIS) 0 0 0 0 0 0

B6(JIS) 0 0 0 0 0 0

DoubleLetter 0 0 0 0 0 0

Legal 0 0 0 0 0 0

Letter 0 0 0 0 0 0

Duplex/Binary

Size Resolution (dpi)

100 200 300 400 500 600

A3 0 0 0 0 0 64

A4 0 0 0 0 0 0

A5 0 0 0 0 0 0

A6 0 0 0 0 0 0

B4(JIS) 0 0 0 0 0 0

B5(JIS) 0 0 0 0 0 0

B6(JIS) 0 0 0 0 0 0

DoubleLetter 0 0 0 0 0 64

Legal 0 0 0 0 0 0

Letter 0 0 0 0 0 0

4.5. Installing DIMM Module

InserttheDIMM moduleintotheconnector on the

SCSIinterface board atanangle[Place (1)]. Push

inthemoduleas faras itgoes. Theleversshould

lock automatically. Ifnot, pushtheleverstolock the

modulein[Place (2)].

Note:

-BesurethattheDIMM modulewill beintheproper

position and theproperside.

-Toremove theDIMM module, release thewhite

leversatbothsides oftheconnector.

4.6. Installing theSCSI Board

1)InserttheSCSIBoard intotheunitalong therails

and pushitinfirmly.

Confirm thattheSCSIboard plateisfullyinserted

until itfirmlylocks inplace.

2)SecuretheSCSIBoard withthe2screws.

3)Install thescannerdriversoftwareinyour

computeraccording totheenclosedmanuals.

4.7. Connecting theUnittoaPersonal Computer

Note:

*ACcordshownon thefigureisforAC100-120V.

Caution :

Setthepowerswitchon thescannerand on thepersonal computertoOFF beforeconnecting the

interface cable.

Use onlythepowercord thatissuppliedbythemanufacturer.

4.8. SystemConditionsRequirements

Whenusing thescanner, therequiredpersonal computerconditionsareas follows.

CPU Pentium 166MHzor higher(Pentium, Celeron processor or higheris

recommended.

Memory 64 MBor higher(128 MBor higherisrecommended.)

OS Windows95/Windows98/WindowsNT/Windows2000/WindowsMe

SCSIboard Adaptec Brand AHA-1540/2930/2940/19160/29160 Series are

recommended.

*Thescanning speeddiffersdepending on thepersonal computeroperating environmentor

application.

4.9. LCD Settings

Beforescanning thedocument, perform therequiredsettingson thedisplay. Setting information

and scannerconditionsareshownon thedisplay.

4.9.1. Setting thelanguage

1. Turnthepoweron whilepressing theHOMEkey.

Note:

Thelanguagesetting modeisselectedautomaticallywhenthe

unit’spoweristurnedon forthefirst timeaftertheunitwas

purchased.

2. Use the[ ]keyor[ ]keytoselect the“EnglishLetter”,

“EnglishA4”or“DeutschA4”, “ A4”.
