Operating Instructions

Refrigerator

For Household Use

Model No.: NR-TV341B

Contents

Safety precautions.................................................................................................................. 2

Usage precautions.................................................................................................................. 4

Installation .............................................................................................................................. 6

 Parts identication .................................................................................................................. 7

Temperature control................................................................................................................ 7

Usage tips............................................................................................................................... 8

How to make ice cubes with ice maker .................................................................................. 9

How to clean the refrigerator .................................................................................................. 9

Troubleshooting.................................................................................................................... 11

 Specications ....................................................................................................................... 12

■ NON-CFC

This unit uses totally NON-CFC MATERIALS both for refrigerant (R600a) and for

insulation (Cyclo-Pentane). So, this refrigerator does not damage the Earth’s ozone layer.

Thank you for purchasing the Panasonic product.

Please read these instructions carefully and follow safety precautions on page 2-5 before

using this product.

Please make sure the date and name of store of purchase are stamped in warranty card

and keep it with this operating instructions.

ARAH1E202770

P0921-0

Printed in Vietnam

Safety precautions Please be sure to follow these instructions.

WARNING

This sign means: It may lead to a serious

injury or death.

These signs mean prohibited

action.

This sign means required action.

This sign means the appliance must

be earthed to prevent electric shock.

CAUTION

This sign means: It may results in injury or

property damage.

Otherwise it may

cause a re, injury,

electrical shock.

When recycling the product...

●Before taking the refrigerator to be recycled, please remove all the door

opening seal to prevent locking a child in it.

●The warning labels mentioned above should be kept throughout the life

of the refrigerator.

●The operating instructions should be handed over to any person who

would use or handle the refrigerator whenever the refrigerator would be

transferred to another location and delivered to a recycling plant.

●Regarding to local laws, Cyclo-Pentane is used for insulation of this

refrigerator. When you throw away this unit, please discard it by proper

method and do not dispose it by burning.

When using...

●Do not damage the cooling circuit (piping on the back).

●Do not touch the compressor and pipes, because of high temperature,

that there is a risk of burn injury.

●Do not let any children hang onto the refrigerator's door, it may

overturn to the kid.

●Do not place any water container on the top of the refrigerator in case

the spilling water causes electrical shock or combustion.

●Do not locate multiple portable socket-outlets or portable supplies at

the rear of the appliance.

●Keep ventilation openings, in the appliance enclosure or in the built-in

structure, clear of obstruction.

●This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

●Children should be supervised to ensure that they do not play with the

appliance.

iso-butane

Risk of re / ammable materials

In case of emergency...

●Maintenance work only be carried out at workshop by well-trained

maintenance worker.

●Do not store explosive substances such as aerosol cans with a ammable

propellant and chemicals or scientic specimens in the appliance.

●Do not use electrical appliances such as a deodorizer in the refrigerator.

Leaked refrigerant may catch re from a spark of the electrical contacts

and may cause an explosion.

●Do not use electrical appliances inside the food storage compartments of the

appliance, unless they are of the type recommended by the manufacturer.

●Do not disassemble, repair or modify the refrigerator by yourself.

If you want to repair the refrigerator, please consult your dealer or

authorized service center.

●Do not use mechanical device or other means to accelerate the defrosting

process, other than those recommended by the manufacturer.

WARNING

For power plug and cord...

●Do not plug or unplug with wet hands.

●Do not let the cord or plug be damaged.

●Disconnect power plug when cleaning.

●Plug into a wall outlet of the rated voltage on its own with the rated

current and insert plug fully.

●Reserve one socket for the refrigerator only. Avoid connecting many

appliances to the same socket and unroll through the length of cord.

●Remove dust periodically from the power plug.

●If the supply cord is damaged, it must be replaced by the manufacturer,

its service agent or similarly qualied persons in order to avoid a hazard.

●If you detect burning smell, disconnect the power plug and ventilate the

kitchen.

●Stop using the refrigerator and unplug the unit immediately if there is

an abnormality or failure. Abnormality and failure examples:

- Power cord or plug is abnormally hot.

- Power cord is deeply cut or deformed.

- There is burning smell.

- You can feel tingling electricity.

Otherwise it may

cause a re, injury,

electrical shock.

When installing...

●Fix the refrigerator to avoid

danger due to unbalance.

●When positioning the appliance,

ensure the supply cord is not

trapped or damaged.

●Ensure that the refrigerator

is plugged into an earthed

mains socket.

iso-butane

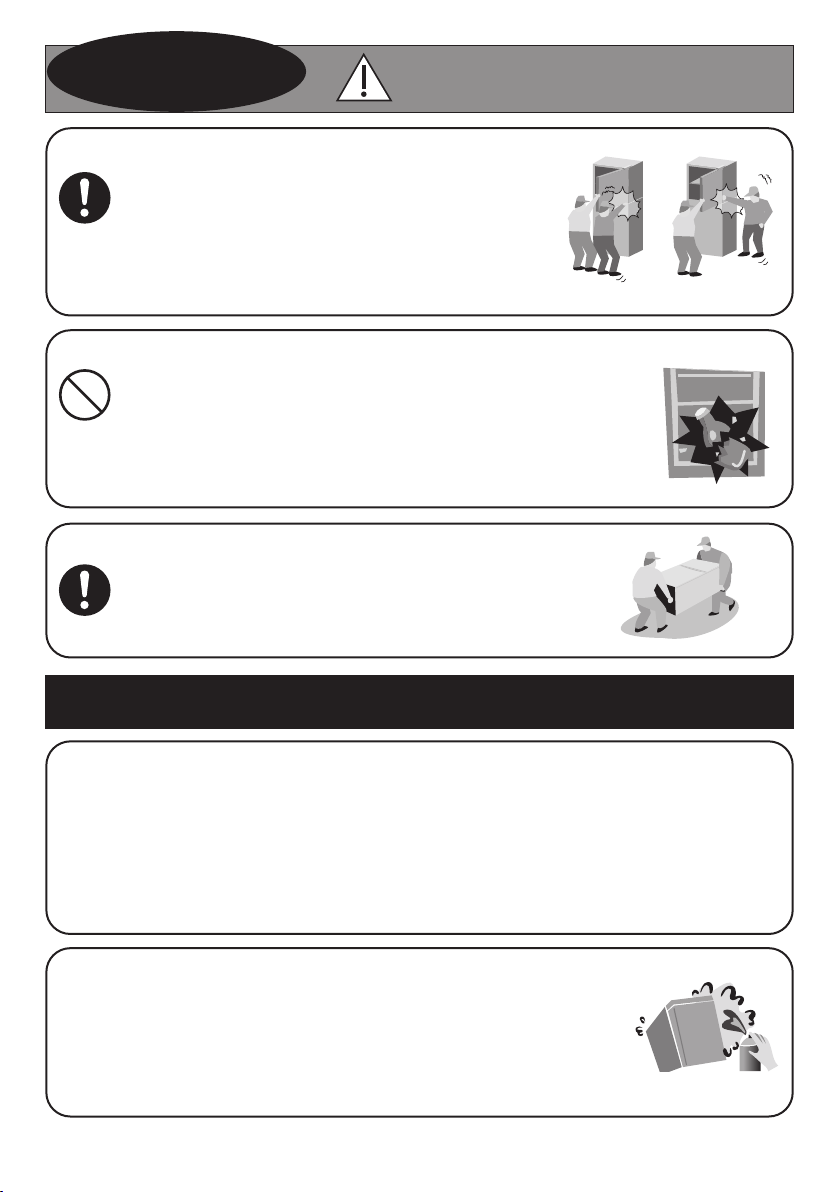

Usage precautions

When opening/closing the doors...

When moving the refrigerator...

When storing food...

CAUTION

●While opening the refrigerator, be careful not to

pinch other one's hand holding the door.

●Mind the gap between the doors. They may nip

your hand while closing the door.

●Do not freeze glass bottles, that there is a risk of injury.

(If the liquid in a glass bottle is frozen, then the bottle

may break and you may be injured.)

●Do not add a high impact on glass trays. (Otherwise

those glass trays may break and you may be injured.)

●Hold the refrigerator tightly when transporting.

● Apply protective covering, etc. to oors with a

fragile surface.

When opening/closing the doors...

●Do not refrigerate items which are bigger than tray or shelf, as the door will

not close completely causing leakage of cool air.

●Do not open refrigerator frequently or leave it open for long time in order to

prevent water dripping inside and waste energy.

●Frequently check the door opening seal, it must be closed to the refrigerator's

body completely.

When cleaning...

●Do not clean the refrigerator with chemical substance or liquid.

It will cause damage and have corrosion on the surface.

●Clean the pan water evap located over the compressor at

the back of the refrigerator every three months to prevent

the odour generated from humidity.

Otherwise it may cause

injury, accidents.

Usage precautions

SPECIAL FEATURE

1) ECONAVI

The microchip performing ECONAVI mode is integrated into the main control board. By

detecting refrigerator's frequency of use (opening and closing of door), ECONAVI mode

automatically operates to save energy.

2) INVERTER

In accordance with temperature change inside the compartment, the motor of compressor

runs at di󰀨erent speed. When the temperature is stable, the motor runs at a lower speed

(energy saving & lower noise). When powerful cooling is required, the motor runs at a

higher speed.

When storing food...

●Do not place warm/hot foodstu󰀨 in the refrigerator.

●Do not overload the refrigerator. Gap must be provided between

foodstu󰀨s to maintain the cooling e󰀨ect.

●Store fruits and vegetables in vegetable case, where trapped

moisture helps preserve food quality for longer time periods.

●Drinking water, beverage bottles should be sealed to prevent

odor contamination.

● Foodstu󰀨 such as vegetable, fruits and fresh food should be

wrapped or pack in box before freezing and refrigerating.

● Put the food such as meat or sh in the freezer if you want to

store for an extended period.

● Cover juicy food with tight lids, plastic lm or foil.

●Cool hot dishes in room temperature before placing them in your refrigerator.

When using...

●When the plug is disconnected, leave it for 5 minutes before

plugging again. If not, the compressor may not work.

●Adjust the temperature according to the actual operating

condition for energy saving.

●The humidity inside the fresh case may condense so wipe it

with a cloth periodically. Clean the fresh case once a month.

●If you will not be at home for several days and there are nothing refrigerated in

the refrigerator, the plug should be disconnected for energy saving.

●The outside wall of refrigerator cabinet may sometimes get warm, especially

just after installation. This is quite normal, and is due to the built-in Mullion

Dryer Pipe which prevents sweating and radiates heat.

●When humidity is high, e.g. during rainy-season, condensation may appear

on the surface of cabinet, especially around the door seal gasket. Wipe o󰀨 the

condensed water with a clean cloth.

●Do not keep the door open any longer than necessary, particularly in hot,

humid weather.

5 mins

Installation

5 cm

The distance requested for installation

●The top of the refrigerator and the ceiling at least 5 cm.

●The back of the refrigerator and the wall at least 5 cm.

●The sides of the refrigerator and the walls at least 5 cm.

Area around the installed unit

●Do not locate the refrigerator in a humid place as rust

may form and may cause electric leakage.

●Do not locate the refrigerator exposing to direct sunlight

as the heat and sunlight will increase the temperature.

●Do not locate the refrigerator near heat source such

as cooking stove or oven.

●Do not block the openings around the refrigerator.

●The refrigerator must be located in the place where

there is good air circulation.

●In case of placing the refrigerator on an uneven surface, adjust the

adjustable bolt to make the refrigerator stands stably.

Moving or shifting

●When moving or shifting the refrigerator, remove ice cube tray, box ice tray, pan water

evap etc. and check to be sure that there is no water in the refrigerator.

Power cord setting

●To bring power cord for use, pan water evap from left should be lifted up. Then bring the

power cord out and then insert pan water evap into the block by pressing at both the sides.

LED lamp and grounding

●The refrigerator LED lamp, specially designed for this refrigerator, does not function on

individual replacing. If you need replacement, please contact Panasonic Service Center.

●If there is no grounding wiring plug in refrigerator, it should be connected with grounding

connection to prevent electrical hazard from electric leakage.

5 cm

Glass tray crisper

Dial control

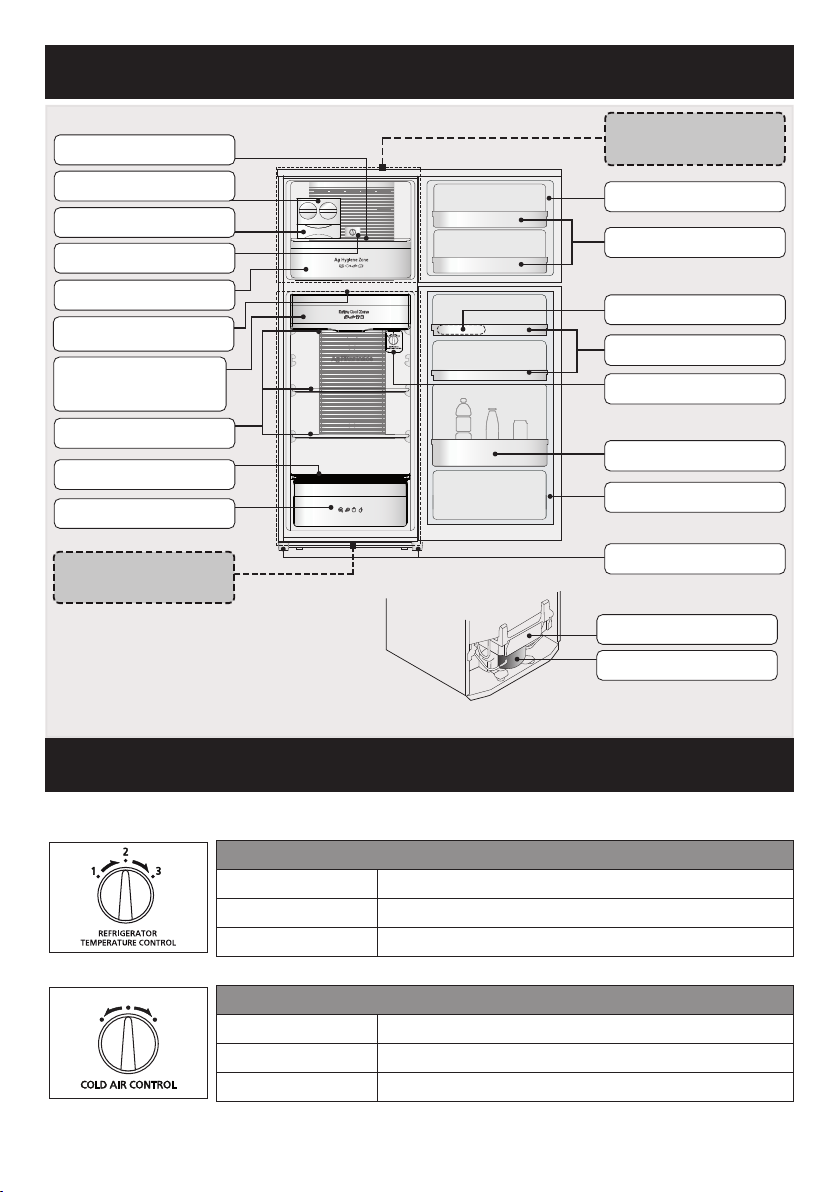

Parts identication

Glass tray FC

Box ice tray

LED lamp

Vegetable case

Gasket door FC

Shelf FC

Compressor

Pan water evap

Shelf bottle

Gasket door PC

Shelf egg

Tray egg

Extra Cool Zone

(Blue Ag LED light)

Ice cube tray

Adjuster bolt

Glass tray PC

Temperature control

Operate the REFRIGERATOR TEMP. CONTROL when changing the temperature of

REFRIGERATOR COMPARTMENT.

TEMP. CONTROL REFRIGERATOR COMPARTMENT

“1” Higher than “2” by approximately 2 °C ~ 3 °C

“2”

Approximately 3 °C ~ 5 °C

“3” Lower than “2” by approximately 2 °C ~ 3 °C

Operate the COLD AIR CONTROL when changing the cold air condition.

COLD AIR CONTROL

“FRIDGE MAX”

REFRIGERATOR COMPARTMENT takes priority

“NORMAL”

Cold air condition is normal

“FREEZER MAX”

FREEZER COMPARTMENT takes priority

Note: Temperature of Refrigerator depends on environment, room temperature and food

storage quantity.

FREEZER

COMPARTMENT

Cold air control

Ag Hygiene Zone

Product view from behind.

REFRIGERATOR

COMPARTMENT

Storage using hermetically sealed containers is recommended!

To prevent the

interior from being

discolored!

To prevent odors

from spreading!

●Cut citrus fruits

(→ The plastic will be discolored white.)

●Garlicky or other strong smelling

vegetables

(→ Odors will spread to other nearby food.)

Usage tips

Freezing

“If storing food for an extended

period...”

For storage of frozen or dried foods.

“Fresh food...”

For storage of fresh foods such as meat

or sh to avoid the odors spread out the

freezer compartment.

Refrigeration

“Food and drinks readily served...”

For regular storage of food and drinks

or temporary storage of those to be

served soon.

Extra Cool

Zone

“Dairy products...”

For dairy products, etc. that perish

easily but whose quality changes if

frozen.

Vegetable

case

“Fruits and vegetables”

A rather high humidity keeps fruits and

vegetables fresh and juicy.

Extra Cool Zone

Freezer

Compartment

Refrigerator

Compartment

Vegetable case

Ag Hygiene

Zone

Ag Hygiene

Zone

How to clean the refrigerator

How to make ice cubes with ice maker

WATER LEVEL> PP <

ICE CUBE TRAY

BOX ICE TRAY

WATER LEVEL LINE

ICE MAKER

Alkaline or weak

Alkaline

Kitchen detergents

(They crack plastic!)

Cleanser or soap

powder

Benzine, thinner,

alcohol, acid, petroleum

Scrubber Hot Water

Interior cleaning

Wipe o󰀨 the stain with warm water. When stains can not

be removed easily, wipe them with warm water and soap

by using a soft cloth.

Then wipe the soap o󰀨 using damp soft cloth.

Use lukewarm

water!

Exterior cleaning

Cleaning by using soft cloth with warm water and soap.

Then wipe o󰀨 the soap with warm soft cloth.

Gasket door FC/PC

Clean by wiping gently. This area, petroleum gel was

applied to reduce the friction to the refrigerator body.

Be careful not to wipe o󰀨 them.

The door opening seal is replaceable when reaching

end of life. While cleaning, push it back to the groove if

it comes o󰀨.

Note: Do not use the following items. (Otherwise, the surface will be scratched.)

STEP

.Fill water in the ice cube tray till the water

level line.

.Put ice cube tray inside Freezer room, wait

until ice is made.

.To remove ice cubes, suppress the frame

with left hand and twist the dial ice cube tray

clockwise with right hand.

The ice cubes will drop into the box ice tray.

Remark:

Don't pour water into ice box for ice-making,

otherwise the box may crack.

How to clean the refrigerator

Removing glass tray PC / FC,

glass tray crisper for cleaning

Removing

. Lift it upward,

alternating

between the right

and left side.

Attaching

. Place it on both supporters, and

then press until it reaches the end of

supporters.

Removing shelf egg, shelf bottle,

shelf FC for cleaning

Removing vegetable case,

Ag Hygiene case for cleaning

Removing

Tilt up the pan water evap a bit and then

lift it upward until the pan water evap hole

unlocks from the pan water evap hook.

. Pull the pan water evap until it touches

with the evap pipe then carefully take

it out under the evap pipe. Hook pan

water evap

Attaching

Insert the pan water evap under the evap pipe.

Insert the pan water evap hole into the hook pan

water evap as well as press-tting both sides.

Remark: Check the status to make sure evap

pipe does not touch the pan water evap.

Evap pipe

Removing pan water evap for cleaning

Removing

. Lift the tray upward

then pulling it

forward until

removing.

. For tray cool zone,

tilt the tray slightly

upward for easier removing.

Attaching

. Place tray on both supporters, then

push until it reaches the end.

Remark

When removing tray above vegetable

case, pull out the vegetable case rst and

then follow to remove the tray as above

details.

In case of attaching the tray and it does

not lock, make sure that you did not

attach the wrong tray.

Make sure that you don't attach the upper

side of the tray downward.

Removing

. Pull the case until

it reaches the end

of stopper.

. Raise up the front

of case a bit and

then completely

take out.

Attaching

. Keep the lid on

the vegetable case

lifting until case is attached.

. Raise it up and place case on both

supporters.

. Push the case until it reaches the end.

Table des matières

Autres manuels Panasonic Réfrigérateur

Panasonic

Panasonic NR-B32FX2 Manuel utilisateur

Panasonic

Panasonic Easy Take NR-B182W Manuel utilisateur

Panasonic

Panasonic NR-BW415XS Manuel utilisateur

Panasonic

Panasonic NR-BG341 Manuel utilisateur

Panasonic

Panasonic inverter NR-BW530X Manuel utilisateur

Panasonic

Panasonic NRA4UT1K - TRUCK REFRIGERATOR Instructions de montage

Panasonic

Panasonic NR-D700D Manuel utilisateur

Panasonic

Panasonic NR-BC36MS Series Manuel utilisateur

Panasonic

Panasonic NR-BR307 Manuel utilisateur

Panasonic

Panasonic Inverter NR-BW415X Manuel utilisateur

Panasonic

Panasonic NR-F610GT-N3 Manuel utilisateur

Panasonic

Panasonic NR-F654GT-X6 Manuel utilisateur

Panasonic

Panasonic NR-BN31AS1 Manuel utilisateur

Panasonic

Panasonic NR-B203G-S7 Manuel utilisateur

Panasonic

Panasonic NR-BX471G Manuel utilisateur

Panasonic

Panasonic NR-B591B Manuel utilisateur

Panasonic

Panasonic NR-BX41CGKAU Manuel utilisateur

Panasonic

Panasonic NR-BW414S Series Manuel utilisateur

Panasonic

Panasonic NR-B53V2 Manuel utilisateur

Panasonic

Panasonic NR-BN34EX1-E Manuel utilisateur

Panasonic

Panasonic NR-BL302 Manuel utilisateur

Panasonic

Panasonic NR-D511XS Manuel utilisateur

Panasonic

Panasonic NR-BD31ES1 Manuel utilisateur

Panasonic

Panasonic Inverter NR-BW415V Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
