Operating Instructions
Refrigerator
For Household Use
Model No.: NR-BV360
Contents
● Safety precautions.................................................................................................................. 2
● Usage precautions ................................................................................................................. 4
● Installation .............................................................................................................................. 6
.................................................................................................................. 7
● ECONAVI operation ............................................................................................................... 8

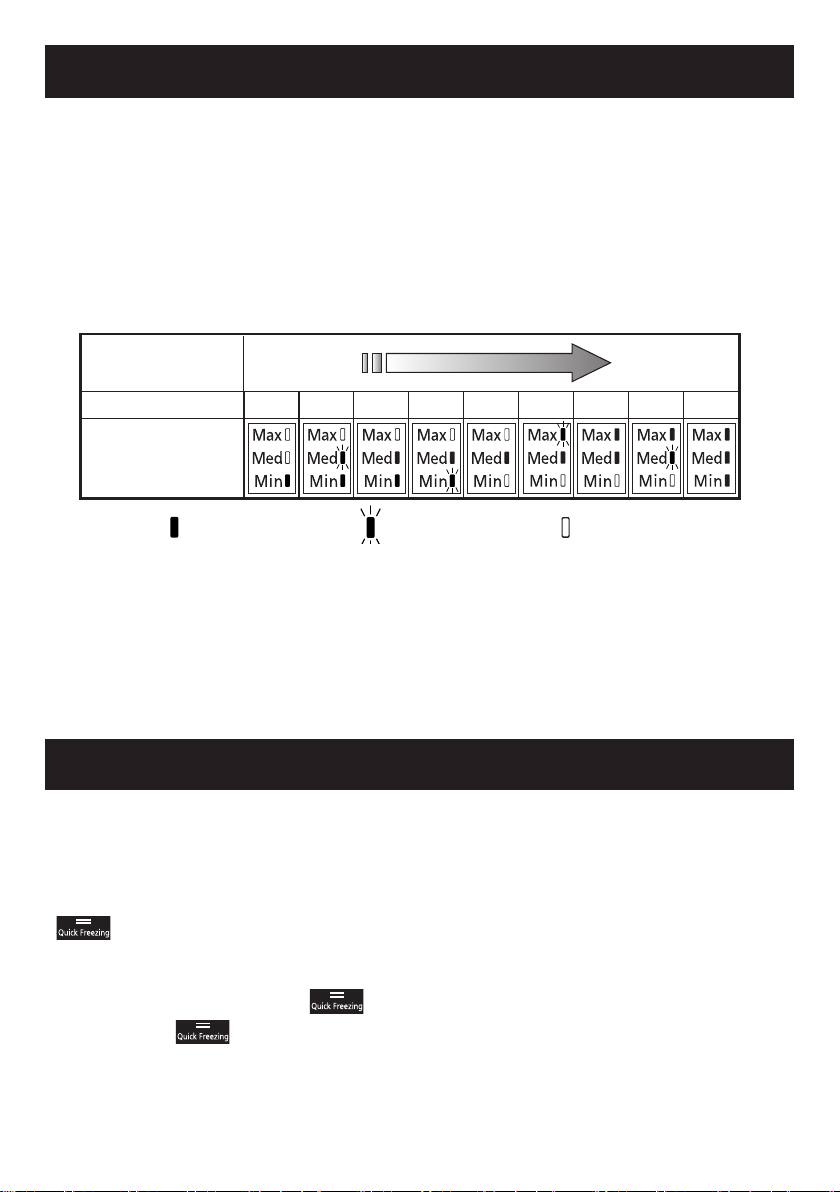

●Temperature control ............................................................................................................... 8
●Temperature control (Fine adjustment mode) ........................................................................ 9
● Quick Freezing ....................................................................................................................... 9

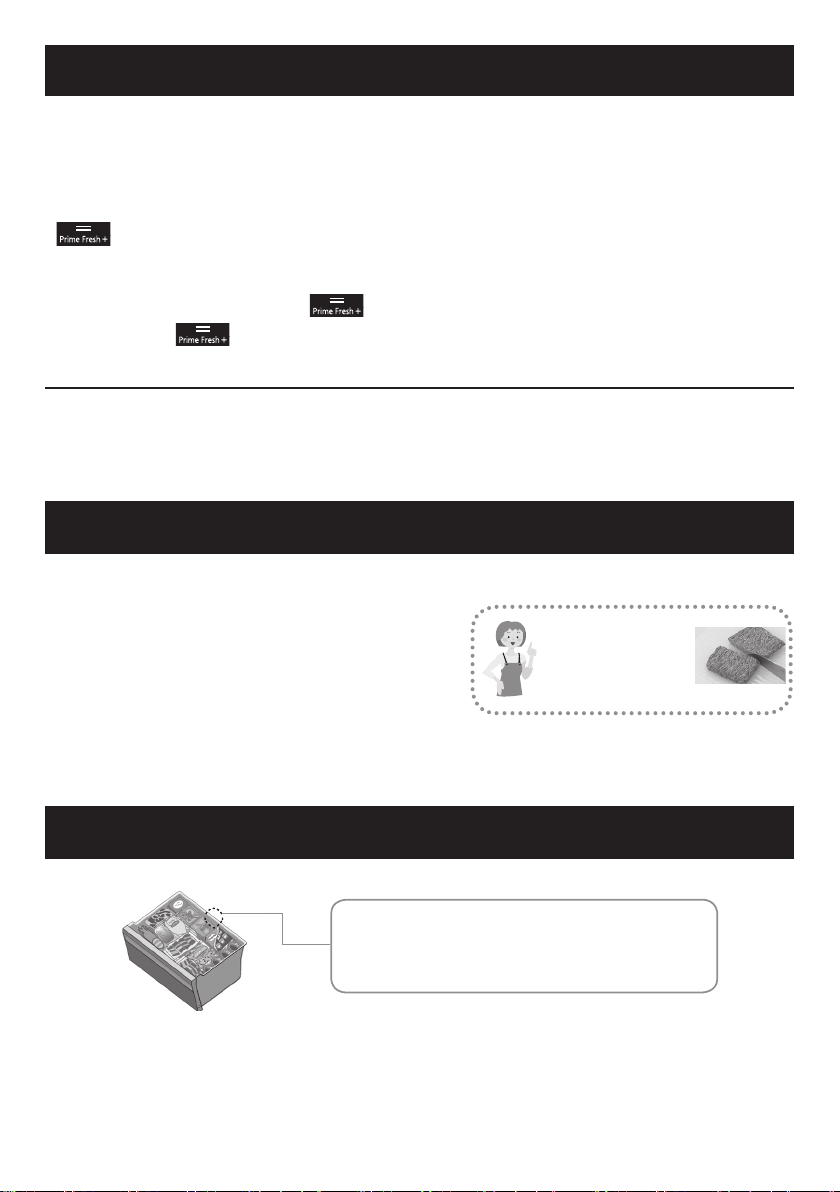

● Prime Fresh+ ....................................................................................................................... 10
● Prime Fresh room................................................................................................................. 10
● Food storage in the Freezer room........................................................................................ 10
● Usage tips ............................................................................................................................ 11
● How to clean the refrigerator................................................................................................ 12
●Troubleshooting.................................................................................................................... 14
....................................................................................................................... 15
Thank you for purchasing the Panasonic product.
•
Please read these instructions carefully and follow safety precautions on page 2-5 before using
this product.
• Please make sure the date and name of store of purchase are stamped in warranty card and
keep it with this operating instructions.
■NON-CFC
This unit uses totally NON-CFC MATERIALS bothfor refrigerant (R600a) and for
insulation (Cyclo-Pentane). So, this refrigerator does not damage the Earth’s ozone layer.
ARAH1E202320
P0420-0
Printed in Vietnam
Type: Q
AU
Safety precautions Please be sure to follow these instructions.
2
WARNING
WARNING
This sign means: It may lead to a serious
injury or death.
These signs mean prohibited
action.
This sign means required action.
This sign means the appliance must
be earthed to prevent electric shock.
CAUTION
This sign means: It may results in injury or
property damage.
Otherwise it may
cause a re, injury,
electrical shock.
When recycling the product...
● Before taking the refrigerator to be recycled, please remove all the
door opening seal to prevent locking a child in it.
● The warning labels mentioned above should be kept throughout the
life of the refrigerator.
● The operating instructions should be handed over to any person who
would use or handle the refrigerator whenever the refrigerator would
be transferred to another location and delivered to a recycling plant.
● Regarding to local laws, Cyclo-Pentane is used for insulation of this
refrigerator. When you throw away this unit, please discard it by proper
method and do not dispose it by burning.
For power plug and cord...
●Do not plug or unplug with wet hands.
●Do not let the cord or plug be damaged.
● Disconnect power plug when cleaning.
●Plug into a wall outlet of the rated voltage on its own with the rated
current and insert plug fully.
●Reserve one socket for the refrigerator only. Avoid connecting many
appliances to the same socket and unroll through the length of cord.
● Remove dust periodically from the power plug.
●If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.
● If you detect burning smell, disconnect the power plug and ventilate
the kitchen.
●Stop using the refrigerator and unplug the unit immediately if there is
an abnormality or failure.
Abnormality and failure examples:
- Power cord or plug is abnormally hot.
- Power cord is deeply cut or deformed.
- There is burning smell.
- You can feel tingling electricity.
iso-butane
Risk of re / ammable materials
3
In case of emergency...
● Maintenance work only be carried out at workshop by well-trained
maintenance worker.
●Do not store explosive substances such as aerosol cans with a ammable
propellant and chemicals or scientic specimens in the appliance.
●Do not use electrical appliances such as a deodorizer in the
refrigerator. Leaked refrigerant may catch re from a spark of the
electrical contacts and may cause an explosion.
●Do not use electrical appliances inside the food storage compartments
of the appliance, unless they are of the type recommended by the
manufacturer.
●Do not disassemble, repair or modify the refrigerator by yourself.
If you want to repair the refrigerator, please consult your dealer or
authorized service center.
●Do not use mechanical device or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
When using...
●Do not damage the cooling circuit (piping on the back).
●Do not touch the compressor and pipes, because of high temperature,
that there is a risk of burn injury.
●Do not let any children hang onto the refrigerator's door, it may
overturn to the kid.
●Do not place any water container on the top of the refrigerator in case
the spilling water causes electrical shock or combustion.
●Do not store explosive substances such as aerosol cans with a
ammable propellant in this appliance.
●This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
● Children should be supervised to ensure that they do not play with the
appliance.
WARNING
iso-butane
iso-butane
Otherwise it may
cause a re, injury,
electrical shock.
When installing...
● Fix the refrigerator to avoid
danger due to unbalance.
● When positioning the appliance,
ensure the supply cord is not
trapped or damaged.
● Ensure that the refrigerator
is plugged into an earthed
mains socket.

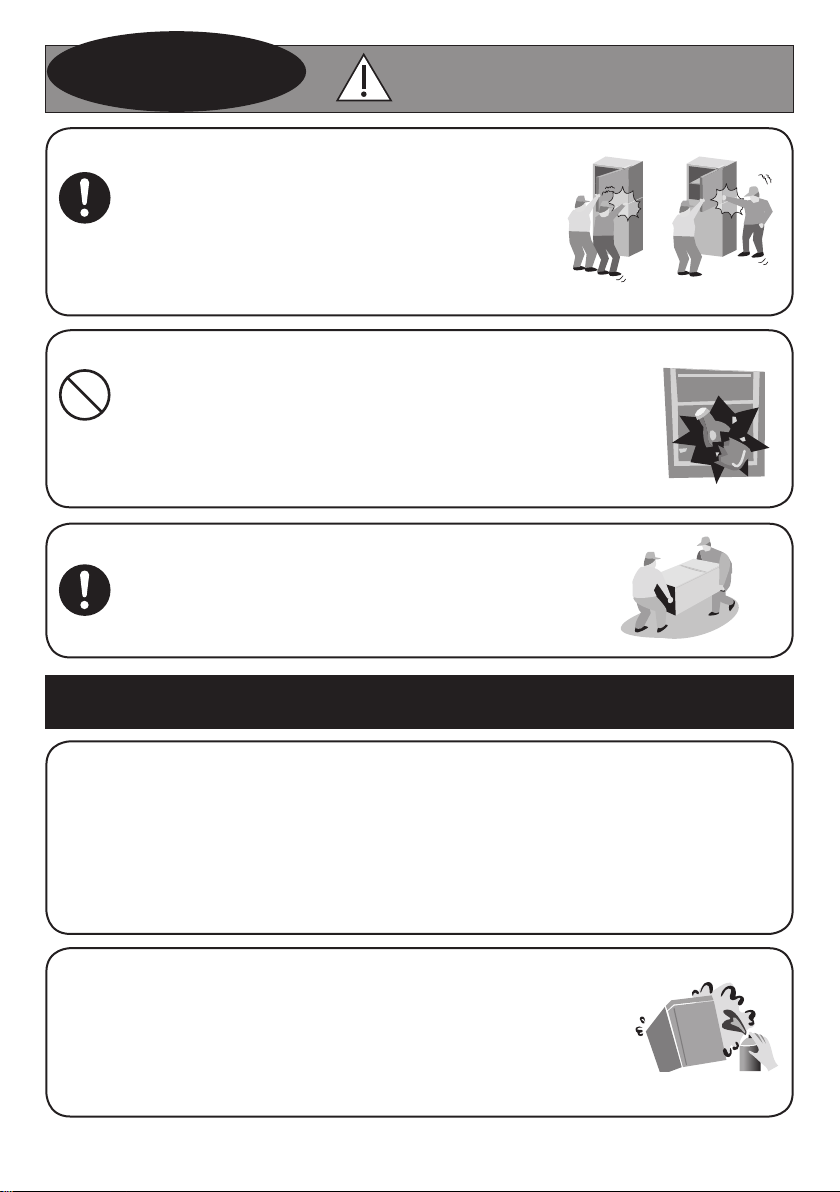

Usage precautions
4
When opening/closing the doors...
When moving the refrigerator...
When storing food...
CAUTION
● While opening the refrigerator, be careful not
to pinch other one's hand holding the door.
● Mind the gap between the doors. They may
nip your hand while closing the door.
●Do not freeze glass bottles, that there is a risk of injury.
(If the liquid in a glass bottle is frozen, then the bottle
may break and you may be injured.)
●Do not add a high impact on glass trays. (Otherwise
those glass trays may break and you may be injured.)
● Hold the refrigerator tightly when transporting.
● Apply protective covering, etc. to oors with a
fragile surface.
When opening/closing the doors...
●Do not refrigerate items which are bigger than tray or shelf, as the door will
not close completely causing leakage of cool air.
●Do not open refrigerator frequently or leave it open for long time in order to
prevent water dripping inside and waste energy.
● Frequently check the door opening seal, it must be closed to the refrigerator's
body completely.
When cleaning...
●Do not clean the refrigerator with chemical substance or
liquid. It will cause damage and have corrosion on the surface.
● Clean the pan water evap located over the compressor at
the back of the refrigerator every three months to prevent
the odour generated from humidity.
Otherwise it may cause
injury, accidents.
Usage precautions
SPECIAL FEATURE
1) ECONAVI
The microchip performing ECONAVI mode is integrated into the main control board. By
detecting refrigerator's frequency of use (opening and closing of door), ECONAVI mode
automatically operates to save energy.
2) INVERTER
In accordance with temperature change inside the compartment, the motor of compressor
runs at different speed. When the temperature is stable, the motor runs at a lower speed
(energy saving & lower noise). When powerful cooling is required, the motor runs at a
higher speed.
5

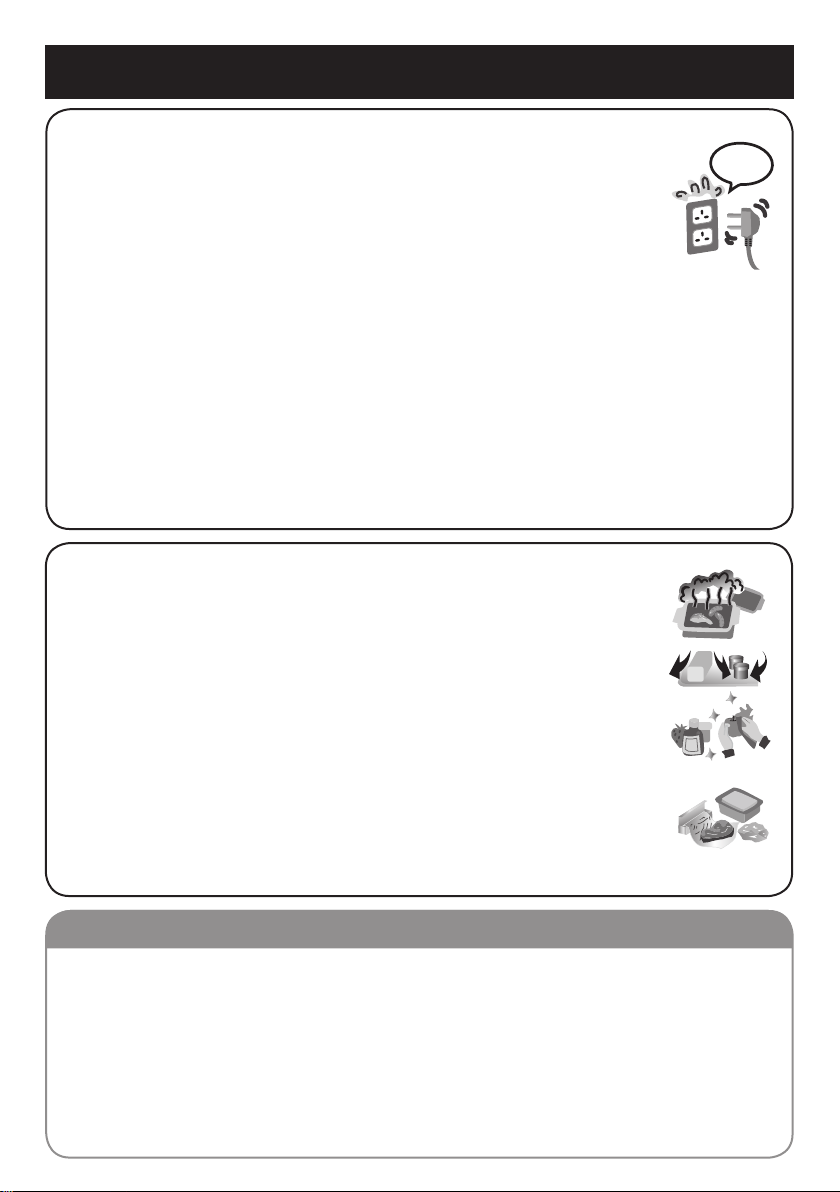

When storing food...
●Do not place warm/hot foodstuff in the refrigerator.
●Do not overload the refrigerator. Gap must be provided
between foodstuffs to maintain the cooling effect.
● Store fruits and vegetables in vegetable case, where trapped
moisture helps preserve food quality for longer time periods.
● Drinking water, beverage bottles should be sealed to prevent
odor contamination.
● Foodstuff such as vegetable, fruits and fresh food should be
wrapped or pack in box before freezing and refrigerating.
● Put the food such as meat or sh in the freezer if you want to
store for an extended period.
● Cover juicy food with tight lids, plastic lm or foil.
●Cool hot dishes in room temperature before placing them in your refrigerator.
When using...
● When the plug is disconnected, leave it for 5 minutes before
plugging again. If not, the compressor may not work.
● Adjust the temperature according to the actual operating
condition for energy saving.
● The humidity inside the fresh case may condense so wipe it
with a cloth periodically. Clean the fresh case once a month.
● If you will not be at home for several days and there are nothing refrigerated
in the refrigerator, the plug should be disconnected for energy saving.
● The outside wall of refrigerator cabinet may sometimes get warm, especially
just after installation. This is quite normal, and is due to the built-in Mullion
Dryer Pipe which prevents sweating and radiates heat.
● When humidity is high, e.g. during rainy-season, condensation may appear
on the surface of cabinet, especially around the door seal gasket. Wipe off
the condensed water with a clean cloth.
●Do not keep the door open any longer than necessary, particularly in hot,
humid weather.
5 mins

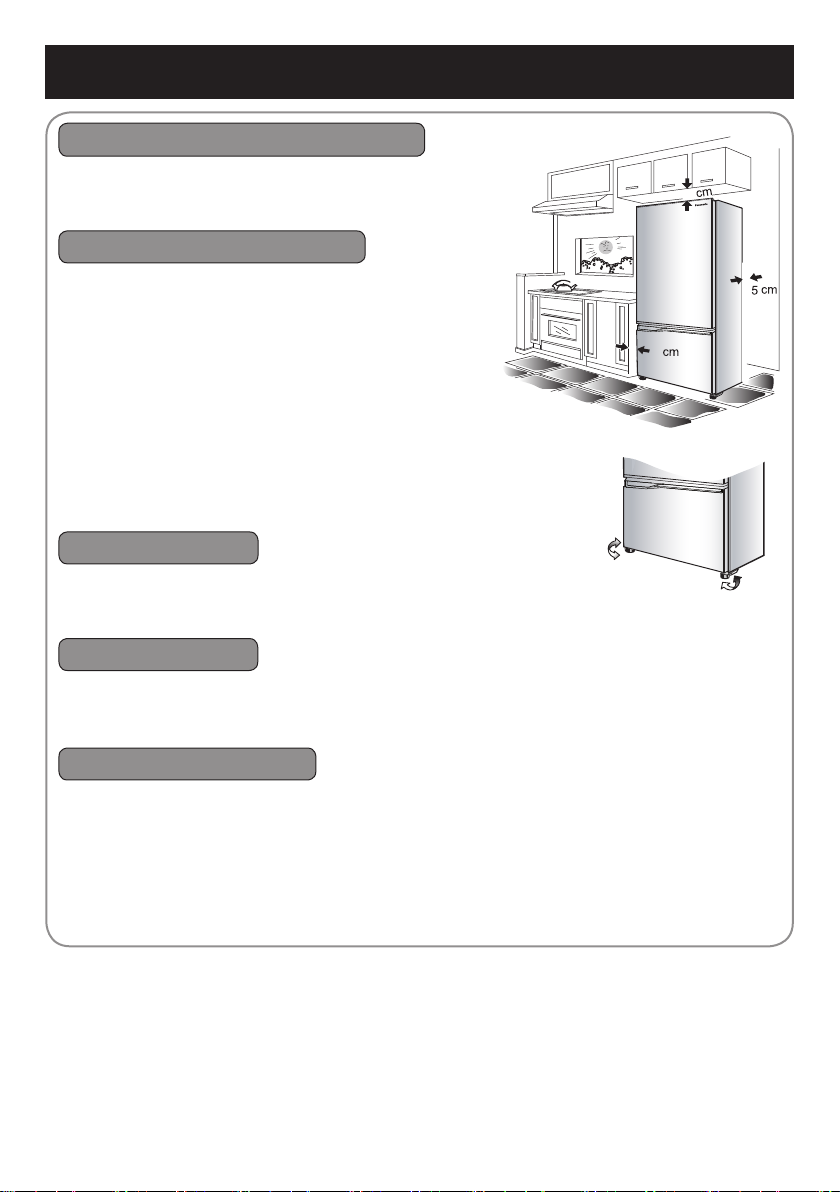

Installation
The distance requested for installation
●The top of the refrigerator and the ceiling at least 1.5 cm.
●The back of the refrigerator and the wall at least 5 cm.
●The sides of the refrigerator and the walls at least 3 cm.
Area around the installed unit
●Do not locate the refrigerator in a humid place as rust
may form and may cause electric leakage.
●Do not locate the refrigerator exposing to direct
sunlight as the heat and sunlight will increase the
temperature.
●Do not locate the refrigerator near heat source such
as cooking stove or oven.
●Do not block the openings around the refrigerator.
●The refrigerator must be located in the place where there is good
air circulation.
●In case of placing the refrigerator on an uneven surface, adjust the
adjustable bolt to make the refrigerator stands stably.
Moving or shifting
●When moving or shifting the refrigerator, remove ice maker, freezer
case, pan water evap, etc. and check to be sure that there is no
water in the refrigerator.
Power cord setting
●To bring power cord for use, pan water evap from left should be lifted up. Then bring the
power cord out and then insert pan water evap into the block by pressing at both the
sides.
LED lamp and grounding
●The refrigerator LED lamp, specially designed for this refrigerator, does not function on
individual replacing.
If you need replacement, please contact Panasonic Service Center.
●If there is no grounding wiring plug in refrigerator, it should be connected with grounding
connection to prevent electrical hazard from electric leakage.
6
3
1.5

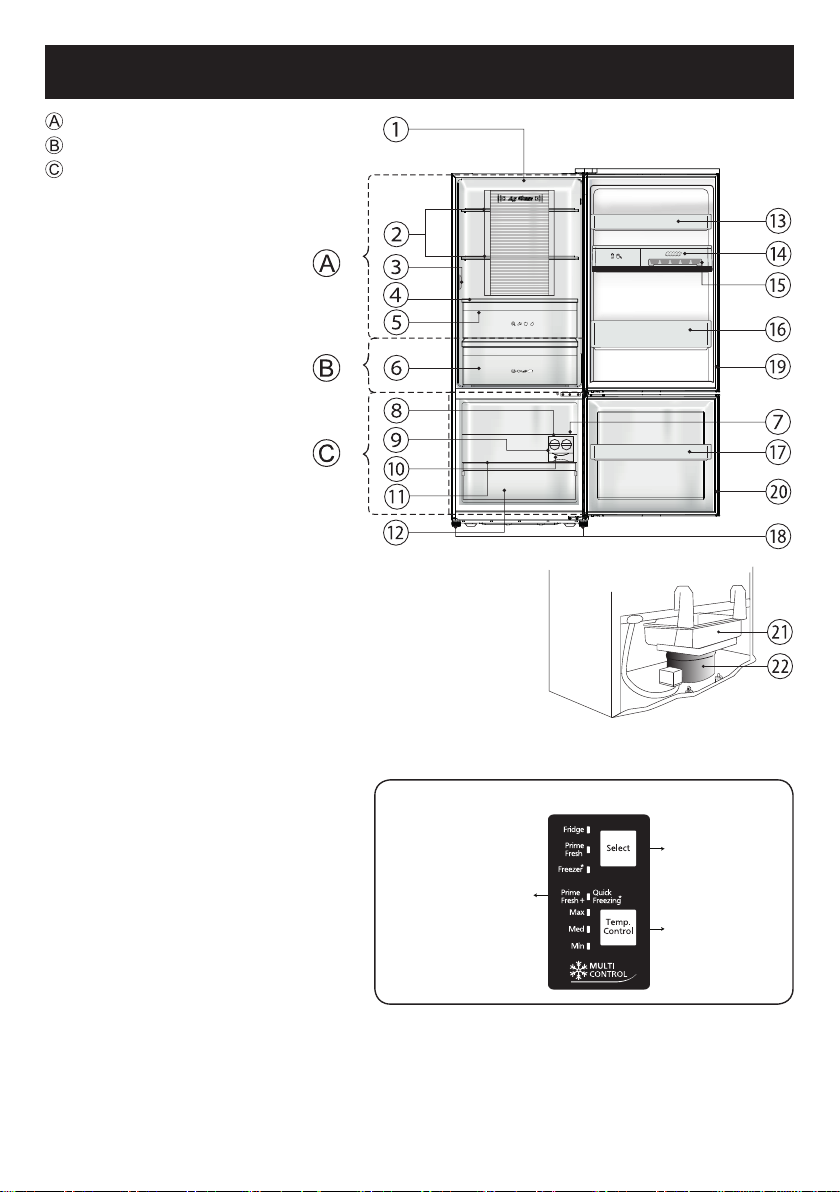

Parts identication
FRIDGE ROOM
PRIME FRESH ROOM
FREEZER ROOM
1 LED Lamp
2 PC Glass tray
3 Control Panel
4 Glass tray crisper
5 Vegetable case
6 Prime Fresh case
7 1-2 Glass tray
8 Ice maker
9 Ice cube tray
0 Ice box
a FC Glass tray
b Freezer case
c Egg shelf
d Utility box
e Egg tray
f Bottle shelf
g Shelf FC
h Adjustable bolt
i Gasket PC
j Gasket FC
k Pan water evap
l Compressor
3Control Panel
Quick Freezing
and Prime Fresh+
LED light (P.9)
Fridge control
button (P.8)
Freezer control
button (P.8)
7
Product view from behind
Temperature control
The temperature can be adjusted for Min - Max levels. Press “Select” to select the area to
control the temperature: Fridge, Prime Fresh, Freezer. After that, press “Temp Control” to set
the temperature level.
“Fridge”
“Max” lower than “Med” by 2°C ~ 3°C
“Med” approx. 1°C ~ 6°C
“Min” higher than “Med” by 2°C ~ 3°C
“Prime Fresh”
“Max” lower than “Med” by 2°C ~ 3°C
“Med” approx. -5°C ~ -1°C
“Min” higher than “Med” by 2°C ~ 3°C
“Freezer”
“Max” lower than “Med” by 2°C ~ 3°C
“Med” approx. -23°C ~ -17°C
“Min” higher than “Med” by 4°C ~ 5°C
Remark:
While operating the refrigerator for the rst time, after connecting the plug, adjust the
temperature to “Med” position of each control and leave it for 24 hours for the effective cooling
operation. After that, adjust the temperature as you prefer. If you want to save energy, do not
adjust the temperature lower than the actual operating condition.
ECONAVI operation
Detect opening and closing of door and brightness around refrigerator, and automatically
controls operation to save energy1.
ECONAVI operation
●This refrigerator will learn the lifestyle patterns of your family from opening and the time
periods of infrequent use to perform ECONAVI operation.
●The refrigerator learns your lifestyle pattern from the previous 3 weeks, and uses what it has
learned from the 4th week onwards.
Setting for enabling ECONAVI operation
●ECONAVI operation is enabled automatically only when the temperature control of the
Freezer room is set to “Med”.
●However, ECONAVI does not operate while “Quick Freezing” or “Prime Fresh+” mode is
operating.
●It is not possible to forcefully start ECONAVI operation.
Remark:
1 Effectiveness differs depending on the ambient temperature, ambient brightness,
number of times and when doors are opened and closed, and state in which food is
stored.
8
Quick Freezing
Temperature control (Fine adjustment mode)
The refrigerator is specially designed for approriate use, which can adjust the temperature
level to detailed 9 levels with the following details.
How to operate the ne adjustment mode
For the Freezer room
1.
Press the button “Select” until LED “Freezer” turns on
.
2. Set LED display to “Min” with the “Temp. Control” button.
3. Press and hold the “Temp. Control” button (for a few seconds) until the LED display
return to show at “Med” position.
4.
Set “9 levels” mode following below table mentioned by pressing the “Temp. Control” button.
LED Display table
For the Fridge room
Operate above 1 ~ 4 steps with selecting “Fridge” area instead of “Freezer” area.
To reset the setting ne adjustment mode
Repeat step 1 ~ 3, then the refrigerator return to normal operation mode.
Remark:
●Prime Fresh room does not have ne adjustment mode.
●Temperature control varies depend on the changing of environment and food storage quantity.
1 2 3 4 5 6 7 8 9
1 2 3 4 5 6 7 8 9
Cooling level Minimum Maximum
Lighting Blinking Not lighting
LED Display
Levels
9
How to operate the “Quick Freezing” mode
●Press the button “Select” until blue light LED “Freezer” turns on, then press
“Temp Control”
until blue light LED
“Quick Freezing” turns on. “Quick Freezing” mode starts after 10 seconds.
Remark:
●If you want to stop the operation immediately, repeat the procedure until blue light LED
turns off.
●The system will stop the operation automatically when it runs for 60 mins (as ambient
temperature is below 18oC) or 150 mins (as ambient temperature is above 18oC) and return
to normal mode (blue light LED turns off.)
●Blue light LED ashing means that the defrosting system is now working. “Quick
Freezing” mode will start right after the defrosting operation is nished.
Remark:
When “Prime Fresh+” mode is active, if you set the “Quick Freezing” mode, the “Prime Fresh+” mode will
stop and fridge activates “Quick Freezing” mode and vice versa.
How to operate the “Prime Fresh+” mode
●Press the button “Select” until blue light LED “
Prime Fresh
” turns on, then press
“Temp Control”
until blue light LED
“
Prime Fresh+
” turns on.
Remark:
●If you want to stop the operation immediately, repeat the procedure until blue light LED
turns off.
●The system will stop the operation automatically when it runs for 105 mins (as ambient
temperature is below 18oC) or 150 mins (as ambient temperature is above 18oC) and return
to normal mode (blue light LED turns off.)
●Blue light LED ashing means that the defrosting system is now working. “Prime
Fresh+” mode will start right after the defrosting operation is nished.
Prime Fresh+
Prime Fresh room
●This room is suitable for storing fresh food such as meat or sh.
Compared to storing in the Fridge room, the storage life of meat or sh becomes longer.
●When food is frozen too much...
Sliced raw sh or meat may be frozen too much.
Set the temperature control to “Min” to prevent food
from over frozen.
●When food is not partially-frozen...
Depending on the type of food such as a block of meat or a large sh, the storage conditions
and the ambient temperature, food may not be partially-frozen as it intended. Set the
temperature control to “Max”.
Easy to cut.
The partially-frozen
food is easy to cut!
It comes in handy.
Freezer case
Maximum storage
If the stored food exceeds edge of container,
the freezer door can not close completely and
the room may become frosted.
Food storage in the Freezer room
10
Table des matières
Autres manuels Panasonic Réfrigérateur
Panasonic
Panasonic NR-D511XS Manuel utilisateur
Panasonic
Panasonic NR-BN31AW1 Manuel utilisateur
Panasonic
Panasonic NR-B32FX2 Manuel utilisateur
Panasonic
Panasonic NR-BY55BPS Manuel utilisateur
Panasonic
Panasonic D-R Series Manuel utilisateur
Panasonic
Panasonic NR-B30FW1 Manuel utilisateur
Panasonic
Panasonic NR-B32SX1 Manuel utilisateur
Panasonic
Panasonic NR-BW414S Series Manuel utilisateur
Panasonic
Panasonic NR-B30FG1-WB Manuel utilisateur
Panasonic
Panasonic NR-BY552 Manuel utilisateur
Panasonic
Panasonic NR-BX41CGKAU Manuel utilisateur
Panasonic
Panasonic NR-C703M Manuel utilisateur
Panasonic
Panasonic NR-BC752VSAE Manuel utilisateur
Panasonic
Panasonic NR-BW414 Series Manuel utilisateur
Panasonic
Panasonic NR-TV341B Manuel utilisateur
Panasonic
Panasonic NR-BT223 SERIES Manuel utilisateur
Panasonic
Panasonic NR-BN30PGW Manuel utilisateur
Panasonic
Panasonic EverVolt Standard EVAC-105-4 Supplément
Panasonic
Panasonic Inverter NR-BW415V Manuel utilisateur
Panasonic
Panasonic NR-BC40SSX1 Manuel utilisateur
