Order Number VESR110701CE

REFRIGERATOR-FREEZER

Model No. NR-B32SX1

Model No. NR-B32SG1

Model No. NR-B32SW1

Product-Color X:Stainless

G:Inox-look

W:White

Destination E(Europe Continental) except France

F(France)

TABLE OF CONTENTS

PAGE PAGE

1 Safety Precautions----------------------------------------------- 2

2 Specifications ----------------------------------------------------- 5

3 General/Introduction -------------------------------------------- 6

4 Technical Descriptions ----------------------------------------- 8

5 Location of Controls and Components ------------------12

6 Installation Instructions ---------------------------------------14

7 Operating Instructions-----------------------------------------16

8 Service Mode -----------------------------------------------------20

9 Troubleshooting Guide --------------------------------------- 24

10 Disassembly and Assembly Instructions--------------- 27

11 Measurements and Adjustments -------------------------- 71

12 Dimensions ------------------------------------------------------- 74

13 Schematic Diagram -------------------------------------------- 75

14 Exploded View and Replacement Parts List ----------- 76

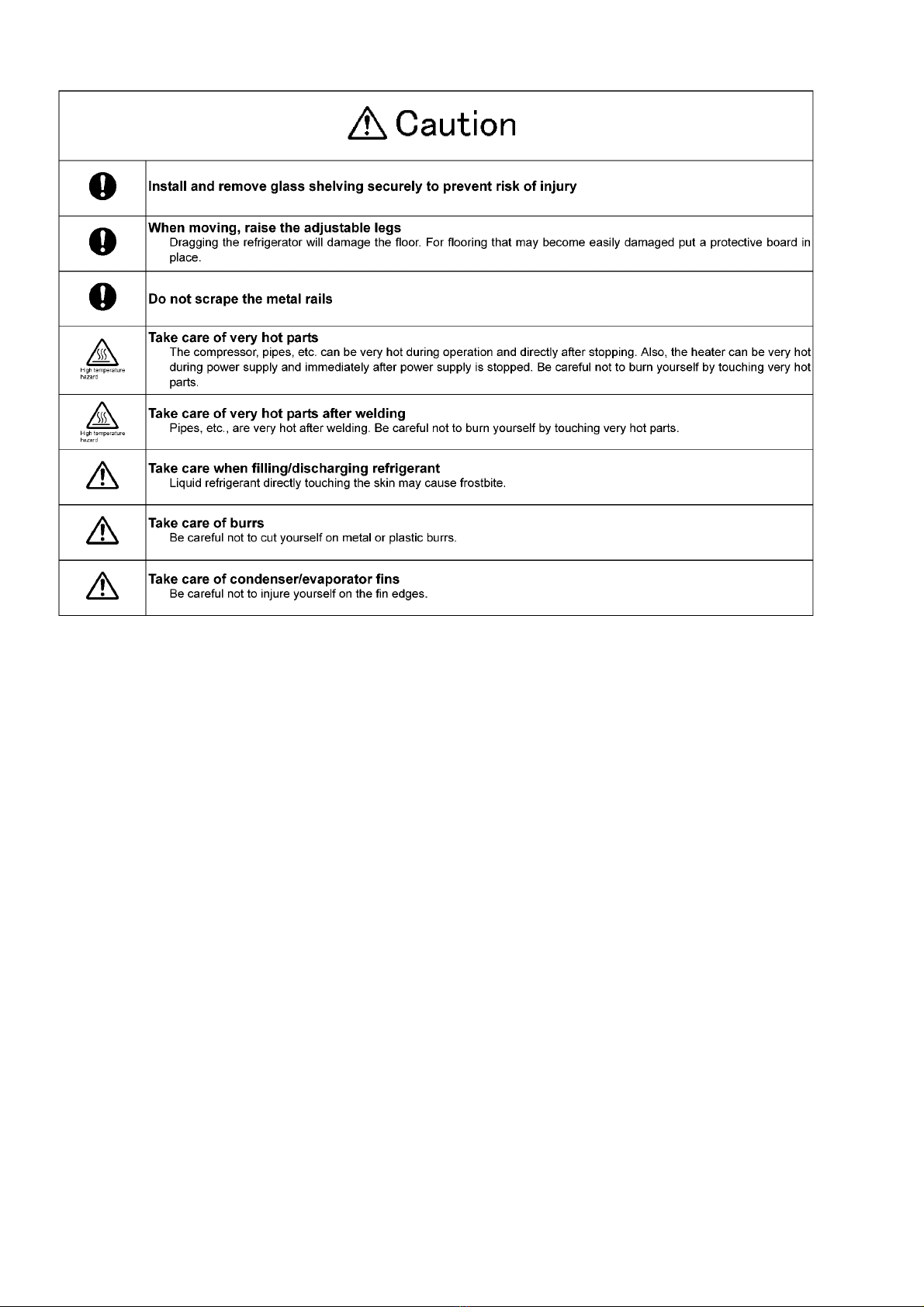

1 Safety Precautions

2 Specifications

Name Plate

Model NR-B32SX1 NR-B32SG1 NR-B32SW1

Product color stainless Inox-look white

Rating volume capacity Rating volume capacity 335L(Net:321)

Refrigerator compartment ( PC ) 235L

Freezer compartment ( FC ) 86L

External dimensions width/ depth/ height (mm) 600 x 652 x 1,866

PC: width/ depth/ height (mm) 600 x 652 x 1,077

FC: width/ depth/ height (mm) 600 x 652 x 747.5

Installaion size side : 20 mm or above

back : 40 mm or above

top : 150 mm or above

Power supply plug Rating Schuko: 250V 16A --- British: 250V 13A

Power supply code Length 2.1m (Total)

Interior lamp Rating 15W

IEC protection against electric shock classes Class I

Climate Class T

Refrigerator compartment sensor PCC B-value: B(25/100) 3560 K ± 1.0 %

Resistance at 25 C = 2093 Ohm

Freezer compartment sensor FCC

Ambient temperature sensor ATC

Defrost temperature sensor DFC

Compressor Type hermetic

Model HXK95AA

Rotation speed 3000 rpm

Overlord relay Model AE 18Fu x

Operating temperature

Return Temperature

Operating current (A)

Fan motor ( for Freezer compartment ) Model/Rating BG2012 55310 08051

Dumper Model/Rating NSBC000ZA1, 12VDC, 300p/s

Defrost heater Rating / Voltage 220V 159W 230V 174W 240V 189W

Thermal fuse Rating 250V 10A 77C

Oil charge 165cc(HXK95AA)

Ice making ability*1 2.65 kg/24h

Freezing ability*2 13kg/24h(25C)

Amp. Rating 0.6A

Values of the energy consumption*3 0.878kwh/24h

Energy efficiency grade 4 star

Refrigerant charge R600a,58gr

Measurement of exterior noise emit-

ted*4

46dbA

Form polyurethane Cyclo pentane

Weight ( Kg ) Without Packaged 74

With Packaged 79

3 General/Introduction

3.1. Flow of Refrigerant

3.2. Flow of Air

3.2.1. Inside the Fridge 3.2.2. Flow of Air Through Air Ducts

(Front view)

4 Technical Descriptions

4.1. Setting the temperature

4.1.1. Freezer compartmen

At the time of purchase, the temperature is set to -18 C.

Press (left) once and then press it again within 1 second.

The temperature can be set.

Press (left) repeatedly until the desired temperature is set.

If no operation is performed for 1 second during the setting process, the indicators will flash and a beep will be heard indicating that

the temperature is now set.

Note : When Holiday Mode, Super Freeze Mode, Super Cool Mode, or Eco Mode ends or is cancelled, the unit returns to its previ-

ous settings.

* If AT sensor > 45C , -22 and -24 will not settable.

* If user sets the temperature to -22 or -24 and AT increases above 45C after this ;set value setting will be change to -20 automat-

icaly.

FREEZER SECTION

ADJUSTED SET

VALUES ON

DISPLAY

COMPRESSOR

ON VALUES

COMPRESSOR

OFF VALUES

ADJUSTED SET

VALUES ON

DISPLAY

COMPRESSOR

ON VALUES

COMPRESSOR

OFF VALUES

-16C-13C-17C-21C-18C-22C

-17C-14C-18C-22C-19C-23C

-18C-15C-19C-23C-20C-24C

-19C-16C-20C-24C-21C-25C

-20C-17C-21C

Temperature difference between compressor off and on action is 4C

4.1.2. Fridge compartment

At the time of purchase, the temperature is set to 4 C.

Press (right) once and then press it again within 1 second.

The temperature can be set.

Press (right) repeatedly until the desired temperature is set.

If no operation is performed for 1 second during the setting process, the indicators will flash and a beep will be heard indicating that

the temperature is now set.

Note : When Holiday Mode, Super Freeze Mode, Super Cool Mode, or Eco Mode ends or is cancelled, the unit returns to its previ-

ous settings.

Fridge set values changes according to AT sensor.

a) If AT Sensor < 18 C;

Fan and compressor aren`t working together.

b) If 18 C < AT Sensor < 24 C

Fan and compressor aren`t working together.

FRIDGE SECTION

ADJUSTED SET

VALUES ON

DISPLAY

DAMPER ON

VALUES

DAMPER OFF

VALUES

ADJUSTED SET

VALUES ON

DISPLAY

DAMPER ON

VALUES

DAMPER OFF

VALUES

8 C 10 C8C4C6C4C

7 C9C7C3C5C3C

6 C8C6C2C4C2C

5 C7C5C

FRIDGE SECTION

ADJUSTED SET

VALUES ON

DISPLAY

DAMPER ON

VALUES

DAMPER OFF

VALUES

ADJUSTED SET

VALUES ON

DISPLAY

DAMPER ON

VALUES

DAMPER OFF

VALUES

8 C11C9C4C7C5C

7 C 10 C8C3C6C4C

6 C9C7C2C5C3C

5 C8C6C

c) If 24 C AT Sensor < 32 C

If 24C AT Sensor < 32C and freezer is set to -17C or colder and cooler is set to 4C or warmer, then fan and compressor

works together.

In other cases, Fan and compressor aren`t working together.

IMPORTANT FUNCTION:

If compressor works in together with fan for 1 hour and cooler compartment still can’t reach damper close value, damper-fan-

compressor will work separately until cooler compartment reaches damper close value. When it reaches to this value, they

return to working together again. (separate working is explained below)

d) If 32 C < AT Sensor < 43 C

Fan and compressor aren`t working together.

e) If AT Sensor > 43 C

Fan and compressor aren`t working together.

FRIDGE SECTION

ADJUSTED SET

VALUES ON

DISPLAY

DAMPER ON

VALUES

DAMPER OFF

VALUES

ADJUSTED SET

VALUES ON

DISPLAY

DAMPER ON

VALUES

DAMPER OFF

VALUES

8 C 12 C 10 C4C8C6C

7 C11C9C3C7C5C

6 C 10 C8C2C6C4C

5 C9C7C

FRIDGE SECTION

ADJUSTED SET

VALUES ON

DISPLAY

DAMPER ON

VALUES

DAMPER OFF

VALUES

ADJUSTED SET

VALUES ON

DISPLAY

DAMPER ON

VALUES

DAMPER OFF

VALUES

8 C 13 C11C4C9C7C

7 C 12 C 10 C3C8C6C

6 C11C9C2C7C5C

5 C 10 C8C

FRIDGE SECTION

ADJUSTED SET

VALUES ON

DISPLAY

DAMPER ON

VALUES

DAMPER OFF

VALUES

ADJUSTED SET

VALUES ON

DISPLAY

DAMPER ON

VALUES

DAMPER OFF

VALUES

8 C 14 C 12 C4C 10 C8C

7 C 13 C11C3C9C7C

6 C 12 C 10 C2C8C6C

5 C11C9C
