Panasonic WV-Q119 Manuel utilisateur

Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use.

The model number is abbreviated in some descriptions in this manual.

Operating Instructions

Included Installation Instructions

Wall Mount Bracket

Model No. WV-Q119

FRANÇAIS ENGLISH

Contents

Preface .......................................................................................................................................... 3

Precautions ................................................................................................................................... 3

Precautions for installation............................................................................................................ 4

Places of installation...................................................................................................................... 5

Installation ..................................................................................................................................... 6

Specifications.............................................................................................................................. 11

Standard accessories.................................................................................................................. 11

ENGLISH VERSION

This bracket is designed to be mounted on a wall. Refer to the catalog or operating instructions of

the camera for further information about the compatible models.

A combination camera will be installed after attaching this wall bracket to a concrete or other sturdy

wall.

Preface

Precautions

Refer installation work to the dealer.

Installation work requires technique and experi-

ences.

Failure to observe this may cause fire, electric

shock, injury, or damage to the product.

Be sure to consult the dealer.

Avoid installing this bracket in the loca-

tions where salt damage occurs or corro-

sive gas is produced.

Otherwise, the mounting portions will deterio-

rate and accidents such as a fall of this product

may occur.

The screws and bolts must be tightened

with the specified torque.

Loosening of mounting screws or bolts may

cause a fall of the product resulting in injury or

accidents.

Do not use this bracket except with suit-

able cameras.

Failure to observe this may cause a drop result-

ing in injury.

Select an installation area that can sup-

port the total weight.

Selecting an inappropriate installation surface

may cause this product to fall down or topple

over, resulting in injury or accidents.

Installation work shall be started after sufficient

reinforcement.

Do not rub the edges of metal parts with

your hand.

Strong rubbing may cause injury.

Periodic inspections shall be conducted.

Rust on the metal parts or screws may cause a

fall of the product resulting in injury or acci-

dents.

Consult the dealer for the inspections.

The measures of protection against a fall

of this product shall be taken.

Failure to observe this may cause a drop result-

ing in injury or accidents.

Be sure to install the safety wire.

The exclusively designed mount bracket

shall be used.

Failure to observe this may cause a drop result-

ing in injury or accidents.

Use the exclusively designed mount bracket for

installation.

Do not install this product in locations

subject to vibration.

Loosening of mounting screws or bolts may

cause a fall of the product resulting in injury or

accidents.

Do not strike or give a strong shock to this

product.

Failure to observe this may cause fire or injury.

Install this product in a location high

enough to avoid people and objects from

bumping the product.

Failure to observe this may cause injury.

Do not hang down from this product or

use this product as a pedestal.

Failure to observe this may cause a drop result-

ing in accidents.

ENGLISH

Precautions for installation

Panasonic assumes no responsibility for injuries or property damage resulting from fail-

ures arising out of improper installation or operation inconsistent with this documenta-

tion.

The installation should comply with local

electrical code.

This product is designed to be used

indoors.

This product is not operable outdoors.

Do not expose this product to direct sunlight

for hours and do not install the product near a

heater or an air conditioner.

Otherwise, it may cause deformation, discolor-

ation and malfunction. Keep this product away

from water and moisture.

Do not use this bracket except with suit-

able cameras.

Installation area for this product

Make sure that the installation area is strong•

enough to hold the total weight of the cam-

era assembly before installation.

Do not mount the product on a plaster•

board or a wooden section because they

are too weak. If the product is unavoidably

mounted on such a section, the section

shall be sufficiently reinforced.

Do not place this product in the following

places:

Locations where it may get wet from rain or•

water splash (including under the eaves,

etc.)

Locations where a chemical agent is used•

such as a swimming pool

Locations subject to moisture or oil smoke•

such as a kitchen

Locations that have a specific environment•

that is subject to an inflammable atmo-

sphere or solvents

Locations where a radiation, an X-ray, a•

strong radio wave or a strong magnetic field

is generated

Locations where corrosive gas is produced,•

locations where it may be damaged by

briny air such as seashores

Locations where the temperature is not•

within the specified range (–10 °C to +55 °C

{14 °F to 131 °F})

Locations subject to vibrations, such as on•

vehicles, marine vessels, or above product

lines (This product is not designed for on-

vehicle use.)

Locations subject to condensation as the•

result of severe changes in temperature

Mounting method for this product

This product is designed to be used as a pen-

dant mount camera. If the product is mounted

on a desktop or at a slant, it may not work cor-

rectly and its lifetime may be shortened.

Procure fixing screws separately.

Screws for mounting this bracket are not sup-

plied.

Prepare them according to the material and

strength of the area where the product is to be

installed.

Required screws: M4 (4 pcs.)•

Minimum pull-out strength:• 196 N {44 lbf}

Screw tightening

The screws and bolts must be tightened•

with an appropriate tightening torque

according to the material and strength of

the installation area.

Do not use an impact driver. Use of an•

impact driver may damage the screws or

cause tightening excessively.

●When using a two-gang junction box

●When installing on a wall with high

strength

Two-gang junction box

(manufactured by Panasonic)

Cable running

Wall

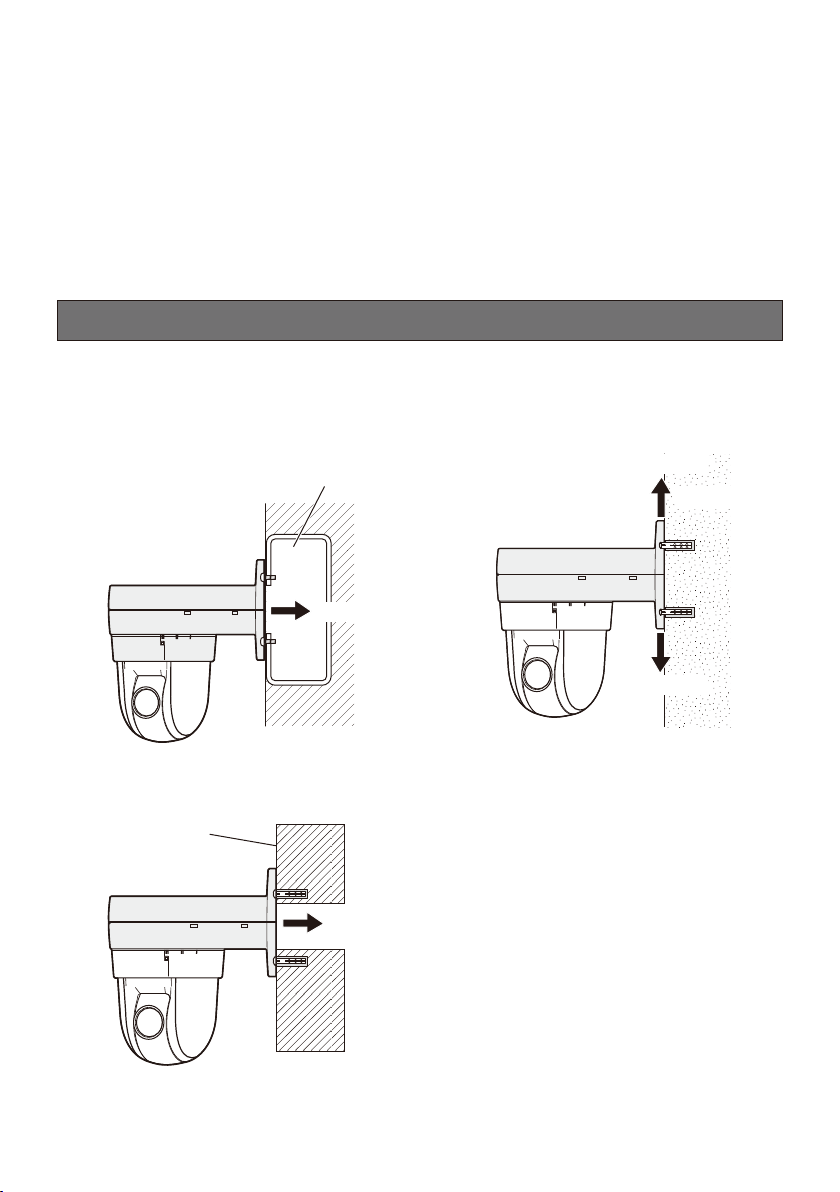

Places of installation

There are various ways of installing the camera as shown below.

When a screw is tightened, make the screw•

at a right angle to the surface. After tighten-

ing the screws or bolts, perform checks to

ensure that the tightening is sufficient

enough so that there is no movement or

looseness.

Make sure to remove this product if it will

no longer be used.

●When installing on concrete wall

Concrete slab

Cable running

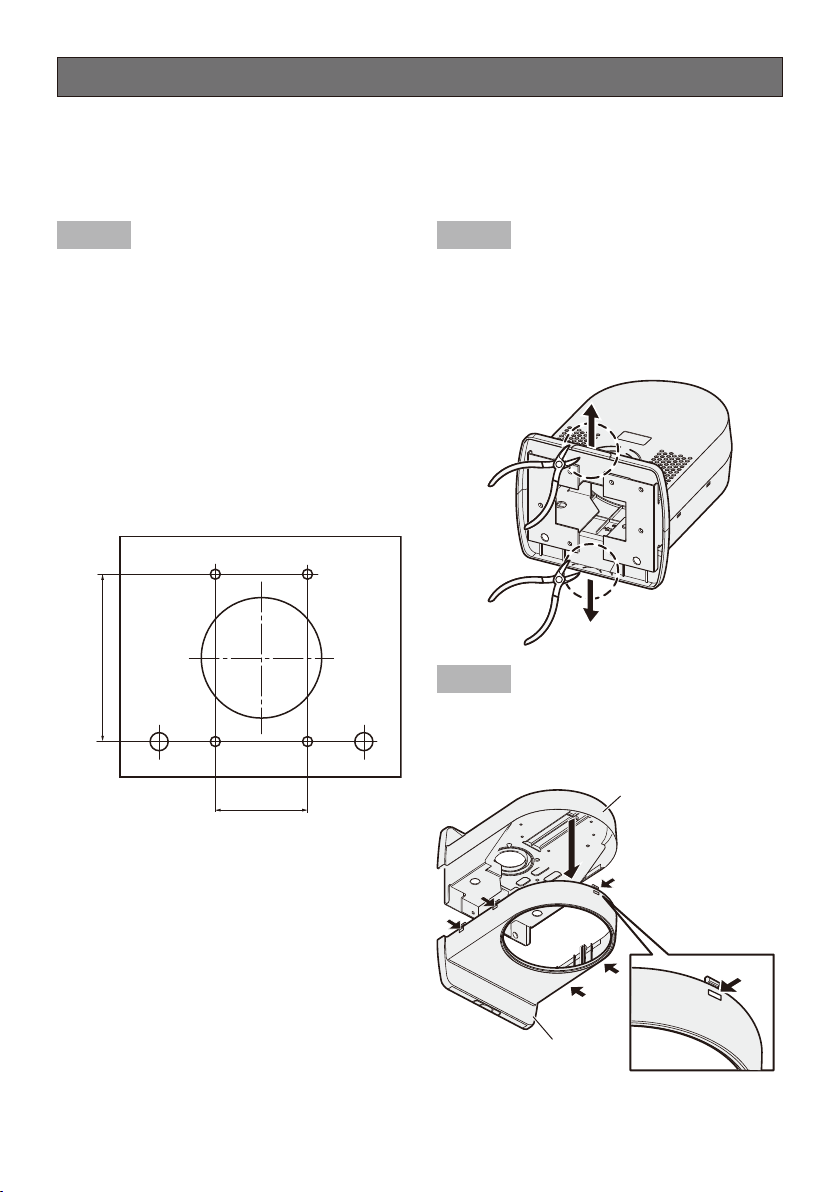

Step 2

When connection is performed without drilling

the wall for cable installation, cut off the notch

marked with a circle drawn with a dotted line

on the upper or lower case with a nipper for

cable installation.

Step 3

Remove the lower case of the main unit. The

case can be removed by pulling down it while

pressing the ribs (5 points) marked with arrows.

Upper case

Lower case

Step 1

Put the template (accessory) against the wall

and mark the positions of fixing screws (M4, to

be separately purchased) and the hole through

which the cables are laid.

If cables are routed inside the wall, bore a hole

through the wall.

Drill 4 holes on the wall to secure it with M4

screws. The hole diameter shall be decided in

accordance with the specifications of the

screws and anchors to be used. When the

cables are laid inside the wall, drill a hole

through the wall for cable installation.

83.5 mm

{3-9/32 inches}

46 mm

{1-13/16 inches}

Be sure to read “Precautions” and “Precautions for installation” before installation. Read the operat-

ing instructions for the camera to be installed as well.

Installation

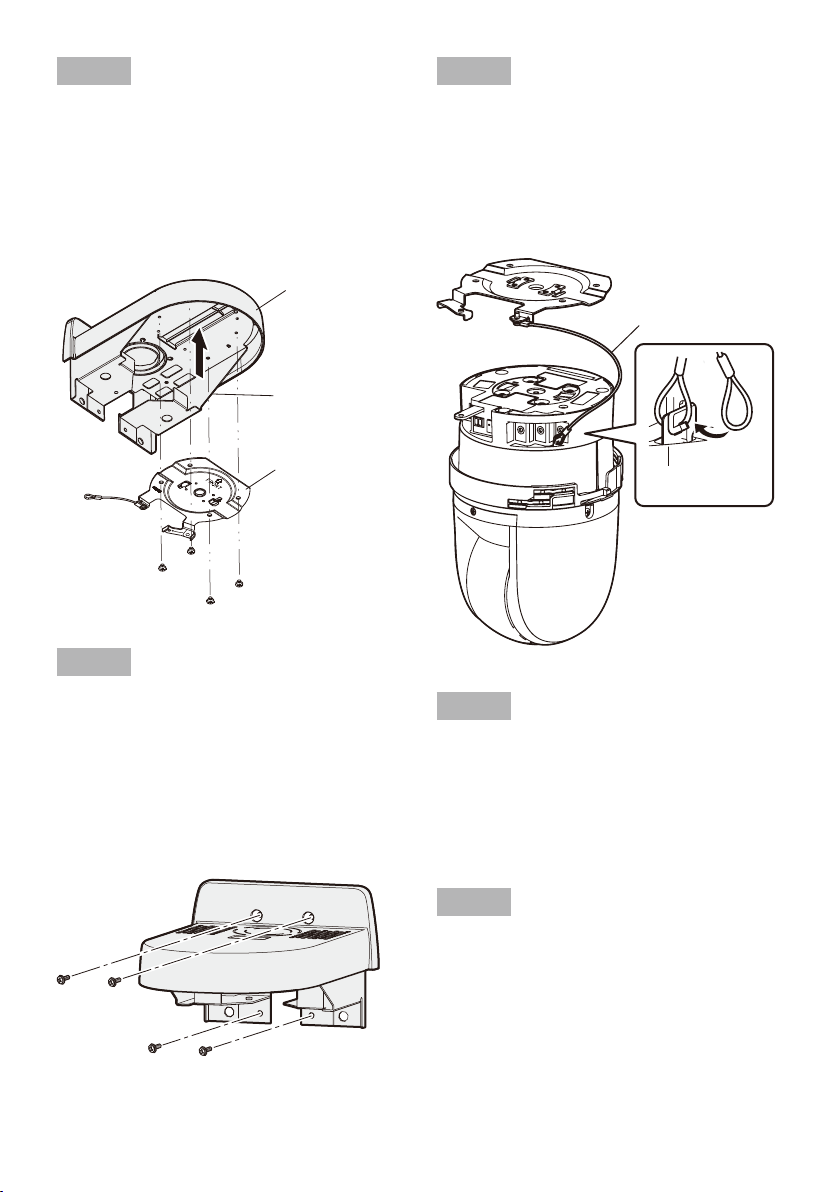

Step 4

Attach the camera mount bracket supplied with

the camera to the upper case.

Mount the camera mount bracket with the sup-

plied screws (M4 x L4) in the consideration of

the bracket direction as shown in the drawing

below.

Recommended tightening torque:

1.56 N·m {1.16 lbf·ft}

Step 5

Attach the upper case and the bracket to the

wall and run the cables.

Attach it with four screws. Screws are not pro-

vided.

Prepare them in accordance with the camera

installation position.

Necessary screw:• M4 (4 pcs.)

Minimum pull-out strength:• 196 N {44 lbf}

Screws

(M4 x L4, for securing

camera mount bracket

supplied with the camera)

Upper case

Camera mount bracket

Chassis

Step 6

Attach the safety wire locked on the camera

mount bracket to the camera body.

Ensure that the safety wire is steadily engaged

with the hook of the camera body.

* The upper case and chassis are not

described in the illustration below.

Step 7

Connect the cables to the external I/O termi-

nals, microphone/line connector, audio output

connector, and monitor output connector.

Refer to the operating instructions of the cam-

era for descriptions of connections. Hold the

camera body securely at connections.

Step 8

Connect the cables to the network terminal

and 12 V DC power supply terminal.

Refer to the operating instructions of the cam-

era body for descriptions of connections.

Safety wire

Safety wire holder

Screws

(M4, to be separately purchased)

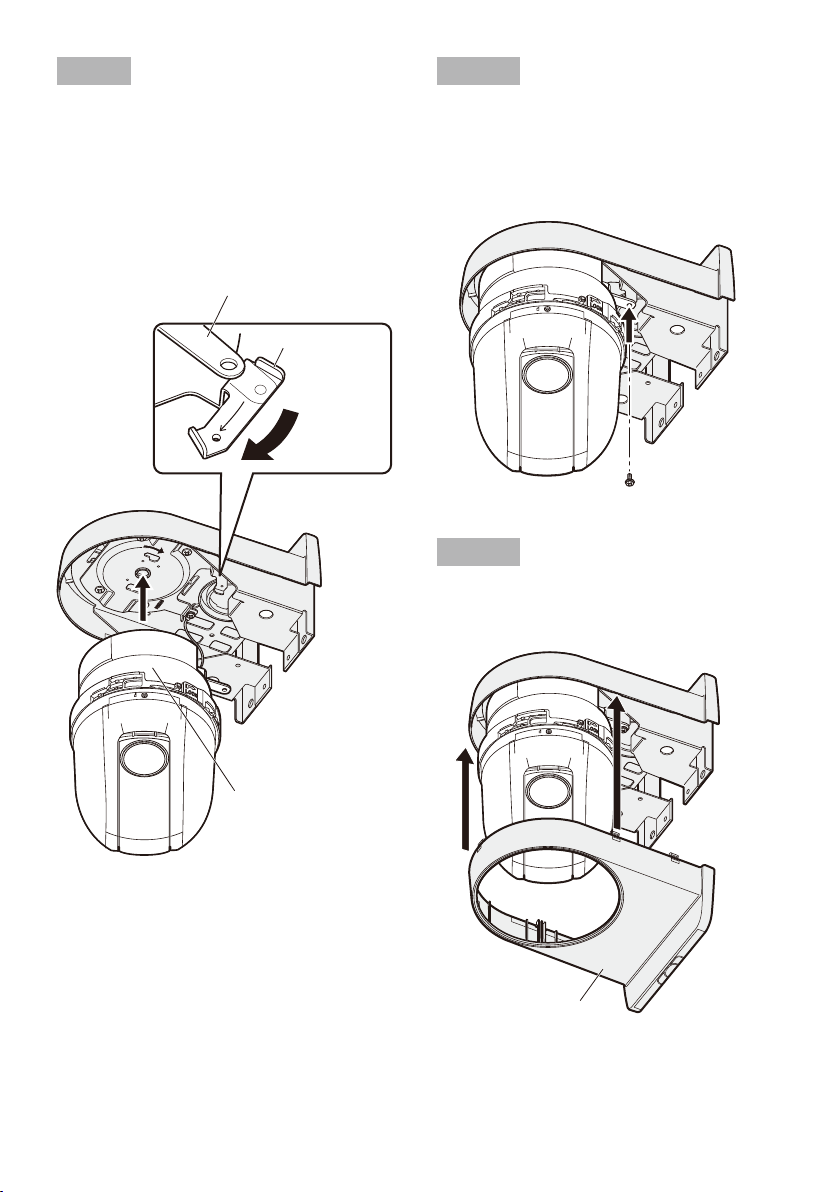

Step 9

Mount the camera body onto the camera

mount bracket.

Align the lock plate with the guide of the cam-

era mount bracket, engage the bracket with

the camera body while aligning the center of

the bracket with the center of the camera, and

rotate the camera body clockwise while press-

ing the camera to the camera mount bracket.

* Be sure to mount it with holding the base part

of the camera.

Lock plate

Guide

Approx. 20 °

Base part of the camera

Step 10

Secure the camera mount bracket to the cam-

era with 1 piece of the camera fixing screw

(M3, supplied with the camera).

Recommended tightening torque:

0.68 N·m {0.51 lbf·ft}

Step 11

Engage the 5 hooks to mount the lower case.

Ensure the lower case and the camera mount

bracket are steadily fit with each other.

Camera fixing screw

(M3, supplied with the camera)

Lower case

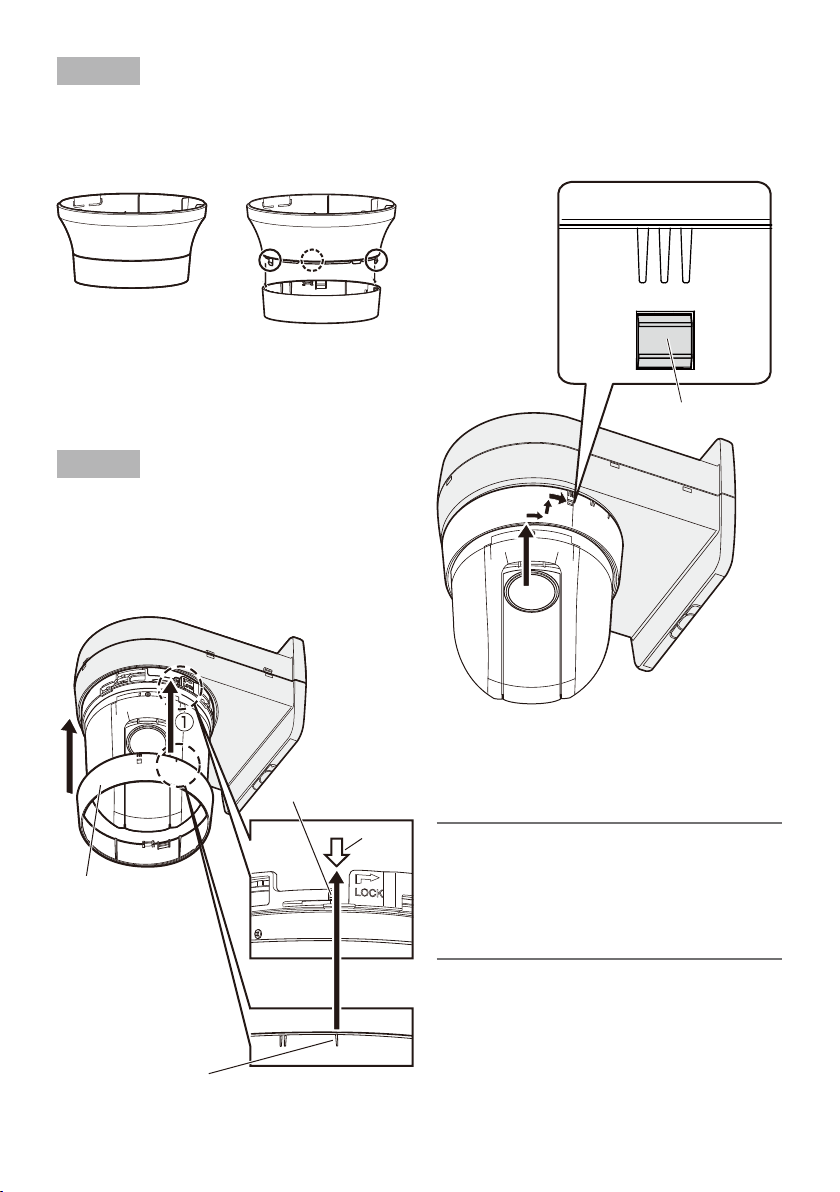

Step 12

Remove the decorative cover (lower part) from

the decorative cover supplied with the camera

main unit. The decorative cover is secured with

3 hooks.

* The rest part of the decorative cover is not

used for mounting this bracket.

Step 13

Align the “l” mark of the decorative coverq

(lower) with the arrow located above the

lock lever of the camera body and insert it

from underneath by holding the decorative

cover (lower).

Decorative cover

(lower part)

Decorative cover

(lower part)

“l” mark

Arrow

Lock lever

Rotate the decorative cover (lower) clock-w

wise when looking at it from underneath by

approx. 16 degrees to insert it upward.

Rotate the decorative cover clockwise by

16 degrees more to secure it.

Ensure that the lock lever is securelye

inserted into the hole of the decorative

cover (lower part).

Note:

Both WV-CS5S and WV-CS5C (dome cov-•

ers) can be also directly installed with this

bracket. In such a case, the decorative

cover supplied with the camera body is not

used.

②

③

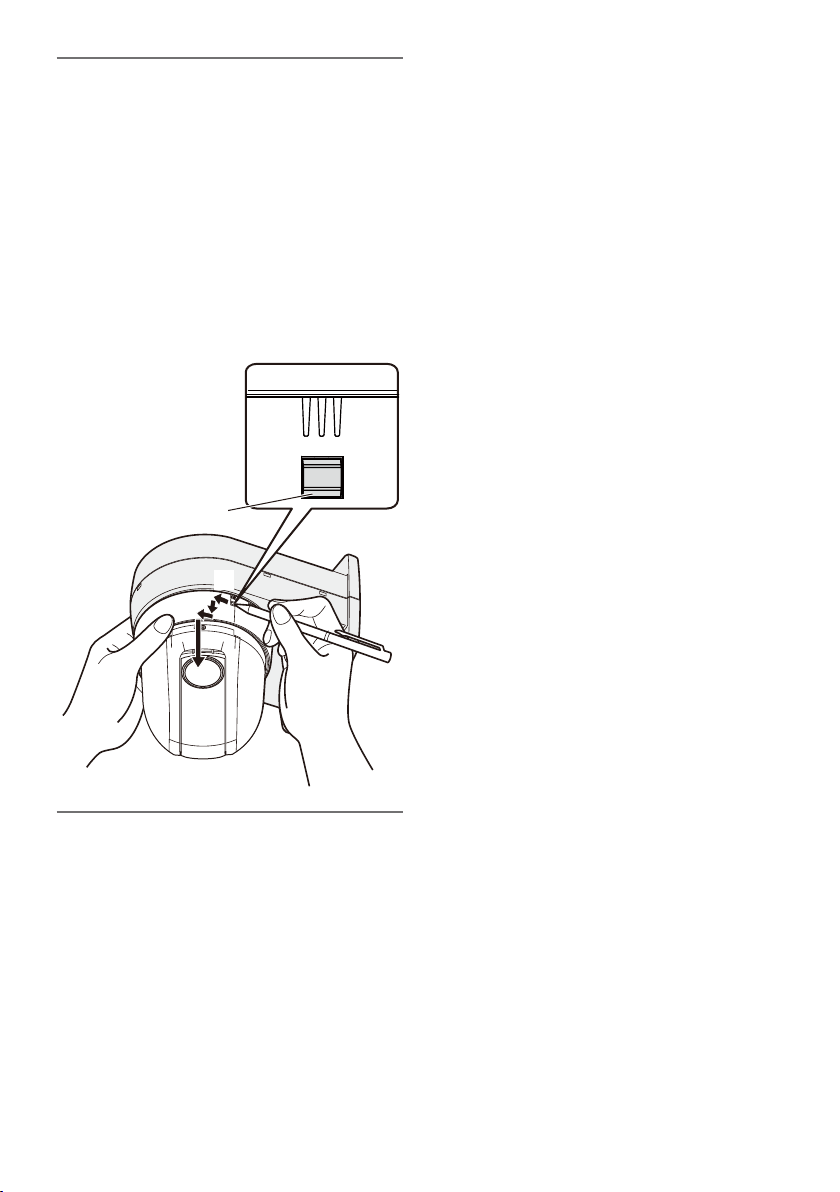

Lock lever

Note:

Follow the instructions as below to remove•

the decorative cover (lower).

Rotate the lock lever by approx. 16q

degrees counterclockwise when view-

ing the decorative cover (lower) from

underneath (in the direction of ←in the

drawing) while pressing the lock lever,

and pull it slightly downward.

Rotate the decorative cover (lower)w

more approx. 16 degrees counterclock-

wise (in the direction of ←in the draw-

ing), and pull it out downward.

①

②

Lock lever

Table des matières

Langues :

Autres manuels Panasonic Support et étagère

Panasonic

Panasonic TY-ST65P11-K Manuel utilisateur

Panasonic

Panasonic CWFE14CM Manuel utilisateur

Panasonic

Panasonic NN-TK81LCSCP Manuel utilisateur

Panasonic

Panasonic TY-ST65PV500 Manuel utilisateur

Panasonic

Panasonic ET-PFD310 Manuel utilisateur

Panasonic

Panasonic TY-WK15TA2U Manuel utilisateur

Panasonic

Panasonic TY34WDM60J - STAND FOR CT34WDM60 Manuel utilisateur

Panasonic

Panasonic TY-ST103PF9 Manuel utilisateur

Panasonic

Panasonic ET-RFD32 Manuel utilisateur

Panasonic

Panasonic TY-ST10-M Manuel utilisateur

Panasonic

Panasonic WV-Q154C Manuel utilisateur

Panasonic

Panasonic CF-CDSM1VC Series Manuel utilisateur

Panasonic

Panasonic WV-Q204/1 Manuel utilisateur

Panasonic

Panasonic TY-ST32PE2 Manuel utilisateur

Panasonic

Panasonic ET-PFD510 Manuel utilisateur

Panasonic

Panasonic ET-JPF200BE Manuel utilisateur

Panasonic

Panasonic WV-QCL500-S Manuel utilisateur

Panasonic

Panasonic TY-ST42PX500 Manuel utilisateur

Panasonic

Panasonic KX-TCA727EX Manuel utilisateur

Panasonic

Panasonic WV-Q204/1S Manuel utilisateur

Panasonic

Panasonic TY-S37PA60W Manuel utilisateur

Panasonic

Panasonic NNTK687S Manuel utilisateur

Panasonic

Panasonic WV-Q158C Manuel utilisateur

Panasonic

Panasonic TYST65R2WG - Stand For Plasma Panel Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
