ET-RFD32

INSTALLATION MANUAL

Only a qualied installer should install this product.

Read these instructions carefully before installing the ET-RFD32 projector frame.

These installation instructions must always be handed over to the installing person.

For projectors:

PT-RZ31K / PT-RS30K / PT-RQ32K & weight

IMPORTANT SAFETY NOTICE

Dear customer,

Thank you for choosing the ET-RFD32 frame for Panasonic DLP® based projectors.

This instruction booklet provides you with all the necessary operating information that you may

require. It will help you to get the best performance out of this new product. We hope you

will be pleased with your Panasonic projector frame.

Model number: ET-RFD32

SAFETY PRECAUTIONS

This frame is DGUV V17 (BGV-C1) certied. Please consider the valid laws at the place of event.

WARNING

Installation work should only be carried out by a qualied technician.

- If this product is not installed correctly, serious accidents may result.

Do not place the projector on top of unstable surfaces.

-If the projector is placed on top of a surface which is sloped or unstable, it may fall down or tip over

and injury or damage could result.

Make sure not exceed max. weight loads for ceiling mounts.

- For suspended installations, use only designated hanging accessories,

like TH-SHORTY-350-8/10 for a max. weight load of 350 kg ( 771,62 lbs).

CAUTION

Do not install the frame in a place which may impede projector ventilation.

-If this is not observed, re may result.

Do not set up the projector in humid or dusty places or in places where the projector may

come into contact with oily smoke or steam.

-Using the projector under such conditions may result in re, electric shocks or plastic deterioration.

Minimum 2 people are required to install the frame.

-With regard to the overall weight of all neccessary installation devices, make sure to handle those

with at least two people.

PRODUCT DESCRIPTION

Frame Used for projector

installation.

Screws and

washers

Used for securing the

projector into the frame.

Flat washers (M10) x 12

max. 2 mm

Screws (M10x35) x 6

Purpose Finished assembly diagramImage/DrawingPart name

Another separate

frame is required

for tandem assemblies.

Place the frame on the projector so that it is

aligned with the screw hole positions.

(Make sure that the forward/back direction is

correct when installing. If the direction is reversed,

the hole positions will not match up.)

Secure the projector to the frame using the six

screws (M10x35) and the twelve at washers (M10).

Do not forget to use the washers as they are

responsible for the galvanic isolation.

Torque: 20 ± 1 Nm

INSTALLING THE PROJECTOR IN THE FRAME

screw (M10x35)

at washers (M10)

Please make sure to use ONLY the

correspondent screw holes when

installing a projector!

Before installing of the frame,

remove the handles on the front and

the back of the projector.

ceiling mount with

TH-SHORTY-350-8/10

Frame ET-RFD32

table mount

INSTALLING TANDEM PROJECTIONS

Place the upper projector with frame on top

of the lower projector also in frame. Make sure the four male

location bolts enter into the correspondent female

location bolts. To secure, draw the locking pin through

both bolts.

locking pin

male bolt

female bolt

MAXIMUM STACKING INFORMATION

Using the adjusting screws to the left and

right you can adjust the position of the

projector by approximately three degrees.

You can lower or lift the front left or right corner.

adjusting screws

By turning the single round adjustment screw,

placed on the side of the frame, you

can move the back of the projector

to the left or to the right by approximately

three degrees.

single

adjustment

screw

ADJUSTMENT OPTIONS























 











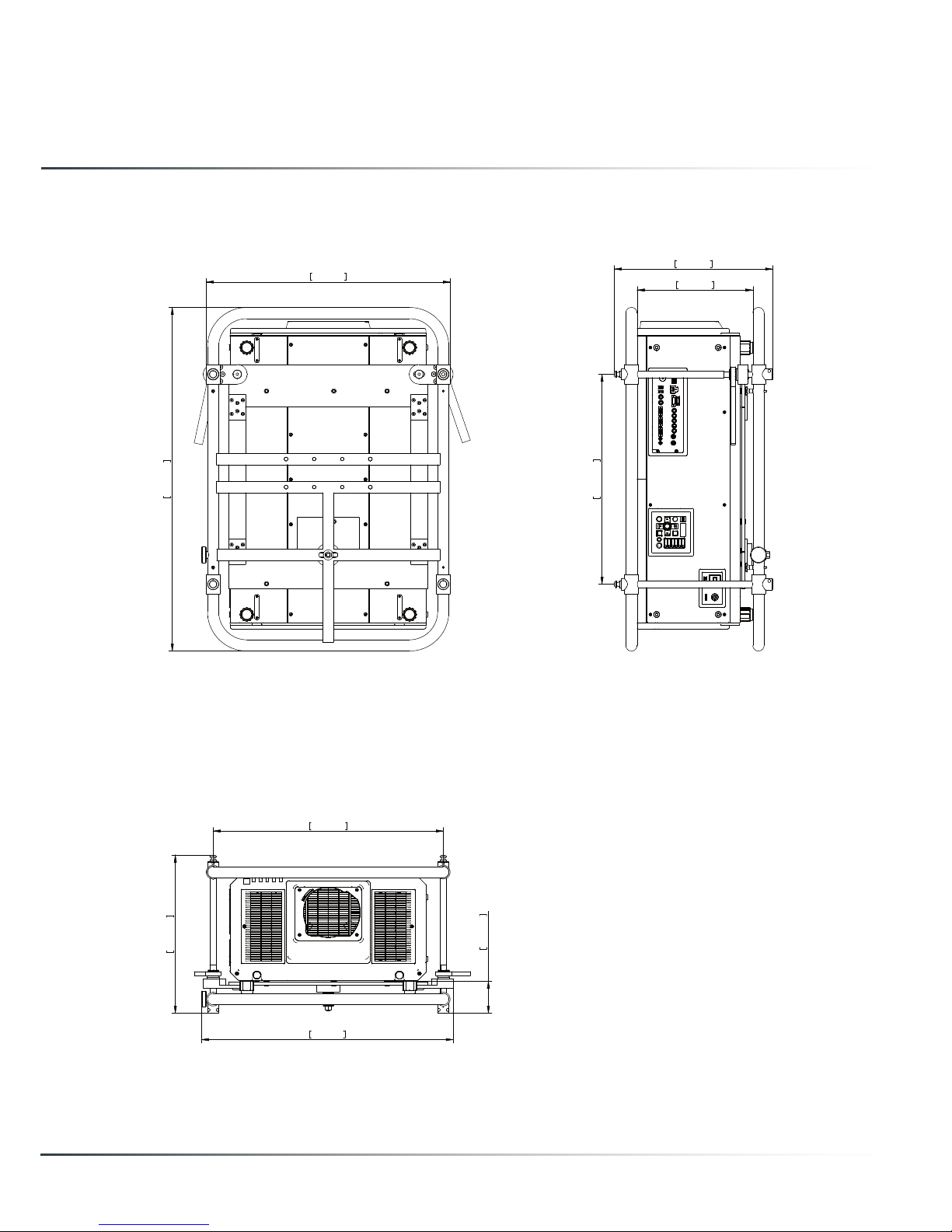

DIMENSIONS & WEIGHT























 











Weight: 37,10kg

Made in Germany

for

by Sager Metallbearbeitung

www.lang-ag.com

03/17























 










