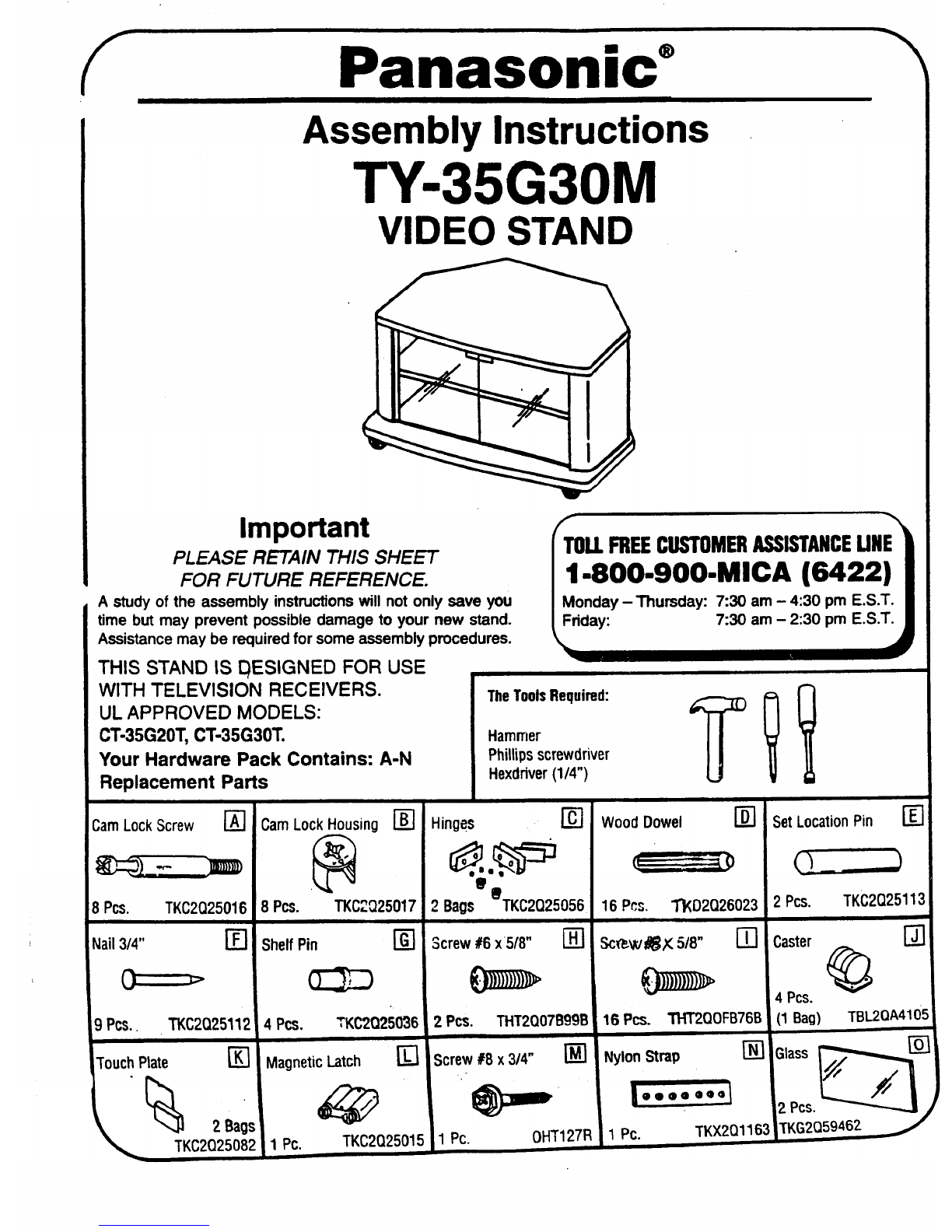

Panasonic ®

Assembly Instructions

TY-35G30M

VIDEO STAND

Important

PLEASE RETAIN THIS SHEET

FOR FUTURE REFERENCE.

A study of the assembly instructions will not only save you

time but may prevent possible damage to your new stand.

Assistance may be required for some assembly procedures.

THIS STAND IS I_ESIGNED FOR USE

WITH TELEVISION RECEIVERS.

UL APPROVED MODELS:

CT-35G20T, c'r-35G30T.

Your Hardware Pack Contains: A-N

Replacement Parts

CamLock Housing L._

8 Pcs. TKC2Q25017

Shelf Pin

CamLockScrew _'_

8 Pcs. TKC2Q25016

Nail 3/4" []

O ="

L9 PCS.. TKC2Q25112 4Pcs. TKC2Q25036

I"OLLFREECUSTOMERASSISTANCEUNE_

1-800-900-MICA |6422||

Monday - Thursday: 7:30 am - 4:30 pm E.S.T. II

Friday: 7:30 am - 2:30 pm E.S.T. J

TheToolsRequired:

Hammer

Phillipsscrewdriver

Hexdriver(1/4")

Hinges []

2 Bags 8TKC2Q25056

[]

Screw#6 x5/8"

2 Pcs. THT2QO7B99B

16 Pr,s. 3"_D2Q26023

schwa×s/s" Fi,I

16 Pcs. THT2QOFB76B

Nylon Strap

SetLocation Pin []

O._ J

2 Pcs. TKC2Q25113

Caster []

4 Pcs.

(1 Bag) TBL2QA4105

1 PC.

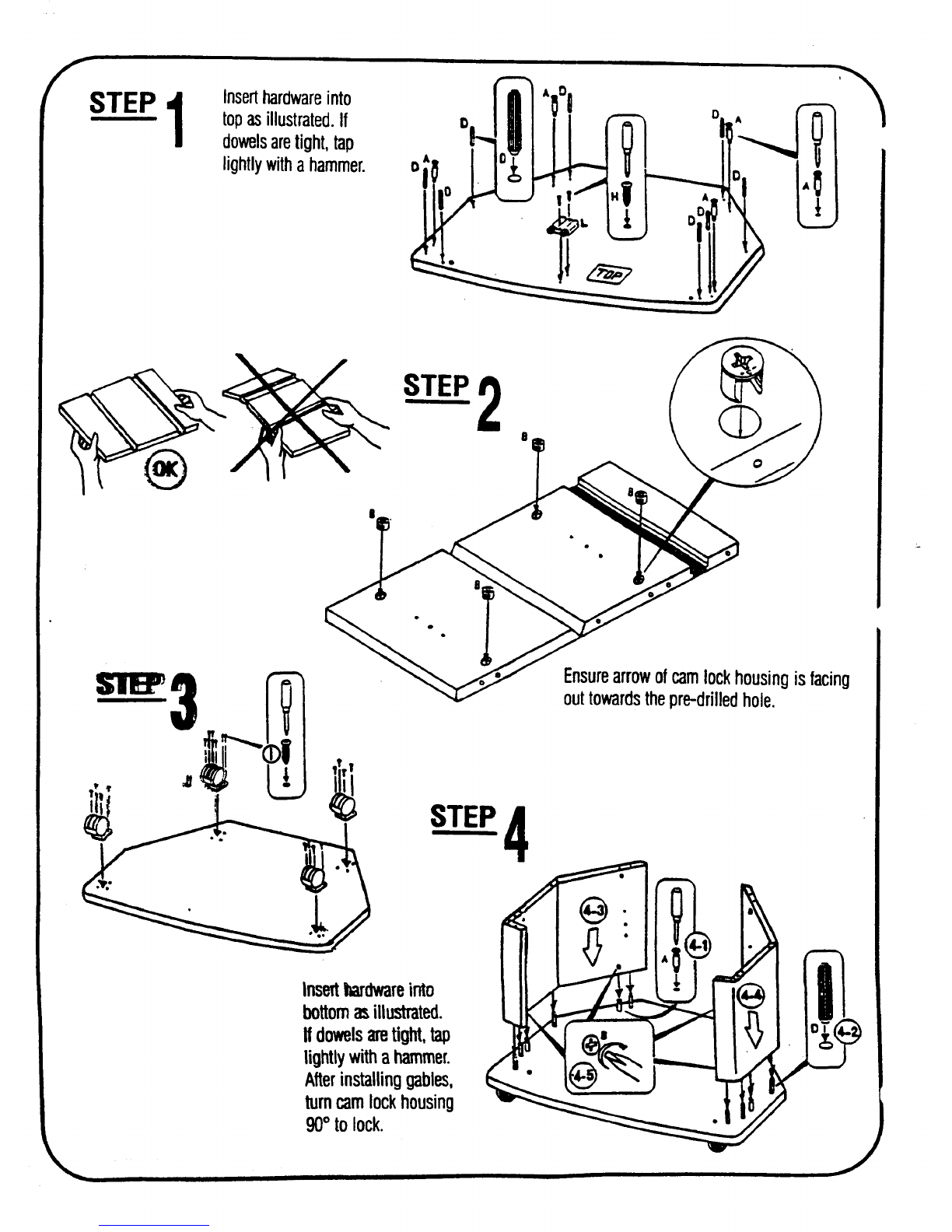

FSTEP1Inserthardwareinto

topasillustrated.If

dowelsaretight,tap

lightlywithahammer.

STEP 2II

Ensurearrowofcamlockhousingis facing

3 outtowardsthepre-drilledhole.

Ins_ t_dwateinto

bottomasillustrated.

I1dowelsaretight,tap

lightlywithahammer.

Afterinstallinggables,

turncamlockhousing

90° tolock.

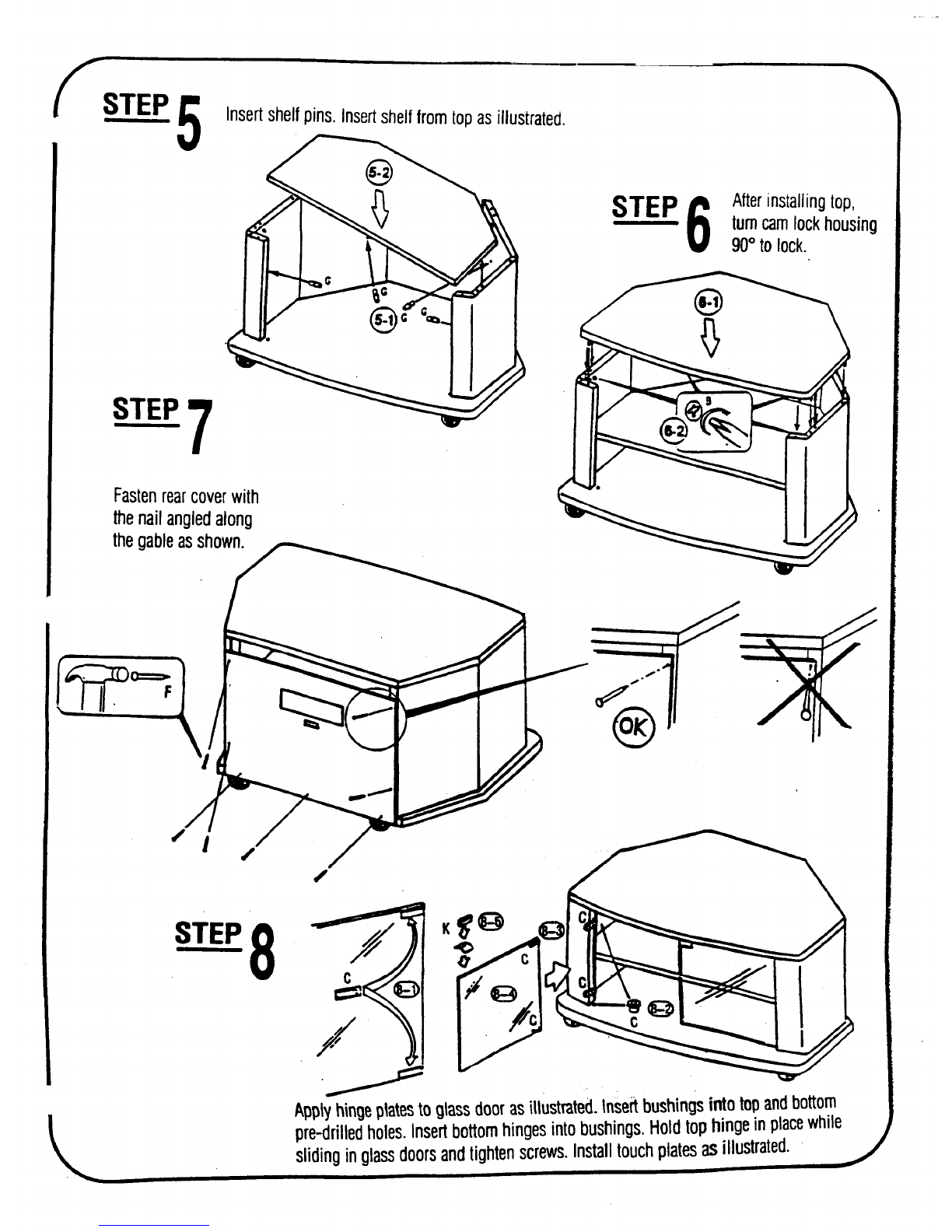

_lnsert shelffromtopas illustrated.

STEP _Alterinstallingtop,

0turncamlockhousing

90°to lock.

STEP7

Fastenrearcoverwith

thenailangledalong

thegableasshown.

STEP 8

Applyhingep_atestoglassdoorasillustrated,lnseffbushingsinto tooandbottom

pre-drilledholes.Insertbottomhingesintobushings.Holdtophingeinplacewhile

slidinginglassdoorsandtightenscrews.Installtouchplatesasillustrated.

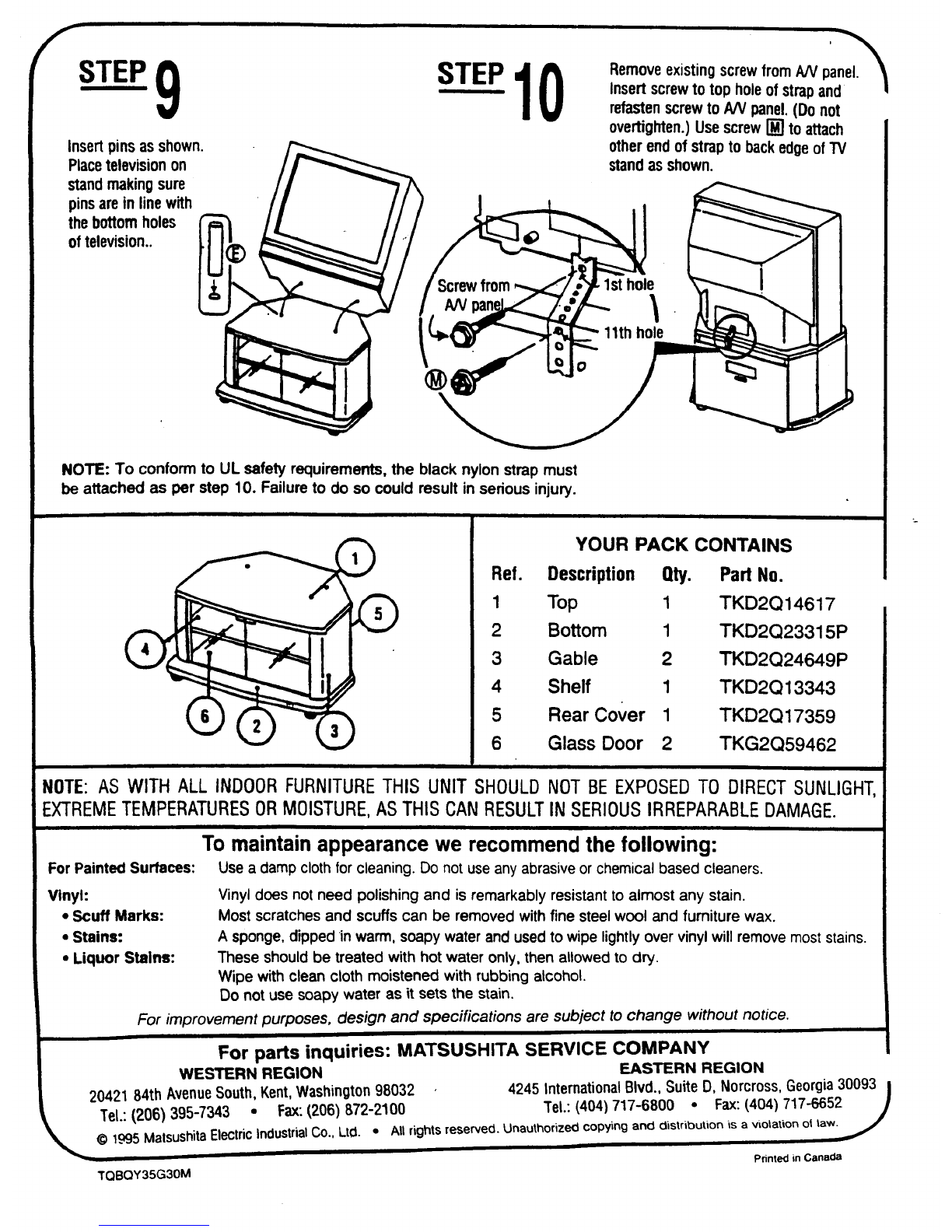

STEP9

Insertpins as shown.

Placetelevisionon

stand makingsure

pinsare in linewith

the bottom holes

oftelevision..

Removeexistingscrewfrom AN panel. _

Insert screwto top holeof strapand !

refastenscrewto AN panel.(Donot

overtighten.)UsescrewI_1toattach

otherend of strap to backedge ofTV

standas shown.

1lth hole

NOTE: To conform to UL safety requirements, the black nylon strap must

be attached as per step 10. Failure to do so could result in serious injury.

YOUR PACK CONTAINS

Ref. Description Qty. Part No.

1 Top 1 TKD2Q14617

2 Bottom 1 TKD2Q23315P

3Gable 2TKD2Q24649P

4 Shelf 1 TKD2Q13343

5 Rear Cover 1 TKD2Q17359

6 Glass Door 2 TKG2Q59462

NOTE: AS WITH ALL INDOORFURNITURETHIS UNIT SHOULDNOT BE EXPOSEDTO DIRECTSUNLIGHT,

EXTREMETEMPERATURESORMOISTURE,ASTHIS CAN RESULTIN SERIOUSIRREPARABLEDAMAGE.

For Painted Surfaces:

Vinyl:

• Scuff Marks:

• Stains:

•Liquor Stains:

To maintain appearance we recommend the following:

Use adamp cloth for cleaning. Do not useany abrasive or chemical based cleaners.

Vinyl does not need polishing and is remarkably resistant to almost any stain.

Most scratches and scuffs can be removed with fine steel wool and furniture wax.

Asponge, dipped in warm, soapy water and used to wipe lightly over vinyl will remove most stains.

These should be treated with hot water only, then allowed to dry.

Wipe with clean cloth moistened with rubbing alcohol.

Do not use soapy water as it sets the stain.

For improvement purposes, design and specifications are subject to change without notice.

For parts inquiries: MATSUSHITA SERVICE COMPANY

WESTERN REGION EASTERN REGION

20421 84th AvenueSouth,Kent,Washington98032 ,4245 InternationalBlvd., Suite D, Norcross,Georgia30093 I

(206) 395-7343 •Fax:(206) 872-2100 Tel.: (404) 717-6800 •Fax:(404) 717-6652 )

Printed in Canada

"rQBQY35G30M
