1 Supplement Number 2

2 Description 3

3 About Lead Free Solder 3

3.1. Suggested PbF Solder 3

4 How to recognize that Lead Free Solder (PbF) is used 4

rights reserved. Unauthorized copying and

distribution is a violation of law.

KX-P1131

4.1. Main Board 4

4.2. Power Supply Board 5

4.3. Control Panel Board 5

4.4. PE Sensor 6

5 PbF Solder Service Part Number 6

Printer

Subject : Use of Lead Free Solder on printed circuit board

Please file and use this supplement manual together with the KX-P1131 service manual listed in the

Section 1 “Supplement Number”.

CONTENTS

Page Page

ORDER No.KM60307990S0

1 Supplement Number

Countries/Areas Original Service Manual Order No. Supplement Number

China KM69806596C8 7

United Kingdom KM69810911A2 4

Thailand KM69806596C8

Egypt

Malaysia 3

Jordan KM69809908A3

Hong Kong KM69808906A3

New Zealand KM69809907A3

Taiwan KM69812915A3

Singapore KM69809909A3

Pakistan KM69812916A3

Kuwait KM69810910A3 2

U.A.E. KM69809908A3

Sweden KM69907929A2

Australia KM69809907A3

South Africa KM69809908A3

U.S.A. KM69810601C1

Puerto Rico

Panama

Guatemala

Ecuador

Colombia

Costa Rica

Bolivia

Switzerland KM69806596C8 1

Oman

Sri-Lanka

Saudi Arabia KM698809908A3

Syria

KX-P1131

2 Description

The lead free solder is used in the manufacture of this product. The printed circuit boards with the lead free solder have been

marked PbF.

When handling the printed circuit board with the lead free solder, please read and follow the special instructions described in this

supplement manual on the use of PbF and how it might be permissible to use Pb soldering service and repair work.

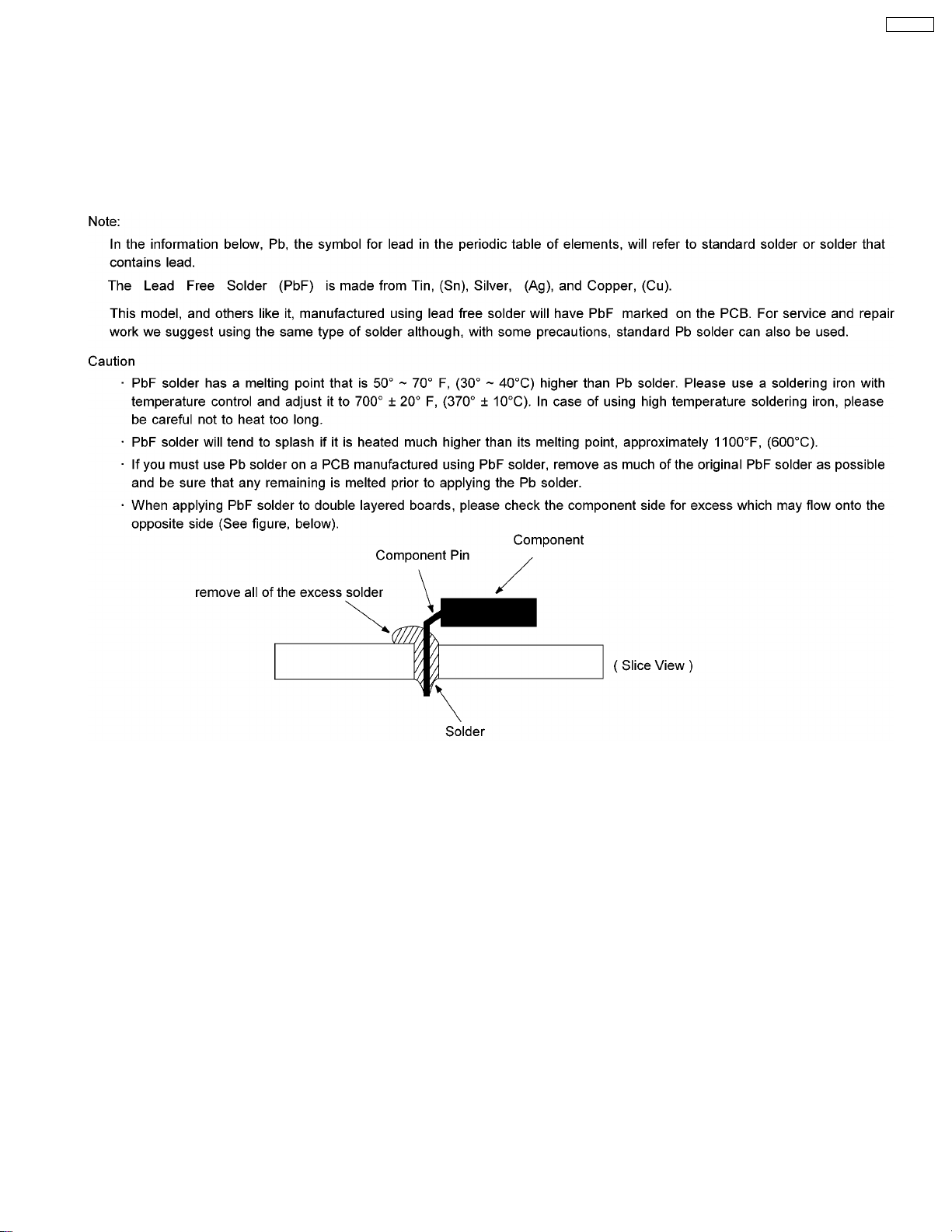

3 About Lead Free Solder

3.1. Suggested PbF Solder

We recommend you to use the following solder when re-soldering component for repair. Before using other Pb free solder than the

following solder, be sure to confirm a solder maker you appoint has made license agreements to be required when using Pb free

solder legally.

Supplier: Senju Metal Industry Co., Ltd. (http://www.senju-m.co.jp)

Part Description in Senju: ECO SOLDER RMA02 P3 M705 Series

Note:

When the recommended PbF solder is not available at Senju Metal Industry Co., Ltd., see section 5 PbF Solder Service Part

Number.

KX-P1131

4 How to recognize that Lead Free Solder (PbF) is used

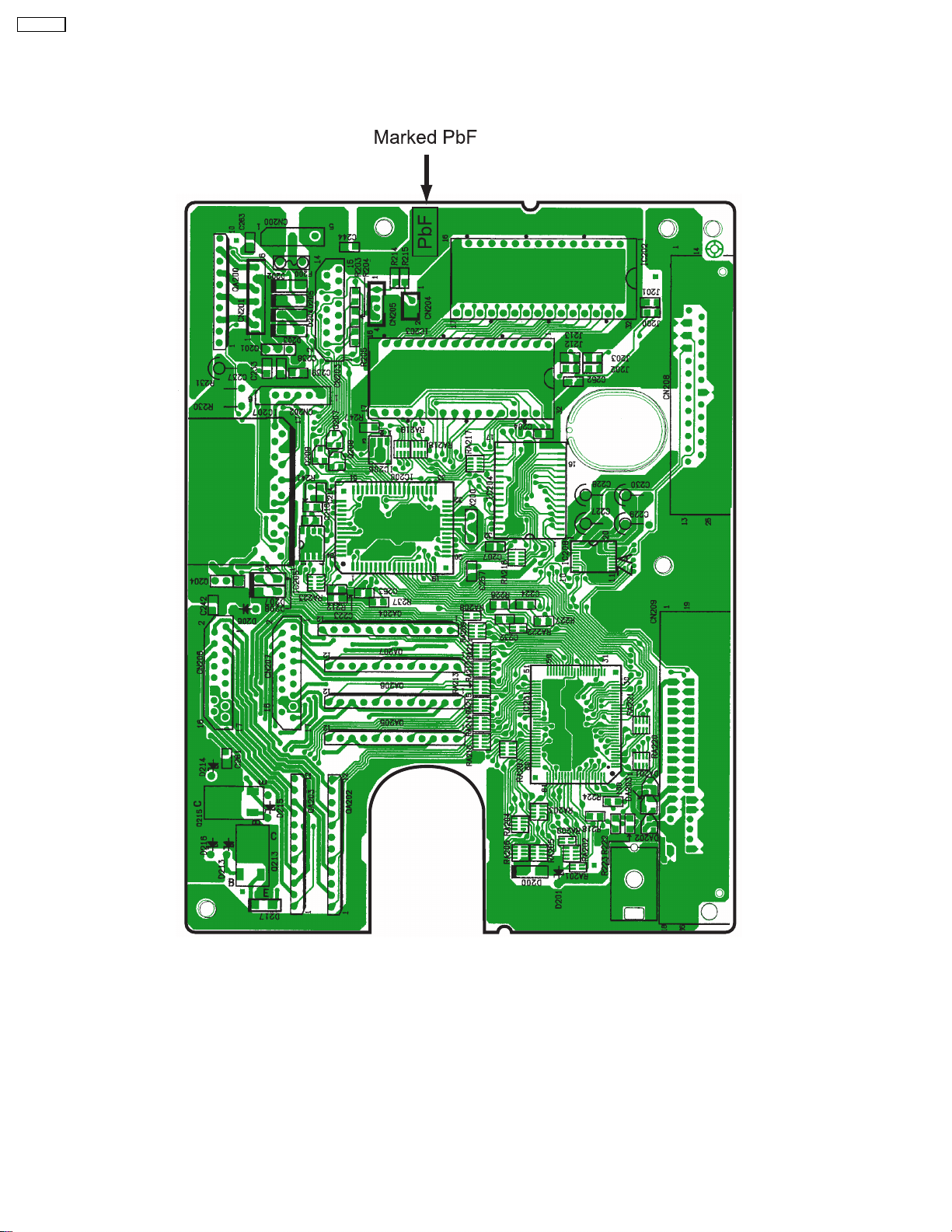

4.1. Main Board

KX-P1131

4.2. Power Supply Board

4.3. Control Panel Board

KX-P1131

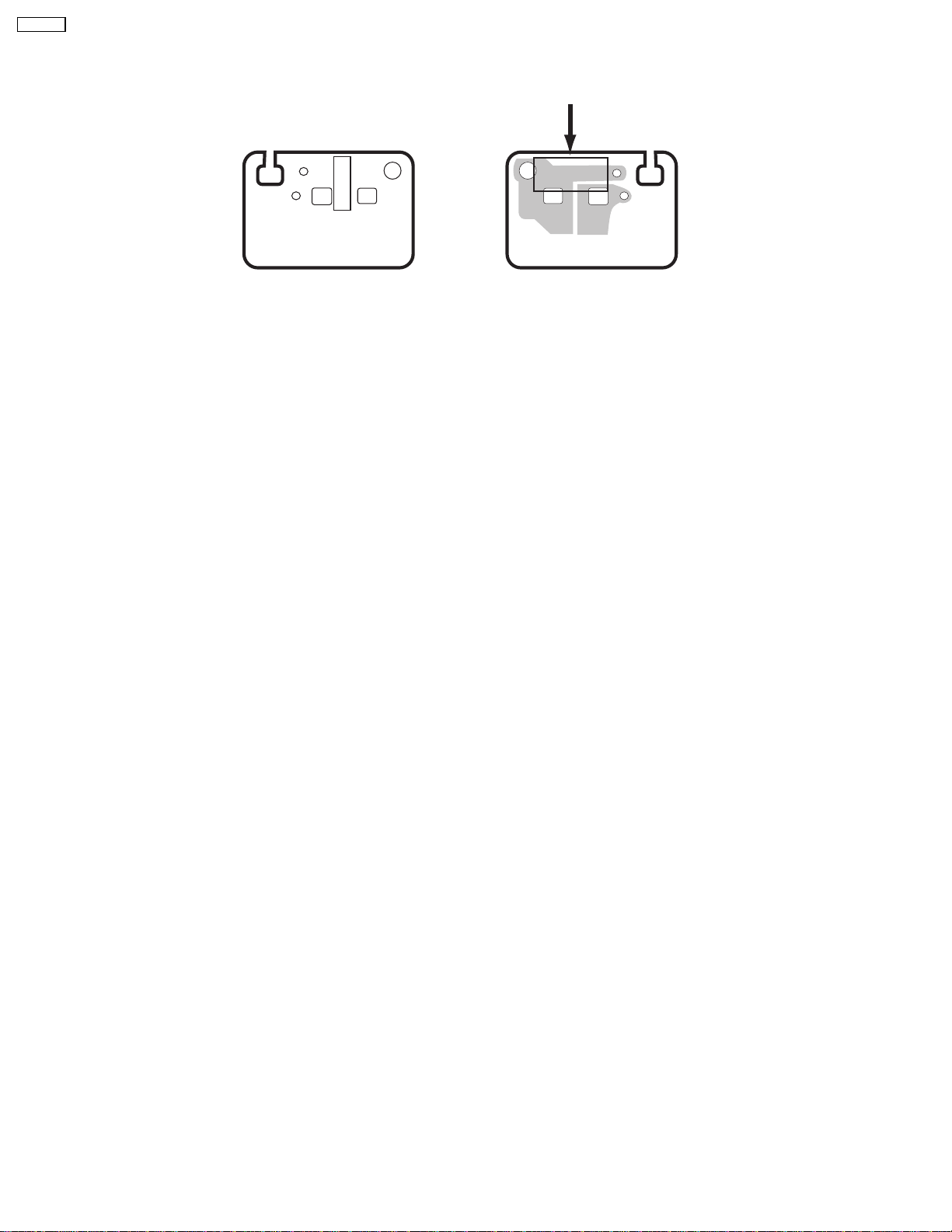

4.4. PE Sensor

SW402

ZA PbF

(Parts Side View) (Soldered Side View)

Marked PbF

5 PbF Solder Service Part Number

The service part number for the recommended PbF solder is RMA02M705-08.

When the recommended PbF solder is not available at Senju Metal Industry Co., Ltd., use this PbF solder part number.

KX-P1131
