Panasonic KX-TGA659 Manuel utilisateur

Thank you for purchasing a Panasonic product.

Please read this installation manual before using the unit and

save it for future reference.

For assistance, visit our Web site:

http://www.panasonic.com/help

for customers in the U.S.A. or

Puerto Rico.

This unit is an additional handset compatible with the following

series of Panasonic Digital Cordless Phone:

KX-TG4131/KX-TG6591/KX-TG6631/KX-TG6641

You must register this handset with your base unit before it can

be used. This installation manual describes only the steps

needed to register and begin using the handset. Please read

the base unit’s operating instructions for further details.

Charge the batteries for about 7 hours before initial use.

Additional Digital Cordless Handset

Model No. KX-TGA659

Installation Manual

PNQX3177ZA TT1110KA0 (A)

Printed in China

TGA659(e).fm Page 1 Monday, November 22, 2010 3:12 PM

2For assistance, please visit http://www.panasonic.com/help

Accessory information

Supplied accessories

*1 The handset cover comes attached to the handset.

Note:

LPlease read the base unit’s operating instructions for additional/

replacement accessories.

– Optional headsets: KX-TCA60, KX-TCA93, KX-TCA94,

KX-TCA400, KX-TCA430

Accessory item/Order number Quantity

Charger/PNLC1015ZT 1

AC adaptor/PQLV219Y 1

Rechargeable batteries/HHR-4DPA 2

Handset cover*1/PNYNTGA659TR 1

Belt clip/PNKE1076Z1 1

TGA659(e).fm Page 2 Monday, November 22, 2010 3:12 PM

For assistance, please visit http://www.panasonic.com/help 3

Setting up

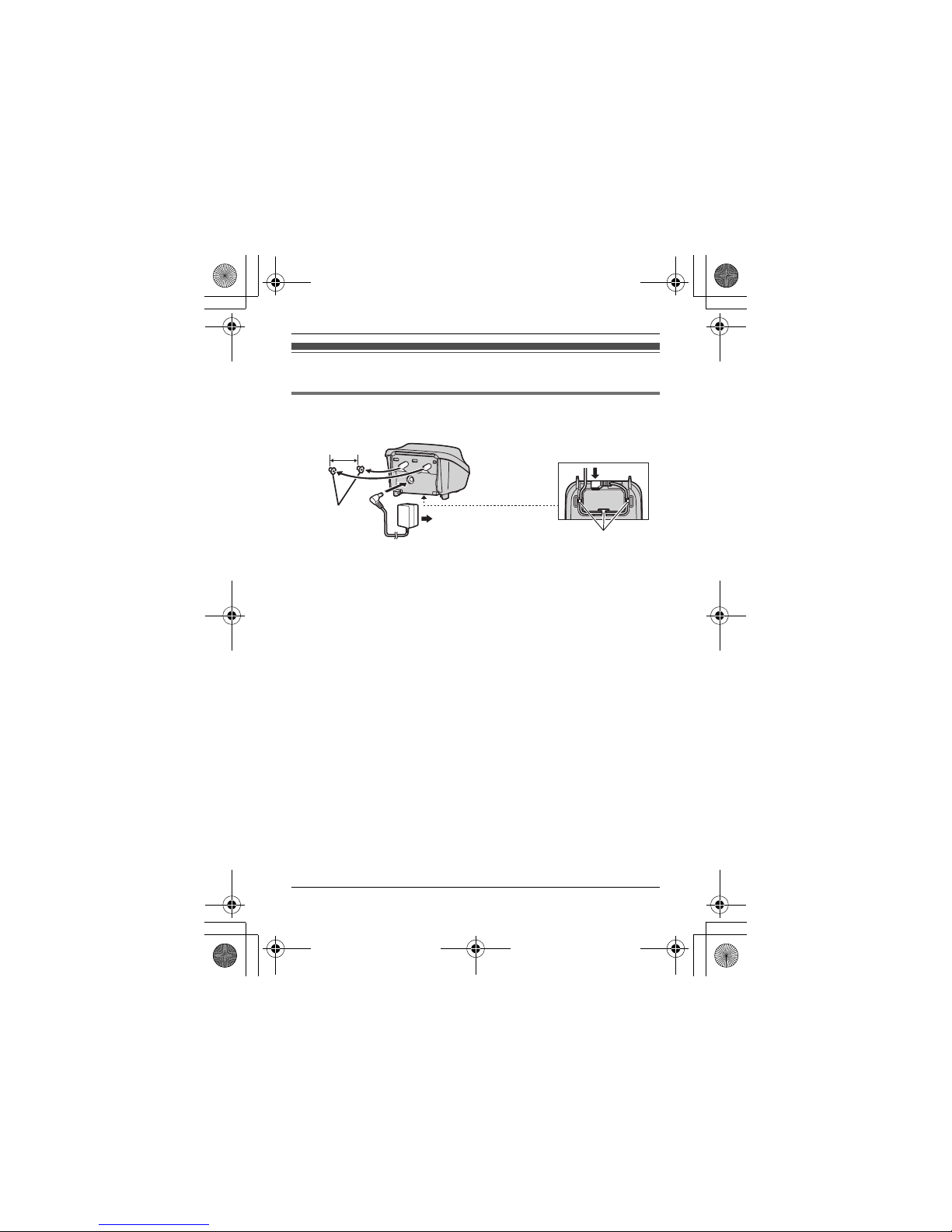

Connections/Wall mounting

Note:

LUse only the supplied Panasonic AC adaptor PQLV219.

LThe AC adaptor must remain connected at all times. (It is normal for

the adaptor to feel warm during use.)

LMake sure that the wall and the fixing method are strong enough to

support the weight of the unit.

Hooks

25.4 mm

(1 inch)

(120 V AC, 60 Hz)

Screws

(Not supplied)

TGA659(e).fm Page 3 Monday, November 22, 2010 3:12 PM

4For assistance, please visit http://www.panasonic.com/help

Battery installation/Battery charging

Important:

LUse the supplied rechargeable batteries. For replacement, we

recommend using the Panasonic rechargeable batteries noted on

page 2.

LWipe the battery ends (S, T) with a dry cloth.

LAvoid touching the battery ends (S, T) or the unit contacts.

LConfirm correct polarities (S, T).

LUSE ONLY Ni-MH batteries AAA (R03) size.

LDo NOT use Alkaline/Manganese/Ni-Cd batteries.

Charge for about 7 hours.

LWhen the batteries are fully charged, the charge indicator goes off and

“Fully charged”is displayed.

Note:

LIf the batteries are fully charged, but the operating time seems to be

shorter, clean the battery ends (S, T) and the charge contacts with a

dry cloth and charge again.

Charge indicator

Confirm

“Charging”

is displayed.

Rechargeable

Ni-MH ONLY

TGA659(e).fm Page 4 Monday, November 22, 2010 3:12 PM

For assistance, please visit http://www.panasonic.com/help 5

Registering a handset to a base unit

1Base unit:

Press and hold {LOCATOR}for about 5 seconds until the registration

tone sounds.

LIf all registered handsets start ringing, press {LOCATOR}again to

stop, then repeat this step.

2Handset:

Place the handset on the base unit or charger, then wait until a long

beep sounds and wis displayed.

Note:

LIf an error tone sounds, or if _is displayed, register the handset

according to the base unit’s operating instructions.

Display language

1{MENU}(11)

2{r}: Select the desired setting. s{SAVE}

3{OFF}

Belt clip

NTo attach NTo remove

TGA659(e).fm Page 5 Monday, November 22, 2010 3:12 PM

6For assistance, please visit http://www.panasonic.com/help

For KX-TG4131/KX-TG6631/KX-TG6641

series users

There are some differences in the specification of your original handset

and the KX-TGA659. The feature differences are described in the chart

below.

Main feature differences

*1 You can make a call using a speed dial key on the handset as well as

the base unit. (KX-TG6591/KX-TG6631 series)

Speed dial

NViewing the speed dial key assignments

You can see the speed dial key assignments on the handset display.

Press {OFF}. s{^}

NMaking a call using a handset speed dial key

Press and hold the speed dial key ({A}to {C}).

Feature KX-TGA659

KX-TG4131

series

handset

KX-TG6631/

KX-TG6641

series

handset

Page

Display size 1.9 inches 1.8 inches 1.8 inches —

Button size Extra large Large Large —

Speed dial*1 r——6

Side key

- Volume

- Equalizer

r——7

TGA659(e).fm Page 6 Monday, November 22, 2010 3:12 PM

For assistance, please visit http://www.panasonic.com/help 7

Adjusting the handset receiver, speaker, or ringer volume

Press {+} or {-} repeatedly to select the desired volume while talking

or while the handset is ringing for an incoming call.

Handset equalizer

This feature clarifies the voice of the person you are talking to, producing

a more natural-sounding voice that is easier to hear and understand.

Press {d}repeatedly to select “Off”, “High tone”, or “Low tone”

while talking.

Note:

LWhen this feature is activated, <is displayed while talking.

TGA659(e).fm Page 7 Monday, November 22, 2010 3:12 PM

8For assistance, please visit http://www.panasonic.com/help

For your safety

To prevent severe injury and loss of life/property, read this section carefully before

using the product to ensure proper and safe operation of your product.

WARNING

Power connection

LCompletely insert the AC adaptor/power plug into the power outlet. Failure to do

so may cause electric shock and/or excessive heat resulting in a fire.

LRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it

from the power outlet, then wiping with a dry cloth. Accumulated dust may cause

an insulation defect from moisture, etc. resulting in a fire.

LUnplug the product from power outlets if it emits smoke, an abnormal smell, or

makes an unusual noise. These conditions can cause fire or electric shock.

Confirm that smoke has stopped emitting and contact the Panasonic Call Center

at 1-800-211- PANA (1-800-211-7262).

Installation

LTo prevent the risk of fire or electrical shock, do not expose the product to rain or

any type of moisture.

LDo not place or use this product near automatically controlled devices such as

automatic doors and fire alarms. Radio waves emitted from this product may

cause such devices to malfunction resulting in an accident.

CAUTION

Installation and location

LThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet

is installed near the product and is easily accessible.

Battery

LWe recommend using the supplied batteries or additional/replacement batteries

noted on page 2 for replacement battery information. USE ONLY rechargeable

Ni-MH batteries AAA (R03) size.

LDo not mix old and new batteries.

LDo not open or mutilate the batteries. Released electrolyte from the batteries is

corrosive and may cause burns or injury to the eyes or skin. The electrolyte is

toxic and may be harmful if swallowed.

TGA659(e).fm Page 8 Monday, November 22, 2010 3:12 PM

For assistance, please visit http://www.panasonic.com/help 9

LExercise care when handling the batteries. Do not allow conductive materials

such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit

may cause the batteries and/or the conductive material to overheat and cause

burns.

LCharge the batteries provided with or identified for use with this product only, in

accordance with the instructions and limitations specified in this manual.

LOnly use a compatible base unit (or charger) to charge the batteries. Do not

tamper with the base unit (or charger). Failure to follow these instructions may

cause the batteries to swell or explode.

Attention:

Important safety instructions

When using your product, basic safety precautions should always be followed to

reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Do not use this product near water for example, near a bathtub, washbowl,

kitchen sink, or laundry tub, in a wet basement or near a swimming pool.

2. Do not use the telephone to report a gas leak in the vicinity of the leak.

3. Use only the power cord and batteries indicated in this manual. Do not dispose

of batteries in a fire. They may explode. Check with local codes for possible

special disposal instructions.

SAVE THESE INSTRUCTIONS

A nickel metal hydride battery that is

recyclable powers the product you have

purchased.

Please call 1-800-8-BATTERY (1-800-822-

8837) for information on how to recycle this

battery.

TGA659(e).fm Page 9 Monday, November 22, 2010 3:12 PM

10 For assistance, please visit http://www.panasonic.com/help

Other information

LOperating the product near electrical appliances may cause interference. Move

away from the electrical appliances.

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of

used batteries according to the instructions.

Routine care

LWipe the outer surface of the product with a soft moist cloth.

LDo not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

LThis product can store your private/confidential information. To protect your

privacy/confidentiality, we recommend that you erase information such as

phonebook or caller list entries from the memory before you dispose of, transfer,

or return the product.

TGA659(e).fm Page 10 Monday, November 22, 2010 3:12 PM
