Panasonic KX-TGA401B Manuel utilisateur

Thank you for purchasing a Panasonic product.

Please read this installation manual before using the unit and

save it for future reference.

For assistance, visit our Web site:

http://www.panasonic.com/help

for customers in the U.S.A. or

Puerto Rico.

This unit is an additional handset compatible with the following

series of Panasonic Digital Cordless Phone:

KX-TG4011/KX-TG4021/KX-TG4031/KX-TG4051/

KX-TG4071/KX-TG6511/KX-TG6521/KX-TG6531/

KX-TG6541/KX-TG7531

Youmustregisterthishandset withyourbaseunitbefore itcan

be used. This installation manual describes only the steps

needed to register and begin using the handset. Please read

the base unit’s operating instructions for further details.

Charge the batteries for about 7 hours before initial use.

Additional Digital Cordless Handset

Model No. KX-TGA401

Installation Manual

PNQX2390ZA DC1209SN0 (A)

Printed in China

TGA401(e).fm Page 1 Tuesday, December 22, 2009 12:10 PM

2For assistance, please visit http://www.panasonic.com/help

Accessory information

Supplied accessories

*1 The handset cover comes attached to the handset.

Note:

LPlease read the base unit’s operating instructions for additional/

replacement accessories.

– Optional headsets: KX-TCA60, KX-TCA93, KX-TCA94,

KX-TCA400, KX-TCA430

Setting up

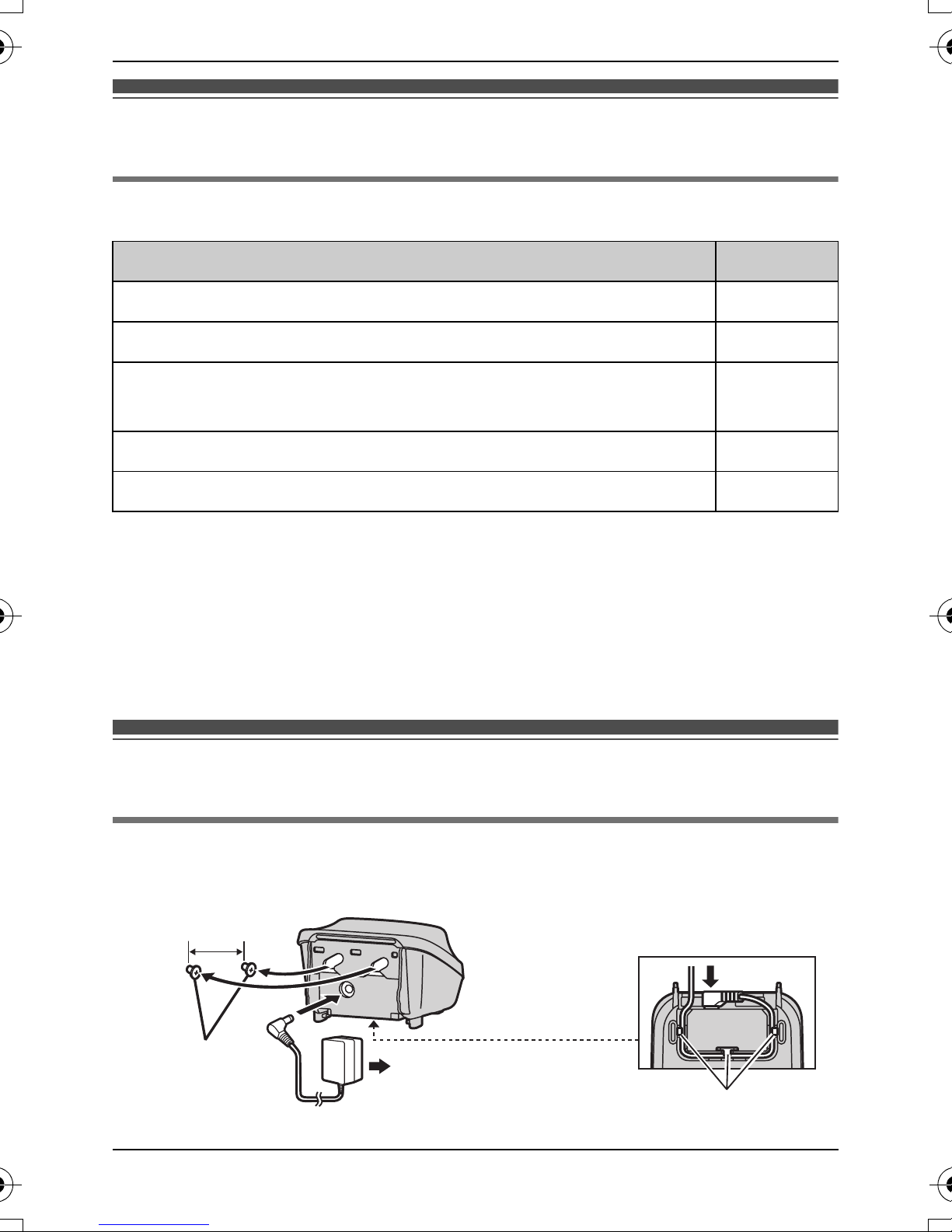

Connections/Wall mounting

Accessory item/Order number Quantity

Charger/PNLC1010ZB 1

AC adaptor/PQLV219Y 1

Rechargeable batteries/HHR-4DPA

(Part No. HHR-55AAABU or N4DHYYY00004) 2

Handset cover*1/PNYNTGA652BR 1

Belt clip/PNKE1054Z1 1

Hooks

25.4 mm

(1 inch)

(120 V AC, 60 Hz)

Screws

(Not supplied)

TGA401(e).fm Page 2 Tuesday, December 22, 2009 12:10 PM

For assistance, please visit http://www.panasonic.com/help 3

Note:

LUse only the supplied Panasonic AC adaptor PQLV219.

LThe AC adaptor must remain connected at all times. (It is normal for

the adaptor to feel warm during use.)

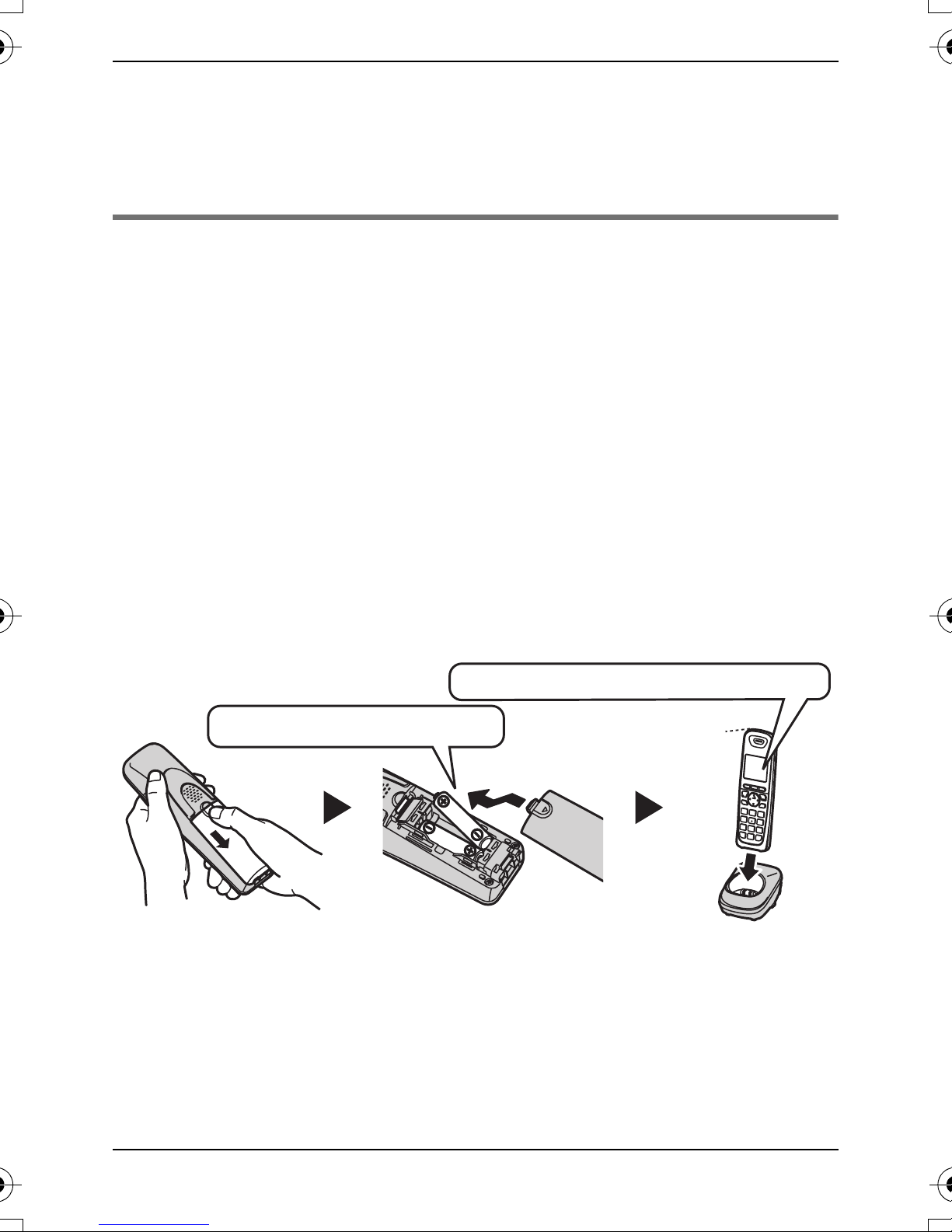

Battery installation/Battery charge

Important:

LUse the supplied rechargeable batteries. For replacement, we

recommend using the Panasonic rechargeable batteries noted on

page 2.

LWipe the battery ends (S, T) with a dry cloth.

LAvoid touching the battery ends (S, T) or the unit contacts.

LConfirm correct polarities (S, T).

LUSE ONLY Ni-MH batteries AAA (R03) size.

LDo NOT use Alkaline/Manganese/Ni-Cd batteries.

Charge for about 7 hours.

LWhen the batteries are fully charged, the charge indicator goes off and

“Fully charged”is displayed.

Note:

LIf the batteries are fully charged, but the operating time seems to be

shorter, clean the battery ends (S, T) and the charge contacts with a

dry cloth and charge again.

Charge indicator

Rechargeable Ni-MH ONLY

Confirm “Charging”is displayed.

TGA401(e).fm Page 3 Tuesday, December 22, 2009 12:10 PM

4For assistance, please visit http://www.panasonic.com/help

Panasonic Ni-MH battery performance (supplied batteries)

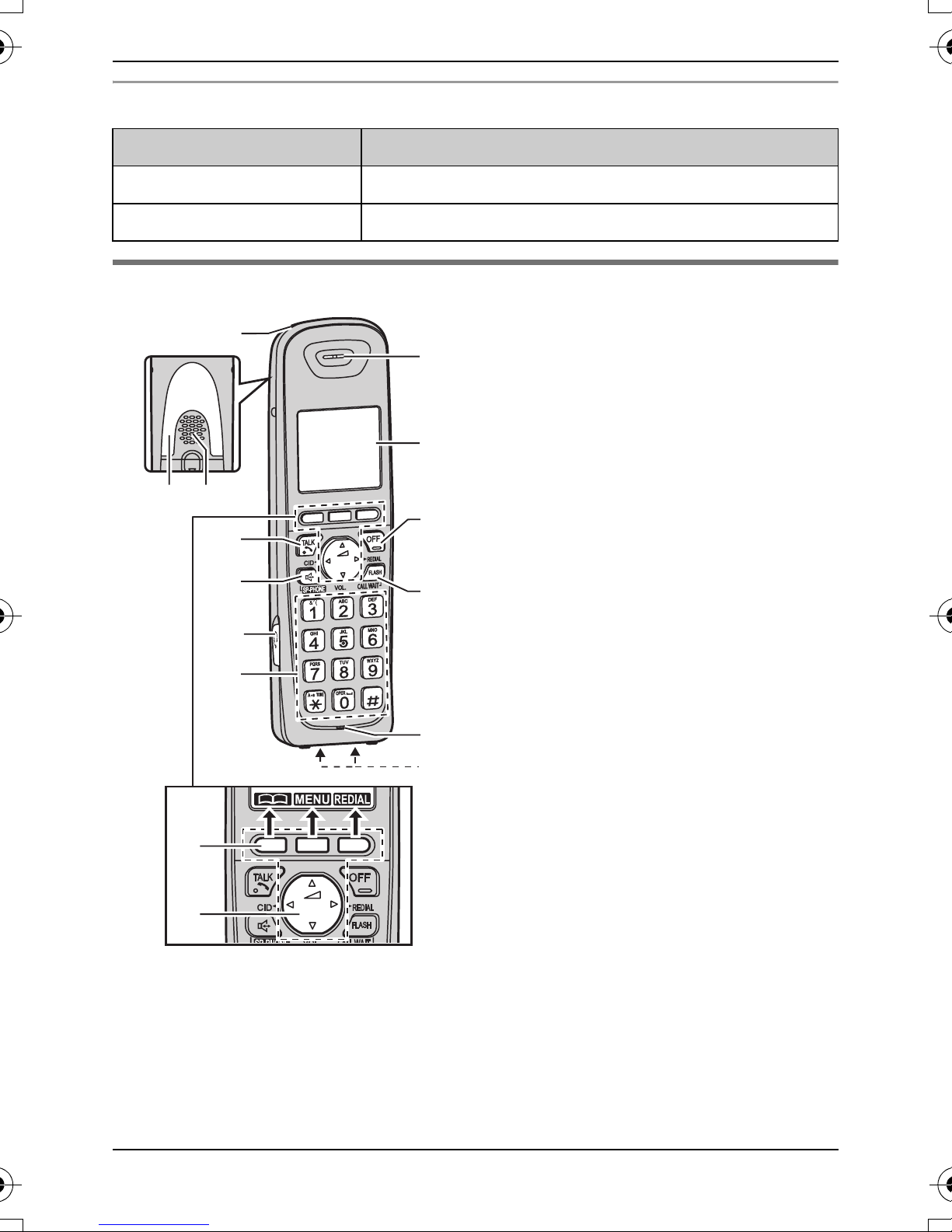

Controls

NControl type

ASoft keys

The handset features 3 soft keys. By pressing a soft key, you can

select the feature shown directly above it on the display.

Operation Operating time

In continuous use 13 hours max. (If Eco mode is on.)

Not in use (standby) 11 days max. (If Eco mode is on.)

ACharge indicator

Ringer indicator

Message indicator

BNonslip pad

LNonslip pad offers support

when you cradle the

handset between your

shoulder and ear.

CSpeaker

D{C} (TALK)

E{s} (SP-PHONE:

Speakerphone)

FHeadset jack

GDial keypad ({*}: TONE)

HReceiver

IDisplay

J{OFF}

K{FLASH}{CALL WAIT}

LMicrophone

MCharge contacts

B C

TGA401(e).fm Page 4 Tuesday, December 22, 2009 12:10 PM

For assistance, please visit http://www.panasonic.com/help 5

BNavigator key

–{^}, {V}, {<}, or {>}: Scroll through various lists and items.

–?VOL. (Volume: {^} or {V}): Adjust the receiver or speaker

volume while talking.

–{<}CID (Caller ID): View the caller list.

–{>}REDIAL: View the redial list.

Note:

LThe preset melodies used for the ringer tone in this product are used

For KX-TG4011/KX-TG4021/KX-TG4071 series users

NUsing the soft keys (operational differences between handsets)

KX-TGA401 features 3 soft keys, different to your original handset

which features keys with printed function names.

Press the soft key corresponding to the desired operation

(page 4: A).

Example: When selecting/setting the desired item in programming

LSome KX-TGA401 soft key names are different to the button names

described in your base unit’s operating instructions.

Registering a handset to a base unit

1Base unit:

NKX-TG4011/KX-TG6511 series

Press and hold {LOCATOR}for about 5 seconds. (No registration

tone)

NKX-TG4021/KX-TG4031/KX-TG4051/KX-TG4071/KX-TG6521/

KX-TG6531/KX-TG6541/KX-TG7531 series

Press and hold {LOCATOR}for about 5 seconds until the

registration tone sounds.

LIf all registered handsets start ringing, press the same button to

stop. Then repeat this step.

Original handset (printed key name) KX-TGA401 soft keys

{OK}{SELECT}{SAVE}

TGA401(e).fm Page 5 Tuesday, December 22, 2009 12:10 PM

6For assistance, please visit http://www.panasonic.com/help

2Handset:

Place the handset on the base unit or charger, then wait until a long

beep sounds and wis displayed.

Note:

LIf an error tone sounds, or if _is displayed, register the handset

according to the base unit’s operating instructions.

Display language

1{MENU}i{#}{1}{1}{0}

2{V}/{^}: Select the desired setting.

3{SAVE}i{OFF}

Date and time

1{MENU}i{#}{1}{0}{1}iEnter the current month, date, and

year by selecting 2 digits for each. i{OK}

Example: For July 15, 2010, enter {0}{7}{1}{5}{1}{0}.:

2Enter the current hour and minute (12-hour clock format) by selecting

2 digits for each.

Example: For 9:30, enter {0}{9}{3}{0}.

3{AM/PM}: Select “AM”or “PM”. i{SAVE}i{OFF}

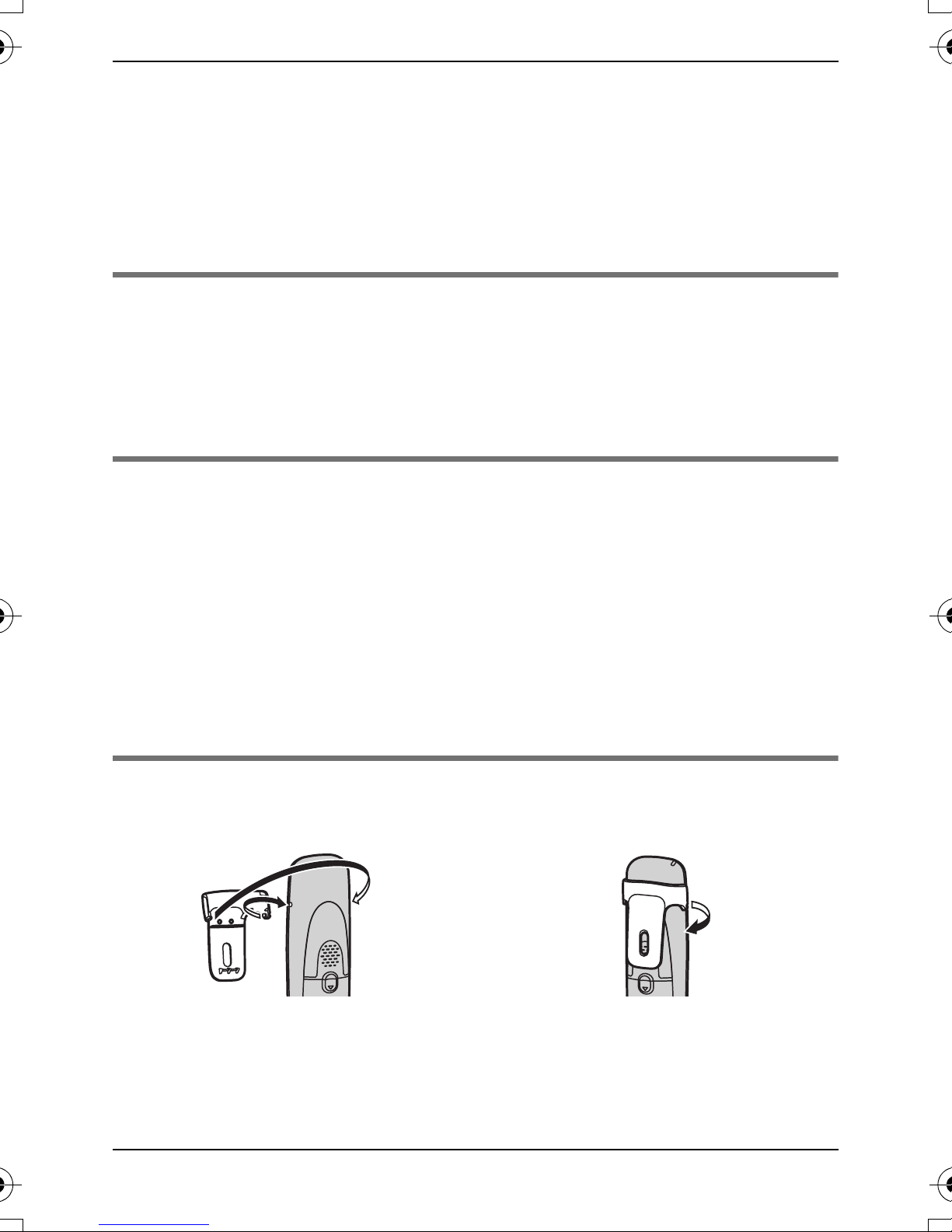

Belt clip

NTo attach NTo remove

TGA401(e).fm Page 6 Tuesday, December 22, 2009 12:10 PM

For assistance, please visit http://www.panasonic.com/help 7

For KX-TG6511/KX-TG6521/KX-TG6531/

KX-TG6541/KX-TG7531 series users

There are some differences in the specification of your original handset

and the KX-TGA401. The feature differences are described in the chart

below.

Main feature differences

Operational differences in other features

NChanging group names in the shared phonebook

See “Changing group names” (page 9).

NEditing entries in the shared phonebook

See “Editing entries” (page 10).

Feature KX-TGA401

KX-TG6511/

KX-TG6521/

KX-TG6531/

KX-TG6541

series handset

KX-TG7531

series

handset

Display size 1.8 inches 1.8 inches 2.1 inches

Button size Extra large Large Large

Display mode — — r

Message list — — r

TGA401(e).fm Page 7 Tuesday, December 22, 2009 12:10 PM

8For assistance, please visit http://www.panasonic.com/help

For KX-TG4011/KX-TG4021/KX-TG4071

series users

There are some differences in the specification of your original handset

and the KX-TGA401. The feature differences are described in the

following chart.

Main feature differences

Operational differences in other features

– Date and time (page 6)

– Chain dial (page 10)

– Voice guidance language (page 10)

– Selecting “Greeting only” (page 11)

– Calling back during playback (Caller ID subscribers only) (page 11)

– Caller list operations (Caller ID subscribers only):

Feature KX-TGA401

KX-TG4011/

KX-TG4021/

KX-TG4071

series handset

Page

Display size 1.8 inches 1.4 inches —

Phonebook settings

– Group

– All erase r— 9, 10

Message alert r— 11, 15

Alarm r—13

Silent mode r—13

Voice mail settings

– Voice mail access no.

– VM tone detection r—14

Time adjustment setting r—15

TGA401(e).fm Page 8 Tuesday, December 22, 2009 12:10 PM

For assistance, please visit http://www.panasonic.com/help 9

Editing a caller’s phone number before calling back (page 12)

Erasing all caller information (page 12)

Storing caller information to the phonebook (page 12)

– Transferring calls, conference calls (page 12)

– Deregistering a handset (page 12)

Differences in the shared phonebook operations

Adding entries

When adding an entry to the phonebook, you can assign it to one of 9

groups.

1{C}i{ADD}

2Enter the party’s name (16 characters max.). i{OK}

3Enter the party’s phone number (24 digits max.). i{OK}

4{V}/{^}: Select the desired group. i{SELECT}2 times

LTo add other entries, repeat from step 2.

5{OFF}

Changing group names

The default group name is “Group 1”to “Group 9”.

1{C}i{MENU}i{V}/{^}: “Group”i{SELECT}

2{V}/{^}: Select the desired group. i{SELECT}

3{V}/{^}: “Group name”i{SELECT}

4Edit the name (10 characters max.). i{SAVE}i{OFF}

Finding and calling a phonebook entry: Searching by group

1{C}i{GROUP}

2{V}/{^}: Select the group you want to search. i{SELECT}

LIf you select “All groups”, the unit ends the group search.

3{V}/{^}: Select the desired entry. i{C}

TGA401(e).fm Page 9 Tuesday, December 22, 2009 12:10 PM

10 For assistance, please visit http://www.panasonic.com/help

Group ringer tone (Caller ID subscribers only)

You can assign a different ringer tone to the desired group.

If you select “Current ringer”(default), the unit uses the same

ringer tone as for other incoming calls when calls from this group are

received.

1{C}i{MENU}i{V}/{^}: “Group”i{SELECT}

2{V}/{^}: Select the desired group. i{SELECT}

3{V}/{^}: Select the current setting of the group ringer tone. i

{SELECT}

4{V}/{^}: Select the desired ringer tone. i{SAVE}i{OFF}

Editing entries

1{C}i{V}/{^}: Select the desired entry. i{EDIT}

2Edit the name if necessary (16 characters max.). i{OK}

3Edit the phone number if necessary (24 digits max.). i{OK}

4{V}/{^}: Select the desired group. i{SELECT}2 times i{OFF}

Erasing all entries

1{C}i{MENU}i{V}/{^}: “Erase all”i{SELECT}

2{V}/{^}: “Yes”i{SELECT}

3{V}/{^}: “Yes”i{SELECT}i{OFF}

Chain dial

1During an outside call, press {MENU}.

2{V}/{^}: “Phonebook”i{SELECT}

3{V}/{^}: Select the desired entry. i{CALL}

Differences in the answering system operations

(KX-TG4021/KX-TG4071 series only)

Voice guidance language

1{MENU}i{#}{1}{1}{2}

TGA401(e).fm Page 10 Tuesday, December 22, 2009 12:10 PM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Combiné

Panasonic

Panasonic KX-TGA600 Manuel utilisateur

Panasonic

Panasonic KX-TGA910FX Manuel utilisateur

Panasonic

Panasonic KX-TGA520M - Accessory Handset For KX-TG5200M Series Expandable... Manuel utilisateur

Panasonic

Panasonic KX-TGA520C Manuel utilisateur

Panasonic

Panasonic KX-TGLA40 Manuel utilisateur

Panasonic

Panasonic KX-TGA807EX Manuel utilisateur

Panasonic

Panasonic KX-TGFA51 Manuel utilisateur

Panasonic

Panasonic KX-TGDA59C Manuel utilisateur

Panasonic

Panasonic KX-TGFA87C Manuel utilisateur

Panasonic

Panasonic KX-TGFA85 Manuel utilisateur

Panasonic

Panasonic CY-BT100N Manuel utilisateur

Panasonic

Panasonic KX-TGA6700 Manuel utilisateur

Panasonic

Panasonic KX-HNH100FX Manuel utilisateur

Panasonic

Panasonic KX-TGDA63 Manuel utilisateur

Panasonic

Panasonic KX-TGEA40 Manuel utilisateur

Panasonic

Panasonic KX-TGA641 Manuel utilisateur

Panasonic

Panasonic KX-TCA151EX Manuel utilisateur

Panasonic

Panasonic KX-TD7685 - Wireless Digital Phone Manuel utilisateur

Panasonic

Panasonic KX-TGA680 Manuel utilisateur

Panasonic

Panasonic kx-tg9331c Manuel utilisateur

Panasonic

Panasonic KX-TGA641E Manuel utilisateur

Panasonic

Panasonic KX-TGP550 T04 Manuel utilisateur

Panasonic

Panasonic KX-TGA651B Mode d’emploi

Panasonic

Panasonic KX-TGA470 Manuel utilisateur

Manuels Combiné populaires d'autres marques

Swissvoice

Swissvoice ePure HD Manuel utilisateur

Philips

Philips TD6736/BH051P Manuel utilisateur

ASCOM

ASCOM I62 - Manuel utilisateur

LG-Ericsson

LG-Ericsson LIP-9010 Manuel utilisateur

GE 1583 Manuel utilisateur

iiNet

iiNet Handset Manuel utilisateur

ASCOM

ASCOM 9p23 Manuel utilisateur

AT&T

AT&T DLP70110 Manuel utilisateur

AirCell

AirCell ST 3100 Manuel utilisateur

Eaton

Eaton HHIR-LCD-PROG Instructions de montage

Mitel

Mitel 112 Manuel utilisateur

SBC

SBC SBC-381H Manuel utilisateur

Mitel

Mitel 5602 Manuel utilisateur

ASCOM

ASCOM d81 Messenger Instructions d'installation

SpectraLink

SpectraLink 7522 Manuel utilisateur

Avaya

Avaya L100 Series Comment utiliser

ooma

ooma HD2 Handset Manuel utilisateur

Yealink

Yealink IPW56 Manuel utilisateur
