Panasonic KX-TGEA20 Manuel utilisateur

Installation Manual

Additional Digital Cordless Handset

Model No. KX-TGEA20

KX-TGHA20

KX-TGEA20 KX-TGHA20

Thank you for purchasing a Panasonic product.

This unit is an additional handset compatible with the following series of

Panasonic Digital Cordless Phone:

- KX-TGE210/KX-TGE230/KX-TGE240/KX-TGE260/KX-TGE270 (KX-TGEA20)

- KX-TGH260 (KX-TGHA20)

(The corresponding models are subject to change without notice.)

You must register this handset with your base unit before it can be used. This

installation manual describes only the steps needed to register and begin using

the handset. Please read the base unit’s operating instructions for further details.

Please read this installation manual before using the unit and save it for future

reference.

For assistance, visit our Web site: http://www.panasonic.com/help

for customers in the U.S.A. or Puerto Rico.

Printed in Malaysia PNQX6369ZA PT1113MG0

TGEA_TGHA20(en)_1119_ver021.pdf 1 2013/11/19 11:47:23

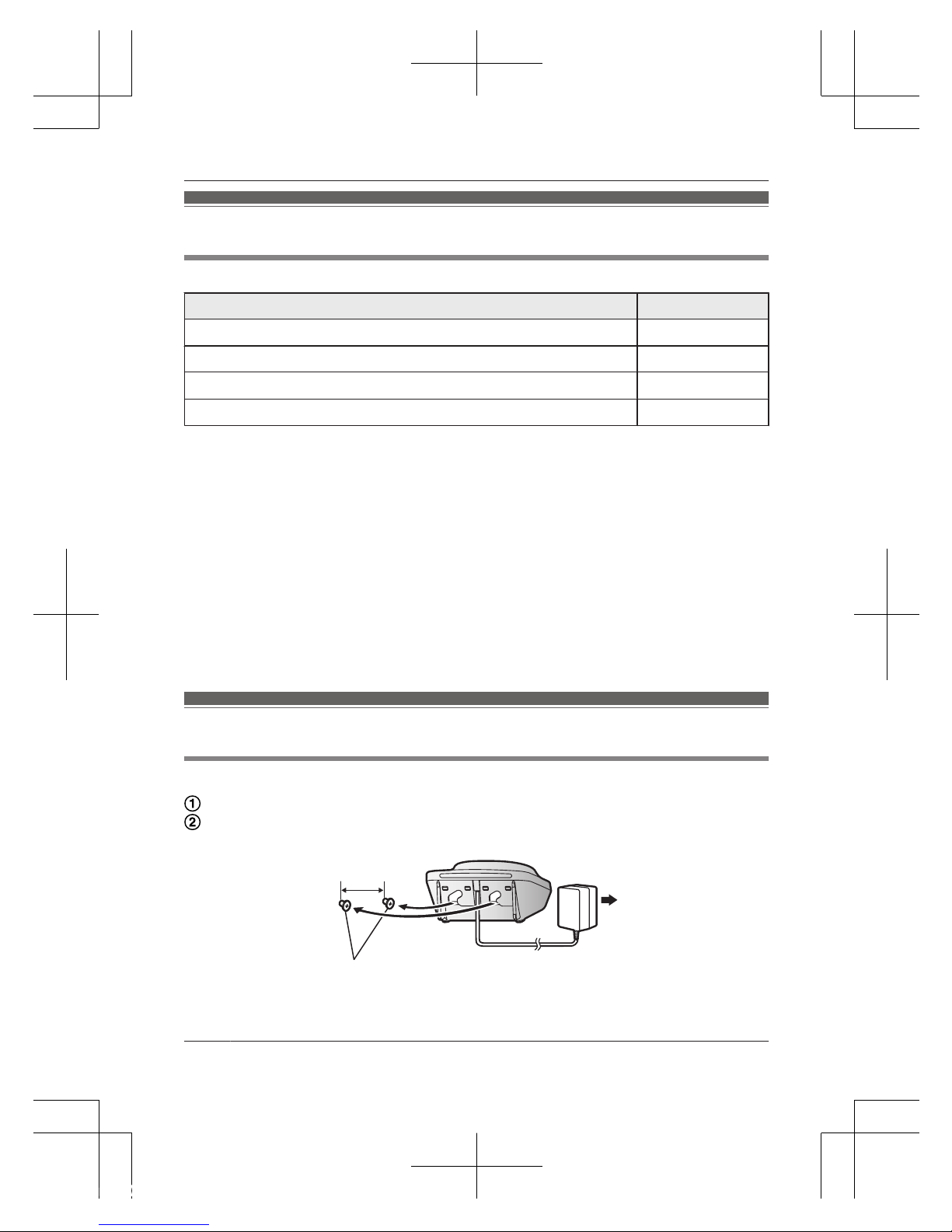

Accessory information

Supplied accessories

Accessory item/Order number Quantity

Charger*1 1

Rechargeable batteries/HHR-4DPA 2

Handset cover*2, *3 1

Belt clip (KX-TGEA20)*4 1

*1 KX-TGEA20: PNLC1050ZB (Black), PNLC1050ZS (Silver)

KX-TGHA20: PNLC1051ZB

*2 The handset cover comes attached to the handset.

*3 KX-TGEA20: PNYNTGEA20BR (Black), PNYNTGEA20SR (Silver)

KX-TGHA20: PNYNTGHA20BR

*4 PNKE1312Z2 (Black), PNKE1312Z1 (Silver)

Note:

RPlease read the base unit’s operating instructions for additional/replacement

accessories.

– Optional headsets (KX-TGEA20): KX-TCA60, KX-TCA93, KX-TCA400,

KX-TCA430

Setting up

Connections/Wall mounting

Connect the AC adaptor to the power outlet.

Drive the screws (

) (not supplied) into the wall, if necessary.

27.2 mm (1 1/16 inches)

2For assistance, please visit http://www.panasonic.com/help

Installation

TGEA_TGHA20(en)_1119_ver021.pdf 2 2013/11/19 11:47:23

Note:

RThe AC adaptor must remain connected at all times. (It is normal for the adaptor

to feel warm during use.)

RMake sure that the wall and the fixing method are strong enough to support the

weight of the unit.

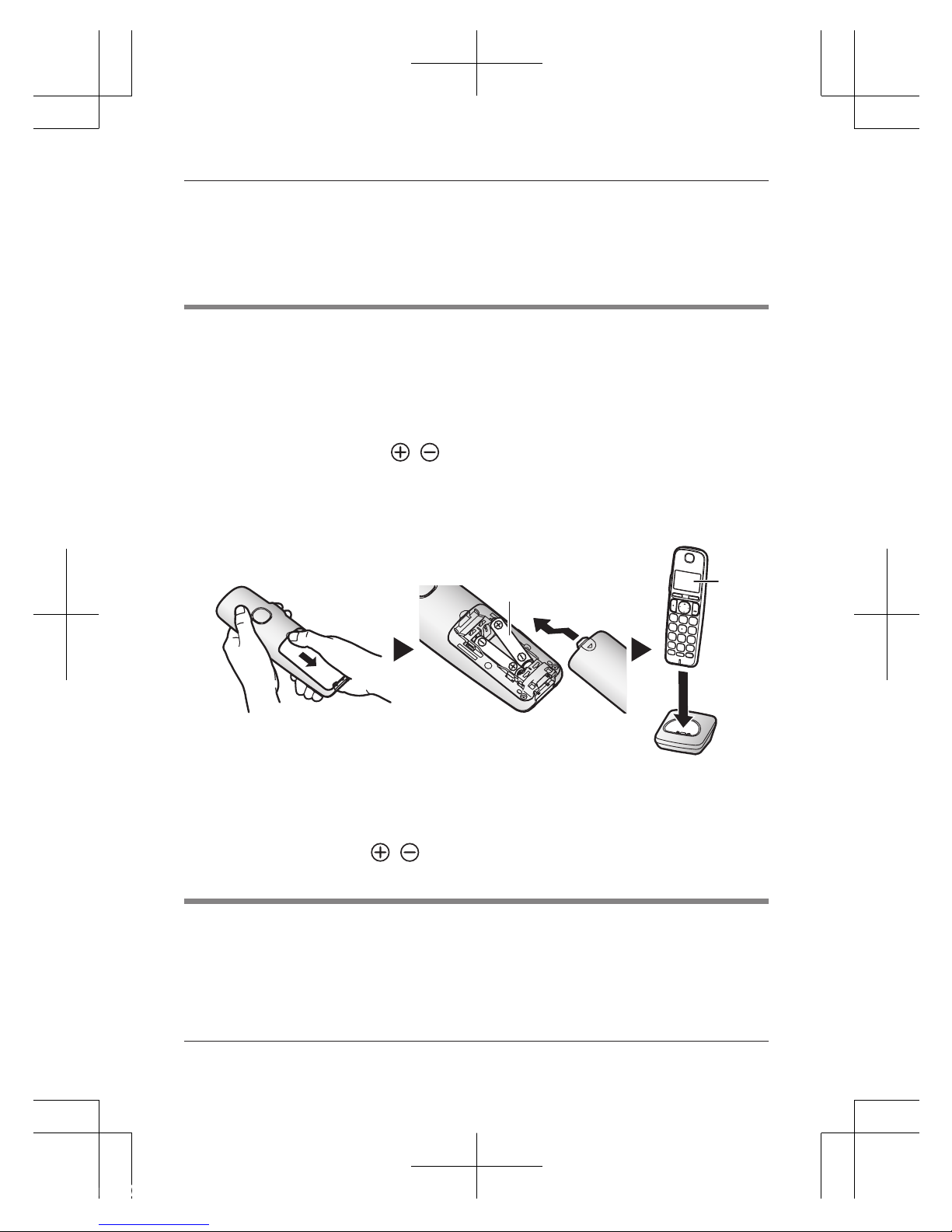

Battery installation/Battery charging

Important:

RUse the supplied rechargeable batteries. For replacement, we recommend using

the Panasonic rechargeable batteries noted on page 2.

RUSE ONLY rechargeable Ni-MH batteries AAA (R03) size (

RDo NOT use Alkaline/Manganese/Ni-Cd batteries.

RConfirm correct polarities ( , ).

Charge for about 7 hours.

RConfirm “Charging” is displayed (

RWhen the batteries are fully charged, “Fully charged” is displayed.

RModel shown is KX-TGEA20.

Note:

RIf the batteries are fully charged, but the operating time seems to be shorter,

clean the battery ends ( , ) and the charge contacts with a dry cloth and

charge again.

Registering a handset to a base unit

1Base unit:

Press and hold MLOCATORN or MHANDSET LOCATORN for about 5 seconds.

RIf all registered handsets start ringing, press MLOCATORN or MHANDSET

LOCATORN again to stop, then repeat this step.

For assistance, please visit http://www.panasonic.com/help 3

Installation

TGEA_TGHA20(en)_1119_ver021.pdf 3 2013/11/19 11:47:24

2Handset:

Place the handset on the base unit or charger, then wait until a long beep

sounds and is displayed.

Note:

RIf an error tone sounds, or if is displayed, register the handset according to

the base unit’s operating instructions.

Display language

1MMENUN (right soft key) #110

2MbN: Select the desired setting. a MSAVEN a MOFFN

For your safety

To prevent severe injury and loss of life/property, read this section carefully before

using the product to ensure proper and safe operation of your product.

WARNING

Power connection

RCompletely insert the AC adaptor/power plug into the power outlet. Failure to do

so may cause electric shock and/or excessive heat resulting in a fire.

RRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it

from the power outlet, then wiping with a dry cloth. Accumulated dust may cause

an insulation defect from moisture, etc. resulting in a fire.

RUnplug the product from power outlets if it emits smoke, an abnormal smell, or

makes an unusual noise. These conditions can cause fire or electric shock.

Confirm that smoke has stopped emitting and contact us at

http://www.panasonic.com/contactinfo

Installation

RTo prevent the risk of fire or electrical shock, do not expose the product to rain

or any type of moisture.

RDo not place or use this product near automatically controlled devices such as

automatic doors and fire alarms. Radio waves emitted from this product may

cause such devices to malfunction resulting in an accident.

4For assistance, please visit http://www.panasonic.com/help

Installation

TGEA_TGHA20(en)_1119_ver021.pdf 4 2013/11/19 11:47:24

CAUTION

Installation and location

RThe AC adaptor is used as the main disconnect device. Ensure that the AC

outlet is installed near the product and is easily accessible.

Battery

RWe recommend using the supplied batteries or additional/replacement batteries

noted on page 2 for replacement battery information. USE ONLY rechargeable

Ni-MH batteries AAA (R03) size.

RDo not mix old and new batteries.

RDo not open or mutilate the batteries. Released electrolyte from the batteries is

corrosive and may cause burns or injury to the eyes or skin. The electrolyte is

toxic and may be harmful if swallowed.

RExercise care when handling the batteries. Do not allow conductive materials

such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit

may cause the batteries and/or the conductive material to overheat and cause

burns.

RCharge the batteries provided with or identified for use with this product only, in

accordance with the instructions and limitations specified in this manual.

ROnly use a compatible base unit (or charger) to charge the batteries. Do not

tamper with the base unit (or charger). Failure to follow these instructions may

cause the batteries to swell or explode.

Attention:

A nickel metal hydride battery that is

recyclable powers the product you have

purchased.

Please call 1-800-8-BATTERY

(1-800-822-8837) for information on how

to recycle this battery.

Important safety instructions

When using your product, basic safety precautions should always be followed to

reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Do not use this product near water for example, near a bathtub, washbowl,

kitchen sink, or laundry tub, in a wet basement or near a swimming pool.

2. Do not use the telephone to report a gas leak in the vicinity of the leak.

For assistance, please visit http://www.panasonic.com/help 5

Installation

TGEA_TGHA20(en)_1119_ver021.pdf 5 2013/11/19 11:47:24

3. Use only the power cord and batteries indicated in this manual. Do not dispose

of batteries in a fire. They may explode. Check with local codes for possible

special disposal instructions.

SAVE THESE INSTRUCTIONS

Other information

ROperating the product near electrical appliances may cause interference. Move

away from the electrical appliances.

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of

used batteries according to the instructions.

Routine care

RWipe the outer surface of the product with a soft moist cloth.

RDo not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

RThis product can store your private/confidential information. To protect your

privacy/confidentiality, we recommend that you erase information such as

phonebook or caller list entries from the memory before you dispose of, transfer,

or return the product.

FCC and other information

This equipment is hearing aid compatible as defined by the FCC in 47 CFR Section

68.316.

When you hold the phone to your ear, noise might be heard in your Hearing Aid.

Some Hearing Aids are not adequately shielded from external RF (radio frequency)

energy. If noise occurs, use an optional headset accessory or the speakerphone

option (if applicable) when using this phone. Consult with your audiologist or

Hearing Aid manufacturer about the availability of Hearing Aids which provide

adequate shielding to RF energy commonly emitted by digital devices.

WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TEST

CALLS TO EMERGENCY NUMBERS:

1) Remain on the line and briefly explain to the dispatcher the reason for the call.

2) Perform such activities in the off-peak hours, such as early morning or late

evenings.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

6For assistance, please visit http://www.panasonic.com/help

Installation

TGEA_TGHA20(en)_1119_ver021.pdf 6 2013/11/19 11:47:24

(1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired

operation.

Privacy of communications may not be ensured when using this phone.

CAUTION:

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate this device.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

FCC RF Exposure Warning:

RThis product complies with FCC radiation exposure limits set forth for an

uncontrolled environment.

RThis handset may not be collocated or operated in conjunction with any other

antenna or transmitter.

RKX-TGEA20: The handset may be carried and operated with only the specific

provided belt-clip. Other non-tested belt-clips or similar body-worn accessories

may not comply and must be avoided.

RKX-TGHA20: For body-worn operation, the handset must be used only with a

non-metallic accessory. Use of other accessories may not ensure compliance

with FCC RF exposure requirements.

Notice:

RFCC ID can be found inside the battery compartment or on the bottom of the

unit.

For assistance, please visit http://www.panasonic.com/help 7

Installation

TGEA_TGHA20(en)_1119_ver021.pdf 7 2013/11/19 11:47:24

Compliance with TIA-1083 standard

Compatible with

Hearing Aid T-Coil

TIA-1083

Telephone handsets identified with this logo have reduced

noise and interference when used with T-Coil equipped

hearing aids and cochlear implants.

Notice:

LThis product is designed for use in the United States of America. Sale or use

of this product in other countries may violate local laws.

LCet appareil est conçu pour être utilisé aux États-Unis d’Amérique. La vente

ou l’emploi de cet appareil dans certains autres pays peut constituer une

infraction à la législation locale.

LEste producto está diseñado para usarse en los Estados Unidos de América.

La venta o el empleo de este producto en ciertos países puede constituir

violación de la legislación local.

Lҏ౰ࠢட࣏୽ٺҢՄ೩Ȅӵڏт୽ড়᎛୵ܖٺҢȂџ૖ོႂІ࿋ӴݲٽȄ

Lߎߩ⵾ຠߪޔᣣᧄ࿖ᄖߢߩ૶↪ࠍ⋡⊛ߣߒߡ⸳⸘ߐࠇߡ߅ࠅޔᣣᧄ࿖ౝߢߩ

૶↪ߪᴺᓞ㆑෻ߣߥࠅ߹ߔޕᓥߞߡޔᒰ␠ߢߪᣣᧄ࿖ౝߦ߅޿ߡߪේೣߣߒ

ߡୃℂߥߤߩࠨ࡯ࡆࠬߪ⥌ߒ߆ߨ߹ߔޕ

8For assistance, please visit http://www.panasonic.com/help

Installation

TGEA_TGHA20(en)_1119_ver021.pdf 8 2013/11/19 11:47:24

Customer services

Customer Services Directory (United States and

Puerto Rico)

For hearing or speech impaired TTY users, TTY: 1-877-833-8855

For hearing or speech impaired TTY users, TTY: 1-866-605-1277

Accessory Purchases (United States and

Puerto Rico)

Obtain Product Information and Operating Assistance; locate your nearest

Dealer or Service Center; purchase Parts and Accessories; or make Customer

Service and Literature requests by visiting our Web Site at:

or, contact us via the web at:

http://www.panasonic.com/help

http://www.panasonic.com/contactinfo

Purchase Parts, Accessories and Owner’s Manual online for all Panasonic

Products by visiting our Web Site at:

or, send your request by E-mail to:

You may also contact us directly at: 1-800-237-9080 (Fax Only)

(Monday - Friday 9 am to 9 pm, EST.)

Panasonic National Parts Center

20421 84th Avenue S., Kent, WA 98032

(We accept Visa, MasterCard, Discover Card, American Express.)

http://www.pstc.panasonic.com

[email protected]

For assistance, please visit http://www.panasonic.com/help 9

Appendix

TGEA_TGHA20(en)_1119_ver021.pdf 9 2013/11/19 11:47:24

Warranty (For United States and Puerto

Rico)

Panasonic Telephone Products

Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship,

Panasonic Corporation of North America (referred to as "the warrantor") will, for the length

of the period indicated on the chart below, which starts with the date of original purchase

(“Limited Warranty period"), at its option either (a) repair your product with new or refurbished

parts, or (b) replace it with a new or a refurbished equivalent value product, or (c) refund your

purchase price. The decision to repair, replace or refund will be made by the warrantor.

Parts Labor

One (1) Year One (1) Year

During the "Labor" Limited Warranty period there will be no charge for labor. During the

"Parts" Limited Warranty period, there will be no charge for parts. You must mail-in your

product prepaid during the Limited Warranty period. This Limited Warranty excludes both

parts and labor for batteries, antennas, and cosmetic parts (cabinet). This Limited Warranty

only applies to products purchased and serviced in the United States or Puerto Rico. This

Limited Warranty is extended only to the original purchaser and only covers products

purchased as new.

For Limited Warranty service for headsets if a headset is included with this product please

follow instructions above.

IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE PURCHASER

WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE

INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE.

CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT

SUCH PROOF OF PURCHASE.

Online Repair Request

To submit a new repair request and for quick repair status visit our Web Site at

http://www.panasonic.com/repair

When shipping the unit carefully pack in a padded shipping carton, include all accessories,

and send it prepaid. Include a letter detailing the complaint, a return address and provide a

day time phone number where you can be reached. P.O. Boxes are not acceptable. Keep

the tracking number for your records. A copy of valid registered receipt is required under

the 1 year parts and labor Limited Warranty.

Mail-In Service--Online

10 For assistance, please visit http://www.panasonic.com/help

Appendix

TGEA_TGHA20(en)_1119_ver021.pdf 10 2013/11/19 11:47:24

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Combiné

Panasonic

Panasonic KX-TGA715FX Manuel utilisateur

Panasonic

Panasonic KX-TGA520M - Accessory Handset For KX-TG5200M Series Expandable... Manuel utilisateur

Panasonic

Panasonic KX-TGD66 Series Manuel utilisateur

Panasonic

Panasonic KX-TGA681EXB Manuel utilisateur

Panasonic

Panasonic KXTGA272S - H/S FOR KXTG2700 Manuel utilisateur

Panasonic

Panasonic KX-TGA572S Manuel utilisateur

Panasonic

Panasonic KX-TGP550 T04 Manuel utilisateur

Panasonic

Panasonic KX-TGFA61B Manuel utilisateur

Panasonic

Panasonic KX-TGDA59C Manuel utilisateur

Panasonic

Panasonic KX-TD7580 Manuel utilisateur

Panasonic

Panasonic KX-TGA671EXB Manuel utilisateur

Panasonic

Panasonic KX-TGA410 Manuel utilisateur

Panasonic

Panasonic Telenium EB-P55S Manuel utilisateur

Panasonic

Panasonic KX-TGA101C Manuel utilisateur

Panasonic

Panasonic KX-TCA130EX Manuel utilisateur

Panasonic

Panasonic KXTGA750E Manuel utilisateur

Panasonic

Panasonic KX-TGFA87C Manuel utilisateur

Panasonic

Panasonic KX-TGFA61 Manuel utilisateur

Panasonic

Panasonic KX-TGA840EX Manuel utilisateur

Panasonic

Panasonic KX-PRWA13C Manuel utilisateur

Panasonic

Panasonic KX-TGCA35 Manuel utilisateur

Panasonic

Panasonic KX-TGA510M - 5.8GHz Accessory Handset Manuel utilisateur

Panasonic

Panasonic KX-PRWA10EX Manuel utilisateur

Panasonic

Panasonic KX-TGMA45 Manuel utilisateur

Manuels Combiné populaires d'autres marques

Swissvoice

Swissvoice ePure HD Manuel utilisateur

Philips

Philips TD6736/BH051P Manuel utilisateur

ASCOM

ASCOM I62 - Manuel utilisateur

LG-Ericsson

LG-Ericsson LIP-9010 Manuel utilisateur

GE 1583 Manuel utilisateur

iiNet

iiNet Handset Manuel utilisateur

ASCOM

ASCOM 9p23 Manuel utilisateur

AT&T

AT&T DLP70110 Manuel utilisateur

AirCell

AirCell ST 3100 Manuel utilisateur

Eaton

Eaton HHIR-LCD-PROG Instructions de montage

Mitel

Mitel 112 Manuel utilisateur

SBC

SBC SBC-381H Manuel utilisateur

Mitel

Mitel 5602 Manuel utilisateur

ASCOM

ASCOM d81 Messenger Instructions d'installation

SpectraLink

SpectraLink 7522 Manuel utilisateur

Avaya

Avaya L100 Series Comment utiliser

ooma

ooma HD2 Handset Manuel utilisateur

Yealink

Yealink IPW56 Manuel utilisateur
