Installation Manual

Additional Digital Cordless Handset

Model No. KX-PRSA10E

KX-PRWA10E

KX-PRSA10 KX-PRWA10

Thank you for purchasing a Panasonic product.

This unit is an additional handset compatible with the following series of

Panasonic Digital Cordless Phone:

- KX-PRS120 (KX-PRSA10)

- KX-PRW120 (KX-PRWA10)

(The corresponding models are subject to change without notice.)

You must register this handset with your base unit before it can be used. This

installation manual describes only the steps needed to register and begin using

the handset. Please read the base unit’s operating instructions for further details.

Please read this installation manual before using the unit and save it for future

reference.

PRWA10E_PRSA10E(en)_0508_ver012.1 1 2013/05/08 22:39:34

For enquiry, please call hotline: (+852) 23130666

Accessory information

Supplied accessories

Accessory item/Part number Quantity

Charger*1 1

AC adaptor/PNLV233EKZ 1

Rechargeable batteries*2 2

Handset cover*3 1

*1 KX-PRSA10: PNLC1047ZW (White)

KX-PRWA10: PNLC1046ZW (White)

*2 Please read the base unit’s operating instructions for replacement battery

information.

*3 The handset cover comes attached to the handset.

Note:

RPlease read the base unit’s operating instructions for additional/replacement

accessories.

RPlease read "General information" of the base unit’s operating instructions for

information regarding R&TTE Directive.

2Helpline Tel. No.: U.K. 0844 844 3899 Ireland 01289 8333

Installation

PRWA10E_PRSA10E(en)_0508_ver012.2 2 2013/05/08 22:39:34

Setting up

Connections

Connect the AC adaptor plug to the unit until you hear a click.

Connect the AC adaptor to the power outlet.

KX-PRSA10: Fasten the cord by hooking it.

n KX-PRSA10 n KX-PRWA10

Note:

RUse only the supplied Panasonic AC adaptor PNLV233E.

RThe AC adaptor must remain connected at all times. (It is normal for the adaptor

to feel warm during use.)

Battery installation/Battery charging

Important:

RUse the supplied rechargeable batteries. For replacement, we recommend using

the Panasonic rechargeable batteries noted in the base unit’s operating

instructions.

RUSE ONLY rechargeable Ni-MH batteries AAA (R03) size (A).

RDo NOT use Alkaline/Manganese/Ni-Cd batteries.

RConfirm correct polarities ( , ).

Charge for about 7 hours.

RConfirm “Charging” is displayed (B).

RWhen the batteries are fully charged, “Fully charged” is displayed.

Helpline Tel. No.: U.K. 0844 844 3899 Ireland 01289 8333 3

Installation

PRWA10E_PRSA10E(en)_0508_ver012.3 3 2013/05/08 22:39:34

nKX-PRSA10

nKX-PRWA10

Note:

RThe handset display may show “Please wait for 1 minute.” when the

handset is placed on the charger if it is not registered to the base unit.

RIf the batteries are fully charged, but the operating time seems to be shorter,

clean the battery ends ( , ) and the charge contacts with a dry cloth and

charge again.

Registering the handset to the base unit

Ensure that the handset is switched on. If it is not on, press and hold MN for

few seconds to turn the handset on.

1Handset:

Lift the handset and press MN.

2Base unit:

Press and hold MN for about 5 seconds.

RIf all registered handsets start ringing, press MN again to stop, then repeat

this step.

4Helpline Tel. No.: U.K. 0844 844 3899 Ireland 01289 8333

Installation

PRWA10E_PRSA10E(en)_0508_ver012.4 4 2013/05/08 22:39:34

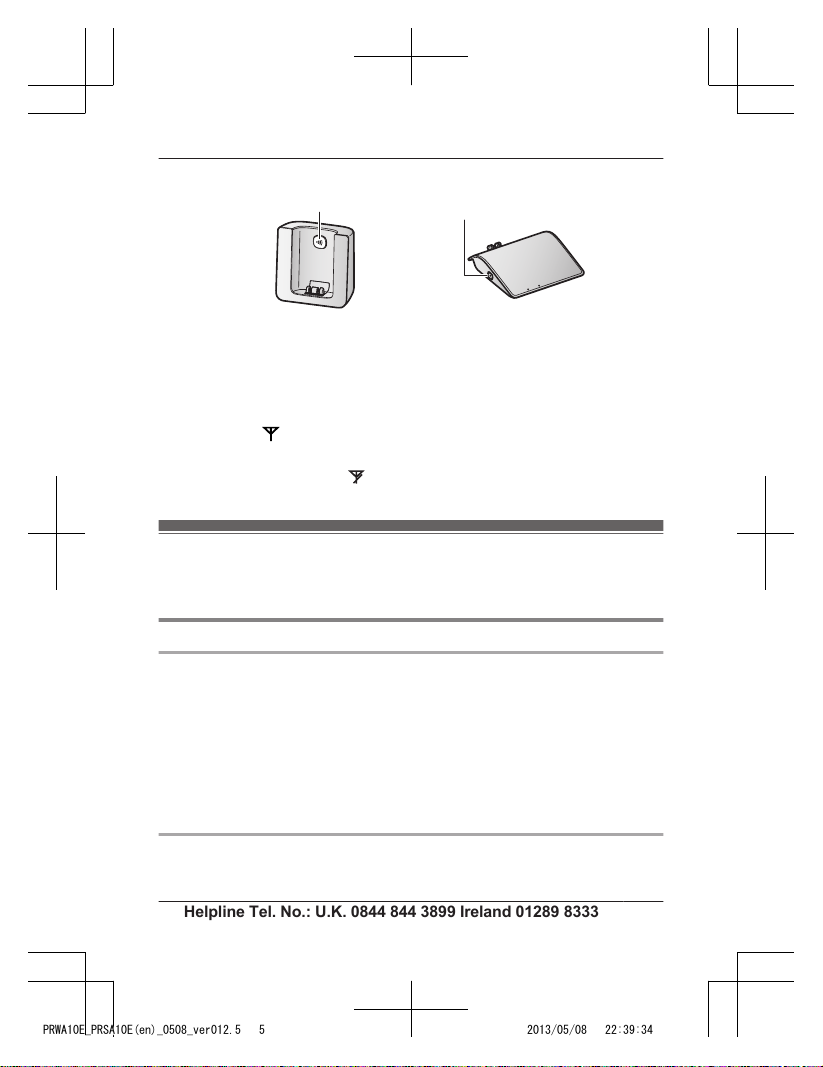

n KX-PRSA10 n KX-PRWA10

{x}

3Handset:

Place the handset on the base unit or charger.

RContinue the operation even when the handset display shows “Please

wait for 1 minute.”.

4With the handset still on the base unit or charger, wait until a confirmation tone

sounds and is displayed.

Note:

RIf an error tone sounds, or if is displayed, register the handset according to

the base unit’s operating instructions.

For your safety

To prevent severe injury and loss of life/property, read this section carefully before

using the product to ensure proper and safe operation of your product.

WARNING

Power connection

RCompletely insert the AC adaptor/power plug into the power outlet. Failure to do

so may cause electric shock and/or excessive heat resulting in a fire.

RRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it

from the power outlet, then wiping with a dry cloth. Accumulated dust may cause

an insulation defect from moisture, etc. resulting in a fire.

RUnplug the product from power outlets if it emits smoke, an abnormal smell, or

makes an unusual noise. These conditions can cause fire or electric shock.

Confirm that smoke has stopped emitting and contact an authorised service

centre.

Installation

RTo prevent the risk of fire or electrical shock, do not expose the product to rain

or any type of moisture.

Helpline Tel. No.: U.K. 0844 844 3899 Ireland 01289 8333 5

Installation

PRWA10E_PRSA10E(en)_0508_ver012.5 5 2013/05/08 22:39:34

RDo not place or use this product near automatically controlled devices such as

automatic doors and fire alarms. Radio waves emitted from this product may

cause such devices to malfunction resulting in an accident.

CAUTION

Installation and location

RThe AC adaptor is used as the main disconnect device. Ensure that the AC

outlet is installed near the product and is easily accessible.

Battery

RWe recommend using the supplied batteries or additional/replacement batteries

noted in the base unit’s operating instructions for replacement battery

information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size.

RDo not mix old and new batteries.

RDo not open or mutilate the batteries. Released electrolyte from the batteries is

corrosive and may cause burns or injury to the eyes or skin. The electrolyte is

toxic and may be harmful if swallowed.

RExercise care when handling the batteries. Do not allow conductive materials

such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit

may cause the batteries and/or the conductive material to overheat and cause

burns.

RCharge the batteries provided with or identified for use with this product only, in

accordance with the instructions and limitations specified in this manual.

ROnly use a compatible base unit (or charger) to charge the batteries. Do not

tamper with the base unit (or charger). Failure to follow these instructions may

cause the batteries to swell or explode.

Important safety instructions

When using your product, basic safety precautions should always be followed to

reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Do not use this product near water for example, near a bathtub, washbowl,

kitchen sink, or laundry tub, in a wet basement or near a swimming pool.

2. Do not use the telephone to report a gas leak in the vicinity of the leak.

3. Use only the power cord and batteries indicated in this manual. Do not dispose

of batteries in a fire. They may explode. Check with local codes for possible

special disposal instructions.

SAVE THESE INSTRUCTIONS

6Helpline Tel. No.: U.K. 0844 844 3899 Ireland 01289 8333

Installation

PRWA10E_PRSA10E(en)_0508_ver012.6 6 2013/05/08 22:39:34

Other information

ROperating the product near electrical appliances may cause interference. Move

away from the electrical appliances.

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of

used batteries according to the instructions.

Routine care

RWipe the outer surface of the product with a soft moist cloth.

RDo not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

RThis product can store your private/confidential information. To protect your

privacy/confidentiality, we recommend that you erase information such as

phonebook or caller list entries from the memory before you dispose of, transfer,

or return the product.

Information for Users on Collection and Disposal of Old Equipment and used

Batteries

123

These symbols (A, B, C) on the products, packaging, and/or accompanying

documents mean that used electrical and electronic products and batteries should

not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries,

please take them to applicable collection points, in accordance with your national

legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save

valuable resources and prevent any potential negative effects on human health

and the environment which could otherwise arise from inappropriate waste

handling.

For more information about collection and recycling of old products and batteries,

please contact your local municipality, your waste disposal service or the point of

sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with

national legislation.

Helpline Tel. No.: U.K. 0844 844 3899 Ireland 01289 8333 7

Installation

PRWA10E_PRSA10E(en)_0508_ver012.7 7 2013/05/08 22:39:34

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your

dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols (A, B, C) are only valid in the European Union. If you wish to

discard these items, please contact your local authorities or dealer and ask for the

correct method of disposal.

Note for the battery symbol

This symbol (B) might be used in combination with a chemical symbol (C). In this

case it complies with the requirement set by the Directive for the chemical involved.

Sales and support information

Customer Communications Centre

RFor customers within the U.K.: 0844 844 3899

RFor customers within Ireland: 01289 8333

RFor further support on your product, please visit our website:

www.panasonic.co.uk

Direct Sales at Panasonic U.K.

ROrder accessory and consumable items for your product with ease and

confidence by phoning our Customer Communications Centre Monday - Friday

9:00am - 5:00pm (Excluding public holidays).

RGo on line through our Internet Accessory ordering application at

www.pas-europe.com

RMost major credit and debit cards accepted.

RAll enquiries transactions and distribution facilities are provided directly by

Panasonic U.K.

RAlso available through our Internet is direct shopping for a wide range of finished

products. Take a browse on our website for further details.

http://shop.panasonic.co.uk/

8Helpline Tel. No.: U.K. 0844 844 3899 Ireland 01289 8333

Installation

PRWA10E_PRSA10E(en)_0508_ver012.8 8 2013/05/08 22:39:34

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Panasonic Combiné

Panasonic

Panasonic KX-TGJ320 Manuel utilisateur

Panasonic

Panasonic KX-TCA130EX Manuel utilisateur

Panasonic

Panasonic KX-TGBA85 Manuel utilisateur

Panasonic

Panasonic KX-TG664 Manuel utilisateur

Panasonic

Panasonic KX-TPA50 Manuel utilisateur

Panasonic

Panasonic KX-TGDA30CX Manuel utilisateur

Panasonic

Panasonic KX-TGEA40S Manuel utilisateur

Panasonic

Panasonic KX-TGDA50 Manuel utilisateur

Panasonic

Panasonic KX-PRXA15E Manuel utilisateur

Panasonic

Panasonic KX-UDT131 Manuel utilisateur

Panasonic

Panasonic KX-TGMA45 Manuel utilisateur

Panasonic

Panasonic KX-TGA830EX Manuel utilisateur

Panasonic

Panasonic KX-TGLA40 Manuel utilisateur

Panasonic

Panasonic KX-TGA510M - 5.8GHz Accessory Handset Manuel utilisateur

Panasonic

Panasonic KXTGA850E Manuel utilisateur

Panasonic

Panasonic KX-TGA740B - Cordless Extension Handset Mode d’emploi

Panasonic

Panasonic KX-TGA300B - Cordless Extension Handset Manuel utilisateur

Panasonic

Panasonic EBPH55S - CELL PHONE Manuel utilisateur

Panasonic

Panasonic KX-TGA750B Manuel utilisateur

Panasonic

Panasonic KX-TGFA30C Manuel utilisateur

Panasonic

Panasonic KX-TGDA99 Manuel utilisateur

Panasonic

Panasonic KX-TGP550 T04 Manuel utilisateur

Panasonic

Panasonic KX-TGFA71 Manuel utilisateur

Panasonic

Panasonic KX-TGFA30E Manuel utilisateur

Manuels Combiné populaires d'autres marques

Swissvoice

Swissvoice ePure HD Manuel utilisateur

Philips

Philips TD6736/BH051P Manuel utilisateur

ASCOM

ASCOM I62 - Manuel utilisateur

LG-Ericsson

LG-Ericsson LIP-9010 Manuel utilisateur

GE 1583 Manuel utilisateur

iiNet

iiNet Handset Manuel utilisateur

ASCOM

ASCOM 9p23 Manuel utilisateur

AT&T

AT&T DLP70110 Manuel utilisateur

AirCell

AirCell ST 3100 Manuel utilisateur

Eaton

Eaton HHIR-LCD-PROG Instructions de montage

Mitel

Mitel 112 Manuel utilisateur

SBC

SBC SBC-381H Manuel utilisateur

Mitel

Mitel 5602 Manuel utilisateur

ASCOM

ASCOM d81 Messenger Instructions d'installation

SpectraLink

SpectraLink 7522 Manuel utilisateur

Avaya

Avaya L100 Series Comment utiliser

ooma

ooma HD2 Handset Manuel utilisateur

Yealink

Yealink IPW56 Manuel utilisateur
