Thank you for purchasing a Panasonic product.

Please read this installation

manual before using the unit and

save it for future reference.

For assistance, visit our Web site:

http://www.panasonic.com/help

for customers in the U.S.A. or

Puerto Rico.

This unit is an additional handset compatible with the following

series of Panasonic Digital Cordless Phone:

KX-TG4731/KX-TG4741/KX-TG4751/KX-TG4761/

KX-TG4771/KX-TG7731/KX-TG7741

(The corresponding models are subject to change without

notice.)

You must register this handset with your base unit before it can

be used. This installation manual describes only the steps

needed to register and begin using the handset. Please read

the base unit’s operating instructions for further details.

Charge the batteries for about 7 hours before initial use.

Additional Digital Cordless Handset

Model No. KX-TGA470

Installation Manual

PNQX5093ZA PT1111MG0 (D)

Printed in China

TGA470(e).fm Page 1 Wednesday, November 16, 2011 10:51 AM

2For assistance, please visit http://www.panasonic.com/help

Accessory information

Supplied accessories

*1 PNLC1029ZB: Black, PNLC1029ZS: Silver

*2 PNYNTGA470BR: Black

*3 The handset cover comes attached to the handset.

*4 PNKE1132Z1: Black

Note:

LPlease read the base unit’s operating instructions for additional/

replacement accessories.

– Optional headsets: KX-TCA60, KX-TCA93, KX-TCA400,

KX-TCA430

Accessory item/Order number Quantity

Charger*1 1

AC adaptor/PNLV226Z 1

Rechargeable batteries/HHR-4DPA 2

Handset cover*2, *3 1

Belt clip*4 1

TGA470(e).fm Page 2 Wednesday, November 16, 2011 10:51 AM

For assistance, please visit http://www.panasonic.com/help 3

Setting up

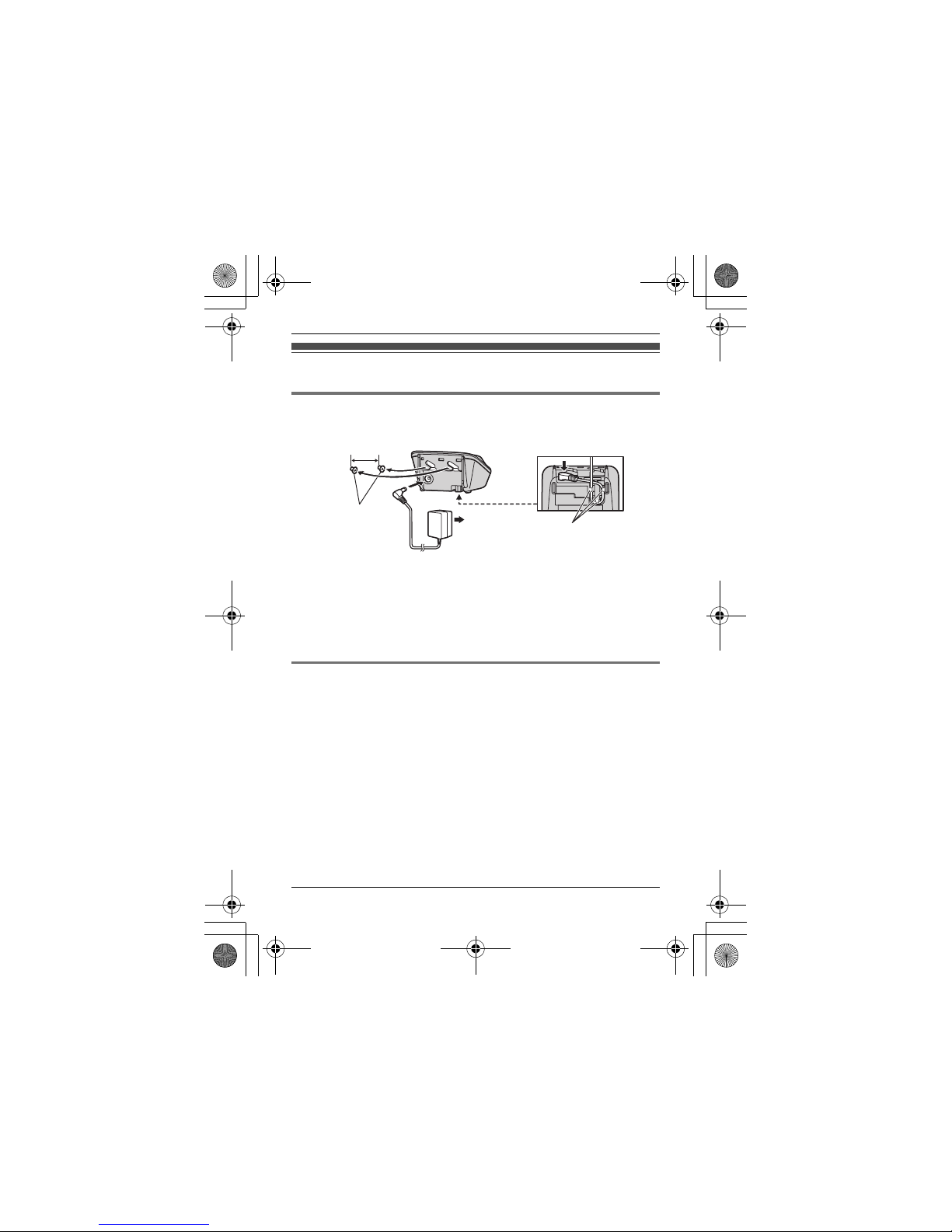

Connections/Wall mounting

Note:

LUse only the supplied Panasonic AC adaptor PNLV226.

LThe AC adaptor must remain connected at all times. (It is normal for

the adaptor to feel warm during use.)

LMake sure that the wall and the fixing method are strong enough to

support the weight of the unit.

Battery installation/Battery charging

Important:

LUse the supplied rechargeable batteries. For replacement, we

recommend using the Panasonic rechargeable batteries noted on

page 2.

LWipe the battery ends (S, T) with a dry cloth.

LAvoid touching the battery ends (S, T) or the unit contacts.

LConfirm correct polarities (S, T).

LUSE ONLY Ni-MH batteries AAA (R03) size.

LDo NOT use Alkaline/Manganese/Ni-Cd batteries.

To power outlet Hooks

25.4 mm

(1 inch)

Screws

(Not supplied)

TGA470(e).fm Page 3 Wednesday, November 16, 2011 10:51 AM

4For assistance, please visit http://www.panasonic.com/help

Charge for about 7 hours.

LWhen the batteries are fully charged, “Fully charged”is displayed.

Note:

LIf the batteries are fully charged, but the operating time seems to be

shorter, clean the battery ends (S, T) and the charge contacts with a

dry cloth and charge again.

Registering a handset to a base unit

1Base unit:

Press and hold {LOCATOR}for about 5 seconds.

LDepending on the base unit, a registration tone sounds.

LIf all registered handsets start ringing, press {LOCATOR}again to

stop, then repeat this step.

2Handset:

Place the handset on the base unit or charger, then wait until a long

beep sounds and wis displayed.

Note:

LIf an error tone sounds, or if _is displayed, register the handset

according to the base unit’s operating instructions.

Confirm

“Charging”

is displayed.

Rechargeable

Ni-MH ONLY

TGA470(e).fm Page 4 Wednesday, November 16, 2011 10:51 AM

For assistance, please visit http://www.panasonic.com/help 5

Display language

1{MENU}(11)

2{r}: Select the desired setting. s{SAVE}

3{OFF}

Belt clip

NTo attach NTo remove

TGA470(e).fm Page 5 Wednesday, November 16, 2011 10:51 AM

6For assistance, please visit http://www.panasonic.com/help

For your safety

To prevent severe injury and loss of life/property, read this section carefully before

using the product to ensure proper and safe operation of your product.

WARNING

Power connection

LCompletely insert the AC adaptor/power plug into the power outlet. Failure to do

so may cause electric shock and/or excessive heat resulting in a fire.

LRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it

from the power outlet, then wiping with a dry cloth. Accumulated dust may cause

an insulation defect from moisture, etc. resulting in a fire.

LUnplug the product from power outlets if it emits smoke, an abnormal smell, or

makes an unusual noise. These conditions can cause fire or electric shock.

Confirm that smoke has stopped emitting and contact the Panasonic Call Center

at 1-800-211- PANA (1-800-211-7262).

Installation

LTo prevent the risk of fire or electrical shock, do not expose the product to rain or

any type of moisture.

LDo not place or use this product near automatically controlled devices such as

automatic doors and fire alarms. Radio waves emitted from this product may

cause such devices to malfunction resulting in an accident.

CAUTION

Installation and location

LThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet

is installed near the product and is easily accessible.

Battery

LWe recommend using the supplied batteries or additional/replacement batteries

noted on page 2 for replacement battery information. USE ONLY rechargeable

Ni-MH batteries AAA (R03) size.

LDo not mix old and new batteries.

LDo not open or mutilate the batteries. Released electrolyte from the batteries is

corrosive and may cause burns or injury to the eyes or skin. The electrolyte is

toxic and may be harmful if swallowed.

LExercise care when handling the batteries. Do not allow conductive materials

such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit

TGA470(e).fm Page 6 Wednesday, November 16, 2011 10:51 AM

For assistance, please visit http://www.panasonic.com/help 7

may cause the batteries and/or the conductive material to overheat and cause

burns.

LCharge the batteries provided with or identified for use with this product only, in

accordance with the instructions and limitations specified in this manual.

LOnly use a compatible base unit (or charger) to charge the batteries. Do not

tamper with the base unit (or charger). Failure to follow these instructions may

cause the batteries to swell or explode.

Attention:

Important safety instructions

When using your product, basic safety precautions should always be followed to

reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Do not use this product near water for example, near a bathtub, washbowl,

kitchen sink, or laundry tub, in a wet basement or near a swimming pool.

2. Do not use the telephone to report a gas leak in the vicinity of the leak.

3. Use only the power cord and batteries indicated in this manual. Do not dispose

of batteries in a fire. They may explode. Check with local codes for possible

special disposal instructions.

SAVE THESE INSTRUCTIONS

Other information

LOperating the product near electrical appliances may cause interference. Move

away from the electrical appliances.

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of

used batteries according to the instructions.

Routine care

LWipe the outer surface of the product with a soft moist cloth.

LDo not use benzine, thinner, or any abrasive powder.

A nickel metal hydride battery that is

recyclable powers the product you have

purchased.

Please call 1-800-8-BATTERY (1-800-822-

8837) for information on how to recycle this

battery.

TGA470(e).fm Page 7 Wednesday, November 16, 2011 10:51 AM

8For assistance, please visit http://www.panasonic.com/help

Notice for product disposal, transfer, or return

LThis product can store your private/confidential information. To protect your

privacy/confidentiality, we recommend that you erase information such as

phonebook or caller list entries from the memory before you dispose of, transfer,

or return the product.

FCC and other information

This equipment is hearing aid compatible as defined by the FCC in 47 CFR Section

68.316.

When you hold the phone to your ear, noise might be heard in your Hearing Aid.

Some Hearing Aids are not adequately shielded from external RF (radio frequency)

energy. If noise occurs, use an optional headset accessory or the speakerphone

option (if applicable) when using this phone. Consult with your audiologist or

Hearing Aid manufacturer about the availability of Hearing Aids which provide

adequate shielding to RF energy commonly emitted by digital devices.

WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TEST

CALLS TO EMERGENCY NUMBERS:

1) Remain on the line and briefly explain to the dispatcher the reason for the call.

2) Perform such activities in the off-peak hours, such as early morning or late

evenings.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired

operation.

Privacy of communications may not be ensured when using this phone.

CAUTION:

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate this device.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

TGA470(e).fm Page 8 Wednesday, November 16, 2011 10:51 AM

For assistance, please visit http://www.panasonic.com/help 9

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

FCC RF Exposure Warning:

LThis product complies with FCC radiation exposure limits set forth for an

uncontrolled environment.

LThis handset may not be collocated or operated in conjunction with any other

antenna or transmitter.

LThe handset may be carried and operated with only the specific provided belt-

clip. Other non-tested belt-clips or similar body-worn accessories may not

comply and must be avoided.

Notice:

LFCC ID can be found inside the battery compartment or on the bottom of the unit.

Compliance with TIA-1083 standard:

Telephone handsets identified with this logo have reduced

noise and interference when used with T-Coil equipped hearing

aids and cochlear implants.

Compatible with

Hearing Aid T-Coil

TIA-1083

TGA470(e).fm Page 9 Wednesday, November 16, 2011 10:51 AM

10 For assistance, please visit http://www.panasonic.com/help

Notice

LThis product is designed for use in the United States of America. Sale or use

of this product in other countries may violate local laws.

LCet appareil est conçu pour être utilisé aux États-Unis d’Amérique. La vente

ou l’emploi de cet appareil dans certains autres pays peut constituer une

infraction à la législation locale.

LEste producto está diseñado para usarse en los Estados Unidos de América.

La venta o el empleo de este producto en ciertos países puede constituir

violación de la legislación local.

Lҏ౰ࠢட࣏୽ٺҢՄ೩Ȅӵڏт୽ড়᎛୵ܖٺҢȂџ૖ོႂІ࿋ӴݲٽȄ

Lߎߩ⵾ຠߪޔᣣᧄ࿖ᄖߢߩ૶↪ࠍ⋡⊛ߣߒߡ⸳⸘ߐࠇߡ߅ࠅޔᣣᧄ࿖ౝߢߩ

૶↪ߪᴺᓞ㆑෻ߣߥࠅ߹ߔޕᓥߞߡޔᒰ␠ߢߪᣣᧄ࿖ౝߦ߅޿ߡߪේೣߣߒ

ߡୃℂߥߤߩࠨ࡯ࡆࠬߪ⥌ߒ߆ߨ߹ߔޕ

TGA470(e).fm Page 10 Wednesday, November 16, 2011 10:51 AM

Autres manuels pour KX-TGA470

Table des matières

Autres manuels Panasonic Combiné

Panasonic

Panasonic KX-PRLA20C Manuel utilisateur

Panasonic

Panasonic KX-TPA70 Manuel utilisateur

Panasonic

Panasonic KX-TGEA60M Manuel utilisateur

Panasonic

Panasonic KX-TD7696 Manuel utilisateur

Panasonic

Panasonic KX-TPA50 Manuel utilisateur

Panasonic

Panasonic KX-TGMA44C Manuel utilisateur

Panasonic

Panasonic KX-UDT131 Manuel utilisateur

Panasonic

Panasonic KX-TGA400B - Cordless Extension Handset Manuel utilisateur

Panasonic

Panasonic KX-TGA800E Manuel utilisateur

Panasonic

Panasonic KX-TGA520M - Accessory Handset For KX-TG5200M Series Expandable... Manuel utilisateur

Panasonic

Panasonic KX-TGA659 Manuel utilisateur

Panasonic

Panasonic KX-TGEA40 Manuel utilisateur

Panasonic

Panasonic KX-TG2559LBS Manuel utilisateur

Panasonic

Panasonic KX-PRXA15EXB Manuel utilisateur

Panasonic

Panasonic KX-TGA731EX Manuel utilisateur

Panasonic

Panasonic KX-TD7580 Manuel utilisateur

Panasonic

Panasonic KX-TGA600 Manuel utilisateur

Panasonic

Panasonic KX-TGA106M - Cordless Extension Handset Manuel utilisateur

Panasonic

Panasonic KX-TGWA41 Manuel utilisateur

Panasonic

Panasonic KX-TGDA20C Manuel utilisateur

Panasonic

Panasonic KX-TG939 Manuel utilisateur

Panasonic

Panasonic KX-HNH100 Manuel utilisateur

Panasonic

Panasonic TGA650 - Cordless Extension Handset Manuel utilisateur

Panasonic

Panasonic KX-TGA840EX Manuel utilisateur

Manuels Combiné populaires d'autres marques

Swissvoice

Swissvoice ePure HD Manuel utilisateur

Philips

Philips TD6736/BH051P Manuel utilisateur

ASCOM

ASCOM I62 - Manuel utilisateur

LG-Ericsson

LG-Ericsson LIP-9010 Manuel utilisateur

GE 1583 Manuel utilisateur

iiNet

iiNet Handset Manuel utilisateur

ASCOM

ASCOM 9p23 Manuel utilisateur

AT&T

AT&T DLP70110 Manuel utilisateur

AirCell

AirCell ST 3100 Manuel utilisateur

Eaton

Eaton HHIR-LCD-PROG Instructions de montage

Mitel

Mitel 112 Manuel utilisateur

SBC

SBC SBC-381H Manuel utilisateur

Mitel

Mitel 5602 Manuel utilisateur

ASCOM

ASCOM d81 Messenger Instructions d'installation

SpectraLink

SpectraLink 7522 Manuel utilisateur

Avaya

Avaya L100 Series Comment utiliser

ooma

ooma HD2 Handset Manuel utilisateur

Yealink

Yealink IPW56 Manuel utilisateur
