Panasonic FV-08VRL1 Manuel utilisateur
Service Manual
PEG1106009CE
Version:1201
CONTENTS

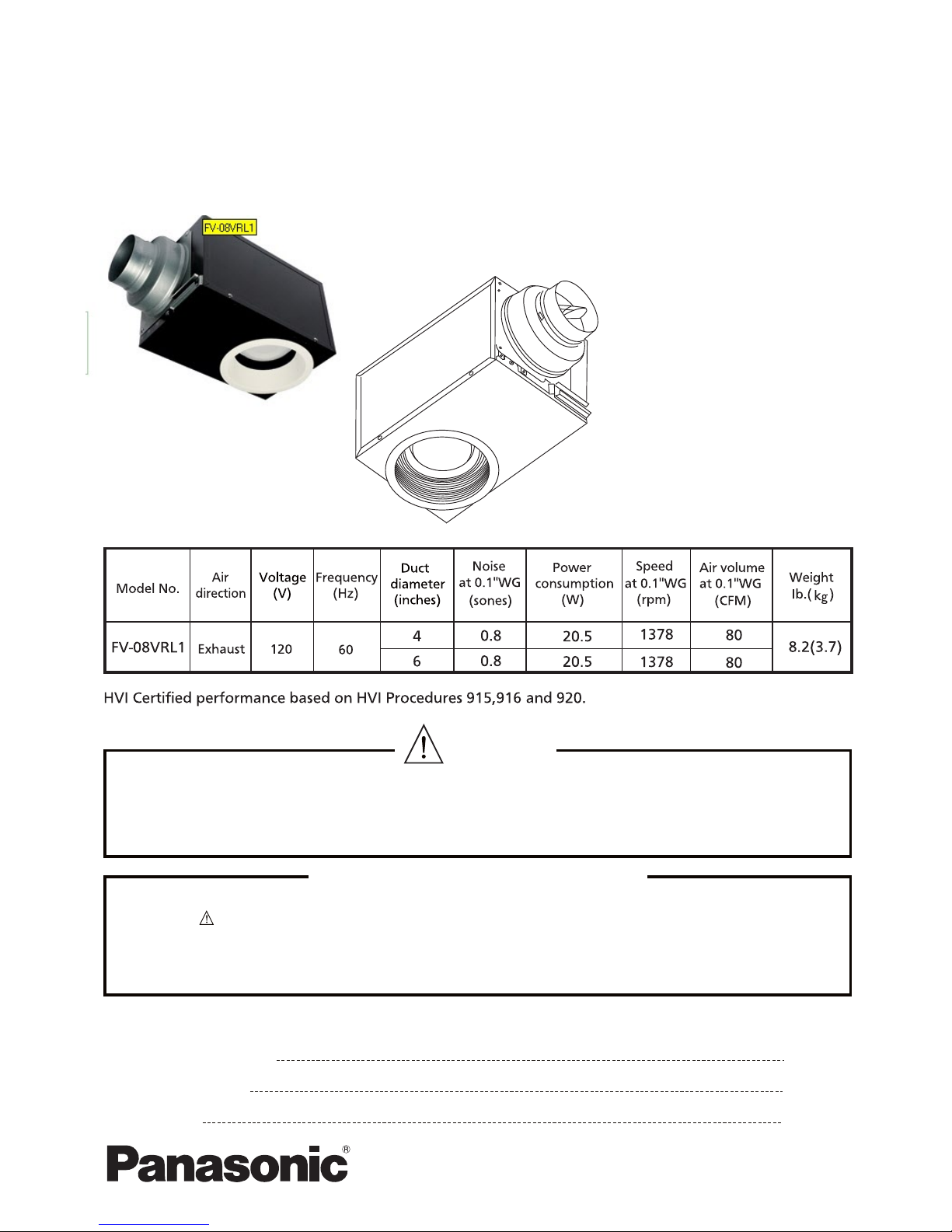

1 Parts Identification
2 Wiring Diagram
3 Parts List
PAGE
4
Ventilating Fan
FV-08VRL1
1~3
5~6
(North America Market)
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by
the general public. It does not contain warnings or cautions to advise non-technical individuals of potential
dangers in attempting to service a product. Products powered by electricity should be serviced or repaired
only by experienced professional technicians. Any attempt to service or repair the product or products dealt
with in this service information by anyone else could result in serious injury or death.
IMPORTANT SAFETY NOTICE
There are special components used in this equipment which are important for safety. These parts are
marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential
that these critical parts should b replaced with manufacturer's specified parts to prevent shock, fire
or other hazards. Do not modify the original design without permission of manufacture.
We suggest to handle such parts after the static electricity prevention.
It is forbidden to touch the PCB parts by bare hands during the repairing process.
e

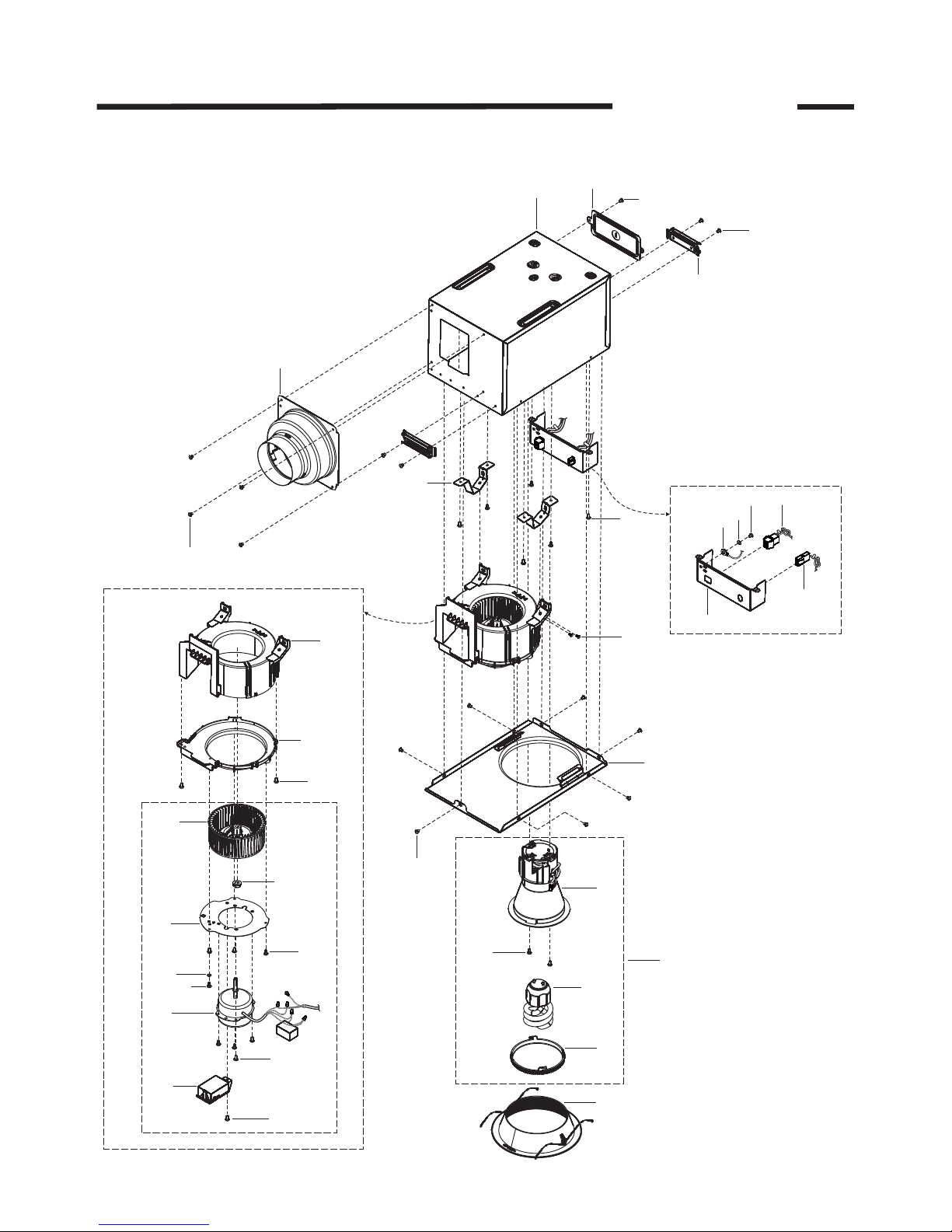

1. Parts Identification
FV-08VRL1
1
Main Body Section
VENT
LIGHT
LIGHT
VENT
Junction Box
1
2
3
4
5
6
7
8
9
10
(2pcs)
(2pcs)
12
13
11
14
15
16
17
18
19
20
21
CD
A
B
CD
(4pcs)
A
(4pcs)
A
(6pcs)
E
(2pcs)
A
(7pcs)
H
(2pcs)
F
(3pcs)
G
(4pcs)
F
(2pcs)
G
Casing Section
Motor Section
42
2
FV-08VRL1
1. Parts Identification
CAUTION:
2.1m(7feet)above the floor.
To reduce the risk of injury to persons,install fan at least
ATTENTION:
Afin de reduire les risques de blessures corporelles,
Installer le ventilateur a au moins 2,1m(7 pieds)du sol.
FAN
8B68
US
LISTEN
A375682G8 C
Lamp Contains Mervury.
Dispose According to Local,
State or Federal Laws.

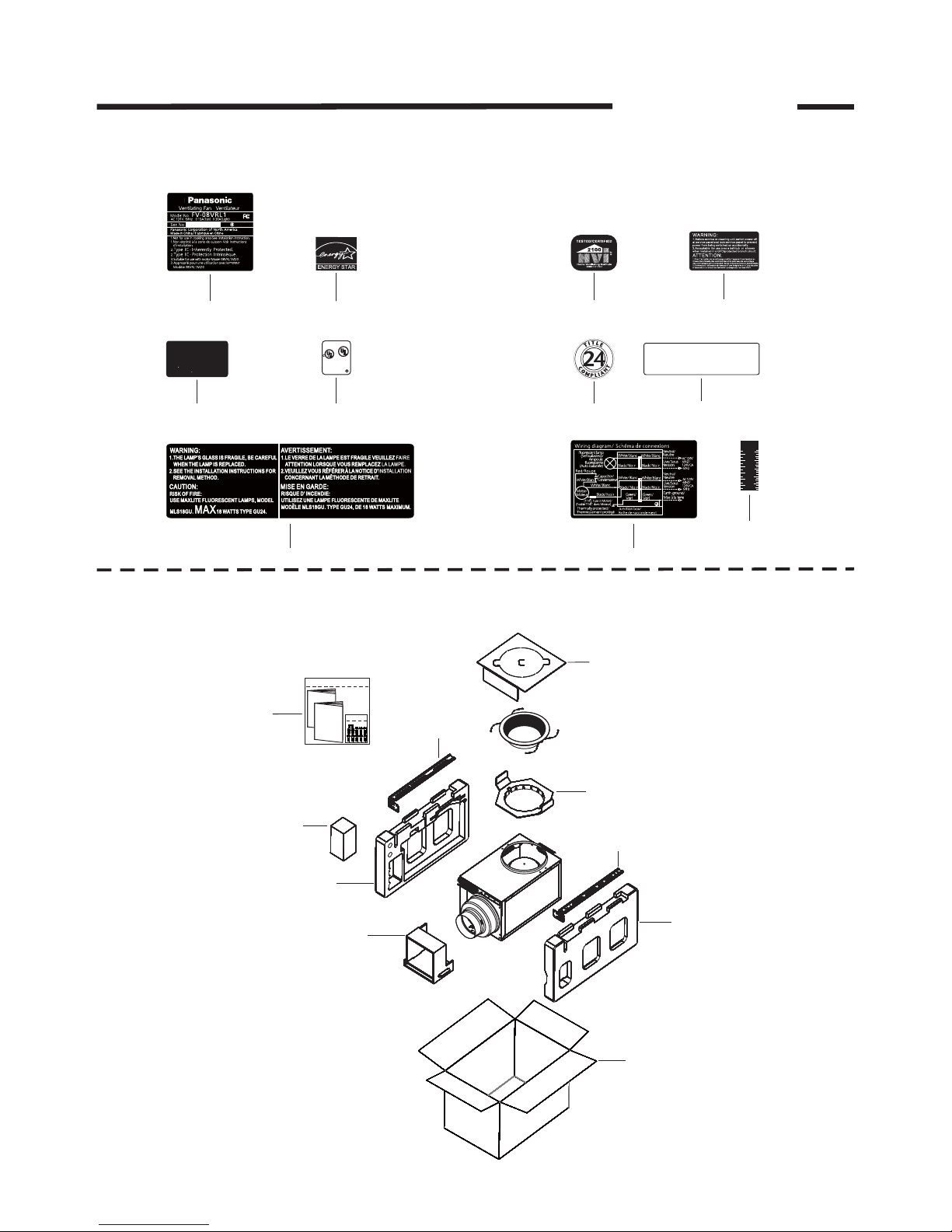

Main Labels
Packing Section
22 23 27 28
24 25 29 30
26 31
34
33
40
35
41
36
37
38
39
(19)
Panasonic
Panasonic
(2pcs)
(2pcs)
mm
Inch
60 2
50
40
30
20
10
1
_
2
2
11
_
2
1
1
_
2
32
3
FV-08VRL1
1. Parts Identification

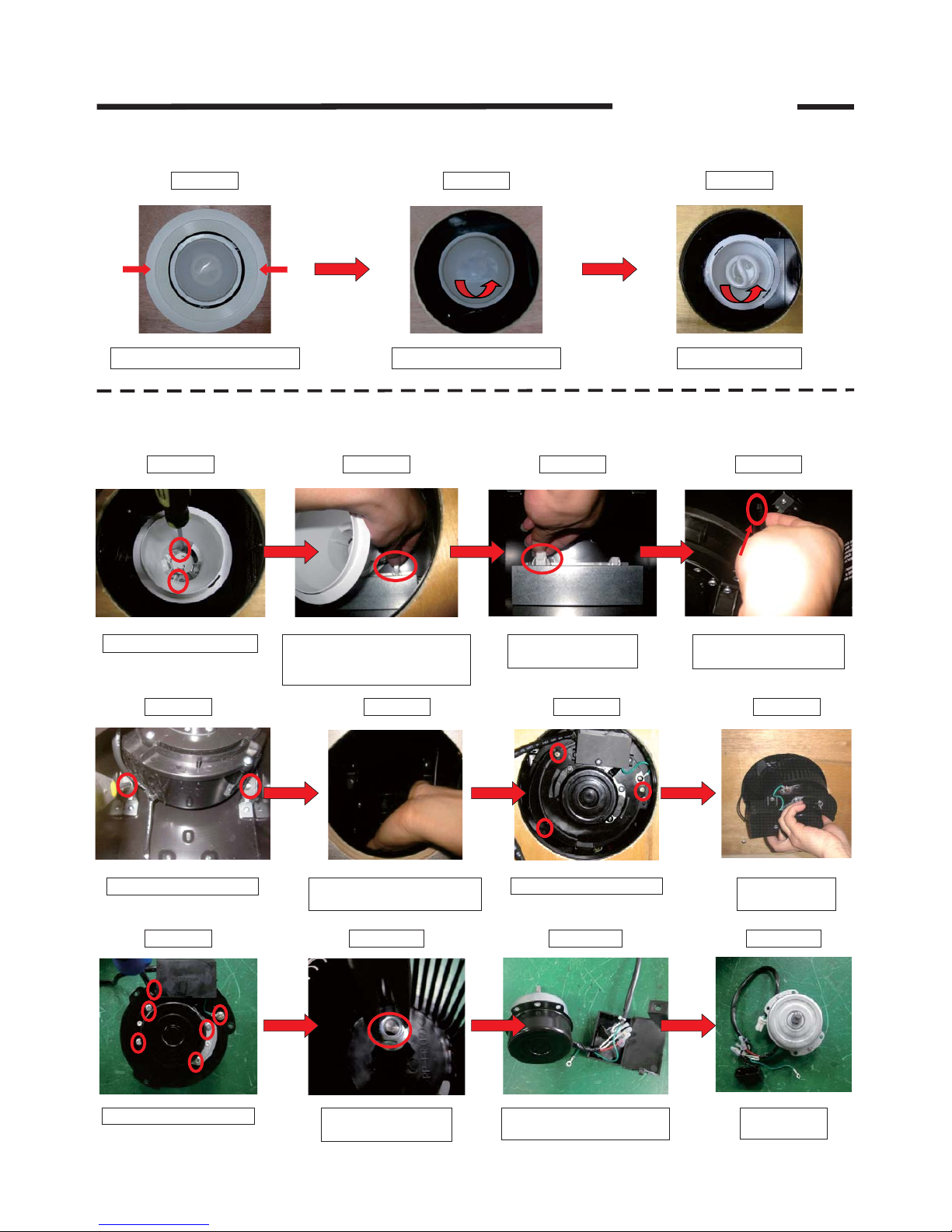

Replace Lamp Method
Step 1.
Remove the trim assembly
Step 2.
Remove the lamp cover Replace the lamp
Step 3.
Replace Motor Unit Method
Remove 2pcs screws
Step 1. Step 2.
Unplug light unit assembly
connector ,Then take out
the whole assembly
Unplug motor unit
connector
Step 3.
Remove 2pcs screws
Step 5. Step 7.
Move the casing section
to the hole position
Take out the
motor section
Step 6.
Remove 6pcs screws
Step 9. Step 10.
Remove the blade
fixing nut
Replace the
motor unit
Step 11.
()Clamp
Pull out the lead wire
from Casing clamp
Remove 3pcs screws
Take out the motor unit
and condenser box
Step 4.
Step 8.
Step 12.

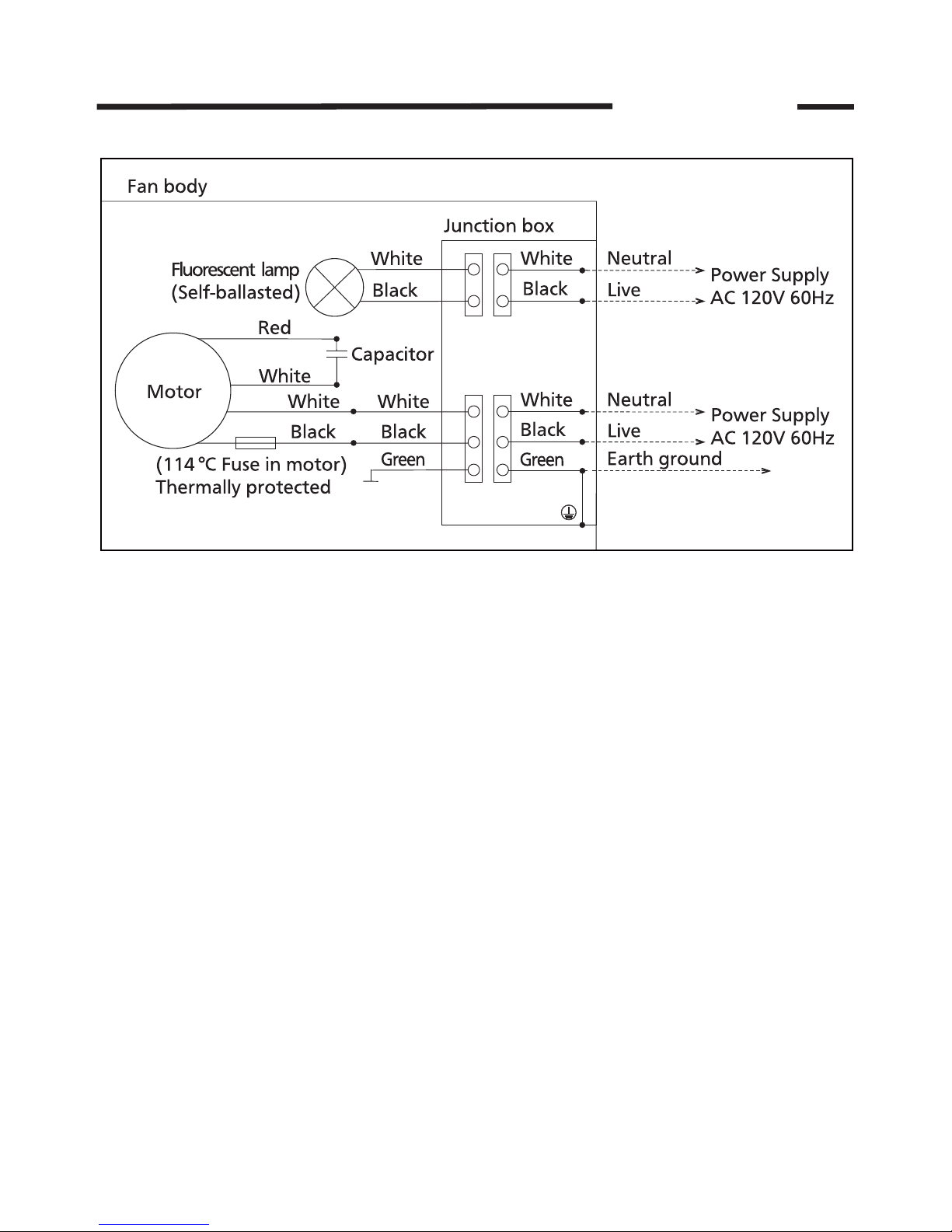

2. Wiring diagram
4
FV-08VRL1
3. Parts List
5
FV-08VRL1
No. Part No. Part Name Q'ty Remark
1 FFV0420027S Bracket Cover 2
2 FFV6710026S Wiring Cover 1
3 FFV1600116S Frame Assembly 1
4 FFV0000125S Adapter Assembly 1
5 FFV0800002S Casing Support 2
6 FFV2800015S Junction Box 1
7 FFV3402103S Earth Lead Wire 1
8 FFV0900055S Connector Assembly V 1
9 FFV0900056S Connector Assembly L 1
10 FFV0790097S Casing 1
11 FFV3730091S Motor Support 1
12 FFV0400086S Fan 1
13 FFV7020021S Nut 1
14 FFV3730092S Motor Set Plate 1
15 FFV3730093S Motor Unit 1
16 FFV0760050S Condenser Box 1
17 FFV1600117S Frame Cover Assembly 1
18 FFV3410034S Light Unit Assembly 1
19 FFV3410035S Lamp 1
20 FFV3410036S Lamp Cover 1
21 FFV5840030S Trim Assembly 1
22 FFV4020730S Name Plate 1
23 FFV1320001S ESP Mark 1
24 FFV6730041S Warning Label 1
25 FFV2260003S UL Mark 1
26 FFV6730055S Warning Label 1
27 FFV2260002S HVI Mark 1
28 FFV0810002S Caution Label 1
29 FFV4730001S T24 Mark Label 1
30 FFV6730056S Warning Label 1
31 FFV6730057S Wiring Label 1
32 FFV5720015S Scale Tape 1
33 FFV5840031S Trim Plate Assembly 1
34 FFV5840032S Trim Pad 1
35 FFV0010217S Accessory Set 1 For USA Market
35 FFV0010218S Accessory Set 1 For CA Market
36 FFV0420028S Bracket Assembly 1 2
37 FFV4710334S Right Pad 1
38 FFV9001003S Packing Pad 1
39 FFV0420029S Bracket Assembly 2 2
40 FFV4710335S Left Pad 1
!
!
!
!
!
!
6
FV-08VRL1
3. Parts List
No. Part No. Part Name Q'ty Remark
41 FFV9001004S Packing Case Assembly 1
42 FFV3410038S Light Section 1 Not Include 2pcs Bind Tap Screw
A FFV7000018S Truss Tap Screw 21
B FFV7000108S Truss Tap Screw 1
C FFV7010028S Spring Washer 2 For Fixing Earth Lead Wire
D FFV7000200S Bind Screw 2 For Fixing Earth Lead Wire
E FFV7000201S Bind Tap Screw 2
F FFV7000073S Truss Tapping Screw 5
G FFV7000079S Pan Tap Screw 5
H FFV7000202S Bind Tap Screw 2
!
!
!
