Panasonic FV-08VRE2 Manuel utilisateur

Service Manual

PEG1609026CE

Version:1601

CONTENTS

1.Parts Identification

2.Wiring Diagram

3.Parts List

PAGE

Ventilating Fan

FV-08VRE2

1~3

5~6

(North America Market)

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without permission of manufacture.

We suggest to handle such parts after the static electricity prevention.

It is forbidden to touch the PCB parts by bare hands during the repairing process.

1. Parts Identification

FV-08VRE2

Main Body Section

VENT

LIGHT

VENT

Junction Box

(2pcs)

(4pcs)

(6pcs)

(2pcs)

(7pcs)

(2pcs)

(3pcs)

(4pcs)

(2pcs)

Casing Section

Motor Section

FV-08VRE2

1. Parts Identification

Main Labels

Packing Section

20 21 25 26

22 23 27

24 29

Panasonic

(2pcs)

Inch

60 2

33 34

CAUTION:

2.1m(7feet)above the floor.

To reduce the risk of injury to persons,install fan at least

ATTENTION:

Afin de reduire les risques de blessures corporelles,

Installer le ventilateur a au moins 2,1m(7 pieds)du sol.

FAN

LISTED

E78414

protected branch circuit.

FV-08VRE2

1. Parts Identification

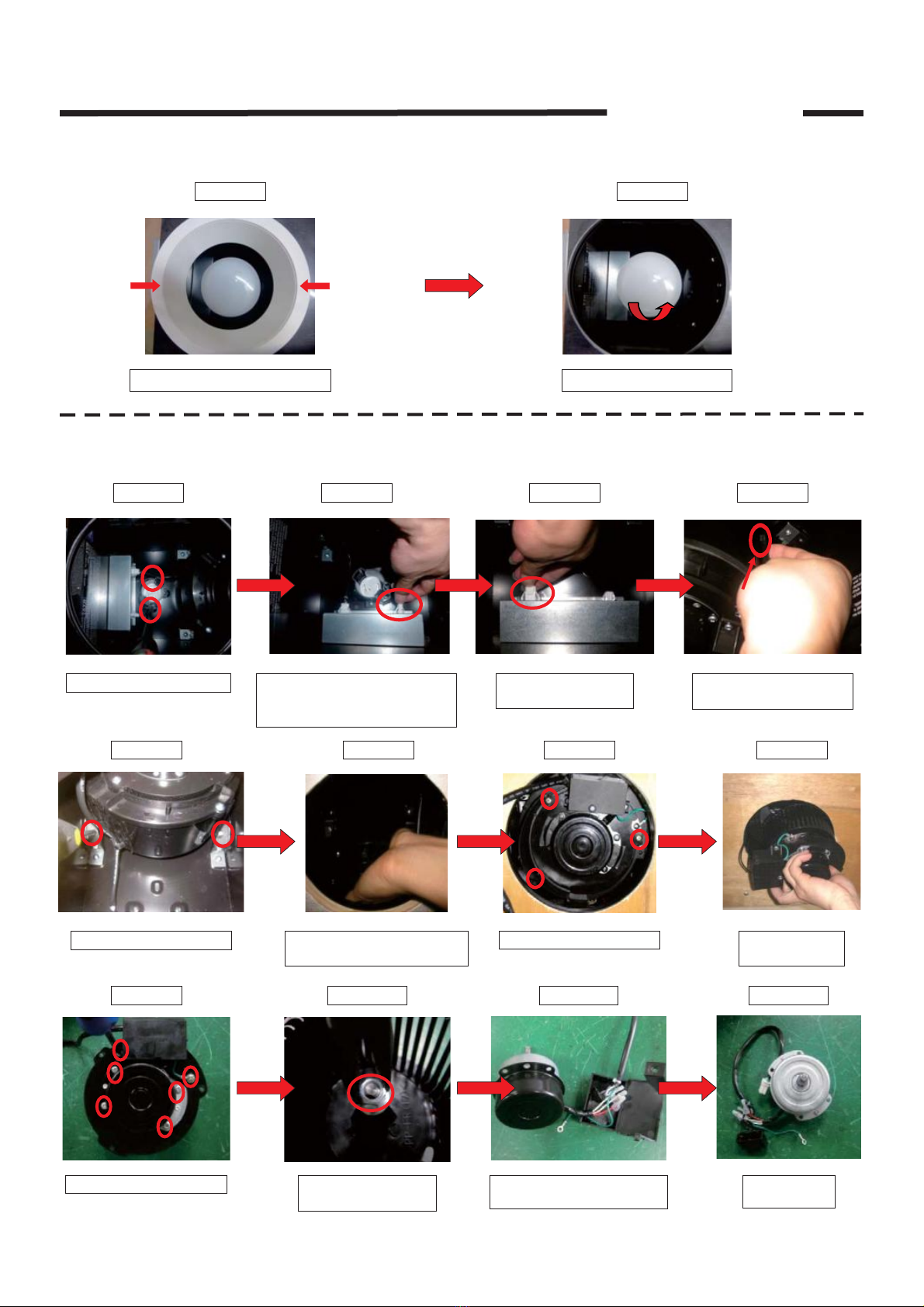

Replace Lamp Method

Step 1.

Remove the trim assembly

Step 2.

Replace Motor Unit Method

Remove 2pcs screws

Step 1. Step 2.

Unplug light unit assembly

connector ,Then take out

the whole assembly

Unplug motor unit

connector

Step 3.

Remove 2pcs screws

Step 5. Step 7.

Move the casing section

to the hole position

Take out the

motor section

Step 6.

Remove 6pcs screws

Step 9. Step 10.

Remove the blade

fixing nut

Replace the

motor unit

Step 11.

()Clamp

Pull out the lead wire

from Casing clamp

Remove 3pcs screws

Take out the motor unit

and condenser box

Step 4.

Step 8.

Step 12.

Replace the LED lamp

2. Wiring diagram

FV-08VRE2

3. Parts List

FV-08VRE2

No. Part No. Part Name Q'ty Remark

1 FFV0420027S Bracket Cover 2

2 FFV6710026S Wiring Cover Unit 1

3 FFV1600116S Frame Assembly 1

4 FFV0000125S Adapter Assembly 1

5 FFV0800002S Casing Support 2

6 FFV2800015S Junction Box 1

7 FFV3402103S Earth Lead Wire 1

8 FFV0900055S Connector Assembly V 1

9 FFV0900056S Connector Assembly L 1

10 FFV0790097S Casing 1

11 FFV3730091S Motor Support 1

12 FFV0400086S Fan 1

13 FFV7020021S Nut 1

14 FFV3730092S Motor Set Plate 1

15 FFV3730093S Motor Unit 1

16 FFV0760050S Condenser Box 1

17 FFV1600117S Frame Cover Assembly 1

18 FFV3410044S Light Unit Assembly 1

19 FFV5840030S Trim Assembly 1

A FFV7000018S Truss Tap Screw 21

B FFV7000108S Truss Tap Screw 1

C FFV7000211S Earth Screw Assy 2 For Fixing Earth Lead Wire

D FFV7000080S Plus Bind Screw 2

E FFV7000073S Truss Tapping Screw 5

F FFV7000079S Pan Tap Screw 5

G FFV7000202S Bind Tap Screw 2

20 FFV4020859S Name Plate 1

21 FFV1320001S ESP Mark 1

22 FFV6730041S Warning Label 1

23 FFV2260003S UL Mark 1

24 FFV6730100S Warning Label 1

25 FFV2260002S HVI Mark 1

26 FFV0810002S Caution Label 1

27 FFV4730001S T24 Mark Label 1

28 FFV5720015S Scale Tape 1

29 FFV6730083S Wiring Label 1

Main Body Section

Main Labels

FV-08VRE2

3. Parts List

30 FFV5840031S Trim Plate Assembly 1

31 FFV5840032S Trim Pad 1 1

32 FFV2540197S Operation Instructions 1 English

33 FFV2540198S Operation Instructions 1 Spanish&French

34 FFV0010236S Accessory A 1

35 FFV0420028S Bracket Assembly 1 2

36 FFV4710335S Left Pad 1

37 FFV9001003S Packing Pad 1

38 FFV0420029S Bracket Assembly 2 2

39 FFV4710334S Right Pad 1

40 FFV9001225S Packing Case Assembly 1

Packing Section
