Panasonic ES?GA21 Instructions d'utilisation

bution is a violation of law.

Order Number SD0810E47AE

Rechargeable Shaver

Model No. ES-GA21

Europe

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Disassembly and Assembly Instructions ---------------- 3

4 Exploded View and Replacement Parts List ------------ 4

Please file and use this manual together with the service manual for Model No. ES8101, Order No.

SD0708E45CE.

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

2 Specifications

3 Disassembly and Assembly Instructions

3.1. Disassembly Instructions

Follow the procedure below to disassemble the main unit.

1. How to assemble the housing A and B.

a. Loosen a screw.

b. Remove the bottom cover.

c. Slide the trimmer handle up.

d. Pull out the trimmer vertically.

e. Unhook the bottom of trimmer handle and pull out.

f. Lift up the bottom of rear cover on both side.

g. Remove the rear panel.

h. Loosen six screws.

i. Remove the housing B.

Model No. : ES-GA21 Exploded View

4 Exploded View and Replacement Parts List

Model No. : ES-GA21 Parts List

Safety

Ref.

No. Part No. Part Name & Description Q'ty Remarks

1 WESGA20X7158 PROTECTIVE CAP 1

2 WESGA21K0049 OUTER FOIL FRAME 1

3 WES9087Y OUTER FOIL 1

4 WES9068Y INNER BLADE 1ST

5 WESGA20K1008 LINEAR MOTOR ASSEMBLY 1

6 WES8119L1087 TRIMMER DRIVING BAR 1

7 WES8176L1077 SLIT BLADE DRIVING BAR 1

8 WES8196L0328 WATERPROOF RUBBER 1

9 WESGA20K3268 FOIL RELEASE BUTTON 2 (2PCS/PK)

10 WESGA20L0538 TUBE HOLDER 1

11 WESGA21K3058 HOUSING A 1 (for ES-GA21K)

11 WESGA21S3058 HOUSING A 1 (for ES-GA21S)

12 WESGA20K3068 HOUSING B 1

13 WES8176L6057 TAPPING SCREW 1 (M2-8)

14 WES8176L6007 P TIGHT SCREW 6 (M2-12)

15 WESGA21L2128 MODULE 1

16 WES8163L2509 RECHARGEABLE BATTERY 1 (LM-ION TYPE)

17 WES8119K1507 TRIMMER 1

18 WESGA21K3368 REAR PANEL 1

19 WESGA21K3128 BOTTOM COVER 1 (for ES-GA21K)

19 WESGA21K3129 BOTTOM COVER 1 (for ES-GA21S)

19 WESGA21K3120 BOTTOM COVER 1 (for ES-GA21S, only for Russia)

20 WESGA21K3038 BODY BLOCK 1 (for ES-GA21K)

20 WESGA21S3038 BODY BLOCK 1 (for ES-GA21S)

20 WESGA21S3039 BODY BLOCK 1 (for ES-GA21S, only for Russia)

21 WESGA21K7664 CHARGING ADAPTOR 1 （C-2 PLUG）

21 WESGA21K7661 CHARGING ADAPTOR 1 （C-2 PLUG, only for Russia）

22 WES8016K7007 SOFT CASE 1

23 WES8093H7057 CLEANING BRUSH 1

24 WES8196X7918 OIL 1

- WESGA21K8008 INDIVIDUAL BOX 1 (for ES-GA21K)

- WESGA21S8008 INDIVIDUAL BOX 1 (for ES-GA21S)

- WESGA21S8009 INDIVIDUAL BOX 1 (for ES-GA21S, only for Russia)

- WESGA21S8108 OPERATING INSTRUCTIONS 1

- WESGA21S8109 OPERATING INSTRUCTIONS 1 (only for Russia)

Autres manuels pour ES?GA21

Table des matières

Autres manuels Panasonic Rasoir électrique

Panasonic

Panasonic ER421KC Manuel utilisateur

Panasonic

Panasonic ES-SL41 Manuel utilisateur

Panasonic

Panasonic ES-8163 Manuel utilisateur

Panasonic

Panasonic ES8044S Manuel utilisateur

Panasonic

Panasonic ER-GB80 Manuel utilisateur

Panasonic

Panasonic ES-2216 Manuel utilisateur

Panasonic

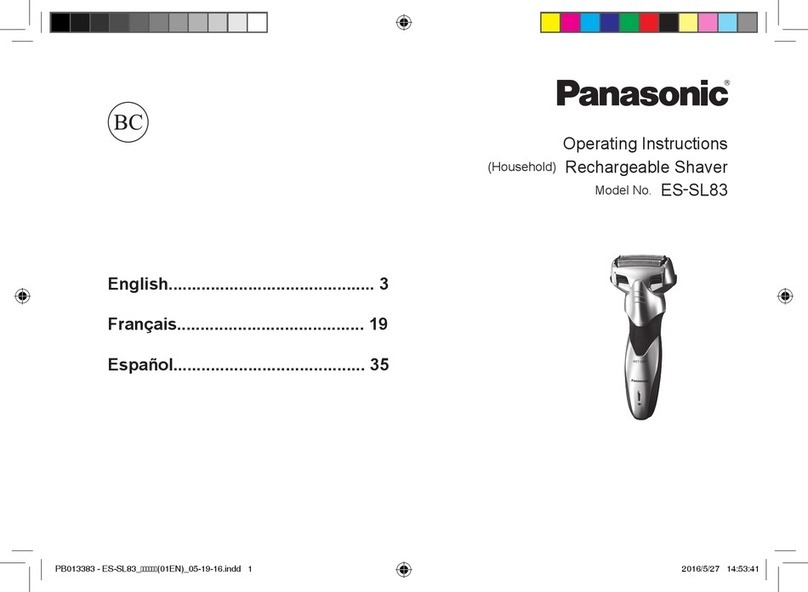

Panasonic ES-SL83 Manuel utilisateur
