Panasonic ER-GB80 Manuel utilisateur
© Panasonic Corporation 2014 Unauthorized copy-
ing and distribution is a violation of law.
Order Number SD1406X50CE
AC/Rechargeable Beard/Hair Trimmer
Model No. ER-GB80
Model No. ER-GB70
Model No. ER-GB60
Europe
CIS
TABLE OF CONTENTS PAGE PAGE
1 Warning-------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide----------------------------------------- 3
4 Disassembly and Assembly Instructions ---------------- 4
4.1. Disassembly Instuctions--------------------------------- 4
4.2. Assembly Instructions------------------------------------ 6
5 Wiring Connection Diagram ---------------------------------- 9
6 Schematic Diagram---------------------------------------------10
7 Exploded View and Replacement Parts List -----------11
7.1. Exploded View For ER-GB80 -------------------------11
7.2. Replacement Parts List For ER-GB80 --------------12
7.3. Exploded View For ER-GB70 -------------------------13
7.4. Replacement Parts List For ER-GB70 --------------14
7.5. Exploded View For ER-GB60 -------------------------15
7.6. Replacement Parts List For ER-GB60 --------------16
ER-GB80/ER-GB70/ER-GB60
2
1Warning
Caution:
• Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°) higher. Please
use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°). In case of using high temperature soldering
iron, please be careful not to heat too long.
• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).
2 Specifications
Power source AC 100-240V, 50-60Hz
Motor voltage 1.2 V DC
Charging time 1 hour
Rated usable time with full-charging 50 minutes
Weight Approx. 176g (ER-GB80, ER-GB70), Approx. 172g (ER-GB60)
Approx. 181g (Adaptor)
Supplied accessories Comb attachment for beard : 1 - 10mm (1/32” . 13/32”)
Comb attachment for hair : 11 - 20mm (7/16” . 51/64”)
Comb attachment for body hair (Only for ER-GB80)
Pouch
Cleaning brush
Oil
ER-GB80/ER-GB70/ER-GB60
3
3 Troubleshooting Guide
ER-GB80/ER-GB70/ER-GB60
4
4 Disassembly and Assembly Instructions
4.1. Disassembly Instuctions
1. Remove the attachment and blade.
2. Loosen two screws and remove the blade holder.
3. Press the trimmer driving bar outward. (ER-GB80 and
ER-GB70 only)
4. Loosen a screw on bottom and slide down the bottom
cover.
5. Remove the front panel together with the side panels.
NOTE:
If the front panel is removed alone, it may deform.
6. Remove the switch button.
7. Adjust the trimming height indication mark to the maxi-
mum [10][20] position.
Slide down the dial.
8. Insert a slotted screwdriver to take out the clip on both
side.
ER-GB80/ER-GB70/ER-GB60
5

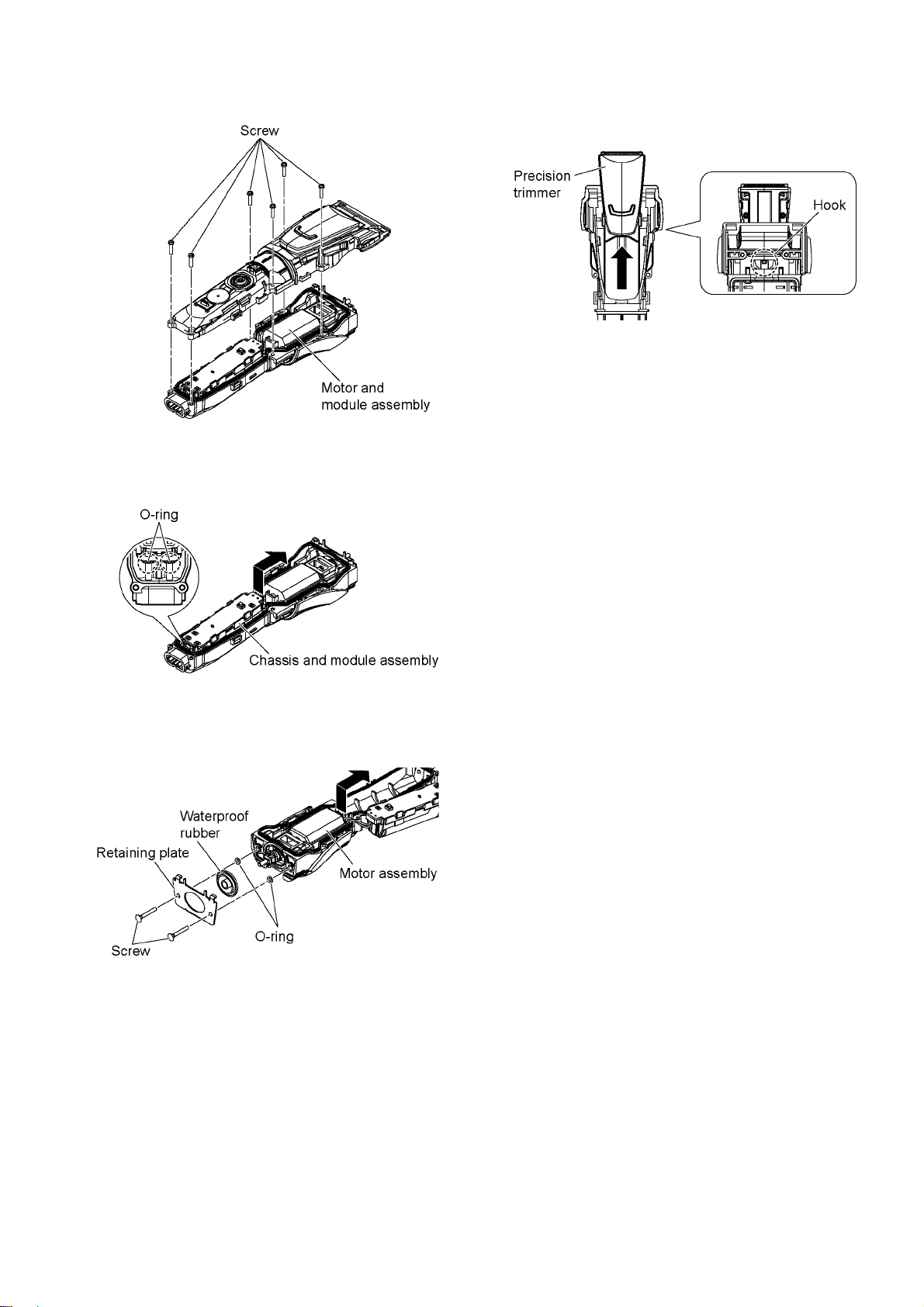

9. Loosen 6 screws and remove the motor and module
assembly.
10. Pull the chassis and module assembly upward.
NOTE:
Make sure to attach the O-ring.
11. Remove two screws, retaining plate, O-rings and water-
proof rubber.
12. Pull the motor assembly upward.
13. Slide up the trimmer and set the highest position.
Unhook the rear side of trimmer to separate from the
housing. (ER-GB80 and ER-GB70 only)
ER-GB80/ER-GB70/ER-GB60
6
4.2. Assembly Instructions
1. Rechargeable battery
Insert the rechargeable battery into the battery holder.
NOTE:
Make sure to attach the washer and O-ring to the bat-
tery terminal.
And apply the grease (FLOIL G741S).
2. Motor
Apply the grease (FLOIL G741S) on the motor balancer.
Insert the motor into the motor holder with the confirma-
tion of the direction.
3. Driving head
Insert a motor tip pin into the hole of driving head and fit
the projections of housing into the holes of driving head.
4. Dial lever
Attach the dial lever to the housing.
ER-GB80/ER-GB70/ER-GB60
7
5. Driving block
Set the motor, module and battery assembly to the hous-
ing A.
Place the motor holder first and then inset the battery ter-
minal side.
NOTE:
Make sure that two motor lead wires are pressed fit
within the space between the battery holder and the
motor holder to prevent pinching.
6. Waterproof rubber
The waterproof rubber must be fitted the right way
around.
7. Housing O-ring
Apply the grease (FLOIL G714S) on the housing O ring.
Align the projection of the housing O-ring and the groove
of housing.
8. Trimmer
Set the trimmer on the housing.
9. Retaining plate
Attach two O-rings.
Hitch the projections of retaining plate first and press
down on the other side.
NOTE:
Make sure that the waterproof rubber is set properly.
10. Trimmer driving bar
Set the trimmer driving bar to the pin of driving head.
ER-GB80/ER-GB70/ER-GB60
8
11. Housing clip
Set the both side of housing clips firmly.
12. Dial
Apply the grease (FLOIL G714S) on the rear side of dial.
Align the mark with the dial “10/20” and set in position.
13. Switch
Insert the projections of switch button into housing.
14. Side panel and Front panel
Attach both side of side panels by inserting the hooks into
the slit of housing.
Insert the projections of housing and press the hook on
body.
ER-GB80/ER-GB70/ER-GB60
9
5 Wiring Connection Diagram
ER-GB80/ER-GB70/ER-GB60
10
6 Schematic Diagram
