Panasonic CF-VEB Series Manuel utilisateur

BEDIENUNGSANLEITUNG .................... 12

Bezeichnungen der Teile.................................... 13

Anschließen/Entfernen ....................................... 15

Names of Parts...................................................... 5

Connecting/Disconnecting................................... 7

OPERATING INSTRUCTIONS ................. 4

Port Replicator

ポートリプリケーターポートリプリケーター

ポートリプリケーター

CF-VEB181

DEUTSCH

ENGLISH

MODE D’EMPLOI .................................... 20

FRANÇAIS

Ouverture de l’écran ........................................... 21

Connexion/Déconnexion .................................... 23

取扱説明書取扱説明書

取扱説明書

......................................................... 28

日本語日本語

日本語

保証書付き（日本国内向け）

このたびはパナソニックポートリプリケーターをお買い上げいただき、まことにありがとうございました。

・この取扱説明書と保証書をよくお読みのうえ、正しくお使いください。特に「安全上のご注意」

（29〜31ページ）は、ご使用前に必ずお読みいただき、安全にお使いください。お読みになっ

たあとは、保証書と一緒に大切に保管し、必要なときにお読みください。

・保証書は「お買い上げ日・販売店名」などの記入を必ず確かめ、販売店からお受け取りください。

安全上のご注意安全上のご注意

安全上のご注意 ..............................................................

..............................................................

...............................

各部の名称と働き各部の名称と働き

各部の名称と働き ..........................................................

..........................................................

.............................

取り付け／取り外し取り付け／取り外し

取り付け／取り外し ......................................................

......................................................

...........................

保証とアフターサービス保証とアフターサービス

保証とアフターサービス ..............................................

..............................................

.......................

FJ0104-1124

DFQX5439ZB

Printed in Japan

For U.S.A.

Federal Communications Commission Radio Frequency Interference Statement

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

Consult the Panasonic Service Center or an experienced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface cables when connecting to a

computer or peripheral. Also, any changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority to operate this equipment.

This device is Class B verified to comply with Part 15 of FCC Rules when used with

Panasonic Notebook Computer.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause

undesired operation.

Responsible Party: Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP-5 (1-800-527-8675)

Interface Cable

Use of an interface cable longer than 3 m (9.84 feet) is not recommended.

Schnittstellenkabel

Verwendete Schnittstellenkabel sollten eine Länge von 3 Metern möglichst nicht überschreiten.

Cable d’interface

Nous vous déconseillons d’utiliser un câble d’interfaced’une longueur supérieure à 3 m.

For Canada

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

-------------------------------------------------------------------------------------------------------------

Compliance Notice - CE Mark

This equipment is in conformance with the requirements of the European Council Directive

listed below:

73/23/EEC Low Voltage Directive with amendment 93/68/EEC

89/336/EEC EMC Directive with amendments 92/31/EEC and 93/68/EEC

-------------------------------------------------------------------------------------------------------------

Übereinstimmungserklärung - CE-Marke

Diese Ausrüstung erfüllt die Anforderungen der unten angegebenen EC-Direktive:

73/23/EEC Niederspannungsdirektive mit Abänderung 93/68/EEC

89/336/EEC EMC-Direktive mit Abänderungen 92/31/EEC und 93/68/EEC

-------------------------------------------------------------------------------------------------------------

Avis de conformité - Marque CE

Cet équipement est conforme aux conditions des Directives de la Commission Européenne

mentionnées ci-dessous:

73/23/EEC Directive sur la basse tension y compris la modification 93/68/EEC

89/336/EEC Directive CEM y compris les modifications 92/31/EEC et 93/68/EEC

Thank you for purchasing the port replicator for the Panasonic CF-18 notebook computer

series.*

By connecting your peripheral devices to the port replicator, you can save yourself the trouble

of having to connect and disconnect several cables every time you transport the computer.

* This port replicator cannot be used for other models.

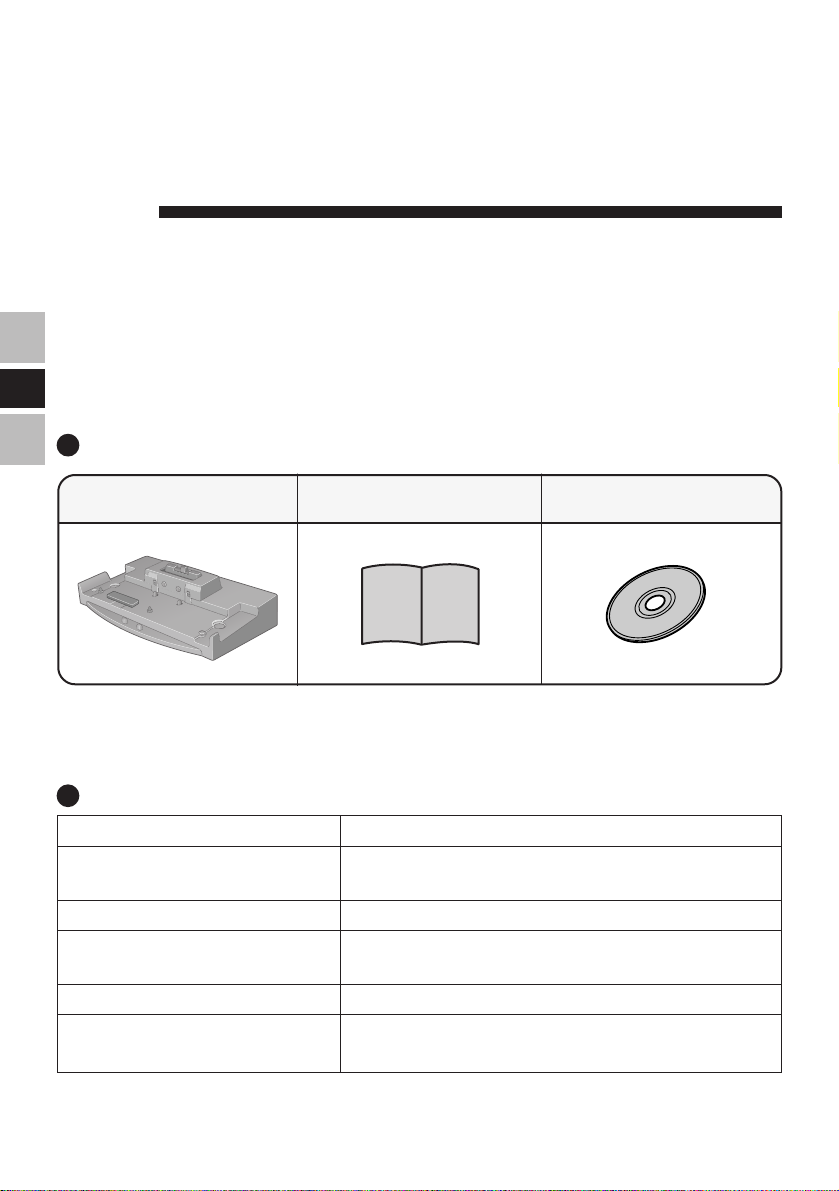

Port Replicator.......... 1

Operating Instructions...

Parts Inclusion

Specifications

Item

Power Supply Input

Expansion Bus Connector

Physical Dimensions

(Width × Height × Depth)

Weight

Operating Environment

Temperature / Humidity

Description

DC 16.0V [Do not use other than the specified AC

adaptor (Model No. CF-AA1623A)].

100-pin

274 mm × 72 mm × 173 mm

{10.8" × 2.8" × 6.8"}

Approx. 1.05 kg {2.3 lb.}

5°C to 35 °C {41 °F to 95 °F} /

30 % to 80 % RH (no condensation)

ENGLISH

Refer to “Specifications” in the “Operating Instructions” accompanying the computer for information on the con-

nectors and ports on the rear panel of the port replicator.

Some of the illustrations included with the text may differ slightly in shape from the actual

items included in the kit in order to make the explanation easier to understand.

Driver CD-ROM ......... 1

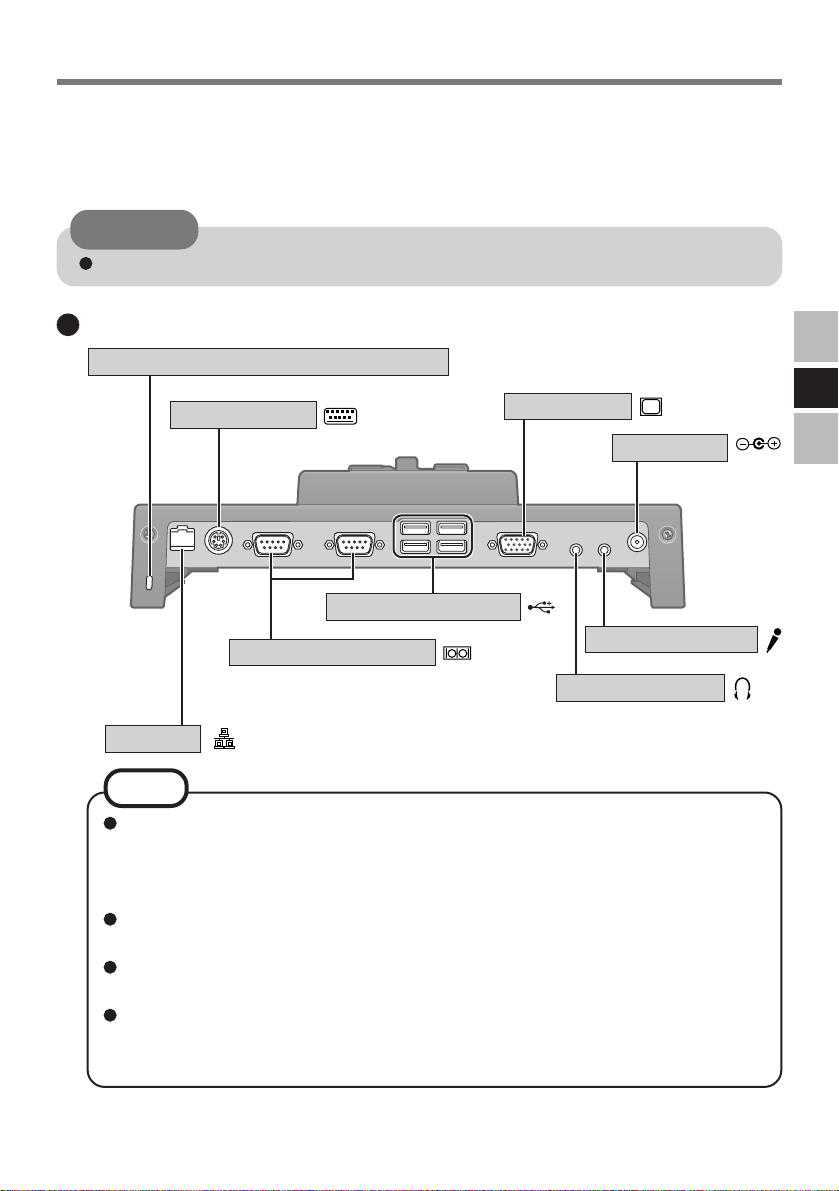

Names of Parts

The port replicator allows your peripheral devices to function exactly as if they were con-

nected directly to the computer. (Refer to “Names and Functions of Parts” in the “Operating

Instructions” accompanying the computer.)

Do not touch the expansion bus connector, pins or terminals of the port replicator.

DC-IN Jack

Rear

CAUTION

DC IN 16V

Serial Ports (2 ports)

Security Lock (for Kensington Cable) LOCK

Keyboard Port Display Port

Microphone Jack

The serial ports cannot be used

for models with the digitizer. Headphone Jack

USB Ports (4 ports)

NOTE

The LAN port does not support the following functions.

• [LAN] and [Boot up from LAN] in [Advanced] menu of the Setup Utility

• [LAN] in [Boot] menu of the Setup Utility or [LAN] in Boot First Menu

• Wake up from LAN function

The LAN port has a slower transfer rate than that of the computer LAN because it

uses the USB to Ethernet interface.

The floppy disk drive or CD drive connected to the USB port cannot be used for

startup.

The speed at which startup, resume or LAN transfer is performed may be signifi-

cantly reduced when a USB device has been connected. If this happens, connect

the USB device to the computer.

LAN Port

Front

Slide the lever to dock or undock the com-

puter. When the port replicator is not con-

nected to the computer, be sure that the le-

ver remains in the “UNDOCK” position to-

wards the rear of the unit.

This connects to the expansion bus connec-

tor on the bottom of the computer.

Be sure to keep it covered with the supplied

protective cap when the port replicator is

not connected to the computer.

Lever

Expansion Bus Connector

The protective cap from the expansion

bus connector should be placed here

when the port replicator is connected

to the computer.

(This will prevent it from getting lost.)

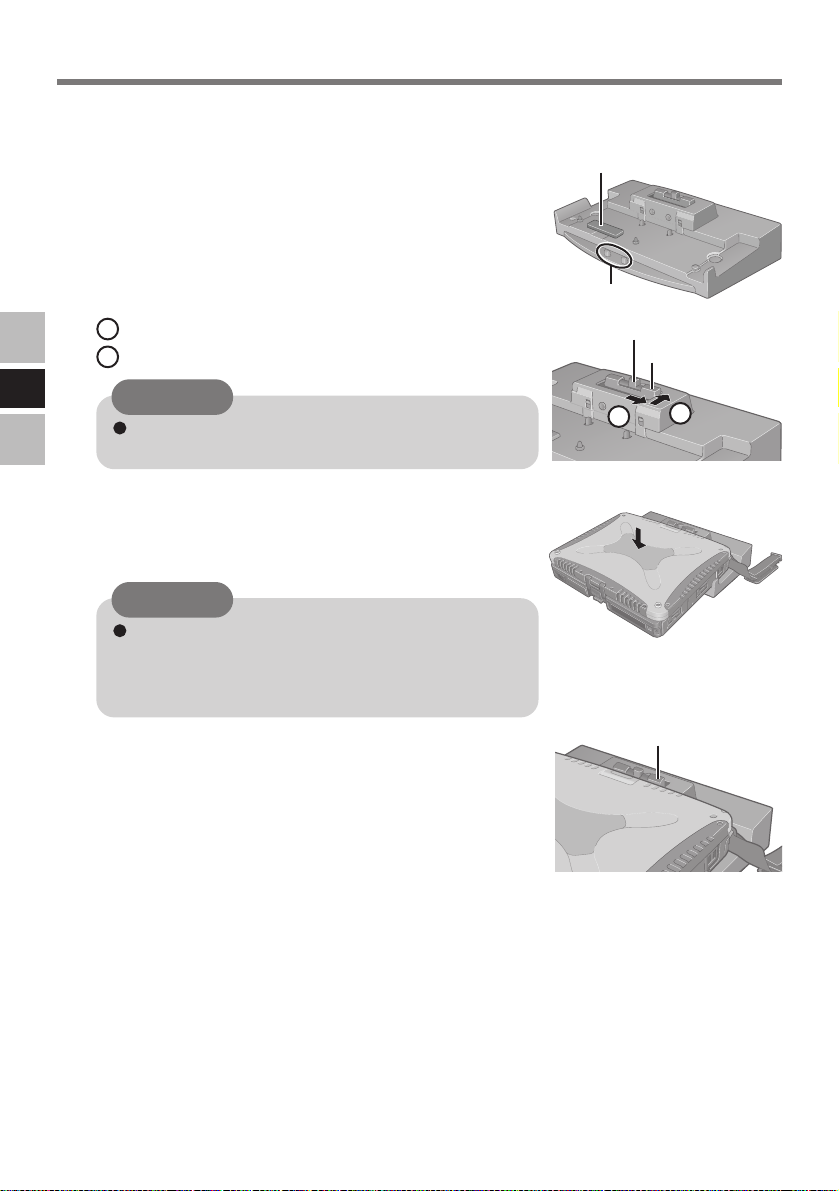

Expansion Bus Connector

Protective Cap

(Attached to the expansion

bus connector)

Cap Holder

Names of Parts

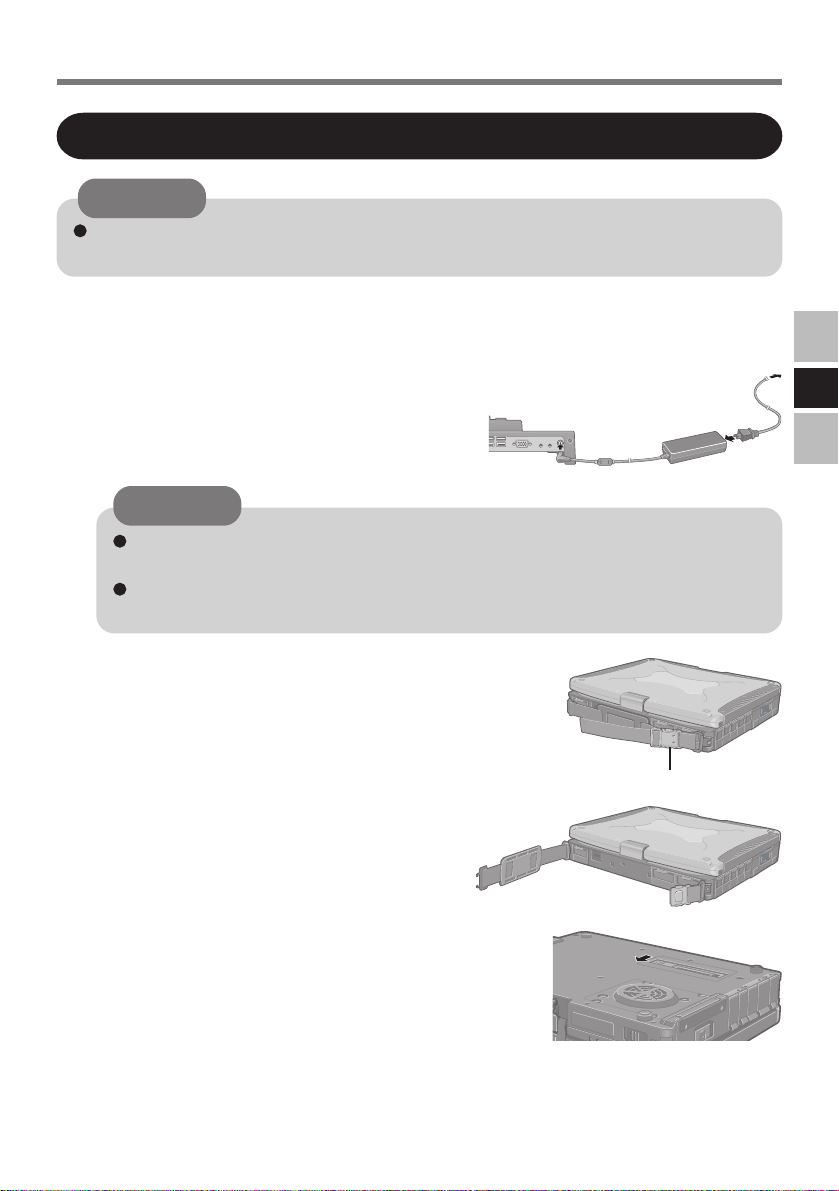

Connecting/Disconnecting

Connecting

Do not connect or disconnect the port replicator while the computer is powered on or

in the standby or hibernation mode.

CAUTION

1Turn off the computer, and disconnect all cables from

the computer.

Do not use other than the specified AC adaptor (Model No. CF-AA1623A) and

AC cord.

Refer to the “Operating Instructions” accompanying computer for information

on proper handling of the AC adaptor and AC cord.

2Connect the plug of the AC adaptor that came

with the computer to the DC-IN jack of the

port replicator and plug the other end into an

AC outlet.

CAUTION

3Detach the strap’s buckle.

4Firmly close all covers at the rear side of the computer.

5Turn the computer over, and open the cover for the ex-

pansion bus connector of the computer.

Buckle

Connecting/Disconnecting

Expansion Bus Connector

Protective Cap

Cap Holder

1Lever

Latch

CAUTION

Do not slide the lever without holding the latch to the

right side.

6Remove the expansion bus connector protective cap and

place it in the cap holder to prevent its getting lost.

7While holding the latch to the right side,

slide the lever all the way back. (UNDOCK POSITION)

8Align the expansion bus connector positions of the port

replicator and the computer. Place the computer on top

of the port replicator, and press down firmly.

9Confirm that the lever has moved all the way to the front.

(DOCK POSITION)

CAUTION

Do not attempt to make connections if there is any

object between the computer and the port replicator.

Doing so could damage the computer and the port

replicator.

Lever

Installing the Driver

If your computer is a model in the CF-18Bxxxxxx series, install the driver by following the

procedure below after connecting the computer to the port replicator. If your computer is not

a model in the CF-18Bxxxxxx series, refer to “Port Replicator” in the computer’s “Reference

Manual.”

<For Microsoft

Windows

XP Professional orWindows

XPTablet PC Edition>

1Connect the CD drive.

2Turn on the computer.

3Install the driver for the CD drive if necessary.

4At [Found New Hardware Wizard], select [Install from a list or specific location],

and then select [Next].

5Place the driver CD-ROM in the CD drive.

Do not attempt to move the port replicator when it is connected to the computer.

CAUTION

Do not turn the display while the computer is connected to the port replicator.

Set the port replicator up on a flat surface. Setting up the port replicator on an uneven

surface can result in poor contact.

Do not use the port replicator in a location where it will be subject to vibration, such as

while riding a bike, motorcycle, or car. The computer may disconnect from the port

replicator and malfunction as a result.

If the computer malfunctions while the port replicator is connected, refer first to the

“Dealing with Problems (Advanced)” in the computer’s “Reference Manual”. If you

still are unable to solve the problem, turn off the computer, disconnect the port replicator

(page 11), connect the AC adapter to the computer, and check to see if the com-

puter operates normally. If the computer operates normally, the port replicator may be

malfunctioning. Contact Panasonic Technical Support.

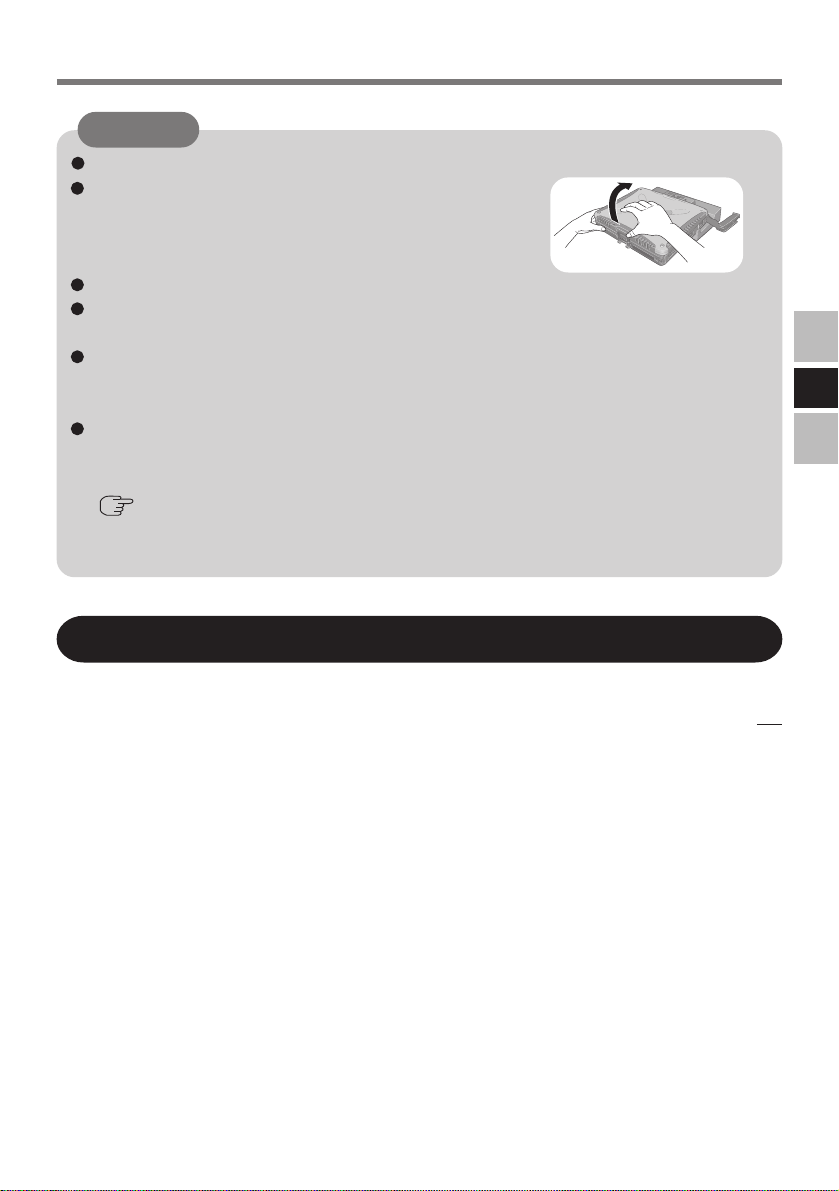

Hold down the bottom of the computer when opening

the display. If you open the display without holding

down the bottom of the computer, the computer may

be disconnected from the port replicator.

Connecting/Disconnecting

6Select [Search for the best driver in these locations], add the check mark for [In-

clude this location in the search:], and then input [d*1:\lan].

7Select [Next].

8Select [ContinueAnyway].

9Select [Finish].

*1“d” is the letter used for the CD drive. You can change the letter to suit your preference.

<For Microsoft

Windows

2000 Professional>

1Connect the CD drive.

2Turn on the computer.

3Install the driver for the CD drive if necessary.

4At [Found New Hardware Wizard], select [Next].

5Select [Search for a suitable driver for my device], and then select [Next].

6Add the checkmark for [Specify location], and then select [Next].

7Place the driver CD-ROM in the CD drive.

8At [Copy manufacturer’s files from:], input [d*2:\lan], and then select [OK].

9Select [Next].

At [Digital Signature Not Found], select [Yes].

Select [Finish].

*2“d” is the letter used for the CD drive. You can change the letter to suit your preference.

Autres manuels pour CF-VEB Series

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Panasonic Station d'accueil

Panasonic

Panasonic Toughbook CF-18 Series Manuel utilisateur

Panasonic

Panasonic JT-H320CU-E1 Manuel utilisateur

Panasonic

Panasonic CF-WEB301 Series Manuel utilisateur

Panasonic

Panasonic CF-WEB Series Manuel utilisateur

Panasonic

Panasonic VL-WD613EX Manuel utilisateur

Panasonic

Panasonic CF-WEB Series Manuel utilisateur

Panasonic

Panasonic CF-VEBP12U Manuel utilisateur

Panasonic

Panasonic CF-VVK33 Series Manuel utilisateur

Panasonic

Panasonic CF-VEB531 Series Manuel utilisateur

Panasonic

Panasonic SH-PD10 - Digital Player Docking Station Manuel utilisateur

Panasonic

Panasonic CF-VEB481 Manuel utilisateur

Panasonic

Panasonic CFVEB731 Manuel utilisateur

Panasonic

Panasonic JT-B1-CU000U Manuel utilisateur

Panasonic

Panasonic SH-PD10 - Digital Player Docking Station Manuel utilisateur

Panasonic

Panasonic FZ-VEBX111U Manuel utilisateur

Panasonic

Panasonic CF-VEBD11 Series Mode d'emploi

Panasonic

Panasonic KX-PRL260B Manuel utilisateur

Panasonic

Panasonic CF-WEB Series Instructions d'installation et d'utilisation

Panasonic

Panasonic CF-VEBU12U Manuel utilisateur

Panasonic

Panasonic KX-PRL262 Manuel utilisateur

Panasonic

Panasonic FZ-VEBQ11U Manuel utilisateur

Panasonic

Panasonic CF-VEB201 Series Manuel utilisateur

Panasonic

Panasonic CF-WEB184 Series Instructions d'installation et d'utilisation

Panasonic

Panasonic CF-VEBP12U Manuel utilisateur

Manuels Station d'accueil populaires d'autres marques

Sony

Sony Dream Machine XDR-DS12iP Manuel utilisateur

Acer

Acer USB Type-C Dock II Manuel utilisateur

ATEN

ATEN UC-2000 Manuel utilisateur

Xcellon

Xcellon HDD-202 Manuel utilisateur

Dok

Dok CR09 Manuel utilisateur

Philips

Philips BTM630/12 Manuel utilisateur

IOGear

IOGear Travel Pro GUD3C09 Manuel utilisateur

RKI

RKI SDM-E2 Manuel utilisateur

iHome

iHome iP15 Manuel utilisateur

VITURE ONE

VITURE ONE MOBILE DOCK Manuel utilisateur

Lindy

Lindy 42984 Manuel utilisateur

CipherLab

CipherLab 8001 Manuel utilisateur

Pyle

Pyle PIPDSP2 Manuel utilisateur

Avol

Avol AS2350 Manuel utilisateur

Datalogic

Datalogic JoyaTouch Manuel utilisateur

Philips

Philips DC190/79 Manuel utilisateur

Targus

Targus DOCK315EUZ Manuel utilisateur

Akasa

Akasa DuoDockX3 AK-DK08U3-BK Manuel utilisateur
