Before use, please read these instructions completely.

More detailed

instructions on

the operation of

this camera are contained in

“Operating Instructions for

advanced features

(PDF format)” in the supplied

CD-ROM. Install it on your PC to

read it.

Basic Operating Instructions

Digital Camera

Model No. DMC-SZ5

VQT4K02

F0712MR0

until

2012/10/25

DMC-SZ5GN-VQT4K02_eng.book 1 ページ２０１２年７月２０日　金曜日　午前９時４９分

VQT4K02 (ENG)

Dear Customer,

We would like to take this opportunity to thank you for purchasing this Panasonic Digital

Camera. Please read these Operating Instructions carefully and keep them handy for

future reference. Please note that the actual controls and components, menu items, etc.

of your Digital Camera may look somewhat different from those shown in the

illustrations in these Operating Instructions.

Carefully observe copyright laws.

•Recording of pre-recorded tapes or discs or other published or broadcast material for

purposes other than your own private use may infringe copyright laws. Even for the purpose

of private use, recording of certain material may be restricted.

Information for Your Safety

∫Product identification marking

WARNING:

To reduce the risk of fire, electric shock or product damage,

•Do not expose this unit to rain, moisture, dripping or splashing.

•Use only the recommended accessories.

•Do not remove covers.

•Do not repair this unit by yourself. Refer servicing to qualified service personnel.

The socket outlet shall be installed near the equipment and shall be easily

accessible.

Product Location

Digital Camera Bottom

DMC-SZ5GN-VQT4K02_eng.book 2 ページ２０１２年７月２０日　金曜日　午前９時４９分

(ENG) VQT4K02

∫About the battery pack

•Do not heat or expose to flame.

•Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with

doors and windows closed.

∫About the AC adaptor (supplied)

•The unit is in the standby condition when the AC adaptor is connected. The primary circuit is

always “live” as long as the AC adaptor is connected to an electrical outlet.

CAUTION

•Danger of explosion if battery is incorrectly replaced. Replace only with the type

recommended by the manufacturer.

•When disposing the batteries, please contact your local authorities or dealer and ask for

the correct method of disposal.

Warning

Risk of fire, explosion and burns. Do not disassemble, heat above 60 xC or

incinerate.

CAUTION!

To reduce the risk of fire, electric shock or product damage,

•Do not install or place this unit in a bookcase, built-in cabinet or in another

confined space. Ensure this unit is well ventilated.

DMC-SZ5GN-VQT4K02_eng.book 3 ページ２０１２年７月２０日　金曜日　午前９時４９分

VQT4K02 (ENG)

∫Cautions for Use

•Do not use any other USB connection cables except the supplied one or a genuine

Panasonic USB connection cable (DMW-USBC1: optional).

•Always use a genuine Panasonic AV cable (DMW-AVC1: optional).

In the event of abnormal operation (e.g. if the unit emits smoke or an unusual smell),

immediately stop operating the unit and consult the Panasonic Customer Care Centre

on 132600.

Keep this unit as far away as possible from electromagnetic equipment (such as

microwave ovens, TVs, video games etc.).

•If you use this unit on top of or near a TV, the pictures and/or sound on this unit may be

disrupted by electromagnetic wave radiation.

•Do not use this unit near cell phones because doing so may result in noise adversely

affecting the pictures and/or sound.

•Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields

created by speakers or large motors.

•Electromagnetic wave radiation generated by microprocessors may adversely affect this unit,

disturbing the pictures and/or sound.

•If this unit is adversely affected by electromagnetic equipment and stops functioning properly,

turn this unit off and remove the battery or disconnect AC adaptor (supplied)/AC adaptor

(DMW-AC5G: optional). Then reinsert the battery or reconnect AC adaptor and turn this unit

on.

Do not use this unit near radio transmitters or high-voltage lines.

•If you record near radio transmitters or high-voltage lines, the recorded pictures and/or sound

may be adversely affected.

DMC-SZ5GN-VQT4K02_eng.book 4 ページ２０１２年７月２０日　金曜日　午前９時４９分

(ENG) VQT4K02

-If you see this symbol-

Information on Disposal in other Countries outside the

European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local

authorities or dealer and ask for the correct method of

disposal.

DMC-SZ5GN-VQT4K02_eng.book 5 ページ２０１２年７月２０日　金曜日　午前９時４９分

VQT4K02 (ENG)

Contents

Information for Your Safety ......................................................................................... 2

Before Use .................................................................................................................... 6

Standard Accessories.................................................................................................. 7

Names and Functions of Main Parts .......................................................................... 8

Inserting and Removing the Card (optional)/the Battery ......................................... 9

Charging the Battery.................................................................................................. 10

Sequence of operations .............................................................................................11

Smartphone operations............................................................................................. 13

Reading the Operating Instructions (PDF format) .................................................. 15

Installing supplied software ...................................................................................... 16

Message Display ........................................................................................................ 17

Troubleshooting ......................................................................................................... 19

Specifications ............................................................................................................. 22

Limited Warranty (ONLY FOR AUSTRALIA)............................................................. 27

Before Use

∫Care of the camera

•Do not subject to strong vibration, shock, or pressure.

•This camera is not dust/splash/water proof.

Avoid using the camera in places with a lot of dust, water, sand, etc.

∫About Condensation (When the lens is fogged up)

•Condensation occurs when the ambient temperature or humidity changes. Be careful of

condensation since it causes lens stains, fungus and camera malfunction.

•If condensation occurs, turn the camera off and leave it for about 2 hours. The fog will

disappear naturally when the temperature of the camera becomes close to the ambient

temperature.

DMC-SZ5GN-VQT4K02_eng.book 6 ページ２０１２年７月２０日　金曜日　午前９時４９分

(ENG) VQT4K02

Standard Accessories

Check that all the accessories are supplied before using the camera.

Product numbers correct as of July 2012. These may be subject to change.

1 Battery Pack

(Indicated as battery pack or battery

in the text)

Charge the battery before use.

2 AC Adaptor

Can be used for charging and

playback.

3 USB Connection Cable

4 CD-ROM

•Software

•Operating Instructions for advanced

features

Install on your PC before use.

5 Hand Strap

•SD Memory Card, SDHC Memory Card and

SDXC Memory Card are indicated as card in

the text.

•The card is optional.

You can record or play back pictures on

the built-in memory when you are not

using a card.

•Consult the dealer or your nearest Service

Centre if you lose the supplied accessories.

(You can purchase the accessories

separately.)

VFC4297VFF1054

K1HY08YY0015

DMW-BCK7E VSK0776

DMC-SZ5GN-VQT4K02_eng.book 7 ページ２０１２年７月２０日　金曜日　午前９時４９分

VQT4K02 (ENG)

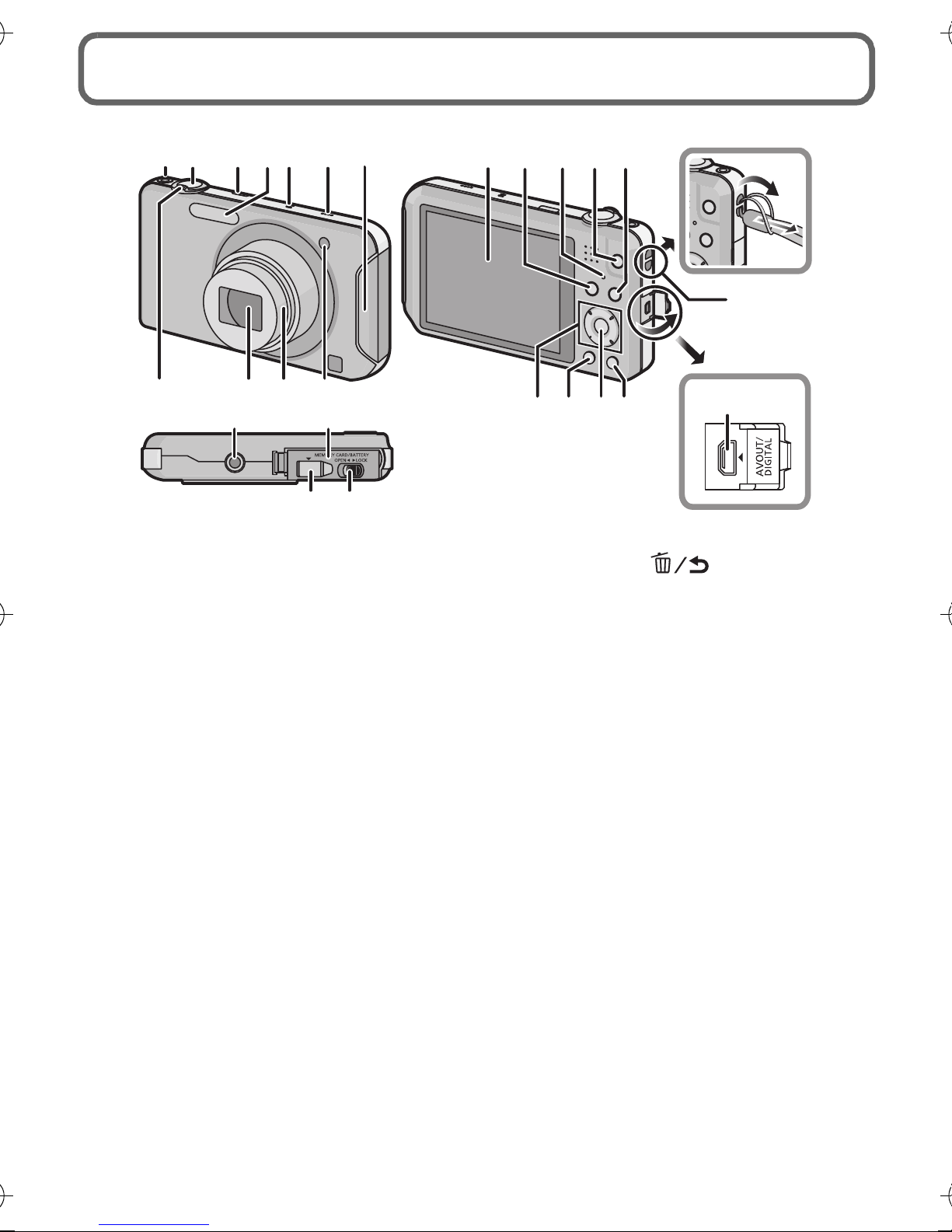

Names and Functions of Main Parts

1 Motion picture button

2 Shutter button

3 Power button

4Flash

5 Microphone

6 Speaker

•Be careful not to cover the speaker

with your finger. Doing so may make

sound difficult to hear.

7Wi-Fi

RTransmitter

8 Zoom lever

9Lens

10 Lens barrel

11 Self-timer indicator

AF Assist Lamp

12 LCD monitor

13 [MODE] button

14 Charging lamp

Wi-Fi connection lamp

15 [Wi-Fi] button

16 [(] (Playback) button

17 Cursor buttons

18 [DISP.] button

19 [MENU/SET] button

20 [Q.MENU]/[ ] (Delete/Cancel)

button

21 Strap eyelet

•Be sure to attach the strap when

using the camera to ensure that you

will not drop it.

22 [AV OUT/DIGITAL] socket

•This socket is also used when

charging the battery.

23 Tripod receptacle

•A tripod with a screw length of

5.5 mm or more may damage this

unit if attached.

24 Card/Battery door

25 DC coupler cover

•When using an AC adaptor

(DMW-AC5G: optional), ensure that

the Panasonic DC coupler

(DMW-DCC10: optional) and AC

adaptor are used.

•Always use a genuine Panasonic AC

adaptor (DMW-AC5G: optional).

26 Release lever





8910

2017 18

23 5416

23 24

13 14

19 22

7156

DMC-SZ5GN-VQT4K02_eng.book 8 ページ２０１２年７月２０日　金曜日　午前９時４９分

(ENG) VQT4K02

Inserting and Removing the Card

(optional)/the Battery

•Check that this unit is turned off.

•We recommend using a Panasonic card.

1Slide the release lever in the direction

of the arrow and open the card/battery

door.

•Always use genuine Panasonic batteries

(DMW-BCK7E).

•If you use other batteries, we cannot

guarantee the quality of this product.

2Battery: Being careful about the

battery orientation, insert all the way

until you hear a locking sound and

then check that it is locked by lever A.

Pull the lever Ain the direction of the

arrow to remove the battery.

Card: Push it securely all the way until

you hear a “click” while being careful

about the direction in which you insert it.

To remove the card, push the card until it clicks, then pull the

card out upright.

B: Do not touch the connection terminals of the card.

31: Close the card/battery door.

2: Slide the release lever in the

direction of the arrow.

Note

•Keep the Memory Card out of reach of children to prevent

swallowing.

DMC-SZ5GN-VQT4K02_eng.book 9 ページ２０１２年７月２０日　金曜日　午前９時４９分

VQT4K02 (ENG)

Charging the Battery

•The battery that can be used with this unit is DMW-BCK7E.

•The battery is not charged when the camera is shipped. Charge the battery before use.

•

Charge the battery with the AC adaptor (supplied) indoors (10

C to 30

C).

Insert the battery to this unit, and then connect this unit to the AC

adaptor A(supplied) or a PC B.

CTo power outlet

DUSB connection cable (supplied)

When using the AC adaptor (supplied), observe the following points as improper

connections may cause malfunctions.

•Do not use any other USB connection cables except the supplied one or a genuine

Panasonic USB connection cable (DMW-USBC1: optional).

•Do not use any other AC adaptors except the supplied one.

•Do not use the AC adaptor (supplied) or the USB connection cable (supplied/optional) with

other devices.

•Check that this unit is turned off.

∫About the charging lamp (E)

Lit red: Charging.

Off: Charging has completed. (Charging time: Approx. 180 min)

DMC-SZ5GN-VQT4K02_eng.book 10 ページ２０１２年７月２０日　金曜日　午前９時４９分

Autres manuels pour Lumix DMC-SZ5

Table des matières

Autres manuels Panasonic Appareil photo numérique

Panasonic

Panasonic DMC-G85M Manuel utilisateur

Panasonic

Panasonic DC-GH5L Caractéristiques techniques

Panasonic

Panasonic LUMIX DC-ZS200D Instructions d'installation et d'entretien

Panasonic

Panasonic LUMIX DMC-FX50 Manuel utilisateur

Panasonic

Panasonic Lumix DMC-FH7 Manuel utilisateur

Panasonic

Panasonic Lumix DC-ZS80D Manuel utilisateur

Panasonic

Panasonic LUMIX DMC-ZS1 Manuel utilisateur

Panasonic

Panasonic DMCFP2 - DIGITAL STILL CAMERA Caractéristiques techniques

Panasonic

Panasonic LUMIX DC-FZ80 Caractéristiques techniques

Panasonic

Panasonic DMC-F2K Caractéristiques techniques

Panasonic

Panasonic Lumix DMC-LS85 Manuel utilisateur

Panasonic

Panasonic LUMIX DMC-FX40 Caractéristiques techniques

Panasonic

Panasonic BL-MS103A Manuel utilisateur

Panasonic

Panasonic LUMIX DC-GX9K Caractéristiques techniques

Panasonic

Panasonic Lumix DMC-FX100 Manuel utilisateur

Panasonic

Panasonic Lumix DMC-SZ5 Manuel utilisateur

Panasonic

Panasonic Lumix DMC-TZ330 Manuel utilisateur

Panasonic

Panasonic LUMIX DMC-FZ2EN Manuel utilisateur

Panasonic

Panasonic Lumix DMC-LC5PP Manuel utilisateur

Panasonic

Panasonic Lumix DMC-G5 Manuel utilisateur

Panasonic

Panasonic LUMIX DMC-FX150 Caractéristiques techniques

Panasonic

Panasonic Lumix DMC-ZS8 Instructions d'installation et d'entretien

Panasonic

Panasonic DMC-FT3 Caractéristiques techniques

Panasonic

Panasonic Lumix DMC-LS80 Mode d’emploi

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
