Panasonic AU-EVA1 Manuel utilisateur

SKAARHOJ DEVICE CORES

Device: Panasonic AU-EVA1

Introduction

The Device Core “Panasonic EVA1” is used for controlling the AU-EVA1 camera. The goal of this manual is

to help conﬁguring a SKAARHOJ interface to control features available in the Device Core at this present

time.

Multicam Control

Please notice with the release of UniSketch v2.4.16 Multicam Control have been enabled. Prior to v2.4.16

only a single camera could be controlled from the Device Core. With the update up to 4 cameras can be

controlled from a single Device Core. Please see information in the section “Multicam Control”

Setting up Camera

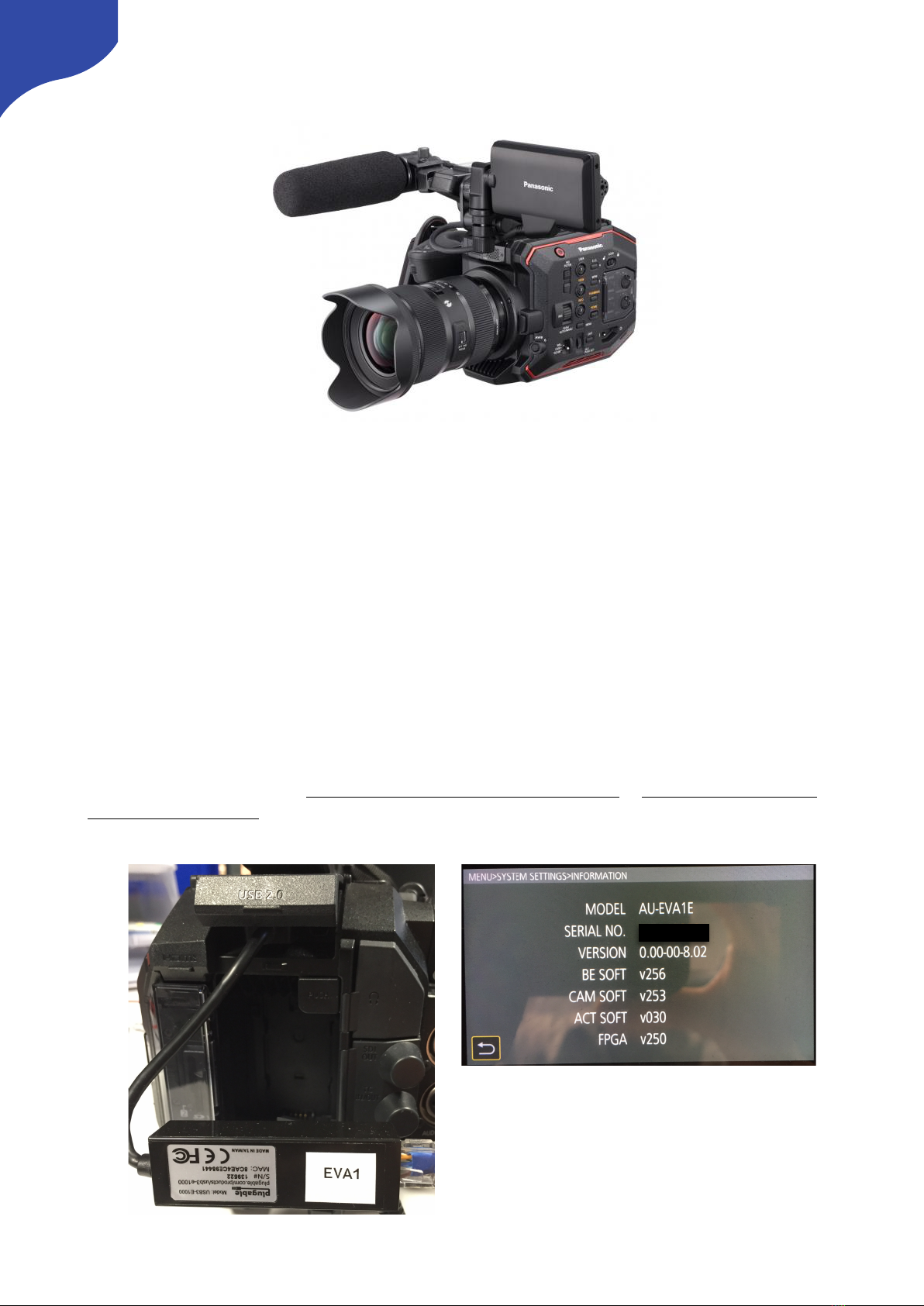

In order to control the camera a USB/Ethernet adapter must be utilized from the USB2.0 HOST port on the

camera. All communication between a SKAARHOJ interface and the camera is done via IP. The

implementation have been done on version 0.00-00-8.02.

Panasonic recommends to use Plugable USB 3.0 Gigabit Eathernet Adapter or UGREEN USB3.0 to RJ45

Ethernet Adapter 20256

SKAARHOJ DEVICE CORES

A number of actions are required for a SKAARHOJ controller to communicate with the camera. Please

follow these procedures in the MENU —> NETWORK SETTINGS. The aim of the procedures is to set a

static IP address on the camera which the SKAARHOJ controller can connect to and to create a user

account for authentication. You can use a different IP address as long as the Panasonic Device Core on the

SKAARHOJ controller reﬂects this.

•NETWORK SEL: WLAN

•NETWORK FUNC - add a account

•Account name: skaarhoj

•Account password: 12345678

•NETWORK PROPERTY - set static IP

•TYPE: INFRA(SELECT)

•DHCP: OFF

•IP ADDRESS: 192.168.10.178

•SUBNET MASK: 255.255.255.0

•DEFAULT GATEWAY: 192.168.10.1

•PRIMANRY DNS: 192.168.10.2

SKAARHOJ DEVICE CORES

Setting up a RCPv2 controller using the default conﬁguration “Panasonic AU-EVA1”

Please follow these instructions if you have a RCPv2 and want to use it with the Panasonic AU-EVA1

camera.

If you RCPv2 have been shipped preconﬁgured with the “Panasonic AU-EVA1” conﬁguration please go to

section “Conﬁrm Connection”

If you have a RCPv2 and want to use the default conﬁguration “Panasonic AU-EVA1” please follow these

steps

-Download and install the Firmware Updater Application (https://www.skaarhoj.com/support/ﬁrmware-

updater/)

-Connect the RCPv2 with the USB programming cable (if you are on Windows and have multiple com

ports available please see the section “Port selection on Windows” in the Installation and Operation

Manual (https://www.skaarhoj.com/support/manuals/)

-Press “Online Conﬁguration” in the Firmware Application

SKAARHOJ DEVICE CORES

Direct Selection of Default Conﬁg

If no custom conﬁgurations have been made on the RCPv2

you will be presented with this interface

Selection of Default Conﬁg

If custom conﬁgurations have been made on the RCPv2 you

will be presented with this interface

Select the “Panasonic AU-EVA1” conﬁg in the drop down list. This will

load the conﬁguration on the conﬁguration page. Then go to the

Firmware Application and press “Check for updates”.

This will generate a ﬁrmware ﬁle on our server and download it to the

controller.

Notice on Windows the Port dropdown will display “COM” ports.

Please see section “Port selection on Windows” in Installation and

Operation manual https://www.skaarhoj.com/support/manuals/

Notice on Windows the Port dropdown will display “COM” ports.

Please see section “Port selection on Windows” in Installation and

Operation manual https://www.skaarhoj.com/support/manuals/

Select the “Panasonic AU-EVA1” conﬁg and then go to the Firmware

Application and press “Check for updates”. This will generate a

ﬁrmware ﬁle on our server and download it to the controller.

If you want to use different IP addresses then alter “Network

conﬁguration” and press “Save Network Conﬁguration” and then

press “Check for updates” in the Firmware Application

SKAARHOJ DEVICE CORES

Conﬁrm Connection

If the RCPv2 have come preconﬁgured with the Panasonic Conﬁguration or you have just successfully

downloaded the Firmware to the RCPv2, then it is ready to control the camera provided you have followed

the steps in the “Setting up Camera” section. It is important that the IP address you have set on the camera

matches the IP address of the Panasonic EVA1 Device Core.

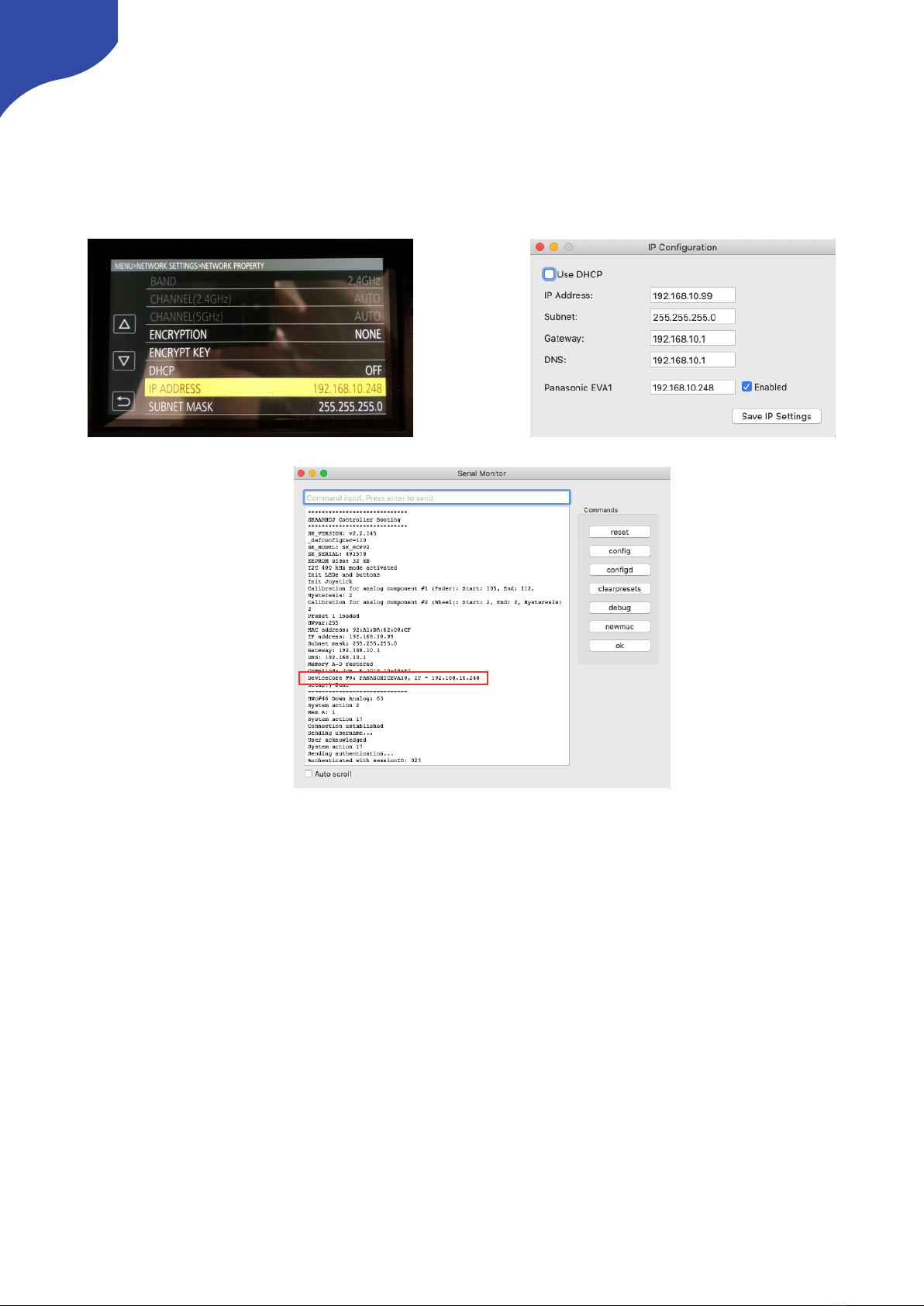

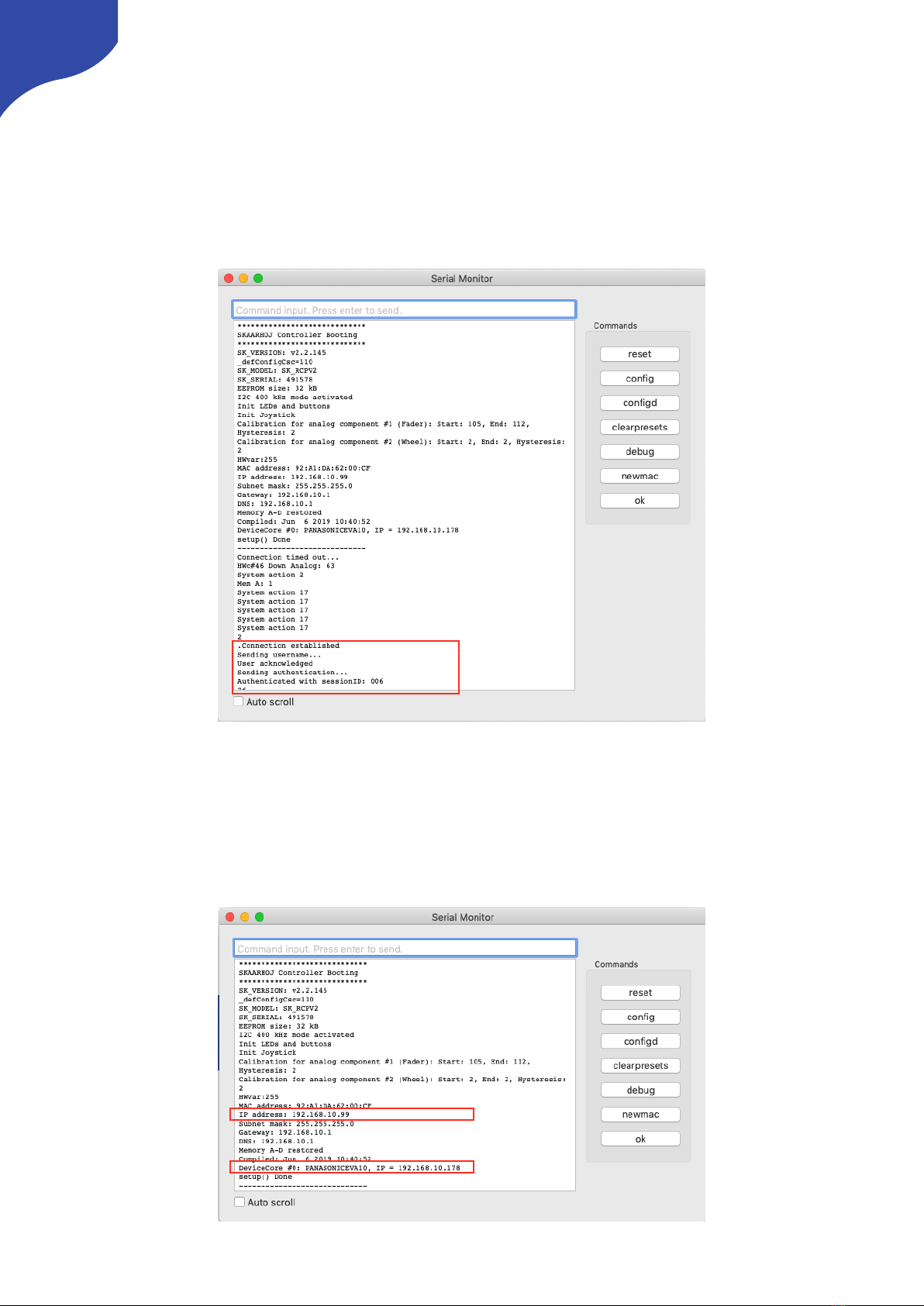

Connection to the camera can be conﬁrmed from the Serial Monitor with the commands as shown below.

Check IP Addresses on SKAARHOJ Controller

If you have issues connecting to the camera it is recommend to conﬁrm that IP settings are correct. A way

to conﬁrm IP settings on the SKAARHOJ controller is using the Serial Monitor in the Firmware Application

and check IP settings in the boot up process.

SKAARHOJ DEVICE CORES

Using different IP address on Panasonic AU-EVA1 camera

You can set a different IP address on the camera as long as the Device Core IP address is updated as well.

You can use the “IP Conﬁguration” option in the Firmware Application to change the Device Core IP

address.

SKAARHOJ DEVICE CORES

Debugging Connection between SKAARHOJ Controller and Camera

If IP settings are correct but the Account name is not correct the Serial Monitor will report

“Camera Error: Wrong user”

If the Account name is correct but the password is not the Serial Monitor will report “Camera Error: Wrong

User” after reporting that the user is acknowledged.

SKAARHOJ DEVICE CORES

Alternative way of Downloading and Installing the Firmware on a RCPv2

If you have issues using the Firmware Application to generate and installing the Firmware on your RCPv2

please follow these steps

-Press “Online Conﬁguration” in the Firmware Application

Direct Selection of Default Conﬁg

If no custom conﬁgurations have been made on the RCPv2

you will be presented with this interface

Selection of Default Conﬁg

If custom conﬁgurations have been made on the RCPv2 you

will be presented with this interface

Press the “Firmware Overview” tab and press “Generate Firmware”

Select the “Panasonic AU-EVA1” conﬁg and press “Advanced”

Select the “Panasonic AU-EVA1” conﬁg in the drop down list.

SKAARHOJ DEVICE CORES

Open the Firmware Updater Application and use the “Load Firmware from ﬁle” in the option tab

Select the “.hex” ﬁrmware ﬁle. Naming might be different dependent on browser but it should be a .hex ﬁle to be selected.

When done the Firmware Updater application reports “Firmware successfully updated”

On PC.

Important to select proper COM port. See “Port selection on

Windows” in Installation and Operation manual https://

www.skaarhoj.com/support/manuals/ “

After the ﬁrmware have been generated press “Download”

Notice on Windows the Port dropdown will display “COM” ports.

Please see section “Port selection on Windows” in Installation and

Operation manual https://www.skaarhoj.com/support/manuals/

On Mac

SKAARHOJ DEVICE CORES

Setting up Controller

This section is only relevant if you are building a conﬁguration from scratch.

The Device Core “Panasonic AU-EVA1” must be added to your controller

The Device Core must have the IP address matching, the one set on the camera it self (see “Setting up

Camera” section).

Connection to the camera can be conﬁrmed from the Serial Monitor with the command: PansonicEVA:

Connected
