Operating Instructions

INTERCHANGEABLE LENS FOR DIGITAL CAMERA

Model No. H-VS014140

Before connecting, operating or adjusting this

product, please read the instructions completely.

For USA and Puerto Rico assistance, please call: 1-800-211-PANA(7262) or, contact us via the web at: http://www.panasonic.com/contactinfo

For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649) or

send e-mail to: [email protected]

VQT2C38

until

2009/ 4/13

H-VS014140PP-VQT2C38.book 1 ページ２００９年３月１２日　木曜日　午前１０時４３分

VQT2C38

Contents

Information for Your Safety..................................... 2

Precautions........................................................... 5

Supplied Accessories ............................................. 6

Attaching/Detaching the Lens................................. 6

Names and Functions of Components ................... 8

Cautions for Use..................................................... 9

Troubleshooting .................................................. 10

Specifications........................................................ 11

Limited Warranty................................................... 12

-If you see this symbol-

THE FOLLOWING APPLIES ONLY IN CANADA.

Information for Your Safety

Keep the unit as far away as possible from

electromagnetic equipment (such as microwave

ovens, TVs, video games, radio transmitters,

high-voltage lines etc.).

≥Do not use the camera near cell phones because

doing so may result in noise adversely affecting

the pictures and sound.

≥

If the camera is adversely affected by electromagnetic

equipment and stops functioning properly, turn the

camera off and remove the battery and/or the

connected AC adaptor. Then reinsert the battery and/

or reconnect the AC adaptor and turn the camera on.

The lens can be used with a digital camera

compatible with the lens mount standard for the

“Micro Four ThirdsTM System”.

≥It cannot be mounted on the Four ThirdsTM mount

specification camera.

Information on Disposal in other Countries

outside the European Union

This symbol is only valid in the

European Union.

If you wish to discard this

product, please contact your

local authorities or dealer and

ask for the correct method of

disposal.

This Class B digital apparatus complies with

Canadian ICES-003.

H-VS014140PP-VQT2C38.book 2 ページ２００９年３月１２日　木曜日　午前１０時４３分

VQT2C38

≥The digital camera illustrations in these operating

instructions show DMC-GH1 as an example.

≥The appearance and specifications of products

described in this manual may differ from the actual

products you have purchased due to later

enhancements.

≥Four ThirdsTM and Four Thirds Logo marks are

trademarks or registered trademarks of Olympus

Imaging Corporation, in Japan, the United States,

the European Union and other countries.

≥Micro Four ThirdsTM and Micro Four Thirds Logo

marks are trademarks or registered trademarks of

Olympus Imaging Corporation, in Japan, the

United States, the European Union and other

countries.

≥Other names, company names, and product

names printed in these instructions are

trademarks or registered trademarks of the

companies concerned.

ENGLISH

H-VS014140PP-VQT2C38.book 3 ページ２００９年３月１２日　木曜日　午前１０時４３分

VQT2C38

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

●Reorient or relocate the receiving antenna.

●Increase the separation between the equipment and receiver.

●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

●Consult the dealer or an experienced radio/TV technician for help.

Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Responsible Party:

Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Support Contact:

Panasonic Consumer Electronics Company

Telephone No.: 1-800-211-PANA (7262)

H-VS014140PP-VQT2C38.book 4 ページ２００９年３月１２日　木曜日　午前１０時４３分

VQT2C38

∫Lens Care

≥Sand and dust can damage the lens. Make

sure that no sand or dust gets inside the lens

or the terminals when using the lens on a

beach, etc.

≥This lens is not waterproof. If drops of water

get onto the lens, wipe the lens with a dry

cloth.

≥Do not press the lens with excessive force.

≥When there is dirt (water, oil, and fingerprints, etc.)

on the surface of the lens, the picture may be

affected. Lightly wipe the surface of the lens with a

soft, dry cloth before and after taking pictures.

≥Do not place the lens mount facing downwards.

Do not allow the lens contact point 1to become

dirty.

∫About Condensation (Fogging of the

Lens)

≥Condensation occurs when there are differences

in temperature and humidity as described below.

Condensation can cause the lens to become dirty

and lead to mold and malfunctioning, so exercise

caution in the following situations:

– When the camera is brought indoors from outside

during cold weather

– When the camera is brought into an air-

conditioned car

– When cold air from an air conditioner is directly

blown onto the lens

– In humid places

≥Put the camera into a plastic bag to allow it to

acclimatize to the surrounding temperature in

order to prevent condensation. If condensation

occurs, turn the power off and leave it for about

two hours. Once the camera acclimatizes to the

surrounding temperature the condensation will go

away naturally.

Precautions

H-VS014140PP-VQT2C38.book 5 ページ２００９年３月１２日　木曜日　午前１０時４３分

VQT2C38

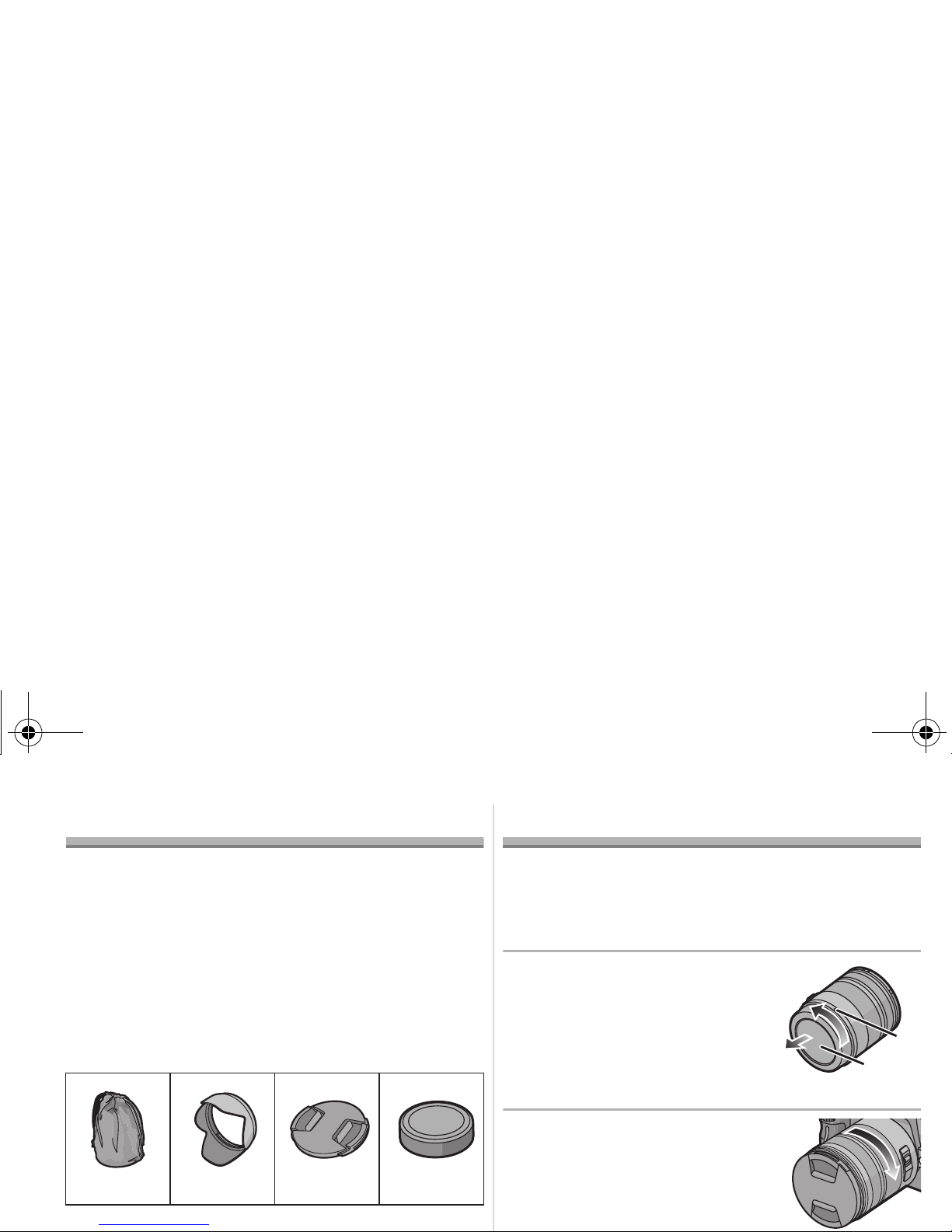

Supplied Accessories

[Inspection to be performed when you unpack

the unit]

When removing the unit from its packing box, check

that the main unit and the supplied accessories are

there and also check their external appearance and

functions to verify that they have not sustained any

damage during distribution and transportation.

If you discover any trouble, contact your vendor

before using the product.

1Lens Storage Bag

2Lens Hood

3Lens Cap

4Lens Rear Cap

(The lens cap and lens rear cap are attached to

the interchangeable lens at the time of

purchase.)

Attaching/Detaching the Lens

≥Refer also to the camera’s operating instructions

for attaching and detaching the lens.

∫Attaching the Lens

≥Check that the camera is turned off.

1 Turn the lens rear

cap to detach it.

A: Lens Rear Cap

2 Align the lens fitting

marks B(red marks) on

the camera body and the

lens and then rotate the

lens in the direction of

the arrow until it clicks.

• Do not press the lens release

button when you attach a lens.

• Do not try to attach the lens when holding it at an

angle to the camera body as the lens mount may

get scratched.

• Check that the lens is attached correctly.

VFC4430 VYC0997 VYF3250 VFC4315

312 4











H-VS014140PP-VQT2C38.book 6 ページ２００９年３月１２日　木曜日　午前１０時４３分

VQT2C38

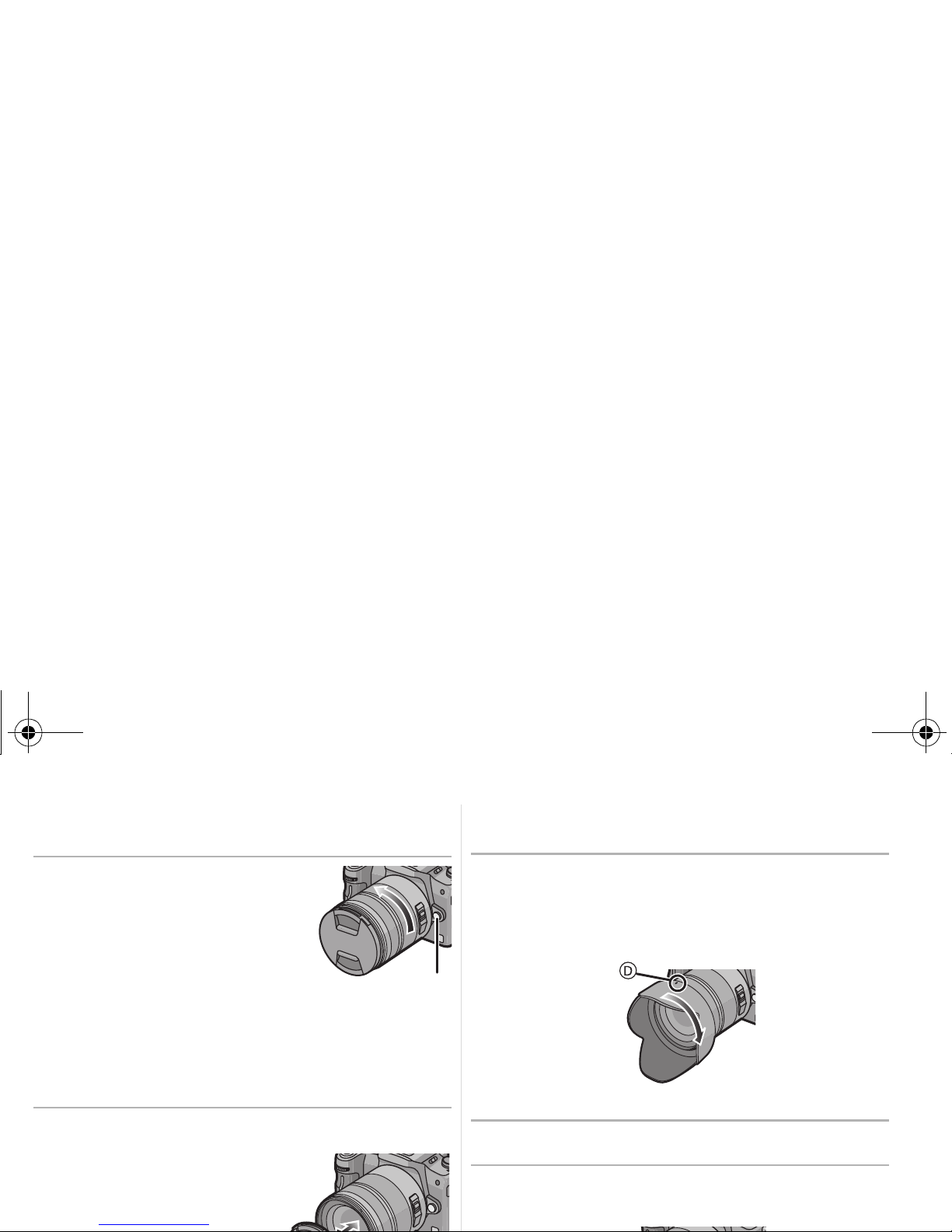

∫Detaching the Lens

≥Check that the camera is turned off.

Press the lens release

button Cwhile turning

the lens as far as

possible in the direction

of the arrow to detach it.

• Attach the lens rear cap so

that the lens contact point does not get

scratched.

• Attach the body cap to the camera so no dirt or

dust will get inside the main unit.

∫Attaching and Detaching the Lens Cap

≥Be careful not to lose

the lens cap.

∫Attaching the Lens Hood

(Supplied Accessory)

Insert the lens hood into the lens with the

short sides at the top and bottom, and

turn in the direction of the arrow until it

stops.

D: Fit to the mark

∫Temporarily Storing the Lens Hood

1 Turn the lens hood in the direction of the

arrow to detach it.



H-VS014140PP-VQT2C38.book 7 ページ２００９年３月１２日　木曜日　午後６時２５分

VQT2C38

2 Reverse the lens hood and then attach it

in the same way as shown previously.

• When taking pictures with

the flash with the lens hood

attached, the lower portion

of the screen may turn dark

(vignetting effect) and the

control of the flash may be

disabled because the photo

flash may be obscured by the lens hood. We

recommend detaching the lens hood.

• When using the AF assist lamp in the dark,

detach the lens hood.

∫Attaching Filters

≥Vignetting may occur if using 2 or more

MC protectors (optional), PL filters (optional) or

ND filters (optional), or if using thick protectors

and/or filters.

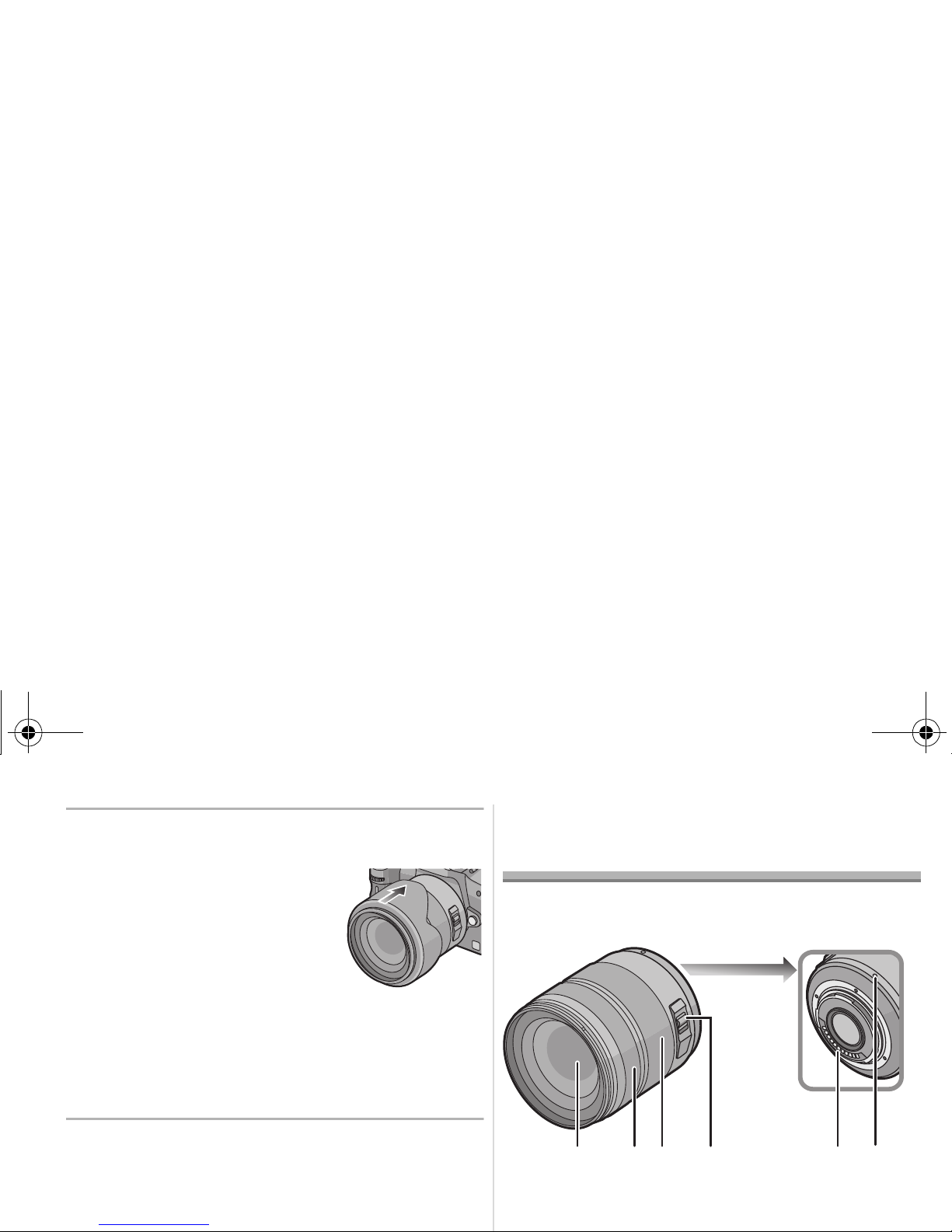

Names and Functions of

Components

∫Lens

1Lens surface

2Focus ring

Rotate to focus when taking pictures with manual

focus.

3Zoom ring

Rotate the zoom ring when you wish to take large

(tele) or wide (wide angle) pictures. (35 mm film

camera equivalent: 28 mm to 280 mm)

2345

H-VS014140PP-VQT2C38.book 8 ページ２００９年３月１２日　木曜日　午前１０時４３分

VQT2C38

4[O.I.S.] switch

When the lens is attached to the camera the

stabilizer function is set to activate if the [O.I.S.]

switch is set to [ON].

≥We recommend setting the [O.I.S.] switch to [OFF]

when using a tripod.

≥The stabilizer function may not be effective in the

following cases.

– When there is a lot of jitter.

– When the zoom magnification is high.

– When using the digital zoom.

– When taking pictures while following a moving

subject.

– When the shutter speed becomes slower to take

pictures indoors or in dark places.

5Contact point

6Lens fitting mark

Note

≥When flash recording with a close subject, the

light of the flash will be blocked by the lens and

part of the picture may be dark. Check the

distance from the subject when recording.

Cautions for Use

∫About the Lens

Take care not to drop or knock the lens. Also

take care not to put a lot of pressure on the lens.

≥

Take care not to drop the bag that you inserted the

lens in as it may damage the lens. The camera may

stop operating normally and pictures may no longer

be recorded.

When using pesticides and other volatile

substances around the camera make sure that

they do not get onto the lens.

≥

If such substances get onto the lens they can

damage the exterior case or cause the paint to peel.

Do not carry the unit when it is still attached to

the camera body.

≥

Under no circumstances should the unit be stored

in any of the following locations since doing so may

cause problems in operation or malfunctioning.

– In direct sunlight or on a beach in summer

– In locations with high temperatures and humidity

levels or where the changes in temperature and

humidity are acute

– In locations with high concentrations of sand,

dust or dirt

– Where there is fire

H-VS014140PP-VQT2C38.book 9 ページ２００９年３月１２日　木曜日　午前１０時４３分

VQT2C38

– Near heaters, air conditioners or humidifiers

– Where water may make the unit wet

– Where there is vibration

– Inside a vehicle

≥Refer also to the operating instructions of the

digital camera.

≥When the unit is not going to be used for a

prolonged period, we recommend storing with a

desiccant (silica gel). Failure to do so may result in

performance failure caused by mold, etc. It is

recommended that you check the unit’s operation

prior to use.

≥Do not leave the lens in contact with rubber or

plastic products for extended periods of time.

≥Do not touch the lens contact point. Doing so can

cause failure of the unit.

≥Do not disassemble or alter the unit. If the internal

parts require inspection or repair, take the unit to

the vendor.

Do not use benzine, thinner, alcohol or other

similar cleaning agents to clean the lens glass or

exterior cabinet.

≥Using solvents can damage the lens or cause the

paint to peel.

≥Wipe off any dust or fingerprints with a soft, dry

cloth.

≥Use a dry, dust cloth to remove dirt and dust on

the zoom ring and the focus ring.

≥Do not use a household detergent or a chemically

treated cloth.

A sound is heard when the camera is turned on

or off.

≥This is the sound of lens or aperture movement

and is not a malfunction.

Troubleshooting

H-VS014140PP-VQT2C38.book 10 ページ２００９年３月１２日　木曜日　午前１０時４３分

Autres manuels pour Lumix H-VS014140

Table des matières

Langues :

Autres manuels Panasonic Objectif de l'appareil photo

Panasonic

Panasonic Lumix G Vario H-FS45150E Manuel utilisateur

Panasonic

Panasonic LUMIX H-X015K Manuel utilisateur

Panasonic

Panasonic HFS1442A Manuel utilisateur

Panasonic

Panasonic H-E08018PP Manuel utilisateur

Panasonic

Panasonic 5025232898695 Manuel utilisateur

Panasonic

Panasonic ET-DLE170 Manuel utilisateur

Panasonic

Panasonic Lumix H-F007014 Manuel utilisateur

Panasonic

Panasonic Lumix H-FSA14140 Manuel utilisateur

Panasonic

Panasonic WV-LA6B2 Manuel utilisateur

Panasonic

Panasonic WV-LA4510 Manuel utilisateur

Panasonic

Panasonic S-E70200 Manuel utilisateur

Panasonic

Panasonic DMW-LA7 Manuel utilisateur

Panasonic

Panasonic WV-LXY18C4 Manuel utilisateur

Panasonic

Panasonic LUMIX H-HSA12035 Manuel utilisateur

Panasonic

Panasonic Lumix H-FS014042 Manuel utilisateur

Panasonic

Panasonic LUMIX G X Vario 45-175mm f/4.0-5.6 Manuel utilisateur

Panasonic

Panasonic WVLZ6115 - ZOOM LENS Manuel utilisateur

Panasonic

Panasonic Lumix S-E2470 Guide d'installation

Panasonic

Panasonic S-R2060 Manuel utilisateur

Panasonic

Panasonic DC-GH5M Series Manuel utilisateur

Panasonic

Panasonic WV-LA210C3 Manuel utilisateur

Panasonic

Panasonic WV-LZ14 Manuel utilisateur

Panasonic

Panasonic DMWLWA52 Manuel utilisateur

Panasonic

Panasonic ET-D3LEF70C Manuel utilisateur

Manuels Objectif de l'appareil photo populaires d'autres marques

THORLABS

THORLABS ELL15 Manuel utilisateur

FUJICA

FUJICA ZC1000 Manuel utilisateur

Tamron

Tamron A09 Manuel

Sony

Sony SEL-55210 Manuel utilisateur

Sony

Sony VCL-HG2037 Manuel utilisateur

Honeywell

Honeywell HLM25V6F12 Manuel utilisateur

Sony

Sony VCL-ST30 Manuel utilisateur

Canon

Canon FD 35 - 70 mm Manuel utilisateur

Sony

Sony SAL-85F14Z - 85mm f1.4 Carl Zeiss Planar T Coated Telephoto... Manuel utilisateur

ARRI

ARRI Lenses Manuel utilisateur

Nikon

Nikon AF-S VR 24-120 f/3.5-5.6G IF-ED Manuel utilisateur

Rokinon

Rokinon DS50M-C Manuel utilisateur

Olympus

Olympus M.Zuiko Digital ES 300mm f4.0 IS PRO Manuel utilisateur

Sony

Sony VCL-DE07T Manuel utilisateur

Canon

Canon FD Lens Manuel

Tamron

Tamron A036 Manuel utilisateur

Samsung

Samsung 20-50mm F3.5-5.6 ED II Manuel utilisateur

Tamron

Tamron 272E Manuel utilisateur
