Fisheye Lens

Operating Instructions

Model No. ET-D3LEF70C

Commercial Use

2-ENGLISH

Read this rst! ......................................................................................3

Before Use.............................................................................................4

Attaching the Lens / Detaching the Lens...........................................5

Before replacing the projection lens........................................................ 5

Attaching the Lens................................................................................... 6

Lens calibration ....................................................................................... 7

Focus adjustment function .................................................................... 11

Detaching the Lens ............................................................................... 12

Projection relationships.....................................................................13

Lens shift ranges................................................................................15

Specications .....................................................................................16

Dimensions .........................................................................................17

█ Contents

ENGLISH-3

Read this rst! Always follow these precautions

WARNING:

Do not look at or place your skin into the light emitted from the lens while the

projector is being used.

Doing so can cause burns or loss of sight.

zStrong light is emitted from the projector’s lens. Do not look at or place your hands

directly into this light.

zIn addition, turn off the power and switch off the main power when you are away

from the projector.

Do not project an image with the lens cover attached.

zDoing so can cause re.

CAUTION:

Before replacing the projection lens, be sure to turn off the power and

disconnect the power plug from the wall outlet.

zUnexpected projection of light may cause injury to eyes.

zReplacing the projection lens without removing the power plug may result in electric

shock.

Do not stand in front of the lens while the projector is being used.

Doing so can cause damage and burns to clothing.

zStrong light is emitted from the projector’s lens.

Do not place objects in front of the lens while the projector is being used.

Do not place objects in front of the lens to block the light.

Doing so can cause re, damage to an object, or malfunction of the projector.

zStrong light is emitted from the projector’s lens.

Do not open the desiccant bag. Do not eat the contents.

Inadvertently ingesting desiccant could be harmful.

zIf the desiccant gets into your eyes or mouth, immediately rinse with plenty of water

and seek medical attention.

zKeep desiccant out of the reach of children.

4-ENGLISH

Before Use

■Supported projectors

PT-SRQ32KC / PT-SRZ31KC / PT-SRS30KC / PT-SRZ21KC / PT-SRS20KC / PT-SRQ13KC / PT-SRZ12KC /

PT-SRS11KC / PT-SDZ21K2C / PT-SDS20K2C / PT-SDW17K2C / PT-SDZ18K2C / PT-SDZ985C /

PT-SDS955C / PT-SDW935C / PT-SDZ981C

Note

zModels other than the above may also be supported. Refer to the operating instructions of the projector you

are using.

zIf the projector you are using is the PT-SRQ32KC / PT-SRZ31KC / PT-SRS30KC / PT-SRZ21KC /

PT-SRS20KC, the following versions are not supported.

- PT-SRQ32KC / PT-SRZ31KC / PT-SRS30KC: Earlier than 3.00

- PT-SRZ21KC / PT-SRS20KC: Earlier than 2.00

For details, contact your dealer.

zThe main version of the rmware can be checked in the [STATUS] screen.

■Supplied accessories

Make sure that the following has been provided. Numbers enclosed in < > show the number of accessories.

Lens cover <2>

(The product is delivered with the lens covers attached.)

ENGLISH-5

Before replacing the projection lens

Return the projection lens to the home position before detaching or attaching it. Attaching or detaching of the

projection lens may not be possible if the lens is not in the home position. For details on how to return the lens to

the home position, refer to the operating instructions of the projector.

Attention

zTurn off the projector before replacing the sheye lens.

zStore the removed protection lens safely without subjecting it to vibration or impact.

zRemove the lens covers before attaching the sheye lens.

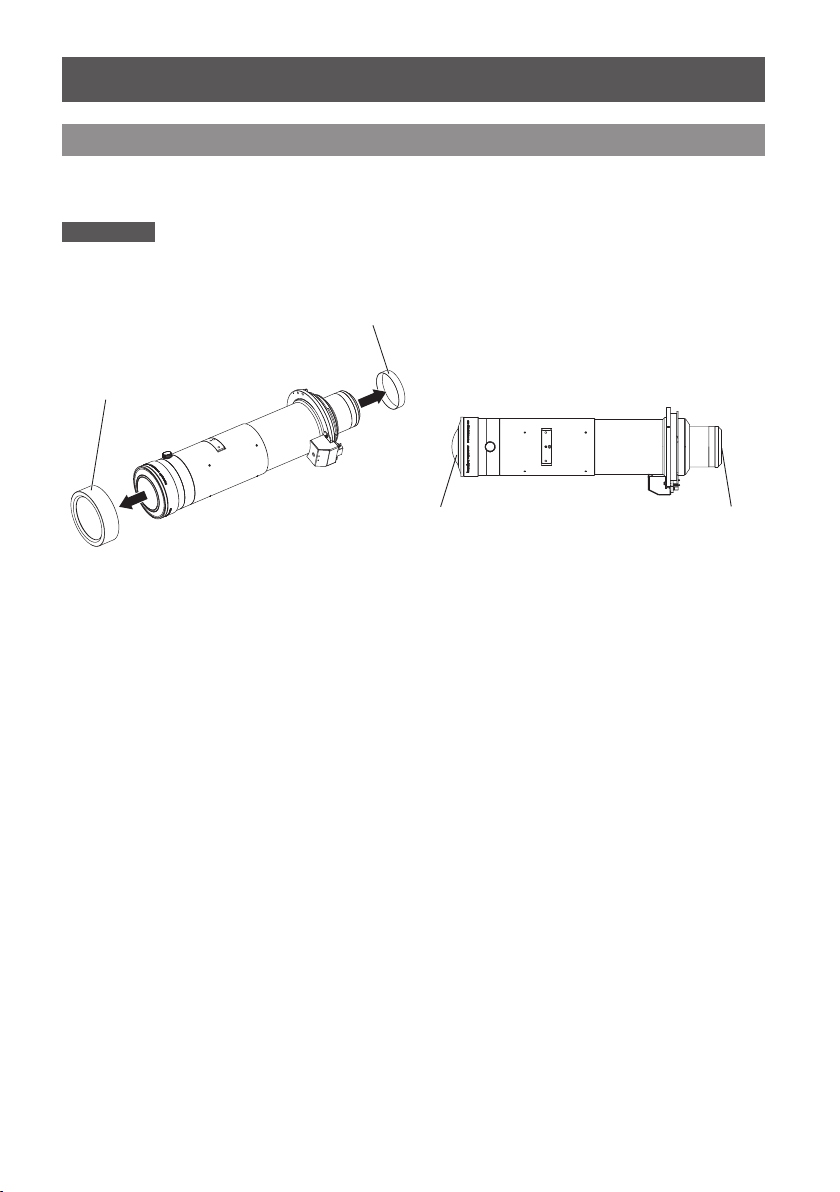

Lens cover

Lens surface Lens surface

zDo not tough the lens surface with your bare hands. Any ngerprints or smudges on these surfaces will be

magnied and lower the quality of the image displayed on the screen.

zThe lens is made of glass. The lens could be damaged if brought into contact with or rubbed against hard

objects. Handle the lens carefully.

zWipe off any dust or particles on the lens with a cloth that is soft, dry, and clean.

Do not wipe with uffy cloths, cloths that contain oil or water, or dusty cloths.

zWhen using the sheye lens, we recommend using it with the ET-PLF10C lens xing attachment.

zWhen using the ET-PLF10C lens xing attachment, the mounting bracket may not attach properly if the lens is

not moved to the home position before attaching.

Attaching the Lens / Detaching the Lens

6-ENGLISH

The illustration for this procedure uses PT-SRZ21KC

as an example.

1) Insert the sheye lens while

aligning its marker (orange) with

the marker on the projector (○ to

the left of "LOCK"), and turn it

clockwise until it clicks into place.

2) Use the lens drop prevention

screw supplied with the projector

to secure the sheye lens.

zUse a Phillips screwdriver to secure the

screw in the hole to the right of the marker

(orange) on the sheye lens (see left

illustration).

Attention

zGently turn the sheye lens counterclockwise,

and verify that it is secure.

(

)(

)

(

)(

)

Orange color

Lens drop prevention screw

Attaching the Lens

Attaching the Lens / Detaching the Lens (continued)

Attention

zFor projectors that have a projection lens cover, remove it rst. For details, see "Attaching/removing the

projection lens (optional)” in the operating instructions for the projector you are using.

zAfter attaching the projection lens, turn on the projector and perform lens calibration. (xpage 7)

ENGLISH-7

Lens calibration

Perform lens calibration after attaching the lens.

The lens calibration procedure differs depending on the projector you are using and the main version of the

rmware.

zPT-SRQ32KC / PT-SRZ31KC / PT-SRS30KC: Main version is 3.00 or later

Refer to "Case 1" (xpage 7).

zPT-SRZ21KC / PT-SRS20KC: Main version is 2.00 or later

Refer to "Case 1" (xpage 7).

zPT-SRQ13KC / PT-SRZ12KC / PT-SRS11KC / PT-SDZ21K2C / PT-SDS20K2C /

PT-SDW17K2C /

PT-SDZ18K2C / PT-SDZ985C / PT-SDS955C / PT-SDW935C / PT-SDZ981C

Refer to "Case 2" (xpage 9).

■Case 1

zPT-SRQ32KC / PT-SRZ31KC / PT-SRS30KC (main version of the rmware is 3.00 or later)

zPT-SRZ21KC / PT-SRS20KC (main version of the rmware is 2.00 or later)

Attaching the Lens / Detaching the Lens (continued)

1) Press the < 菜单 > button.

zThe [MAIN MENU] screen appears.

2) Use the ▲ and ▼ buttons to select

[PROJECTOR SETUP].

3) Press the < 执行 > button.

zThe [PROJECTOR SETUP] screen appears.

4) Use the ▲ and ▼ buttons to select

[LENS].

5) Press the < 执行 > button.

zThe [LENS] screen appears.

MAIN MENU


POSITION

ADVANCED MENU

DISPLAY LANGUAGE

DISPLAY OPTION

3D SETTINGS

PROJECTOR SETUP

TEST PATTERN

SIGNAL LIST

SECURITY

NETWORK

MENU SELECT

SUB MENU

P IN P

执行

1/2

PROJECTOR SETUP

PROJECTOR ID ALL

PROJECTION METHOD

LENS

OPERATION SETTING NORMAL

LIGHT OUTPUT 100.0%

BRIGHTNESS CONTROL AUTO

STANDBY MODE NORMAL

NO SIGNAL SHUT-OFF DISABLE

NO SIGNAL LIGHTS-OUT DISABLE

INITIAL STARTUP LAST MEMORY

STARTUP INPUT SELECT LAST USED

DATE AND TIME

SUB MENU

MENU SELECT

执行

8-ENGLISH

Note

zThe lens position set here may not match the intended standard position exactly.

zEven after moving the lens to the home position with this procedure, you can adjust the position of the

projected image within the lens shift ranges shown in the “Lens shift ranges” (Page 15).

6) Use the ▲ and ▼ buttons to select

[LENS CALIBRATION].

7) Press the < 执行 > button.

zThe conrmation screen appears.

8) Use the ◄ and ► buttons to select [OK],

and press the < 执行 > button.

zLens calibration starts.

zThe projection lens moves to the home position after

adjustment range calibration is complete.

SUB MENU

MENU SELECT

执行

LENS

LENS TYPE ET-D3LEF70C

LENS INFORMATION SETTING

LENS MEMORY

LENS HOME POSITION

ACTIVE FOCUS OPTIMIZER

LENS CALIBRATION

LENS CALIBRATION : ET-D3LEF70C

Proceed LENS CALIBRATION,

and return to HOME POSITION.

EXECUTE

CHANGE

执行

CANCEL

Attaching the Lens / Detaching the Lens (continued)

ENGLISH-9

■Case 2

zPT-SRQ13KC / PT-SRZ12KC / PT-SRS11KC

zPT-SDZ21K2C / PT-SDS20K2C / PT-SDW17K2C / PT-SDZ18K2C

zPT-SDZ985C / PT-SDS955C / PT-SDW935C / PT-SDZ981C

1) Press the < 菜单 > button.

zThe [MAIN MENU] screen appears.

2) Use the ▲ and ▼ buttons to select

[PROJECTOR SETUP].

3) Press the < 执行 > button.

zThe [PROJECTOR SETUP] screen appears.

zSet [PROJECTION METHOD] to [FRONT/CEILING]

or [REAR/CEILING] for oor installations or [FRONT/

FLOOR] or [REAR/FLOOR] for ceiling installations.

4) Use the ▲ and ▼ buttons to select

[LENS CALIBRATION].

5) Use the ◄ and ► buttons to select

[NORMAL].

6) Press the < 执行 > button.

zThe conrmation screen appears.

MAIN MENU


POSITION

ADVANCED MENU

DISPLAY LANGUAGE

DISPLAY OPTION

3D SETTINGS

PROJECTOR SETUP

TEST PATTERN

SIGNAL LIST

SECURITY

NETWORK

MENU SELECT

SUB MENU

P IN P

执行

2/3

INITIAL STARTUP

DATE AND TIME

STARTUP INPUT SELECT

TIME ZONE OFF

RS-232C

REMOTE2 MODE

FUNCTION BUTTON

LENS CALIBRATION

LENS MEMORY

NORMAL

STATUS

AC VOLTAGE MONITOR OFF

SAVE ALL USER DATA

PROJECTOR SETUP

LAST USED

DEFAULT

LAST MEMORY

SET

CHANGEMENU SELECT

执行

Attaching the Lens / Detaching the Lens (continued)

10-ENGLISH

Note

zThe lens position set here may not match the intended standard position exactly.

zEven after moving the lens to the home position with this procedure, you can adjust the position of the

projected image within the lens shift ranges shown in the “Lens shift ranges” (Page 15).

7) Use the ◄ and ► buttons to select [OK],

and press the < 执行 > button.

zLens calibration starts.

zThe projection lens moves to the home position after

adjustment range calibration is complete.

EXECUTE

CHANGE

执行

LENS CALIBRATION

Proceed LENS CALIBRATION,

and return to HOME POSITION.

CANCEL

Attaching the Lens / Detaching the Lens (continued)

Table des matières

Autres manuels Panasonic Objectif de l'appareil photo

Panasonic

Panasonic L-X025 - Leica D Summilux Lens Manuel utilisateur

Panasonic

Panasonic S-E70200 Manuel utilisateur

Panasonic

Panasonic HX025 Manuel utilisateur

Panasonic

Panasonic Lumix H-H020 Manuel utilisateur

Panasonic

Panasonic Lumix H-X015 Manuel utilisateur

Panasonic

Panasonic S-R2060 Manuel utilisateur

Panasonic

Panasonic H-NS043 Manuel utilisateur

Panasonic

Panasonic WV-LA36 Manuel utilisateur

Panasonic

Panasonic H-FS35100PP Manuel utilisateur

Panasonic

Panasonic Lumix DMC-G1KPP Manuel utilisateur

Panasonic

Panasonic H-HS030 Manuel utilisateur

Panasonic

Panasonic Lumix H-VS014140 Manuel utilisateur

Panasonic

Panasonic H-FS35100 Manuel utilisateur

Panasonic

Panasonic WV-LA6B2 Manuel utilisateur

Panasonic

Panasonic LUMIX G X Vario 45-175mm f/4.0-5.6 Manuel utilisateur

Panasonic

Panasonic LUMIX S PRO Manuel utilisateur

Panasonic

Panasonic Lumix S-R70200 Manuel utilisateur

Panasonic

Panasonic Lumix S S-S85 Manuel utilisateur

Panasonic

Panasonic ET-DLE170 Manuel utilisateur

Panasonic

Panasonic H-H025 Manuel utilisateur

Panasonic

Panasonic H-HS043 Manuel utilisateur

Panasonic

Panasonic H-FS1442APP Manuel utilisateur

Panasonic

Panasonic ET-D3LEW10 Manuel utilisateur

Panasonic

Panasonic WV-LZ80 Guide de l'utilisateur

Manuels Objectif de l'appareil photo populaires d'autres marques

THORLABS

THORLABS ELL15 Manuel utilisateur

FUJICA

FUJICA ZC1000 Manuel utilisateur

Tamron

Tamron A09 Manuel

Sony

Sony SEL-55210 Manuel utilisateur

Sony

Sony VCL-HG2037 Manuel utilisateur

Honeywell

Honeywell HLM25V6F12 Manuel utilisateur

Sony

Sony VCL-ST30 Manuel utilisateur

Canon

Canon FD 35 - 70 mm Manuel utilisateur

Sony

Sony SAL-85F14Z - 85mm f1.4 Carl Zeiss Planar T Coated Telephoto... Manuel utilisateur

ARRI

ARRI Lenses Manuel utilisateur

Nikon

Nikon AF-S VR 24-120 f/3.5-5.6G IF-ED Manuel utilisateur

Rokinon

Rokinon DS50M-C Manuel utilisateur

Olympus

Olympus M.Zuiko Digital ES 300mm f4.0 IS PRO Manuel utilisateur

Sony

Sony VCL-DE07T Manuel utilisateur

Canon

Canon FD Lens Manuel

Tamron

Tamron A036 Manuel utilisateur

Samsung

Samsung 20-50mm F3.5-5.6 ED II Manuel utilisateur

Tamron

Tamron 272E Manuel utilisateur
